Smart Power Conversion: Intelligent DC-DC Charging for Advanced Vehicle Systems

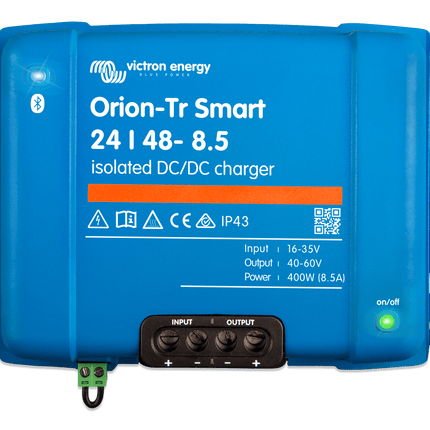

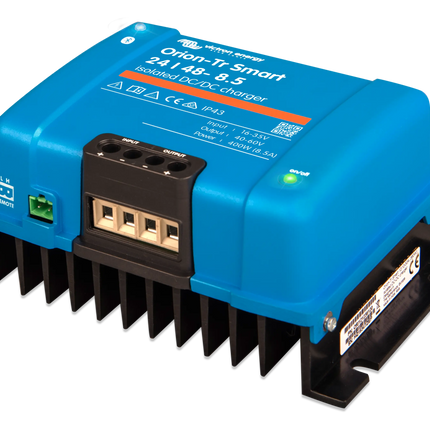

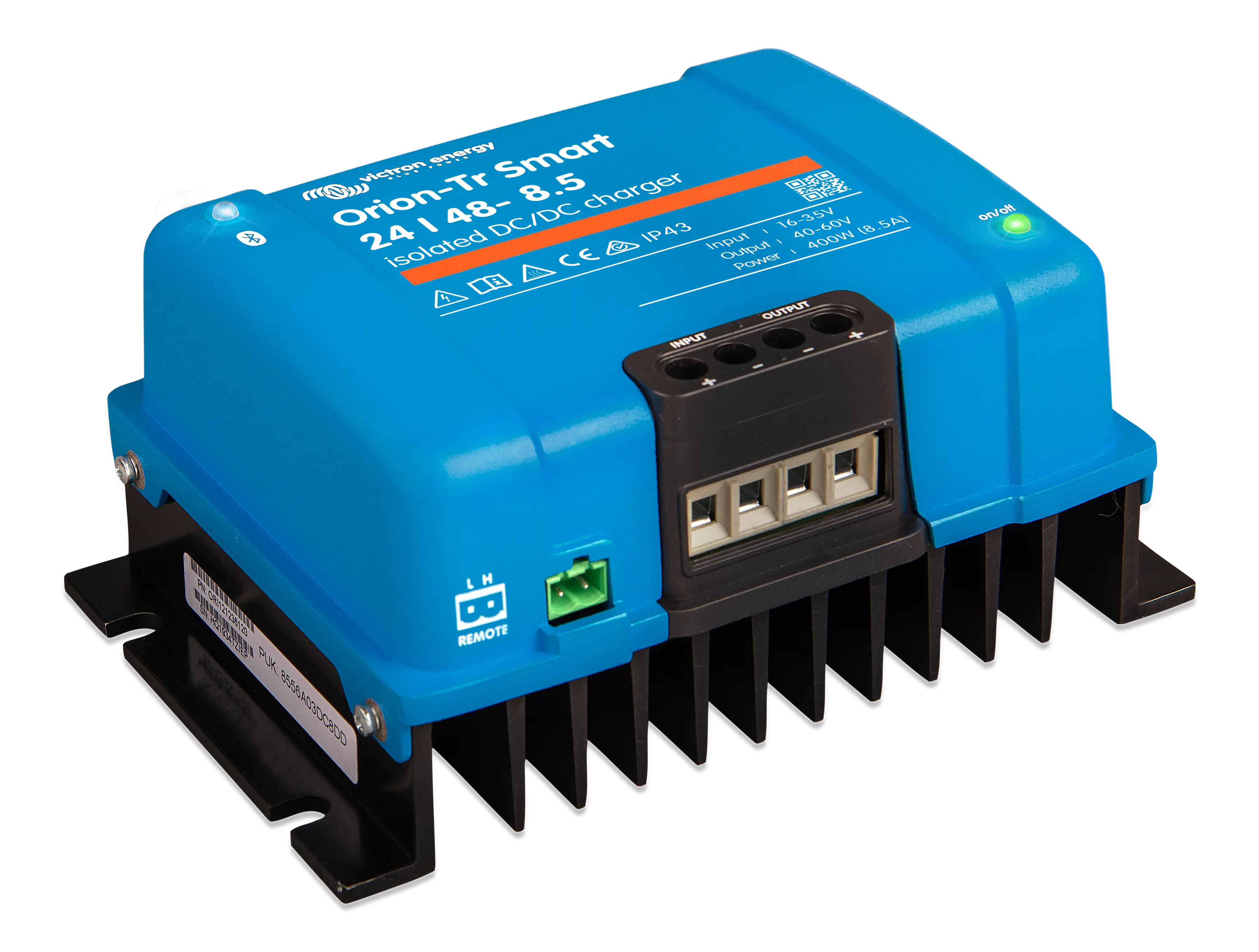

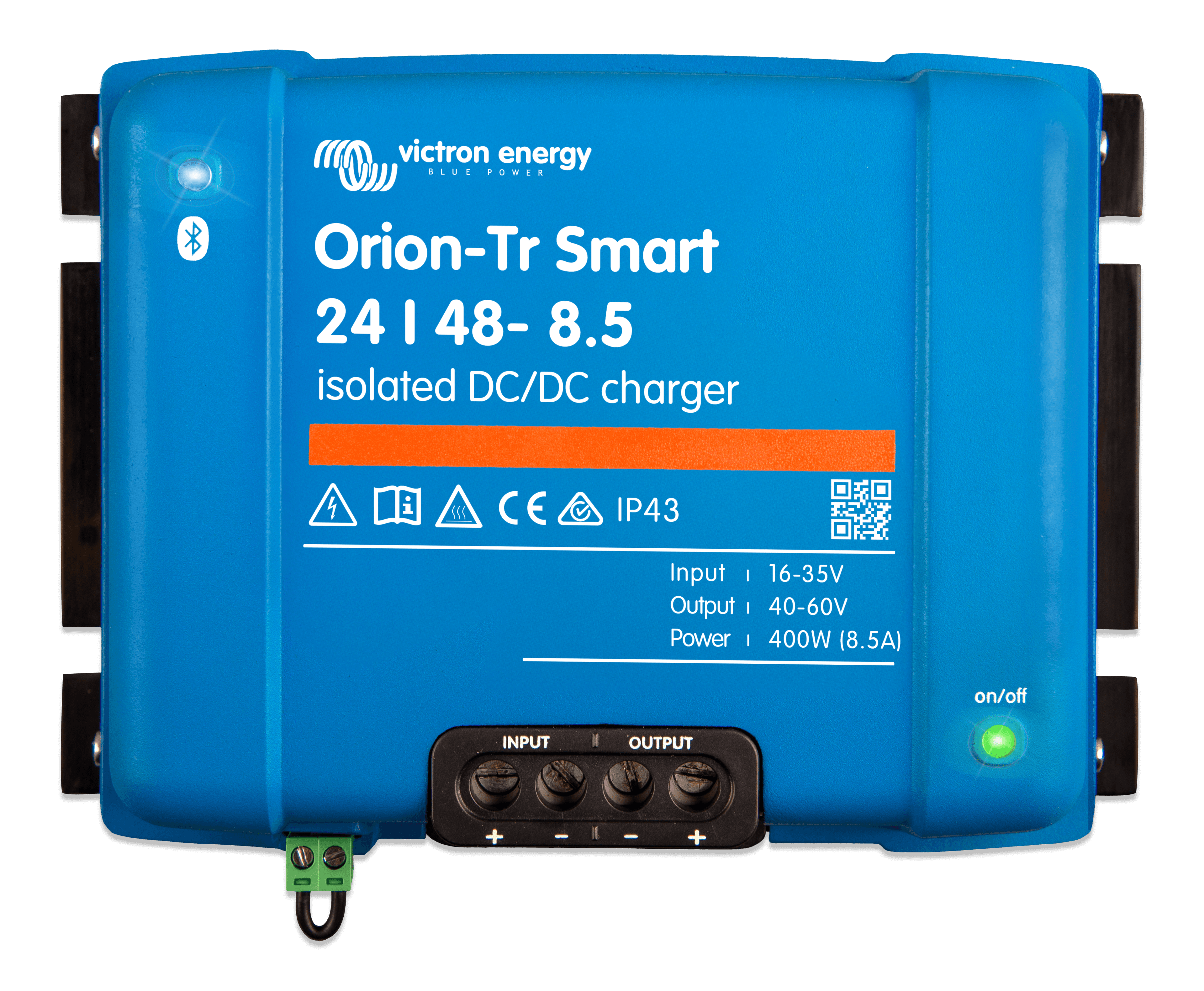

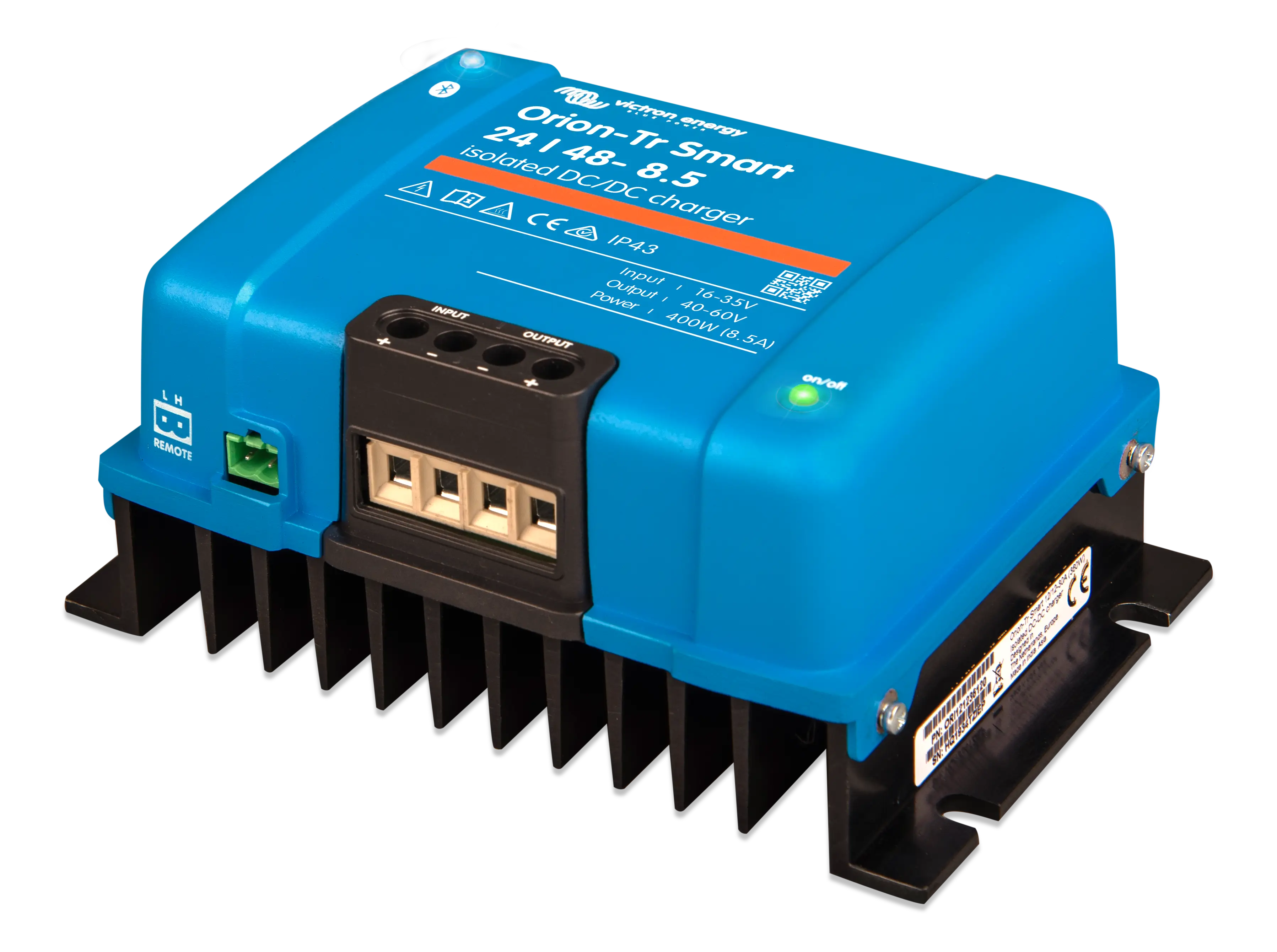

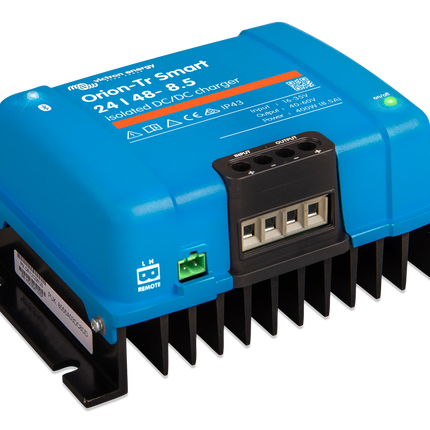

The Victron Energy Orion-Tr Smart DC-DC Charger is a sophisticated power management solution designed for modern vehicles with complex electrical systems. Engineered to work seamlessly with smart alternators, this isolated DC-DC converter provides intelligent charging and power supply across multiple voltage configurations, ensuring optimal battery performance and system protection.
Victron Energy ORI244840120 Features & Benefits:
-
Smart Alternator Compatibility: Intelligent engine-running detection prevents starter battery discharge in modern ECU-controlled vehicles
-
Advanced Charging Algorithm: Three-step charging (Bulk-Absorption-Float) maximizes battery life and performance
-
Comprehensive Protection: Built-in safeguards against overload, short circuit, and temperature variations
-
Flexible Configuration: Eight preprogrammed battery settings with customizable charging profiles
-
Remote Monitoring: Configure and track performance via VictronConnect app on smartphone or tablet
Technical Specifications:
- Efficiency: 87%
- Operating Temperature: -20°C to +55°C
- No-load Input Current: < 80mA
- Standby Current: <1 mA
- Maximum Cable Cross-section: 16 mm² (AWG6)
- Humidity: Max 95% non-condensing
Compatible With / Goes Well With
- 12V, 24V, and 48V battery systems
- Smart alternator vehicles
- Marine and recreational vehicle installations
- Solar power systems
- Battery management systems
- Victron energy monitoring products
Frequently Asked Questions
-
Will this work with my vehicle's electrical system?
Compatible with multiple input voltage ranges and vehicle types, including those with smart alternators.
-
How complex is the installation?
Designed for straightforward integration with screw terminals and no additional sensors required.
-
Can I customize the charging profile?
Yes, eight preset battery modes and full VictronConnect app configuration available.
- Is it protected against electrical issues?
