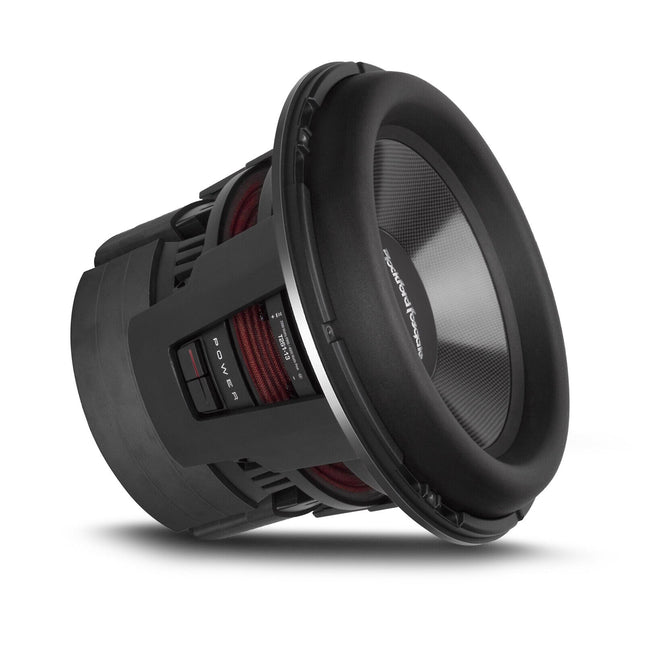

13" Power T2 Single 2-Ohm Subwoofer Glass Fibre/Aramid Honeycomb Sandwich Cone, 4" Edge-Wound Aluminium Voice Coil, Triple-Stack Ferrite Motor, IDHS, 8-AWG Terminals. Product Overview The Rockford Fosgate Power T2S2-13 is a 13" effective radiating area Single Voice Coil (SVC) subwoofer the 2-Ohm variant of the T2S1-13 platform. The construction is identical to the T2S1-13 with the sole difference being the 2-Ohm voice coil impedance, which provides broader amplifier compatibility than the 1-Ohm T2S1-13. All confirmed T2 platform construction applies: three-layer glass fibre/aramid honeycomb/glass fibre sandwich cone, aluminium dustcap, VAST injection-moulded foam surround with mechanical clamping ring, dual Nomex progressive spiders, die-cast aluminium frame with integrated heat sink fins, single-layer edge-wound aluminium 4" voice coil, triple-stack segmented ferrite motor, integrated aluminium IDHS shorting ring, vented pole piece, and 8-AWG push spring terminals. Key Specifications Effective radiating diameter: 13 inch (cone + surround) Physical basket diameter: Not confirmed — confirm with Rockford Fosgate Voice coil configuration: Single Voice Coil (SVC) Impedance: Title and SKU indicate 2-Ohm — description says 1-Ohm — confirm with Rockford Fosgate Power handling (RMS): Not stated  Voice coil: Single-layer edge-wound aluminium, 4" Cone: Three-layer glass fibre / aramid honeycomb / glass fibre sandwich Dustcap: Aluminium Surround: Injection-moulded VAST foam, proprietary mechanical clamping ring Spider: Dual Nomex progressive with integrated lead wires Frame: Die-cast aluminium with integrated heat sink fins Motor: Triple-stack segmented ferrite Shorting ring: Integrated aluminium IDHS Pole piece: Vented Input terminals: Custom push spring insulated 8-AWG Trim ring: Detachable die-cast aluminium Enclosure type: Not specified Sensitivity / Fs / Xmax / Qts: Not confirmed Mounting depth: Not confirmed Cutout diameter: Not confirmed Enclosure volume: Not confirmed Sold as: Individual unit Weight: 42.5 kg Warranty: Not confirmed Features & Benefits 13" Effective Radiating Area — Total effective piston area (cone plus surround). Physical basket and cutout dimensions must be confirmed from the official T2S2-13 datasheet. 2-Ohm SVC — Broader Amplifier Compatibility Than T2S1-13 — A 2-Ohm SVC is supported by a wider range of high-output mono amplifiers than the 1-Ohm T2S1-13, which requires amplifiers specifically rated stable at 1-Ohm. Two T2S2-13 units in series = 4-Ohm; two in parallel = 1-Ohm (confirm amplifier stability before using 1-Ohm parallel). Glass Fibre / Aramid Honeycomb / Glass Fibre Sandwich Cone — Aerospace-grade structural composite for maximum stiffness and minimum mass — identical construction to T2S1-13. 4" Edge-Wound Aluminium Voice Coil — Largest voice coil in the catalogue; flat-wound conductor for maximum BL product and thermal capacity. Triple-Stack Segmented Ferrite Motor — Deep, high-flux magnetic gap for the 4" voice coil; segmented construction reduces eddy current losses. IDHS Aluminium Shorting Ring — Dual-function: distortion reduction (inductance variation) and heat conduction through the frame's heat sink fins. Die-Cast Aluminium Frame with Integrated Heat Sink Fins — Direct thermal management from motor gap to air. Dual Nomex Progressive Spiders — Progressive compliance for controlled high-excursion operation. Proprietary Surround Mechanical Clamping Ring — Long-term surround durability under sustained large-amplitude movement. 8-AWG Push Spring Terminals — Heaviest gauge wiring in this catalogue. Technical Specs Specification Detail Brand Rockford Fosgate Part Number T2S2-13 Series Power T2 Effective Radiating Area 13 inch ✓ Physical Basket Diameter Not confirmed Voice Coil Single Voice Coil (SVC) Impedance Title/SKU: 2-Ohm / Description: 1-Ohm — confirm with Rockford Fosgate Power Handling (RMS) Not confirmed Voice Coil Single-layer edge-wound aluminium 4" ✓ Cone Glass Fibre / Aramid Honeycomb / Glass Fibre Sandwich ✓ Dustcap Aluminium ✓ Surround VAST Injection-Moulded Foam + Mechanical Clamping Ring ✓ Spider Dual Nomex Progressive, Integrated Lead Wires ✓ Frame Die-Cast Aluminium + Integrated Heat Sink Fins ✓ Motor Triple-Stack Segmented Ferrite ✓ Shorting Ring Integrated Aluminium IDHS ✓ Pole Piece Vented ✓ Input Terminals Push Spring 8-AWG ✓ Trim Ring Detachable Die-Cast Aluminium ✓ Enclosure Type Not specified All Other Specs Not confirmed Sold As Individual Unit Warranty Not confirmed Weight 42.5 kg Frequently Asked Questions What is the impedance of the T2S2-13? The product title states 2-Ohm and the SKU designation "S2" indicates Single 2-Ohm. The product description text states "a single 1-ohm voice coil" — this appears to be copied from the T2S1-13 (1-Ohm) description without updating the impedance reference. Confirm the correct impedance with Rockford Fosgate before purchasing. What is the difference between T2S2-13 and T2S1-13? Assuming the T2S2-13 is the 2-Ohm variant as indicated by the title and SKU: both are identical 13" T2 subwoofers in construction. The T2S2-13's 2-Ohm impedance suits a broader range of mono amplifiers than the T2S1-13's 1-Ohm, which requires amplifiers specifically rated stable at 1-Ohm. What is the power handling? Not confirmed in the supplier data — same blocker as T2S1-13. Confirm from the official T2S2-13 datasheet. What enclosure is required? Enclosure type not specified. Confirm from the official T2S2-13 datasheet. What amplifier is appropriate? Amplifier guidance cannot be published until the impedance conflict is resolved and the RMS power is confirmed. Confirm both with Rockford Fosgate before purchasing. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

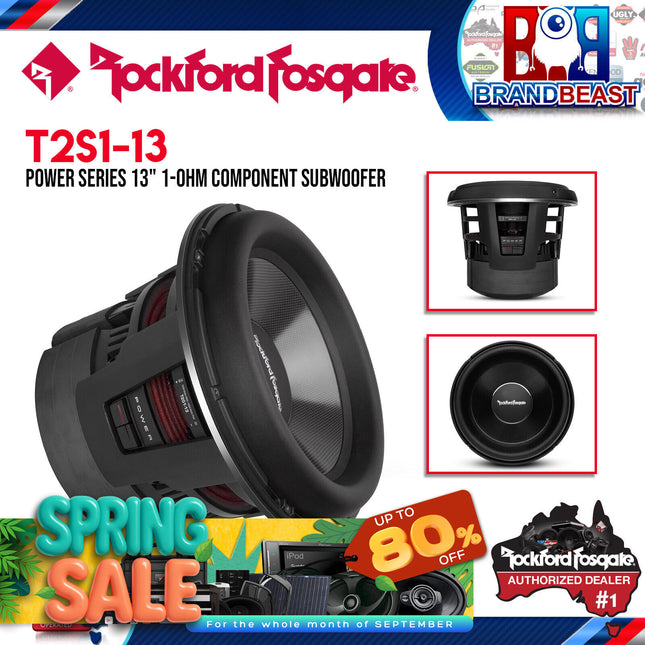

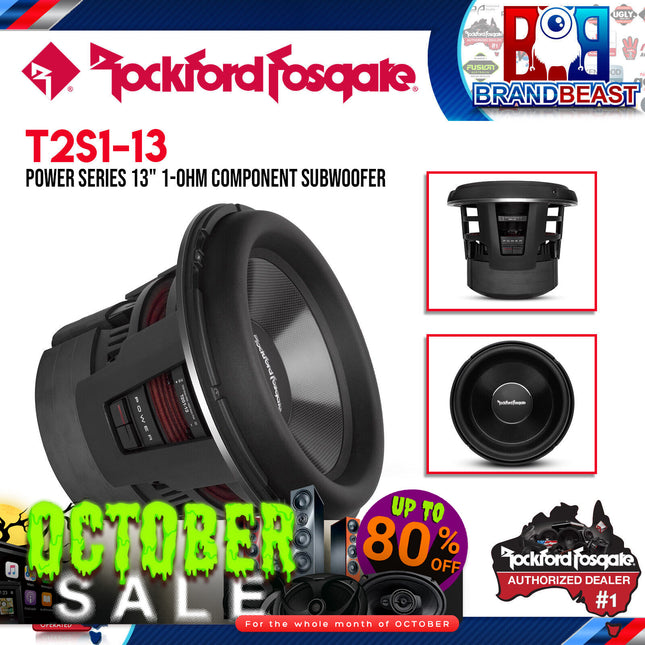

13" Power T2 Single 1-Ohm Subwoofer Glass Fibre/Aramid Honeycomb Sandwich Cone, 4" Edge-Wound Aluminium Voice Coil, Triple-Stack Ferrite Motor, IDHS, 8-AWG Push Spring Terminals. Product Overview The Rockford Fosgate Power T2S1-13 is a 13" effective radiating area Single Voice Coil (SVC) subwoofer with a 1-Ohm impedance from the Power T2 series, designed from the ground up as a high-performance large-format driver. The "13 inches" designation describes the total effective radiating cone area, which includes both the cone and surround assembly the physical basket and cutout dimensions must be confirmed from the official Rockford Fosgate T2S1-13 datasheet. The T2S1-13 introduces several constructions not found elsewhere in this catalogue: a three-layer glass fibre/aramid honeycomb/glass fibre sandwich cone; a single-layer edge-wound aluminium 4" voice coil; a triple-stack segmented ferrite motor structure; a proprietary surround mechanical clamping ring; and 8-AWG custom push spring terminals the heaviest gauge wiring connection in any subwoofer in this batch. The die-cast aluminium frame has integrated heat sink fins and an integrated aluminium IDHS shorting ring. Key Specifications Effective radiating diameter: 13 inch (cone + surround combined) Physical basket diameter: Not confirmed — confirm with Rockford Fosgate Voice coil configuration: Single Voice Coil (SVC) Impedance: 1-Ohm Power handling (RMS): Not stated Voice coil: Single-layer edge-wound aluminium, 4" diameter Cone: Three-layer glass fibre / aramid honeycomb / glass fibre sandwich Dustcap: Aluminium Surround: Injection-moulded foam with VAST, proprietary mechanical clamping ring Spider: Dual Nomex progressive with integrated lead wires Frame: Die-cast aluminium with integrated heat sink fins Motor: Triple-stack segmented ferrite Shorting ring: Integrated aluminium IDHS Pole piece: Vented Input terminals: Custom push spring insulated 8-AWG Trim ring: Detachable die-cast aluminium Enclosure type: Not specified — confirm with Rockford Fosgate Sensitivity: Not specified — confirm with Rockford Fosgate Fs / Xmax / Qts: Not specified — confirm with Rockford Fosgate Mounting depth: Not specified — confirm with Rockford Fosgate Cutout diameter: Not specified — confirm with Rockford Fosgate Enclosure volume: Not specified — confirm with Rockford Fosgate Sold as: Individual unit Weight: Not specified Warranty: Not specified — confirm with Rockford Fosgate Features & Benefits 13" Effective Radiating Area — The T2S1-13's 13" rating describes the total effective piston area (cone plus surround), rather than the conventional cone-only diameter measurement. This is a non-standard format — confirm the physical basket dimensions, cutout diameter, and mounting depth from the official Rockford Fosgate T2S1-13 datasheet before building an enclosure or purchasing a pre-built box. Glass Fibre / Aramid Honeycomb / Glass Fibre Sandwich Cone — A three-layer structural composite cone: glass fibre outer and inner skins provide rigidity, while an aramid honeycomb core (a grid structure of hexagonal cells made from aramid fibre) provides the shear stiffness to resist the out-of-plane forces that cause cone breakup. Aramid honeycomb is used in aerospace and motorsport structural panels. This construction produces a very stiff, low-mass cone for high-excursion bass reproduction. 4" Edge-Wound Aluminium Single Voice Coil — A 4" voice coil is the largest in any subwoofer in this catalogue. Edge-wound construction winds the aluminium conductor wire on its edge (flat-wound), maximising the amount of conductor per unit of axial winding height and increasing the voice coil's force factor (BL). This contributes to the motor's ability to drive the large cone assembly to high excursion levels. Triple-Stack Segmented Ferrite Motor — Three ferrite magnet plates stacked to produce a deep, high-flux magnetic gap suitable for the 4" voice coil. The segmented design uses separate magnet segments rather than a continuous ring — reducing eddy current losses. Ferrite rather than neodymium — selected for the thermal stability and deep magnetic gap appropriate to a sustained high-power, large-format application. Integrated Aluminium IDHS Shorting Ring — The aluminium cap on the pole piece serves dual functions: reducing voice coil inductance variation (distortion reduction) and conducting heat from the magnetic gap into the frame's heat sink fins. Die-Cast Aluminium Frame with Integrated Heat Sink Fins — Direct thermal conduction from the motor gap to the surrounding air through the aluminium frame's heat sink fins — critical for a driver of this power level. Dual Nomex Progressive Spiders — Two progressive-compliance spiders provide controlled suspension across a wide excursion range — the progressive spring rate increases stiffness as the cone approaches excursion limits, protecting the voice coil at high output levels. Proprietary Surround Mechanical Clamping Ring — A mechanical clamping ring is used to secure the surround at the basket edge — a physical fastening method rather than standard adhesive bonding, chosen for long-term durability under the mechanical stress of large-amplitude, high-power cone movement. 8-AWG Push Spring Terminals — The heaviest gauge input terminals in this catalogue — 8-AWG push spring type, accommodating very thick wiring appropriate for the expected high current demand at the T2S1-13's power level. VAST Foam Surround — Injection-moulded foam with VAST geometry for increased effective cone area. Technical Specs Specification Detail Brand Rockford Fosgate Part Number T2S1-13 Series Power T2 Effective Radiating Area 13 inch (cone + surround) ✓ Physical Basket Diameter Not confirmed — confirm with Rockford Fosgate Voice Coil Single Voice Coil (SVC) Impedance 1-Ohm ✓ Power Handling (RMS) Not confirmed Voice Coil Size 4" edge-wound aluminium ✓ Cone Glass Fibre / Aramid Honeycomb / Glass Fibre Sandwich ✓ Dustcap Aluminium ✓ Surround Injection-Moulded VAST Foam, Mechanical Clamping Ring ✓ Spider Dual Nomex Progressive, Integrated Lead Wires ✓ Frame Die-Cast Aluminium with Integrated Heat Sink Fins ✓ Motor Triple-Stack Segmented Ferrite ✓ Shorting Ring Integrated Aluminium IDHS ✓ Pole Piece Vented ✓ Input Terminals Push Spring 8-AWG ✓ Trim Ring Detachable Die-Cast Aluminium ✓ Enclosure Type Not specified — confirm with Rockford Fosgate Sensitivity Not confirmed Fs / Xmax / Qts Not confirmed Mounting Depth Not confirmed Cutout Diameter Not confirmed Enclosure Volume Not confirmed Sold As Individual Unit Weight Not confirmed Warranty Not confirmed   Frequently Asked Questions What does "13 inches effective radiating area" mean? Unlike standard subwoofer diameter measurements (which typically measure the cone only), the T2S1-13's 13" measurement describes the total effective piston area — the combined diameter of both the cone and the surround that contributes to acoustic output. The physical basket is likely larger than 13". Confirm the actual basket diameter and cutout dimensions from the official Rockford Fosgate T2S1-13 datasheet. What is aramid honeycomb and why is it used in the cone? Aramid honeycomb is a grid of hexagonal cells made from aramid fibre (the same material as Kevlar). When sandwiched between glass fibre skins, the honeycomb core provides exceptional structural rigidity against the out-of-plane bending forces that cause cone breakup during high-excursion bass reproduction. The honeycomb structure achieves this with extremely low mass — a key property for a large cone that must move quickly and accurately. What is edge-wound voice coil construction? In a standard voice coil, round wire is wound in circular loops. In an edge-wound (flat-wound) design, the conductor is a flat ribbon wound on its edge — packing more conductor material per unit of winding height. This increases the voice coil's force factor (BL product) and power-handling capacity in the same coil height, contributing to the motor's ability to drive the large 13" cone assembly. What is the power handling of the T2S1-13? Power handling (RMS) is not stated in the supplier description or features list. Confirm from the official Rockford Fosgate T2S1-13 datasheet before purchasing any amplifier or publishing any power matching guidance. What enclosure does the T2S1-13 require? Enclosure type (sealed or vented) is not specified in the supplier data — unlike all other subwoofers in this batch. Confirm from the official Rockford Fosgate T2S1-13 datasheet before building or selecting an enclosure. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less
