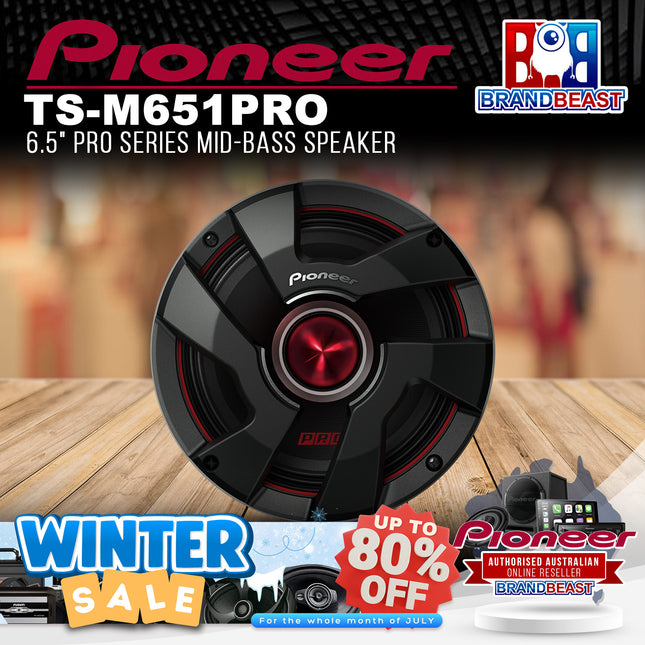

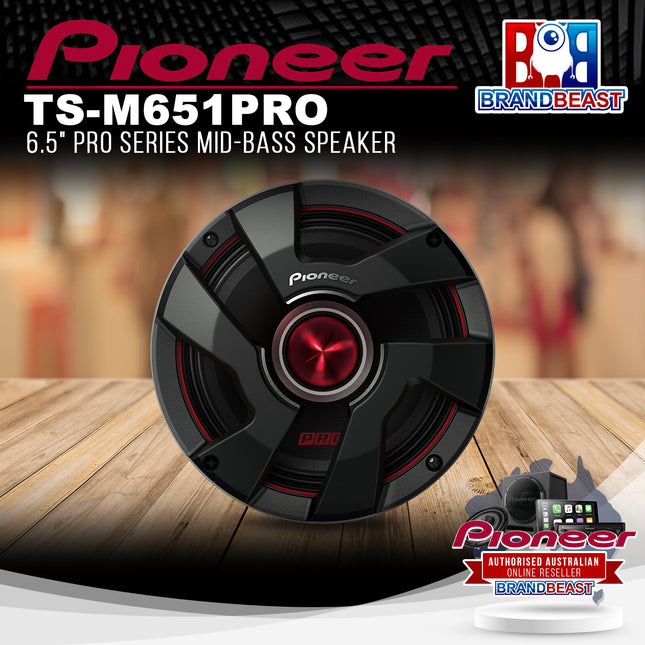

Are You Ready to Go P.R.O.?
The P.R.O. series of speakers is designed specifically for those looking to produce some serious sound pressure levels. Inspired by Pioneer's history of record-breaking SPL competition, the new P.R.O. series line of speakers is constructed with the street enthusiast in mind. With an emphasis on efficiency and power handling, the P.R.O. series lineup consists of bullet tweeters, mid-bass drivers, and a subwoofer that can be mixed and matched to deliver impressive output, without requiring an impressive investment.
The TS-M651PRO mid-bass driver delivers the perfect balance of power handling and output to compliment the crisp highs from the bullet tweeters. Anchored by high-strength, stamped steel frames, the mid-bass drivers feature lightweight blended pulp cones suspended by a corrugated surround and motivated by oversized magnets resulting in copious amounts of sensitivity, excursion, and power handling.
Features:
500 Watts Max Power (120 Watts Nominal)
Lightweight & Rigid Pulp Cone
Designed for High Sensitivity and High Power Handling
Specifications:
System Type Mid-Bass Drive
Frequency Range 50 Hz to 18 kHz
Maximum Peak Power Handling 500 Watts
Shape Round
Sound Pressure Level (Sensitivity) 94dB
Continuous Power Handling (RMS) 120 Watts
Continuous Power Handling (RMS) 120 Watts
Size 6-1/2"
Cone Material Lightweight/ Rigid Pulp
Surround Type Corrugated
Magnet Material Ferrite
Voice Coil Bobbin Glass imide
Spider Material Polyester and cotton
Unit Size (mm - in.) 168mm - 6-5/8"
Cut Out Dimensions (mm - in.) 150mm - 5-7/8"
Surround Material Cloth
Basket Material Stamped Metal
Magnet Weight 35.0 oz
Voice Coil Wire Copper-clad Aluminum
Wire Terminals Lug Type
Mounting Depth (mm - in.) 81mm - 3-1/8"
Legendary Products & Support From Authorized Dealers
When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Pioneer dealer today!
Infinity Kappa 203S 2" (50mm) Silk Dome Midrange with Bandpass Crossover Enclosure: Infinity's Kappa Speakers Set A New Standard In Car Audio! Infinity Kappa Series speakers, available in all standard sizes, are designed to bring a new standard of excellence in car audio to virtually any vehicle. Kappa's Plus One™ fiberglass woofers deliver high-output, deep and robust bass. The high-resolution 3/4" edge-driven textile dome tweeters deliver soaring highs up to 40kHz. 2" and 3" midranges are available to upgrade two-way component systems into three-way. The compact 3" midrange speakers also offer a perfect plug-and-play solution with low frequency response to 300Hz, and high sensitivity.Infinity INFSPKKA203S Features:40kHz High-resolution Silk Dome TweeterKappa edge-driven silk dome tweeters equipped with oversized voice coils deliver silky smooth highs with impressive thermal power handling and 40kHz high resolution.Patented Plus One™ Glass Fiber WoofersInfinity's glassfiber woofer cones are lighter and stiffer with more cone-area than the competition, delivering increased low-frequency output and higher efficiency. Hearing is believing .0dB or -3dB Tweeter Output Level ControlThe push-button on the angled tweeter allows tweeter output level control of 0dB or -3dB to optimize system linearity based on installation location.UniPivot and Angled TweeterFor 5-1/4‚Äù, 6-1/2‚Äù and 6‚Äùx 8‚Äù coaxial models, the tweeters are angled and can be rotated 270¬∞ after installation on most models. This gives you imaging options and the ability to elevate the soundstage on low mounted speakers.3-way UpgradabilityKappa 2-way component system crossovers are compact and equipped with 2-way and 3-way selections to accommodate a 2‚Äù or 3‚Äù midrange upgrade. The optional 2‚Äù or 3‚Äù midrange includes a bandpass crossover to upgrade a two-way system into a three-way system with perfect tonal balance.Super Compact Design and High Sensitivity 3‚Äù Midrange SpeakerKappa 3‚Äù midrange delivers low-frequency response to 300Hz while keeping high sensitivity over 89dB.The super compact design and premium performance allows the midrange to fit more vehicles without sacrificing any of your audio experience.Sleek and Powerful Industry DesignThe essence of form and function, Kappa tweeters are elegantly designed deliver a car audio experience as powerful as it is beautifulSlim and Smart Crossover DesignKappa component systems all have very slim crossovers, which equipped with connection cable for easy installation. The push-button on crossover allows tweeter output level control of 0dB or -3dB to optimize system linearity based on installation location.What's In The Box: 2 x Midrange driver 2 x Grilles 2 x Crossovers 2 x Cables 2 x Custom Fit Mounting Adapters 2 x Foam gaskets 24 x Screws 8 x Speed clips 1 x Allen head bit (2.5mm) 2 x Infinity logo badges 2 x Brand stickers 1 x Owner's manual
Legendary Products & Support From Authorized Dealers
When you choose Infinity, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Infinity dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Infinity's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Infinity dealer today!

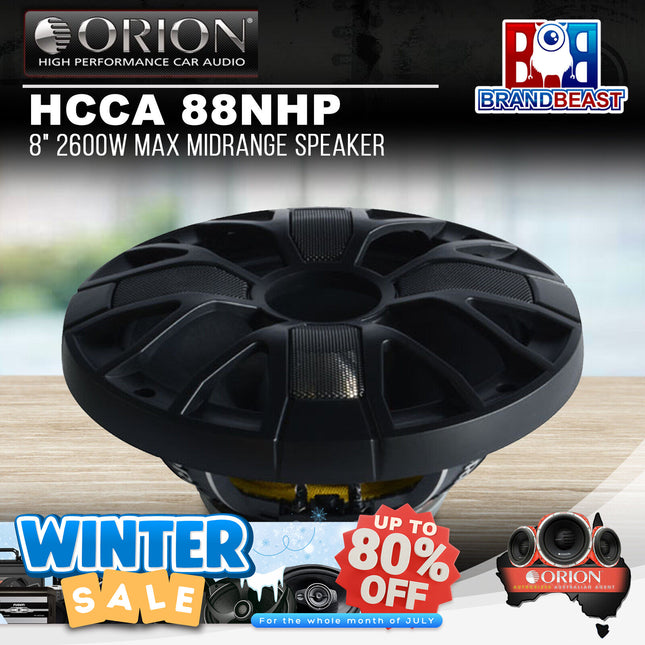

Proud to Be Loud!
Competition extreme ultra efficient very high performance and power.
Legendary Products & Support From Authorized Dealers
When you choose Orion, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Orion dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Orion's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Orion dealer today!

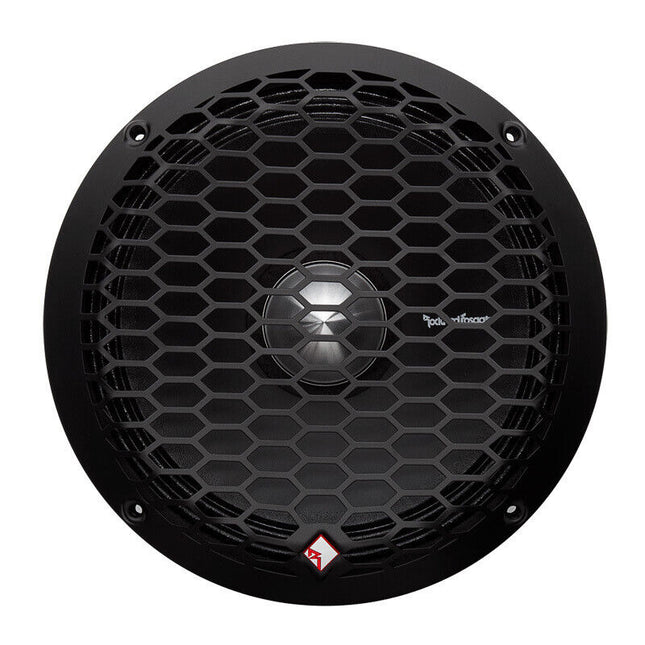

8" Punch Pro Midrange/Midbass 125W RMS, 4-Ohm, Stamp-Cast Aluminium Frame, Fibre-Reinforced Paper Cone. Engineered for High SPL. Sold Individually.
Product Overview
The Rockford Fosgate Punch Pro PPS4-8 is an 8" 4-Ohm midrange and midbass loudspeaker rated at 125W RMS engineered specifically for high SPL (Sound Pressure Level) conditions in front stage car audio installations. It is sold as an individual unit, not a pair.
Construction throughout is built to sustain the demands of high-output, high-temperature operation: a stamp-cast aluminium frame, billet machined aluminium phase plug, high-temperature aluminium voice coil, fibre-reinforced high-strength paper cone with a corrugated treated cloth surround in a "W" profile, fatigue-resistant poly cotton spider, periodic-stitched fatigue-resistant lead wire, and all-metal spring input terminals. Protective grilles and mounting hardware are confirmed included.
Technical specifications sensitivity, frequency response, mounting depth, and crossover requirements are not provided in the supplier data. Pull the official Rockford Fosgate PPS4-8 datasheet before publishing.
Key Specifications
Speaker size: 8 inch
Application: Midrange / Midbass
Impedance: 4-Ohm
Power handling (RMS): 125W (confirmed)
Peak power: Not specified — confirm with Rockford Fosgate
Frame: Stamp-cast aluminium
Cone: Fibre-reinforced high-strength paper
Surround: Corrugated treated cloth ("W" profile)
Spider: Fatigue and tear resistant poly cotton
Voice coil: High temp aluminium
Lead wire: Periodic-stitched fatigue resistant
Phase plug: Billet machined aluminium
Input terminals: All-metal spring terminal
Motor: Oversized
Grilles: Included
Mounting hardware: Included
Sold as: Individual unit (not a pair)
Sensitivity: Not specified — confirm with Rockford Fosgate
Frequency response: Not specified — confirm with Rockford Fosgate
Mounting depth: Not specified — confirm with Rockford Fosgate
Cutout diameter: Not specified — confirm with Rockford Fosgate
Weight: Not specified — confirm with Rockford Fosgate
Warranty: Not specified — confirm with Rockford Fosgate
Features & Benefits
Engineered for High SPL — The PPS4-8 is specifically designed for high SPL conditions — sustained high output levels in competition and extreme-output car audio front stage installations. Every material and construction choice reflects this priority.
125W RMS Power Handling — 125W RMS is a substantial continuous power rating for an 8" midrange driver — allowing the PPS4-8 to receive the full output of a high-powered amplifier channel without exceeding safe operating limits.
Stamp-Cast Aluminium Frame — The stamp-cast aluminium frame is stiffer than pressed steel and provides better heat dissipation from the voice coil gap — maintaining structural integrity under the mechanical and thermal stress of sustained SPL operation.
Fibre-Reinforced High-Strength Paper Cone — A paper cone reinforced with high-strength fibre is lighter than polypropylene for equivalent stiffness — producing a high sensitivity, fast-responding diaphragm. The fibre reinforcement resists the flex and fatigue that plain paper cones can suffer under high excursion at high power levels.
Corrugated Treated Cloth Surround — "W" Profile — The corrugated cloth surround with a "W" cross-section provides a controlled compliance path for the cone edge — the corrugated profile increases the effective travel distance of the surround without increasing the cone's outer diameter, allowing greater linear excursion. The cloth treatment improves moisture and temperature resistance.
Billet Machined Aluminium Phase Plug — Machined from solid billet aluminium to tight dimensional tolerances, the phase plug sits at the centre of the cone to control midrange dispersion and reduce resonance in the dust cap cavity — improving the evenness of off-axis frequency response.
High Temp Aluminium Voice Coil — An aluminium voice coil winding (rather than copper) reduces moving mass for improved transient response and sensitivity, while aluminium's lower mass and higher resistivity compared to copper suit high-frequency midrange operation. The high-temperature former maintains dimensional stability at sustained power levels.
Fatigue-Resistant Poly Cotton Spider — The poly cotton spider provides consistent cone return force and mechanical damping across a wide range of excursion levels — the "fatigue and tear resistant" description reflects the sustained high-excursion demands of SPL use.
Periodic-Stitched Fatigue-Resistant Lead Wire — The lead wire connecting the voice coil to the input terminals uses periodic stitching to the spider to prevent fatigue fracture at the flex point — a failure mode that occurs in standard lead wire under the repeated flexing of high-excursion operation.
All-Metal Spring Input Terminals — Corrosion-resistant all-metal spring terminals provide a secure, vibration-resistant connection under the mechanical demands of high-SPL operation.
Grilles and Mounting Hardware Included — Protective grilles and all hardware for a complete installation.
Sold Individually — One speaker per purchase. Two units are required for a stereo left/right front stage installation.
Technical Specs
Specification
Detail
Brand
Rockford Fosgate
Part Number
PPS4-8
Series
Punch Pro
Speaker Size
8 inch
Application
Midrange / Midbass
Impedance
4-Ohm ✓
Power Handling (RMS)
125W ✓
Peak Power
Not specified — confirm with Rockford Fosgate
Frame
Stamp-Cast Aluminium
Cone
Fibre-Reinforced High-Strength Paper
Surround
Corrugated Treated Cloth ("W" profile)
Spider
Fatigue and Tear Resistant Poly Cotton
Voice Coil
High Temp Aluminium
Lead Wire
Periodic-Stitched Fatigue Resistant
Phase Plug
Billet Machined Aluminium
Input Terminals
All-Metal Spring
Motor
Oversized
Grilles
Included ✓
Mounting Hardware
Included ✓
Sold As
Individual Unit (not a pair) ✓
Sensitivity
Not specified — confirm with Rockford Fosgate
Frequency Response
Not specified — confirm with Rockford Fosgate
Mounting Depth
Not specified — confirm with Rockford Fosgate
Cutout Diameter
Not specified — confirm with Rockford Fosgate
Weight
Not specified — confirm with Rockford Fosgate
Warranty
Not specified — confirm with Rockford Fosgate
Compatible With / Goes Well With
Suitable applications:
High SPL front stage midrange and midbass installations
Competition car audio builds requiring a dedicated 8" midrange/midbass driver
Open-air mounting in custom door pods or door panels designed for 8" drivers
Systems where the PPS4-8 handles the midrange and midbass range with the PP4-T (or similar) handling high frequencies
Pairs well with:
High-output 4-channel amplifiers (T400-4, T600-4, T1000-4AD) for front stage operation
Rockford Fosgate PP4-T Punch Pro tweeter for a matched Punch Pro front stage system
Active or passive crossover to define the PPS4-8's operating frequency range in system context
Frequently Asked Questions
Is the PPS4-8 sold as a pair?
No — the PPS4-8 is explicitly sold as an individual unit. Two units must be purchased for a stereo left/right front stage installation.
What is the difference between a midrange and a midbass driver?
A midrange driver covers the mid frequency range, typically from around 200Hz to 5kHz — handling vocals, guitar, and most melodic instrument content. A midbass driver extends this range lower to cover upper bass frequencies, typically from around 80Hz to 3kHz. The PPS4-8 is described as both — its 8" cone size allows it to operate effectively in both the midbass and midrange regions depending on system crossover configuration.
Why does the PPS4-8 use a paper cone rather than polypropylene?
Fibre-reinforced paper is lighter than polypropylene for equivalent stiffness — producing higher sensitivity. In SPL applications, sensitivity is a primary performance metric: a more sensitive driver produces more sound pressure from the same power input. The fibre reinforcement addresses paper's traditional weakness by improving cone rigidity and fatigue resistance at high excursion levels.
What is the "W" surround profile?
The "W" profile describes the cross-sectional shape of the corrugated cloth surround — when viewed in cross-section, the surround has a "W" shape. This corrugated geometry provides more surround material at the cone edge, allowing greater cone excursion without the surround becoming excessively stretched or bottoming out — enabling the high linear excursion required for SPL operation.
What amplifier power level is appropriate for the PPS4-8?
The PPS4-8 is rated at 125W RMS. Match the amplifier channel output to no more than the speaker's RMS rating for sustained operation. For occasional peak programme material, modest headroom above RMS is acceptable, but sustained clipped amplifier output above 125W RMS risks driver failure.
