LED Autolamps 30BLM 12-24V LED Number Plate Light 65mm x 30mm x 24mm Steel Housing 65mm Mounting Centres ADR Approved CTA040511 ADR 48/00 IP67 2-Piece Pack The LED Autolamps 30BLM is a 12-24V LED number plate light in a 65mm x 30mm x 24mm steel housing. 65mm mounting centres, 0.14m cable, surface mount. ADR approved (CTA040511, ADR 48/00), IP67 waterproof, 0.02A at 13.8V. Sold as a 2-piece pack. Note: two lamps are required for ADR compliance. Five-year warranty. Product overview The 30BLM is a compact steel-housed number plate light suited to trailers, caravans, trucks, and commercial vehicles. Two lamps are required per vehicle or trailer for ADR 48/00 compliance the 2-piece pack provides both for a complete ADR-compliant installation. ADR approval CTA040511 confirms road-legal use in Australia. 12-24V compatible. IP67 rated. Features and benefits ADR approved (CTA040511, ADR 48/00): Compliant for road use in Australia as a number plate lamp. Two lamps required for ADR compliance: Both lamps in the pack are needed for a compliant installation. Steel housing: Durable metal construction for long-term outdoor and transport use. 65mm x 30mm x 24mm compact housing. 65mm mounting centres. 0.14m cable. IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments. 0.02A current draw at 13.8V. 12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport. Five-year warranty. Sold as a 2-piece pack. Technical specs Specification Detail SKU 30BLM Brand LED Autolamps Type Number plate lamp Light Type LED Housing Material Steel Housing Colour Black Operating Voltage 12V to 24V Current Draw 0.02A at 13.8V Mount Type Surface mount Mounting Centres 65mm Cable Length 0.14m Dimensions 65mm x 30mm x 24mm Waterproof Rating IP67 ADR Compliance CTA040511, ADR 48/00 Weight 0.1kg (pair) Manufactured In China (Taiwan) Sold As 2-piece pack Warranty Five years Frequently asked questions Is the 30BLM ADR approved? Yes. The 30BLM holds ADR approval CTA040511 and meets ADR 48/00, confirming compliance for road use in Australia as a number plate lamp. How many lamps are needed for ADR compliance? Two lamps are required for ADR 48/00 compliance. The 30BLM is sold as a 2-piece pack providing both lamps for a complete ADR-compliant number plate lighting installation. What are the mounting centres on the 30BLM? The 30BLM has 65mm mounting centres between fixing points. What voltage does the 30BLM operate on? The 30BLM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles. What is the current draw of the 30BLM? The 30BLM draws 0.02A at 13.8V per lamp. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

LED Autolamps 355BARWM-2 12-24V 355 Series Stop Tail Indicator Reverse and Reflector Rear Combination Lamp Sequential Indicator Black Housing No Visible Screws ECE Approved CTA060143 IP67 LHS and RHS Twin Blister Pack The LED Autolamps 355BARWM-2 is a 12-24V LED stop/tail/indicator/reverse and reflector rear combination lamp with sequential indicator. Black housing, no visible screws, inbuilt reflex reflector. ECE approved (CTA060143), IP67 waterproof. Sold as a twin blister pack containing matched left and right lamps. Five-year warranty. Product overview The 355BARWM-2 is the black housing version of the 355ARWM-2 rear combination lamp, sharing the same exclusive design, sequential indicator, inbuilt reflex reflector, no-visible-screws construction, ECE CTA060143 approval, IP67 rating, and 12-24V compatibility — with a black finish in place of chrome. Twin blister pack provides matched left and right lamps for a complete rear installation. Features and benefits Stop, tail, indicator, reverse, and inbuilt reflex reflector in one unit: Five-function combination lamp for complete rear lighting coverage. Sequential indicator: LEDs activate in a sweeping pattern for a distinctive, high-visibility turn signal output. Black housing: Clean black finish for trailers and vehicles where a black-finish lamp is preferred. Inbuilt reflex reflector: Integrated passive reflector without a separate unit. No visible screws: Clean, uninterrupted exterior appearance. Exclusive design. ECE approved (CTA060143): Meets international road approval standards accepted for on-road use in Australia. IP67 fully waterproof and submersible. 12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport. Twin blister pack: Matched LHS and RHS lamps for a complete rear installation. Five-year warranty. Technical specs Specification Detail SKU 355BARWM-2 Brand LED Autolamps Series 355 Type Stop/tail/indicator/reverse/reflector combination lamp Light Type LED Housing Colour Black Indicator Style Sequential Inbuilt Reflector Yes Visible Screws No Operating Voltage 12V to 24V Waterproof Rating IP67 ECE Compliance CTA060143 Weight 1.65kg (pair) Manufactured In China (Taiwan) Sold As Twin blister pack (LHS and RHS) Warranty Five years Frequently asked questions Is the 355BARWM-2 ECE approved? Yes. The 355BARWM-2 holds ECE approval CTA060143, confirming compliance for road use in Australia. What is the difference between the 355BARWM-2 and the 355ARWM-2? The 355BARWM-2 has a black housing. The 355ARWM-2 has a chrome housing. Both share the same sequential indicator, inbuilt reflex reflector, no-visible-screws design, ECE CTA060143 approval, IP67 rating, 12-24V operation, and twin blister pack format. Choose based on the housing finish required. What is the sequential indicator on the 355BARWM-2? The sequential indicator activates LEDs in a sweeping pattern from one end of the indicator zone to the other during indicator operation, producing a distinctive high-visibility turn signal effect. How many lamps are included in the pack? The 355BARWM-2 is sold as a twin blister pack containing one left-hand and one right-hand lamp for a complete rear installation. What voltage does the 355BARWM-2 operate on? The 355BARWM-2 operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

LED Autolamps 280ARWM 12-24V Mini Jumbo Stop Tail Indicator and Reverse Combination Lamp 282mm x 95mm x 28mm 1.2m Cable Acrylic Lens ABS Housing ADR Approved CTA060088 IP67 The LED Autolamps 280ARWM is a 12-24V Mini Jumbo LED stop/tail/indicator/reverse combination lamp in a 282mm x 95mm x 28mm ABS housing with acrylic lens, 1.2m pre-wired cable. ADR approved (CTA060088), IP67 waterproof. Current draw at 13.8V: stop 0.15A, tail 0.02A, indicator 0.14A, reverse 0.17A. Five-year warranty. Sold individually. Product overview The 280ARWM extends the 280ARRM stop/tail/indicator combination lamp by adding a reverse function, covering four primary rear lighting functions in a single 282mm Mini Jumbo unit. Individual ADR compliance is confirmed for each function stop/tail ADR R1-S1-02, indicator ADR 2A-E9-01, and reverse ADR AR-E9-00 alongside the primary CTA060088 approval. The acrylic lens provides durable optical performance. The 1.2m pre-wired cable suits trailer and commercial vehicle installations with longer harness runs. 12-24V compatible. IP67 rated. Features and benefits Stop, tail, indicator, and reverse in one unit: Four-function Mini Jumbo combination lamp for complete rear lighting coverage. 1.2m pre-wired cable: Extended cable length for trailer and commercial vehicle installations with longer harness runs. Acrylic lens: Durable lens material for outdoor transport environments. ABS housing. 282mm x 95mm x 28mm Mini Jumbo format. ADR approved (CTA060088) with individual function compliance: Stop/tail ADR R1-S1-02, indicator ADR 2A-E9-01, reverse ADR AR-E9-00. IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments. 12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport. Five-year warranty. Sold individually. Technical specs Specification Detail SKU 280ARWM Brand LED Autolamps Series 280 Mini Jumbo Type Stop/tail/indicator/reverse combination lamp Light Type LED Housing Material ABS Lens Material Acrylic Operating Voltage 12V to 24V Current Draw (Stop) 0.15A at 13.8V Current Draw (Tail) 0.02A at 13.8V Current Draw (Indicator) 0.14A at 13.8V Current Draw (Reverse) 0.17A at 13.8V Mount Type Surface mount Connector Pre-wired, 1.2m cable Dimensions 282mm x 95mm x 28mm Waterproof Rating IP67 ADR Compliance CTA060088 ADR Stop/Tail ADR R1-S1-02 ADR Indicator ADR 2A-E9-01 ADR Reverse ADR AR-E9-00 Weight 0.6kg Manufactured In China (Taiwan) Warranty Five years Frequently asked questions Is the 280ARWM ADR approved? Yes. The 280ARWM holds ADR approval CTA060088 with individual compliance references for stop/tail (ADR R1-S1-02), indicator (ADR 2A-E9-01), and reverse (ADR AR-E9-00), confirming compliance for road use in Australia across all four functions. What is the difference between the 280ARWM and the 280ARRM? The 280ARWM adds a reverse function to the stop/tail/indicator coverage of the 280ARRM. Both share the same 282mm x 95mm x 28mm dimensions, 1.2m cable, and ADR CTA060088 approval. Choose the 280ARWM where reverse lamp output is required from the same combination lamp unit. What is the current draw of the 280ARWM? At 13.8V: stop draws 0.15A, tail draws 0.02A, indicator draws 0.14A, and reverse draws 0.17A per lamp. What voltage does the 280ARWM operate on? The 280ARWM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles. Is the 280ARWM sold as a single unit or a pair? Sold individually. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

LED Autolamps 7922WM2 12-24V White LED Front End Outline Marker Recessed Fitting Ultra-Low 3mm Profile IP67 Twin Blister Pack The LED Autolamps 7922WM2 is a 12-24V white LED front end outline marker with recessed fitting and ultra-low 3mm profile. IP67 waterproof. Road approved. Five-year warranty. Sold as a twin blister pack. Product overview The 7922WM2 is the white front end outline marker in the 7922 series ultra-low profile range, sharing the same 3mm depth format as the 7922AM2 and 7922RM2 in a recessed fitting configuration for front outline marker applications. Suited to trucks, trailers, and commercial vehicles requiring a front outline marker where minimal panel protrusion is required. IP67 waterproof. 12-24V compatible. Twin blister pack. Features and benefits White LED front end outline marker. Recessed fitting. Ultra-low 3mm profile depth. Road approved. IP67 fully waterproof and submersible. 12V and 24V compatible. Twin blister pack: Two markers per pack. Five-year warranty. Technical specs Specification Detail SKU 7922WM2 Brand LED Autolamps Type Front end outline marker lamp LED Colour White Operating Voltage 12V to 24V Profile Depth 3mm Mount Type Recessed fitting Waterproof Rating IP67 Sold As Twin blister pack Weight 0.064kg Manufactured In China (Taiwan) Warranty Five years Frequently asked questions Is the 7922WM2 road approved? Yes. The 7922WM2 is road approved for use as a front end outline marker. Contact us to confirm the specific ECE/ADR compliance reference before purchasing. What is the difference between the 7922WM2, 7922RM2, and 7922AM2? The 7922WM2 is a white front end outline marker with recessed fitting. The 7922RM2 is a red side marker (ECE CTA060100). The 7922AM2 is an amber side marker (ECE CTA060101). All share the same 7922 series ultra-low 3mm profile and twin blister pack format. How many markers are in the 7922WM2 pack? The 7922WM2 is sold as a twin blister pack containing two markers. What voltage does the 7922WM2 operate on? The 7922WM2 operates on 12V and 24V systems. Is the 7922WM2 waterproof? Yes. The 7922WM2 has an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 metre of water for up to 30 minutes. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

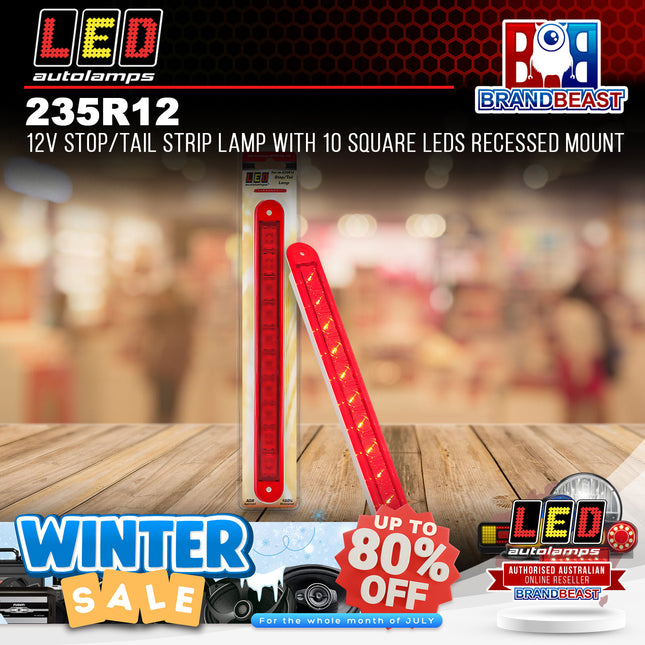

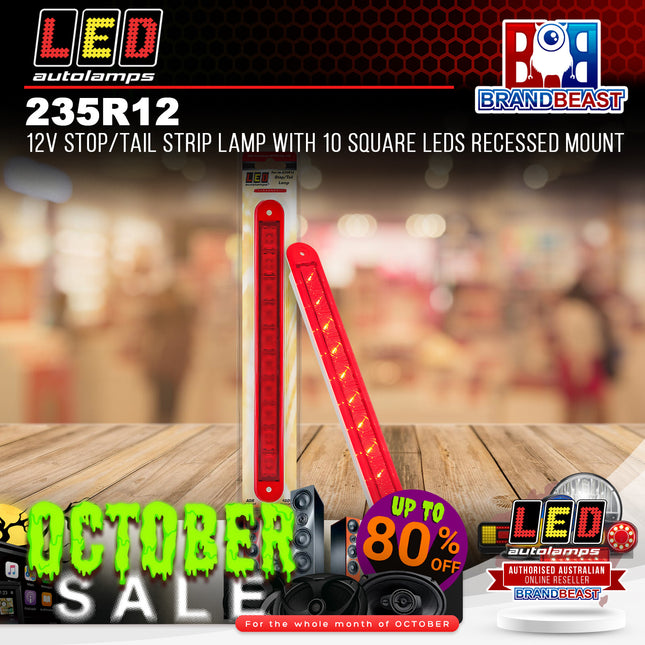

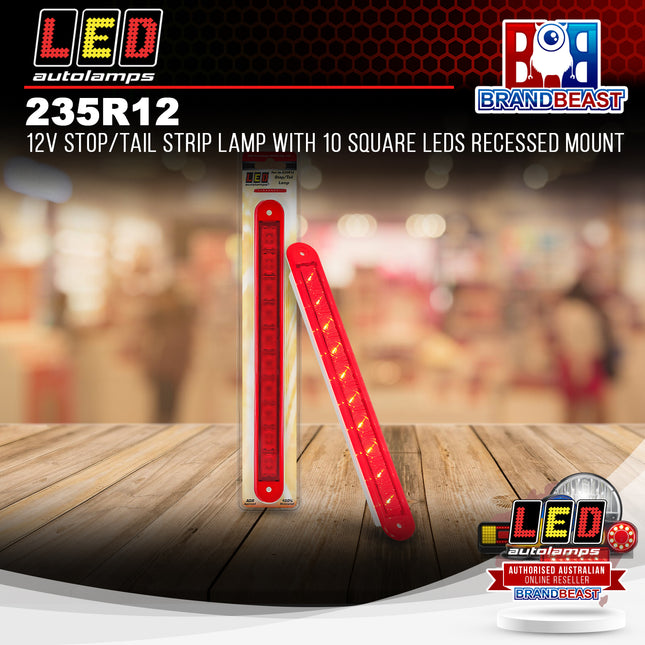

LED Autolamps 235R12 12V Stop Tail Strip Lamp 10 Square LEDs 237mm x 25mm x 3mm 216mm Mounting Centres Recessed Mount ADR Approved CTA060128 IP67 The LED Autolamps 235R12 is a 12V LED stop/tail strip lamp with 10 square red LEDs in a 237mm x 25mm x 3mm low-profile recessed housing. 216mm mounting centres. ADR approved (CTA060128), IP67 waterproof. Five-year warranty. Sold individually. Product overview The 235R12 is the stop/tail counterpart to the 235A12 indicator lamp in the 235 series slimline strip range, sharing the same 237mm x 25mm x 3mm ultra-slim format and ADR approval CTA060128. The 10 square red LED array delivers a distinctive, high-visibility stop/tail output. The 3mm depth allows recessed installation with minimal protrusion behind the panel surface. 216mm mounting centres. ADR approval CTA060128 confirms road-legal compliance in Australia. 12V only. IP67 rated. Features and benefits 10 square red LEDs across a 237mm strip: Distinctive square LED array for high-visibility stop/tail output. 237mm x 25mm x 3mm ultra-slim housing: 3mm depth for flush recessed panel installation with minimal protrusion. 216mm mounting centres: Confirmed fixing point spacing for accurate panel preparation. Recessed flush mount: Clean, integrated installation on trailer and vehicle rear panels. ADR approved (CTA060128): Compliant for road use in Australia as a stop/tail lamp. IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments. 12V only. Five-year warranty. Technical specs Specification Detail SKU 235R12 Brand LED Autolamps Type Stop/tail strip lamp Light Type LED LED Count 10 square LED Colour Red Operating Voltage 12V Mount Type Recessed flush mount Mounting Centres 216mm Dimensions 237mm x 25mm x 3mm Waterproof Rating IP67 ADR Compliance CTA060128 Weight 0.11kg Manufactured In China (Taiwan) Warranty Five years Frequently asked questions Is the 235R12 ADR approved? Yes. The 235R12 holds ADR approval CTA060128, confirming compliance for road use in Australia as a stop/tail lamp. What is the difference between the 235R12 and the 235A12? The 235R12 is a stop/tail lamp with red LEDs. The 235A12 is an indicator lamp with amber LEDs. Both share the same ADR approval CTA060128, 237mm x 25mm x 3mm dimensions, and 12V operation, but serve different rear lighting functions. What are the mounting centres on the 235R12? The 235R12 has 216mm mounting centres between fixing points. Confirm this suits your panel cutout before purchasing. What makes the 235R12 suited to recessed installations? The 235R12 measures 237mm x 25mm x 3mm, with the 3mm depth allowing flush recessed panel installation with minimal protrusion behind the mounting surface. Is the 235R12 sold as a single unit or a pair? Sold individually. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

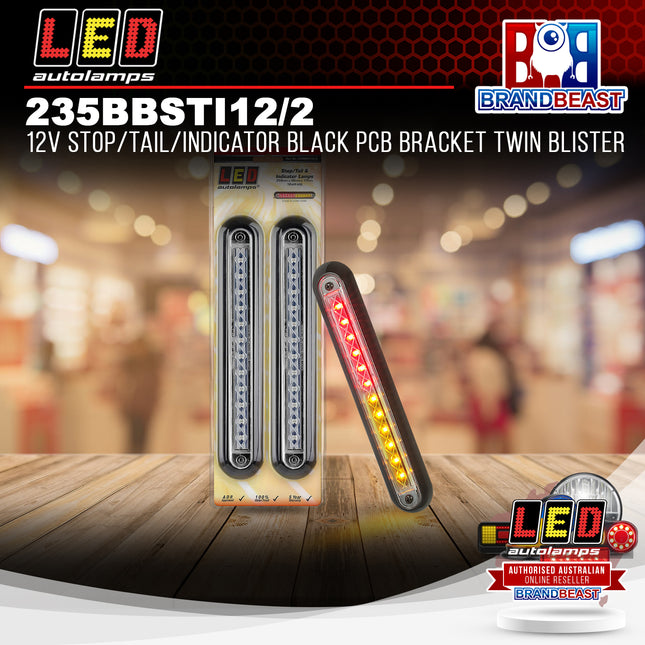

LED Autolamps 235BBSTI12/2 12V Stop Tail and Indicator Strip Combination Lamp Black PCB Black Bracket 259mm x 46mm x 17mm 2-Bolt Mount ECE Approved CTA060127 IP67 Twin Blister Pack The LED Autolamps 235BBSTI12/2 is a 12V LED stop/tail/indicator strip combination lamp with black PCB and black bracket in a 259mm x 46mm x 17mm slimline housing. 2-bolt mount. ECE approved (CTA060127), IP67 waterproof. Sold as a twin blister pack. Five-year warranty. Product overview The 235BBSTI12/2 covers stop, tail, and indicator functions in a single 259mm slimline strip unit with a black PCB and black bracket for a blacked-out appearance on trailer and vehicle rear panels. The 2-bolt mounting provides a secure surface installation. ECE approval CTA060127 confirms road-legal use in Australia. 12V only. IP67 rated. Twin blister pack contains two lamps for a complete left and right installation. Features and benefits Stop, tail, and indicator in one 259mm slimline strip unit: Three-function combination lamp in a blacked-out finish. Black PCB and black bracket: All-black appearance for trailers and vehicles with black rear panel finishes. 259mm x 46mm x 17mm slimline housing: Low-profile strip format for clean rear panel integration. 2-bolt surface mount: Secure panel installation with the included bracket. ECE approved (CTA060127): Meets international road approval standards accepted for on-road use in Australia. IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments. 12V only. Twin blister pack: Two lamps per pack for a complete left and right installation. Five-year warranty. Technical specs Specification Detail SKU 235BBSTI12/2 Brand LED Autolamps Type Stop/tail/indicator combination strip lamp Light Type LED PCB Colour Black Bracket Colour Black Operating Voltage 12V Mount Type 2-bolt surface mount Dimensions 259mm x 46mm x 17mm Waterproof Rating IP67 ECE Compliance CTA060127 Weight 0.259kg (pair) Manufactured In China (Taiwan) Sold As Twin blister pack (2 lamps) Warranty Five years Frequently asked questions Is the 235BBSTI12/2 ECE approved? Yes. The 235BBSTI12/2 holds ECE approval CTA060127, meeting international road approval standards accepted for on-road use in Australia as a stop/tail/indicator combination lamp. What makes the 235BBSTI12/2 different from standard 235 series lamps? The 235BBSTI12/2 uses a black PCB and black bracket for an all-black finish, suited to trailers and vehicles where a blacked-out rear panel appearance is preferred. The specification and ECE approval are otherwise the same as other CTA060127-approved 235 series lamps. How many lamps are included in the pack? The 235BBSTI12/2 is sold as a twin blister pack containing two lamps for a complete left and right rear installation. What voltage does the 235BBSTI12/2 operate on? The 235BBSTI12/2 is 12V only and is not suitable for 24V systems. Is the 235BBSTI12/2 sold as a single unit or a pair? Sold as a twin blister pack containing two lamps. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

LED Autolamps J3BARWM 12-24V Jumbo Stop Tail Indicator and Reverse Lamp Assembly Individually Mountable Inbuilt Reflex Reflectors 595mm x 130mm x 45mm 500mm Mounting Centres Pre-Wired ADR Approved CTA042964 CRN42965 CRN42964 CRN42967 CRN42966 IP67 The LED Autolamps J3BARWM is a 12-24V Jumbo stop, tail, indicator, and reverse combination lamp assembly with inbuilt reflex reflectors. Individually mountable with bracket. 595mm x 130mm x 45mm, 500mm mounting centres, pre-wired, surface mount. ADR approved (CTA042964). Stop/tail CRN42965, indicator CRN42964, reverse CRN42967, reflector CRN42966. IP67 waterproof. Five-year warranty. Sold individually. Product overview The J3BARWM adds a reverse function to the J3BARRM stop/tail/indicator assembly, providing a complete four-function Jumbo combination lamp in the same 595mm x 130mm x 45mm housing with 500mm mounting centres. The J3 series inserts are individually mountable with bracket, allowing each function section to be surface-mounted independently. Inbuilt reflex reflectors provide passive reflective compliance. Four CRN references confirm full road-legal compliance for stop/tail (CRN42965), indicator (CRN42964), reverse (CRN42967), and reflector (CRN42966) functions. ADR CTA042964. Pre-wired surface mount. IP67 waterproof. 12-24V compatible. Features and benefits Jumbo format stop, tail, indicator, and reverse combination lamp. Individually mountable with bracket: Each section can be surface-mounted independently. Inbuilt reflex reflectors: Active LED and passive reflector combined in one assembly. 595mm x 130mm x 45mm. 500mm mounting centres. Pre-wired surface mount. ADR approved (CTA042964), stop/tail CRN42965, indicator CRN42964, reverse CRN42967, reflector CRN42966: Full road-legal compliance in Australia. IP67 fully waterproof and submersible. 12V and 24V compatible. Five-year warranty. Technical specs Specification Detail SKU J3BARWM Brand LED Autolamps Series J3 Jumbo Type Stop/tail/indicator/reverse combination lamp assembly Housing Colour Black Operating Voltage 12V to 24V Current — Stop 0.47A at 13.8V Current — Tail 0.04A at 13.8V Current — Indicator 0.42A at 13.8V Current — Reverse 0.18A at 13.8V Dimensions 595mm x 130mm x 45mm Mounting Centres 500mm Connection Pre-wired Mount Type Surface mount Waterproof Rating IP67 ADR Compliance CTA042964 Stop/Tail CRN CRN42965 Indicator CRN CRN42964 Reverse CRN CRN42967 Reflector CRN CRN42966 Weight 2.3kg Manufactured In China (Taiwan) Warranty Five years Frequently asked questions Is the J3BARWM ADR approved? Yes. The J3BARWM holds ADR approval CTA042964 with stop/tail CRN42965, indicator CRN42964, reverse CRN42967, and reflector CRN42966, confirming full road-legal compliance across all functions in Australia. What is the difference between the J3BARWM and the J3BARRM? The J3BARWM adds a reverse function (CRN42967, 0.18A) to the stop, tail, indicator, and reflector functions of the J3BARRM. Both share the same 595mm x 130mm x 45mm housing, 500mm mounting centres, ADR CTA042964 approval, and IP67 rating. Can the J3 series inserts be mounted individually? Yes. The J3 series inserts are individually mountable with bracket, allowing each function section to be surface-mounted independently of the full assembly. What are the mounting centres on the J3BARWM? The J3BARWM has 500mm mounting centres. Is the J3BARWM waterproof? Yes. The J3BARWM has an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 metre of water for up to 30 minutes. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

LED Autolamps 77ACM2 12-24V Cat6 Amber LED Side Direction Indicator Clear Lens Black Housing 3 LEDs 77mm x 52mm x 22mm 3M Tape and Plug ECE Approved CTA060137 IP67 Twin Blister Pack The LED Autolamps 77ACM2 is a 12-24V Cat6 amber LED side direction indicator with clear lens and black housing. 3 LEDs, 77mm x 52mm x 22mm, 3M tape and plug fitting. ECE approved (CTA060137), ECE E96R01/2922383*00. IP67 waterproof. Category 6 approved. Suitable for vehicle GVM upgrade. Five-year warranty. Sold as a twin blister pack. Product overview The 77ACM2 is the twin blister pack version of the 77ACM Cat6 side direction indicator, providing confirmed full spec data including ECE CTA060137 and ECE E96R01/2922383*00 compliance, 3-LED output, and current draw of 0.12A at 13.8V and 0.08A at 28V. Category 6 approved for supplementary side direction indicator applications. Suitable for GVM upgrade builds where additional side markers are required. Clear lens with amber LED output when energised. 3M tape and plug for tool-free installation. IP67 waterproof. 9-32V compatible. Features and benefits Category 6 approved: Meets ECE requirements for supplementary side direction indicator use. Suitable for vehicle GVM upgrade applications. 3 amber LEDs with clear lens. Black housing. 77mm x 52mm x 22mm low-profile compact design. Easy fit with 3M tape and plug: Tool-free installation. ECE approved (CTA060137), ECE E96R01/2922383*00. IP67 fully waterproof and submersible. 9-32V: Compatible with 12V and 24V vehicle electrical systems. Twin blister pack: Two lamps per pack for left and right installations. Five-year warranty. Technical specs Specification Detail SKU 77ACM2 Brand LED Autolamps Series 77 Type Cat6 side direction indicator LED Count 3 LED Colour Amber Lens Clear Housing Colour Black Operating Voltage 9V to 32V Current Draw 0.12A at 13.8V / 0.08A at 28V Dimensions 77mm x 52mm x 22mm Fitting 3M tape and plug Waterproof Rating IP67 ECE Compliance CTA060137, ECE E96R01/2922383*00 Sold As Twin blister pack Weight 0.2kg Manufactured In China (Taiwan) Warranty Five years Frequently asked questions Is the 77ACM2 ECE approved? Yes. The 77ACM2 holds ECE approval CTA060137 and ECE E96R01/2922383*00, confirming compliance for use as a Category 6 side direction indicator. Is the 77ACM2 suitable for GVM upgrade builds? Yes. The 77ACM2 is confirmed suitable for vehicle GVM upgrade applications where additional side direction indicators are required. What is the difference between the 77ACM2 and the 77ACM? The 77ACM2 is sold as a twin blister pack and carries confirmed ECE CTA060137 compliance, 3-LED count, and current draw data. The 77ACM is sold individually. Both share the same 77mm x 52mm x 22mm amber LED, clear lens, black housing, 3M tape and plug fitting, and IP67 rating. How is the 77ACM2 installed? The 77ACM2 uses 3M tape for surface adhesion and a plug connector for wiring, allowing tool-free installation. What voltage does the 77ACM2 operate on? The 77ACM2 operates on 9V to 32V, compatible with both 12V and 24V vehicle electrical systems. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

LED Autolamps 380BBSTI12 12V Slimline Stop Tail and Indicator Strip Lamp Black 404mm x 46mm x 17mm Horizontal or Vertical Surface Mount ECE Approved CTA060050 IP67 The LED Autolamps 380BBSTI12 is a 12V LED slimline stop/tail/indicator combination strip lamp in a 404mm x 46mm x 17mm black housing. Horizontal or vertical surface mount. ECE approved (CTA060050), IP67 waterproof. Five-year warranty. Sold individually. Product overview The 380BBSTI12 is a slimline stop/tail/indicator combination strip lamp suited to trailers, caravans, trucks, and commercial vehicles. The 17mm depth provides a low-profile surface mount appearance, with both horizontal and vertical mounting options to suit different panel orientations. ECE approval CTA060050 confirms road-legal use in Australia. 12V only. IP67 rated. Features and benefits Stop, tail, and indicator in one 404mm slimline strip unit: Three-function combination lamp in a low-profile surface mount format. Horizontal and vertical surface mount options: Flexible installation orientation to suit different panel layouts. 404mm x 46mm x 17mm low-profile housing. Black housing. ECE approved (CTA060050): Meets international road approval standards accepted for on-road use in Australia. IP67 fully waterproof and submersible. 12V only. Five-year warranty. Sold individually. Technical specs Specification Detail SKU 380BBSTI12 Brand LED Autolamps Series 380 Type Stop/tail/indicator combination strip lamp Light Type LED Housing Colour Black Operating Voltage 12V Mount Type Surface mount (horizontal or vertical) Dimensions 404mm x 46mm x 17mm Waterproof Rating IP67 ECE Compliance CTA060050 Weight 0.4kg Manufactured In China (Taiwan) Warranty Five years Frequently asked questions Is the 380BBSTI12 ECE approved? Yes. The 380BBSTI12 holds ECE approval CTA060050, meeting international road approval standards accepted for on-road use in Australia as a stop/tail/indicator combination lamp. Can the 380BBSTI12 be mounted horizontally and vertically? Yes. The 380BBSTI12 supports both horizontal and vertical surface mounting orientations to suit different panel layouts. What functions does the 380BBSTI12 cover? The 380BBSTI12 covers stop, tail, and indicator functions in a single 404mm slimline strip unit. What voltage does the 380BBSTI12 operate on? The 380BBSTI12 is 12V only and is not suitable for 24V systems. Is the 380BBSTI12 sold as a single unit or a pair? Sold individually. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

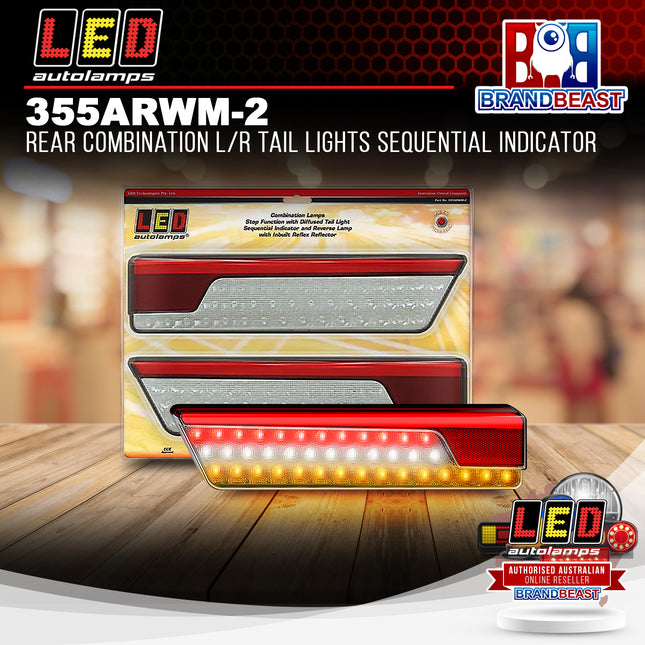

LED Autolamps 355ARWM-2 12-24V Rear Combination Lamp with Sequential Indicator Chrome Housing Inbuilt Reflex Reflector No Visible Screws ECE Approved CTA060143 IP67 LHS and RHS Twin Blister Pack The LED Autolamps 355ARWM-2 is a 12-24V LED rear combination lamp with sequential indicator and inbuilt reflex reflector. Chrome housing, no visible screws. ECE approved (CTA060143), IP67 waterproof. Sold as a twin blister pack containing matched left and right lamps. Five-year warranty. Product overview The 355ARWM-2 is a premium chrome rear combination lamp featuring a sequential indicator that activates LEDs in a sweeping pattern for a distinctive, high-visibility turn signal. The exclusive design incorporates no visible screws for a clean, uninterrupted chrome appearance. The inbuilt reflex reflector eliminates the need for a separate reflector unit. ECE approval CTA060143 confirms road-legal use in Australia. 12-24V compatible. IP67 rated. Twin blister pack provides matched left and right lamps for a complete rear installation. Features and benefits Sequential indicator: LEDs activate in a sweeping pattern for a distinctive, high-visibility turn signal output. Chrome housing: Premium chrome finish for a high-quality appearance on trailer and vehicle rear panels. Inbuilt reflex reflector: Integrated passive reflector without a separate unit. No visible screws: Clean, uninterrupted exterior appearance. Exclusive design. ECE approved (CTA060143): Meets international road approval standards accepted for on-road use in Australia. IP67 fully waterproof and submersible. 12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport. Twin blister pack: Matched LHS and RHS lamps for a complete rear installation. Five-year warranty. Technical specs Specification Detail SKU 355ARWM-2 Brand LED Autolamps Type Rear combination lamp Light Type LED Housing Colour Chrome Indicator Style Sequential Inbuilt Reflector Yes Visible Screws No Operating Voltage 12V to 24V Waterproof Rating IP67 ECE Compliance CTA060143 Weight 1.65kg (pair) Manufactured In China (Taiwan) Sold As Twin blister pack (LHS and RHS) Warranty Five years Frequently asked questions Is the 355ARWM-2 ECE approved? Yes. The 355ARWM-2 holds ECE approval CTA060143, confirming compliance for road use in Australia. What is the sequential indicator on the 355ARWM-2? The sequential indicator activates LEDs in a sweeping pattern from one end of the indicator zone to the other during indicator operation, producing a distinctive, high-visibility turn signal effect. What does no visible screws mean? The 355ARWM-2 uses a mounting method that conceals all fasteners, leaving the chrome exterior surface uninterrupted by screw heads for a cleaner premium appearance. How many lamps are included in the pack? The 355ARWM-2 is sold as a twin blister pack containing one left-hand and one right-hand lamp for a complete rear installation. What voltage does the 355ARWM-2 operate on? The 355ARWM-2 operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

LED Autolamps 12ACM-2 12-24V Rear Indicator Lamp Clear Lens Low Profile 131mm x 30mm x 8mm 3M Tape or Screw Mount ECE Approved CTA-061027 IP67 The LED Autolamps 12ACM-2 is a 12-24V rear indicator lamp with a clear lens in a low-profile 131mm x 30mm x 8mm format. ECE approved (CTA-061027), IP67 waterproof, 3M tape or screw mount, horizontal or vertical fitting. Five-year warranty. Sold individually. Product overview The 12ACM-2 is a compact low-profile rear indicator lamp suited to trailers, caravans, trucks, and commercial vehicles where a slim, surface-mount solution is required. The clear lens appears neutral when the lamp is not illuminated. At just 8mm deep, it mounts almost flush with the surface using 3M tape or screw fixing. Horizontal or vertical installation is supported. ECE approval CTA-061027 confirms road-legal use. IP67 rated. 12-24V compatible. Features and benefits Clear lens: Appears neutral when inactive, illuminates with indicator output when active. Low-profile 8mm depth: 131mm x 30mm x 8mm compact housing for discreet surface mounting. 3M tape or screw fixing: Flexible mounting on flat and curved surfaces in horizontal or vertical orientation. ECE approved (CTA-061027): Meets international road approval standards accepted for on-road use in Australia. IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments. 12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport. Five-year warranty. Sold individually. Technical specs Specification Detail SKU 12ACM-2 Brand LED Autolamps Type Rear indicator lamp Light Type LED Lens Clear Operating Voltage 12V to 24V Dimensions 131mm x 30mm x 8mm Mount Type 3M tape or screw Orientation Horizontal or vertical Waterproof Rating IP67 ECE Approval CTA-061027 Weight 0.1kg Manufactured In China (Taiwan) Sold As Each Warranty Five years Frequently asked questions Is the 12ACM-2 approved for road use in Australia? Yes. The 12ACM-2 holds ECE approval CTA-061027, meeting international road approval standards accepted for on-road use in Australia. What mounting options does the 12ACM-2 offer? The 12ACM-2 can be mounted using 3M adhesive tape or screws in either horizontal or vertical orientation, suited to a wide range of panel types and installation positions. What does the clear lens look like when inactive? The clear lens appears visually neutral when the lamp is not powered, providing a clean, unobtrusive appearance on the panel. When active, it illuminates with indicator output. What voltage does the 12ACM-2 operate on? The 12ACM-2 operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles. Is the 12ACM-2 sold as a single unit or a pair? Sold individually. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

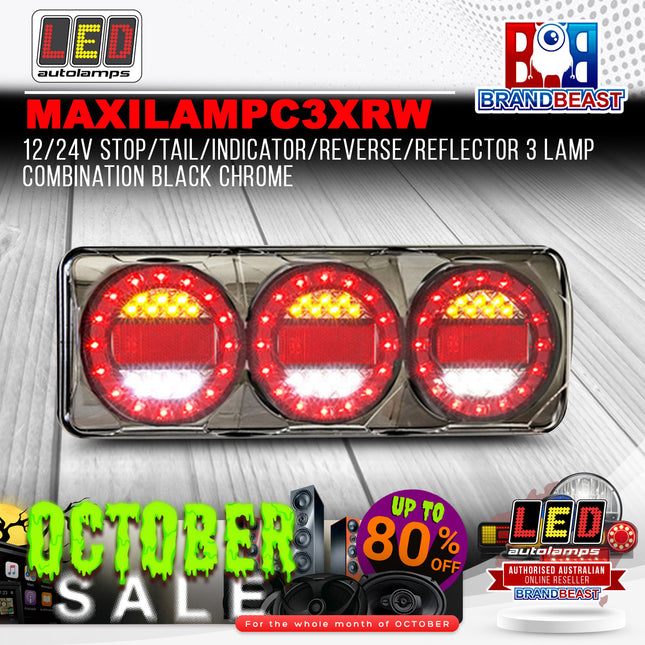

LED Autolamps MAXILAMPC3XRW 12-24V Stop Tail Indicator Reverse and Reflector Combination Lamp Black Chrome 370mm x 135mm x 40mm 269mm Mounting Centres 400mm Pre-Wired Lead ECE Approved CTA040963 ADR Approved IP67 7 Year Warranty The LED Autolamps MAXILAMPC3XRW is a 12-24V stop, tail, indicator, reverse, and reflector combination lamp with black chrome finish. 370mm x 135mm x 40mm, 269mm mounting centres, 400mm pre-wired lead, surface mount. ECE approved (CTA040963). ADR approved. IP67 waterproof. 7-year warranty. Sold individually. Product overview The MAXILAMPC3XRW adds a reverse function to the MAXILAMPC3XR stop, tail, indicator, and reflector assembly, providing a complete five-function combination lamp in the same 370mm x 135mm x 40mm black chrome housing with 269mm mounting centres. Full ADR compliance is confirmed across all functions: stop/tail ADR 49/00, indicator ADR 6/00 Cat 2A, reverse ADR 1/00, and reflector ECE 02 Cat 1A. ECE CTA040963 approval. 400mm pre-wired lead for direct vehicle connection. IP67 waterproof. 12-24V compatible. 7-year warranty. Features and benefits Stop, tail, indicator, reverse, and reflector in one unit. Black chrome design. 370mm x 135mm x 40mm rectangular format. 269mm mounting centres. 400mm pre-wired lead. Surface mount. ECE approved (CTA040963) and ADR approved: Stop/tail ADR 49/00, indicator ADR 6/00 Cat 2A, reverse ADR 1/00, reflector ECE 02 Cat 1A. IP67 fully waterproof and submersible. 12V and 24V compatible. 7-year warranty. Sold individually. Technical specs Specification Detail SKU MAXILAMPC3XRW Brand LED Autolamps Series MaxiLamp Type Stop/tail/indicator/reverse/reflector combination lamp Shape Rectangular Finish Black chrome Housing Colour Black Operating Voltage 12V to 24V Current — Stop 0.54A Current — Tail 0.08A Current — Indicator 0.77A Current — Reverse 0.67A Dimensions 370mm x 135mm x 40mm Mounting Centres 269mm Cable Length 400mm pre-wired lead Mount Type Surface mount Waterproof Rating IP67 ECE Compliance CTA040963 Stop/Tail Compliance ADR 49/00 Indicator Compliance ADR 6/00 Cat 2A Reverse Compliance ADR 1/00 Reflector Compliance ECE 02 Cat 1A Weight 1.1kg Manufactured In China (Taiwan) Warranty 7 years Frequently asked questions Is the MAXILAMPC3XRW ECE and ADR approved? Yes. The MAXILAMPC3XRW holds ECE approval CTA040963 and is ADR approved across all functions: stop/tail ADR 49/00, indicator ADR 6/00 Cat 2A, reverse ADR 1/00, and reflector ECE 02 Cat 1A. What is the difference between the MAXILAMPC3XRW and the MAXILAMPC3XR? The MAXILAMPC3XRW adds a reverse function (ADR 1/00, 0.67A) and a 400mm pre-wired lead to the stop, tail, indicator, and reflector functions of the MAXILAMPC3XR. Both share the same 370mm x 135mm x 40mm black chrome housing, 269mm mounting centres, IP67 rating, and 7-year warranty. What are the mounting centres on the MAXILAMPC3XRW? The MAXILAMPC3XRW has 269mm mounting centres. What voltage does the MAXILAMPC3XRW operate on? The MAXILAMPC3XRW operates on 12V and 24V systems. Is the MAXILAMPC3XRW waterproof? Yes. The MAXILAMPC3XRW has an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 metre of water for up to 30 minutes. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns, our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself, is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less
