Premium Class D subwoofer amplification engineered for marine and automotive applications where power meets durability. Product Overview The JL Audio XDM600 monoblock amplifier represents JL Audio's commitment to marine-grade power delivery in a compact, efficient Class D platform. Delivering 600W RMS at 2Ω and 400W at 4Ω, this dedicated subwoofer amplifier drives deep bass with authority while maintaining exceptionally low distortion below 1% THD. The marine-rated construction handles Australian coastal conditions, wet bilges, and dusty 4WD environments with equal confidence. Designed for single-subwoofer installations where space is limited but performance isn't negotiable, the XDM600 features variable low-pass filtering (50Hz-500Hz) with selectable 12dB or 24dB/octave slopes, plus a defeatable 30Hz infrasonic filter to protect drivers from damaging subsonic frequencies. At just 216mm wide and 2.86kg, it mounts easily in boats, utes, caravans, or behind seats where traditional amplifiers won't fit. Key Specifications Monoblock Class D amplifier optimised for subwoofer duty Maximum rated power: 600W RMS at 2Ω (14.4V input, <1% THD) Power at 4Ω load: 400W RMS (14.4V input, <1% THD) Power at 2Ω load (battery voltage): 500W RMS (12.5V input, <1% THD) Power at 4Ω load (battery voltage): 300W RMS (12.5V input, <1% THD) Frequency response: 7Hz-500Hz (+0, -1dB) Signal-to-noise ratio: >87dB (A-weighted, 20Hz-20kHz, referred to rated power) Signal-to-noise ratio: >67dB (A-weighted, 20Hz-20kHz, referred to 1W) Operating voltage: 11-14.5 VDC (12V systems only) Damping factor: >1000 @ 4Ω, 50Hz / >500 @ 2Ω, 50Hz THD+N: <1% @ rated power, 2Ω per channel Input voltage range: 200mV-4V RMS via RCA inputs Filter mode: Off or Low-Pass only Filter slope: 12dB/octave or 24dB/octave (selectable) Filter frequency range: 50Hz-500Hz Infrasonic filter: 30Hz, defeatable Dimensions: 216mm (W) × 180mm (D) × 52mm (H) Weight: 2.86kg Fuse rating: 50A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Buffered pass-through preamp outputs Compatible with optional HD-RLC or MHD-RLC (water-resistant) remote level control Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits Variable Low-Pass Filtering (50Hz-500Hz)Dial in precise crossover points to match your subwoofer's characteristics and cabin acoustics. Selectable 12dB or 24dB/octave slopes provide flexibility for sealed or ported enclosures, ensuring smooth integration with front-stage speakers without overlap or gaps in frequency response. Defeatable 30Hz Infrasonic FilterProtects subwoofer drivers from destructive subsonic content below audible range—critical when running ported enclosures near tuning frequency or when playing bass-heavy tracks with subsonic rumble. Defeat when running sealed enclosures for maximum low-end extension. Marine-Rated Class D TopologyConformal-coated circuit boards and marine-grade construction resist moisture, salt spray, and corrosion. Ideal for tinnie fishing setups, ski boats, wakeboard towers, caravan installations exposed to rain ingress, or 4WD dual-battery systems subjected to dust and vibration across corrugated tracks. Compact, Efficient FootprintAt 216mm × 180mm × 52mm and just 2.86kg, the XDM600 delivers serious subwoofer power without monopolising installation space. Class D efficiency reduces heat generation, enabling mounting behind seats, under false floors, or in shallow bilge areas where traditional Class AB amplifiers would overheat. High Damping Factor (>1000 @ 4Ω)Tight electrical control over subwoofer cone motion delivers punchy, articulate bass with minimal overhang—critical for reproducing kick drums, bass guitar, and electronic music with precision. The high damping factor ensures transient response remains crisp even during demanding passages. Optional Water-Resistant Remote Level ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) to adjust subwoofer output from the helm, driver's seat, or caravan dinette. Essential for compensating between moored listening and underway conditions, or between solo driving and loaded touring configurations. Buffered Pass-Through Preamp OutputsDaisy-chain additional amplifiers for multi-sub or full-range expansion without signal degradation. The buffered output maintains voltage consistency regardless of downstream impedance, ensuring predictable system performance as installations grow. Technical Specs Amplifier class: Class D Channels: 1 (Monoblock) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Power Output (varies by voltage and load impedance): Maximum rated power (14.4V @ 2Ω, <1% THD): 600W × 1 Power at 4Ω load (14.4V @ 4Ω, <1% THD): 400W × 1 Power on battery voltage (12.5V @ 2Ω, <1% THD): 500W × 1 Minimum power output (12.5V @ 4Ω, <1% THD): 300W × 1 Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to rated power): >87dB Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >67dB Damping factor @ 4Ω: >1000 @ 50Hz Damping factor @ 2Ω: >500 @ 50Hz THD+N @ rated power: <1% @ 2Ω per channel Frequency response (+0, -1dB): 7Hz-500Hz Input voltage range @ RCA inputs: 200mV-4V RMS Filter mode: Off or Low-Pass only Filter slope: 12dB/octave or 24dB/octave (selectable) Filter frequency range: 50Hz-500Hz Infrasonic filter: 30Hz, defeatable Detented, calibrated filter potentiometers: Yes Buffered pass-through preamp output: Yes Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 50A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 216mm × 180mm × 52mm (8.52" × 7.09" × 2.05") Weight: 2.86kg (6.3 lbs) Warranty: 3 years Important Note: This is the 12V model. The XDM series also includes 24V variants (6-channel and 8-channel only) for commercial/heavy vehicle applications - this monoblock 600W model operates on 12V systems exclusively. Compatible With / Goes Well With Subwoofer Recommendations: JL Audio Marine M6 or M3 10" or 12" subwoofers (300W-600W RMS continuous) Sealed or ported enclosures up to 600W RMS handling Shallow-mount subwoofers for space-constrained marine or automotive installations Installation Accessories: 4 AWG amplifier wiring kit with 50A+ inline fuse holder JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (14-16 AWG recommended for subwoofer runs) RCA interconnect cables with marine-grade shielding Sound deadening material for enclosure mounting surfaces System Compatibility: Marine head units with preamp outputs (2V-4V recommended) Aftermarket head units with dedicated subwoofer preouts Line output converters for OEM integration Dual-battery systems with adequate alternator capacity (90A+ recommended) Caution: Verify your subwoofer's impedance (2Ω or 4Ω) and power handling capacity before connection. Running a 4Ω sub will yield 400W; a 2Ω load delivers full 600W output. Ensure adequate alternator capacity and battery reserve for sustained high-output operation. Weight 2.86kg (6.3 lbs) Frequently Asked Questions Will this amplifier fit behind my boat's helm seat or under a ute tub liner?At 216mm × 180mm × 52mm, the XDM600 fits most shallow-mount locations. Ensure 50mm clearance above the unit for heat dissipation and verify mounting depth accommodates wire terminals. Can I run two subwoofers with this monoblock amplifier?Yes, if wired correctly. Wire two 4Ω subs in parallel for 2Ω total load (600W shared) or two 2Ω subs in series for 4Ω total (400W shared). Do not wire two 2Ω subs in parallel—this creates a 1Ω load that risks amplifier damage. Is the marine rating suitable for saltwater boating environments?Yes. Conformal-coated circuit boards resist salt spray, moisture, and corrosion. Mount away from direct water streams or bilge flooding. Pair with marine-grade wiring and heat-shrink connections for long-term reliability in coastal conditions. What size power wire and fuse do I need for installation?Minimum 4 AWG copper power and ground wire with a 50A fuse (AFS, AGU, or MaxiFuse™) installed within 45cm of battery positive terminal. Use marine-grade tinned copper wire for saltwater applications to prevent corrosion. This 12V model requires standard automotive/marine electrical systems (11-14.5 VDC). How do I set the low-pass filter and infrasonic filter correctly?Start with low-pass filter at 80Hz (12dB slope) and infrasonic filter engaged. Adjust low-pass upward if bass sounds thin or downward if vocals sound muddy. Switch to 24dB slope for ported enclosures. Disengage infrasonic filter only if running sealed enclosures and experiencing bass roll-off.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Maximum power Class D subwoofer amplification engineered for extreme marine and automotive bass applications. Product Overview The JL Audio XDM1000 monoblock amplifier delivers elite-level subwoofer power in a marine-rated Class D package. With 1000W RMS output at 2Ω and 600W at 4Ω, this dedicated bass amplifier provides the headroom demanded by serious marine audio installations, competition SPL builds, and high-output 4WD systems. The marine-grade conformal coating protects against Australia's harshest coastal conditions, salt spray, and bilge moisture while maintaining exceptionally low distortion below 1% THD across the full power band. Built on JL Audio's proven XDM platform, the 1000-watt monoblock features variable low-pass filtering (50Hz-500Hz) with selectable 12dB or 24dB/octave slopes, allowing precise integration with any subwoofer configuration. The robust 80A fuse rating and substantial heat sink design ensure sustained performance during extended listening sessions at anchor, beach parties, or highway touring. At 374mm wide, it represents the flagship of JL Audio's monoblock XDM range—engineered for installers who refuse to compromise on power or reliability. Key Specifications Monoblock Class D amplifier optimised for high-output subwoofer applications Maximum rated power: 1000W RMS at 2Ω (14.4V input, <1% THD) Power at 4Ω load: 600W RMS (14.4V input, <1% THD) Power at 2Ω load (battery voltage): 800W RMS (12.5V input, <1% THD) Power at 4Ω load (battery voltage): 500W RMS (12.5V input, <1% THD) Frequency response: 7Hz-500Hz (+0, -1dB) Signal-to-noise ratio: >83dB (A-weighted, 20Hz-20kHz, referred to rated power) Signal-to-noise ratio: >53dB (A-weighted, 20Hz-20kHz, referred to 1W) Operating voltage: 11-14.5 VDC (12V systems only) Damping factor: >1000 @ 4Ω, 50Hz / >500 @ 2Ω, 50Hz THD+N: <1% @ rated power, 2Ω per channel Input voltage range: 200mV-4V RMS via RCA inputs Filter mode: Off or Low-Pass only Filter slope: 12dB/octave or 24dB/octave (selectable) Filter frequency range: 50Hz-500Hz Infrasonic filter: Not specified for this variant Dimensions: 374mm (W) × 180mm (D) × 52mm (H) Weight: Not specified Fuse rating: 80A (AFS, AGU or MaxiFuse™ recommended) Minimum power/ground wire: 4 AWG copper Buffered pass-through preamp outputs Compatible with optional HD-RLC or MHD-RLC (water-resistant) remote level control Marine-rated construction suitable for wet/harsh environments 3-year manufacturer warranty Features & Benefits 1000W RMS Continuous PowerDelivers maximum bass authority for demanding marine wakeboard towers, competition SPL builds, or dual-subwoofer touring setups. The 1000W output at 2Ω provides substantial headroom above typical listening levels, ensuring clean, undistorted bass even during peak musical passages. Perfect for large cabin volumes in centre console boats, caravan entertainment systems, or dual-cab ute installations requiring serious low-frequency impact. Variable Low-Pass Filtering (50Hz-500Hz)Precision crossover control allows seamless integration with any subwoofer design. Selectable 12dB or 24dB/octave slopes accommodate sealed, ported, or bandpass enclosures, ensuring smooth transitions between subwoofer and main speakers. The detented, calibrated potentiometers enable repeatable settings across installations—critical for professional installers servicing multiple similar builds. Marine-Rated Class D TopologyConformal-coated circuit boards resist salt spray, moisture ingress, and corrosive coastal environments. Engineered for harsh Australian marine conditions—from tropical Queensland humidity to Southern Ocean salt spray. The robust construction handles bilge moisture, deck washdowns, and weather exposure that would destroy conventional automotive amplifiers, making it equally suitable for offshore fishing boats, ski boats, or canopy-protected 4WD cargo areas. Flagship Power CapacityThe 80A fuse rating and substantial internal power supply deliver consistent performance under sustained high-output conditions. Whether running twin 12" subs in a ported enclosure or a single high-excursion 15" driver, the XDM1000 maintains voltage stability and thermal control during extended listening sessions. Ideal for beach parties, boat rallies, or long-distance touring where the engine may be off for hours. High Damping Factor (>1000 @ 4Ω)Exceptional electrical control over subwoofer cone motion produces tight, articulate bass with minimal overhang. The high damping factor ensures kick drums, bass guitar, and electronic music maintain transient precision even at extreme output levels. Critical for maintaining clarity in noisy marine environments where wind, engine, and wave noise compete with audio playback. Extended Chassis DesignAt 374mm (14.73"), the XDM1000 features the largest footprint in the monoblock XDM range, accommodating a substantial heat sink and power supply components. The extended chassis distributes thermal load efficiently, enabling sustained full-power operation without thermal compression—the enemy of clean bass. Mount horizontally under seats, vertically behind panels, or in dedicated amplifier racks. Optional Water-Resistant Remote Level ControlAdd JL Audio's HD-RLC or MHD-RLC (not included) for convenient output adjustment from the helm, driver's seat, or entertainment zone. Essential for compensating between moored listening conditions and underway wind noise, or between empty boat weight and fully loaded touring configurations. The remote maintains full control authority over the amplifier's output level. Technical Specs Amplifier class: Class D Channels: 1 (Monoblock) Operating voltage: 11-14.5 VDC (12V models only - NOT 24V compatible) Power Output (varies by voltage and load impedance): Maximum rated power (14.4V @ 2Ω, <1% THD): 1000W × 1 Power at 4Ω load (14.4V @ 4Ω, <1% THD): 600W × 1 Power on battery voltage (12.5V @ 2Ω, <1% THD): 800W × 1 Minimum power output (12.5V @ 4Ω, <1% THD): 500W × 1 Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to rated power): >83dB Signal-to-noise ratio (A-weighted, 20Hz-20kHz, referred to 1W): >53dB Damping factor @ 4Ω: >1000 @ 50Hz Damping factor @ 2Ω: >500 @ 50Hz THD+N @ rated power: <1% @ 2Ω per channel Frequency response (+0, -1dB): 7Hz-500Hz Input voltage range @ RCA inputs: 200mV-4V RMS Filter mode: Off or Low-Pass only Filter slope: 12dB/octave or 24dB/octave (selectable) Filter frequency range: 50Hz-500Hz Detented, calibrated filter potentiometers: Yes Buffered pass-through preamp output: Yes Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant) Recommended fuse type: AFS, AGU or MaxiFuse™ Fuse rating: 80A Minimum copper power/ground wire gauge: 4 AWG Physical dimensions (W × D × H): 374mm × 180mm × 52mm (14.73" × 7.09" × 2.05") Weight: Not specified Warranty: 3 years Important Note: This is the 12V model. The XDM series also includes 24V variants (6-channel and 8-channel only) for commercial/heavy vehicle applications—this monoblock 1000W model operates on 12V systems exclusively. Compatible With / Goes Well With Subwoofer Recommendations: JL Audio Marine M6 or M3 12" or 15" subwoofers (500W-1000W RMS continuous) Dual 10" or 12" subwoofer configurations (500W each, wired for 2Ω total) Single high-excursion 15" subwoofer (800W-1000W RMS handling) Ported or sealed enclosures rated for 1000W RMS handling Installation Accessories: 4 AWG or 2 AWG amplifier wiring kit with 80A+ inline fuse holder (0 AWG recommended for extended runs) JL Audio HD-RLC or MHD-RLC water-resistant remote level control Marine-grade speaker wire (12-14 AWG recommended for subwoofer runs) RCA interconnect cables with marine-grade shielding Sound deadening material for enclosure mounting surfaces and surrounding panels Heavy-duty amplifier mounting brackets or racks System Compatibility: Marine head units with 2V-4V preamp outputs (4V recommended for best signal-to-noise ratio) Aftermarket head units with dedicated subwoofer preouts Line output converters for factory radio integration Dual-battery systems with high-output alternators (130A+ minimum recommended) Distribution blocks for multi-amplifier systems Electrical System Requirements: Minimum 130A alternator capacity for sustained full-power operation Adequate battery reserve (AGM or lithium recommended for deep-cycle support) Proper grounding with dedicated ground point to chassis/hull Voltage-stable electrical system (avoid excessive voltage drop under load) Caution: The XDM1000 demands substantial electrical capacity. Verify your alternator output, battery capacity, and wiring gauge before installation. Undersized electrical systems will result in voltage drop, thermal protection triggering, or inconsistent performance. Running at 2Ω delivers maximum 1000W but requires robust electrical infrastructure. For extended engine-off listening, consider auxiliary battery systems with proper isolation. Frequently Asked Questions What electrical system upgrades do I need to run this 1000W amplifier?Minimum 130A alternator, AGM or lithium auxiliary battery for engine-off use, 4 AWG power/ground wire (0-2 AWG for runs over 5m), and 80A fuse within 45cm of battery. Undersized systems cause voltage drop and thermal protection shutdown. Can I run dual subwoofers with this amplifier?Yes. Wire two 4Ω subs in parallel for 2Ω total (1000W shared) or two 2Ω subs in series for 4Ω total (600W shared). Never wire two 2Ω subs in parallel—this creates 1Ω load that can damage the amplifier. Will this fit in the same space as the XDM600 monoblock?No. The XDM1000 measures 374mm wide versus the XDM600's 216mm width. Verify mounting location accommodates the extended chassis (374mm × 180mm × 52mm) with adequate ventilation clearance above and around the heat sink. Is this suitable for wakeboard tower speakers or only subwoofers?Subwoofers only. The XDM1000 features low-pass filtering (50Hz-500Hz) optimised for bass reproduction. For wakeboard tower full-range speakers, consider JL Audio's multi-channel XDM amplifiers with high-pass filtering capabilities. How do I prevent thermal shutdown during long engine-off listening sessions?Ensure 50mm+ clearance around the amplifier for airflow, avoid mounting in sealed enclosures, and consider auxiliary cooling fans for enclosed installations. Monitor voltage—if battery voltage drops below 11V, reduce output or start engine to prevent thermal protection activation.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

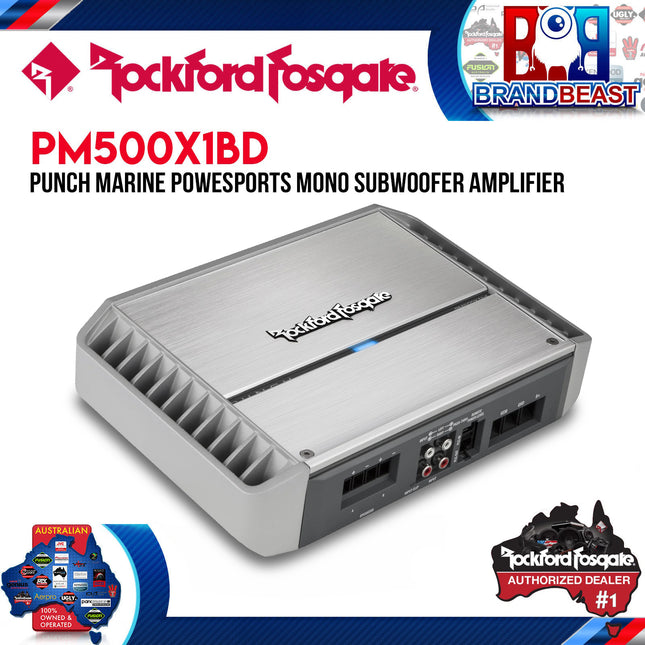

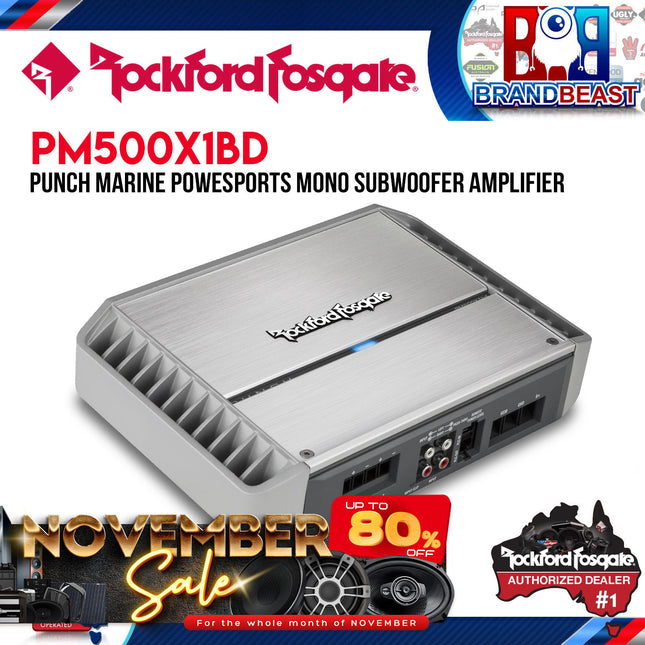

Serious Bass. Compact Package. Built to Survive the Elements. The Rockford Fosgate PM500X1bd is a 500 Watt Class-BD mono amplifier engineered for marine, motorsport, and powersports environments where dedicated subwoofer power and genuine weather protection are the brief. Delivering 150W x 1 at 4 ohms, 300W x 1 at 2 ohms, and a full 500W x 1 at 1 ohm, it sits in the sweet spot of the Punch Marine mono range more than enough to drive a serious subwoofer setup without the electrical demands or physical footprint of a kilowatt-class amp. Like its bigger sibling the PM1000X1bd, the PM500X1bd runs Rockford Fosgate's Class-BD circuit topology, achieving 75–80% power efficiency compared to the 20–60% typical of Class A/B designs. That means cleaner bass, less heat generated per watt, and reduced strain on your boat or vehicle's electrical system. Its 1-ohm stability lets you run two 4-ohm DVC subwoofers or four 2-ohm DVC subs without any complex impedance gymnastics, and its frequency response is locked between 20 Hz and 250 Hz every watt is dedicated to the low end where it matters most. Rockford Fosgate's Element Ready™ construction marine-grade two-part epoxy conformal-coated PCB and corrosion-resistant stainless steel hardware keeps it performing reliably through saltwater, humidity, outback dust, and relentless Australian UV. Key Specifications 500W total power output (CTA-2006 compliant) 150W x 1 at 4 ohms | 300W x 1 at 2 ohms | 500W x 1 at 1 ohm Class-BD circuit topology 75–80% efficiency rating 1-ohm stable monoblock; dedicated low-frequency output only Frequency response: 20 Hz – 250 Hz THD+N: Less than 1% Input sensitivity: 150mV – 12V (low- and high-level) Low-pass crossover: 50 Hz – 250 Hz @ 12 dB/octave Butterworth Infrasonic filter: 28 Hz @ 12 dB/octave Butterworth All-Pass: No (low-frequency only) On-board Punch EQ: Bass +0 to +18 dB @ 45 Hz RCA pass-through outputs Optional remote Punch Level Control (PLC2) compatible Marine-grade two-part epoxy conformal coating on PCB Marine-grade stainless steel hardware Element Ready™: Dust, UV, Temperature, Water, Corrosion & Vibration rated Max current draw: 70A at 13.8V sinewave 2-year manufacturer warranty Features & Benefits Class-BD Technology More Bass, Less Current Draw The PM500X1bd's Class-BD circuit delivers 75–80% power efficiency, compared to 20–60% for Class A/B. At 500W, this translates directly into less heat generated inside sealed installations, reduced load on your battery and alternator, and a longer, more reliable lifespan for the amp and your electrical system particularly valuable for boats and UTVs with limited charging headroom. 1-Ohm Stable Flexible Multi-Sub Wiring Run two 4-ohm DVC subwoofers with voice coils wired in parallel (final load: 1 ohm), or four 2-ohm DVC subs in series-parallel (final load: 1 ohm). The PM500X1bd handles either configuration with ease no voltage drop, no thermal runaway, no compromise on output. Dedicated Low-Frequency Response Focused Power With a frequency response of 20 Hz to 250 Hz and no all-pass mode, the PM500X1bd routes every watt directly to the bass band. For subwoofer-only or mid-bass applications this is a significant advantage no wasted amplifier headroom on frequencies your sub can't reproduce. Infrasonic Filter at 28 Hz Built-In Sub Protection The onboard 28 Hz infrasonic filter rolls off subsonic frequencies at 12 dB/octave, protecting subwoofer cones from over-excursion caused by ultra-low frequency content hull resonance, port noise, or corrupted audio files. Essential for vented enclosures and high-excursion subs used in open-air marine environments on Aussie waterways. Marine-Grade Element Ready™ Construction Two-part epoxy conformal-coated circuit boards and corrosion-resistant stainless steel hardware provide full protection against saltwater spray, humidity, UV radiation, and mechanical vibration. Designed and built for real marine and motorsport conditions not a cosmetic upgrade over a standard car amp. C.L.E.A.N. Gain Setting with LED Indicators Calibrated Level Eliminates Audible Noise. Colour-coded LEDs (Blue: <0.5% THD | Violet: 1% THD | Red: 10%+ THD) guide precise gain matching between your source unit and the amplifier eliminating clipping distortion that damages subwoofer voice coils and delivers clean, dynamic bass at any volume level. High-Level Input with Auto Turn-On Accepts speaker-level signals up to 12V directly from factory (OEM) head units no line output converter required. Auto Turn-On senses the audio signal and powers the amp at ignition. Ideal for Aussie utes, 4WDs, tinnies, and UTVs running factory radios. RCA Pass-Through Outputs Loop the pre-amp signal downstream to a separate full-range amplifier with no signal degradation. Pair the PM500X1bd on a subwoofer channel and feed a PM400X4 or PM300X2 for full-range speakers from the same head unit output one signal source, two amplifiers, no converter needed. Optional PLC2 Remote Level Control The PM500X1bd is PLC2-ready. Add the optional Rockford Fosgate PLC2 remote controller (sold separately) for driver-seat subwoofer level adjustment, with an onboard input clip indicator for real-time gain monitoring. MEHSA³ Cast Aluminium Heatsink Maximum Efficiency Heat Sink Application (MEHSA³) construction delivers up to five times better heat transfer than conventional mounting methods keeping the PM500X1bd running cool in sealed marine cavities, under-seat bays, and enclosed UTV storage compartments. Muted Turn-On Silent power-on at ignition with no pop or thump through the subwoofer protecting the voice coil and surround every time the system cycles. Technical Specs Specification Detail SKU PM500X1bd Number of Channels 1 (Mono) Total Power 500W Rated Power – 4 ohm (CTA-2006, <1.0% THD+N) 150W x 1 Rated Power – 2 ohm (CTA-2006, <1.0% THD+N) 300W x 1 Rated Power – 1 ohm (CTA-2006, <1.0% THD+N) 500W x 1 Circuit Topology Class-BD Class-BD Efficiency 75–80% Minimum Impedance 1 ohm stable Bridgeable No (monoblock) Frequency Response 20 Hz – 250 Hz THD + Noise Less than 1% Input Sensitivity Low-Level: 150mV – 4V / High-Level: 4V – 12V Signal Input 1 x RCA pair + High-Level Signal Output 1 x RCA Pass-Through Punch EQ Bass 0 dB to +18 dB @ 45 Hz Low-Pass Crossover 50 Hz – 250 Hz @ 12 dB/octave Butterworth Infrasonic Filter 28 Hz @ 12 dB/octave Butterworth All-Pass No Auto-Sense Turn-On Yes High-Level Input Yes (with Auto Turn-On) Remote Level Control Optional PLC2 (sold separately) Circuit Board Protection Marine-grade two-part epoxy conformal coating Heatsink Cast aluminium (MEHSA³ process) Hardware Marine-grade stainless steel Element Ready™ Dust, UV, Temperature, Water, Corrosion, Vibration CTA-2006 Compliant Yes CE Compliant Yes Max Current Draw (13.8V Sinewave) 70A Visual Indicators Power/Protect/Thermal LED; C.L.E.A.N. In/Out LED LED Colour Legend Blue: <0.5% THD / Violet: 1% THD / Red: 10%+ THD Dimensions (H x W x D) 60.5 x 197.1 x 337.3 mm (2.38 x 7.76 x 13.28 in) Shipping Weight Confirm with supplier Warranty 2 Years Compatible With Subwoofer Configurations (Optimised For) Two 4-ohm DVC subwoofers, voice coils wired parallel (final load: 1 ohm) recommended Four 2-ohm DVC subwoofers wired series-parallel (final load: 1 ohm) Single 4-ohm SVC subwoofer (150W @ 4 ohm) Single 2-ohm SVC subwoofer (300W @ 2 ohm) Rockford Fosgate M2D4-12 Marine Subwoofer Rockford Fosgate Punch P2D4-10 / P2D4-12 Subwoofers Rockford Fosgate Punch P1D4-10 / P1D4-12 Subwoofers Marine & Boat Audio Tinnies, ski boats, bowriders, pontoons, and cabin cruisers dedicated bass channel Paired with Rockford Fosgate PM400X4 or PM300X2 (via RCA pass-through) for full front-stage + sub system Rockford Fosgate PMX-5CAN Marine Head Unit Motorsport & Powersports Side-by-side UTVs (Can-Am Maverick, Polaris RZR, Yamaha YXZ, Honda Talon) Rockford Fosgate UTV subwoofer enclosures Powersports applications requiring compact 1-ohm stable mono power 4WD, Ute & Touring Vehicles Toyota LandCruiser (100, 200, 300 Series), HiLux, Prado Ford Ranger, Everest, Bronco Isuzu D-MAX / MU-X Nissan Patrol (Y60, Y61, Y62), Navara Mitsubishi Triton, Pajero Sport Any vehicle with an OEM (factory) head unit via high-level input Compatible Accessories Rockford Fosgate PLC2 Remote Punch Level Controller (sold separately recommended) RFI-1 Amplifier Wiring Installation Kit (recommended for extended warranty) 4 AWG OFC wiring kit matched to 70A current draw for safe, optimised power delivery Frequently Asked Questions What subwoofer wiring configuration works best with the PM500X1bd? For maximum 500W output at 1 ohm, wire two 4-ohm DVC subwoofers with each voice coil pair connected in parallel for a final 1-ohm load. Alternatively, four 2-ohm DVC subwoofers in series-parallel also achieve a 1-ohm final load. Always verify total impedance before powering on. Can the PM500X1bd power full-range speakers? No. The PM500X1bd has a dedicated low-frequency response of 20 Hz to 250 Hz with no all-pass mode it is designed exclusively for subwoofers and mid-bass drivers. For full-range speakers, pair it with a Rockford Fosgate PM400X4 or PM300X2 using the onboard RCA pass-through outputs. How does the PM500X1bd differ from the PM1000X1bd? Both use Class-BD topology and identical marine-grade construction, but the PM500X1bd delivers 500W at 1 ohm versus 1,000W for the PM1000X1bd. The PM500X1bd draws 70A maximum versus 130A, making it a better fit for systems with tighter electrical budgets particularly boats and UTVs with standard alternators. Choose the PM1000X1bd for maximum output in larger, purpose-built subwoofer enclosures. Does the infrasonic filter need to be enabled manually? The infrasonic filter operates at 28 Hz and is a fixed circuit within the amplifier it provides constant protection against damaging subsonic frequencies without requiring any manual adjustment. It is particularly important for vented subwoofer enclosures that are more susceptible to over-excursion below the port tuning frequency. What warranty applies to the PM500X1bd in Australia? The PM500X1bd carries a 2-year manufacturer warranty. Australian warranty terms are administered through the authorised local distributor confirm coverage details at point of purchase, as Rockford Fosgate's published US warranty applies only to products purchased via US-authorised dealers. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

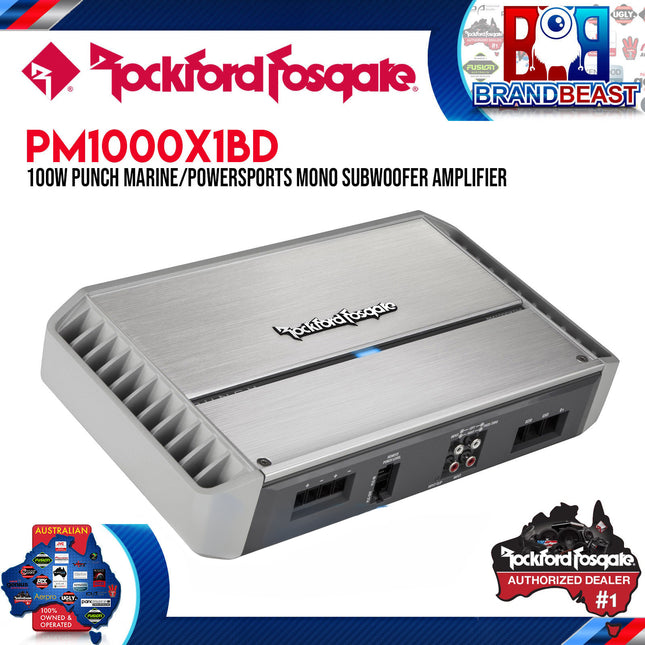

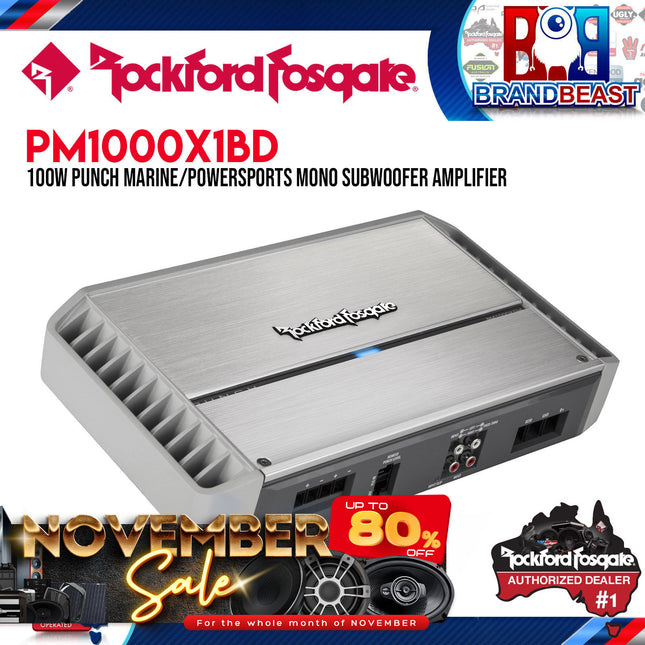

Maximum BOOM for Your Buck. Marine-Tough to the Core. Product Overview The Rockford Fosgate PM1000X1bd is a 1,000 Watt Class-BD mono amplifier purpose-built for marine, motorsport, and powersports environments where maximum bass output and genuine weather protection are non-negotiable. Delivering 300W x 1 at 4 ohms, 500W x 1 at 2 ohms, and a full 1,000W x 1 at 1 ohm, this is the dedicated subwoofer powerhouse of the Punch Marine amplifier range. What makes the PM1000X1bd different from a standard Class A/B mono amp is its Class-BD circuit topology delivering 75–80% efficiency ratings compared to the 20–60% typical of traditional Class A/B designs. That means more of your electrical power becomes bass output, less of it becomes heat. Combined with a frequency response optimised for 20 Hz to 250 Hz, this amp is exclusively calibrated for mid-bass speakers and subwoofers no wasted bandwidth, no compromises. Its 1-ohm stability makes it easy to wire a pair of 4-ohm DVC subwoofers or a quad configuration of 2-ohm DVC subwoofers directly, without needing a complex impedance calculation or risking amplifier damage. Rockford Fosgate's Element Ready™ construction handles the rest marine-grade two-part epoxy conformal-coated PCB and corrosion-resistant stainless steel hardware keep the PM1000X1bd performing reliably through saltwater spray, corrugated outback tracks, high humidity, and Australian UV. Key Specifications 1,000W total power output (CTA-2006 compliant) 300W x 1 at 4 ohms | 500W x 1 at 2 ohms | 1,000W x 1 at 1 ohm Class-BD circuit topology 75–80% efficiency rating 1-ohm stable monoblock; dedicated low-frequency output only Frequency response: 20 Hz – 250 Hz (±1 dB) THD+N: Less than 1% Input sensitivity: 150mV – 12V (low- and high-level) Low-pass crossover: 50 Hz – 250 Hz @ 12 dB/octave Butterworth Infrasonic filter: 28 Hz @ 12 dB/octave Butterworth (subsonic protection) All-Pass: No (low-frequency only) On-board Punch EQ: Bass +0 to +18 dB @ 45 Hz RCA pass-through outputs Optional remote Punch Level Control (PLC2) compatible Marine-grade two-part epoxy conformal coating on PCB Marine-grade stainless steel hardware Element Ready™: Dust, UV, Temperature, Water, Corrosion & Vibration rated Recommended fuse: 140A x 1 (not included) Max current draw: 130A at 13.8V sinewave 2-year manufacturer warranty Features & Benefits Class-BD Technology Efficiency That Translates to Real Bass Class-BD amplifiers achieve 75–80% power efficiency, compared to the 20–60% typical of Class A/B designs. That gap matters  it means more wattage reaches your subwoofers rather than being lost as heat, your electrical system works less hard, and the amp runs cooler in sealed installations. At 1,000W into a 1-ohm load, this efficiency advantage is the difference between a hot, straining amp and one that holds output all day on the water. 1-Ohm Stable Wire More Subs Without Compromise The PM1000X1bd's 1-ohm stability opens up multi-subwoofer configurations that would stress or destroy standard marine mono amps. Run two 4-ohm DVC subs wired in parallel per voice coil (final load: 1 ohm), or four 2-ohm DVC subs in series-parallel (final load: 1 ohm). Maximum cone area, maximum output, one compact amplifier. Dedicated Low-Frequency Design No Wasted Bandwidth With a frequency response of 20 Hz to 250 Hz, the PM1000X1bd isn't trying to be everything. It's calibrated exclusively for subwoofers and mid-bass drivers, with no all-pass mode and no high-frequency reproduction. Every watt is focused exactly where it needs to be. Infrasonic Filter at 28 Hz Sub Protection Built In The onboard infrasonic filter rolls off frequencies below 28 Hz at 12 dB/octave. This protects subwoofer cones from damaging over-excursion caused by ultra-low frequency content (boat hull resonance, port noise, corrupted audio files) critical for vented subwoofer enclosures and high-excursion marine subs in open-air environments. Marine-Grade Element Ready™ Construction Two-part epoxy conformal-coated circuit boards and corrosion-resistant stainless steel hardware provide full protection against the saltwater, humidity, UV radiation, and mechanical vibration that destroys standard car audio gear in marine and motorsport environments. This isn't a rebadged car amp it's genuinely built for the conditions Australian boaters, UTV riders, and 4WD tourers encounter. C.L.E.A.N. Gain Setting with LED Indicators Calibrated Level Eliminates Audible Noise. Onboard colour-coded LEDs (Blue: <0.5% THD | Violet: 1% THD | Red: 10%+ THD) guide precise gain matching between your head unit and amplifier maximising clean output headroom and protecting subwoofer voice coils from clipping distortion. High-Level Input with Auto Turn-On Accepts speaker-level signals directly from factory (OEM) head units no line output converter required. Auto Turn-On powers the amp automatically at ignition. Ideal for Aussie utes, 4WDs, tinnies, and UTVs running factory head units where aftermarket RCA outputs aren't an option. RCA Pass-Through Outputs Loop the signal from the PM1000X1bd to a separate full-range amplifier without signal degradation. Run the PM1000X1bd exclusively on subwoofers, and daisy-chain a PM400X4 or PM300X2 for full-range speakers from the same source. Optional PLC2 Remote Level Control PLC2-ready for driver-seat subwoofer level adjustment (sold separately), complete with an input clip indicator for real-time gain monitoring while underway. MEHSA³ Cast Aluminium Heatsink Maximum Efficiency Heat Sink Application (MEHSA³) construction delivers up to five times better heat transfer than conventional mounting techniques critical for a 1,000W mono amp installed in a sealed marine cavity or under a ute seat where airflow is limited. Technical Specs Specification Detail SKU PM1000X1bd Number of Channels 1 (Mono) Total Power 1,000W Rated Power – 4 ohm (CTA-2006, <1.0% THD+N) 300W x 1 Rated Power – 2 ohm (CTA-2006, <1.0% THD+N) 500W x 1 Rated Power – 1 ohm (CTA-2006, <1.0% THD+N) 1,000W x 1 Circuit Topology Class-BD Class-BD Efficiency 75–80% Minimum Impedance 1 ohm stable Bridgeable No (monoblock) Frequency Response 20 Hz – 250 Hz (±1 dB) THD + Noise Less than 1% Input Sensitivity Low-Level: 150mV – 4V / High-Level: 4V – 12V Signal Input 1 x RCA pair + High-Level Signal Output 1 x RCA Pass-Through Punch EQ Bass 0 dB to +18 dB @ 45 Hz Low-Pass Crossover 50 Hz – 250 Hz @ 12 dB/octave Butterworth Infrasonic Filter 28 Hz @ 12 dB/octave Butterworth All-Pass No Auto-Sense Turn-On Yes High-Level Input Yes (with Auto Turn-On) Remote Level Control Optional PLC2 (sold separately) Circuit Board Protection Marine-grade two-part epoxy conformal coating Heatsink Cast aluminium (MEHSA³ process) Hardware Marine-grade stainless steel Element Ready™ Dust, UV, Temperature, Water, Corrosion, Vibration CTA-2006 Compliant Yes CE Compliant Yes Recommended Fuse 140A x 1 (not included) Max Current Draw (13.8V Sinewave) 130A Visual Indicators Power/Protect/Thermal LED; C.L.E.A.N. In/Out LED LED Colour Legend Blue: <0.5% THD / Violet: 1% THD / Red: 10%+ THD Dimensions (H x W x D) 60.5 x 197.1 x 337.3 mm (2.38 x 7.76 x 13.28 in) Shipping Weight Confirm with supplier Warranty 2 Years Compatible With Subwoofer Configurations (Optimised For) Two 4-ohm DVC subwoofers wired parallel per voice coil (final load: 1 ohm) recommended Four 2-ohm DVC subwoofers wired series-parallel (final load: 1 ohm) Single 4-ohm SVC subwoofer (300W @ 4 ohm) Single 2-ohm SVC subwoofer (500W @ 2 ohm) Rockford Fosgate M2D4-12 Marine Subwoofer Rockford Fosgate Punch P3D4-12 / P3D4-15 Subwoofers Rockford Fosgate Punch P2D4-10 / P2D4-12 Subwoofers Marine & Boat Audio Ski boats, bowriders, pontoons, and cabin cruisers dedicated bass channel Paired with Rockford Fosgate PM400X4 (via RCA pass-through) for full front-stage + sub system Rockford Fosgate PMX-5CAN Marine Head Unit Motorsport & Powersports Side-by-side UTVs (Can-Am Maverick X3, Polaris RZR XP, Yamaha YXZ, Honda Talon) Rockford Fosgate UTV subwoofer enclosures Powersports applications requiring 1-ohm stable, compact mono power 4WD, Ute & Touring Vehicles Toyota LandCruiser (100, 200, 300 Series), HiLux, Prado Ford Ranger, Everest, Bronco Isuzu D-MAX / MU-X Nissan Patrol (Y60, Y61, Y62), Navara Mitsubishi Triton, Pajero Sport Any vehicle running an OEM (factory) head unit via high-level input Compatible Accessories Rockford Fosgate PLC2 Remote Punch Level Controller (sold separately recommended) RFI-1 Amplifier Wiring Installation Kit (recommended for extended warranty) 4 AWG or 0 AWG OFC wiring kit match wire gauge to fuse rating (140A) for safe power delivery Frequently Asked Questions What subwoofer wiring configuration works best with the PM1000X1bd? For maximum output at 1 ohm, wire two 4-ohm DVC subwoofers with each voice coil pair connected in parallel, giving a final 1-ohm load. Alternatively, four 2-ohm DVC subwoofers wired in series-parallel also achieve a 1-ohm final load. Always verify total impedance before powering on. Can the PM1000X1bd be used for full-range speakers? No. The PM1000X1bd has a dedicated low-frequency response of 20 Hz to 250 Hz with no all-pass mode. It is designed exclusively for subwoofers and mid-bass drivers. For full-range speaker amplification, pair it with a Rockford Fosgate PM400X4 or PM300X2 using the RCA pass-through outputs. What is Class-BD and why does it matter for marine installs? Class-BD amplifiers deliver 75–80% power efficiency compared to 20–60% for traditional Class A/B designs. In a sealed marine cavity or under a ute seat, this means less heat generated per watt of bass output keeping the amp cooler, reducing strain on your electrical system, and extending the life of the install. What does the infrasonic filter do and do I need it? The 28 Hz infrasonic filter rolls off damaging subsonic frequencies that human hearing can't detect but that over-excite subwoofer cones particularly in vented enclosures or open-air marine installs. It is active by default and provides essential cone protection, especially important for high-excursion marine subs used in boats where hull resonance can generate problematic ultra-low frequency content. What warranty applies to the PM1000X1bd in Australia? The PM1000X1bd carries a 2-year manufacturer warranty. Australian warranty terms are administered through the authorised local distributor confirm coverage at point of purchase, as Rockford Fosgate's published US warranty applies only to products purchased via US-authorised dealers. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

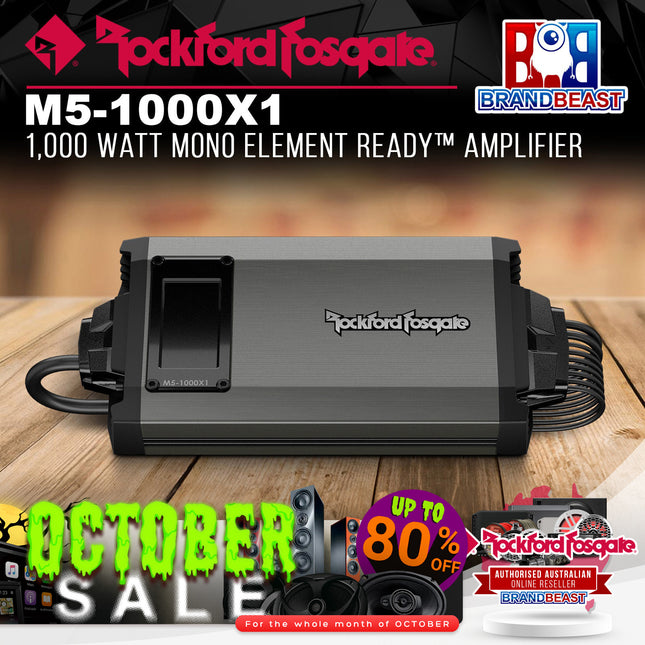

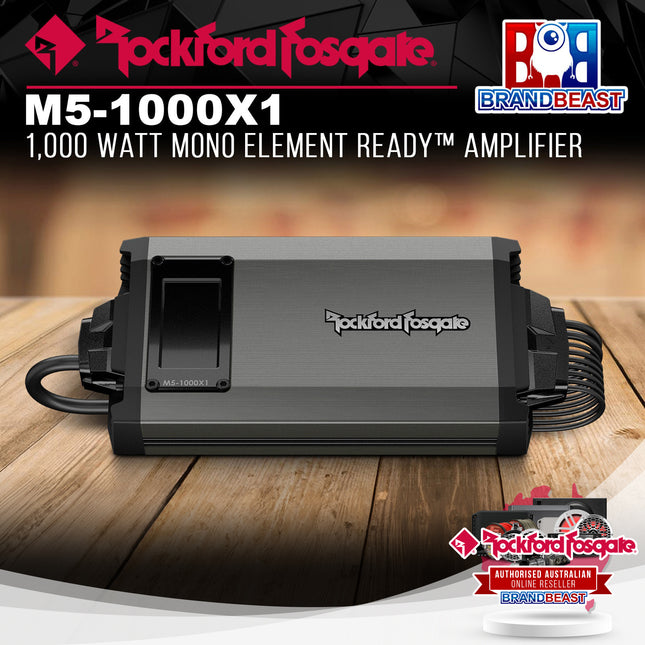

Rockford Fosgate M5-1000X1 1000 Watt Mono IPX6 Element Ready Marine Subwoofer Amplifier A marine grade 1000W monoblock Class-BD subwoofer amplifier with IPX6 water intrusion rating, delivering 750W x 1 at 2-ohm and 1000W dynamic at 1-ohm (CTA-2006 rated). Features C.L.E.A.N. gain calibration, NOMAD speaker protection, P.O.W.E.R. supply, MEHSA4 heat management, infrasonic filter, and balanced differential inputs. Greater than 80% efficiency. Engineered in the USA. Backed by a 2 year warranty. Product Overview The Rockford Fosgate M5-1000X1 is a 1000W monoblock Class-BD marine subwoofer amplifier purpose-built for demanding outdoor environments. IPX6 rated and fully Element Ready, it is protected against dust, UV radiation, temperature extremes, water jets from any direction, corrosion, and vibration throughout its service life. As a dedicated single-channel subwoofer amplifier, the M5-1000X1 operates across a frequency range of 30Hz to 245Hz. Rated continuous power is 500W x 1 at 4-ohm, 750W x 1 at 2-ohm, and 750W x 1 at 1-ohm, all at less than 1.0% THD+N and CTA-2006 certified. Dynamic power via PVC/PowerCube reaches 525W at 4-ohm, 900W at 2-ohm, and 1000W at 1-ohm. Class-BD topology delivers greater than 80% efficiency - significantly higher than the 20-60% typical of traditional Class-A/B amplifier designs - and less than 0.1% THD+N at 1 watt. C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) input and output clip indicators guide precise gain calibration at setup. NOMAD real-time protection guards against shorted speaker wires and dangerously low impedances. MEHSA4 reduces MOSFET temperatures, lowers distortion, and extends output device life. The PRESET feature eliminates manual setup when used with compatible Rockford Fosgate UTV audio kits. An infrasonic filter at 30Hz protects subwoofers from damaging low-frequency excursion. Chassis isolation from mounting points reduces vehicle noise introduction into the audio signal. Features & Benefits Class-BD Monoblock - Greater Than 80% Efficiency: The M5-1000X1 uses Class-BD topology throughout its single subwoofer channel, delivering greater than 80% efficiency versus the 20-60% typical of traditional Class-A/B monoblock amplifiers. This means more power delivered to the subwoofer with less heat generated and less current drawn from the vessel's charging system. C.L.E.A.N. Technology - Precision Gain Calibration: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with dedicated input and output clip indicator LEDs, making it straightforward to match the source unit output to the amplifier's input sensitivity for maximum output with minimum distortion. P.O.W.E.R. Supply and Constant Power Circuit: The P.O.W.E.R. supply continues to generate above rated output as voltage increases. The patented Constant Power circuit topology provides instantaneous power delivery across varying impedance loads, boosting output by up to 25%. Infrasonic Filter - Subwoofer Protection at 30Hz: The infrasonic filter on the output channel attenuates frequencies below 30Hz at 12dB/octave, protecting subwoofer drivers from damaging excursion caused by subsonic content that cannot be heard but can overstress the driver at high volume. NOMAD Speaker Protection - Real-Time Monitoring: NOMAD is a real-time analog protection circuit that continuously monitors for shorted speaker wires and dangerously low speaker impedances, protecting both the amplifier and connected subwoofer from damage. MEHSA4 Heat Management and Chassis Isolation: MEHSA4 (Maximum Efficiency Heat Sink Application) reduces MOSFET operating temperatures, lowers distortion, increases durability, and extends output device life. Chassis isolation from mounting points reduces the introduction of vehicle electrical noise into the audio signal. IPX6 Element Ready - Built for Marine and Outdoor Environments: IPX6 water intrusion rating confirms protection against powerful jets of water from any direction. Element Ready construction with integrated harness and panel seals protects all components throughout the service life of the amplifier. RATS Tested and Engineered in the USA: Each M5-1000X1 is quality and performance tested through Rockford Fosgate's proprietary RATS (Rockford Automated Testing System). Designed and engineered in the USA. Technical Specs Specification Detail SKU M5-1000X1 Number of Channels 1 (Monoblock) Total Power 1000W Rated Power - 4-ohm (CTA-2006, less than 1.0% THD+N) 500W x 1 Rated Power - 2-ohm (CTA-2006, less than 1.0% THD+N) 750W x 1 Rated Power - 1-ohm (CTA-2006, less than 1.0% THD+N) 750W x 1 Dynamic Power - 4-ohm (CTA-2006 PVC/PowerCube) 525W x 1 Dynamic Power - 2-ohm (CTA-2006 PVC/PowerCube) 900W x 1 Dynamic Power - 1-ohm (CTA-2006 PVC/PowerCube) 1000W x 1 Circuit Topology Class-BD Bridgeable No Frequency Response 30 Hz - 245 Hz THD + Noise Less than 0.1% at 1 Watt Input Sensitivity 150mVrms - 12Vrms Efficiency Greater than 80% Signal Input Low-Level: 2 x RCA / High-Level: 4-Pin Molex Tone Controls Sub: 0-18dB at 45Hz Low-Pass Crossover 50 Hz - 250 Hz at 12dB/Octave Butterworth Infrasonic Filter 30 Hz at 12dB/Octave Butterworth Power Wire Gauge 8 AWG Power Input Connector Compression Terminal Block Speaker Wire Gauge 16 AWG Speaker Output Connector 4-Pin Molex Cooling Convection Heatsink Extruded Aluminium (Focused Mass) Operating Voltage 9 - 16 VDC Recommended Fuse (not included) 70A MAXI (Littelfuse 0299070) Average Current Draw at 13.8V Music 4-ohm: 23A / 2-ohm: 53A / 1-ohm: 64A Max Current Draw at 13.8V Sinewave 4-ohm: 46A / 2-ohm: 75A / 1-ohm: 88A Water Intrusion Rating IPX6 Visual Indicators Power: Blue / Protect: Red / Input Clip: Red / Output Clip: Blue/Red Dimensions (H x W x D) 42.8 x 108 x 213mm (1.7 x 4.25 x 8.41 inch) Shipping Weight 2.7kg CTA-2006 Compliant Yes Quality Testing RATS (Rockford Automated Testing System) Warranty 2 Years Compatible With / Goes Well With The M5-1000X1 is a dedicated monoblock subwoofer amplifier suited to marine watercraft, pontoon boats, wakeboard boats, and powersports vehicles requiring a high-output, single-channel subwoofer drive. It is the recommended dedicated subwoofer amplifier for pairings with Rockford Fosgate M2 marine subwoofers. Goes Well With: M212S4 - Rockford Fosgate M2 series 12 inch 4-ohm marine subwoofer handling 300W RMS, an ideal pairing for the M5-1000X1 at 2-ohm or 4-ohm rated output M210S4B - M2 series 10 inch 4-ohm marine subwoofer in black for a compact pairing with the M5-1000X1 M5-800X4 - Companion M5 series 4-channel amplifier for full marine system builds pairing the M5-1000X1 on subwoofer duty with the M5-800X4 powering full-range speakers M5-1500X5 - 5-channel alternative for builds where a single amplifier covering both full-range and subwoofer channels is preferred over separate units DSR1 - Rockford Fosgate Digital Signal Processor for advanced signal processing ahead of the M5-1000X1 RFW8R / RFW8B - Rockford Fosgate 8 AWG marine amplifier wiring kits (red or black) matched to the M5-1000X1's 8 AWG power wire requirement Frequently Asked Questions What is the difference between the M5-1000X1 and the M5-800X4? The M5-1000X1 is a monoblock subwoofer amplifier with a single Class-BD channel delivering up to 750W RMS at 2-ohm, designed exclusively to drive a subwoofer. Its frequency response is limited to 30Hz-245Hz and it features only a low-pass crossover and infrasonic filter. The M5-800X4 is a 4-channel full-range amplifier delivering 100W x 4 at 4-ohm across a 10Hz-50kHz frequency response, suited to powering speakers rather than a subwoofer. In most full marine audio builds, both amplifiers are used together. What subwoofer impedance gives the best output from the M5-1000X1? The M5-1000X1 delivers its highest rated continuous output at 2-ohm (750W RMS) and its highest dynamic output at 1-ohm (1000W dynamic). At 4-ohm, rated continuous output is 500W RMS. For the best balance of output and reliability in a marine environment, pairing the M5-1000X1 with a 2-ohm or dual voice coil subwoofer wired to 2-ohm is recommended. Is the M5-1000X1 suitable for saltwater marine environments? Yes. The M5-1000X1 carries IPX6 water intrusion rating and full Element Ready certification with integrated harness and panel seals, protecting it against water jets from any direction, UV radiation, corrosion, dust, vibration, and temperature extremes. It is designed for both freshwater and saltwater marine applications. What does the infrasonic filter do and should I enable it? The infrasonic filter attenuates frequencies below 30Hz at 12dB/octave on the output channel. Subsonic content below this threshold cannot be heard but can cause excessive cone excursion in subwoofer drivers at high output levels, risking damage over time. Enabling the infrasonic filter is recommended for most marine subwoofer installations, particularly at high volumes or when the source material may include subsonic content. What fuse is required for the M5-1000X1 and is it included? The M5-1000X1 requires a 70A MAXI fuse (Littelfuse part number 0299070). Note this is a 70A fuse - different from the 80A MAXI used on the M5-800X4 and M5-1500X5. The fuse is not included in the box and must be sourced separately. Install it as close to the battery as possible in the 8 AWG power supply line.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Rockford Fosgate M2-500X1 M2 Series 500 Watt Mono Class-D Element Ready Marine Amplifier A marine grade 500W mono Class-D subwoofer amplifier delivering 500W x 1 at 2-ohm (CTA-2006 rated). Features C.L.E.A.N. gain calibration, continuously variable Punch EQ with up to 18dB of bass boost at 45Hz, variable infrasonic filter, RCA pass-thru outputs, RLC remote level control, NOMAD speaker protection, Rollback Protection, conformal coated circuit board, and UV stable powder coated cast aluminium heatsink. Backed by a 2 year warranty. Product Overview The Rockford Fosgate M2-500X1 is a 500W mono Class-D marine amplifier from the M2 Element Ready series, designed for those who want reliable Rockford Fosgate performance in the marine environment at an accessible price point. Rated continuous power is 300W x 1 at 4-ohm and 500W x 1 at 2-ohm (CTA-2006, less than 1.0% THD+N). Dynamic power via PowerCube reaches 350W at 4-ohm and 590W at 2-ohm. As a dedicated mono subwoofer amplifier, the M2-500X1 operates across a frequency range of 20Hz-250Hz. The circuit board is conformal coated to protect electronics from dust and water, and the UV stable powder coated cast aluminium heatsink provides protection against the marine environment without requiring a full IP-rated enclosure. Zinc nickel-plated marine grade brass connection terminals resist corrosion at the connection points. The continuously variable onboard Punch EQ delivers up to 18dB of boost at 45Hz for added bass output from the subwoofer. The variable infrasonic filter is tunable from 15Hz to 40Hz at 12dB/octave, protecting subwoofer drivers across a wider range than a fixed infrasonic filter. RCA pass-thru outputs allow downstream amplifier chaining. An RLC remote level control is included for in-cabin volume adjustment without returning to the amplifier. Auto-Sense turn-on via high-level input removes the need for a dedicated remote wire, with a bypass switch available for vehicles with Retained Accessory Power (RAP) systems. The M2-500X1 is optimised using the AudioGraph PowerCube measurement tool and RATS tested for quality and performance. MEHSA4 heat management, NOMAD speaker protection, and Rollback Protection are all applied. Features & Benefits Class-D Mono - Efficient Power Delivery for Subwoofers: The M2-500X1 uses Class-D topology, which is highly efficient at reducing current demand on the vessel's electrical system compared to traditional Class-A/B designs, while delivering 500W RMS at 2-ohm to a marine subwoofer. Continuously Variable Punch EQ - Up to 18dB at 45Hz: The onboard Punch EQ provides up to 18dB of continuously adjustable bass boost at 45Hz, allowing the subwoofer output to be tuned precisely to the acoustic characteristics of the installation without a separate equaliser or DSP. Variable Infrasonic Filter - 15Hz to 40Hz Tunable: The infrasonic filter is tunable from 15Hz to 40Hz (12dB/octave Butterworth), providing a wider adjustment range than a fixed infrasonic filter and allowing precise protection for different subwoofer drivers and enclosure types. C.L.E.A.N. Technology - Precision Gain Calibration: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with dedicated input and output clip indicator LEDs, enabling precise gain calibration at setup to maximise output while minimising distortion. RLC Remote Level Control Included: An RLC remote level control is included in the box, allowing subwoofer output volume to be adjusted from the helm or seating position without returning to the amplifier mounting location. RCA Pass-Thru Outputs for Downstream Chaining: RCA pass-thru outputs are active with both RCA and high-level input, allowing the signal to be passed to an additional amplifier in the system without signal degradation. Rollback Protection - Output Device Preservation: Rollback Protection dynamically reduces amplifier demand during sustained high-output conditions, protecting the output devices from thermal stress without triggering a full protect shutdown. NOMAD, MEHSA4, and Conformal Coated Circuit Board: NOMAD provides real-time protection against shorted speaker wires and dangerously low impedances. MEHSA4 (Maximum Efficiency Heat Sink Application) reduces MOSFET temperatures and extends device life. The conformal coated circuit board provides protection against dust and water ingress at the PCB level. Technical Specs Specification Detail SKU M2-500X1 Number of Channels 1 (Monoblock) Total Power 500W Rated Power - 4-ohm (CTA-2006, less than 1.0% THD+N) 300W x 1 Rated Power - 2-ohm (CTA-2006, less than 1.0% THD+N) 500W x 1 Dynamic Power - 4-ohm (PowerCube) 350W x 1 Dynamic Power - 2-ohm (PowerCube) 590W x 1 Circuit Topology Class-D Bridgeable No Frequency Response 20 Hz - 250 Hz THD + Noise Less than 1.0% at 4-ohm and 2-ohm Input Sensitivity Low-Level: 150mV - 4V / High-Level: 450mV - 12V Signal Input Low-Level: 2 x RCA / High-Level: 4-Pin Molex Signal Output 2 x RCA Pass-Thru (active with RCA or High-Level input) Tone Controls Punch EQ: 0 to +18dB at 45Hz (Continuously Variable) Low-Pass Crossover 50 Hz - 250 Hz at 12dB/Octave Butterworth Infrasonic Filter 15 Hz - 40 Hz at 12dB/Octave Butterworth (Variable) Remote Controls Yes (RLC Remote Level Control included) Auto-Sense Turn-On Yes (with RAP bypass switch) Power Wire Gauge 4 AWG Power Input Connector Compression Terminal Block Speaker Wire Gauge 8 AWG Speaker Output Connector Compression Terminal Block Terminals Zinc Nickel-Plated Marine Grade Brass Cooling Convection Heatsink UV Stable Powder Coated Cast Aluminium (Focused Mass) Circuit Board Protection Conformal Coated Operating Voltage 9 - 16 VDC Recommended Fuse (not included) 80A Max Current Draw at 13.8V Sinewave 52A Visual Indicators Power/Protect / C.L.E.A.N. In / C.L.E.A.N. Out Dimensions (H x W x D) 49 x 173 x 215mm (1.9 x 6.8 x 8.5 inch) Shipping Weight 2.18kg CTA-2006 Compliant Yes Quality Testing RATS (Rockford Automated Testing System) Warranty 2 Years Compatible With / Goes Well With The M2-500X1 is suited to marine watercraft, pontoon boats, and powersports applications requiring a reliable mono subwoofer amplifier at an accessible price point. It is compatible with subwoofers rated for 300-500W RMS at 4-ohm or 2-ohm. For higher output marine mono amplification, refer to the M5-1000X1. Goes Well With: M212S4 - Rockford Fosgate M2 series 12 inch 4-ohm marine subwoofer, a straightforward pairing with the M2-500X1 at 300W RMS rated output at 4-ohm M210S4B - M2 series 10 inch 4-ohm marine subwoofer in black for a compact pairing with the M2-500X1 M2D2-10SB - M2 series 10 inch DVC Color Optix sealed marine subwoofer, compatible via the VersaSwitch 4-ohm series setting M5-1000X1 - Higher output M5 series 1000W marine monoblock amplifier for builds requiring more headroom beyond the M2-500X1's 500W capability M2-300X4 - Companion M2 series 4-channel amplifier for full system builds pairing the M2-500X1 on subwoofer duty with the M2-300X4 powering full-range speakers RFW4R / RFW4B - Rockford Fosgate 4 AWG amplifier wiring kits (red or black) matched to the M2-500X1's 4 AWG power wire requirement Frequently Asked Questions What is the difference between the M2-500X1 and the M5-1000X1? The M2-500X1 is a 500W mono Class-D marine amplifier from the M2 Element Ready series, rated at 300W at 4-ohm and 500W at 2-ohm. The M5-1000X1 is a 1000W mono Class-BD marine amplifier from the premium M5 series, rated at 500W at 4-ohm, 750W at 2-ohm, and 750W at 1-ohm, with IPX6 water intrusion rating, greater than 80% efficiency, and the PRESET feature for UTV kit compatibility. The M2-500X1 is the more accessible option for builds where 500W output is sufficient; the M5-1000X1 is the step up for higher output requirements and premium marine protection. What is Rollback Protection and when does it activate? Rollback Protection is a circuit that dynamically reduces the amplifier's output demand during sustained high-output conditions to prevent thermal stress on the output devices. Unlike a hard protect shutdown, Rollback Protection manages the amplifier's workload in real time, allowing it to continue playing while protecting the internal components from damage during extended periods of high volume. Does the M2-500X1 need a dedicated remote turn-on wire? Not necessarily. The M2-500X1 features Auto-Sense turn-on, which activates the amplifier automatically when it detects a high-level (speaker) input signal. This removes the need for a dedicated remote wire when integrating with OEM or aftermarket radios that don't have a separate remote output. An Auto-Sense bypass switch is also included for vessels with Retained Accessory Power (RAP) systems. Is the variable infrasonic filter adjustable and why does the range matter? Yes. The infrasonic filter is variable from 15Hz to 40Hz at 12dB/octave. A wider adjustment range gives more flexibility to protect different subwoofer types - drivers with a lower resonant frequency (Fs) benefit from a lower filter setting, while those with a higher Fs are better protected by a higher filter cutoff. This is more versatile than a fixed 30Hz infrasonic filter found on some amplifiers. What fuse does the M2-500X1 require and is it included? The M2-500X1 requires an 80A fuse. The fuse is not included in the box and must be sourced separately. Install the fuse as close to the battery as possible in the 4 AWG power supply line to protect the wiring in the event of a short circuit. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

It’s The Difference Between Hearing The Music And Feeling ItThese efficient, easy-to-install amplifiers work with your compatible Fusion stereo system1 and let you choose from monoblock, multichannel, and zone amplifier options.The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS and the 4/6/8 channel amplifiers produce 150-watt RMS per channel. These amplifiers use the Easy Tune feature2, which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments. Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes. Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature. Easily install the amplifiers on board with the included mounting brackets. The ignition-protected design helps prevent potential damage from overheating. The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements. You can connect up to two speakers per channel, increasing setup options. The amplifiers are designed to last season after season. They have been tested for a high level of protection against salt fog, temperature, vibration, and UV. Add extra power to your system with this 2000-watt (650-watt RMS) monoblock amplifier that’s specifically designed to power a subwoofer. This 4-channel amplifier with 150-watt RMS per channel can power up to four pairs of speakers or two pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power. This 6-channel amplifier with 150-watt RMS per channel can power up to six pairs of speakers or four pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power. This 8-channel amplifier with 150-watt RMS per channel can power up to eight pairs of speakers or four pairs of speakers and two subwoofers. It includes high-power mode adapters for simple bridging to increase power. The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It’s compatible with 12- and 24-volt electrical systems.Features: Keep the music going for longer without draining your battery as quickly No more manual adjustments to your audio settings. The Easy Tune feature does it for you. A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating. These amps have less distortion and noise, so you enjoy quality audio. Mounting brackets are included for simple installation. Don’t worry about potential overheating damage with our ignition protection design. Specifications: Physical dimensions without bracket (LxWxH) Monoblock/4 Channel: 9.25″ x 7.06″ x 1.75″ (235 x 180 x 45 mm) Physical dimensions with bracket (LxWxH) Monoblock/4 Channel: 9.25″ x 7.06″ x 2.13″ (235 x 180 x 50 mm) Weight Monoblock/4 Channel: 4.85 lb (2.2 kg) Water rating Monoblock/4/6/8 Channel: IPX2 Amplifier class Class-D CEA-2006 power rating Monoblock: 650 watt RMS x 1 @ 14.4 V input - 4 ohm < 1% THD Peak power (Watts) Monoblock: 2000 watts Input sensitivity Monoblock: 2.15 V RMS Input impedance Monoblock/4/6/8 Channel: 22k ohm Operating voltage Monoblock/4/6/8 Channel: 10.8 V - 16 V DC Current draw, in standby/off using AMPLIFIER ON wire Monoblock/4/6/8 Channel: < 5 mA @ 14.4 V input Zone: < 1 mA @ 14.4 V input Current draw, on, no audio Monoblock: < 1.15 A @ 14.4 V input Power-cable fuse or circuit breaker rating (not included) 40 A Ignition Safety Protected (SAE J1171) Yes Protection circuits Reverse voltage Input under/over voltage Over Temperature Output short circuit Operating temperature range 0° to 50° C Warranty 3 years Accessories: Cables & Chargers Connectors Mounts Compatible Devices: Apollo RA670 Apollo RA770 Apollo WB670 Fusion EL Series Marine Speakers Fusion FM Series Marine Speakers Fusion FM Series Marine Subwoofers Fusion RA210 Marine Stereo Fusion Signature Series 3 Marine Speakers Fusion Signature Series 3 Marine Subwoofers Fusion Signature Series 3 Marine Wake Tower Speakers Fusion XS Series Marine Speakers Fusion XS Series Marine Subwoofers What's in the Box: One Apollo monoblock amplifier One mounting bracket One power connector One speaker connector Four 8-gauge, flat-head self-tapping screws Four 8-gauge, pan-head self-tapping screws (for mounting bracket) Four screw covers Mounting template Installation instructions Important safety and product information (ISPI) Legendary Products & Support From Authorized Dealers When you choose Fusion, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Fusion dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Fusion's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Fusion dealer today!
