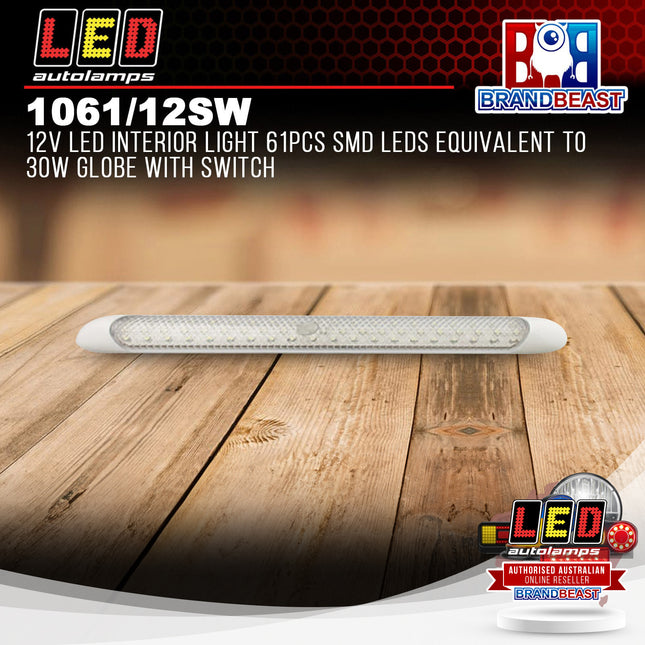

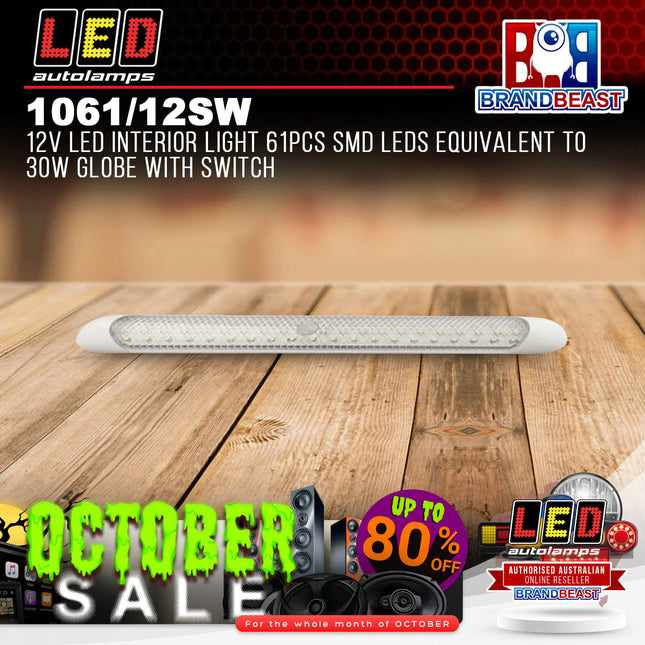

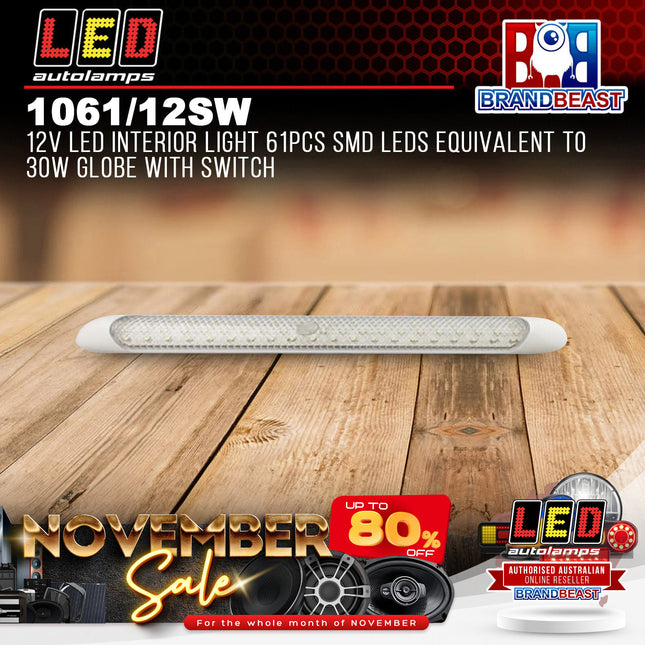

12V Slimline Interior Strip Light 61 SMD LEDs, 6500K Cool White, Inbuilt Switch, IP67. Product Overview The LED Autolamps 1061/12SW is a 12V slimline interior LED strip lamp designed for use in caravans, camper trailers, trucks, vans, and marine applications. Measuring just 300mm x 25mm x 10mm at an ultra-low profile of 10mm deep, this lamp packs 61 SMD LEDs into a compact, practical format delivering high-brightness cool white illumination equivalent to a 30W incandescent globe at a fraction of the current draw. The 6500K cool white colour temperature produces a crisp, bright daylight-style light spread across a 120-degree angle well-suited to work areas, reading zones, and general interior illumination in vehicles and trailers. The inbuilt push button on/off switch eliminates the need for a separate switched circuit, simplifying installation considerably. IP67 rated for both interior and exterior use, the 1061/12SW is a versatile, reliable light source backed by a 3-year warranty. Key Specifications LED count: 61 SMD LEDs Colour temperature: 6500K (cool white) Equivalent output: 30W incandescent globe Light spread: 120-degree Dimensions: 300mm x 25mm x 10mm Switch: Inbuilt push button on/off Mount type: Surface mount remove end bezels, screw fix IP rating: IP67 (interior or exterior use) Input voltage: 12V only Current draw: 0.31A @ 13.8V Warranty: 3 years Weight: 0.06kg Brand: LED Autolamps SKU: 1061/12SW (also referred to as 106112SW) Features & Benefits 61 SMD LEDs 30W equivalent: High LED count in a slimline 300mm strip delivers impressive light output comparable to a 30W incandescent globe at significantly lower current draw 6500K cool white: Crisp daylight-style colour temperature ideal for work areas, reading lights, and general task lighting in vehicle and trailer interiors 120-degree light spread: Wide angle illumination provides broad, even coverage across the interior area below the lamp Inbuilt push button on/off switch: Built-in switch allows independent on/off control without requiring a separate switched circuit simplifying installation and adding convenience for the user Ultra-slim 10mm profile: At just 10mm deep, the 1061/12SW installs flush against headliners, walls, and surfaces without protruding into usable space IP67 rated: Suitable for both interior and exterior use fully protected against dust ingress and temporary water immersion for installation in wet or demanding environments Surface mount with end bezels: End bezels remove for concealed screw mounting, then refit for a clean, finished appearance with no visible fasteners Low current draw: Just 0.31A at 12V, placing minimal load on the vehicle or trailer's 12V electrical system 12V only: Direct 12V compatibility for caravans, camper trailers, trucks, vans, and marine applications 3-year warranty: Backed by LED Autolamps' 3-year product warranty Technical Specs Specification Detail SKU 1061/12SW (106112SW) Brand LED Autolamps LED Count 61 SMD LEDs Colour Temperature 6500K (cool white) Equivalent Output 30W incandescent Light Spread 120-degree Dimensions 300mm x 25mm x 10mm Switch Inbuilt push button on/off Mount Type Surface mount end bezel removal, screw fix IP Rating IP67 Input Voltage 12V only Current Draw 0.31A @ 13.8V Warranty 3 Years Weight 0.06kg Compatible With Universal suits all 12V vehicles and applications requiring interior or exterior strip lighting including: Caravans and camper trailers Motorhomes and campervans Trucks and van interiors Marine and boat interior lighting Toolboxes, canopies, and storage areas Workshop and utility vehicle interior lighting Frequently Asked Questions Does this lamp include a switch? Yes the 1061/12SW features an inbuilt push button on/off switch, allowing independent on/off control without a separate switched circuit. What colour temperature is this lamp? The 1061/12SW is 6500K a cool white, daylight-style colour temperature that produces a bright, crisp light output suited to task and work area lighting. Is this lamp suitable for exterior use? Yes the IP67 rating makes the 1061/12SW suitable for both interior and exterior applications, including installation in areas exposed to rain, moisture, or wash-down. Is this lamp compatible with 24V vehicles? No the 1061/12SW is 12V only. For a 24V version, refer to the LED Autolamps 1061/24SW. How is this lamp mounted? Remove the end bezels, surface mount using screws through the exposed mounting points, then refit the bezels for a clean finished appearance. No visible fasteners on the completed installation. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!
