Seamless Integration, Premium Multimedia & Reverse Safety Complete Kit!
AM7510K: 7" Multimedia ReceiverThe Aerpro AM7510K package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit and a 720P AHD universal reverse camera. Designed specifically for Mazda 2 (Demio) 2007-2014 DE vehicles, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.
Aerpro AM7X 7" Multimedia Receiver with Wireless CarPlay & Android AutoThe Aerpro AM7X Multimedia Receiver with Wireless Apple CarPlay and Android Auto features a large 7" capacitive touch screen display. The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal clear communications. It has a rear USB input which works with Apple CarPlay and Android Auto, as well as a built in AM/FM tuner with RDS and presets. Sound quality is superb with a built in 45W x 4 amplifier, 8 band graphic EQ and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/5CH RCA preouts (front + rear + subwoofer). The unit is OEM steering wheel remote ready and has dual reverse camera inputs (720P AHD compatible).
Vehicle Specific Installation KitThe Aerpro Vehicle Specific Installation Kit is designed to provide a complete solution for upgrading the head unit in Mazda 2 (Demio) 2007-2014 DEvehicles. The kit contains all necessary components for a successful double din installation, including a black facia kit, plastic mounting brackets, steering wheel control interface and universal SWC patch lead.
720P AHD Surface Mount CameraThe Aerpro 720P AHD Surface Mount Camera produces high definition picture quality. The camera can be used as a front, rear or reverse camera. It features a 150 degree field of view, optional parking guidelines and is IP67 rated. The camera is designed to mount on a flat surface and has an adjustable bracket to enable angle adjustment.
Important Information:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Features:
Includes all the parts required to complete the installation
Retains important vehicle features including steering wheel controls when applicable
7" Capacitive touch display
Works with Apple CarPlay (wireless and wired)
Supports Android Auto (wireless and wired)
Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Dual rear USB inputs (1.5A + 1.5A max charging)
Dual camera input with 1 Aerpro 720P AHD Camera included
Rear A/V input (RCA)
4V / 6CH RCA Preout
MP3 / AAC / FLAC / MPEG 1,2,4 Media formats
8 Band graphic EQ
8 EQ Presets
Subwoofer level control
45W x 4 Max built-in amplifier
Shallow 2-DIN chassis mounting design
External microphone included
Specifications:
LCD Display:
Size: 7"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 45W
Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Second Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input: Yes
4.2CH Audio Out Cable: Yes
External Microphone: Included
AHD Camera Specifications:
Inclusions:
720P AHD Surface Mount Camera (wired)
6m of Video Cable (RCA) with in-line Reverse Trigger
Mount Type: Surface Mount
Camera Type: Front, Rear Or Reverse
Image Sensor: Sony 225, 1/3 CMOS AHD
Lens Angle 150 Degree
Vehicle Compatibility:
Mazda 2 (Demio) 2007 - 2014 DE
Inclusions:
Facia Kit (Black)
Steering Wheel Control Interface
Universal Patch Lead
Legendary Products & Support From Authorized Dealers
When you choose Frankie's BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose Wisely. Buy From Frankie's BrandBeast today!

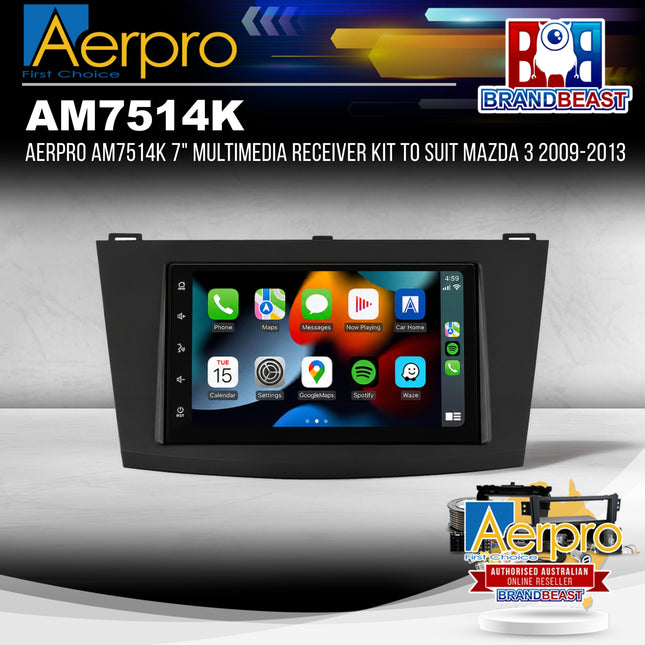

Aerpro AM7514K 7" Multimedia Receiver Kit to Suit Mazda 3 2009-2013
Everything you need to upgrade your Mazda 3 in one box — the Aerpro AM7514K combines the AM7X 7" wireless CarPlay and Android Auto receiver with a vehicle-specific installation kit and a 720P AHD reverse camera for a complete, clean headunit upgrade with steering wheel control retention.
Product Overview
The Aerpro AM7514K is a complete headunit upgrade package engineered specifically for the Mazda 3 (Axela) 2009-2013 BL. The kit combines three key components into a single purchase: the Aerpro AM7X 7" Multimedia Receiver, a Mazda 3-specific installation kit, and a 720P AHD surface mount reverse camera — providing everything required for a professional double DIN installation without sourcing parts separately.
The AM7X receiver features a 7" capacitive touchscreen (1024x600) with wireless Apple CarPlay and Android Auto, built-in Bluetooth 4.2 for hands-free calling and audio streaming, and dual rear USB inputs for media playback and device charging. Sound performance is delivered by a 45W x 4 built-in amplifier with an 8-band graphic EQ, time alignment, and 4V 6-channel RCA preouts for future amplifier expansion.
The vehicle-specific installation kit includes a matte black facia kit, plastic mounting brackets, steering wheel control interface, antenna adaptor, and universal SWC patch lead — retaining the Mazda 3's factory steering wheel controls after installation. Dual reverse camera inputs (720P AHD compatible) are supported on the AM7X, and the included 720P AHD surface mount camera features a Sony 225 CMOS sensor with a 150-degree field of view, IP67 rating, and optional parking guidelines.
Note: Head unit upgrade kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide to confirm compatibility for your specific Mazda 3 variant before purchase.
Features & Benefits
Complete three-piece kit including AM7X receiver, Mazda 3-specific installation kit, and 720P AHD reverse camera — everything required for a full double DIN upgrade in one purchase
7" capacitive touchscreen (1024x600, G+G) delivering a large, responsive display for CarPlay, Android Auto, and media browsing
Wireless Apple CarPlay and Android Auto with wired connection also supported for maximum smartphone compatibility
Built-in Bluetooth 4.2 with A2DP, AVRCP, HFP 1.6, and PBAP for hands-free calls, HD voice, and wireless audio streaming
Steering wheel control retention via the included SWC interface and universal patch lead, maintaining factory Mazda 3 SWC functionality
45W x 4 MAX built-in amplifier with 4V 6-channel RCA preouts (front, rear, subwoofer) for clean audio and easy future amplifier integration
8-band graphic EQ with 8 presets and time alignment for precise, customisable sound tuning
Dual rear USB inputs (1.5A + 1.5A) for media playback and device charging with FAT32 up to 32GB support
Dual reverse camera inputs (720P AHD compatible) with one 720P AHD surface mount camera included
720P AHD surface mount camera with Sony 225 1/3" CMOS sensor, 150-degree field of view, optional parking guidelines, IP67 rating, and 6m video cable with inline reverse trigger
AM/FM tuner with RDS and 18FM/12AM presets for comprehensive local radio reception
Shallow 2-DIN short body chassis with matte black facia for a factory-matched finish in the Mazda 3 dash
External microphone included for clear, hands-free call quality
Technical Specs
Specification
Details
Part Number
AM7514K
Brand
Aerpro
Receiver Model
AM7X
Screen Size
7 Inch
Screen Resolution
1024 x 600
Touchscreen Type
Capacitive (G+G)
OS / CPU
Linux 3.4.5 / SPHE8368U
RAM / Flash
128MB / 256MB
DIN Size
2 DIN Short Body
Apple CarPlay
Yes (Wireless and Wired)
Android Auto
Yes (Wireless and Wired)
Bluetooth
Yes, V4.2+EDR (A2DP, AVRCP, HFP 1.6, PBAP)
Microphone
Built-in and External (Included)
Rated Power
4CH x 25W (4 Ohm, 14.4V, 1kHz, THD 10%)
Max Power
4CH x 45W (4 Ohm)
RCA Preouts
4V 6CH (Front, Rear, Subwoofer)
USB Inputs
2x Rear (5V/1.5A each, FAT32 up to 32GB)
Media Formats
MP3, MP4, AAC, FLAC, Xvid
Reverse Camera Input
Yes (720P AHD Compatible)
Second Camera Input
Yes (720P AHD Compatible)
AM/FM Tuner
Yes, RDS (18FM / 12AM Presets)
FM Range
87.5-108.0MHz
AM Range
529-1629KHz
EQ
8 Band (50/200/400/800/1K/3K/7K/15KHz)
EQ Presets
8 (Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft)
Subwoofer Output
Yes (Level Control Included)
Steering Wheel Control
Yes (Interface Included)
Facia Kit
Matte Black (Vehicle Specific)
Camera Sensor
Sony 225, 1/3" CMOS AHD
Camera Lens Angle
150 Degrees
Camera Mount
Surface Mount (Adjustable Bracket)
Camera IP Rating
IP67
Camera Cable
6m Video Cable with Inline Reverse Trigger
Vehicle Compatibility
Mazda 3 (Axela) BL 2009-2013
Compatible With / Goes Well With
The Aerpro AM7514K is specifically designed for:
Mazda 3 (Axela) BL 2009-2013
Important: This kit is configured specifically for the Mazda 3 BL 2009-2013. It is not suited for Mazda 3 models outside this generation. Use the Aerpro What Fits Your Car Guide or contact F.A.E. to confirm compatibility for your specific variant before purchase.
Goes well with:
Aerpro or compatible amplifiers (connected via the 4V 6CH RCA preouts for system audio upgrades)
Aerpro or compatible component speakers (to complement the AM7X's 8-band EQ and time alignment)
Aerpro APP8RK reverse camera power kit (for clean reverse trigger wiring integration)
Frequently Asked Questions
Q: What is included in the Aerpro AM7514K kit?
A: The AM7514K includes the Aerpro AM7X 7" multimedia receiver with wireless CarPlay and Android Auto, a Mazda 3-specific vehicle installation kit (matte black facia, plastic mounting brackets, steering wheel control interface, antenna adaptor, and universal SWC patch lead), and a 720P AHD surface mount reverse camera with 6m video cable and inline reverse trigger. All components required for a complete double DIN installation are included.
Q: Will the factory Mazda 3 steering wheel controls work after installation?
A: Yes. The vehicle-specific installation kit includes a steering wheel control interface and universal SWC patch lead designed to retain the factory Mazda 3 steering wheel controls with the AM7X receiver. SWC retention functionality may vary depending on the specific Mazda 3 variant and trim level — contact F.A.E. if you need confirmation for your specific vehicle.
Q: Does wireless CarPlay and Android Auto require any additional hardware?
A: No additional hardware is required. The AM7X supports wireless CarPlay and Android Auto natively via Bluetooth and Wi-Fi pairing. Wired connection via the rear USB input is also supported for devices that prefer a wired connection or for faster initial setup.
Q: Can I add an external amplifier to the AM7514K system?
A: Yes. The AM7X features 4V 6-channel RCA preouts covering front, rear, and subwoofer channels, making it straightforward to integrate an external amplifier for improved system power and audio quality. The subwoofer level control and 8-band EQ with time alignment provide flexible tuning to get the most from an upgraded amplifier and speaker setup.
Q: Is the included reverse camera suitable for permanent rear mounting on the Mazda 3?
A: Yes. The included 720P AHD surface mount camera features an adjustable bracket for angle adjustment, IP67 water resistance rating, and a 6m video cable with inline reverse trigger for clean installation. The 150-degree field of view provides broad rear coverage suitable for parking and reversing. The camera connects directly to the AM7X's 720P AHD-compatible reverse camera input and activates automatically when reverse gear is engaged via the inline trigger.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Extra Length For Seamless Reverse Camera Integration!
10M Replacement CableThe AM7C10M is a spare part to create extra length for the reverse camera when installing an Aerpro or Xview 7" Wireless Apple CarPlay and Android Auto Smartphone Monitor.
Please Note: This cable is a replacement cable for the 6m cable that comes included with the kit; it is NOT an extension cable.
Features:
10-meter cable to provide extra length when installing on longer vehicles
5 Pin DIN Camera Plug
Specifications:
Suits the following models:
AM7M03R
XV7WSM2R
AM7M03* (*If user has purchased optional camera)
Notes: The cable is a REPLACEMENT cable, not an EXTENSION cable.
Legendary Products & Support From Authorized Dealers
When you choose Frankie's BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose Wisely. Buy From Frankie's BrandBeast today!
Aerpro 7" Wireless Smartphone Monitor With Reverse Camera: Stay Connected, Stay Safe & Enjoy the Ultimate Convenience On the Road!
7" Wireless Smartphone Monitor With Reverse CameraEnhance your driving experience with the cutting-edge Aerpro AM7CPAAM 7" Wireless Smartphone Monitor with Reverse Camera. This innovative device serves as a seamless addition to your dashboard, keeping you connected while on the road.
The AM7CPAAM offers wireless smartphone connectivity through both Bluetooth and WiFi, enabling effortless synchronisation with your smartphone. With this wireless connection, you can enjoy the convenience of wireless Apple CarPlay and Android Auto, along with Apple AirPlay and Android Mirror Cast. Stay connected to your favourite apps, access contacts, and navigate with ease using the intuitive 7" touchscreen.
With a strong focus on safety and hands-free operation, the AM7CPAAM allows you to take full control of your music, maps, calls, and more without any distractions. Experience crystal-clear audio playback through various options, including Bluetooth, FM transmitter, or AUX audio out functions. For added convenience, the device even features an inbuilt speaker, ensuring you never miss a beat.
Safety is a top priority, which is why the Aerpro AM7CPAAM comes equipped with a high-definition reverse camera. This essential feature provides a clear view of the area behind your vehicle, making parking and manoeuvring a breeze. Upgrade your driving experience today with the Aerpro AM7CPAAM 7" Wireless Smartphone Monitor with Reverse Camera. Stay connected, stay safe, and enjoy the ultimate convenience on the road.
Important Information:
The term Wireless refers to the smartphone connection. The display requires connection to the vehicle accessory socket using the included power adaptor. The reverse camera requires a connection to the display and a reverse trigger in the vehicle.
While this product is compatible for use with Apple CarPlay and AirPlay, it is not made or endorsed by Apple. Apple, CarPlay, and AirPlay are trademarks of Apple Inc.
While this product is compatible for use with Android Auto and Mirror Cast, it is not made or endorsed by Google Inc. Android Auto and Mirror Cast are trademarks of Google Inc.
Other trademarks and trade names are those of their respective owners.
Compatible smartphone required to enable smartphone connectivity features, smartphone not included.
Design and specifications are subject to change without notice.
Optional Accessories Available:
Model: AM7MRC (Replacement Reverse Camera)
Model: GHWCUSB2 (Optional Hardwire Kit)
Model: CPAA710M (Replacement Reverse Camera Harness 10M)
Model: CPAA715M (Replacement Reverse Camera Harness 15M)
Aerpro AM7CPAAM Features:
Stunning 7" Full HD IPS Touchscreen: Enjoy a large, crystal-clear display that enhances your visual experience while interacting with your favourite apps, maps, and media.
Wireless Smartphone Connectivity:Experience the freedom of wireless connectivity via Bluetooth & WiFi. Effortlessly sync your smartphone and access your apps and content without the hassle of cables.
Compatible with Apple CarPlay & Android Auto (Wireless):Stay connected and entertained with seamless integration for both Apple CarPlay and Android Auto. Access your phone's features through the AM7CPAAM's interface for a safe and enjoyable drive.
Compatible with Apple AirPlay & Android Mirror Cast: Mirror your smartphone's screen to the AM7CPAAM using Apple AirPlay or Android Mirror Cast, allowing you to share content with ease.
High-Quality Audio Playback:Immerse yourself in superior sound quality. Choose between Bluetooth, FM transmitter, or AUX output functions, which lets you play audio through your car's sound system, or use the built-in speaker.
Enhanced Safety with Reverse Camera: Navigate tight spots and park with confidence using the 1080p HD Reverse camera with guideline support. Drive with peace of mind and avoid obstacles effortlessly.
Built-In Speaker & Microphone: Make and receive calls while keeping your hands on the wheel with the built-in speaker and microphone. Stay connected while prioritising safety.
Easy Installation & Convenience:The AM7CPAAM comes with an adjustable angle adhesive display mount and a Type-C USB car power adapter for a hassle-free setup, ensuring you can get on the road quickly and smoothly.
Aerpro AM7CPAAM Specifications:
Display: 7" FHD 1024 x 600 IPS Capacitive Touchscreen
Wireless Smartphone Connectivity: Supports Apple CarPlay, Android Auto, Apple AirPlay, Mirror Cast
Audio Output: Bluetooth, FM Transmitter, AUX Out, Built-In Speaker
Microphone: Built-In, Voice Control Support
Reverse Camera: 1080P HD With Adjustable Guideline Support, 6.9M Camera Cable
SD Card: Supports Up to 256GB For Music and video Playback (SD Card Not Included)
Power Protection: Power, Surge, Overload, Over Voltage, Under Voltage & Short Circuit Protection
Display Mount Type: Adjustable Angle Adhesive Display Mount
Display Size: 182mm x 116mm x 66mm
Weight: 0.81kg
Aerpro AM7CPAAM Inclusions:
1x 7" Display
1x Type-C Car Accessory Socket Power Adapter
1x Adhesive Mount
1x Reverse Camera
1x 6.9M Camera Cable
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Transform Your Dashboard Into a Smart Command Centre
The Aerpro AM7M03R is a cutting-edge 7" wireless smartphone monitor that revolutionizes your driving experience with seamless Apple CarPlay and Android Auto connectivity. This premium aftermarket solution combines a stunning HD IPS touchscreen with advanced wireless technology, allowing you to access your favourite apps, navigation, music, and calls without the clutter of cables. Complete with an integrated reverse camera featuring 90-degree wide-angle view and guideline support, this system delivers both convenience and safety in one comprehensive package.
Features & Benefits
Wireless Freedom - True wireless Apple CarPlay and Android Auto connectivity eliminates cable mess and provides instant smartphone sync
7" HD IPS Touchscreen - Crystal-clear 1024x600 resolution with capacitive touch for responsive, smartphone-like operation
Complete Audio Solutions - Multiple playback options including Bluetooth, FM transmitter, AUX out, and built-in speaker
Enhanced Safety Features - Integrated reverse camera with 90-degree wide-angle lens and adjustable guidelines for confident parking
Hands-Free Operation - Built-in microphone and speaker enable safe voice control and hands-free calling
Universal Compatibility - Works with both Apple (CarPlay, AirPlay) and Android (Auto, Mirror Cast) devices
Easy Installation - Adhesive mount system with adjustable angle for optimal viewing position
Expandable Storage - Micro SD support up to 256GB for additional music and video content
Professional Grade Protection - Comprehensive power protection including surge, overload, and short circuit safety
Technical Specs
Display: 7" FHD 1024x600 IPS Capacitive Touchscreen
Connectivity: Wireless Apple CarPlay, Android Auto, AirPlay, Mirror Cast
Audio Output: Bluetooth, FM Transmitter, AUX Out, Built-in Speaker
Camera: 90-degree wide angle with guideline support
Storage: Micro SD up to 256GB (card not included)
Power: 12/24V DC compatible with comprehensive protection
Dimensions: 182mm x 116mm x 66mm
Cable Length: 6m camera cable included
Compatible With
Apple iPhone (CarPlay, AirPlay compatibility)
Android smartphones (Auto, Mirror Cast compatibility)
12V and 24V vehicle electrical systems
Existing car audio systems (via FM transmitter or AUX)
Professional installation services
Micro SD cards up to 256GB
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Provides a Clear View of the Area Behind Your Vehicle, Making Parking & Manoeuvring a Breeze!
1080P HD Reverse CameraThe Aerpro AM7MRC is a 1080P HD Reverse Camera designed to suit the Aerpro AM7M01 7" Wireless Smartphone Monitor. When paired with the AM7M01, this reverse camera provides a clear view of the area behind your vehicle, making parking and maneuvering a breeze.
Please Note: Also works with AM7CPAAM (Spare part as AM7CPAAM comes supplied with this camera)
Aerpro AM7MRC Features:
1080P HD Resolution
Wide 110-Degree Lens Angle
Adjustable Parking Guideline Support
Surface Mount Design
Includes 6M Camera Cable
Aerpro AM7MRC Specifications:
Camera Type: Reverse
Resolution: 1080P HD
Angle: 110 Degree
Parking Guidelines: Yes, Adjustable
Mount: Surface Mount
Cable Length: 6M
Weight: 0.15kg
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Clear View For Easy Parking & Manoeuvring!
Aerpro AM7MRC2 Reverse CameraThe Aerpro AM7MRC2 Reverse Camera is designed to suit the Aerpro AM7M03 7" Wireless Smartphone Monitor. When paired with the AM7M03, this reverse camera provides a clear view of the area behind your vehicle, making parking and manoeuvring a breeze.
Important Information:
Also compatible with Aerpro AM7M03R & Xview XV7WSM2R (spare part/replacement as these models come supplied with this camera).
Features:
Wide 90-degree lens angle for better visibility.
Adjustable parking guideline support for added convenience.
Surface mount design for easy installation.
Includes a 6M camera cable for flexible installation options.
Specifications:
Camera Type: Reverse
Angle: 90 Degrees
Parking Guidelines: Yes
Mount: Surface Mount
Cable Length: 6M
Legendary Products & Support From Authorized Dealers
When you choose Frankie's BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose Wisely. Buy From Frankie's BrandBeast today!
Secure Your View With This Sturdy Suction Mount!
Important Information:
This suction mount is designed to suit all AM7 models.
Specifications:
Mount Type: Suction Cup
Compatibility: All AM7 Series Models
Compatibility:
Aerpro: AM7CPAAM, AM7M01, AM7M02R, AM7M03, AM7M03R
Xview: XV7WS2R, XV7WSM2R
Legendary Products & Support From Authorized Dealers
When you choose Frankie's BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose Wisely. Buy from Frankie's BrandBeast today!
Ensures A Superb Audio Experience with Precise Customisation Options!
Aerpro AM7X Double DIN Multimedia ReceiverThe Aerpro AM7X is a cutting-edge 7" Multimedia Receiver designed to elevate your in-car entertainment experience. This sleek unit boasts a vibrant 7" capacitive touch display, ensuring a user-friendly interface for seamless control. Compatible with both Apple CarPlay and Android Auto, this receiver offers wireless and wired connectivity, providing versatility for your preferred device.
Stay connected with the built-in Bluetooth feature that supports A2DP, AVRCP, HFP, and PBAP, facilitating hands-free calling and audio streaming. The AM/FM Tuner with RDS and presets (18-FM/12-AM) ensures you never miss a beat, while dual rear USB inputs enable connection of your smartphone or USB media device.
The dual camera inputs with individual triggers are 720P AHD compatible, allowing for high-definition cameras to be installed on the vehicle to provide crystal clear vision. Connect a reverse camera and an extra rear, side, towing, or front camera for convenient parking and enhanced safety (Cameras are sold separately).
Equipped with a 4V/6CH RCA preout, 8-band graphic EQ, and 8 EQ presets, the AM7X delivers unparalleled audio customisation. Manage your subwoofer effortlessly with the subwoofer level control and enjoy a powerful 45W x 4 max built-in amplifier. Designed with convenience in mind, the shallow 2-DIN chassis mounting design and steering wheel control readiness make installation and operation a breeze. Elevate your driving experience with the Aerpro AM7X – where innovation meets entertainment.
Features:
7" Capacitive Touch Display
Works with Apple CarPlay (Wireless & Wired)
Supports Android Auto (Wireless & Wired)
Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & Presets (18-FM/12-AM)
Dual rear USB Inputs (USB1: CP/AA, USB2: USB Media)
Dual Camera Inputs (720P AHD Compatible)
Rear A/V Input (RCA)
4V / 6CH RCA Preout
MP3 / AAC / FLAC / MPEG 1,2,4 Media Formats
8 Band Graphic EQ
8 EQ Presets
Subwoofer Level Control
45W x 4 Max Built-In Amplifier
Shallow 2-DIN Chassis Mounting Design
Steering Wheel Control Ready (3 Wire Learning SWC)
External Microphone Included
Specifications:
LCD Display:Size: 7"Resolution: 1024 x 600Touch Screen: Capacitive (G+G)
System Specifications:OS System / CPU: Linux 3.4.5 / SPHE8368URAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output:Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25WMax Power (4 Ohm): 4CH x 45WMedia Playback: MP3 / MP4 / AAC / FLAC / Xvid
Device Ports
USB (Rear) Playback Formats: CP/AA & MediaUSB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5AUSB Max Capability: FAT32_32GB
Aux Inputs / Outputs:Rear A/V Input (RCA Type - 3pcs): YesReverse Camera Input: Yes (720P AHD Compatible)Second Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
Bluetooth:Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)Bluetooth Version: V4.2+EDRMicrophone: Built-In & External MicrophoneID3 Tag/Information (Artist, Album, Song): YesHFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)AM Frequency Span (KHz): 529-1629KHz (9KHz Step)RDS: YesFM Antenna Connector Impedance: 50 OhmFM Tuner Connector: Motorola
RCA Preamp Outputs:RCA Preamp Output: 2-Pair (Front / Rear)Subwoofer RCA Output: YesSubwoofer Level Control: YesPreamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)Loudness: YesLPF - Frequencies (Sub): Yes8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:Steering Wheel Control: Yes, with Aerpro SWC AdaptorOSD Language: EnglishLED Colour (Buttons / Keys): White
Accessories:Power Harness: Yes with ISOAV-In Cable (RCA with Audio L/R, Video In): YesReverse Camera Input: Yes4.2CH Audio Out Cable: YesExternal Microphone: Included
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
