Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!
9" Multimedia Receiver With Wireless Apple CarPlay & Android AutoThe Aerpro AMAHY22 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Hyundai Accent RB (2011-2015) vehicles without factory reverse camera in OEM head unit. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner.
Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAHY22 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls.
Important Information:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits vehicles without factory reverse camera in OEM head unit.
Vehicle Feature Retention:
Steering Wheel Controls: Yes
Factory Reverse Camera: N/A
AUX Input: No
USB Input: No
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A
Features:
To suit Hyundai Accent RB (2011-2015) vehicles without factory reverse camera in OEM head unit
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Large 9" capacitive touchscreen display
Steering wheel control retention
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Dual rear USB inputs (1.5A max charging)
Dual camera inputs (AHD 720P compatible) & rear A/V input
50Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
Specifications:
LCD Display:Size: 9"Resolution: 1024x600Touch Screen: Capacitive (G+G)
System Specifications:OS System / CPU: Linux 3.4.5 / SPHE8368URAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output:Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25WMAX Power (4 Ohm): 4CH x 50W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports:USB 1 (Rear) Playback Formats: CP, AA & MediaUSB 2 (Rear) Playback Formats: MediaUSB (Rear) Power - Voltage/Amps: 5V/1.5A EachUSB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:Rear A/V Input (RCA Type - 3pcs): YesComposite Video Outputs: YesReverse Camera Input: Yes (720P AHD Compatible)Second Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)Bluetooth Version: V4.2+EDRMicrophone: Built-in & External MicrophoneID3 Tag/Information (Artist, Album, Song): YesHFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)AM Frequency Span (KHz): 529-1629KHz (9KHz Step)RDS: YesFM Antenna Connector Impedance: 50 OhmFM Tuner Connector: Motorola
RCA Preamp Outputs:RCA Preamp Output: 2-Pair (Front / Rear)Subwoofer RCA Output: YesSubwoofer Level Control: YesPreamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)Loudness: YesLPF - Frequencies (Sub): Yes8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:Steering Wheel Control: Yes, with Aerpro SWC AdaptorOSD Language: EnglishLED Colour (Buttons / Keys): White
Accessories:Power Harness: Yes with ISO / SWC PlugAV-In Cable (RCA with Audio L/R, Video In): YesReverse Camera Input (with 12V power supply to the camera): Yes4.1CH Audio Out Cable: YesExternal Microphone: Included
Vehicle Compatibility: Hyundai Accent 2011 - 2015 RB
Weight: 2.00kg
Kit Inclusions:
AM9X Multimedia Receiver
Silver Facia Kit
Steering Wheel Control Interface Harness
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Aerpro AMAHY25 9″ Multimedia Receiver Upgrade Kit for Hyundai Santa Fe (2013–2018)
Upgrade your Hyundai Santa Fe with the Aerpro AMAHY25 9″ Multimedia Receiver Kit, the complete solution for modern connectivity, crystal-clear audio, and seamless integration — all while retaining your vehicle’s factory features.
Key Benefits:
Wireless Apple CarPlay & Android Auto – Access maps, music, calls, and messages safely from the large 9″ capacitive touchscreen, either wired or wireless.
Hands-Free Driving & Streaming – Built-in Bluetooth with an external microphone lets you make calls and stream audio effortlessly, keeping your focus on the road.
Retain Factory Features – Keep steering wheel controls, reverse camera, and USB port functionality, ensuring a factory-like experience.
Premium Audio Experience – 50Wx4 max output, 8-band graphic EQ, and time alignment give you concert-quality sound, with RCA preouts to expand with amplifiers or subwoofers.
Dual Camera Inputs – Compatible with AHD 720P cameras, perfect for front and rear camera setups for added safety.
Easy Installation – Complete head unit upgrade kit includes matte black facia, SWC interface harness, antenna adapter, USB & camera retention adapters.
Feature Highlights:
To suit Hyundai Santa Fe (2013-2018)
Includes all the parts required to complete the installation
Apple CarPlay & Android Auto (wireless / wired)
Large 9" capacitive touchscreen display
Steering wheel control, reverse camera and USB port retention
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Dual camera inputs (AHD 720P compatible) & rear A/V input
50Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
AMAHY25 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Matte Black Facia Kit
Steering Wheel Control Interface Harness
Antenna Adaptor
Camera Retention Adaptor
USB Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes
Factory Reverse Camera: Yes
AUX Input: N/A
USB Input: Yes
Parking Tones: N/A
Factory Amplifier: No
Vehicle Menu: No
Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 50W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB 1 (Rear) Playback Formats: CP,AA & Media
USB 2 (Rear) Playback Formats: Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Second Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Reverse Camera Retention uses the reverse camera input of the head unit.
USB Input Retention uses the USB input on the rear of the head unit.
Why Choose Aerpro for Your Hyundai Santa Fe?
The Aerpro AMAHY25 isn’t just a replacement head unit — it’s a complete technology upgrade. Bring modern smartphone integration, premium sound, and convenience features to your Santa Fe while keeping the factory look and feel.
Compatible with:
Hyundai Santa Fe 2013–2018 DM
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!

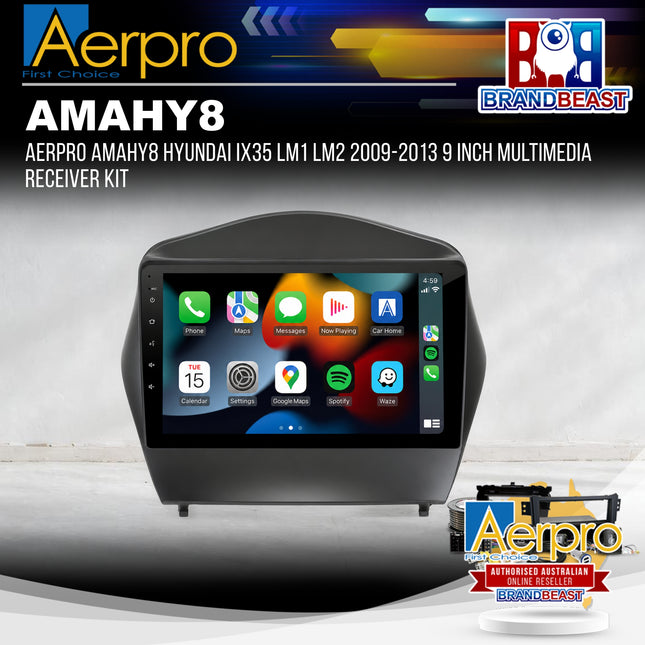

Aerpro AMAHY8 Hyundai iX35 LM1 LM2 2009-2013 9 Inch Multimedia Receiver Kit
A complete head unit upgrade kit for the Hyundai iX35 LM1 and LM2 (2009-2013) digitally amplified vehicles, featuring the Aerpro AM9X 9 inch wireless Apple CarPlay and Android Auto multimedia receiver with factory steering wheel control and digital amplified system retention.
Product Overview
The Aerpro AMAHY8 is a complete head unit upgrade kit engineered specifically for the Hyundai iX35 LM1 and LM2 (2009-2013) in digitally amplified vehicles fitted with a Hyundai Mobis 96170 (6 stacker) or LM01 factory head unit. The kit centres on the Aerpro AM9X 9 inch multimedia receiver featuring wireless and wired Apple CarPlay and Android Auto, a large 9 inch capacitive touchscreen, built-in Bluetooth with A2DP, AVRCP, HFP, and PBAP profiles, AM/FM tuner with RDS, 50W x 4 max power output, 8 band graphic EQ with time alignment, and 4V 5-channel RCA preouts for amplifier integration.
All components required for a complete installation are included in the kit. Factory feature retention covers steering wheel controls including the phone button and the factory digital amplified system. Please note AUX and USB input retention are not included in this kit - the Aerpro APHYUSB4 USB/AUX Retention Adaptor is available separately for customers who require these features. This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Features & Benefits
Wireless Apple CarPlay and Android Auto: The AM9X supports both wireless and wired Apple CarPlay and Android Auto, providing full smartphone integration without requiring a cable connection for compatible devices.
Large 9 Inch Capacitive Touchscreen: A 1024 x 600 resolution glass-on-glass capacitive touchscreen delivers a responsive, high-clarity display for navigation, media, and connectivity.
Retains Steering Wheel Controls Including Phone Button: The included steering wheel control interface harness with SWC patch lead retains full factory steering wheel control functionality including the phone button.
Retains Factory Digital Amplified System: The AMAHY8 is engineered for digitally amplified iX35 LM1/LM2 vehicles, retaining the factory digital amplified system after the head unit upgrade.
50W x 4 Max Power with 8 Band EQ and Time Alignment: The AM9X delivers 50W x 4 max power output with an 8 band graphic EQ, time alignment capabilities, and 4V 5-channel RCA preouts for connecting external amplifiers.
Built-In Bluetooth with External Microphone Included: Bluetooth V4.2 with A2DP, AVRCP, HFP 1.6, and PBAP profiles provides hands-free calling and wireless audio streaming. An external microphone is included in the kit.
Technical Specs
Specification
Detail
SKU
AMAHY8
Brand
Aerpro
Compatible Vehicle
Hyundai iX35 LM1, LM2 2009-2013 (digitally amplified)
Factory Head Unit Compatibility
Hyundai Mobis 96170 (6 stacker) and LM01
Kit Inclusions
AM9X Multimedia Receiver, Matte Black Fascia Kit, SWC Interface Harness, SWC Patch Lead
Display
Screen Size
9 inch
Resolution
1024 x 600
Touchscreen
Capacitive (G+G)
System
OS / CPU
Linux 3.4.5 / SPHE8368U
RAM / Flash Memory
128MB / 256MB
DIN Size
2 DIN Short Body
Power
Rated Power
4CH x 25W (4 Ohm, 14.4V, 1kHz, THD 10%)
Max Power
4CH x 50W (4 Ohm)
Connectivity
Apple CarPlay / Android Auto
Yes - Wireless and Wired
Bluetooth
Yes - V4.2+EDR (A2DP, AVRCP, HFP 1.6, PBAP)
Microphone
Built-in and External (included)
USB 1 (Rear)
CarPlay, Android Auto and Media
USB 2 (Rear)
Media
USB Power Output
5V / 1.5A each
USB Max Capacity
FAT32 32GB
Rear A/V Input
Yes (RCA, 3 pieces)
Reverse Camera Input
Yes (720P AHD compatible)
Second Camera Input
Yes (720P AHD compatible)
Tuner
AM / FM Tuner
Yes - AM 12 presets (6x2), FM 18 presets (6x3)
FM Frequency Range
87.5-108.0MHz (0.05MHz step)
AM Frequency Range
529-1629KHz (9KHz step)
RDS
Yes
FM Antenna Connector
Motorola / 50 Ohm
RCA Preouts
Preamp Outputs
2 pair (Front / Rear)
Subwoofer Output
Yes
Subwoofer Level Control
Yes
Preamp Voltage
4V p-p
Audio
EQ
8 Band (50/200/400/800/1K/3K/7K/15K Hz)
EQ Presets
Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Loudness
Yes
LPF (Subwoofer)
Yes
Media Playback
Audio Formats
MP3, AAC, FLAC
Video Formats
Xvid, MPEG 1/2/4
Feature Retention
Steering Wheel Controls
Yes (including phone button)
Factory Digital Amplifier
Yes
Factory Reverse Camera
N/A
AUX Input
No - APHYUSB4 adaptor available separately
USB Input
No - APHYUSB4 adaptor available separately
Vehicle Menu
N/A
Other
Park Brake Requirement
Park brake wire must be connected for CarPlay/Android Auto to function
LED Button Colour
White
OSD Language
English
Barcode
9317114950864
What's in the Box
AM9X Multimedia Receiver
Matte Black Fascia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Power Harness (with ISO / 3.5mm jack)
AV-In Cable (RCA with Audio L/R, Video In)
4.1CH Audio Out Cable
External Microphone
Compatible With
Hyundai iX35 LM1 2009-2013 (digitally amplified)
Hyundai iX35 LM2 2009-2013 (digitally amplified)
Suits vehicles fitted with the Hyundai Mobis 96170 (6 stacker) or LM01 factory head unit. Please confirm your vehicle's factory configuration before purchasing.
Goes Well With
Aerpro APHYUSB4 USB/AUX Retention Adaptor (sold separately - required to retain factory USB and AUX inputs)
Frequently Asked Questions
Does this kit retain factory AUX and USB inputs?
No, not in the base kit. AUX and USB input retention are not included with the AMAHY8. The Aerpro APHYUSB4 USB/AUX Retention Adaptor is available separately for customers who require these features. We recommend adding it to your order if you use the factory AUX or USB input regularly.
Does Apple CarPlay and Android Auto work straight away after installation?
The AM9X supports wireless and wired Apple CarPlay and Android Auto, however the park brake wire must be connected to the park brake for these features to function. Please ensure this step is completed during installation.
How do I know if my iX35 is a digitally amplified model?
The AMAHY8 is designed for Hyundai iX35 LM1 and LM2 (2009-2013) vehicles fitted with a Hyundai Mobis 96170 (6 stacker) or LM01 factory head unit. If you are unsure whether your vehicle is a digitally amplified variant, please contact us before purchasing to confirm the correct kit for your model.
Can I connect an external amplifier to this head unit?
Yes. The AM9X features 4V 5-channel RCA preouts including a dedicated subwoofer output, allowing external amplifiers to be added to the system. Subwoofer level control is also available.
Is an additional antenna adaptor required for installation?
An antenna adaptor is not listed in the kit inclusions for the AMAHY8. Please contact us before purchasing to confirm whether an additional antenna adaptor is required for your specific vehicle.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!
9" Multimedia Receiver With Wireless Apple CarPlay & Android AutoThe Aerpro AMAIZ1B 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Holden Colorado (inc.7) (2012-2014), Isuzu D-Max (2012-2020) and Isuzu MU-X (2013-2017) vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner.
Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAIZ1B includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and the factory reverse camera (if equipped).
Important Information:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits Isuzu D-Max and MU-X vehicles with the following OEM head units: Fujitsu 10 (with or without screen), Panasonic, Clarion CX-501 & Clarion Navigation.
Not compatible with Holden Mylink Systems.
For vehicles without a screen from factory there may not be a park brake wire.
Reverse Camera Retention uses the reverse camera input of the head unit.
USB Port can be retained (if equipped), optional USB Retention Adaptor Required APIZUSB1 (sold separately). Connects to the rear USB input on the Multimedia Receiver.
Vehicle Feature Retention:
Steering Wheel Controls: Yes (including phone button)
Factory Reverse Camera: Yes (if equipped)
AUX Input: N/A
USB Input: Optional (APIZUSB1 required, sold separately)
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A
Features:
To suit Holden Colorado (inc.7) (2012-2014), Isuzu D-Max (2012-2020) and Isuzu MU-X (2013-2017)
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Large 9" capacitive touchscreen display
Steering wheel control (including phone button) and factory reverse camera retention (if equipped)
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Dual rear USB inputs (1.5A max charging)
Dual camera inputs (AHD 720P compatible) & rear A/V input
50Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
Includes Adapter harness to suit plug found in base model vehicles (Clarion / Fujitsu 10 non screen models)
Specifications:
LCD Display:Size: 9"Resolution: 1024x600Touch Screen: Capacitive (G+G)
System Specifications:OS System / CPU: Linux 3.4.5 / SPHE8368URAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output:Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25WMAX Power (4 Ohm): 4CH x 50WMedia Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports:USB 1 (Rear) Playback Formats: CP,AA & MediaUSB 2 (Rear) Playback Formats: MediaUSB (Rear) Power - Voltage/Amps: 5V/1.5A EachUSB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:Rear A/V Input (RCA Type - 3pcs): YesComposite Video Outputs: YesReverse Camera Input: Yes (720P AHD Compatible)Second Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)Bluetooth Version: V4.2+EDRMicrophone: Built-in & External MicrophoneID3 Tag/Information (Artist, Album, Song): YesHFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)AM Frequency Span (KHz): 529-1629KHz (9KHz Step)RDS: YesFM Antenna Connector Impedance: 50 OhmFM Tuner Connector: Motorola
RCA Preamp Outputs:RCA Preamp Output: 2-Pair (Front / Rear)Subwoofer RCA Output: YesSubwoofer Level Control: YesPreamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)Loudness: YesLPF - Frequencies (Sub): Yes8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:Steering Wheel Control: Yes, with Aerpro SWC AdaptorOSD Language: EnglishLED Colour (Buttons / Keys): White
Accessories:Power Harness: Yes with ISO/3.5mm jackAV-In Cable (RCA with Audio L/R, Video In): YesReverse Camera Input (with 12V power supply to the camera): Yes4.1CH Audio Out Cable: YesExternal Microphone: Included
Vehicle Compatibility:
Holden Colorado (2012 - 2014 RG)
Holden Colorado 7 (2012 - 2014)
Isuzu D-Max (2012 - 2020)
Isuzu MU-X (2013 - 2021)
Kit Inclusions:
AM9X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Antenna Adaptor
Camera Retention Adaptor
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
