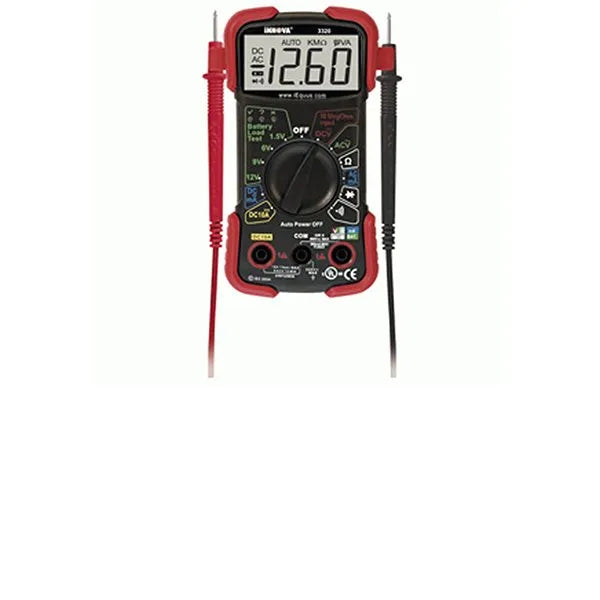

Innova MT3320 Auto Ranging Digital Multimeter A practical and reliable digital multimeter for automotive and household electrical measurements, the MT3320 eliminates manual range selection with auto-ranging scales and adds colour-coded LED battery status indication for quick vehicle electrical diagnosis. Product Overview The MT3320 is Innova's auto-ranging digital multimeter, designed for automotive installers, technicians, and DIY users requiring accurate voltage, resistance, and battery condition measurements across both automotive and household electrical systems. Auto-ranging scales automatically select the correct measurement range when a test is made, removing the need to manually dial in the range and reducing the risk of measurement errors from incorrect range selection. A 10 megohm input impedance protects both the meter and the circuit under test from damage caused by loading, making it safe for use on sensitive automotive electronics and household circuits alike. The large digital display provides clear readings in all working conditions, and the single-setting resistance function simplifies the measurement workflow for common installation tasks. Colour-coded LEDs provide a quick visual battery condition check without requiring a separate test procedure. Protective rubber corner guards provide drop protection for workshop and on-vehicle use, and the included attachable test lead holders and stand keep the meter and leads organised and accessible during use. Features & Benefits Auto-Ranging Scales: The auto-ranging function automatically selects the correct measurement range for the input signal being measured, eliminating the need to manually dial in a range before each test. This speeds up the measurement process and prevents incorrect range selection that can produce inaccurate readings or damage the meter. 10 Megohm Input Impedance: The 10 megohm input impedance minimises the loading effect of the meter on the circuit under test, ensuring accurate voltage readings on sensitive automotive electronic circuits and household wiring without drawing significant current from the measured circuit or risking damage to delicate electronics. Colour-Coded LED Battery Quick Check: The colour-coded LED battery status display provides an immediate visual indication of battery condition without requiring a separate measurement procedure, making it a practical quick-check tool for vehicle battery diagnosis during automotive installation and service work. Large Digital Display: The large digital readout provides clear, easy-to-read measurement values in workshop lighting conditions and when working in confined under-dash or engine bay locations. Single-Setting Resistance Function: The resistance measurement function operates from a single setting, simplifying the workflow for common resistance checks performed during installation and fault-finding without requiring multiple dial positions to be navigated. Protective Rubber Corner Guards: The rubber corner guards protect the meter body from impact damage when the meter is placed on work surfaces or accidentally dropped during use, extending the service life of the instrument in workshop environments. Includes Attachable Test Lead Holders and Stand: The included attachable test lead holders keep the test leads organised and attached to the meter when not in use, and the stand allows the meter to be positioned upright on a work surface for hands-free reading during measurements. Technical Specs Specification Detail SKU MT3320 Brand Innova Type Auto-Ranging Digital Multimeter Input Impedance 10 Megohm Measurement Functions Voltage (AC and DC), Resistance Range Selection Automatic (auto-ranging) Battery Check Colour-coded LED display Display Large digital Drop Protection Rubber corner guards Inclusions Test leads, attachable test lead holders, stand Goes Well With The MT3320 is a practical diagnostic and installation tool for any automotive or marine audio installation workflow. It is well suited to checking supply voltage at amplifier terminals, verifying ground connections, measuring speaker impedance, confirming fuse continuity, and performing quick battery condition checks during and after installation. It pairs naturally with Stinger's amplifier wiring kits, circuit breakers, and the full range of F.A.E. amplifier and accessory products where electrical verification is part of the installation process. Frequently Asked Questions What measurements can the MT3320 perform? The MT3320 measures AC voltage, DC voltage, and resistance. It also provides a colour-coded LED battery quick check function for vehicle battery condition assessment. These functions cover the most common measurements needed during automotive audio installation and basic electrical fault-finding. What does auto-ranging mean, and why is it useful? Auto-ranging means the meter automatically selects the appropriate measurement scale for the signal being tested. On a manually ranged multimeter, the user must select the correct range before measuring, and selecting the wrong range produces an error reading or can damage the meter. With auto-ranging, the MT3320 detects the input level and switches to the correct range automatically, making measurements faster and eliminating incorrect range selection errors. What is the 10 megohm input impedance for? Input impedance is the resistance the meter presents to the circuit being measured. A high input impedance of 10 megohms means the meter draws very little current from the circuit under test, which has two important effects: it prevents the meter from loading down sensitive low-current circuits that could give a false reading if current were drawn, and it protects sensitive automotive electronics such as ECU circuits and sensor outputs from damage that could be caused by a low-impedance meter drawing excess current. How does the colour-coded LED battery check work? The colour-coded LEDs provide a visual indication of battery state of charge or condition during a battery quick check measurement. Different LED colours correspond to different voltage ranges, allowing a quick visual assessment of battery condition without reading a specific numerical value. This is particularly useful for a rapid go/no-go battery check during vehicle installation work without setting up a full diagnostic test. Is the MT3320 suitable for use on modern vehicle electronics? Yes. The 10 megohm input impedance makes the MT3320 safe for use on modern vehicle electronic circuits including CAN-bus wiring, sensor circuits, and low-current control signals, where a low-impedance meter could draw enough current to affect circuit behaviour or damage sensitive components.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

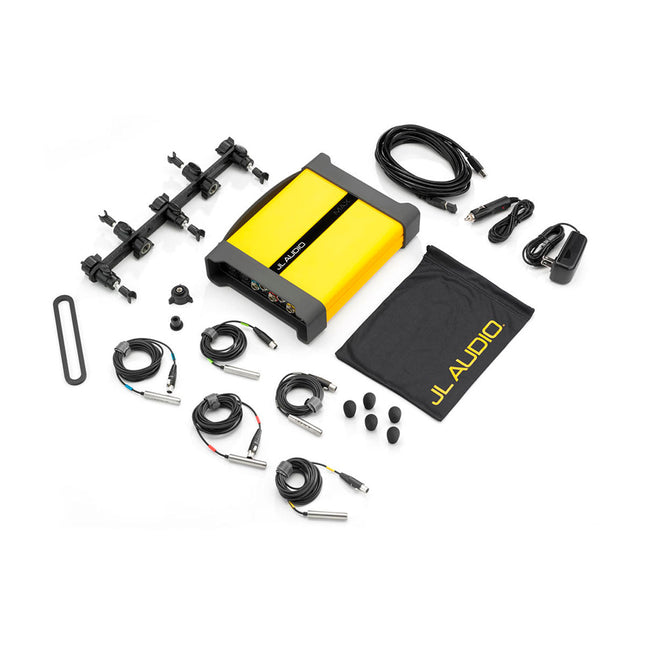

JL Audio JLA-010-03028-00 MAX Audio Measurement System (MAX-KIT) - Professional Audio Tuning Kit Professional-grade audio measurement and system tuning capability — MAX audio measurement system delivers precision acoustic analysis with five calibrated microphones and comprehensive hardware interface for optimizing JL Audio car and marine audio installations across Australian vehicles and vessels. Product Overview The JL Audio MAX audio measurement system delivers professional acoustic measurement and system tuning capabilities with comprehensive hardware interface supporting five simultaneous microphone inputs, dual high-level XLR inputs, S/PDIF digital connectivity, and precision DAC outputs for complete audio system analysis. Engineered with studio-grade specifications including THD below 0.0012%, crosstalk exceeding -110 dB, and frequency response flatness within ±0.1 dB from 5 Hz to 15 kHz, this measurement platform enables professional installers and enthusiasts to optimize JL Audio MVi marine amplifiers and VXi car amplifiers with unprecedented accuracy. The complete kit includes five 1/4" pre-polarized electret microphones with removable windscreens, multi-microphone fixture with mounting accessories, waterproof hard case, soft accessory storage bag, USB connectivity, and 12V DC power supply for field measurements in vehicles and vessels requiring precision acoustic tuning for competition installations, high-end custom systems, and professional audio optimization. Features & Benefits Five-Microphone Simultaneous Measurement: Professional multi-microphone capability enables comprehensive acoustic analysis including multi-point frequency response averaging, stereo imaging assessment, time-alignment verification, and spatial acoustic mapping across entire listening environment, providing complete system characterization impossible with single-microphone measurements. Studio-Grade Measurement Accuracy: Exceptional specifications including THD ≤0.0012% at 1 kHz, frequency response flatness within ±0.1 dB from 5-15 kHz, and crosstalk below -110 dB at 1 kHz deliver measurement precision matching professional studio equipment, enabling accurate identification of acoustic issues, amplifier distortion, speaker response irregularities, and system optimization parameters. Multiple Input Configurations: Comprehensive connectivity including dual balanced XLR high-level inputs (73 kΩ impedance, 80V peak capability), five mini-XLR unbalanced microphone inputs, RCA balanced reference input, and S/PDIF optical digital input accommodates diverse measurement scenarios from amplifier output analysis to complete system frequency response characterization. Professional DAC Output: High-quality digital-to-analog converter with 4V RMS output level, 200Ω output impedance, and flatness within ±0.1 dB from 5-10 kHz enables precision signal generation for amplifier testing, speaker response measurement, crossover optimization, and system calibration using reference test signals. Complete Measurement Package: Comprehensive kit includes all essential components for professional audio measurement including five calibrated microphones with windscreens, multi-mic mounting fixture with accessories, waterproof hard case for equipment protection, soft storage bag, USB connectivity, 12V DC power cable, and AC adapter eliminating need for additional measurement accessories. JL Audio Amplifier Integration: Specifically engineered for optimizing JL Audio MVi marine amplifiers and VXi car amplifier series (full-range, monoblock, and system amplifiers) enabling precision tuning of crossover points, time alignment, EQ settings, and gain structure for maximum system performance in competition and high-end installations. Technical Specs Specification Details Model MAX-KIT System Type Professional audio measurement system Power Supply 12V DC nominal (10-15V range) Included Microphones 5x 1/4" pre-polarized electret (omnidirectional) Microphone Flatness ±1 dB: 50 Hz-10 kHz, ±2 dB: 5 Hz-20 kHz Maximum Input SPL 130 dB SPL @ 1 kHz (≤2% THD) High-Level Inputs 2x balanced XLR (73 kΩ impedance) XLR Input Capacity 80V AC peak (56.57V RMS differential) XLR THD @ 1 kHz ≤0.0012% XLR Crosstalk @ 1 kHz ≤-110 dB Microphone Inputs 5x mini-XLR unbalanced (2.2 kΩ impedance) Mic Input THD @ 1 kHz ≤0.0009% Mic Crosstalk @ 1 kHz ≤-120 dB Reference Input RCA balanced (~100 kΩ impedance) Digital Input S/PDIF optical (TOSLINK, 8-216 kHz) DAC Output Unbalanced RCA (4V RMS @ 0 dBFS) DAC Output Impedance 200Ω Digital Output S/PDIF optical (TOSLINK, 44.1-96 kHz) Sample Rates 44.1 kHz, 48 kHz, 96 kHz Bit Depth 8-24 bit PCM Frequency Response ±0.1 dB: 5-15 kHz, ±0.5 dB: 5-35 kHz @ 96 kSR USB Connectivity USB A/B cable included Included Accessories Multi-mic fixture, windscreens, cables, case Warranty 2 years manufacturer warranty Compatible With / Goes Well With JL Audio Marine Amplifiers: MVi marine amplifier series with integrated DSP requiring precision acoustic measurement for optimizing crossover points, time alignment, parametric EQ, and gain structure in marine audio installations across recreational boats, fishing vessels, and yacht systems. JL Audio Car Amplifiers: VXi full-range amplifiers, VXi monoblock amplifiers, VXi system amplifiers featuring advanced DSP functionality enabling professional tuning optimization for competition installations, high-end custom car audio systems, and audiophile vehicle configurations. JL Audio Speaker Systems: Complete measurement and optimization of JL Audio car speaker systems including component sets, coaxial speakers, subwoofers enabling frequency response correction, crossover optimization, and acoustic integration matching vehicle-specific acoustics. Professional Installation Tools: RTA (real-time analyzer) software, acoustic measurement applications, laptop computers, measurement microphone stands, reference tracks for acoustic testing, SPL meters, oscilloscopes for comprehensive audio system analysis. System Tuning Accessories: Digital signal processors, parametric equalizers, active crossovers, time-alignment processors enabling precise acoustic correction based on MAX measurement system data for achieving reference-quality sound reproduction in vehicles and vessels. Frequently Asked Questions Is this measurement system suitable for DIY enthusiasts or only professional installers? While MAX delivers professional-grade measurement capabilities used by competition installers and audio specialists, enthusiasts with basic acoustic measurement knowledge can utilize the system for optimizing their JL Audio installations. However, interpreting measurement data and making appropriate tuning adjustments requires understanding of acoustic principles and DSP configuration. What computer requirements are needed to run the MAX measurement software? The MAX hardware interface connects via USB to Windows or Mac computers running compatible audio measurement software applications. System requirements vary by software but typically require modern multi-core processors, 8GB+ RAM, and dedicated audio analysis applications for capturing and interpreting measurement data. Can this system measure and tune non-JL Audio amplifiers and speakers? Yes, MAX provides universal audio measurement capabilities compatible with any car or marine audio equipment. While specifically optimized for JL Audio MVi and VXi amplifier tuning, the system measures frequency response, distortion, crosstalk, and acoustic performance of any audio components using standard test signals and microphone inputs. How accurate are the included microphones compared to professional measurement microphones? The five included 1/4" pre-polarized electret microphones deliver ±1 dB flatness from 50 Hz to 10 kHz and ±2 dB from 5 Hz to 20 kHz, providing accuracy suitable for professional installation work. While not matching ultra-precision laboratory microphones, they exceed requirements for car and marine audio system optimization. What's the advantage of five simultaneous microphones versus single microphone measurements? Multi-microphone measurement enables spatial averaging across entire listening area, revealing acoustic inconsistencies, stereo imaging issues, and frequency response variations impossible to detect with single-point measurements. This comprehensive data enables more accurate system tuning achieving consistent sound quality across all seating positions.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!
