Axis Series 2 Heavy Duty Ccd Ip69k Weatherproof: Heavy Duty CCD IP69k WeatherproofThe ECC80-Series 2 is a heavy duty CCD IP69K weatherproof 12V rearview camera. It connects easily with LCD monitors and features robust construction for demanding applications.Axis ECC80 Specifications: Image Device: 1/3” Ccd Diagonal Viewing Angle: 120° Signal System: Pal Effective Pixels: 752h X 582v Picture Element: 0.47mp Sync System: Internal Resolution: 532 Tv Lines Orientation: Mirror (Modification Possible For Non-mirror) Night Vision: Yes, 6 Ir Leds Illumination: 0 Lux With Ir Led On Ingress Protection: Ip69k Integrated Microphone: Yes Operating Temp: -30 To 50°c Power Consumption: 100-170ma Dimensions: 96w X 61d X 54h Mm (Excluding Bracket) Chassis: Charcoal, Diecast Aluminium Connection: Terminated 4 Pin Male Power Supply: 12v Dc (9-14v) What's in the Box: Installation Manual 20m 4 Pin (Male) To 4 Pin (Female) Extension Cable 40cm Adapter Cable 4 Pin(F) To 2 Rca (Video-yellow; Audio-white) Mounting Bracket Installation Hardware Legendary Products & Support From Authorized Dealers When you choose Axis, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Axis dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Axis's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Axis dealer today!

Read more less

AXIS HD1409Q - 9 Inch High Resolution Quad View Monitor High resolution 9-inch quad view monitor featuring 1024x600 resolution, capacitive touchscreen, 8 split-screen modes, 4-camera connectivity via 4-pin aviation connectors, 650 cd/m² brightness, 85-degree viewing angles, auto PAL/NTSC/720P/1080P detection, 5 camera triggers, selectable guidelines, built-in speaker, 10-32V DC operation, -20°C to +70°C temperature range, and heavy-duty construction for trucks, machinery, and vehicle applications. Product Overview The AXIS HD1409Q is an exceptional high resolution 12/24V quad view monitor designed to provide crystal-clear image and enhanced viewing experience. With robust heavy duty construction, this monitor is perfect for trucks, machinery, and various vehicles. The HD1409Q offers the added advantage of connecting up to 4 cameras providing incredible flexibility for monitoring multiple angles simultaneously. The 9-inch LCD display features 16:9 widescreen format with 1024x600 pixel resolution delivering sharp detailed imagery essential for safe vehicle operation and reversing maneuvers in commercial and industrial environments. The 650 cd/m² brightness specification ensures excellent visibility even in direct sunlight conditions typical of outdoor work environments and Australian summer conditions. Wide 85-degree viewing angles in all directions (left, right, up, down) maintain image clarity from various operator seating positions eliminating need for constant monitor adjustment during operation. The capacitive touchscreen interface provides intuitive control enabling quick switching between camera views and split-screen configurations without physical buttons that can fail in harsh operating conditions. Eight versatile split-screen modes (Single, Dual, Triplex, Quad, Trefoil, Y-Split, H-Split, PIP) accommodate different monitoring scenarios from simple reversing to complex multi-angle surveillance during loading operations or tight maneuvering situations. Auto video system detection supporting PAL, NTSC, 720P, and 1080P formats ensures compatibility with various camera types from different manufacturers eliminating configuration complexity during installation. Four 4-pin aviation male connectors provide secure weatherproof camera connections resistant to vibration, moisture, and dust ingress typical in heavy equipment and commercial vehicle applications. Five independent camera triggers enable automatic view switching based on vehicle functions such as reverse gear engagement, turn signal activation, or brake application improving operator situational awareness without manual intervention. Selectable on/off guidelines assist with distance judgment and obstacle avoidance during reversing and parking operations with option to disable when not required. Built-in speaker delivers audio alerts and proximity warnings from compatible camera systems enhancing safety during blind-spot maneuvers. Wide 10-32V DC voltage input accommodates both 12V and 24V vehicle electrical systems common in light commercial vehicles through heavy trucks and machinery. Extended operating temperature range from -20°C to +70°C ensures reliable performance in extreme Australian climates from alpine winter conditions to desert summer heat. Compact 234mm width, 158mm height, and 39.75mm depth (excluding bracket and visor) dimensions facilitate installation in cramped dashboard locations typical of commercial vehicle cabins. Features & Benefits High Resolution 1024x600 Display The 9-inch LCD screen with 1024x600 resolution delivers crisp detailed imagery essential for identifying obstacles, reading signage, and monitoring surroundings during vehicle operation. This resolution significantly exceeds basic VGA displays providing clarity necessary for professional applications where accurate visual information affects safety and operational efficiency. 8 Flexible Split-Screen Modes Eight different viewing configurations (Single, Dual, Triplex, Quad, Trefoil, Y-Split, H-Split, Picture-in-Picture) accommodate diverse monitoring requirements. Operators can view single camera for detailed observation, multiple cameras simultaneously for comprehensive situational awareness, or prioritize one view while monitoring others in smaller windows adapting to different operational scenarios. 4-Camera Connectivity with Aviation Connectors Four independent camera inputs via rugged 4-pin aviation male connectors enable comprehensive vehicle coverage monitoring front, rear, and side blind spots simultaneously. Aviation-grade connectors provide superior vibration resistance, weatherproofing, and connection reliability compared to standard RCA or BNC connectors ensuring long-term durability in harsh operating environments. Capacitive Touchscreen Control Intuitive touchscreen interface eliminates mechanical buttons prone to failure from dust, moisture, and repeated use in commercial applications. Operators switch between views and adjust settings with simple touch gestures maintaining focus on vehicle operation rather than searching for physical controls. 650 cd/m² High Brightness Panel High brightness specification ensures screen remains visible in direct sunlight typical of outdoor work environments and Australian conditions. Standard low-brightness monitors wash out in bright light requiring operators to shade screens or reposition vehicles compromising safety and productivity. Wide 85° Viewing Angles Consistent image quality from 85-degree angles in all directions accommodates various operator seating positions and heights without requiring monitor adjustment. This wide viewing angle prevents image inversion or color shift typical of inferior displays when viewed off-axis ensuring multiple operators or passengers view clear imagery. 5 Independent Camera Triggers Five camera trigger inputs enable automatic view switching based on vehicle functions such as reverse gear, turn signals, brake application, or auxiliary switches. This automation improves safety by displaying relevant camera views without manual intervention allowing operators to maintain focus on vehicle controls during critical maneuvers. Auto Video Format Detection Automatic recognition of PAL, NTSC, 720P, and 1080P video formats ensures compatibility with cameras from various manufacturers worldwide. This eliminates manual configuration requirements and prevents compatibility issues during installation or camera replacement simplifying system maintenance. Selectable Parking Guidelines Distance reference lines assist with obstacle avoidance and parking precision with option to disable when not required. Operators judge distances accurately during reversing reducing property damage and improving safety in confined spaces typical of loading docks, construction sites, and urban deliveries. Built-In Audio Speaker Integrated speaker delivers audio alerts and proximity warnings from compatible camera systems providing additional safety feedback beyond visual information. Audio warnings alert distracted operators to immediate hazards even when not actively monitoring screen improving overall situational awareness. Wide Voltage Compatibility 10-32V DC input accommodates 12V light commercial vehicles, 24V heavy trucks, and machinery with varying electrical system voltages. This flexibility eliminates need for voltage converters or multiple monitor models simplifying inventory management and installation across diverse fleet compositions. Extended Temperature Range Operating range from -20°C to +70°C ensures reliable performance in extreme climates from alpine construction sites to outback mining operations. Standard electronics fail in temperature extremes but this monitor maintains functionality throughout Australia's diverse climate zones. Heavy Duty Construction Robust build quality withstands vibration, shock, and environmental exposure typical in commercial vehicles, construction equipment, and agricultural machinery. This durability reduces replacement frequency and maintenance costs compared to consumer-grade displays unsuitable for professional applications. Technical Specifications Specification Details Model AXIS HD1409Q LCD Size 9 Inches Display Format 16:9 Widescreen Resolution 1024 x 600 Pixels Split Screen Modes Single/Dual/Triplex/Quad/Trefoil/Y-Split/H-Split/PIP (8 Modes) Brightness 650 cd/m² Viewing Angles 85° Left/Right/Up/Down Touchscreen Type Capacitive Touch Video System Auto PAL/NTSC/720P/1080P Select Video Input Connectors 4 x 4-Pin Aviation Male Connectors Connection Standard Universal 4-Pin Configuration (Male) Camera Triggers 5 Independent Triggers Parking Guidelines Selectable On/Off Audio Built-In Speaker Operating Temperature -20°C to +70°C Voltage Input 10-32V DC (Negative Ground) Voltage Compatibility 12V and 24V Systems Dimensions (Monitor) 234mm (W) x 158mm (H) x 39.75mm (D) Dimensions Note Excluding Bracket & Visor Barcode/EAN 9321886017182 Installation & Compatibility Camera Compatibility The HD1409Q accepts video input from backup cameras, side cameras, and forward-facing cameras utilizing 4-pin aviation connector standard. Compatible with most aftermarket vehicle cameras outputting PAL, NTSC, 720P, or 1080P video signals. The auto-detection feature automatically identifies camera video format eliminating manual configuration. Verify camera output connectors match 4-pin aviation male configuration or obtain appropriate adapter cables. Camera systems should operate within 10-32V DC range matching vehicle electrical system voltage. Mounting Considerations Select mounting location providing optimal viewing angle from driver position while minimizing windshield obstruction or interference with vehicle controls. Dashboard mounting positions work well in commercial vehicles with flat dash surfaces. Consider sun visor attachment for managing screen glare in bright conditions. Ensure mounting position allows access to rear panel connectors for camera cable routing without excessive cable bending or strain. Electrical Installation Connect monitor power supply to vehicle electrical system observing correct polarity (negative ground). The 10-32V DC input accommodates both 12V and 24V systems automatically without switches or jumpers. Route power cable away from high-current components, ignition systems, and radio frequency sources that may introduce electrical noise. Install inline fuse rated appropriately for monitor current draw protecting vehicle electrical system and monitor from short circuit damage. Camera Connection Process Route camera cables from camera mounting locations to monitor position avoiding pinch points, moving components, and high-heat areas near engine or exhaust systems. Connect cameras to corresponding 4-pin aviation male connectors on monitor rear panel ensuring secure connection with connector locking mechanism engaged. Label camera cables during installation identifying camera location (front, rear, left side, right side) simplifying future troubleshooting and maintenance. Trigger Wire Configuration Connect camera trigger wires to appropriate vehicle circuits for automatic view switching. Common trigger sources include reverse light circuit for rear camera activation, turn signal circuits for side camera activation, and brake circuit for front camera activation. The five independent triggers accommodate complex installations with multiple automatic switching requirements. Verify trigger voltage levels match monitor input specifications preventing damage to trigger circuitry. System Testing After installation completion, test all camera views individually confirming clear video display without interference, distortion, or color abnormalities. Verify automatic view switching via trigger inputs functions correctly when engaging reverse gear or activating turn signals. Test touchscreen responsiveness and split-screen mode transitions. Adjust parking guidelines positioning matching specific vehicle dimensions and camera mounting angles for accurate distance reference. Frequently Asked Questions Can this monitor display all 4 cameras simultaneously? Yes, the HD1409Q supports Quad split-screen mode displaying all four camera inputs simultaneously in equal-sized quadrants. Additionally, seven other split-screen configurations provide flexibility for different monitoring scenarios. Single mode displays one camera full-screen for detailed observation. Dual mode splits screen between two cameras. Triplex mode shows three cameras simultaneously. Trefoil, Y-Split, and H-Split modes offer alternative three-camera arrangements. Picture-in-Picture (PIP) mode displays one camera large with smaller overlay windows showing other cameras. Switch between modes using capacitive touchscreen interface selecting optimal configuration for current operation whether reversing, maneuvering in tight spaces, or highway driving requiring blind-spot monitoring. Will this work with my existing backup cameras? The HD1409Q is compatible with most aftermarket backup cameras using 4-pin aviation connector configuration and outputting PAL, NTSC, 720P, or 1080P video signals. The auto video format detection automatically identifies camera signal type eliminating manual configuration. If existing cameras use different connectors (RCA, BNC, etc.), adapter cables are available to convert to 4-pin aviation male connectors required by this monitor. Verify existing camera operating voltage matches monitor's 10-32V DC range ensuring compatibility with 12V or 24V vehicle electrical systems. Cameras must provide composite video or AHD (Analog High Definition) signals within supported resolution specifications. How does the automatic camera switching work? The HD1409Q features five independent trigger inputs that automatically switch camera views based on vehicle functions. Connect trigger wires to appropriate vehicle circuits such as reverse light positive wire for rear camera activation, turn signal wires for side camera activation, or brake circuit for front camera activation. When trigger input receives voltage signal, monitor automatically switches to corresponding camera view. For example, engaging reverse gear energizes reverse lights sending signal to trigger input causing monitor to display rear camera automatically. This hands-free operation improves safety by displaying relevant camera views during critical maneuvers without requiring operator to manually switch views using touchscreen controls. Multiple simultaneous triggers can activate split-screen modes showing combined views.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

AXIS HDC/AX-F - 4-Pin (F) to Universal 4-Pin (F) Converter Pin configuration converter cable featuring AXIS 4-pin female to Universal 4-pin female aviation connector compatibility, flexible pin arrangement conversion, camera-to-monitor signal adaptation, weatherproof aviation-grade construction, and compatibility bridge enabling AXIS proprietary pinout devices to connect with universal standard 4-pin equipment in vehicle camera and monitoring systems. Product Overview The AXIS HDC/AX-F allows for flexible pin configuration offering the ability to switch from AXIS type to Universal type. This converter cable solves compatibility challenges between AXIS proprietary 4-pin pinout configuration and universal standard 4-pin pinout used by various camera and monitor manufacturers. The 4-pin aviation connector format maintains weatherproof sealing and vibration resistance essential for vehicle applications while converting signal pin arrangement between incompatible standards. AXIS brand cameras, monitors, and extension cables utilize specific pin configuration placing power, ground, and video signals on designated pins within 4-pin aviation connector. Universal standard equipment from other manufacturers uses different pin arrangement placing identical signals on different pin positions within physically identical 4-pin aviation connector. Without this converter, physically compatible connectors fail to establish proper electrical connection because power may connect to video pin, ground to power pin, or other incorrect pin mapping causing equipment malfunction or damage. This adapter cable features AXIS 4-pin female connector on one end accepting male connectors from AXIS equipment such as cameras or extension cables. The opposite end features Universal 4-pin female connector accepting male connectors from universal standard equipment such as monitors or recorders utilizing industry-standard pinout. Internal wiring within converter cable routes signals from AXIS pin positions to corresponding universal pin positions ensuring proper power, ground, and video signal connections. The female-to-female configuration enables inline installation between existing male-terminated camera cables and male-terminated monitor input cables without requiring connector removal or cable modification. Aviation-grade connector construction provides IP67-rated weatherproof sealing protecting internal connections from moisture ingress, dust contamination, and corrosive salt spray typical in marine, agricultural, and mining vehicle applications. Threaded coupling nuts on both connectors ensure secure mechanical connection resistant to vibration, shock, and cable tension preventing accidental disconnection during vehicle operation. Gold-plated contact pins minimize electrical resistance and prevent corrosion ensuring reliable signal transmission and power delivery over extended service life in harsh environmental conditions. Compact inline design minimizes additional cable bulk and maintains installation flexibility in confined spaces typical of vehicle wiring harnesses and equipment mounting locations. Features & Benefits AXIS to Universal Pin Conversion Bridges compatibility gap between AXIS proprietary 4-pin pinout and universal standard 4-pin configuration enabling equipment from different manufacturers to interconnect properly. This compatibility eliminates need to replace entire camera systems or monitors when upgrading or mixing equipment brands reducing total system cost. Female-to-Female Configuration Both ends feature female connectors accepting male plugs from cameras and monitors enabling inline installation without cutting cables or removing existing connectors. This preserves original equipment cables maintaining manufacturer warranties and simplifying future equipment changes or troubleshooting. Aviation-Grade Weatherproof Construction IP67-rated sealing protects electrical connections from moisture, dust, and environmental contamination typical in outdoor vehicle applications. This weatherproofing ensures reliable operation in rain, dust storms, vehicle washing, and extreme humidity conditions preventing corrosion-related failures. Threaded Locking Mechanism Coupling nuts on both connectors provide secure mechanical connection resistant to vibration and accidental disconnection. This positive locking prevents intermittent connections or complete disconnection during vehicle operation over rough terrain maintaining continuous monitoring capability. Gold-Plated Contact Pins Gold plating on electrical contacts minimizes contact resistance and prevents oxidation ensuring long-term signal integrity and power delivery reliability. Standard tin or nickel contacts corrode over time increasing resistance and causing video signal degradation or intermittent power delivery. Compact Inline Design Minimal additional cable length and compact connector housings maintain wiring harness flexibility and enable installation in tight spaces. Bulky adapters or conversion boxes consume valuable mounting space and create cable management challenges in cramped vehicle installations. Plug-and-Play Installation Simple connection between existing cables requires no tools, soldering, or technical expertise enabling quick field installation or system reconfiguration. This simplicity reduces installation labor costs and allows operators to perform equipment changes without specialized technical support. Signal Integrity Preservation Quality internal wiring and proper shielding maintain video signal quality without introducing noise, interference, or voltage drop. Inferior adapters use inadequate wire gauge or poor shielding causing video distortion, power supply problems, or electromagnetic interference affecting camera and monitor performance. Technical Specifications Specification Details Model AXIS HDC/AX-F Connector Type 4-Pin Aviation End 1 Configuration AXIS 4-Pin Female End 2 Configuration Universal 4-Pin Female Pin Conversion AXIS Pinout to Universal Standard Pinout Gender Female to Female (F-F) Weatherproof Rating IP67 Sealed Coupling Method Threaded Locking Nuts Contact Plating Gold-Plated Pins Compatible Equipment Camera Systems, Monitors, Extension Cables Application Vehicle Camera/Monitor Systems Barcode/EAN 9321886015508 Installation & Compatibility Equipment Compatibility The HDC/AX-F converter enables connection between AXIS proprietary pinout equipment and universal standard pinout equipment. AXIS-compatible equipment includes AXIS brand cameras, monitors, and extension cables utilizing AXIS-specific pin configuration. Universal-compatible equipment includes monitors and cameras from manufacturers using industry-standard 4-pin pinout configuration. Verify equipment pinout specifications before purchasing converter to confirm compatibility requirements. Incorrect converter selection results in continued incompatibility despite physical connector compatibility. Pin Configuration Understanding 4-pin aviation connectors for camera systems typically carry power positive, ground negative, video signal positive, and video signal ground on four pins within connector. AXIS pinout assigns these signals to specific pin positions differing from universal standard pin position assignments. This converter internally routes signals from AXIS pin positions to universal pin positions enabling proper electrical connection. Understanding this distinction prevents damage from connecting incompatible equipment without appropriate converter. Connection Process Connect AXIS 4-pin female end of converter to male connector from AXIS equipment such as camera cable or AXIS monitor input cable. Connect Universal 4-pin female end of converter to male connector from universal standard equipment such as camera cable or universal monitor input cable. Ensure threaded coupling nuts engage fully and tighten hand-tight preventing moisture ingress and securing mechanical connection. Verify correct converter orientation matching AXIS equipment to AXIS converter end and universal equipment to universal converter end. System Testing After Installation After connecting converter between equipment, power system and verify video display appears on monitor confirming proper pin mapping and signal routing. Test image should show clear video without distortion, color abnormalities, or interference indicating successful conversion. If video fails to appear, verify converter orientation ensuring AXIS equipment connects to AXIS converter end and universal equipment connects to universal end. Check all coupling nuts tightened securely and inspect connectors for damaged pins or contamination. Cable Management Position converter in accessible location enabling future disconnection for system maintenance or equipment replacement without disassembling surrounding components. Secure converter cable to vehicle structure using cable ties preventing excessive movement that could stress connectors or cause vibration-induced wear. Protect converter from sharp edges, moving components, and high-heat sources that could damage cable insulation or connector housings. Multiple Converter Use In systems with multiple cameras, separate converter may be required for each camera connection if mixing AXIS and universal equipment. Label converters identifying which camera or monitor connection each serves simplifying future troubleshooting and maintenance. Alternatively, use consistent pinout standard throughout system avoiding need for multiple converters by selecting all AXIS or all universal equipment during initial purchase. Frequently Asked Questions How do I know if I need this converter? You need the HDC/AX-F converter when connecting AXIS proprietary pinout equipment to universal standard pinout equipment in 4-pin aviation connector camera systems. If connecting AXIS camera to universal monitor (or vice versa) and video fails to display despite proper physical connection, incompatible pin configurations are likely cause. AXIS equipment and universal equipment use different pin position assignments for power, ground, and video signals within physically identical 4-pin aviation connectors. This converter bridges the gap by routing signals from AXIS pin positions to corresponding universal pin positions. Check equipment specifications or contact manufacturers to determine pinout standard used. If mixing equipment brands and experiencing connection issues, this converter typically resolves compatibility problems. Can I use this converter in both directions? Yes, the HDC/AX-F functions bidirectionally converting either AXIS-to-Universal or Universal-to-AXIS depending on connection orientation. Connect AXIS equipment to the AXIS female end and universal equipment to the Universal female end regardless of whether AXIS device is camera or monitor. For example, connecting AXIS camera to universal monitor requires AXIS camera male connector into AXIS converter female end and universal monitor male cable into universal converter female end. Conversely, connecting universal camera to AXIS monitor reverses orientation with universal camera connecting to universal converter end and AXIS monitor connecting to AXIS converter end. The converter simply routes signals between pin positions functioning equally well in either direction. Will this converter affect video quality? The HDC/AX-F maintains video signal integrity without introducing noticeable quality degradation when properly installed. Quality internal wiring and gold-plated contacts minimize resistance and signal loss preserving original video quality from camera to monitor. However, converter introduces additional connection points which could potentially affect signal if connectors become corroded or contaminated over time. Ensure coupling nuts tighten securely maintaining weatherproof seal and inspect connectors periodically for corrosion or damage. Proper maintenance preserves video quality throughout converter service life. Any video quality issues typically result from incompatible equipment or damaged cables rather than converter itself when converter selected correctly for application.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

AXIS HDC/AX-M - 4-Pin (M) to Universal 4-Pin (M) Converter Pin configuration converter cable featuring AXIS 4-pin male to Universal 4-pin male aviation connector compatibility, flexible pin arrangement conversion, direct equipment-to-equipment connection adaptation, weatherproof aviation-grade construction, and compatibility bridge enabling AXIS proprietary pinout devices to connect with universal standard 4-pin equipment female ports in vehicle camera and monitoring systems. Product Overview The AXIS HDC/AX-M allows for flexible pin configuration offering the ability to switch from AXIS type to Universal type. This converter cable solves compatibility challenges between AXIS proprietary 4-pin pinout configuration and universal standard 4-pin pinout used by various camera and monitor manufacturers. The 4-pin aviation connector format maintains weatherproof sealing and vibration resistance essential for vehicle applications while converting signal pin arrangement between incompatible standards. AXIS brand cameras, monitors, and equipment utilize specific pin configuration placing power, ground, and video signals on designated pins within 4-pin aviation connector. Universal standard equipment from other manufacturers uses different pin arrangement placing identical signals on different pin positions within physically identical 4-pin aviation connector. Without this converter, physically compatible connectors fail to establish proper electrical connection because power may connect to video pin, ground to power pin, or other incorrect pin mapping causing equipment malfunction or damage. This adapter cable features AXIS 4-pin male connector on one end plugging into female ports on AXIS equipment such as monitors, recorders, or distribution panels. The opposite end features Universal 4-pin male connector plugging into female ports on universal standard equipment such as monitors, recorders, or cameras utilizing industry-standard pinout. Internal wiring within converter cable routes signals from AXIS pin positions to corresponding universal pin positions ensuring proper power, ground, and video signal connections. The male-to-male configuration enables direct connection between equipment female ports without requiring intermediate extension cables or additional adapters when bridging AXIS and universal equipment. Aviation-grade connector construction provides IP67-rated weatherproof sealing when properly mated to equipment female ports protecting electrical connections from moisture ingress, dust contamination, and corrosive salt spray typical in marine, agricultural, and mining vehicle applications. Threaded coupling nuts on both connectors ensure secure mechanical connection resistant to vibration, shock, and cable tension preventing accidental disconnection during vehicle operation. Gold-plated contact pins minimize electrical resistance and prevent corrosion ensuring reliable signal transmission and power delivery over extended service life in harsh environmental conditions. Compact design minimizes cable bulk and maintains installation flexibility in confined spaces typical of equipment mounting locations and wiring harnesses behind vehicle dashboards or equipment panels. Features & Benefits AXIS to Universal Pin Conversion Bridges compatibility gap between AXIS proprietary 4-pin pinout and universal standard 4-pin configuration enabling direct equipment connection between different manufacturer standards. This compatibility eliminates need to replace entire camera systems or monitors when mixing equipment brands reducing total system cost and enabling gradual system upgrades. Male-to-Male Configuration Both ends feature male connectors plugging directly into equipment female ports enabling connection between monitor inputs, camera outputs, or distribution panel ports without intermediate extension cables. This direct connection reduces connection points minimizing potential failure locations and maintaining compact installation in equipment-dense mounting areas. Aviation-Grade Weatherproof Construction IP67-rated sealing when properly mated to equipment female ports protects electrical connections from moisture, dust, and environmental contamination typical in outdoor vehicle applications. This weatherproofing ensures reliable operation in rain, dust storms, vehicle washing, and extreme humidity conditions preventing corrosion-related failures. Threaded Locking Mechanism Coupling nuts on both connectors provide secure mechanical connection resistant to vibration and accidental disconnection when properly tightened into equipment female ports. This positive locking prevents intermittent connections or complete disconnection during vehicle operation over rough terrain maintaining continuous monitoring capability. Gold-Plated Contact Pins Gold plating on electrical contacts minimizes contact resistance and prevents oxidation ensuring long-term signal integrity and power delivery reliability. Standard tin or nickel contacts corrode over time increasing resistance and causing video signal degradation or intermittent power delivery especially in high-humidity or salt-spray environments. Direct Equipment Connection Male-to-male design enables connection directly between equipment female ports without requiring separate extension cables or additional female-to-female adapters. This simplifies system wiring reducing cable clutter and eliminating unnecessary connection points that could introduce signal degradation or mechanical failure points. Plug-and-Play Installation Simple connection into equipment female ports requires no tools, soldering, or technical expertise enabling quick field installation or system reconfiguration. This simplicity reduces installation labor costs and allows operators to perform equipment changes without specialized technical support or extensive downtime. Signal Integrity Preservation Quality internal wiring and proper shielding maintain video signal quality without introducing noise, interference, or voltage drop. Inferior adapters use inadequate wire gauge or poor shielding causing video distortion, power supply problems, or electromagnetic interference affecting camera and monitor performance. Technical Specifications Specification Details Model AXIS HDC/AX-M Connector Type 4-Pin Aviation End 1 Configuration AXIS 4-Pin Male End 2 Configuration Universal 4-Pin Male Pin Conversion AXIS Pinout to Universal Standard Pinout Gender Male to Male (M-M) Weatherproof Rating IP67 Sealed (when mated) Coupling Method Threaded Locking Nuts Contact Plating Gold-Plated Pins Compatible Equipment Monitors, Cameras, Recorders, Distribution Panels Application Vehicle Camera/Monitor Systems Barcode/EAN 9321886015515 Installation & Compatibility Equipment Compatibility The HDC/AX-M converter enables connection between AXIS proprietary pinout equipment and universal standard pinout equipment with female input/output ports. AXIS-compatible equipment includes AXIS brand monitors, recorders, and distribution panels utilizing AXIS-specific pin configuration on female ports. Universal-compatible equipment includes monitors, cameras, and recorders from manufacturers using industry-standard 4-pin pinout configuration on female ports. Verify equipment pinout specifications before purchasing converter to confirm compatibility requirements. Incorrect converter selection results in continued incompatibility despite physical connector compatibility. Pin Configuration Understanding 4-pin aviation connectors for camera systems typically carry power positive, ground negative, video signal positive, and video signal ground on four pins within connector. AXIS pinout assigns these signals to specific pin positions differing from universal standard pin position assignments. This converter internally routes signals from AXIS pin positions to universal pin positions enabling proper electrical connection. Understanding this distinction prevents damage from connecting incompatible equipment without appropriate converter. Connection Process Insert AXIS 4-pin male end of converter into female port on AXIS equipment such as monitor input, recorder input, or AXIS distribution panel output. Insert Universal 4-pin male end of converter into female port on universal standard equipment such as monitor input, camera connector, or universal distribution panel. Ensure threaded coupling nuts engage equipment female port threads and tighten hand-tight securing mechanical connection and maintaining weatherproof seal. Verify correct converter orientation matching AXIS equipment port to AXIS converter end and universal equipment port to universal converter end. System Testing After Installation After connecting converter between equipment ports, power system and verify video display appears on monitor confirming proper pin mapping and signal routing. Test image should show clear video without distortion, color abnormalities, or interference indicating successful conversion. If video fails to appear, verify converter orientation ensuring AXIS equipment connects to AXIS converter end and universal equipment connects to universal end. Check all coupling nuts tightened securely into equipment ports and inspect connectors for damaged pins or contamination. Cable Management Position converter cable to minimize stress on equipment female ports preventing leverage forces that could damage port mounting or internal circuit board connections. Use cable ties to secure converter cable to vehicle structure near equipment mounting location reducing movement and vibration transmission to delicate port connections. Protect converter from sharp edges, moving components, and high-heat sources that could damage cable insulation or connector housings. Multiple Converter Use In systems with multiple cameras or monitors, separate converter may be required for each connection if mixing AXIS and universal equipment throughout system. Label converters identifying which equipment connection each serves simplifying future troubleshooting and maintenance. Alternatively, use consistent pinout standard throughout system avoiding need for multiple converters by selecting all AXIS or all universal equipment during initial purchase. Frequently Asked Questions What is the difference between HDC/AX-M and HDC/AX-F converters? The HDC/AX-M features male-to-male (M-M) connectors while HDC/AX-F features female-to-female (F-F) connectors serving different connection scenarios. HDC/AX-M male connectors plug directly into equipment female ports connecting monitor inputs to camera outputs or linking distribution panels without intermediate cables. HDC/AX-F female connectors accept existing male cable ends enabling inline conversion between camera cables and monitor input cables. Choose HDC/AX-M when connecting directly between equipment female ports. Choose HDC/AX-F when connecting between existing male-terminated cables. Both converters perform identical pin configuration conversion between AXIS and universal standards but accommodate different physical connection requirements. Some installations may require both converter types depending on equipment configuration and existing cable terminations. Can I use this converter to connect AXIS camera to universal monitor? Yes, if both camera and monitor have female ports accepting male connectors. Insert AXIS male end into camera female output port and Universal male end into monitor female input port. However, if camera has male connector cable or monitor has male input cable, you need HDC/AX-F female-to-female converter instead to accept existing male cables. Verify your equipment connection types before selecting converter. Many cameras come with attached male cables requiring female-to-female converters while some cameras and most monitors have female ports requiring male-to-male converters. Check equipment specifications or physically inspect connection types to determine correct converter gender configuration for your application. Will this converter work with extension cables? The HDC/AX-M does not directly connect to standard extension cables which typically feature male-to-female configuration. This male-to-male converter connects between two female ports on equipment or distribution panels. To use converter with extension cables, you need extension cable with female-to-female configuration or additional gender-changing adapters. Alternatively, use HDC/AX-F female-to-female converter which accepts male connectors from standard extension cables enabling inline conversion. For complex systems mixing AXIS and universal equipment with various cable types, consider creating complete wiring diagram identifying all connection points and required converter types before purchasing to ensure correct adapter selection for each connection point.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

AXIS HDC/AX-M - 4-Pin (M) to Universal 4-Pin (M) Converter Pin configuration converter cable featuring AXIS 4-pin male to Universal 4-pin male aviation connector compatibility, flexible pin arrangement conversion, direct equipment-to-equipment connection adaptation, weatherproof aviation-grade construction, and compatibility bridge enabling AXIS proprietary pinout devices to connect with universal standard 4-pin equipment female ports in vehicle camera and monitoring systems. Product Overview The AXIS HDC/AX-M allows for flexible pin configuration offering the ability to switch from AXIS type to Universal type. This converter cable solves compatibility challenges between AXIS proprietary 4-pin pinout configuration and universal standard 4-pin pinout used by various camera and monitor manufacturers. The 4-pin aviation connector format maintains weatherproof sealing and vibration resistance essential for vehicle applications while converting signal pin arrangement between incompatible standards. AXIS brand cameras, monitors, and equipment utilize specific pin configuration placing power, ground, and video signals on designated pins within 4-pin aviation connector. Universal standard equipment from other manufacturers uses different pin arrangement placing identical signals on different pin positions within physically identical 4-pin aviation connector. Without this converter, physically compatible connectors fail to establish proper electrical connection because power may connect to video pin, ground to power pin, or other incorrect pin mapping causing equipment malfunction or damage. This adapter cable features AXIS 4-pin male connector on one end plugging into female ports on AXIS equipment such as monitors, recorders, or distribution panels. The opposite end features Universal 4-pin male connector plugging into female ports on universal standard equipment such as monitors, recorders, or cameras utilizing industry-standard pinout. Internal wiring within converter cable routes signals from AXIS pin positions to corresponding universal pin positions ensuring proper power, ground, and video signal connections. The male-to-male configuration enables direct connection between equipment female ports without requiring intermediate extension cables or additional adapters when bridging AXIS and universal equipment. Aviation-grade connector construction provides IP67-rated weatherproof sealing when properly mated to equipment female ports protecting electrical connections from moisture ingress, dust contamination, and corrosive salt spray typical in marine, agricultural, and mining vehicle applications. Threaded coupling nuts on both connectors ensure secure mechanical connection resistant to vibration, shock, and cable tension preventing accidental disconnection during vehicle operation. Gold-plated contact pins minimize electrical resistance and prevent corrosion ensuring reliable signal transmission and power delivery over extended service life in harsh environmental conditions. Compact design minimizes cable bulk and maintains installation flexibility in confined spaces typical of equipment mounting locations and wiring harnesses behind vehicle dashboards or equipment panels. Features & Benefits AXIS to Universal Pin Conversion Bridges compatibility gap between AXIS proprietary 4-pin pinout and universal standard 4-pin configuration enabling direct equipment connection between different manufacturer standards. This compatibility eliminates need to replace entire camera systems or monitors when mixing equipment brands reducing total system cost and enabling gradual system upgrades. Male-to-Male Configuration Both ends feature male connectors plugging directly into equipment female ports enabling connection between monitor inputs, camera outputs, or distribution panel ports without intermediate extension cables. This direct connection reduces connection points minimizing potential failure locations and maintaining compact installation in equipment-dense mounting areas. Aviation-Grade Weatherproof Construction IP67-rated sealing when properly mated to equipment female ports protects electrical connections from moisture, dust, and environmental contamination typical in outdoor vehicle applications. This weatherproofing ensures reliable operation in rain, dust storms, vehicle washing, and extreme humidity conditions preventing corrosion-related failures. Threaded Locking Mechanism Coupling nuts on both connectors provide secure mechanical connection resistant to vibration and accidental disconnection when properly tightened into equipment female ports. This positive locking prevents intermittent connections or complete disconnection during vehicle operation over rough terrain maintaining continuous monitoring capability. Gold-Plated Contact Pins Gold plating on electrical contacts minimizes contact resistance and prevents oxidation ensuring long-term signal integrity and power delivery reliability. Standard tin or nickel contacts corrode over time increasing resistance and causing video signal degradation or intermittent power delivery especially in high-humidity or salt-spray environments. Direct Equipment Connection Male-to-male design enables connection directly between equipment female ports without requiring separate extension cables or additional female-to-female adapters. This simplifies system wiring reducing cable clutter and eliminating unnecessary connection points that could introduce signal degradation or mechanical failure points. Plug-and-Play Installation Simple connection into equipment female ports requires no tools, soldering, or technical expertise enabling quick field installation or system reconfiguration. This simplicity reduces installation labor costs and allows operators to perform equipment changes without specialized technical support or extensive downtime. Signal Integrity Preservation Quality internal wiring and proper shielding maintain video signal quality without introducing noise, interference, or voltage drop. Inferior adapters use inadequate wire gauge or poor shielding causing video distortion, power supply problems, or electromagnetic interference affecting camera and monitor performance. Technical Specifications Specification Details Model AXIS HDC/AX-M Connector Type 4-Pin Aviation End 1 Configuration AXIS 4-Pin Male End 2 Configuration Universal 4-Pin Male Pin Conversion AXIS Pinout to Universal Standard Pinout Gender Male to Male (M-M) Weatherproof Rating IP67 Sealed (when mated) Coupling Method Threaded Locking Nuts Contact Plating Gold-Plated Pins Compatible Equipment Monitors, Cameras, Recorders, Distribution Panels Application Vehicle Camera/Monitor Systems Barcode/EAN 9321886015515 Installation & Compatibility Equipment Compatibility The HDC/AX-M converter enables connection between AXIS proprietary pinout equipment and universal standard pinout equipment with female input/output ports. AXIS-compatible equipment includes AXIS brand monitors, recorders, and distribution panels utilizing AXIS-specific pin configuration on female ports. Universal-compatible equipment includes monitors, cameras, and recorders from manufacturers using industry-standard 4-pin pinout configuration on female ports. Verify equipment pinout specifications before purchasing converter to confirm compatibility requirements. Incorrect converter selection results in continued incompatibility despite physical connector compatibility. Pin Configuration Understanding 4-pin aviation connectors for camera systems typically carry power positive, ground negative, video signal positive, and video signal ground on four pins within connector. AXIS pinout assigns these signals to specific pin positions differing from universal standard pin position assignments. This converter internally routes signals from AXIS pin positions to universal pin positions enabling proper electrical connection. Understanding this distinction prevents damage from connecting incompatible equipment without appropriate converter. Connection Process Insert AXIS 4-pin male end of converter into female port on AXIS equipment such as monitor input, recorder input, or AXIS distribution panel output. Insert Universal 4-pin male end of converter into female port on universal standard equipment such as monitor input, camera connector, or universal distribution panel. Ensure threaded coupling nuts engage equipment female port threads and tighten hand-tight securing mechanical connection and maintaining weatherproof seal. Verify correct converter orientation matching AXIS equipment port to AXIS converter end and universal equipment port to universal converter end. System Testing After Installation After connecting converter between equipment ports, power system and verify video display appears on monitor confirming proper pin mapping and signal routing. Test image should show clear video without distortion, color abnormalities, or interference indicating successful conversion. If video fails to appear, verify converter orientation ensuring AXIS equipment connects to AXIS converter end and universal equipment connects to universal end. Check all coupling nuts tightened securely into equipment ports and inspect connectors for damaged pins or contamination. Cable Management Position converter cable to minimize stress on equipment female ports preventing leverage forces that could damage port mounting or internal circuit board connections. Use cable ties to secure converter cable to vehicle structure near equipment mounting location reducing movement and vibration transmission to delicate port connections. Protect converter from sharp edges, moving components, and high-heat sources that could damage cable insulation or connector housings. Multiple Converter Use In systems with multiple cameras or monitors, separate converter may be required for each connection if mixing AXIS and universal equipment throughout system. Label converters identifying which equipment connection each serves simplifying future troubleshooting and maintenance. Alternatively, use consistent pinout standard throughout system avoiding need for multiple converters by selecting all AXIS or all universal equipment during initial purchase. Frequently Asked Questions What is the difference between HDC/AX-M and HDC/AX-F converters? The HDC/AX-M features male-to-male (M-M) connectors while HDC/AX-F features female-to-female (F-F) connectors serving different connection scenarios. HDC/AX-M male connectors plug directly into equipment female ports connecting monitor inputs to camera outputs or linking distribution panels without intermediate cables. HDC/AX-F female connectors accept existing male cable ends enabling inline conversion between camera cables and monitor input cables. Choose HDC/AX-M when connecting directly between equipment female ports. Choose HDC/AX-F when connecting between existing male-terminated cables. Both converters perform identical pin configuration conversion between AXIS and universal standards but accommodate different physical connection requirements. Some installations may require both converter types depending on equipment configuration and existing cable terminations. Can I use this converter to connect AXIS camera to universal monitor? Yes, if both camera and monitor have female ports accepting male connectors. Insert AXIS male end into camera female output port and Universal male end into monitor female input port. However, if camera has male connector cable or monitor has male input cable, you need HDC/AX-F female-to-female converter instead to accept existing male cables. Verify your equipment connection types before selecting converter. Many cameras come with attached male cables requiring female-to-female converters while some cameras and most monitors have female ports requiring male-to-male converters. Check equipment specifications or physically inspect connection types to determine correct converter gender configuration for your application. Will this converter work with extension cables? The HDC/AX-M does not directly connect to standard extension cables which typically feature male-to-female configuration. This male-to-male converter connects between two female ports on equipment or distribution panels. To use converter with extension cables, you need extension cable with female-to-female configuration or additional gender-changing adapters. Alternatively, use HDC/AX-F female-to-female converter which accepts male connectors from standard extension cables enabling inline conversion. For complex systems mixing AXIS and universal equipment with various cable types, consider creating complete wiring diagram identifying all connection points and required converter types before purchasing to ensure correct adapter selection for each connection point.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

AXIS XR53 - 5 Inch 3-Way Coaxial Speakers 5.25-inch 3-way coaxial speaker system featuring long-throw acoustic drivers, 48mm slim depth, 150W peak power, 93dB sensitivity, 60-23,000Hz response, and 4-ohm impedance for door or shelf installation. Product Overview Experience clear and superior sound quality with the AXIS XR53 5.25" 3-Way Coaxial Speaker System. Designed with slim mounting depth of 48mm, these speakers are perfect for installation in vehicle doors or rear shelves. The long-throw acoustic drivers have been specially engineered to deliver exceptional sound ensuring enjoyment of music and entertainment while on the open road. The 3-way coaxial design integrates woofer, midrange, and tweeter into single compact assembly providing full-range audio reproduction from deep bass through crisp high frequencies. Anti-resonance steel basket construction provides rigid mounting platform minimizing vibrations while mica-filled polypropylene cone combines lightweight responsiveness with rigidity preventing distortion during loud passages. Long-throw acoustic engineering maximizes cone excursion within compact mounting depth allowing greater air displacement and improved bass output. The flux-density strontium magnet weighing 10 ounces provides strong magnetic field ensuring precise voice coil control while ferro-cooled voice coil design improves thermal management preventing thermal compression during high-power operation. Peak power handling of 150 watts accommodates dynamic musical peaks while 35-watt nominal rating provides sustainable output for extended listening. Recommended amplification of 25-50 watts matches typical aftermarket head unit outputs ensuring optimal performance. Wide 60Hz-23,000Hz frequency response reproduces entire audible spectrum while high 93dB sensitivity enables loud playback from modest amplifier power. Standard 4-ohm impedance matches most aftermarket equipment and the shallow 48mm mounting depth enables installation in doors with limited clearance behind speaker locations. Features & Benefits 3-Way Coaxial Design Integrated woofer, midrange, and tweeter provide full-range audio reproduction from single speaker assembly. This design eliminates complexity of separate component systems while delivering superior sound quality with excellent frequency response. 5.25-Inch Driver Size Optimal size balances bass output capability with universal fitment compatibility. Provides significantly improved bass response compared to smaller speakers while maintaining compact dimensions for installation without extensive modifications. 48mm Slim Mounting Depth Shallow profile enables installation in doors with limited clearance accommodating power window mechanisms and door lock assemblies. Expands installation possibilities compared to deeper speakers in space-constrained locations. Long-Throw Acoustic Drivers Engineered design maximizes cone excursion within compact mounting depth allowing greater air displacement and improved bass output. Provides dynamic range typically associated with larger speakers while maintaining slim installation profile. Anti-Resonance Steel Basket Rigid steel frame minimizes vibrations and resonances ensuring accurate sound reproduction. Maintains structural integrity under high power levels preserving audio fidelity where standard stamped baskets would flex. Mica-Filled Polypropylene Cone Advanced cone material combines lightweight responsiveness with rigidity maintaining cone shape under high excursion. Mica reinforcement increases stiffness extending piston range and improving midrange clarity. High-Excursion Foam Surround Specialized surround accommodates extended cone travel without mechanical failure. Maintains linear excursion throughout power range preventing edge distortion typical of inferior surrounds. Flux-Density Strontium Magnet High-strength 10-ounce magnet provides strong consistent magnetic field ensuring precise voice coil control and efficient power conversion. Improves transient response, extends bass output, and increases power handling. Ferro-Cooled Voice Coil Advanced thermal management dissipates heat during high-power operation preventing thermal compression and voice coil damage. Maintains consistent performance during extended high-volume listening. 150W Peak Power Handling High peak rating accommodates brief musical transients and dynamic peaks without distortion or damage. Provides headroom for loud passages ensuring clean reproduction during demanding musical content. Wide Frequency Response 60Hz-23,000Hz range reproduces entire audible spectrum from deep bass fundamentals through ultrasonic harmonics. Extended response ensures full-range reproduction contributing to perceived clarity and natural sound quality. 93dB High Sensitivity Efficient design produces high output with relatively low amplifier power. Speakers sound louder with same amplifier power compared to low-sensitivity designs or maintain same volume with reduced distortion. 4-Ohm Standard Impedance Standard impedance matches most aftermarket head units and amplifiers ensuring optimal power transfer. Extracts maximum power from head units while maintaining compatibility with amplifier outputs. Technical Specifications Specification Details Model AXIS XR53 System Type 3-Way Coaxial Driver Size 5.25" (130mm) Frame Construction Anti-Resonance Steel Basket Woofer Cone Mica-Filled Polypropylene Driver Engineering Long Throw Acoustic Design Surround Type High Excursion Foam Surround Edge Magnet Type Flux Density Strontium Magnet Weight 10oz (283g) Voice Coil Ferro-Cooled Design Peak Power Handling 150W Nominal Power Handling 35W RMS Recommended Amplification 25-50W RMS Frequency Response 60-23,000Hz (+/-3dB) Sensitivity 93dB (1m/1w) Nominal Impedance 4 Ohms Mounting Depth 48mm (1.89") Mounting Application Flush Mount Door or Rear Shelf Quantity Pair (2 Speakers) Barcode/EAN 9321886014778 Installation & Compatibility Vehicle Compatibility The XR53 5.25-inch speakers fit most vehicles with factory 5.25" or 5x7" speaker locations in doors or rear shelves. The shallow 48mm mounting depth accommodates doors with power window mechanisms and door lock assemblies. Verify mounting depth clearance by measuring distance from mounting surface to obstructions behind speaker location before purchase. Amplification Requirements Speakers perform optimally with 25-50 watts RMS amplification per channel matching typical aftermarket head unit outputs and small amplifiers. Speakers function adequately powered directly from head unit outputs but benefit from dedicated amplifier providing increased volume, improved bass response, and reduced distortion. Avoid exceeding 50 watts RMS continuous power. Installation Planning Gather necessary materials including speaker wire (16-18 gauge), wire connectors, and mounting hardware. Remove factory speakers noting wire colors and polarity markings. Measure mounting depth clearance verifying 48mm minimum clearance. Consider sound deadening installation on door panels improving bass response and reducing rattles. Wiring Process Connect speaker wires observing correct polarity ensuring positive terminal connects to positive amplifier output and negative to negative output. Incorrect polarity causes phase cancellation reducing bass output. Use crimp connectors, solder connections, or spring terminals ensuring secure electrical connections preventing intermittent contact. Physical Mounting Mount speakers in factory locations using supplied or factory mounting hardware ensuring secure attachment. Tighten mounting screws evenly preventing speaker frame warping. Verify speaker clears window mechanism and door lock assembly. Test window operation through full travel confirming no interference with speaker frame or magnet. System Testing Test speakers at moderate volume confirming both speakers produce sound without distortion or rattling. Verify correct polarity by checking bass response; properly phased speakers produce strong focused bass whereas out-of-phase speakers sound hollow. Adjust head unit or amplifier gain settings optimizing volume without clipping. Break-In Period Play speakers at moderate volume levels for 10-20 hours before demanding maximum output. During break-in, foam surrounds soften and suspension loosens improving excursion linearity and bass response. Avoid maximum volume during initial hours preventing mechanical damage before proper break-in completion. Frequently Asked Questions Will these speakers fit my vehicle doors? The XR53 5.25-inch speakers fit most vehicles with factory 5.25" or 5x7" locations. You need minimum 48mm clearance behind the mounting surface. Measure your door depth before purchasing to confirm fitment. Do I need an amplifier or can I power these from my head unit? These speakers work well powered directly from aftermarket head units (18-25W RMS). An amplifier provides louder volume and better bass but isn't required. The high 93dB sensitivity means they sound great with modest power. How do these compare to factory speakers? The XR53 provides significant upgrade with louder output, stronger bass, and clearer sound. The 3-way design and quality materials deliver noticeably better performance than standard factory speakers. What's included in the package? The package includes a pair of speakers (2 speakers) with mounting hardware. You'll need to supply speaker wire (16-18 gauge recommended) and wire connectors separately. Can I install these myself? Yes, installation is straightforward if you're comfortable removing door panels and connecting wires. Ensure correct polarity when wiring and verify the speakers clear your window mechanism before final installation.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

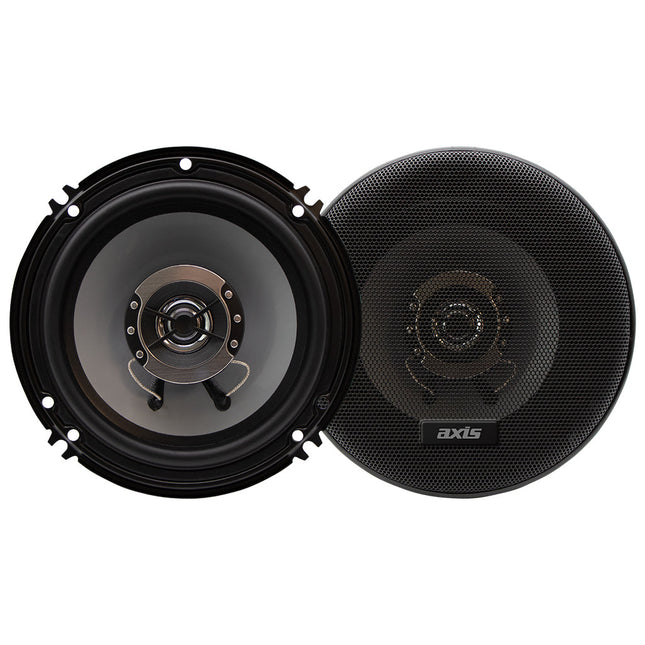

AXIS XR622 - 6 Inch 2-Way Coaxial Speakers 6-inch 2-way coaxial speaker system featuring ABS material construction, rubber surround, 25mm ASV voice coil, 10oz magnet, 110W peak power, 90dB sensitivity, 60Hz-20kHz response, 4-ohm impedance, and 51mm mounting depth for door or shelf installation. Product Overview The AXIS XR622 is a cutting-edge 6-inch 2-Way Coaxial Performance Speaker System meticulously crafted to deliver unparalleled audio experience within vehicle confines. Immerse yourself in captivating sound that resonates with sheer power and pristine clarity catering to auditory senses precisely when craved most. The 2-way coaxial design integrates woofer and tweeter into single compact assembly providing full-range audio reproduction from deep bass through crisp high frequencies. ABS material construction provides lightweight durable speaker frame resistant to environmental conditions typical in vehicle applications. Rubber surround accommodates cone excursion providing reliable long-term performance resistant to UV degradation and temperature extremes. The 25mm ASV (Aluminum Square Voice Coil) design improves thermal management and power handling compared to standard round voice coils. The 10-ounce magnet provides strong magnetic field ensuring precise voice coil control and efficient power conversion. Peak power handling of 110 watts accommodates dynamic musical peaks while 25-watt nominal rating provides sustainable output for extended listening. The 60Hz-20kHz frequency response reproduces wide audio spectrum from bass fundamentals through detailed high frequencies. High 90dB sensitivity enables loud playback from modest amplifier power suitable for direct head unit connection. Standard 4-ohm impedance matches most aftermarket equipment ensuring optimal power transfer. Mounting hole diameter of 124-142mm accommodates various factory speaker locations while 51mm mounting depth enables installation in doors with moderate clearance behind speaker locations. Features & Benefits 2-Way Coaxial Design Integrated woofer and tweeter provide full-range audio reproduction simplifying installation while delivering superior sound quality. Eliminates complexity of separate component systems while maintaining excellent frequency response. 6-Inch Driver Size Larger 6-inch size delivers improved bass output and overall volume compared to smaller 5.25-inch speakers. Fits most vehicles with factory 6-inch or 6x9-inch locations providing upgrade path for enhanced audio performance. ABS Material Construction Lightweight durable ABS frame provides stable mounting platform resistant to environmental conditions. ABS material withstands temperature extremes and moisture exposure typical in vehicle door installations. Rubber Surround Durable rubber surround accommodates cone excursion while resisting UV degradation and temperature extremes. Provides reliable long-term performance compared to foam surrounds prone to deterioration in harsh conditions. 25mm ASV Voice Coil Aluminum Square Voice Coil design improves thermal management and power handling compared to standard round coils. Enhanced cooling maintains consistent performance during high-power operation preventing thermal compression. 10-Ounce Magnet Strong magnet structure provides consistent magnetic field ensuring precise voice coil control and efficient power conversion. Improves transient response, extends bass output, and increases power handling. 110W Peak Power Handling High peak rating accommodates brief musical transients and dynamic peaks without distortion. Provides headroom for loud passages ensuring clean reproduction during demanding musical content. 90dB Sensitivity Efficient design produces high output with modest amplifier power enabling loud playback from head unit outputs. High sensitivity provides satisfactory volume without requiring dedicated amplifier installation. 4-Ohm Impedance Standard impedance matches most aftermarket head units and amplifiers ensuring optimal power transfer. Extracts maximum power from head units while maintaining amplifier compatibility. 51mm Mounting Depth Moderate mounting depth accommodates most vehicle doors with standard clearance behind speaker locations. Enables installation without extensive modifications in typical door configurations. Technical Specifications Specification Details Model AXIS XR622 System Type 2-Way Coaxial Driver Size 6 Inches (152mm) Frame Material ABS Surround Type Rubber Voice Coil Size 25mm Voice Coil Type ASV (Aluminum Square Voice Coil) Magnet Size 80 x 32 x 12mm Magnet Weight 10oz (283g) Peak Power Handling 110W Nominal Power Handling 25W RMS Frequency Response 60Hz-20kHz Sensitivity 90dB (1m/1w) Nominal Impedance 4 Ohms Mounting Hole Diameter 124-142mm Mounting Depth 51mm (2.0") Mounting Application Door or Rear Shelf Quantity Pair (2 Speakers) Barcode/EAN 9321886016024 Installation & Compatibility Vehicle Compatibility The XR622 6-inch speakers fit most vehicles with factory 6-inch or 6x9-inch speaker locations in doors or rear shelves. The 51mm mounting depth accommodates standard door configurations with moderate clearance. Verify mounting hole diameter (124-142mm) and depth clearance before purchase by measuring existing speaker locations. Amplification Requirements Speakers perform well with 25-50 watts RMS amplification per channel. The 90dB sensitivity enables satisfactory volume powered directly from aftermarket head unit outputs. Dedicated amplifier provides increased volume and improved bass response but isn't required for most listeners. Installation Planning Gather speaker wire (16-18 gauge), wire connectors, and mounting hardware. Remove factory speakers noting wire colors and polarity markings. Measure mounting hole diameter and depth clearance verifying compatibility. Consider sound deadening material on door panels for improved bass response. Wiring Process Connect speaker wires observing correct polarity with positive terminal to positive amplifier output and negative to negative. Use crimp connectors, solder connections, or spring terminals ensuring secure electrical connections. Incorrect polarity causes phase cancellation reducing bass output. Physical Mounting Mount speakers using supplied or factory mounting hardware ensuring secure attachment. Tighten screws evenly preventing speaker frame warping. Verify speaker clears window mechanism and door lock assembly. Test window operation through full travel confirming no interference. System Testing Test speakers at moderate volume confirming both speakers produce sound without distortion or rattling. Verify correct polarity by checking bass response; properly phased speakers produce strong focused bass. Adjust head unit gain settings optimizing volume without clipping. Break-In Period Play speakers at moderate volume for 10-20 hours before demanding maximum output. During break-in, rubber surround and suspension components loosen improving excursion linearity and bass response. Avoid maximum volume during initial hours preventing mechanical damage. Frequently Asked Questions Will these speakers fit my vehicle? The XR622 6-inch speakers fit most vehicles with factory 6" or 6x9" locations. You need 124-142mm mounting hole diameter and minimum 51mm depth clearance. Measure your existing speaker locations to confirm fitment. Do I need an amplifier? These speakers work well powered directly from aftermarket head units. The 90dB sensitivity provides satisfactory volume without amplifier. Dedicated amplifier improves bass and maximum volume but isn't required for most users. How do these compare to 5.25-inch speakers? The 6-inch size delivers noticeably stronger bass output and higher overall volume compared to 5.25-inch speakers. The larger cone area moves more air providing improved low-frequency performance and dynamic range. What's included in the package? The package includes a pair of speakers (2 speakers) with mounting hardware. You'll need to supply speaker wire (16-18 gauge recommended) and wire connectors separately. Can I install these myself? Yes, installation is straightforward if you're comfortable removing door panels and connecting wires. Ensure correct polarity when wiring and verify speakers clear your window mechanism before final installation.Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

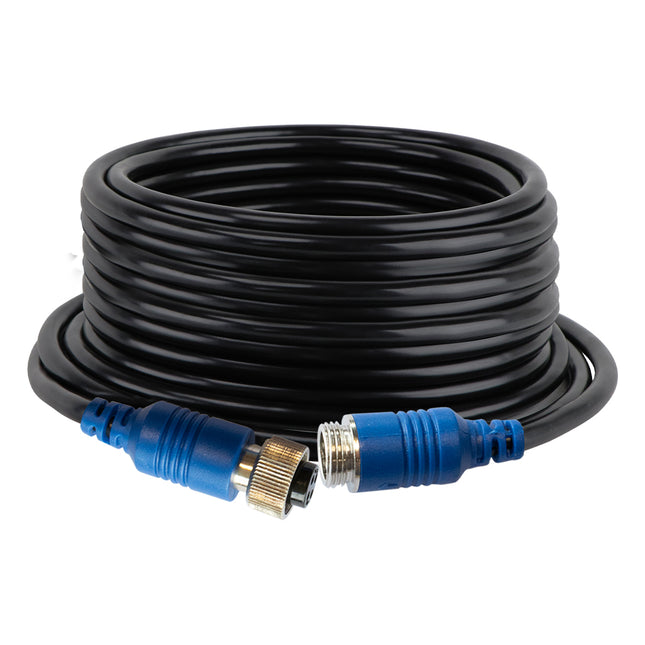

Axis 20m 4-Pin AHD Camera Extension Cable Legendary Products & Support From Authorized Dealers When you choose Axis, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Axis dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Axis's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Axis dealer today!

Read more less
