Victron Energy 12/800/35-16 MultiPlus Inverter Chargers: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature. PowerControl - Dealing with limited generator, shore side or grid power (800-1200VA model only) With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist - Boosting the capacity of shore or generator power (800-1200VA model only) Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. High start-up power Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools. Search Mode When Search Mode is ‚Äòon', the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the MultiPlus, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again. Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low). Remote on / off / charger on Three pole connector. Victron Energy PMP121800000 Specifications: Inverter: Input Voltage Range: 9.5V - 17V Output: Output voltage: 230VAC ¬± 2% Frequency: 50Hz ¬± 0,1% Cont. output power at 25¬∞C: 800W Cont. output power at 40¬∞C: 700W Cont. output power at 65¬∞C: 650W Peak power: 400W Maximum efficiency: 93% Zero-load power: 7W Zero-load power in search mode: 2W Charger: AC Input: Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Charge voltage 'absorption': 14.4V Charge voltage 'float': 13.8V Storage mode: 13.2V Charge current house battery: 35A Charge current starter batter:y 1A Battery temperature sensor: Yes Legendary Products & Support From Authorized Dealers When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Victron Energy dealer today!

Read more less

Tbs Electronics Has Just Launched a New Range of Smart and Efficient MPPT Charge Controllers for Solar Energy Systems.The TBS inverter series features an advanced microprocessor control system that controls all the system workings. This control is done by fast and efficient software algorithms dedicated to protecting the inverter and your system, while the real power of the unit is delivered via the low loss toroidal transformer. This toroidal transformer is designed to generate surge loads well in excess of the rated power output for long periods of time. The transformer and microprocessor both work together to provide a reliable inverter output under all conditions (including harsh, vibration prone applications). You could call the TBS range of inverters Built like a Tank. Legendary Products & Support From Authorized Dealers When you choose TBS Electronics, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized TBS Electronics dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by TBS Electronics's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized TBS Electronics dealer today!

Read more less

Tbs Electronics Has Just Launched a New Range of Smart and Efficient MPPT Charge Controllers for Solar Energy Systems.The TBS inverter series features an advanced microprocessor control system that controls all the system workings. This control is done by fast and efficient software algorithms dedicated to protecting the inverter and your system, while the real power of the unit is delivered via the low loss toroidal transformer. This toroidal transformer is designed to generate surge loads well in excess of the rated power output for long periods of time. The transformer and microprocessor both work together to provide a reliable inverter output under all conditions (including harsh, vibration prone applications). You could call the TBS range of inverters Built like a Tank. Legendary Products & Support From Authorized Dealers When you choose TBS Electronics, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized TBS Electronics dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by TBS Electronics's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized TBS Electronics dealer today!

Read more less

Manufacture and Source World Class Products from Leading Edge CompaniesThe Universal Remote Control (URC) can be used to remotely readout all available parameters from your ePRO inverter, charger or inverter/charger. Depending on the connected device, it can show parameters like input current, input voltage, output voltage or output power. It is also possible to put the connected device in standby mode or to wake it up again. Legendary Products & Support From Authorized Dealers When you choose ePRO, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized ePRO dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by ePRO's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized ePRO dealer today!

Read more less

Defining the Amount of Energy Available in A Battery Is a Complex Task.The ePRO communication kit contains a fully isolated ePRO link to USB interface box, a USB interface cable, a 3 meter interface cable (standard cat5 patch cable) and the “Dashboard” Windows software.This item is used to interface with all ePRO Chargers & Inverter/Chargers. Legendary Products & Support From Authorized Dealers When you choose ePRO, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized ePRO dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by ePRO's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized ePRO dealer today!

Read more less

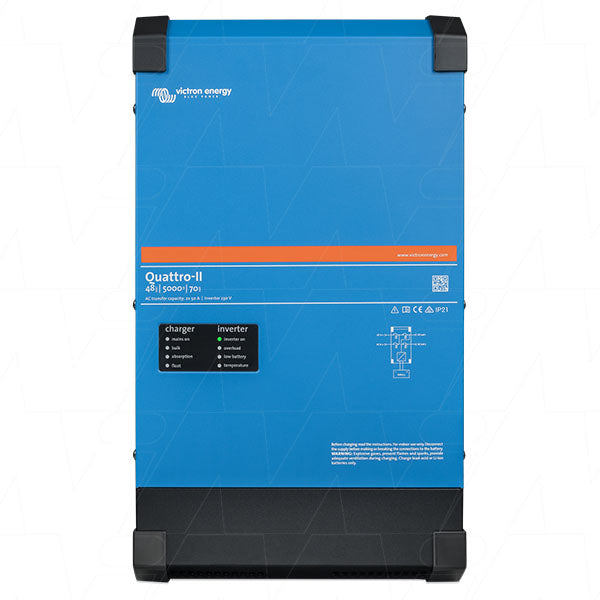

Victron Energy Quattro-II 48/5000/70-50/50 230V: Similar To The Multiplus-ii, The Quattro-ii Is Also A Combined Inverter And ChargerAdditionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid Power Assist technology plus multiple systems integration features such as three or split-phase operation and parallel operation.The Quattro-II can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro-II will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro-II takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is life only when AC is available on one of the inputs of the Quattro-II. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.The Quattro-II will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.Victron Energy QUA482504010 Features: A Multiplus-ii With Lcd And Gx Functionality- Display And Wi-fi Gx Device Applications Parallel And Three-phase Operation Legendary Products & Support From Authorized Dealers When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Victron Energy dealer today!

Read more less

Victron Energy Quattro-II 24/5000/120-50/50 230V: The Victron Energy Quattro-ii 24v 5000va 120a Charger 50/50a Input 230v Inverter/charger Can Be Connected To Two Independent AC SourcesA Quattro, plus ESS (Energy Storage System) functionalityThe Quattro-II can be connected to two independent AC sources, for example, the public grid and a generator, or two generators. The Quattro-II will automatically connect to the active source. Similar to the Victron Energy MultiPlus-II, the Quattro-II is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple systems integration features such as three or split-phase operation and parallel operation.Two AC Inputs & two AC OutputsThe Quattro-II can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro-II will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro-II takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is life only when AC is available on one of the inputs of the Quattro-II. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.Unique PowerAssist and PowerControl featureThe Quattro-II will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery. To implement PowerControl andPowerAssist and to optimise self-consumption with external current sensing, a Current Transformer Sensor 100A:50mA is required.A maximum grid or generator current can be set. The Quattro-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Quattro-II will compensate for insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.Virtually unlimited power thanks to parallel operationUp to 6 Quattros-II can operate in parallel to achieve higher power output. Three phases or split phase operation is also possible.Parallel and 3 Phase operationUp to 6 Quatros can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amp charging capacity. In addition to parallel connection, three units of the same model can be configured for three-phase output, and up to 6 sets of three units can be parallel connected per phase for a 75 kW / 90 kVA inverter and more than 2100 Amps charging capacity.Solar energy: AC power available even during a grid failureThe Quattro-II can be used in off-grid as well as grid-connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.On-site system configuring, monitoring, and controlSettings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available such as Victron Energys' Cerbo GX, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, and Digital Multi Control Panel.Remote configuring and monitoringInstall a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on Victron's VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.Victron Energy QUA242505010 Specifications: Quattro-ii 24/5000/120-50 Power Control & Power Assist Yes Transfer Switch 50 A Maximum Ac Input Current 50 A Dc Input Voltage Range 19–33 V Output Output Voltage: 230 Vac ± 2% Frequency: 50 Hz ± 0,1% (1) Cont. Output Power At 25°c (3) 5000 VA Cont. Output Power At 25°c 4000 W Cont. Output Power At 40°c 3700 W Cont. Output Power At 65°c 3000 W Maximum Apparent Feed-in Power 5000 VA Peak Power 9000 W Maximum Efficiency 96% Zero Load Power 18 W Zero Load Power In AES Mode 12 W Zero Load Power In Search Mode 2 W Ac Input Input Voltage Range: 187-265 Vac Input Frequency: 45 – 65 Hz Power Factor: 1 Charge Voltage 'absorption' 28.8 V Charge Voltage 'float' 27.6 V Storage Mode 26.4 V Max. Battery Charge Current (4) 120 A Battery Temperature Sensor Yes Auxiliary Output Yes (32a) Default Setting: Switches Off When In Inverter Mode External Ac Current Sensor (Optional) 100a Programmable Relay (5) Yes Protection (2) A – G Ve.bus Communication Port For Parallel And Three-phase Operation, Remote Monitoring, And System Integration General Purpose Com. Port Yes, 2x Remote On-off Yes Operating Temperature Range From -40 To +65°c (Fan-assisted Cooling) Humidity (Non-condensing) Max 95% Material & Colour Steel, Blue Ral 5012 Protection Category Ip22 Battery-connection M8 Bolts 230 V Ac-connection Screw Terminals 13 Mm² (6 Awg) Weight 30 Kg Dimensions (Hxwxd) 560 X 328 X 148 Mm Safety En-iec 60335-1, En-iec 60335-2-29, En-iec 62109-1, En-iec 62109-2 Emission, Immunity En 55014-1, En 55014-2 En-iec 61000-3-2, En-iec 61000-3-3 Iec 61000-6-1, Iec 61000-6-2, Iec 61000-6-3 Legendary Products & Support From Authorized Dealers When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Victron Energy dealer today!

Read more less

Victron Energy MultiPlus 48/5000/70-100 230V VE.Bus: The Multiplus Is An Inverter And Charger Combination Supporting Easy Installation By Way Of The Victron Mk3-USB Interface CableThe PowerAssist feature will enable the unit to supplement the alternative source. The unit will compensate for supply from the battery at times of insufficient power and when no longer required, the excess power will be used for charging. It is therefore no longer necessary to size a generator on the maximum peak load. Use the most efficient size generator instead.The advanced ‘adaptive charge’ software fine-tunes the three-stage automatic process to suit the battery condition and how the battery is being used, preventing damage and ensuring less maintenance is required. A fourth stage charge [also called the Storage mode] delivers a longer period of float charging. In addition, the Multiplus will charge a second battery using an independent trickle charge output.Should there be a grid failure the UPS capability of the inverter is automatically activated. With some units having the ability to enable 6 Multis operating in parallel there is potentially close to uninterrupted and unlimited power.If three-phase power is required, then multiple units can be connected in parallel and configured with the combinations delivering up to 75KW/90 kVA inverter and more than 2000 Amps charging capacity.Victron Energy PMP485021010 Features: True Sine Wave Inverter Adaptive Charging Hybrid Power Assist Power control Multiple System Integration Legendary Products & Support From Authorized Dealers When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Victron Energy dealer today!

Read more less

Victron Energy MultiPlus-II 48/10000/140-100/100 230V: Incorporating All The Features Of The Multiplus Inverter And Charger CombinationsThe Multiplus II adds an external current sensor option to enable the PowerControl and PowerAssist functions to extend to 50A and 100A respectively. It can be used in off-grid as well as grid-connected PV and other alternative energy systems and is compatible with both solar charger controllers and grid-tie inverters. Added to this, with many countries approving the unit for ESS application this unit is able to feed back into the grid, any power excess to requirements.PowerControl is a valuable feature, especially when handling limited power such as generator supply. When the Quattro draws significant current from the generator or shoreside supply, set the maximum current limit on each AC input. Considering other loads, the Quattro adapts so that only surplus power is used for charging, thus preventing the generator or mains supply from being overloaded.The PowerAssist feature will enable the device to supplement the incoming power with power from the battery. Any excess power is used for charging. It is therefore no longer necessary to size a generator on the maximum peak load. Use the most efficient size generator instead.The advanced ‘adaptive charge’ software fine-tunes the three-stage automatic process to suit the battery condition and how the battery is being used, preventing damage and ensuring less maintenance is required. A fourth stage charge [also called the Storage mode] delivers a longer period of float charging. In addition, the Multiplus will charge a second battery using an independent trickle charge output.Should there be a grid failure the UPS capability of the inverter is automatically activated. With some units having the ability to enable 6 Multis operating in parallel there is potentially close to uninterrupted and unlimited power.If three-phase power is required, then multiple units can be connected in parallel and configured with the combinations delivering up to 75KW/90 kVA inverter and more than 2000 Amps charging capacity.Configuring parallel and three-phase systems are made simple with the VEConfigure software tool which allows the installer to put components together without any hardware changes or dipswitches, using standard products.Monitoring and configuring functionality offers seamless control, both on-site and off-site.Victron Energy PMP483105000 Features: True Sine Wave Inverter Adaptive Charging Hybrid Power Assist Power control Multiple System Integration Legendary Products & Support From Authorized Dealers When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Victron Energy dealer today!

Read more less

Victron Energy MultiPlus 48/3000/35-50 230V VE.Bus: The Multiplus Is An Inverter And Charger Combination Supporting Easy Installation By Way Of The Victron Mk3-USB Interface CableThe PowerAssist feature will enable the unit to supplement the alternative source. The unit will compensate for supply from the battery at times of insufficient power and when no longer required, the excess power will be used for charging. It is therefore no longer necessary to size a generator on the maximum peak load. Use the most efficient size generator instead.The advanced ‘adaptive charge’ software fine-tunes the three-stage automatic process to suit the battery condition and how the battery is being used, preventing damage and ensuring less maintenance is required. A fourth stage charge [also called the Storage mode] delivers a longer period of float charging. In addition, the Multiplus will charge a second battery using an independent trickle charge output.Should there be a grid failure the UPS capability of the inverter is automatically activated. With some units having the ability to enable 6 Multis operating in parallel there is potentially close to uninterrupted and unlimited power.If three-phase power is required, then multiple units can be connected in parallel and configured with the combinations delivering up to 75KW/90 kVA inverter and more than 2000 Amps charging capacity.Victron Energy PMP483021010 Features: True Sine Wave Inverter Adaptive Charging Hybrid Power Assist Power control Multiple System Integration Legendary Products & Support From Authorized Dealers When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Victron Energy dealer today!

Read more less

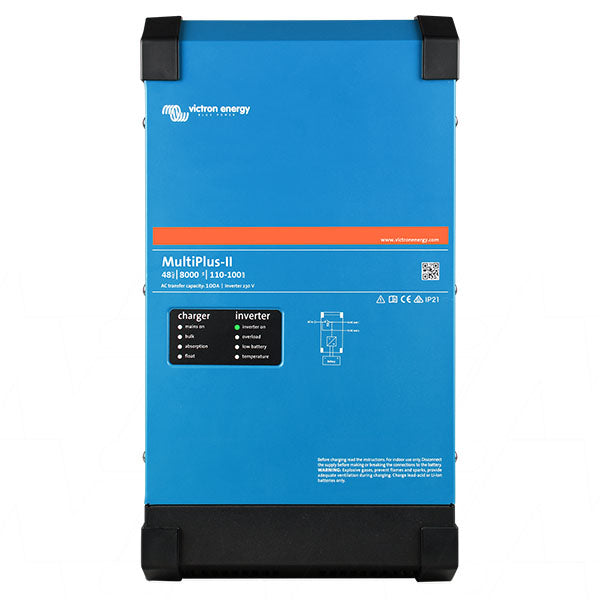

Victron Energy MultiPlus-II 48/8000/110-100/100 230V: Incorporating All The Features Of The Multiplus Inverter And Charger CombinationsThe Multiplus II adds an external current sensor option to enable the PowerControl and PowerAssist functions to extend to 50A and 100A respectively. It can be used in off-grid and grid-connected PV and other alternative energy systems and is compatible with solar charger controllers and grid-tie inverters. Added to this, with many countries approving the unit for ESS application this unit can feed back into the grid, any power excess to requirements.PowerControl is valuable, especially when handling limited power such as generator supply. When the Quattro draws significant current from the generator or shoreside supply, set the maximum current limit on each AC input. Considering other loads, the Quattro adapts so that only surplus power is used for charging, thus preventing the generator or mains supply from overloading.The PowerAssist feature will enable the device to supplement the incoming power with power from the battery. Any excess power is used for charging. It is therefore no longer necessary to size a generator on the maximum peak load. Use the most efficient size generator instead.The advanced ‘adaptive charge’ software fine-tunes the three-stage automatic process to suit the battery condition and how the battery is being used, preventing damage and ensuring less maintenance is required. A fourth stage charge [also called the Storage mode] delivers a longer period of float charging. In addition, the Multiplus will charge a second battery using an independent trickle charge output.Should there be a grid failure the UPS capability of the inverter is automatically activated. With some units having the ability to enable 6 Multis operating in parallel there is potentially close to uninterrupted and unlimited power.If three-phase power is required, then multiple units can be connected in parallel and configured with the combinations delivering up to 75KW/90 kVA inverter and more than 2000 Amps charging capacity.Configuring parallel and three-phase systems are made simple with the VEConfigure software tool which allows the installer to put components together without any hardware changes or dipswitches, using standard products.Monitoring and configuring functionality offers seamless control, both on-site and off-site.Victron Energy PMP482805000 Features: True Sine Wave Inverter Adaptive Charging Hybrid Power Assist Power control Multiple System Integration Legendary Products & Support From Authorized Dealers When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Victron Energy dealer today!

Read more less

Victron Energy PMP482506000 MultiPlus-II 48/5000/70-50 230V GX: An Inverter/charger With Device Networking Built-inThe MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge rates, the MultiPlus-II GX can also be configured for a three-phase supply. A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.Victron Energy PMP482506000 Features: A Multiplus-ii With Lcd And Gx Functionality- Display And Wi-fi Gx Device Applications Parallel And Three-phase Operation Legendary Products & Support From Authorized Dealers When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & Training Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty Protection: We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support. ▸ Reliable Customer Support: If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your Investment: Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that? Choose wisely. Buy from an authorized Victron Energy dealer today!

Read more less
