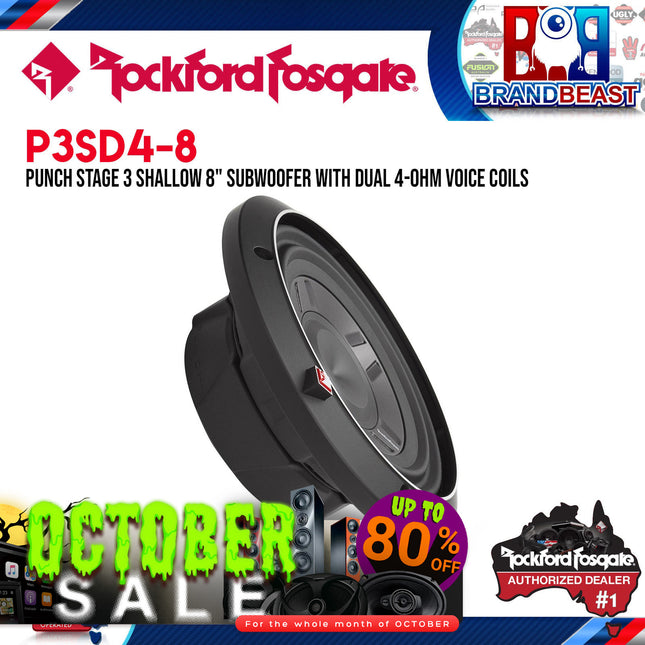

8" P3S Shallow 4-Ohm DVC Subwoofer 150W RMS, Anodised Aluminium Cone, M-Roll Santoprene Surround, Shallow Motor Assembly. Sealed and Vented Compatible. Product Overview The Rockford Fosgate Punch P3SD4-8 is an 8" 4-Ohm Dual Voice Coil (DVC) shallow subwoofer rated at 150W RMS the 4-Ohm variant of the P3S 8" shallow platform. Identical construction to the P3SD2-8 with the sole difference being 4-Ohm voice coil impedance per coil, providing wiring options of 2-Ohm (parallel), 8-Ohm (series), or 4-Ohm per coil for bi-amplification no 1-Ohm stability requirement. Confirmed compatible with both sealed and vented enclosures. Sold as an individual unit. All confirmed P3S construction applies: anodised aluminium cone and dustcap, M-Roll Santoprene surround, dual linear spider with embedded 16 AWG tinsel leads, StampCast basket with integrated spider venting, shallow motor assembly, and diamond-cut cast aluminium trim ring with grille provision. Full specifications must be confirmed from the official Rockford Fosgate P3SD4-8 datasheet. Key Specifications Subwoofer size: 8 inch (shallow) Voice coil configuration: Dual Voice Coil (DVC) Impedance: 4-Ohm per coil (2-Ohm parallel / 8-Ohm series / 4-Ohm biamp) Power handling (RMS): 150W (confirmed) Peak power: Not specified — confirm with Rockford Fosgate Motor assembly: Shallow ✓ Sensitivity: Not specified — confirm with Rockford Fosgate Frequency response: Not specified — confirm with Rockford Fosgate Xmax: Not specified — confirm with Rockford Fosgate Mounting depth: Shallow — exact depth not confirmed Cutout diameter: Not specified — confirm with Rockford Fosgate Cone: Anodised aluminium ✓ Dustcap: Anodised aluminium ✓ Surround: M-Roll Santoprene ✓ Spider: Dual linear with embedded 16 AWG tinsel leads ✓ Basket: StampCast with integrated spider venting ✓ Input terminals: Not specified — confirm with Rockford Fosgate Trim ring: Diamond-cut cast aluminium (grille insert compatible) ✓ Enclosure compatibility: Sealed and vented ✓ Sealed enclosure volume: Not specified — confirm with Rockford Fosgate Vented enclosure volume: Not specified — confirm with Rockford Fosgate Sold as: Individual unit Weight: Not specified — confirm with Rockford Fosgate Warranty: Not specified — confirm with Rockford Fosgate Features & Benefits 4-Ohm DVC — No 1-Ohm Requirement: 2-Ohm (parallel): Compatible with most 2-Ohm mono amplifiers 8-Ohm (series): For amplifiers with higher minimum impedance 4-Ohm per coil (biamp): Each coil to a separate amplifier channel 150W RMS — Confirmed — appropriate for the shallow motor's excursion capacity. Sealed and Vented Compatible — Both enclosure types confirmed, providing installation flexibility not available in sealed-only shallow subwoofers. Anodised Aluminium Cone and Dustcap — Rigid, heat-conducting aluminium cone in the shallow platform format. M-Roll Santoprene Surround — Controlled compliance geometry and durable elastomer surround for long-term reliability. Dual Linear Spider — Improved suspension control at high excursion in the shallow motor format. StampCast Basket with Integrated Spider Venting — Motor cooling during sustained operation. Diamond-Cut Cast Aluminium Trim Ring — Premium finish with optional grille provision. Technical Specs Specification Detail Brand Rockford Fosgate Part Number P3SD4-8 Series Punch P3S (Shallow) Subwoofer Size 8 inch (shallow) Voice Coil Dual Voice Coil (DVC) Impedance per Coil 4-Ohm ✓ Wiring Options 2-Ohm (parallel) / 8-Ohm (series) / 4-Ohm biamp ✓ Power Handling (RMS) 150W ✓ Peak Power Not specified Motor Assembly Shallow ✓ Sensitivity Not specified Frequency Response Not specified Xmax Not specified Mounting Depth Shallow — exact depth not confirmed Cutout Diameter Not specified Sealed Enclosure Vol. Not specified Vented Enclosure Vol. Not specified Cone Anodised Aluminium ✓ Dustcap Anodised Aluminium ✓ Surround M-Roll Santoprene ✓ Spider Dual Linear, Embedded 16 AWG Tinsel Leads ✓ Basket StampCast with Integrated Spider Venting ✓ Input Terminals Not specified — confirm with Rockford Fosgate Trim Ring Diamond-Cut Cast Aluminium (Grille Compatible) ✓ Enclosure Type Sealed and Vented ✓ Sold As Individual Unit Weight Not specified Warranty Not specified — confirm with Rockford Fosgate Compatible With / Goes Well With Suitable enclosure types: Sealed and vented — both confirmed Wiring: 2-Ohm → parallel 8-Ohm → series 4-Ohm per coil → biamp Pairs well with: A mono amplifier rated at 150W RMS at the selected wiring impedance A shallow sealed or vented 8" enclosure to Rockford Fosgate's recommended volume Frequently Asked Questions What is the difference between P3SD4-8 and P3SD2-8? Both are identical 8" P3S shallow subwoofers at 150W RMS. The sole difference is impedance: P3SD4-8 is 4-Ohm per coil (2-Ohm parallel / 8-Ohm series), P3SD2-8 is 2-Ohm per coil (1-Ohm parallel / 4-Ohm series). The 4-Ohm variant avoids the 1-Ohm parallel requirement, providing broader amplifier compatibility. Can the P3SD4-8 be used in a vented enclosure? Yes — the P3SD4-8 is confirmed compatible with both sealed and vented enclosures. Confirm Rockford Fosgate's recommended enclosure volumes from the official P3SD4-8 datasheet. What mounting depth does the P3SD4-8 require? Confirmed shallow, but the exact millimetre figure is absent. Pull from the official Rockford Fosgate P3SD4-8 datasheet before purchasing for any depth-constrained installation. What amplifier power is appropriate? 150W RMS at the selected wiring impedance. Confirm the amplifier's RMS output at 2-Ohm (parallel) or 4-Ohm before purchasing. What is the M-Roll Santoprene surround? M-Roll is the rolled-edge surround profile chosen for the compliance geometry appropriate to a shallow motor. Santoprene is a thermoplastic vulcanizate elastomer with excellent UV resistance and temperature stability. Together they provide durable, controlled cone suspension suited to the P3S shallow platform. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

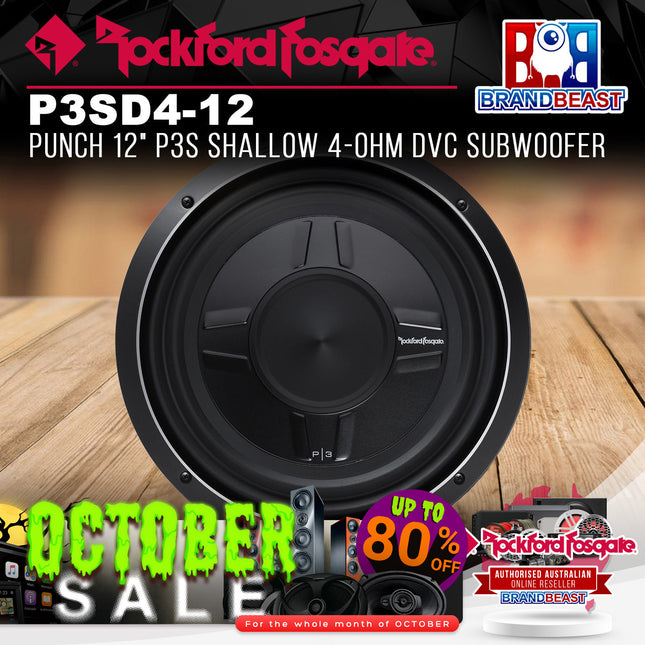

Rockford Fosgate P3SD4-12 Punch 12" P3S Shallow 4-Ohm DVC Subwoofer Professional 12-inch shallow mount subwoofer specifically engineered for depth-limited vehicle installations delivering authentic Rockford Fosgate Punch bass performance despite compact mounting depth requirements. Features dual 4-ohm voice coils providing flexible wiring configurations for various amplifier and system designs, 400 Watts RMS continuous power handling with 800 Watts peak capacity, anodized aluminum cone with matching aluminum dustcap ensuring lightweight rigidity and excellent transient response, M-Roll Santoprene surround maintaining cone linearity throughout excursion range, StampCast basket with integrated spider venting for thermal management, dual linear spider with embedded 16 AWG tinsel leads preventing lead failure during extreme excursion, diamond cut cast aluminum trim ring with optional grille for premium appearance, shallow motor assembly enabling installation in restricted depth applications including truck enclosures under seats and compact vehicle cargo areas, optimized for both sealed and vented enclosure designs providing installation flexibility across diverse vehicle platforms. Product Overview The Rockford Fosgate P3SD4-12 addresses the critical challenge facing enthusiasts installing subwoofers in depth-limited vehicles where traditional deep-mount subwoofers cannot physically fit. Many modern vehicles, particularly trucks with under-seat storage, compact cars with limited cargo depth, and vehicles with intrusive wheel wells or spare tire compartments, lack sufficient mounting depth for conventional subwoofers requiring 6-8 inches clearance behind mounting surface. Historically, depth restrictions meant compromising bass performance or abandoning subwoofer installation entirely. The P3S shallow mount series eliminates this compromise, delivering authentic Rockford Fosgate Punch bass performance in compact 3.75-inch mounting depth package. The dual 4-ohm voice coil configuration provides wiring flexibility supporting series connection for 8-ohm load, parallel connection for 2-ohm load, or independent voice coil operation for creative system designs matching various amplifier configurations and impedance requirements. The P3SD4-12 employs advanced engineering optimizing bass output within shallow motor constraints. Anodized aluminum cone construction provides exceptional strength-to-weight ratio enabling precise cone control throughout excursion range while maintaining lightweight characteristics critical for transient response and low-frequency extension in compact enclosures. M-Roll Santoprene surround maintains cone linearity preventing distortion during peak excursion despite shallow motor assembly. StampCast basket integrates spider venting channels directing airflow across voice coil maintaining thermal stability during sustained high-power operation. Dual linear spider with embedded 16 AWG tinsel leads prevents connection failures common with external tinsel leads during extreme excursion cycles. Diamond cut cast aluminum trim ring provides premium appearance with optional grille for protection and aesthetic enhancement. The P3SD4-12 performs optimally in both sealed enclosures providing tight accurate bass response, and vented enclosures delivering extended low-frequency output, with Rockford Fosgate providing detailed enclosure specifications for both configurations ensuring proper installation maximizing performance potential in depth-challenged vehicle installations. Key Features Shallow Mount Design – Compact 3.75-inch mounting depth enables installation in depth-limited applications including under-seat truck enclosures, compact vehicle cargo areas, and vehicles with intrusive wheel wells where traditional deep-mount subwoofers cannot physically fit. Dual 4-Ohm Voice Coils – Provides flexible wiring configurations supporting series connection for 8-ohm load, parallel connection for 2-ohm load, or independent voice coil operation matching various amplifier designs and system impedance requirements for optimal power transfer. 400 Watts RMS Power Handling – Continuous power handling capacity of 400 Watts RMS with 800 Watts peak ensures adequate power capacity for high-output systems delivering authentic Rockford Fosgate Punch bass performance without thermal limitations or voice coil failure. Anodized Aluminum Cone – Lightweight rigid aluminum cone construction with anodized finish provides exceptional strength-to-weight ratio enabling precise cone control throughout excursion range while maintaining transient response characteristics critical for accurate bass reproduction. M-Roll Santoprene Surround – Premium Santoprene rubber surround with M-Roll profile maintains cone linearity throughout excursion range preventing distortion during peak output while providing long-term durability resisting environmental degradation and mechanical fatigue. StampCast Basket with Spider Venting – Precision StampCast basket construction integrates spider venting channels directing airflow across voice coil maintaining thermal stability during sustained high-power operation preventing power compression and voice coil damage from excessive heat. Dual Linear Spider – Dual spider design with progressive suspension provides proper cone control throughout excursion range while embedded 16 AWG tinsel leads eliminate external lead connections preventing lead failure common during extreme excursion cycles in high-output applications. Diamond Cut Aluminum Trim Ring – Premium cast aluminum trim ring with diamond cut finish provides elegant appearance with included mounting hardware, optional protective grille available separately for applications requiring woofer protection from cargo or passenger contact. Optimized for Multiple Enclosures – Engineering optimized for both sealed enclosure designs providing tight accurate bass response with minimal enclosure volume requirements, and vented enclosure configurations delivering extended low-frequency output with proper tuning for maximum efficiency. Shallow Motor Assembly – Specialized motor design maintains voice coil control and power handling capacity despite compact mounting depth constraints through optimized magnetic circuit ensuring authentic Punch performance in depth-limited installations. Anodized Aluminum Dustcap – Matching anodized aluminum dustcap coordinates with cone finish while providing rigid voice coil former protection preventing debris intrusion and maintaining voice coil alignment during extreme excursion protecting internal components. Professional Grade Construction – Rockford Fosgate USA engineering ensures component quality, manufacturing precision, and performance consistency delivering reliable long-term operation withstanding demanding mobile audio environment including temperature extremes, mechanical vibration, and sustained high-power operation. Technical Specifications Specification Details Model P3SD4-12 Product Type Shallow Mount Subwoofer Brand Rockford Fosgate Series Punch P3S Nominal Diameter 12 inches Mounting Depth 3.75 inches (95.25mm) Voice Coil Configuration Dual 4-Ohm Impedance Options 2-Ohm (parallel), 8-Ohm (series), 4-Ohm (single coil) Power Handling RMS 400 Watts Power Handling Peak 800 Watts Frequency Response 38Hz - 250Hz Sensitivity 84.26 dB Fs (Free Air Resonance) 44.4Hz Qts 0.66 Qms 6.79 Qes 0.73 Vas 1.01 cu.ft. (28.6 liters) Xmax 12.5mm Cone Material Anodized Aluminum Dustcap Material Anodized Aluminum Surround Material M-Roll Santoprene Spider Dual Linear with Embedded 16 AWG Tinsel Leads Basket StampCast with Integrated Spider Venting Trim Ring Diamond Cut Cast Aluminum Optional Grille Available Separately Recommended Sealed Enclosure 0.75 cu.ft. Recommended Vented Enclosure 1.25 cu.ft. tuned to 40Hz Cutout Diameter 11.02 inches (279.9mm) Overall Diameter 12.13 inches (308.1mm) Purpose Shallow Mount High-Performance Bass Reproduction Frequently Asked Questions Q: What makes this subwoofer "shallow" and why would I need one? A: The P3SD4-12 requires only 3.75 inches mounting depth compared to traditional subwoofers requiring 6-8 inches. This shallow design enables installation in depth-limited applications like under truck seats, compact vehicle cargo areas, or vehicles with intrusive wheel wells where standard subwoofers won't fit. Despite the compact depth, it still delivers authentic Rockford Fosgate Punch bass performance through specialized motor design and optimized components. Q: How should I wire the dual 4-ohm voice coils? A: The dual 4-ohm voice coils provide three wiring options: Wire in series for 8-ohm total impedance (lower power but stable load for many amplifiers), wire in parallel for 2-ohm total impedance (higher power output from compatible amplifiers), or use a single voice coil for 4-ohm impedance. Your choice depends on your amplifier's specifications and desired power output. Most users wire in parallel to 2-ohms for maximum power transfer from modern amplifiers. Q: What size enclosure do I need for this subwoofer? A: Rockford Fosgate recommends 0.75 cubic feet for sealed enclosures providing tight, accurate bass response, or 1.25 cubic feet tuned to 40Hz for vented enclosures delivering extended low-frequency output. These are net internal volumes after subwoofer displacement and port volume. Sealed enclosures work well in smaller spaces, while vented enclosures provide more output if you have the space and can accommodate port construction. Q: Can I use this subwoofer in a bandpass enclosure? A: While the P3SD4-12 is optimized for sealed and vented enclosures as specified by Rockford Fosgate, experienced installers can design bandpass enclosures. However, bandpass designs are complex requiring precise tuning, and the shallow mounting depth may present challenges with typical bandpass geometry. For best results and warranty coverage, follow Rockford Fosgate's recommended sealed or vented enclosure specifications. Q: How much power do I need to drive this subwoofer? A: The P3SD4-12 handles 400 Watts RMS continuous power. For optimal performance, match it with an amplifier delivering 300-400 Watts RMS at your chosen impedance (2-ohm or 8-ohm depending on voice coil wiring). Underpowering results in limited output, while significantly overpowering risks damage. Most users achieve excellent results with 400-500 Watts RMS from quality amplifiers providing clean power without excessive distortion. Q: Is the grille included or sold separately? A: The P3SD4-12 includes the diamond cut cast aluminum trim ring but the protective grille is sold separately as an optional accessory. If your installation exposes the subwoofer to potential cargo or passenger contact, purchasing the optional grille is recommended for protection. Many enclosed installations don't require grilles as the enclosure itself protects the cone. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

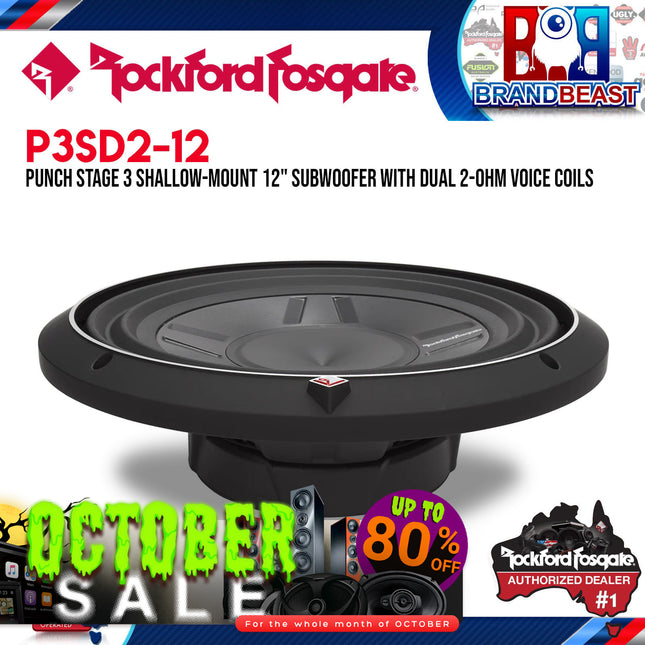

12" P3S Shallow 2-Ohm DVC Subwoofer 400W RMS, Anodised Aluminium Cone, M-Roll Santoprene Surround, Shallow Motor Assembly. Sealed and Vented Compatible. Product Overview The Rockford Fosgate Punch P3SD2-12 is a 12" 2-Ohm Dual Voice Coil (DVC) shallow subwoofer rated at 400W RMS the 12" 2-Ohm variant of the P3S shallow platform. At 400W RMS, the P3SD2-12 handles 100W more than the P3S 10" models, reflecting the larger 12" motor's greater thermal and mechanical capacity in the shallow format. Confirmed compatible with both sealed and vented enclosures an advantage over sealed-only shallow subwoofers. The 2-Ohm DVC provides wiring options of 1-Ohm (parallel), 4-Ohm (series), or 2-Ohm per coil for bi-amplification. Sold as an individual unit. All confirmed P3S construction applies: anodised aluminium cone and dustcap, M-Roll Santoprene surround, dual linear spider with embedded 16 AWG tinsel leads, StampCast basket with integrated spider venting, shallow motor assembly, and diamond-cut cast aluminium trim ring with grille provision. Based on the P3SD4-10 spec table, the P3S range uses 10-AWG compression terminals confirm this applies to the P3SD2-12 from the official datasheet. Full specifications must be confirmed from the official Rockford Fosgate P3SD2-12 datasheet. Key Specifications Subwoofer size: 12 inch (shallow) Voice coil configuration: Dual Voice Coil (DVC) Impedance: 2-Ohm per coil (1-Ohm parallel / 4-Ohm series / 2-Ohm biamp) Power handling (RMS): 400W (confirmed) Peak power: Not specified — confirm with Rockford Fosgate Motor assembly: Shallow ✓ Sensitivity: Not specified — confirm with Rockford Fosgate Frequency response: Not specified — confirm with Rockford Fosgate Xmax: Not specified — confirm with Rockford Fosgate Mounting depth: Shallow — exact depth not confirmed for this SKU Cutout diameter: Not specified — confirm with Rockford Fosgate Cone: Anodised aluminium ✓ Dustcap: Anodised aluminium ✓ Surround: M-Roll Santoprene ✓ Spider: Dual linear with embedded 16 AWG tinsel leads ✓ Basket: StampCast with integrated spider venting ✓ Input terminals: Compression (confirmed on P3SD4-10 spec) — confirm for P3SD2-12 Trim ring: Diamond-cut cast aluminium (grille insert compatible) ✓ Enclosure compatibility: Sealed and vented ✓ Sealed enclosure volume: Not specified — confirm with Rockford Fosgate Vented enclosure volume: Not specified — confirm with Rockford Fosgate Sold as: Individual unit Weight: Not specified — confirm with Rockford Fosgate Warranty: Not specified — confirm with Rockford Fosgate Features & Benefits 400W RMS in a 12" Shallow Format — 400W RMS confirmed — 100W above the P3S 10" models and the highest power handling in the P3S shallow range in this catalogue. The 12" shallow motor's greater surface area and voice coil thermal capacity support this higher rating. 12" Shallow Cone — More Air Than 10" — The 12" cone moves more air than the 10" P3SD models for greater bass output and lower frequency extension in comparable enclosures, within the constraints of the shallow motor's Xmax. Sealed and Vented Compatible — Both enclosure types confirmed — an advantage over sealed-only shallow subwoofers. Confirm Rockford Fosgate's recommended enclosure volumes from the official P3SD2-12 datasheet. 2-Ohm DVC — Three Wiring Options: 1-Ohm (parallel): Confirm amplifier rated stable at 1-Ohm before use 4-Ohm (series): Broad compatibility 2-Ohm per coil (biamp): Separate amplifier channels Anodised Aluminium Cone and Dustcap — Rigid, heat-conducting P3S platform cone. M-Roll Santoprene Surround — Controlled compliance geometry and durable elastomer for long-term reliability. Dual Linear Spider — Improved suspension control at high excursion. StampCast Basket with Spider Venting — Motor cooling during sustained operation. Diamond-Cut Cast Aluminium Trim Ring — Premium finish with optional grille. Technical Specs Specification Detail Brand Rockford Fosgate Part Number P3SD2-12 Series Punch P3S (Shallow) Subwoofer Size 12 inch (shallow) Voice Coil Dual Voice Coil (DVC) Impedance per Coil 2-Ohm ✓ Wiring Options 1-Ohm (parallel) / 4-Ohm (series) / 2-Ohm biamp ✓ Power Handling (RMS) 400W ✓ Peak Power Not specified Motor Assembly Shallow ✓ Sensitivity Not specified Frequency Response Not specified Xmax Not specified Mounting Depth Shallow — exact depth not confirmed Cutout Diameter Not specified Sealed Enclosure Vol. Not specified Vented Enclosure Vol. Not specified Cone Anodised Aluminium ✓ Dustcap Anodised Aluminium ✓ Surround M-Roll Santoprene ✓ Spider Dual Linear, Embedded 16 AWG Tinsel Leads ✓ Basket StampCast with Integrated Spider Venting ✓ Input Terminals Compression (confirmed P3SD4-10) — confirm for P3SD2-12 Trim Ring Diamond-Cut Cast Aluminium (Grille Compatible) ✓ Enclosure Type Sealed and Vented ✓ CEA-2031 Not confirmed for this SKU Sold As Individual Unit Weight Not specified Warranty Not specified Compatible With / Goes Well With Suitable enclosure types: Sealed and vented — both confirmed Wiring: 1-Ohm → parallel (confirm stability) 4-Ohm → series 2-Ohm per coil → biamp Pairs well with: A mono amplifier rated at 400W RMS at the selected impedance A shallow sealed or vented 12" enclosure to Rockford Fosgate's recommended volume Frequently Asked Questions Why does the P3SD2-12 handle 400W RMS when the P3S 10" handles only 300W? The 12" shallow motor has a larger cone area and voice coil assembly than the 10", providing greater thermal and mechanical capacity at the same shallow mounting depth. This allows the 12" P3S to sustain more power before the voice coil reaches thermal limits. Can the P3SD2-12 be used in a vented enclosure? Yes — the P3SD2-12 is confirmed compatible with both sealed and vented enclosures. Confirm Rockford Fosgate's recommended volumes from the official P3SD2-12 datasheet. What wiring options does the 2-Ohm DVC provide? 1-Ohm (parallel — confirm amplifier stability), 4-Ohm (series), and 2-Ohm per coil for bi-amplification. What mounting depth does the P3SD2-12 require? Confirmed shallow, but the exact millimetre figure is not in the supplier data. Do not assume the P3SD4-10's confirmed 89mm applies to the 12" format. Pull from the official Rockford Fosgate P3SD2-12 datasheet. Is a grille available? The diamond-cut cast aluminium trim ring accommodates an optional grille insert. Confirm the SKU with Rockford Fosgate. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

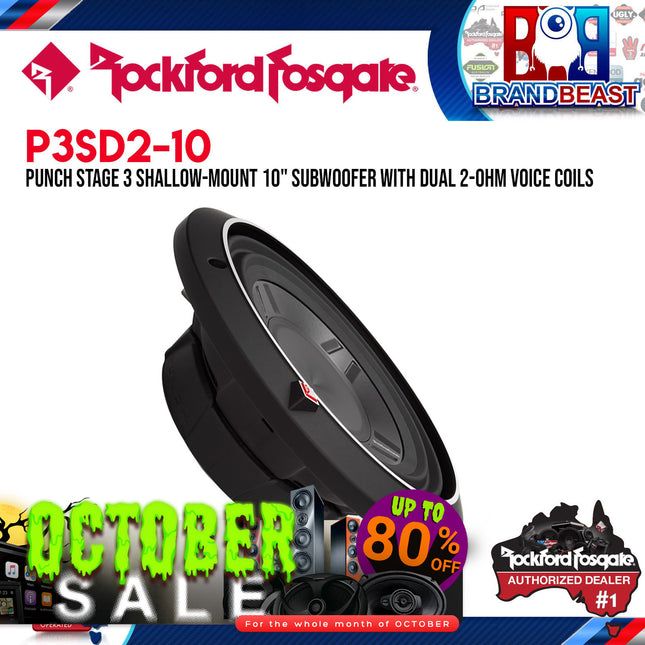

10" P3S Shallow 2-Ohm DVC Subwoofer 300W RMS, Anodised Aluminium Cone, M-Roll Santoprene Surround, Shallow Motor Assembly. Sealed and Vented Compatible. Product Overview The Rockford Fosgate Punch P3SD2-10 is a 10" 2-Ohm Dual Voice Coil (DVC) shallow subwoofer rated at 300W RMS the 10" 2-Ohm variant of the P3S shallow platform. At 300W RMS, the P3SD2-10 handles double the power of the P3S 8" models enabled by the larger 10" cone and motor's greater thermal and mechanical capacity in the shallow format. Confirmed compatible with both sealed and vented enclosures. The 2-Ohm DVC provides wiring options of 1-Ohm (parallel), 4-Ohm (series), or 2-Ohm per coil for bi-amplification. Sold as an individual unit. All confirmed P3S construction applies: anodised aluminium cone and dustcap, M-Roll Santoprene surround, dual linear spider with embedded 16 AWG tinsel leads, StampCast basket with integrated spider venting, shallow motor assembly, and diamond-cut cast aluminium trim ring with grille provision. Key Specifications Subwoofer size: 10 inch (shallow) Voice coil configuration: Dual Voice Coil (DVC) Impedance: 2-Ohm per coil (1-Ohm parallel / 4-Ohm series / 2-Ohm biamp) Power handling (RMS): 300W (confirmed) Peak power: Not specified — confirm with Rockford Fosgate Motor assembly: Shallow ✓ Sensitivity: Not specified — confirm with Rockford Fosgate Frequency response: Not specified — confirm with Rockford Fosgate Xmax: Not specified — confirm with Rockford Fosgate Mounting depth: Shallow — exact depth not confirmed Cutout diameter: Not specified — confirm with Rockford Fosgate Cone: Anodised aluminium ✓ Dustcap: Anodised aluminium ✓ Surround: M-Roll Santoprene ✓ Spider: Dual linear with embedded 16 AWG tinsel leads ✓ Basket: StampCast with integrated spider venting ✓ Input terminals: Not specified — confirm with Rockford Fosgate Trim ring: Diamond-cut cast aluminium (grille insert compatible) ✓ Enclosure compatibility: Sealed and vented ✓ Sealed enclosure volume: Not specified — confirm with Rockford Fosgate Vented enclosure volume: Not specified — confirm with Rockford Fosgate Sold as: Individual unit Weight: Not specified — confirm with Rockford Fosgate Warranty: Not specified — confirm with Rockford Fosgate Features & Benefits 300W RMS in a Shallow 10" Format — 300W RMS is confirmed — double the 150W RMS of the P3S 8" models, enabled by the 10" format's greater motor capacity. Match to an amplifier rated at 300W RMS at the selected impedance. 10" Cone — More Air Than 8" — The 10" shallow cone moves more air than the 8" P3SD models, producing greater bass output and lower frequency extension in comparable enclosures. Sealed and Vented Compatible — Both enclosure types confirmed — a key differentiator in the shallow subwoofer category. 2-Ohm DVC — Three Wiring Options: 1-Ohm (parallel): Confirm amplifier rated stable at 1-Ohm 4-Ohm (series): Broad compatibility 2-Ohm per coil (biamp): Separate channels Anodised Aluminium Cone and Dustcap — Rigid, heat-conducting cone in the shallow platform format. M-Roll Santoprene Surround — Controlled compliance geometry and durable elastomer surround. Dual Linear Spider — Improved suspension compliance and control. StampCast Basket with Spider Venting — Motor cooling. Diamond-Cut Cast Aluminium Trim Ring — Premium finish with grille provision. Technical Specs Specification Detail Brand Rockford Fosgate Part Number P3SD2-10 Series Punch P3S (Shallow) Subwoofer Size 10 inch (shallow) Voice Coil Dual Voice Coil (DVC) Impedance per Coil 2-Ohm ✓ Wiring Options 1-Ohm (parallel) / 4-Ohm (series) / 2-Ohm biamp ✓ Power Handling (RMS) 300W ✓ Peak Power Not specified Motor Assembly Shallow ✓ Sensitivity Not specified Frequency Response Not specified Xmax Not specified Mounting Depth Shallow — exact depth not confirmed Cutout Diameter Not specified Sealed Enclosure Vol. Not specified Vented Enclosure Vol. Not specified Cone Anodised Aluminium ✓ Dustcap Anodised Aluminium ✓ Surround M-Roll Santoprene ✓ Spider Dual Linear, Embedded 16 AWG Tinsel Leads ✓ Basket StampCast with Integrated Spider Venting ✓ Input Terminals Not specified Trim Ring Diamond-Cut Cast Aluminium (Grille Compatible) ✓ Enclosure Type Sealed and Vented ✓ Sold As Individual Unit Weight Not specified Warranty Not specified — confirm with Rockford Fosgate Compatible With / Goes Well With Suitable enclosure types: Sealed and vented — both confirmed Wiring: 1-Ohm → parallel (confirm stability) 4-Ohm → series 2-Ohm per coil → biamp Pairs well with: A mono amplifier rated at 300W RMS at the selected impedance A shallow sealed or vented 10" enclosure to Rockford Fosgate's recommended volume Frequently Asked Questions Why does the P3SD2-10 handle 300W RMS while the P3SD2-8 only handles 150W? The 10" shallow motor has a larger cone area, voice coil, and magnet assembly than the 8" — providing greater thermal and mechanical capacity at the same reduced mounting depth. The larger format can absorb and dissipate more sustained heat at 300W while maintaining the same shallow footprint. Can the P3SD2-10 be used in a vented enclosure? Yes — the P3SD2-10 is confirmed compatible with both sealed and vented enclosures. Confirm Rockford Fosgate's recommended volumes from the official P3SD2-10 datasheet. What are the wiring options for the 2-Ohm DVC? 1-Ohm (parallel — confirm amplifier stability at 1-Ohm), 4-Ohm (series — broad compatibility), and 2-Ohm per coil for bi-amplification. What mounting depth is required? Confirmed shallow — exact millimetre figure not in supplier data. Pull from the official Rockford Fosgate P3SD2-10 datasheet before purchasing. What amplifier is appropriate? A mono amplifier rated at 300W RMS at the selected wiring impedance. Confirm the amplifier's RMS output at 1-Ohm (parallel) or 4-Ohm before purchasing. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!
