Stinger RKFR69 Roadkill Fast Rings for 6×9" Speakers
A 3-ring self-adhesive foam speaker mounting system for 6×9-inch speakers reduces front/rear wave cancellation, improves mid-bass response, and maximises speaker output efficiency.
Product Overview
The Stinger RKFR69 is the 6×9-inch version of the Roadkill FAST Ring system. Each kit contains three foam rings designed to work together to acoustically couple the speaker to the factory opening and address the most common acoustic problems in factory 6×9 locations:
Gasket ring: Sits between the speaker basket and the mounting baffle surface, sealing the gap and stopping rear wave energy escaping around the speaker.
Surround ring: Mounts around the outer edge of the speaker to reduce vibration transfer to the door or parcel shelf panel and minimise destructive wave interference.
Backwave pad: A circular foam pad that sits behind the speaker inside the cavity to absorb unwanted reflections from hard surfaces such as inner door skins or parcel shelf substrates.
Self-adhesive backing on all rings clean, peel, and stick.
Please note: Sold as a pair quantity confirmation not specified in available supplier data. Contact the F.A.E. team to confirm pack contents before purchasing.
Features & Benefits
Reduces front and rear wave cancellation
Increases mid-bass response and audio output efficiency
Minimises destructive wave interference from open door and parcel shelf cavities
Reduces panel vibration transmission to the speaker
3-ring system: gasket + surround + backwave pad per speaker
Self-adhesive peel-and-stick application
Suits 6×9-inch speaker openings
Technical Specs
Specification
Detail
SKU / Part Number
RKFR69
Brand
Stinger
Series
Roadkill Fast Rings
Speaker Size Compatibility
6×9 inch
Pack Contents
Not fully confirmed — contact F.A.E. for exact quantity
Mounting
Self-adhesive peel-and-stick
Compatible With / Goes Well With
Direct Vehicle Fit:
Universal — suits any vehicle with 6×9-inch speaker mounting locations (rear parcel shelf, rear door panels)
Goes Well With:
6×9-inch aftermarket coaxial or component speakers
Stinger Roadkill Expert sound damping sheets (apply to parcel shelf or door skin before installing)
Stinger RKFR6 Fast Rings (6.5-inch version for front door speakers)
Stinger RKCP12 carpet foam pad (for full vehicle noise treatment)
Stinger RKINSTALL installation kit
Frequently Asked Questions
What is the difference between the RKFR69 and the RKFR6?
The RKFR69 is the 6×9-inch version and the RKFR6 is the 6.5-inch version — both use the same 3-ring system but are sized for their respective speaker openings. For a full installation with front 6.5-inch and rear 6×9-inch speakers, both kits are needed.
How does the 3-ring system improve sound quality?
The gasket seals the gap between the speaker and mounting surface to prevent rear waves escaping around the speaker. The surround ring decouples the speaker from the panel to reduce vibration. The backwave pad absorbs internal cavity reflections. Together they reduce wave cancellation, tighten bass response, and improve overall output efficiency.
Do I need to apply Roadkill Expert sheets before installing the Fast Rings?
No, but it is strongly recommended. Roadkill Expert applied to the door skin or parcel shelf reduces panel resonance first, and the Fast Rings then optimise the speaker's acoustic coupling. Used together, the improvement is significantly greater than either product alone.
Is installation difficult?
No. Clean the mounting surface, peel the backing, and press each ring in position. No tools are required unless trimming is needed.
Does this kit suit OEM 6×9-inch locations?
Yes. The RKFR69 is designed to acoustically couple aftermarket speakers to factory 6×9 speaker openings — particularly effective when replacing OEM speakers in rear parcel shelves and rear door panels where open cavities behind the speaker are common.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Stinger JPSUBLIB1M JP Series OEM-Grade Double DIN Fascia Kit for Subaru Liberty/Outback BL/BP (2004–2008)
A premium Japanese OEM-grade fascia for the Subaru Liberty/Outback BL/BP suits models where the climate control and radio are physically separate units. Black finish, uses factory mounting position.
Product Overview
The Stinger JPSUBLIB1M is a JP Series vehicle-specific double DIN radio fascia kit for the Subaru Liberty (incl. Outback) BL/BP series (2004–2005 and 2006–2008). Manufactured to Japanese OEM quality standards, it is designed for models where the climate control and radio occupy separate, independent positions in the dash.
This kit suits BL/BP models with a separate climate control panel and separate factory radio position. Models where the climate control and radio share an integrated dash arrangement use different kits see the JPSUBLIB2S (single climate control, 2006–2008) or JPSUBLIB2D (dual climate control, 2006–2008) for those variants. If you are unsure which applies to your Liberty/Outback, contact the F.A.E. team to confirm before purchasing.
No mounting brackets are included the kit uses the vehicle's existing factory mounting position.
Features & Benefits
Japanese OEM-grade construction — premium fit and finish
Suits models with separate climate control and factory radio
Black finish matched to Subaru Liberty/Outback BL/BP interior trim
Uses factory mounting position — no additional brackets required
Technical Specs
Specification
Detail
SKU / Part Number
JPSUBLIB1M
Brand
Stinger
Series
JP Series (Japanese OEM Grade)
Colour / Finish
Black
Radio Size Compatibility
Double DIN (2DIN)
Mounting Brackets Included
No — uses factory mounting position
Antenna Adaptor Included
Not included
Vehicle Notes
Suits separate climate control and radio layout only — not for integrated climate/radio variants
Wiring Harness Included
Not included
SWC Interface Included
Not included
Compatible With / Goes Well With
Direct Vehicle Fit:
Subaru Liberty (incl. Outback) 2004–2005 (BL/BP)
Subaru Liberty (incl. Outback) 2006–2008 (BL/BP) — separate climate control & radio layout only
Goes Well With:
Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC)
Vehicle-specific ISO wiring harness for Subaru Liberty BL/BP
Stinger STBAA27 / STBAA26 antenna adaptors (for Subaru Liberty BL/BP)
Stinger JPSUBLIB2S (for 2006–2008 BL/BP with single integrated climate control)
Stinger JPSUBLIB2D (for 2006–2008 BL/BP with dual integrated climate control)
Frequently Asked Questions
How do I know if my Subaru Liberty BL/BP has a separate climate control and radio?
On models compatible with the JPSUBLIB1M, the climate control panel and the factory radio are independent units in separate positions in the dash. If your Liberty/Outback has the climate controls integrated into or immediately surrounding the head unit opening as a single combined panel, you likely need the JPSUBLIB2S or JPSUBLIB2D instead. Contact the F.A.E. team to confirm if unsure.
Why does this kit cover both 2004–2005 and 2006–2008 BL/BP?
The BL/BP series ran across both year ranges with varying dash configurations. The JPSUBLIB1M covers the pre-facelift and early production BL/BP variants with a separate climate/radio layout, while the JPSUBLIB2S and JPSUBLIB2D cover the facelift variants with an integrated climate/radio arrangement in the same chassis code range.
Is a wiring harness included?
No. The JPSUBLIB1M is a fascia kit only. A vehicle-specific ISO wiring harness will need to be sourced separately to connect your aftermarket head unit to the factory wiring.
Are mounting brackets included?
No. The JPSUBLIB1M uses the vehicle's existing factory mounting position. No additional brackets are required or included.
Is an antenna adaptor included?
No. An antenna adaptor is not included. See the Stinger STBAA27 or STBAA26 for compatible Subaru Liberty BL/BP antenna adaptors.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

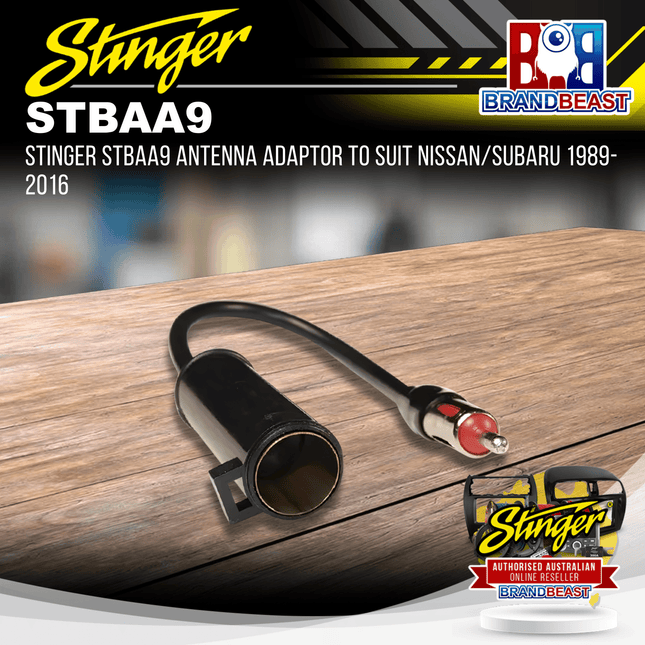

Stinger STBAA9 – Antenna Adaptor for Nissan & Subaru Vehicles OEM Plug to Standard DIN
A high-quality antenna adaptor that converts the factory OEM antenna plug to a standard DIN connection for use with aftermarket head units covers 15 Nissan and Subaru models from 1989 to 2016.
Product Overview
The Stinger STBAA9 is a vehicle-specific antenna adaptor for select Nissan and Subaru models, allowing the factory OEM antenna connector to be connected to the standard DIN antenna input found on aftermarket head units. It provides a clean, plug-and-play connection without cutting or splicing the factory antenna cable.
Features & Benefits
Converts OEM Nissan/Subaru antenna plug to standard DIN connection
High-quality conversion for reliable signal transfer
Plug and play — no cutting or modification required
Covers 15 Nissan and Subaru models across a wide year range
Technical Specs
Specification
Detail
SKU / Part Number
STBAA9
Brand
Stinger
Adaptor Type
OEM to Standard DIN
Vehicle Application
Nissan and Subaru (see compatibility list)
Compatible With / Goes Well With
Direct Vehicle Fit:
Nissan 200SX 1995–1998 (S15)
Nissan 300ZX 1989–2002 (Z32)
Nissan 350Z 2003–2005 (Z33)
Nissan 350Z 2006–2008 (Z33)
Nissan Cube 1998–2016 (Z11/Z12)
Nissan Elgrand 2001–2004 (E51)
Nissan Elgrand 2005–2010 (E51)
Nissan Maxima 1995–2003 (A33)
Nissan Navara 2005–2015 (D22/D40)
Nissan Pathfinder 1996–2005 (R50)
Nissan Pathfinder 2003–2004 (WX/WX2)
Nissan Pathfinder 2005–2013 (R51)
Nissan Patrol 1998–2009 (Y61)
Nissan Skyline 1993–1998 (R33)
Subaru Liberty (incl. Outback) 1995–2003 (BE/BH/BT)
Goes Well With:
Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC, Stinger)
Vehicle-specific ISO wiring harnesses for Nissan and Subaru
Stinger radio replacement kits for compatible Nissan models
Frequently Asked Questions
Does this adaptor fit all Nissan and Subaru vehicles?
No. The STBAA9 is designed for specific Nissan and Subaru models across 1989–2016 — refer to the full compatibility list above. For other Nissan or Subaru models not listed, a different antenna adaptor may be required. Contact the F.A.E. team to confirm.
Is this a plug-and-play adaptor?
Yes. The STBAA9 connects the factory OEM antenna plug to a standard DIN connection without any cutting or modification to the factory antenna cable.
What does "OEM to standard DIN" mean?
Nissan and Subaru vehicles in this era use a vehicle-specific antenna plug that is not compatible with the standard DIN antenna input on aftermarket head units. The STBAA9 bridges this gap — one end connects to the factory antenna cable, the other provides a standard DIN plug for the aftermarket head unit.
Do I need this adaptor if I already have an ISO wiring harness?
Yes, in most cases. An ISO wiring harness handles the power and audio wiring connections. The antenna adaptor is a separate requirement — it handles only the antenna signal cable. Both are typically needed for a complete head unit installation.
Is this adaptor compatible with DAB antennas?
The STBAA9 converts the factory FM/AM antenna connection. If your aftermarket head unit has a separate DAB antenna input (SMB), a dedicated DAB antenna such as the Stinger STDAB-1 or STDAB-2 is required in addition to this adaptor.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

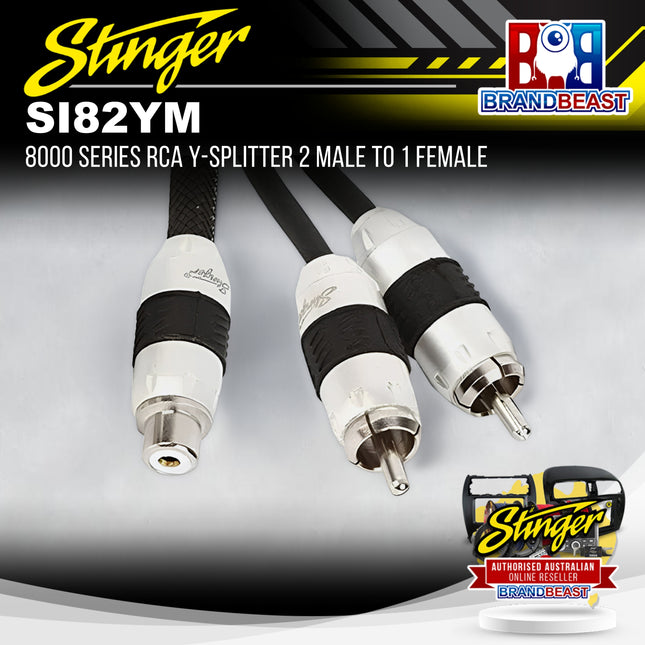

Stinger SI82YM 8000 Series RCA Y-Splitter 2 Male to 1 Female
When two RCA sources need to feed a single destination without compromising signal quality, the SI82YM brings 8000 Series audiophile-grade construction to a 2-male to 1-female Y-splitter configuration.
Product Overview
The SI82YM is Stinger's 8000 Series male Y-splitter RCA lead, designed to combine two male RCA source plugs into a single female RCA output. This configuration is suited to installations where two separate RCA source signals need to be summed or routed through a single female RCA input, such as combining a left and right channel signal into a single mono input on an amplifier or processor, or routing two source outputs to a single destination input. Built to 8000 Series audiophile standards, the SI82YM uses oversized silver-plated copper conductors with a combination copper and silver construction that extends frequency response and provides tight bass response alongside crystal-clear high-frequency detail. Triple-braided shielding combined with Mylar shielding and a directional high-rate double twisted-pair construction provides multiple layers of noise rejection. Precision machined locking metal ends with pewter finish and channel identification, locking split-tip connectors, no solder joints, and C3 Tech (Continuous Connection Construction) ensure connection integrity and true channel separation throughout. A black mesh protective jacket completes the build.
Features & Benefits
Oversized Silver-Plated Copper Conductors: The conductor uses oversized silver-plated copper strands combining the high-frequency performance characteristics of silver with the current-carrying capacity of copper, delivering tight bass response and crystal-clear high-frequency detail across the full audio spectrum.
Extended Frequency Response through Copper and Silver Combination: The combination of copper and silver in the conductor construction optimises signal vs. frequency interaction across the full 20Hz-20kHz audio range and beyond, providing a more complete and dynamic frequency response than a single-material conductor.
Triple-Braided Shielding and Mylar Shielding: Three layers of braided shielding work in combination with an inner Mylar foil layer to provide multi-directional noise rejection, suppressing both radiated electromagnetic interference from external sources and conducted noise within the cable itself.
Directional High-Rate Double Twisted-Pair Construction: The directional double twisted-pair winding pattern provides protection against interference and ensures consistent signal timing between conductors, improving clarity and maintaining phase accuracy between the two combined inputs.
3 Conductors per Channel for 6 Total Conductors: Each channel uses three dedicated conductors providing positive, negative, and signal drain paths, ensuring true channel separation and low-impedance signal return paths across both male inputs of the Y-splitter.
C3 Tech (Continuous Connection Construction): Stinger's proprietary C3 construction method ensures no breaks or discontinuities in the signal chain throughout the cable, providing unmatched signal transfer consistency from both male inputs through to the single female output.
Locking Split-Tip Connectors: The split-tip connector design on each RCA end provides a mechanical grip on the socket that resists vibration-induced loosening, maintaining consistent contact force and signal integrity in the automotive environment.
Precision Machined Locking Metal Ends with Channel Identification: All connectors are precision machined from metal with a locking design and channel identification markings, providing a secure, correctly identified connection at both male inputs and the female output end.
Pewter Finished Ends: The pewter finish on all connector ends provides a premium aesthetic suited to high-end installations alongside a corrosion-resistant surface that maintains low-resistance contact over time.
No Solder Joints: The absence of solder joints at critical connection points within the cable assembly eliminates the resistance discontinuities and long-term reliability issues associated with solder-based connections, ensuring true channel separation and consistent connection reliability.
Mono Cable Design with Undersized Stopper: The mono cable design with undersized stopper provides a compact, manageable physical form suited to the confined routing paths of a car audio installation.
Molded Strain Reliefs: Moulded strain reliefs at both connector ends protect the cable-to-connector junction from flex fatigue under vibration, extending the long-term reliability of the connection point.
Black Mesh Protective Jacket: The black mesh outer jacket provides a clean, high-end appearance suitable for visible installations while minimising friction during installation through tight cable routing paths.
Technical Specs
Specification
Detail
SKU
SI82YM
Series
8000 Series
Configuration
Y-Splitter (2 Male to 1 Female)
Conductor Material
Oversized silver-plated copper
Conductors per Channel
3 (positive, negative, signal drain)
Total Conductors
6
Construction
Directional high-rate double twisted-pair
Shielding
Triple-braided + Mylar foil
Connector Type
Locking split-tip RCA
Connector Finish
Pewter
Connector End Type
Precision machined locking metal with channel ID
Solder Joints
None
Strain Relief
Moulded
Outer Jacket
Black mesh protective
Construction Method
C3 Tech (Continuous Connection Construction)
Goes Well With
The SI82YM is suited to installations where two separate RCA source outputs need to be combined into a single amplifier or processor input, such as summing a stereo left and right pre-out pair from a head unit into a single mono subwoofer amplifier input, or combining two source signals for routing through a single DSP input channel. It is well matched to the Stinger 8000 Series RCA interconnect range, allowing a consistent specification across all RCA connections in the same system. For the reverse application where a single male source needs to be split to two female outputs, the SI82YF is the correct alternative.
Frequently Asked Questions
What does a 2-male to 1-female RCA Y-splitter do, and when is it needed?
A 2-male to 1-female Y-splitter accepts two separate male RCA plugs from source cables and presents them as a single female RCA socket. This is used when two separate RCA source signals need to be summed or routed to a single input destination simultaneously, such as combining a stereo left and right channel pre-out from a head unit into a single mono input on a subwoofer amplifier, or routing two source outputs to a single DSP input channel.
What is the difference between the SI82YM and the SI82YF?
The SI82YM and SI82YF are identical in specification, construction, and performance, sharing the same 8000 Series audiophile-grade components throughout. The only difference is the connector configuration: the SI82YM has two male plugs and one female socket for combining two sources into one destination, while the SI82YF has two female sockets and one male plug for splitting one source to two destinations.
Does combining two signals with the SI82YM damage the source components?
Passively combining two RCA outputs with a Y-connector can cause interaction between the two source outputs if both are actively driving signal simultaneously, as each output sees the other's low impedance. This is generally acceptable for passive signal combining in car audio applications, but active source switching or signal management via a DSP or line output converter is preferred for critical applications. Consult the source component's specifications if unsure whether passive combining is suitable.
What is C3 Tech and why does it matter in a Y-splitter?
C3 Tech stands for Continuous Connection Construction. In a Y-splitter where two signal paths physically converge at the junction point, maintaining continuous conductor contact without breaks or high-resistance transitions at the junction is critical for signal integrity. Stinger's C3 construction method ensures the conductor runs from both male inputs through to the single female output without solder joints or mechanical discontinuities at the junction, providing the same unmatched signal transfer as a straight-through Stinger 8000 Series cable.
Why does the SI82YM use three conductors per channel rather than the standard two?
Standard RCA cables use two conductors per channel: a positive signal conductor and a combined negative and shield return. The SI82YM uses three conductors per channel, separating the negative signal return and the shield drain into individual dedicated conductors. This provides a lower-impedance signal return path and isolates the shield drain from the signal return, reducing the interaction between shielding current and audio signal that can introduce noise in a standard two-conductor design.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

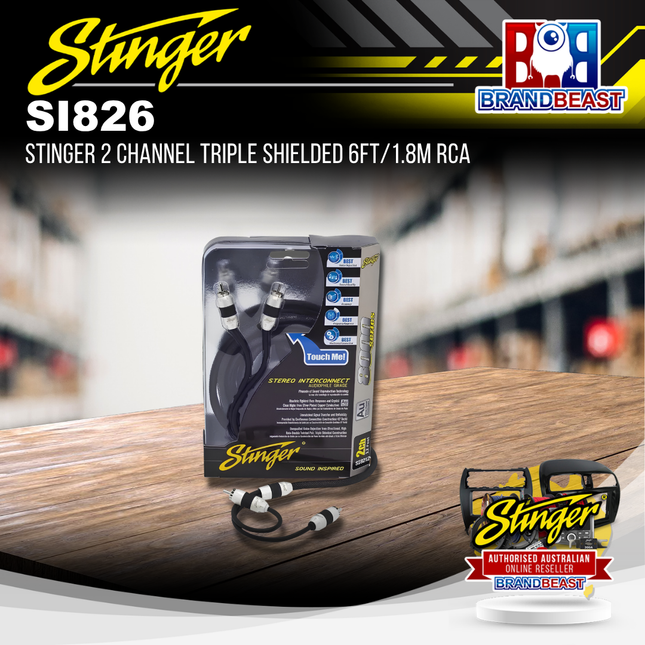

8000 Series 2-Channel Triple Shielded RCA 6ft, Oversized Silver-Plated Copper, Triple-Braided + Mylar Shielding, Locking Split-Tip Connectors, 3 Conductors per Channel, C3 Tech.
Product Overview
The Stinger SI826 is a 6-foot (1.8-metre) 2-channel audiophile-grade RCA interconnect from the 8000 Series engineered for installations where signal quality between the source unit and the amplifier is the priority. At 6 feet, the SI826 suits installations where the amplifier is mounted under a seat, behind the centre console, or otherwise within close proximity of the head unit.
Oversized silver-plated copper conductors use three conductors per channel (six total) separate positive, negative, and signal drain paths per channel providing true channel separation and a low-impedance signal return. Triple-braided shielding combined with an inner Mylar foil layer provides multi-directional noise rejection from both external radiated interference and conducted noise within the cable. A directional high-rate double twisted-pair construction adds a further architectural layer of noise cancellation. Precision machined pewter-finish locking metal ends with channel identification, locking split-tip connectors, no solder joints, moulded strain reliefs, and C3 Tech (Continuous Connection Construction) complete the build.
Key Specifications
SKU: SI826
Series: 8000 Series
Channels: 2
Length: 6 feet (1.8 metres)
Conductor: Oversized silver-plated copper
Conductors per channel: 3 (positive, negative, signal drain)
Total conductors: 6
Construction: Directional high-rate double twisted-pair
Shielding: Triple-braided + Mylar foil
Connector type: Locking split-tip RCA
Connector finish: Pewter
Connector end: Precision machined locking metal with channel ID
Solder joints: None
Strain relief: Moulded
Outer jacket: Black mesh protective
Construction method: C3 Tech (Continuous Connection Construction)
Warranty: Not specified — confirm with Stinger
Features & Benefits
Oversized Silver-Plated Copper Conductors Oversized silver-plated copper combines the high-frequency precision of silver with the current-carrying capacity of copper — delivering tight, controlled bass response and crystal-clear high-frequency detail across the full audio spectrum. Silver's low surface resistance improves high-frequency transmission; copper's conductivity supports the lower-frequency current demands of subwoofer signal paths.
Three Conductors per Channel — True Channel Separation Standard RCA cables use two conductors per channel — a positive signal and a combined negative/shield return. The SI826 uses three conductors per channel: dedicated positive, negative, and signal drain paths. The separated shield drain eliminates the interaction between shielding current and audio signal return that introduces noise in a standard two-conductor design, ensuring true channel separation and a lower-impedance return path for both channels.
Triple-Braided + Mylar Shielding — Multi-Directional Noise Rejection Three independent layers of braided shielding cascade over each other — each layer covering any gaps in the coverage of the layer beneath it — combined with an inner Mylar foil layer. The result addresses both radiated electromagnetic interference from alternators, ignition systems, and external sources, and conducted noise within the cable structure itself. Standard single-braid cables leave significantly higher total coverage gaps.
Directional High-Rate Double Twisted-Pair Construction The double twisted-pair winding is directional — orientated to maximise noise cancellation when signal flows from source unit to amplifier. Directional markings indicate correct orientation. Installing in the correct direction maximises the architectural noise-cancelling effect of the twisted-pair geometry.
C3 Tech — Continuous Connection Construction Stinger's C3 Tech ensures no breaks, discontinuities, or resistance variations in the signal chain throughout the full 6-foot length — providing consistent signal transfer from source unit to amplifier.
Locking Split-Tip Connectors The split-tip connector design mechanically grips the RCA socket's inner contact with spring tension — resisting vibration-induced loosening and maintaining consistent contact force across both channel connections. Standard push-fit connectors rely on friction only and can loosen over time in the automotive environment.
Precision Machined Pewter-Finish Metal Ends with Channel ID Precision machined from metal with channel identification markings — correct channel identification at both ends eliminates the left/right reversal errors that can occur with unlabelled cables in complex installations. The pewter finish provides corrosion resistance and a premium high-end aesthetic.
No Solder Joints — Moulded Strain Reliefs The absence of solder joints eliminates resistance discontinuities and long-term reliability issues associated with solder-based connections. Moulded strain reliefs at both connector ends protect the cable-to-connector junction from flex fatigue under sustained vibration.
Technical Specs
Specification
Detail
Brand
Stinger
SKU
SI826
Series
8000 Series
Channels
2
Length
6 feet (1.8 metres)
Conductor
Oversized Silver-Plated Copper
Conductors per Channel
3 (positive, negative, signal drain)
Total Conductors
6
Construction
Directional High-Rate Double Twisted-Pair
Shielding
Triple-Braided + Mylar Foil
Connector Type
Locking Split-Tip RCA
Connector Finish
Pewter
Connector Ends
Precision Machined Locking Metal, Channel ID
Solder Joints
None
Strain Relief
Moulded
Outer Jacket
Black Mesh Protective
Construction Method
C3 Tech
Warranty
Not confirmed — confirm with Stinger
Compatible With / Goes Well With
Suitable for:
2-channel amplifier installations with amplifier under seat, behind centre console, or in close proximity to the head unit
Subwoofer monoblock installations with short head-unit-to-amplifier routing distance
Pairs well with:
Rockford Fosgate, Hertz, Morel, and AudioControl amplifiers
Stinger SI82YF and SI82YM 8000 Series Y-adapters (same construction for consistent system build)
Stinger SI8212 (12ft / 3.7m) for boot-mounted amplifier runs in compact to mid-size vehicles
Stinger SI8217 (17ft / 5m) for larger vehicles and longer routing paths
Length selection guide: SI826 (6ft / 1.8m) — amplifier in close proximity to head unit. SI8212 (12ft / 3.7m) — standard boot-mounted installation. SI8217 (17ft / 5m) — large vehicles and long routing paths.
Frequently Asked Questions
What is the difference between the SI826, SI8212, and SI8217?
All three are identical in specification, construction, and performance — same 8000 Series triple-braided shielding, silver-plated conductors, locking connectors, and C3 Tech construction. The only difference is length: SI826 is 6 feet (1.8m) for short-run installations, SI8212 is 12 feet (3.7m) for compact to mid-size vehicles, and SI8217 is 17 feet (5m) for larger vehicles. Select based on the measured routing distance from head unit to amplifier in the specific vehicle.
What does triple-braided shielding provide that standard single-braid does not?
A single-braid shield leaves gaps in its woven coverage that can allow interference to penetrate. The SI826's three independent braided layers cascade over each other — each covering any gaps in the layer beneath — achieving dramatically higher total shield coverage. Combined with the inner Mylar foil layer, the shielding system addresses both radiated external interference and conducted internal noise from multiple directions simultaneously.
Why does the SI826 use three conductors per channel rather than two?
Standard RCA cables combine the negative signal return and shield drain into one conductor. The SI826 separates these into dedicated individual conductors per channel — providing a lower-impedance signal return path and isolating the shield drain from the signal return. This reduces the interaction between shielding current and audio signal that introduces noise in a standard two-conductor design.
What is the benefit of locking split-tip connectors over standard push-fit RCA connectors?
Standard push-fit RCA connectors rely on friction to maintain contact — which can loosen under vibration and cause intermittent noise or signal dropout. The SI826's locking split-tip connectors mechanically grip the socket's inner contact with spring tension, providing a vibration-resistant hold that maintains consistent contact force over time in the automotive environment.
What does the directional construction mean, and how should I orient the cable?
The directional double twisted-pair winding cancels noise most effectively when signal flows in one specific direction. Directional markings on the cable indicate which end connects to the source unit and which end connects to the amplifier. Correct orientation maximises the noise-cancelling effect of the twisted-pair architecture — installing in reverse does not damage the cable but reduces its effectiveness.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
8000 Series 2-Channel RCA Cable 3ft, Oversized Silver-Plated Copper, Triple Shielding, Locking Metal Ends, C3 Tech, No Solder Joints.
Product Overview
The Stinger SI823 is a 3-foot (approximately 0.9-metre) 2-channel RCA interconnect from the 8000 Series the shortest length in the 8000 Series range, suited to compact installations where the amplifier is in very close proximity to the head unit, such as under-seat builds, behind-dash amplifier installations, or component-to-component connections within the same location.
The SI823 delivers the full 8000 Series specification at the shortest available length: oversized silver-plated copper conductors, three conductors per channel (positive, negative, signal drain), triple shielding (Dual Mylar plus braided), directional high-rate double twisted-pair construction, C3 Tech (Continuous Connection Construction) with no solder joints throughout, precision machined pewter-finish locking metal ends with channel identification, moulded strain reliefs, and a black mesh protective jacket.
Key Specifications
Part number: SI823
Series: 8000 Series
Channels: 2
Length: 3 feet (approximately 0.9 metres)
Conductor: Oversized silver-plated copper
Conductors per channel: 3 (positive, negative, signal drain)
Total conductors: 6
Construction: Directional high-rate double twisted-pair
Shielding: Triple shielding — Dual Mylar + braided
Connector type: Precision machined locking metal ends
Connector finish: Pewter
Channel identification: Yes
Solder joints: None
Strain relief: Moulded
Outer jacket: Black mesh protective
Construction method: C3 Tech (Continuous Connection Construction)
Warranty: Not specified — confirm with Stinger
Features & Benefits
Oversized Silver-Plated Copper Conductors Silver-plated copper combines the high-frequency precision of silver with the current-carrying capacity of copper — delivering tight bass response and crystal-clear high-frequency detail across the full audio spectrum. The oversized gauge reduces conductor resistance across the 3-foot run.
Triple Shielding — Dual Mylar + Braided Three shielding layers — dual Mylar foil layers combined with braided shielding — provide multi-directional protection against alternator whine, ignition noise, and electromagnetic interference from surrounding vehicle wiring. Particularly relevant in complex under-dash and under-seat installations where RCA cables run near power cables.
Three Conductors per Channel Dedicated positive, negative, and signal drain conductors per channel isolate the shield drain from the audio signal return — reducing the noise interaction present in standard two-conductor RCA designs.
C3 Tech — No Solder Joints Stinger's C3 (Continuous Connection Construction) eliminates all solder joints throughout the cable — removing the resistance discontinuities and potential failure points associated with solder-based connections in the vibration-heavy automotive environment.
Precision Machined Locking Metal Ends with Channel ID Pewter-finished precision machined connectors lock securely to RCA inputs and outputs, preventing vibration-induced disconnection. Channel identification markings distinguish left and right channels at both ends.
Directional High-Rate Double Twisted-Pair Construction Directional twisted-pair winding pattern maximises noise cancellation when signal flows from source unit to amplifier. Directional markings indicate correct installation orientation.
Moulded Strain Reliefs + Black Mesh Jacket Strain reliefs protect the cable-to-connector junction from flex fatigue. The black mesh outer jacket provides physical protection and a clean, professional finish in the completed installation.
Technical Specs
Specification
Detail
Brand
Stinger
Part Number
SI823
Series
8000 Series
Channels
2
Length
3 feet (approx. 0.9 metres)
Conductor
Oversized Silver-Plated Copper
Conductors per Channel
3 (positive, negative, signal drain)
Total Conductors
6
Construction
Directional High-Rate Double Twisted-Pair
Shielding
Triple — Dual Mylar Foil + Braided
Connector Type
Precision Machined Locking Metal Ends
Connector Finish
Pewter
Channel Identification
Yes
Solder Joints
None
Strain Relief
Moulded
Outer Jacket
Black Mesh Protective
Construction Method
C3 Tech
Warranty
Not confirmed — confirm with Stinger
Compatible With / Goes Well With
Suitable for:
Under-seat amplifier installations in close proximity to the head unit
Behind-dash or in-dash amplifier builds
Component-to-component RCA connections within the same location
Any head unit with RCA preamp outputs connected to an amplifier with RCA inputs
Pairs well with:
Stinger SI824 (4ft) or SI826 (6ft) for slightly longer runs in the same 8000 Series specification
Stinger amplifier wiring kits
Rockford Fosgate, Hertz, Morel, and AudioControl amplifiers
Length selection guide: SI823 (3ft / 0.9m) — very close proximity. SI824 (4ft / 1.2m) — close proximity. SI826 (6ft / 1.8m) — short run. SI8212 (12ft / 3.7m) — standard boot-mount. SI8217 (17ft / 5m) — large vehicles.
Frequently Asked Questions
What makes the 8000 Series different from standard RCA cables?
The 8000 Series combines oversized silver-plated copper conductors, C3 Tech solder-joint-free construction, triple shielding (Dual Mylar plus braided), and precision machined locking metal ends — features not found in standard RCA cables. Together they deliver audiophile-grade signal quality and long-term reliability suited to high-performance car audio systems.
What is C3 Tech and why does it matter?
C3 Tech (Continuous Connection Construction) eliminates all solder joints within the cable assembly. Solder joints introduce resistance and potential failure points — particularly under automotive vibration. Removing them ensures maximum signal transfer and channel separation throughout the cable's service life.
Is the SI823 a directional cable?
Yes — the SI823 features directional high-rate double twisted-pair construction. Install with the directional markings on the cable running from the head unit toward the amplifier for maximum noise cancellation.
What does the triple shielding protect against?
Triple shielding — Dual Mylar foil layers combined with braided shielding — provides three layers of protection against alternator whine, ignition noise, and electromagnetic interference. This is particularly relevant in under-dash and under-seat installations where RCA cables run in close proximity to power cables and vehicle wiring.
Can the SI823 connect a head unit to a 4-channel amplifier?
The SI823 is a 2-channel cable — it connects one stereo pair of RCA outputs (front or rear) to the corresponding inputs on a 4-channel amplifier. For a full front and rear connection, two SI823 cables are required. A dedicated 4-channel RCA cable is the single-cable alternative.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
9-Inch Trapezoid Head Unit Fascia Nissan Patrol GU Y61 Cab Chassis 2005–2016. Cab Chassis Only Not Compatible with Wagon. OEM-Style Finish. Fascia Panel Only.
Product Overview
The Stinger SF9-NI01 is a vehicle-specific 9-inch trapezoid head unit fascia designed for the Nissan Patrol GU (Y61) in cab chassis configuration, covering 2005 to 2016 production. The cab chassis and wagon body styles of the Patrol GU share the same platform but have distinct dashboard configurations the SF9-NI01 is precision-moulded for the cab chassis dashboard specifically and is not interchangeable with the wagon variant. For the Patrol GU wagon, the SF9-NI02 is the correct product. Confirmed compatible head units include Alpine INE-AW409S, INE-AX809, INE-AW409S-10, INE-AX809-10, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro AM9X/AM10X. The factory colour-matched finish with textured grain is confirmed; however, a specific colour name is not stated in the supplier data confirm the finish colour from the official Stinger SF9-NI01 product page before publishing.
Wiring harness, antenna adaptor, and steering wheel control interface are not included and must be purchased separately. A reverse camera retention harness may also be required depending on the vehicle's factory equipment. As with all Patrol GU fascias in this range, confirm that the chassis code is Y61 the Y62 reference in the supplier documentation is believed to be a data error, as the Patrol Y62 is a completely different vehicle.
Key Specifications
Part number: SF9-NI01
Brand: Stinger
Product type: 9-inch trapezoid head unit fascia
Compatible head unit format: 9-inch trapezoid
Finish: Factory colour match with textured grain (specific colour — confirm from official product page)
Vehicle: Nissan Patrol GU Y61 — Cab Chassis only — 2005–2016 (confirm if extends to 1998)
Not compatible with: Nissan Patrol GU Wagon (SF9-NI02) / Nissan Patrol Y62 (different vehicle — confirm)
Confirmed compatible head units: Alpine INE-AW409S, INE-AX809, INE-AW409S-10, INE-AX809-10; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X, AM10X
Includes: Fascia panel only
Wiring harness: Not included — sold separately
Antenna adaptor: Not included — sold separately
SWC interface: Not included — sold separately
Camera retention harness: Not included — sold separately (confirm if required)
Features & Benefits
Cab Chassis Specific — Not the Wagon Fascia The Patrol GU cab chassis and wagon body styles have different dashboard configurations. The SF9-NI01 is precision-moulded for the cab chassis dashboard only. The Patrol GU wagon requires the SF9-NI02. Confirm the body style before purchasing.
Y61 Series Coverage — 2005 to 2016 Covers the Nissan Patrol GU (Y61) cab chassis from 2005 to 2016. Confirm whether coverage extends to 1998 from the official product page.
Not Compatible with Patrol Y62 The Patrol Y62 is an entirely different vehicle. The SF9-NI01 is for the Patrol GU (Y61) cab chassis only.
9-Inch Trapezoid — Wide Head Unit Confirmation The spec table confirms both 9-inch (Alpine INE-AW409S, INE-AX809, Aerpro AM9X) and 10-inch variant (Alpine INE-AW409S-10, INE-AX809-10, Aerpro AM10X) compatibility alongside Kenwood DMX80AXS and Pioneer DMH-AP6650BT. Confirm the supported format(s) from the official product page.
Built for Demanding Patrol Applications Cab chassis Patrol GU models are commonly used in mining, agriculture, emergency services, and commercial touring — environments with elevated vibration, dust, and temperature cycling. The UV-resistant ABS construction maintains fitment and appearance across these demanding conditions.
Technical Specs
Specification
Detail
Brand
Stinger
Part Number
SF9-NI01
Product Type
9-Inch Trapezoid Head Unit Fascia
Compatible Format
9-Inch Trapezoid
Finish
Factory Colour Match, Textured Grain (specific colour — confirm)
Vehicle
Nissan Patrol GU Y61 — Cab Chassis — 2005–2016
Not Compatible
Patrol GU Wagon (SF9-NI02) / Patrol Y62 (confirm)
Confirmed Head Units
Alpine INE-AW409S, INE-AX809, INE-AW409S-10, INE-AX809-10; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X, AM10X
Includes
Fascia Panel Only
Wiring Harness
Not included
Antenna Adaptor
Not included
SWC Interface
Not included
Camera Retention Harness
Not included
Compatible With / Goes Well With
Vehicle compatibility:
Make
Model
Body Style
Year Range
Chassis
Nissan
Patrol GU
Cab Chassis Only
2005–2016
Y61 (confirm if extends to 1998)
Not compatible with:
Nissan Patrol GU Wagon (requires SF9-NI02)
Nissan Patrol Y62 (different vehicle — confirm before publishing)
Confirmed compatible 9-inch trapezoid head units:
Alpine INE-AW409S / INE-AX809 (9-inch)
Alpine INE-AW409S-10 / INE-AX809-10 (10-inch — confirm format support)
Kenwood DMX80AXS
Pioneer DMH-AP6650BT
Aerpro AM9X (9-inch) / AM10X (10-inch — confirm format support)
Recommended accessories (sold separately):
Nissan Patrol GU-specific wiring harness (Nissan-to-ISO)
Antenna adaptor for Nissan
Steering wheel control interface (if equipped)
Camera retention harness (if equipped with reverse camera)
Frequently Asked Questions
What is the difference between the SF9-NI01 and SF9-NI02?
Both cover the Nissan Patrol GU (Y61), but for different body styles. The SF9-NI01 is for the cab chassis configuration only. The SF9-NI02 is for the wagon. The two body styles have different dashboard configurations and require separate fascia solutions. Confirm the body style of the vehicle before purchasing.
Is the SF9-NI01 compatible with Patrol wagon models?
No — the SF9-NI01 is precision-moulded for the Patrol GU cab chassis dashboard only. The wagon variant requires the SF9-NI02.
Does the SF9-NI01 include wiring harnesses or installation accessories?
No — the SF9-NI01 is a fascia panel only. A Patrol GU-specific wiring harness, antenna adaptor, and steering wheel control interface are all required separately. Confirm whether a camera retention harness is also needed based on the vehicle's factory equipment.
Which 9-inch head units are confirmed compatible with the SF9-NI01?
Confirmed compatible head units include Alpine INE-AW409S, INE-AX809, INE-AW409S-10, INE-AX809-10; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; and Aerpro AM9X and AM10X. Both 9-inch and 10-inch Alpine/Aerpro variants are listed — confirm the supported format from the official product page.
Is professional installation recommended?
Yes — dashboard disassembly, correct wiring harness connections, and steering wheel control programming require experience with Nissan electrical systems. Professional installation by a qualified car audio installer is recommended to ensure a rattle-free, reliable result in the demanding conditions Patrol cab chassis vehicles encounter.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Stinger SI8417 8000 Series 4 Channel Triple Shielded RCA - 17ft (5m)
Audiophile-grade 4-channel interconnects with silver-plated copper conductors and triple shielding
The Stinger SI8417 8000 Series 4 Channel RCA Cable delivers audiophile-grade signal transfer with oversized silver-plated copper conductors and triple braided shielding construction. This 17-foot premium cable features locking split-tip connectors, directional double twisted-pair construction, and Continuous Connection Construction (C3 Tech) for unmatched signal transfer reliability in high-end car audio installations.
Engineered with pewter-finished metal ends and black mesh protective jacket, this cable provides professional appearance while offering superior noise rejection through Mylar shielding and triple conductor design. The mono cable design with precision machined locking connectors ensures true channel separation and connection reliability without solder joints.
Stinger SI8417 Key Features & Benefits:
Silver-Plated Copper Conductors: Oversized conductors provide tight bass response and crystal-clear highs
Triple Shielding Protection: Braided shielding, Mylar layer, and twisted-pair construction eliminate interference
Locking Split-Tip Connectors: Precision machined metal ends with channel ID ensure secure signal transfer
C3 Technology: Continuous Connection Construction provides unmatched signal transfer integrity
Professional Appearance: Pewter-finished ends and black mesh jacket for high-end installations
Extended Length: 17-foot cable accommodates long runs in large vehicles and complex installations
Technical Specifications:
Model: Stinger SI8417
SKU: SI8417
Length: 17 feet (5.2 metres)
Channels: 4 channel configuration
Conductor Material: Oversized silver-plated copper
Conductor Configuration: 3 conductors per channel, 6 total
Connector Type: Locking split-tip with precision machined metal ends
Shielding: Triple braided with Mylar additional layer
Construction: Directional high-rate double twisted-pair
Jacket: Black mesh protective covering
Finish: Pewter metal connector ends with channel identification
Design: Mono cable with undersized stopper, no solder joints
Advanced Technologies:
C3 Continuous Connection Construction: Unmatched signal transfer reliability
Triple Shielding System: Braided copper, Mylar, and twisted-pair noise rejection
Directional Construction: Optimized signal flow for maximum clarity
Extended Frequency Response: Silver and copper combination for full spectrum
Installation Applications:
Competition Car Audio: Championship-level installations requiring maximum signal integrity over distance
Large Vehicle Systems: SUVs, trucks, and commercial vehicles with extended cable runs
Marine Audio: Boat audio systems requiring long interconnect runs with noise immunity
Professional Audio: High-end installations where cable length and signal purity are critical
Custom Audio Builds: Enthusiast systems requiring audiophile-grade interconnects
Frequently Asked Questions
Why choose 4-channel over separate 2-channel cables? Single 4-channel design ensures matched performance and simplified installation routing.
Will 17 feet affect signal quality? No, triple shielding and silver-plated conductors maintain signal integrity over this distance.
Are the connectors truly locking? Yes, precision machined split-tip design provides positive locking connection to RCA jacks.
Is the cable directional? Yes, directional construction optimizes signal flow - install with indicators pointing toward destination component.
Can I hear the difference these cables make? In high-resolution systems, the improved shielding and conductor quality typically provide noticeable improvements in clarity and dynamics.
The Jimny Deserves Better Audio Here's Everything You Need to Make It Happen
Product Overview
The Stinger HR9-SZ004 is a purpose-built radio replacement kit designed specifically for installing the Pioneer DMH-AP6650BT 9" head unit into 2018–2024 Suzuki Jimny models. Rather than sourcing individual adaptors and hoping they work together, this bundle provides a complete, matched solution flush-fit 9" fascia, steering wheel control interface, antenna adaptor, and reverse camera retention, all engineered for the Jimny's dash.
The HR9-SZ004 connects directly to the Jimny's factory 20-pin connector, converting it to a standard ISO plug for a clean, professional install with no permanent wiring changes. The SWC interface retains its programming even if battery power is lost, making it reliable across flat batteries and workshop visits alike. Please note: the Pioneer DMH-AP6650BT head unit is not included.
Key Specifications
Manufacturer Part Number: HR9-SZ004
Compatible head unit: Pioneer DMH-AP6650BT (9" display)
Vehicle compatibility: Suzuki Jimny 2018–2024
Factory connector type: 20-pin vehicle plug
Output connector type: Standard ISO connector
Steering wheel audio control retention: Yes (select aftermarket radios)
SWC memory retention: Yes — retained on power loss
Reverse camera retention: Yes (modifications may be required)
Antenna adaptor: Included
AUX/USB retention: Not included
Colour: Gloss Black
Plug & Play: Yes
Features & Benefits
9" Flush Fit Radio Panel — Purpose-moulded to suit the Jimny's dash, delivering a factory-finish result around the larger 9" Pioneer screen with no gaps, no filler strips, and no rattles on the rough stuff.
Steering Wheel Audio Control Retention — Keeps your factory steering wheel audio buttons active through the included interface, so hands-free volume and track control work exactly as they did from the factory.
Memory Retention on Power Loss — The SWC interface stores its programming even when the battery is disconnected — handy for a vehicle that regularly sees deep-cycle battery work or extended off-grid touring.
Plug & Play Harness (20-pin to ISO) — Plugs directly into the Jimny's factory 20-pin loom and converts to standard ISO — no splicing, no soldering, fully reversible.
Antenna Adaptor Included — The factory antenna connection is retained via the included adaptor, maintaining FM/AM reception without the need for additional parts.
Reverse Camera Retention — Passes the factory reverse camera signal through to the Pioneer head unit. Note: some vehicles may require harness modification — always compare the included interface to your factory harness before connecting.
Technical Specs
Specification
Detail
Part Number
HR9-SZ004
Brand
Stinger
Colour
Gloss Black
Vehicle Plug Style
20-pin connector
Output
Standard ISO connector
Fascia Size
9" flush fit
Plug & Play
Yes — factory to ISO, no splicing required
Steering Wheel Audio Controls
Retained (compatible aftermarket radios)
SWC Memory
Retained on power loss
Antenna Adaptor
Included
Reverse Camera Retention
Included (modification may be required)
AUX/USB Retention
Not included
Head Unit Compatibility
Pioneer DMH-AP6650BT
Compatible With / Goes Well With
Suzuki Jimny 2018, 2019, 2020, 2021, 2022, 2023, 2024
Pioneer DMH-AP6650BT 9" Digital Media Receiver (head unit not included)
Factory Suzuki Jimny steering wheel audio controls (retained via included interface)
Factory Suzuki Jimny reverse camera (retention harness included; some vehicles may require modification)
Standard ISO aftermarket radio wiring accessories
Caution: AUX/USB factory connections are not retained by this kit. If your Jimny has factory AUX/USB ports you wish to retain, an additional retention harness will be required. The reverse camera interface may require re-wiring in some build variants — always compare the included harness to your factory connector before installation.
Frequently Asked Questions
Does the HR9-SZ004 include the Pioneer DMH-AP6650BT head unit?
No — the Pioneer DMH-AP6650BT is sold separately. The HR9-SZ004 is an installation kit only, supplying the fascia, wiring harness, SWC interface, antenna adaptor, and reverse camera retention needed to fit that head unit into your 2018–2024 Jimny.
Will this kit retain my Suzuki Jimny's factory steering wheel controls?
Yes, in most cases. The included audio interface retains steering wheel audio button functions with compatible aftermarket radios including the Pioneer DMH-AP6650BT. The interface also retains its memory if battery power is lost.
Do I need to cut or splice any factory wiring?
No — the HR9-SZ004 is plug-and-play. The harness connects directly to the Jimny's factory 20-pin connector and converts to a standard ISO plug, so the install is clean and reversible with no permanent wiring modifications.
Will my factory reverse camera still work after installation?
In most instances, yes — the kit includes a reverse camera retention interface. However, Stinger notes that some vehicles may require the interface harness to be modified or re-wired. Always compare the included harness to your factory connector before plugging in.
Does this kit retain the factory AUX or USB ports?
No — AUX/USB retention is not included with the HR9-SZ004. If retaining factory AUX or USB connectivity is a requirement for your build, a separate AUX/USB retention harness compatible with the Suzuki Jimny will be needed.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Radio Replacement Bundle Toyota HiAce H300 Series 2019 Onwards for Pioneer DMH-AP6650BT 9". Includes Fascia, SWC Interface, Antenna Adaptor, and Reverse Camera Retention. No AUX/USB Retention. Head Unit Not Included.
Product Overview
The Stinger HR9-TY004 is a radio replacement bundle for installing the Pioneer DMH-AP6650BT 9-inch head unit into a Toyota HiAce H300 Series (2019 onwards). The bundle includes four components: a 9-inch flush fit radio panel, a plug-and-play steering wheel control (SWC) interface with patch lead and reverse trigger output, an antenna adaptor, and a reverse camera retention interface. The harness uses Toyota's 30-pin, 28-pin, and 10-pin connectors for a direct plug-and-play connection to the HiAce H300 factory loom, and the SWC interface retains factory steering wheel audio controls with memory retention even after power loss.
Compared to the HR9-TY003 (Toyota RAV4 bundle), the HR9-TY004 does not include AUX/USB retention buyers who need to retain factory USB or AUX inputs will need to source those separately. The reverse camera retention interface covers the factory reverse camera only not 360-degree multi-camera systems. The Pioneer DMH-AP6650BT head unit is not included. Cross-reference to the SF9-TY04 for buyers who need only the fascia panel.
What's in the Box
9-inch flush fit radio panel (HiAce H300 specific)
Steering wheel control (SWC) interface and patch lead
Antenna adaptor
Reverse camera retention interface
Key Specifications
Specification
Detail
Part Number
HR9-TY004
Brand
Stinger
Vehicle
Toyota HiAce H300 Series 2019 Onwards
Compatible Head Unit
Pioneer DMH-AP6650BT (9-inch)
Head Unit Included
No
Fascia Type
9-inch flush fit panel
Vehicle Connectors
30-pin + 28-pin + 10-pin Toyota
Harness Type
Plug and play — factory to standard ISO
Antenna Adaptor
Yes — included
SWC Interface
Yes — included (retains factory audio controls)
SWC Memory Retention
Yes — retains memory if power is lost
SWC Outputs
Reverse Trigger
Reverse Camera Retention
Yes — reverse camera only
AUX/USB Retention
No
Colour
Black
Features & Benefits
Purpose-Built for HiAce H300 2019-Onwards Engineered specifically for the sixth-generation HiAce H300 dashboard — plug-and-play connection to the factory 30-pin, 28-pin, and 10-pin Toyota connectors without cutting or modification.
Reverse Camera Retention Included The factory HiAce H300 reverse camera is retained through the included retention interface — displaying the reversing image through the Pioneer DMH-AP6650BT when reverse gear is selected.
SWC Interface — Memory Retention After Power Loss Retains factory steering wheel audio control programming after battery disconnects or power loss — no reprogramming required.
Flush Fit Panel The 9-inch panel is flush fit to the HiAce H300 factory dashboard opening — the same flush result as the HR9-TY003 (RAV4) and HR9-VW001 (Golf MK6) bundles.
AUX/USB Not Included Unlike the HR9-TY003 (RAV4), this bundle does not include AUX/USB retention. If retaining factory USB or AUX inputs is required, source these separately.
Fleet and Commercial Application Ready Designed for the HiAce H300's commercial van context — the complete bundle minimises component sourcing complexity for fleet operators fitting multiple vehicles simultaneously.
Compatible With / Goes Well With
Vehicle compatibility:
Make
Model
Year Range
Chassis
Toyota
HiAce
2019 onwards
H300 Series
Head unit:
Pioneer DMH-AP6650BT (9-inch) — not included
Not included — sold separately:
Pioneer DMH-AP6650BT head unit
AUX/USB retention (not in bundle)
Frequently Asked Questions
Is the Pioneer DMH-AP6650BT included?
No — the HR9-TY004 is the installation hardware bundle only. The Pioneer DMH-AP6650BT head unit must be purchased separately.
Does the HR9-TY004 retain the factory reverse camera?
Yes — the reverse camera retention interface is included, allowing the factory HiAce H300 reverse camera to display through the Pioneer DMH-AP6650BT.
Does the HR9-TY004 include AUX/USB retention?
No — AUX/USB retention is not included in this bundle. If retaining factory USB or AUX inputs is required, these must be sourced separately.
Will the factory steering wheel controls work after installation?
Yes — the SWC interface retains factory steering wheel audio controls with the Pioneer DMH-AP6650BT and maintains programming even if power is lost.
What is the difference between the HR9-TY004 and the SF9-TY04?
The SF9-TY04 is the fascia panel only for the HiAce H300. The HR9-TY004 is a complete installation bundle that includes the fascia plus SWC interface, antenna adaptor, and reverse camera retention. Choose the HR9-TY004 for a more complete single-purchase solution, or the SF9-TY04 if only the fascia is needed.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Universal Double ISO Fascia and Mounting Kit Engineered for the Pioneer DMH-AP6650BT 9" Head Unit. Mounting Panel, Metal Brackets, Spacers, and Hardware Included. Head Unit Not Included.
Product Overview
The Stinger SF9-002 is a universal double ISO fascia and mounting kit engineered specifically for the Pioneer DMH-AP6650BT 9-inch floating-screen head unit. Where vehicle-specific trapezoid fascias (such as the SF9 range) are designed to integrate a head unit into a particular vehicle's factory dashboard opening, the SF9-002 addresses the mounting challenge at the head unit level providing the correct panel, metal brackets, spacers, and hardware to mount the Pioneer DMH-AP6650BT in a double ISO opening measuring 183mm × 113mm internally. The kit is universal rather than vehicle-specific, designed for use wherever a double ISO mounting solution is required for this Pioneer unit.
An important installation note: when using the SF9-002, the Pioneer DMH-AP6650BT head unit will sit forward of the factory dash panel rather than flush-mounted. This is inherent to the floating-screen design of the DMH-AP6650BT and the double ISO mounting approach buyers and installers should be aware of this before purchasing. The Pioneer DMH-AP6650BT head unit is not included the SF9-002 is the mounting and fascia hardware kit only.
Key Specifications
Part number: SF9-002
Brand: Stinger
Product type: Universal double ISO fascia and mounting kit
Compatible head unit: Pioneer DMH-AP6650BT (9-inch)
Opening dimensions: 183mm × 113mm (internal)
Includes: Mounting panel, metal brackets, spacers, hardware
Head unit: Not included
Installation note: Head unit will sit forward of the factory dash panel — not flush
What's in the Box
Mounting panel for 9-inch head unit
Metal brackets
Spacers
Hardware (screws/fasteners)
Features & Benefits
Engineered for Pioneer DMH-AP6650BT The SF9-002 is specifically designed around the mounting requirements of the Pioneer DMH-AP6650BT 9-inch floating-screen head unit — providing correct dimensional fit, bracket alignment, and hardware for a secure installation.
Double ISO Universal Mounting Universal double ISO format covers a broad range of vehicle applications where the factory dashboard opening accepts a double ISO head unit. Confirm the vehicle's existing or planned fascia opening dimensions match the SF9-002's 183mm × 113mm internal measurement before purchasing.
Complete Hardware Kit Mounting panel, metal brackets, spacers, and all necessary hardware are included — providing everything required to mount the head unit physically, without requiring additional mounting hardware purchases.
Forward-Mounting Profile — Important Note Due to the floating-screen design of the Pioneer DMH-AP6650BT and the double ISO mounting approach, the head unit screen will sit forward of the factory dash panel rather than flush. This is expected and by design, but buyers and installers should confirm this is acceptable for the specific installation before purchasing.
Technical Specs
Specification
Detail
Brand
Stinger
Part Number
SF9-002
Product Type
Double ISO Fascia and Mounting Kit
Compatible Head Unit
Pioneer DMH-AP6650BT (9-inch)
Opening Dimensions
183mm × 113mm (internal)
Includes
Mounting Panel, Metal Brackets, Spacers, Hardware
Head Unit Included
No
Installation Profile
Head unit sits forward of factory dash panel
Compatible With / Goes Well With
Head unit compatibility:
Pioneer DMH-AP6650BT (9-inch floating-screen)
Recommended accessories (sold separately):
Pioneer DMH-AP6650BT head unit
Vehicle-specific wiring harness
Antenna adaptor
Steering wheel control interface
Frequently Asked Questions
Will the head unit sit flush with the dashboard?
No — when using the SF9-002, the Pioneer DMH-AP6650BT will sit forward of the factory dash panel. This is inherent to the floating-screen design of the DMH-AP6650BT and the double ISO mounting approach. Confirm this is acceptable for the specific installation before purchasing.
Is the Pioneer DMH-AP6650BT head unit included?
No — the SF9-002 is the mounting and fascia hardware kit only. The Pioneer DMH-AP6650BT head unit must be purchased separately.
What is included in the SF9-002?
The SF9-002 includes a mounting panel for the 9-inch head unit, metal brackets, spacers, and all necessary hardware.
What opening dimensions does the SF9-002 require?
The SF9-002 is designed for a double ISO opening with internal measurements of 183mm × 113mm. Confirm the vehicle's existing or planned fascia opening matches these dimensions before purchasing.
Is the SF9-002 compatible with other 9-inch head units?
The SF9-002 is specifically engineered for the Pioneer DMH-AP6650BT. Compatibility with other head unit models is not confirmed — verify with Stinger before purchasing for use with a different head unit.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Stinger HRNI002 Plug & Play Radio Replacement Kit for Nissan Navara ST/STX/STL
Upgrade your Navara's head unit without losing steering wheel controls, factory amplifier, reverse camera, or USB all retained out of the box.
Product Overview
The Stinger HRNI002 is a vehicle-specific radio replacement kit built for the Nissan Navara D23 NP300 (2015–2019) in ST, STX, and STL trim levels. It connects your new aftermarket head unit directly to factory wiring via a plug-and-play ISO harness no cutting, no splicing required.
The HRNI002 goes beyond a basic dash kit by including a CAN-BUS steering wheel control adaptor (pre-programmed), factory amplifier retention, reverse camera activation interface, and factory USB retention covering all the key factory features in one complete package.
Please note: After installation of an aftermarket head unit, the clock cannot be adjusted via the instrument cluster. The factory 360-degree reverse camera (if fitted) cannot be retained with this kit a standard reverse camera feed only.
Features & Benefits
Pre-programmed steering wheel control retention via CAN-BUS adaptor
Retains factory amplifier
Provides factory reverse camera activation — interface included
Factory USB retention included
Plug & play — factory connector to standard ISO connector
Antenna adaptor included
Uses factory mounting brackets — no additional brackets required
Black finish
Suitable for ST, STX, and STL trim levels only
Technical Specs
Specification
Detail
SKU / Part Number
HRNI002
Brand
Stinger
Colour / Finish
Black
Plug & Play
Yes — Factory Connector to Standard ISO Connector
Steering Wheel Control Retention
Yes (Pre-programmed, CAN-BUS)
Factory Amplifier Retention
Yes
Reverse Camera Retention
Yes — Interface included
360-Degree Reverse Camera Retention
No — Not compatible
USB Retention
Yes — USB only
AUX Retention
No
Antenna Adaptor Included
Yes
Mounting Brackets Included
No — Uses factory brackets
Clock Adjustment via Cluster
Not available after aftermarket head unit installation
What's in the Box
2DIN Radio Panel, Steering Wheel Audio Buttons & CAN-BUS Adaptor, Antenna Adaptor, Factory Reverse Camera Retention, Factory USB Retention
Compatible With / Goes Well With
Direct Vehicle Fit:
Nissan Navara 2015–2019 (D23 / NP300) — ST, STX, STL models only
Goes Well With:
Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC)
Aftermarket reverse camera (if upgrading from factory camera)
Frequently Asked Questions
Is this kit compatible with all Nissan Navara NP300 variants?
No. The HRNI002 is designed specifically for the Nissan Navara D23 NP300 in ST, STX, and STL trim levels (2015–2019). It is not confirmed for other variants — check your trim level before purchasing.
Will my factory reverse camera still work after installation?
Yes, standard factory reverse camera activation is retained via the included interface. However, if your vehicle is fitted with a factory 360-degree reverse camera system, this cannot be retained with the HRNI002.
Does this kit retain the factory amplifier?
Yes. The HRNI002 includes factory amplifier retention, so your factory audio system output will continue to function correctly with your new aftermarket head unit.
Can I still adjust the clock in the instrument cluster after installation?
No. Once an aftermarket head unit is installed using the HRNI002, the clock can no longer be adjusted via the instrument cluster. This is a known limitation and applies to all compatible Navara models.
Is USB retention included, and what about AUX?
USB retention is included with the HRNI002 via the factory USB retention module in the box. AUX retention is not included — an additional product would be required if AUX connectivity is needed.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
