OEX ACX2086/5 60A Type 3 Manual Reset Mini Surface Mount Circuit Breaker IP66 32V DC SAE and UL Compliant Box of 5 The OEX ACX2086/5 is a 60A Type 3 manual reset circuit breaker in compact mini surface mount format, supplied in a box of 5. Switchable for use as an isolation switch, rated IP66 for water jet and dust protection, and compliant with SAE J553, J1171 and UL1500 (ignition protected) standards — a safety-critical specification for marine, automotive and commercial electrical installations. Compact 58.2x35.7x34.7mm UL 94V-0 thermal plastic housing rated from -40°C to 85°C. #10-32 threaded studs accept 6mm or 1/4" ring terminals. Protective stud insulators included. Covered by a one year warranty. Product overview The ACX2086/5 addresses a specific installation requirement — compact manual reset circuit protection with ignition protection certification for marine and fuel-adjacent environments. The UL1500 and SAE J1171 ignition protection compliance means the breaker is constructed to prevent it from igniting flammable vapours in its surrounding environment, a mandatory or strongly recommended specification for marine engine compartments and fuel storage areas where petrol vapours may be present. The compact 58.2x35.7x34.7mm mini surface mount format suits installations where space is limited and a full-size manual reset breaker would not fit. The Type 3 switchable design allows the breaker to function as both a manual reset circuit breaker and a manual isolation switch. IP66 provides full dust exclusion and protection against powerful water jets from any direction — appropriate for marine surface mount applications where IP66 is the relevant standard rather than IP67's submersion rating. The #10-32 threaded studs accept 6mm or 1/4" ring terminals with protective stud insulators included. The box of 5 suits workshops and installers running multiple marine or automotive circuit protection jobs. Features and benefits 60A rating: High-current circuit protection suited to marine main power feeds, dual battery main feeds, automotive and 4WD supply protection and commercial vehicle auxiliary circuits. Type 3 manual reset (switchable): Manually reset after tripping. Also functions as a manual isolation switch Type 3 classification. Compact mini surface mount format 58.2x35.7x34.7mm: Suited to space-limited installations where a full-size manual reset breaker would not fit. IP66 rated: Fully sealed against dust and protected against powerful water jets from any direction the relevant standard for marine surface mount applications. 32V DC rated: Suits 12V and 24V DC electrical systems. SAE J553, J1171 and UL1500 compliant ignition protected: Certified construction that prevents the breaker from igniting flammable vapours, required or strongly recommended for marine engine compartments and fuel storage areas. UL 94V-0 thermal plastic housing: Flame retardant housing material for additional safety in demanding environments. #10-32 threaded studs: Accepts 6mm or 1/4" ring terminals. Protective stud insulators included. Operating temperature -40°C to 85°C: Suited to extreme environment installations including engine bays and outdoor marine applications. Box of 5: Workshop-friendly multi-pack for multiple installations. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX2086/5 Brand OEX Type Mini Circuit Breaker Breaker Type Type 3, Manual Reset (Switchable) Current Rating 60A Voltage Rating 32V DC IP Rating IP66 Terminal Studs #10-32 threaded Terminal and Lug Size 6mm or 1/4" Housing Material Thermal plastic UL 94V-0 Dimensions 58.2mm (H) x 35.7mm (W) x 34.7mm (D) Operating Temperature -40°C to 85°C Compliance SAE J553, SAE J1171, UL1500 (Ignition Protected) Accessories Included Protective stud insulators Pack Quantity 5 Warranty One year Sold As Box of 5 Frequently asked questions What does ignition protected (UL1500) mean? Ignition protection, as defined by UL1500 and SAE J1171, means the circuit breaker is constructed to prevent it from igniting flammable vapours in its surrounding environment. This is a mandatory or strongly recommended specification for marine electrical installations particularly in engine compartments and fuel storage areas where petrol vapours may be present. What is the difference between IP66 and IP67? Both ratings provide full dust protection. IP66 is rated against powerful water jets from any direction. IP67 is rated for temporary submersion. For marine surface mount applications, IP66 is the relevant standard the breaker is designed for surface mounting, not submersion. What terminal size does this breaker use? The breaker uses #10-32 threaded studs. Compatible ring terminals and cable lugs should have a 6mm or 1/4" hole. Select terminals sized for your cable gauge with this hole size. How does this differ from the ACX1847 and ACX1848? The ACX2086/5 is a compact mini surface mount format (58.2x35.7x34.7mm), rated at 32V DC with SAE and UL marine compliance certification. The ACX1847 (150A) and ACX1848 (200A) are larger heavy-duty breakers rated to 72VDC with 9.5mm studs and no marine ignition protection certification. Select the ACX2086/5 for marine and compact installations up to 60A, and the ACX1847 or ACX1848 for larger gauge, higher current or higher voltage applications. Is this available as a single unit or in other amp ratings? Yes. Single units are available in 10A, 15A, 20A, 30A, 40A, 50A and 60A. Box of 5 packs are available in 40A, 50A and 60A. Contact us for the correct rating and pack size for your application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX1967BL 50A Momentary Push Button Switch 12V and 24V SPST 16mm Panel Mount Waterproof Rubber Boot The OEX ACX1967BL is a non-illuminated momentary push button switch rated at 50A, designed for 12V and 24V automotive, 4WD, caravan and commercial vehicle applications. When pressed it completes a circuit momentarily and returns to open when released, making it ideal for triggering horns, solenoids, air lockers, compressors and other momentary-action accessories. SPST configuration with two terminals, 16mm mounting hole and a waterproof rubber boot included. Covered by a one year warranty. Product overview A momentary switch completes the circuit only while the button is held down and returns to the open state when released unlike a toggle or rocker switch which latches in the on position. This behaviour is required for horns, solenoids, air locker triggers, compressor activation circuits, starter circuit override points and CB/UHF radio PTT wiring where a brief, controlled pulse of current is needed rather than a sustained connection. At 50A the ACX1967BL handles high-draw momentary loads without overheating or voltage drop. The dual 12V and 24V voltage rating covers both light vehicles and heavy commercial vehicles including trucks, buses and 24V caravan and auxiliary setups. The waterproof rubber boot protects the switch body from moisture, dust and mud ingress for underbonnet, exterior panel and exposed dash installations. The 16mm mounting hole suits the majority of standard aftermarket switch panels, dash inserts and auxiliary control enclosures without custom modification. Features and benefits 50A current rating: Handles high-draw momentary loads including solenoids, horns, air lockers and starter circuit override points without overheating or voltage drop. Momentary On action: Circuit closes only while the button is held down and returns to open when released. Not suited to sustained-load or latching applications. 12V and 24V dual-voltage rated: Compatible with light vehicles and heavy commercial vehicles including trucks, buses and 24V caravan and off-road setups. Waterproof rubber boot included: Protects the switch body from moisture, dust and mud ingress for underbonnet, exterior panel and exposed dash installations. 16mm mounting hole: A widely used panel cutout size that suits most standard aftermarket switch panels, dash inserts and auxiliary control enclosures without custom drilling. SPST configuration 2 terminals: Simple single-circuit design with one input and one output. Connect the power feed to one terminal and the load to the other. Non-illuminated: No LED illumination compact and low-profile for integration into tight spaces. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX1967BL Brand OEX Switch Type Push Button Switch Action Off, Momentary On Circuit Configuration SPST Poles 1 Positions 1 Terminals 2 Current Rating 50A Voltage 12V and 24V Mounting Hole 16mm diameter Illumination Non-illuminated Waterproofing Rubber boot included Pack Quantity 1 Warranty One year Sold As Single unit Frequently asked questions What is a momentary switch and how does it differ from a standard toggle? A momentary switch only completes the circuit while the button is held down and returns to the open state when released. A standard toggle or rocker switch latches in the on position until manually switched off. The ACX1967BL is momentary only and will not hold the circuit open when released. Will this switch work on both 12V and 24V systems? Yes. The ACX1967BL is dual-voltage rated at 12V and 24V, making it compatible with light vehicles, heavy-duty trucks, buses and 24V caravan and auxiliary setups. What size hole do I need to mount this switch? A 16mm diameter panel cutout is required. This is a common size in aftermarket switch panels, dash inserts and auxiliary control enclosures and should not require custom drilling in most setups. Is this switch weatherproof? Yes. The switch includes a waterproof rubber boot that provides moisture and dust protection, making it suitable for underbonnet, exterior panel and exposed dash installations. What does SPST mean and how do I wire this switch? SPST stands for Single Pole Single Throw one input terminal and one output terminal. Connect the power feed to one terminal and the load (horn, solenoid, relay or other accessory) to the other. No complex wiring is required. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Professional-grade sealed rocker switch engineered for reliable automotive and marine 12V DC applications. The Narva 63100BL is a sealed SPST rocker switch designed for demanding automotive, marine, and off-road electrical systems. Rated at 20A @ 12V (10A @ 24V), this single-pole, single-throw switch delivers dependable on/off control for auxiliary lighting, accessories, and electrical circuits. The sealed construction protects internal contacts from moisture, dust, and vibration, making it ideal for harsh Australian conditions—from dusty outback tracks to coastal marine environments. With a compact 37.5mm x 21mm mounting footprint and push-on terminals for quick installation, the 63100BL suits workshop builds, 4WD fitouts, caravan upgrades, and trailer electrical systems. The non-illuminated black rocker maintains a clean, professional appearance on switch panels and dashboards. Key Specifications Contact rating: 20A @ 12V DC, 10A @ 24V DC Switch configuration: SPST (Single Pole, Single Throw) Switch action: Off/On (2 positions) Mounting dimensions: 37.5mm x 21mm panel cutout required Terminal type: Push-on spade connectors (2 terminals) Construction: Sealed rocker design for moisture and dust resistance Weight: 0.04 kg Switch illumination: Non-illuminated Colour: Black Warranty: 1 year manufacturer warranty Features & Benefits Sealed Construction for Harsh EnvironmentsThe sealed rocker design protects internal contacts from moisture ingress, dust, and vibration. Perfect for under-bonnet applications, exposed switch panels on bull bars, or marine installations where spray and humidity are constant challenges. 20A Current CapacityHandles substantial electrical loads including LED light bars, driving lights, winches, pumps, and cooling fans. The generous 20A @ 12V rating (10A @ 24V) provides headroom for demanding accessories without risk of contact overheating or failure. Quick Push-On TerminalsStandard push-on spade terminals allow fast, tool-free wire connections during installation. Ideal for workshop efficiency and field repairs where crimped spade connectors are the automotive standard. Compact Panel MountingThe 37.5mm x 21mm mounting aperture suits most aftermarket switch panels, dash blanks, and custom console builds. Compact footprint maximizes available panel space for multi-switch arrays in 4WDs, caravans, and work vehicles. Professional Non-Illuminated DesignBlack rocker provides a clean, understated appearance suitable for OEM-style integrations and professional fitouts. Non-illuminated design eliminates unwanted dashboard glow during night driving. Technical Specs Part Number: 63100BL Brand: Narva Switch Type: Rocker, sealed Poles: 1 (SPST) Positions: 2 (Off/On) Contact Rating: 20A @ 12V DC, 10A @ 24V DC Terminal Count: 2 Terminal Style: Push-on spade Mounting Cutout: 37.5mm x 21mm Illumination: None (non-illuminated) Lamp Colour: Not applicable Weight: 0.04 kg (40 grams) Warranty Period: 1 year Frequently Asked Questions What size hole do I need to cut for installation? You'll need a rectangular panel cutout measuring 37.5mm x 21mm. Use a stepped drill or router for clean edges in plastic or metal panels. Can this switch handle a 15A light bar on 12V? Yes, the 20A @ 12V rating provides adequate capacity for a 15A load with safe operational headroom. Always use appropriately rated fuse protection. Is this switch waterproof for marine use? The sealed construction resists moisture and dust ingress, suitable for splash-prone areas. For full submersion or constant spray, consider additional panel sealing with gaskets. What wire terminal size fits the push-on connectors? Standard 6.3mm (1/4 inch) push-on spade terminals are compatible. Use insulated or non-insulated crimp terminals rated for 20A current. Does the switch illuminate when turned on? No, the 63100BL is non-illuminated. For backlit switches with LED indication, refer to Narva's illuminated rocker switch range. Compatible With / Goes Well With Typical Applications: Auxiliary driving lights and light bars (12V/24V systems) Electric winches and recovery equipment Caravan interior lighting circuits Marine bilge pumps and navigation lights 4WD accessory circuits (spotlights, beacons, UHF radios) Workshop and trailer electrical systems Cooling fans and air compressors Pairs Well With: Automotive blade fuse holders (20A or 25A fuses) 6.3mm crimp-on spade terminals (insulated or non-insulated) Switch panel blanking plates and custom fascias 14–16 AWG automotive cable for 20A circuits Narva relay harnesses for high-current accessories Note: Always install appropriate fuse protection rated at or below 20A for 12V circuits. Verify terminal crimps are secure and heat-shrink protected in exposed locations. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

Install 4 Aftermarket Switches in A Nice Stylish Panel. GMF stainless switch panel insert for NextGen Ranger XLT and Sport 10" touch screen. (Does NOT fit XL, XLS) that will be a different panel, coming soon. Dont know where to install your switches? Our quick "Clip in" switch panel allows you to install 4 aftermarket switches (Toyota style) and remount your factory USB socket in a nice stylish panel. Our panel is powder coated black. Install takes only 5min. If you have a 12" touch screen (Raptor, Everest or Wildtrak), please see our seperate listing.   Legendary Product & Support from Authorized Dealers You've decided to buy GMF4x4. That means quality and performance are important to you, so who you buy your new GMF4x4 gear from is just as important. Here are a few reasons to purchase from an authorized dealer and here is why. Proper Training: Only authorized GMF4x4 dealers are factory trained to sell and install our products. They know our products and your vehicle to ensure that your new purchase exceeds your expectations! Authorized Warranty: GMF4x4 provides one of the best warranties in the business. Only customers purchasing through authorized dealers receive this comprehensive company warranty. Don't be fooled by others who promise a full warranty, because it's simply not true. Support: If you have an issue, you are covered by GMF4x4 Australia’s manufacturer's warranty and all you need to do is send it back in direct to get any warranty issues sorted, not post it back overseas. It's all done right here. Protect Your Investment: Protect yourself and your investment by making sure you buy your GM Fabrikations product from us, an online dealer who is part of the GMF4x4 family. Ask yourself, is it worth saving a few dollars to not be covered?!

Read more less

OEX ACX3882BL 25A Three-Position On/Off/On DPDT Toggle Switch 12V 12mm Mount 6 Blade Terminals The OEX ACX3882BL is a 25A three-position On/Off/On DPDT (Double Pole Double Throw) toggle switch rated at 12V, with six blade terminals and a 12mm mounting diameter. The DPDT configuration switches two independent poles simultaneously each pole has its own common and can be directed to one of two outputs depending on the switch position. Three positions provide two distinct active states plus a centre Off, making it suited to polarity-reversing circuits, source-selection applications and dual-circuit control. Toggle lever action flips between positions and holds with clear physical feedback. 12mm mounting hole, 3mm mount length. Non-illuminated. Covered by a one year warranty. Product overview A DPDT switch controls two independent switching poles at the same time. Each pole has its own common terminal and two output terminals one for each of the two On positions. When the switch moves to position 1, both poles simultaneously connect their commons to their position-1 outputs. When moved to position 2, both poles switch to their position-2 outputs. The centre Off disconnects both poles simultaneously. The switch holds in all three positions and does not spring-return to centre. This three-position DPDT configuration is most commonly used for polarity reversing circuits where position 1 sends current through a motor or actuator in one direction and position 2 reverses the polarity to run in the opposite direction, with the centre Off stopping the motor. It is also suited to selecting between two power sources or two output circuits from a single switch, and any application requiring both poles to be managed together. At 25A and 12V the toggle has the current capacity for direct accessory switching as well as relay triggering. The 12mm mounting hole suits the same standard round panel holes as the OEX rocker and push button switch range. Features and benefits DPDT On/Off/On configuration: Switches two independent poles simultaneously. Three positions provide two distinct active states plus a centre Off. Holds in all three positions. Polarity reversing and dual-circuit control: Position 1 connects both poles to one set of outputs; position 2 connects both poles to the other set. Centre Off disconnects both. Suited to reversible motor control, source selection and dual-circuit switching. 25A at 12V: High current capacity for direct accessory switching and relay triggering in demanding circuits. 6 blade terminals: Two common terminals plus two outputs for each switch position — full DPDT wiring. Toggle lever action: Flips between positions and holds. Clear physical feedback of selected state. Non-illuminated: Clean, functional switch without LED indicator. 12mm mounting diameter: Standard round hole compatible with OEX rocker and push button switch range. 3mm mount length: Compact panel depth requirement. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX3882BL Brand OEX Switch Type Toggle Switch Action On/Off/On (DPDT) Poles 2 Positions 3 Current Rating 25A at 12V Voltage 12V Illumination Non-illuminated Terminals 6x Blade Mount Diameter 12mm Mount Length 3mm Pack Quantity 1 Weight 0.02kg Warranty One year Sold As Single unit Frequently asked questions What does DPDT mean? DPDT stands for Double Pole Double Throw. The switch simultaneously controls two independent switching poles, each of which can be directed to one of two output positions. There are two common terminals one per pole and two sets of output terminals. When the switch moves to either On position, both poles simultaneously connect to their corresponding outputs for that position. What are the three positions on this switch? The three positions are On (position 1), Off (centre) and On (position 2). In position 1, both poles connect to their position-1 outputs. In centre Off, both poles are disconnected. In position 2, both poles connect to their position-2 outputs. The switch holds in all three positions and does not spring-return to centre. What applications is a three-position DPDT switch suited to? This configuration is commonly used for polarity reversing circuits where one On position sends current in one direction through a motor or actuator and the other On position reverses polarity to run in the opposite direction. It is also suited to selecting between two power sources or two output circuits from a single switch, and any application where two poles need to be managed together. How does a toggle switch differ from a rocker switch? A rocker switch has a flat rectangular body that rocks side to side the end pressed down is the active side. A toggle switch has a lever that flips between positions and holds. Both can have the same electrical configurations, but the toggle lever provides a distinctive look and clear tactile feedback of the selected position commonly associated with aviation, industrial and custom vehicle panel aesthetics. What mounting hole does this switch require? The ACX3882BL requires a 12mm round mounting hole with a 3mm mount length the same standard 12mm hole used by the OEX rocker and push button switches in this range. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX3692BL 12V 5A IP65 Illuminated Latching Push Button Switch Blue LED Chrome Housing NO and NC Terminals 19mm Mount The OEX ACX3692BL is a 12V, 5A illuminated latching push button switch in an SPST On/Off configuration, with a blue LED indicator and IP65 weatherproof rating. The push-on/push-off latching action toggles the circuit between On and Off states with each press, staying in the selected position until pressed again. Identical in specification to the red ACX3690BL differing only in blue LED illumination it offers an alternative colour option for panels with a blue theme or where different LED colours distinguish switch functions. Chrome plated housing, three blade terminals (common, NO and NC), 19mm mounting hole, 12mm mount length. Covered by a one year warranty. Product overview The ACX3692BL shares every specification with the ACX3690BL 5A at 12V, IP65, chrome plated housing, three blade terminals, 19mm mount hole and 12mm mount length. The only difference is LED colour: red on the ACX3690BL, blue on the ACX3692BL. The blue LED suits panels built around a blue illumination theme, or installations where different colours are used to distinguish switch functions for example, blue for auxiliary circuits and red for warning or power circuits. The latching action means the switch holds its position after being pressed, unlike a momentary switch which only activates while held. The three-terminal configuration provides wiring flexibility: wire between common and NO for standard normally open accessory switching, or between common and NC for a normally closed circuit application. At 5A it handles low-current loads and relay trigger inputs directly. For loads exceeding 5A, the switch should trigger a relay. Features and benefits Latching push On/push Off: Press to toggle between On and Off. Switch holds position without being held down. Not a momentary switch. Blue LED illuminated: Glows when the switch is in the On position. Blue colour for panel theme coordination or function differentiation. IP65 rated: Fully sealed against dust and protected against water jets from any direction. Suited to external mounting and exposed panel locations. Chrome plated housing: Premium finish for custom panels and marine consoles. 3x blade terminals common, NO and NC: Wire between common and NO for standard normally open switching. Wire between common and NC for a normally closed circuit. Full wiring flexibility for both accessory and control circuit applications. 19mm mounting hole: Standard diameter for illuminated push button switches. 12mm mount length: Suits standard panel thicknesses. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX3692BL Brand OEX Switch Type Push Button (Latching) Switch Action On/Off (SPST) Poles 1 Positions 2 Current Rating 5A at 12V Voltage 12V Illumination Blue LED IP Rating IP65 Housing Chrome plated Terminals 3x Blade (Common, NO, NC) Mount Diameter 19mm Mount Length 12mm Pack Quantity 1 Weight 0.02kg Warranty One year Sold As Single unit Frequently asked questions Is this a momentary or latching switch? The ACX3692BL is a latching (push On/push Off) switch pressing it toggles the circuit between On and Off states and the switch holds its position until pressed again. It is not a momentary switch; the circuit remains active after the button is released. What are the three terminals for? The three blade terminals are common, normally open (NO) and normally closed (NC). Wire between common and NO for a circuit that is open at rest and closes when the switch is activated standard accessory switching. Wire between common and NC for a circuit that is closed at rest and opens when the switch is activated used in alarm, interlock and control circuit applications. How does the ACX3692BL differ from the ACX3690BL? The ACX3692BL and ACX3690BL are identical in all specifications 5A, 12V, IP65, chrome plated, 3 terminals, 19mm mount, 12mm length. The only difference is LED colour: the ACX3690BL has a red LED and the ACX3692BL has a blue LED. Select based on your panel's colour scheme or function coding convention. What does IP65 mean for this switch? IP65 means the switch is fully protected against dust ingress (6) and against water jets from any direction (5). This makes it suitable for panel locations exposed to rain, splash and wash-down including external vehicle panels, marine consoles and outdoor equipment enclosures. What is the maximum load this switch can handle directly? This switch is rated at 5A at 12V. For loads exceeding 5A, use the switch to trigger a relay rather than wiring the load directly through the switch contacts. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

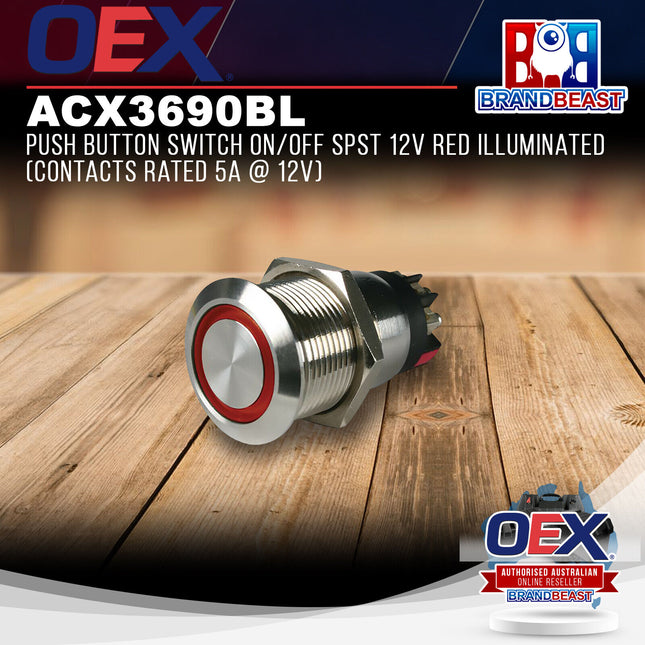

OEX ACX3690BL 12V 5A IP65 Illuminated Latching Push Button Switch Red LED Chrome Housing NO and NC Terminals 19mm Mount The OEX ACX3690BL is a 12V, 5A illuminated latching push button switch in an SPST On/Off configuration, with a red LED indicator and IP65 weatherproof rating. The push-on/push-off latching action toggles the circuit between On and Off states with each press, staying in the selected position until pressed again. Chrome plated housing for a premium appearance suited to custom dash panels, marine consoles and accessory installations where aesthetics matter alongside function. Three blade terminals common, normally open (NO) and normally closed (NC) provide wiring flexibility for both standard and normally closed circuit configurations. 19mm mounting hole, 12mm mount length. Covered by a one year warranty. Product overview The ACX3690BL is a latching switch the circuit stays active after the button is released and remains in the selected state until pressed again. This is the correct choice for circuits that need to stay on without holding the button, as opposed to a momentary switch which only activates while held. The three-terminal configuration provides wiring flexibility. The normally open (NO) terminal creates a circuit that is open at rest and closes when the switch is activated the standard configuration for accessory switching. The normally closed (NC) terminal creates a circuit that is closed at rest and opens when the switch is activated used in alarm, interlock and control circuit applications. This flexibility, combined with the IP65 weatherproofing and chrome housing, makes the ACX3690BL suited to both functional control circuit roles and aesthetically conscious panel builds. At 5A it handles low-current loads and relay trigger inputs directly. For loads exceeding 5A, the switch should trigger a relay. Features and benefits Latching push On/push Off: Press to toggle between On and Off. Switch holds position without being held down. Not a momentary switch. Red LED illuminated: Glows when the switch is in the On position for clear status indication. IP65 rated: Fully sealed against dust and protected against water jets from any direction. Suited to external mounting and exposed panel locations. Chrome plated housing: Premium finish for custom panels and marine consoles. 3x blade terminals common, NO and NC: Wire between common and NO for a standard normally open circuit. Wire between common and NC for a normally closed circuit. Suited to both accessory switching and relay trigger inputs. 19mm mounting hole: Standard diameter for illuminated push button switches. 12mm mount length: Suits standard panel thicknesses. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX3690BL Brand OEX Switch Type Push Button (Latching) Switch Action On/Off (SPST) Poles 1 Positions 2 Current Rating 5A at 12V Voltage 12V Illumination Red LED IP Rating IP65 Housing Chrome plated Terminals 3x Blade (Common, NO, NC) Mount Diameter 19mm Mount Length 12mm Pack Quantity 1 Weight 0.02kg Warranty One year Sold As Single unit Frequently asked questions Is this a momentary or latching switch? The ACX3690BL is a latching (push On/push Off) switch pressing it toggles the circuit between On and Off states and the switch holds its position until pressed again. It is not a momentary switch; the circuit remains active after the button is released. What are the three terminals for? The three blade terminals are common, normally open (NO) and normally closed (NC). Wire between common and NO for a circuit that is open at rest and closes when the switch is activated standard accessory switching. Wire between common and NC for a circuit that is closed at rest and opens when the switch is activated used in alarm, interlock and control applications where a closed circuit is the normal state. What does IP65 mean for this switch? IP65 means the switch is fully protected against dust ingress (6) and against water jets from any direction (5). This makes it suitable for panel locations exposed to rain, splash and wash-down including external vehicle panels, marine consoles and outdoor equipment enclosures. What mounting hole does this switch require? The ACX3690BL requires a 19mm round mounting hole with sufficient depth for the 12mm mount length. Confirm both the hole diameter and panel thickness before installation. What is the maximum load this switch can handle directly? This switch is rated at 5A at 12V. For loads exceeding 5A, use the switch to trigger a relay rather than wiring the load directly through the switch contacts. The NO and NC terminal options make it well suited as a relay trigger input. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX3609BL 20A Momentary Push Button Switch Off/Momentary On SPST 12V 22mm Mount Water Resistant Bronze Contacts The OEX ACX3609BL is a 20A momentary push button switch in an Off/Momentary On SPST configuration, rated at 12V with a 22mm mounting stem. Unlike a latching switch that stays in position when pressed, a momentary switch is only active while the button is depressed the spring return mechanism automatically restores the Off position the moment it is released. Suited to horn circuits, starter buttons, door release solenoids, relay trigger circuits and momentary accessory activations. Water resistant, bronze contacts, two screw terminals. Fits panels up to 6.35mm thick. Covered by a one year warranty. Product overview A momentary switch produces a brief trigger pulse rather than a sustained on/off state the circuit closes when the button is pressed and opens the instant it is released. This makes the ACX3609BL the correct choice for any application requiring a momentary signal: vehicle horns, engine start buttons, door and gate release solenoids, relay and solenoid coil triggers and light flash circuits. At 20A it can directly switch many loads as well as trigger relay coils for higher-current applications. The 22mm metric thread mounting stem fits panels up to 6.35mm thick with a 22mm diameter hole. The water resistant construction suits outdoor, underbonnet and exposed mounting positions. Bronze contacts provide reliable electrical performance across repeated momentary switching cycles. Two screw terminals allow direct wire connection without crimped connectors. The compact form factor and standard 22mm mount are compatible with a wide range of aftermarket switch panels, consoles and custom fabricated mountings. Features and benefits Momentary On action: Circuit is active only while the button is depressed. Spring return automatically restores Off when released. Not a latching switch. 20A at 12V: Sufficient for direct switching of horns, solenoid coils, relay trigger circuits and moderate accessory loads. Use with a relay for loads exceeding 20A. Water resistant: Suited to outdoor, underbonnet and exposed mounting positions. Bronze contacts: Reliable contact material for repeated momentary switching cycles. 2 screw terminals: Direct wire connection without requiring crimped terminals. 22mm mounting stem with metric thread: Standard panel mount diameter. Fits panels up to 6.35mm thick. Requires 22mm diameter hole. Non-illuminated: Straightforward operation without LED indicator. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX3609BL Brand OEX Switch Type Push Button Switch Action Off/Momentary On (SPST) Poles 1 Positions 2 Current Rating 20A at 12V Contacts Bronze Terminals 2x Screw Mount Diameter 22mm Mount Thread 22mm metric Thread Length 6.95mm Maximum Panel Thickness 6.35mm Mount Length 6mm Water Resistant Yes Illumination Non-illuminated Pack Quantity 1 Weight 0.03kg Warranty One year Sold As Single unit Frequently asked questions What is a momentary switch? A momentary switch is only active while it is being physically held in the pressed position. When released, the internal spring returns the button to the Off position and the circuit opens. This differs from a latching switch, which stays in the On position after being pressed. Momentary switches are used wherever a brief trigger pulse is needed rather than a sustained on/off state. What applications is this switch suited to? The ACX3609BL suits any application requiring a momentary trigger: vehicle horns, engine start buttons, door and gate release solenoids, relay trigger circuits, light flash triggers and momentary accessory activation. At 20A it can directly switch many loads as well as trigger relay coils for higher-current applications. What panel thickness does this switch suit? The 22mm metric thread mounting stem is 6.95mm long, fitting panels up to 6.35mm thick. For thicker panels, confirm the stem length is sufficient before purchasing. Can this switch be used for high-current switching? At 20A this switch handles moderate loads directly. For loads exceeding 20A, use the switch as a trigger for a relay or solenoid such as the OEX ACX3322 rather than wiring the main load directly through the switch contacts. Is this switch waterproof or water resistant? The ACX3609BL is water resistant, providing protection against splashing and moisture exposure but not full submersion. For applications requiring a specified IP rating such as IP65 or IP67, a switch with a confirmed weatherproofing rating should be selected. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX3438 IP65 Emergency Stop Switch 40mm Mushroom Head Latching Turn-to-Release NC and NO Contacts 3A 12V and 24V The OEX ACX3438 is a 40mm mushroom head emergency stop switch with a latching push button and turn-to-release mechanism, rated at 3A at 12V or 24V. Designed for safety-critical circuit interruption, it provides a clearly visible, easily activated stop function for automotive, marine, caravan and industrial control applications. Once pressed the switch latches in the off state and remains there until deliberately released by rotating the head. Provides both a normally closed (NC) and normally open (NO) contact. IP65 weatherproof enclosure. 69x86mm. Internal or external mount. Covered by a one year warranty. Product overview An emergency stop switch (E-stop) is a safety device designed to interrupt a circuit immediately when activated. The large 40mm mushroom head is highly visible and easy to activate quickly under stress. The latching mechanism means the switch stays in the activated (off) state after being pressed and will not reset automatically the mushroom head must be physically rotated to release the latch before the circuit can be restored, preventing accidental re-energisation after an emergency stop event. The ACX3438 provides two contacts: a normally closed (NC) contact that is connected at rest and opens when the button is pressed, and a normally open (NO) contact that is disconnected at rest and closes when the button is pressed. The NC contact is used to directly break a control circuit on activation. The NO contact is used to signal a controller, relay or alarm. At 3A the ACX3438 is rated for control circuit switching only — it should trigger a relay, contactor or solenoid such as the OEX ACX3322 rather than directly switching a high-current main power load. The IP65 enclosure provides full dust protection and water jet resistance for external and exposed mounting locations. Features and benefits 40mm mushroom head latching push button: Large, highly visible actuator that is easy to activate under stress. Latches in the depressed position on activation. Turn-to-release mechanism: The switch remains latched until the mushroom head is physically rotated to release, preventing accidental re-energisation after an emergency stop event. 1 normally closed (NC) contact: Circuit is closed at rest and opens when the button is pressed. Standard wiring for direct control circuit interruption. 1 normally open (NO) contact: Circuit is open at rest and closes when the button is pressed. Used to signal a controller, relay or alarm on activation. IP65 weatherproof enclosure: Fully sealed against dust and protected against water jets from any direction. Suited to external and exposed mounting locations. 12V and 24V compatible: Suits both passenger vehicle and commercial vehicle systems. 3A rating control circuit switching only: Designed to trigger a relay, contactor or solenoid rather than directly switching a high-current main power load. Pair with the OEX ACX3322 solenoid or a suitable relay for main power interruption. Internal or external mount: Flexible installation for dash panels, control boxes, bulkheads and external equipment enclosures. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX3438 Brand OEX Type Emergency Stop Switch Switch Action On/Off, Off/On (Latching) Actuator 40mm mushroom head Activation Push to latch Release Turn to release Contacts 1x Normally Closed (NC), 1x Normally Open (NO) Current Rating 3A Voltage 12V and 24V IP Rating IP65 Mount Options Internal or external Dimensions 69mm x 86mm Illumination Non-illuminated Pack Quantity 1 Weight 0.3kg Warranty One year Sold As Single unit Frequently asked questions What is an emergency stop switch? An emergency stop switch (E-stop) is a safety device designed to interrupt a circuit immediately when activated. The large mushroom head design makes it highly visible and easy to hit quickly in an emergency. The latching mechanism means it stays in the activated (off) state after being pressed the switch must be deliberately rotated to release before the circuit can be restored. What does "turn to release" mean? After the mushroom head is pressed and latches, the switch will not reset automatically. To release the latch and restore the circuit, the mushroom head must be physically rotated (typically clockwise) until it clicks back to the normal position. This deliberate action prevents accidental re-energisation after an emergency stop event. What is the difference between the normally closed and normally open contacts? The normally closed (NC) contact is connected at rest and opens when the button is pressed wiring the circuit through the NC contact will break it immediately on activation. The normally open (NO) contact is disconnected at rest and closes when the button is pressed this is used to signal a controller, relay or alarm on activation. The ACX3438 provides both contacts for flexible integration into control systems. Can this switch directly interrupt a main battery circuit? No. At 3A, this switch is rated for control circuit switching only. It should trigger a relay, contactor or solenoid rather than directly switching the main power load. For main power interruption, pair this switch with a relay or solenoid such as the OEX ACX3322. Is this switch weatherproof? Yes. The IP65 rating confirms full dust protection and resistance to water jets from any direction, making it suitable for external mounting and exposed installation locations including vehicle exteriors, boat applications and equipment enclosures. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

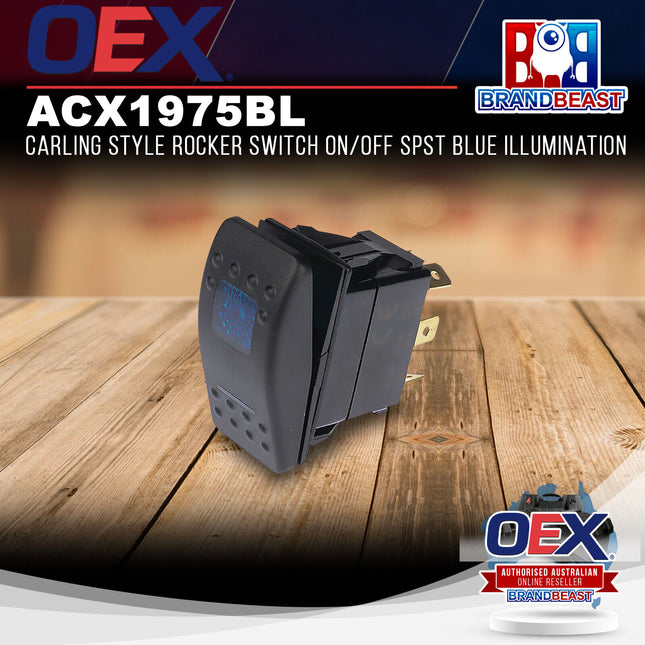

OEX ACX1975BL 20A Carling Style SPST Illuminated Rocker Switch Blue LED 12V and 24V 21x37mm Panel Mount The OEX ACX1975BL is a Carling style blue illuminated On/Off SPST (Single Pole Single Throw) rocker switch rated at 20A, suitable for both 12V and 24V systems. The Carling style format uses a 21x37mm rectangular mounting hole, compatible with Carling-format switch panels and marine-style consoles widely used in 4WD, caravan and marine dash configurations. The blue LED illuminates when the switch is in the On position. Three blade terminals accommodate the separate illumination circuit alongside the switching circuit. Supplied as a single unit. Covered by a one year warranty. Product overview Carling style rocker switches use a 21x37mm rectangular mounting footprint that is widely adopted in aftermarket marine and 4WD switch panels, consoles and housings. Many purpose-built switch panel enclosures are designed around this format, making the ACX1975BL a direct-fit replacement or addition in these panel types without modification. The Carling format is physically distinct from the 12mm round mount used by the ACX1971BL and ACX1973BL confirm your panel format before purchasing. The blue LED illuminates when the switch is in the On position, providing clear status indication in low-light conditions. The third terminal powers the LED independently of the main switching circuit, allowing connection to a constant 12V or 24V supply. At 20A the ACX1975BL handles lighting and general accessory switching. For loads exceeding 20A, the switch should be used to trigger a relay. Features and benefits Carling style format 21x37mm rectangular mount: Compatible with Carling-format switch panels and marine-style consoles used in 4WD, caravan and marine applications. 20A at 12V and 24V: Suited to lighting and general accessory switching on both passenger vehicles and commercial vehicle systems. For loads exceeding 20A, use the switch to trigger a relay. SPST On/Off configuration: Single pole single throw switching with one input and one output for straightforward accessory on/off control. Blue LED illuminated: Glows when the switch is in the On position for clear status indication in switch panels and consoles in low-light conditions. 12V and 24V compatible: Suits passenger vehicles, 4WDs and commercial vehicles including trucks and buses. 3 blade terminals: Separate connections for the switching circuit (2 terminals) and the LED illumination circuit (1 terminal), allowing the LED to be powered from a constant 12V or 24V supply. Single unit: For individual panel installation. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX1975BL Brand OEX Switch Type Carling Style Rocker Switch Action On/Off (SPST) Poles 1 Positions 2 Current Rating 20A Voltage 12V and 24V Illumination Blue LED Terminals 3 Blade Mounting Hole 21mm x 37mm Pack Quantity 1 Warranty One year Sold As Single unit Frequently asked questions What is a Carling style switch? Carling style refers to a rocker switch format with a 21x37mm rectangular mounting footprint, widely used in marine and 4WD switch panels. Many aftermarket switch panels, consoles and housings are designed around this format, making it a popular and interchangeable switch type for custom builds and panel replacements. What mounting hole does this switch require? The switch requires a 21x37mm rectangular panel cutout. This is a different format to the 12mm round mount used by the ACX1971BL and ACX1973BL confirm your panel format before purchasing. Does this switch work on both 12V and 24V systems? Yes. The ACX1975BL is rated for both 12V and 24V systems, making it suitable for passenger vehicles, 4WDs and commercial vehicles. Why does this switch have 3 terminals? The third terminal is for the LED illumination circuit. It connects to a constant 12V or 24V supply to power the blue LED indicator, separate from the main switching circuit. What is the maximum current this switch can handle? This switch is rated at 20A. For loads exceeding 20A, use the switch to trigger a relay rather than wiring the load directly through the switch. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!
