Victron Energy Battery Monitor BMV-712 Smart: The BMV-712 Is The Latest High Precision Battery Monitor From Victron
The BMV-712 monitor's voltage and current of a single battery bank and calculates power, state-of-charge, and time-to-go. It also features an additional voltage input that can be used to measure an auxiliary or starter battery voltage, midpoint voltage, or temperature with the optional temperature sensor. Data can be transferred to smartphones or computers with the inbuilt Bluetooth module and external alarms can be triggered with the relay contact.
Installation is simply a case of connecting the supplied shunt in the negative battery cable, mounting the monitor in a 52mm diameter hole, and connecting the wires. An optional wall enclosure is available if surface mounting is preferred.
What's in the Box:
BMV 712 battery monitor
500A shunt and adapter board
10m cable to connect shunt to BMV
2x Positive voltage sense wire with fuse
Legendary Products & Support From Authorized Dealers
When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Victron Energy dealer today!
Victron Orion XS 12/12-50A - Ultimate Dual Battery Charging for Modern Vehicles
Running a dual battery setup in your 4WD, caravan, or marine vessel? The Victron Orion XS 12/12-50A redefines DC-DC battery charging with engineering that's built from the ground up for intelligent alternator compatibility and maximum system safety. This isn't just another battery isolator – it's a complete charging solution that safely combines any alternator with any battery type.
Delivering 700W of continuous power at an industry-leading 98.5% efficiency, the Orion XS 12/12-50A protects your starter battery, prevents alternator overload, and ensures your auxiliary battery receives the perfect charge voltage – even from Euro 5 and Euro 6 engines with smart alternators that don't provide consistent high voltage. With VE.Direct connectivity, full remote monitoring via the VictronConnect App, and IP65 dust and waterproof protection. This is professional-grade DC-DC charging that works flawlessly in the toughest Australian conditions.
Victron Orion XS 12/12-50A Features & Benefits
Engine Running Detection - Automatically isolates your service battery when the engine is off, protecting your starter battery from parasitic drain and ensuring reliable engine starts every time.
Smart Alternator Compatibility - Purpose-built for Euro 5 and Euro 6 engines with intelligent alternators that vary output voltage, the Orion XS boosts inconsistent 10.4V alternator output to optimal 14.2V charging levels for complete battery charging.
98.5% Efficiency Rating - Five times more efficient than previous generation DC-DC chargers, the ultra-efficient aluminium circuit board design minimizes heat generation and maximizes power transfer without requiring cooling fans.
Configurable Input & Output Current - Fully adjustable charge current from 1-50A allows you to tailor charging to your specific alternator capacity, battery size, and system requirements for optimal performance and safety.
Adaptive Charging Algorithm - Eight preset battery modes plus customizable algorithms ensure perfect charging for AGM, Gel, Flooded, Lithium, and other battery chemistries with optimized absorption times for both shallow and deep discharges.
VictronConnect App Integration - Full remote monitoring and control via Bluetooth Smart on iOS and Android devices, allowing you to view real-time performance data, adjust settings, and monitor system health from anywhere.
VE.Direct Communication Port - Integrates seamlessly into complete Victron Energy systems for centralized monitoring, data logging, and control through Color Control GX, Cerbo GX, or VRM Portal online monitoring.
Comprehensive Electronic Protection - Advanced safeguards against overload, short circuit, and excessive temperatures with automatic power reduction when maximum operating temperature is reached, ensuring long-term reliability.
Low Temperature & Undervoltage Protection - Automatically shuts down at low temperatures to prevent lithium battery damage, plus user-configurable input voltage lockout prevents deep discharge of your starter battery.
IP65 Dust & Waterproof Rating - Sealed construction withstands harsh environments including dust, mud, water spray, and salt air, making it perfect for 4WD touring, marine applications, and commercial vehicles.
Compact Aluminium Construction - Measuring just 137.3 x 123.3 x 40mm and weighing only 0.73lb, the lightweight design allows flexible mounting options under bonnet, under seat, or in limited-space installations.
Maximum 40°C Continuous Operation - Runs at full 700W output capacity even in extreme Australian heat up to 40°C (derating only 1.5% per °C above 40°C), ensuring consistent performance in outback conditions.
Can Be Used as Power Supply - Versatile functionality allows operation as a stable DC power supply when output voltage is set via VictronConnect App, adding flexibility beyond battery charging applications.
Screw Terminal Connections - Professional-grade DC connections ensure secure, vibration-resistant wiring with maximum cable cross-section of 4AWG (21.2mm²) for reliable high-current performance.
Technical Specifications:
Type: DC-DC Battery-to-Battery Charger
Input Voltage Range: 9-17V DC
Output Voltage Adjust Range: 10-17V DC (configurable)
Output Voltage Tolerance: +/- 0.25% maximum
Output Voltage Noise: 10mV RMS
Input & Output Current Setting Range: 1-50A (adjustable)
Maximum Constant Short-Circuit Current: 50A
Continuous Output Power (up to 40°C): 700W
Maximum Efficiency: 98.5%
No-Load Current Consumption: < 100mA
Standby Current Consumption: < 1.5mA
Operating Temperature Range: -20 to +60°C (derating 1.5% per °C above 40°C)
Humidity: 95% non-condensing
Maximum Altitude: 2000m
Pollution Degree: PD2
Overvoltage Category: OVC II
DC Connection: Screw terminals (4AWG / 21.2mm² max)
Maximum Cable Cross-Section: 4AWG (21.2mm²)
Protection Category: IP65 (dust and waterproof)
Communication: VictronConnect App (Bluetooth Smart), VE.Smart Networking, VE.Direct
Safety Standards: IEC-62477-1
EMC Compliance: EN 300 328, EN 301 489-1, EN 301 489-17, FCC (47 CFR part 15, class B, IES-001)
Automotive Directive: ECE R10-6
Applications: Dual battery systems, 4WD vehicles, caravans, campers, marine vessels
Environment: Harsh outdoor, dust, water spray, salt air environments
Compatible With / Goes Well With
Victron SmartShunt Battery Monitors - Complete system monitoring with state of charge tracking
Victron Color Control GX / Cerbo GX - Centralized system display and control panel
Victron LiFePO4 Smart Batteries - Optimized charging profiles for Victron lithium batteries
AGM & Gel Deep Cycle Batteries - Perfect charging for auxiliary battery banks
Solar Charge Controllers - Integrate with solar systems for complete off-grid power
Battery Protect Units - Additional load disconnect protection for auxiliary circuits
Smart Battery Sense - Remote voltage and temperature sensing for precise charging
BMV Battery Monitors - Track battery performance and charging efficiency
Anderson Plug Connectors - Professional DC connection systems
Circuit Breakers & Fuses - Essential overcurrent protection for installation
Marine Switchboards - Complete electrical distribution in boats and yachts
4WD Dual Battery Systems - Foundation component for auxiliary power systems
Caravan & Motorhome Electrical Systems - Reliable house battery charging while driving
Work Vehicle Auxiliary Power - Commercial and fleet vehicle battery management
Installation Applications:
4WD Dual Battery Systems: Essential for touring 4WDs with auxiliary battery setups, protecting your starter battery while ensuring your house battery charges properly from modern smart alternators, enabling extended off-grid camping with fridges, lights, and accessories running reliably.
Caravan & Camper Trailer Charging: Provides efficient alternator charging for caravan house batteries while towing, eliminating the limitations of basic VSR isolators and ensuring your batteries arrive at camp fully charged and ready for off-grid power demands.
Marine Dual Battery Applications: Perfect for boats requiring isolated house and starter battery systems, the IP65 waterproof rating and salt-air resistant construction handle harsh marine environments while preventing alternator overload from hungry lithium house banks.
Commercial & Fleet Vehicle Power: Ideal for work vehicles, utilities, and service trucks requiring auxiliary power for tools, equipment, and accessories, providing reliable battery management that reduces downtime and extends battery life in demanding commercial applications.
Euro 5/6 Vehicle Conversions: Specifically engineered for modern vehicles with intelligent alternators that don't provide consistent charging voltage, the Orion XS voltage boost ensures proper charging of auxiliary batteries where traditional isolators fail completely.
Frequently Asked Questions
Why do I need a DC-DC charger instead of a battery isolator? Modern vehicles with Euro 5/6 smart alternators don't provide consistent high voltage needed to fully charge auxiliary batteries.
Will this work with lithium (LiFePO4) batteries? Absolutely! The Orion XS includes dedicated lithium charging profiles and critical low-temperature shutdown protection that prevents charging lithium batteries below freezing (which causes permanent damage).
How does it protect my alternator from being overloaded? The configurable output current (1-50A adjustable) allows you to limit the charge current to match your alternator's capacity.
Can I monitor and control it from my phone? Yes! The built-in Bluetooth Smart connects to the free VictronConnect App (iOS and Android) for complete remote monitoring and control.
Will it charge my house battery when the engine is off? No – and that's a good thing! The engine running detection automatically disconnects your house battery when the engine stops, preventing it from draining your starter battery.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Victron Energy CIP138250020 – Reliable 250A/80V MEGA Fuse (5 Pack)
The Victron Energy CIP138250020 MEGA Fuse delivers robust circuit protection for high-current applications in automotive, marine, 4WD, and caravan setups. Designed to handle demanding conditions, this 250A/80V fuse ensures your system stays protected against overloads and short circuits.
Built for professional installers and serious DIYers, this pack of 5 MEGA fuses offers outstanding reliability and peace of mind for any power distribution system.
Victron Energy CIP138250020 Features & Benefits
High Current Protection – Rated at 250A/80V, ideal for large DC systems in vehicles, caravans, and boats.
Low Voltage Drop – Approx. 110mV drop for efficient performance with minimal energy loss.
Durable Construction – Engineered by Victron Energy for long-lasting reliability in tough environments.
Multi-Pack Convenience – Comes in a package of 5, ensuring you always have spares on hand.
Trusted Brand – Backed by Victron Energy’s global reputation in power and electrical systems.
Technical Specifications:
Type: Fuse
Material: Metal alloy fuse element with durable plastic housing
Approx. Voltage Drop: 110 mV
Cold Resistance: 0.208 mΩ
Hardware: Supplied as a pack of 5 fuses (holders not included)
Applications: Automotive, marine, caravan, 4WD, and industrial power systems
Environment: Suitable for harsh and high-vibration conditions
Compatible With / Goes Well With
Victron Energy MEGA Fuse Holders
Victron Lynx Power In and Power Distribution Systems
High-current inverters and DC systems
Automotive and marine battery banks
Installation Applications:
4WD & Caravan Power Systems: Protect high-current auxiliary and battery management circuits.
Marine Installations: Reliable fuse protection for onboard DC power distribution.
RV and Camper Vans: Safeguard inverters, chargers, and solar setups.
Industrial Equipment: Heavy-duty current protection for machinery and off-grid systems.
Automotive Applications: Suitable for dual battery setups, winches, and aftermarket electronics.
Frequently Asked Questions
Can this fuse be used with Victron Lynx systems? Yes, the MEGA Fuse 250A is fully compatible with Victron Lynx power distribution modules and MEGA fuse holders.
How many fuses are included in this product? This listing is for a factory-sealed pack of 5 MEGA fuses.
Do I need a specific fuse holder for these? Yes, these fuses are designed to be used with MEGA fuse holders (sold separately).
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Victron Energy CIP134060020 - Precision High-Current Electrical Protection
The Victron Energy CIP134060020 MIDI-fuse is a professional-tier electrical protection solution engineered for high-demand automotive, marine, and 4WD applications. Delivered in a strategic 5-piece package, these advanced fuses provide exceptional current management for the most challenging electrical configurations.
Victron Energy CIP134060020 Features & Benefits
Minimal Voltage Drop - Precisely engineered 70 mV drop maintains electrical system integrity
Exceptional Low Resistance - Ultra-low 0.9 mΩ cold resistance ensures optimal current flow
Robust M6 Mounting Design - Secure, reliable installation for critical high-current applications
Versatile Performance - Ideal for demanding automotive, marine, and specialized electrical setups
Technical Specifications:
Type: MIDI Fuse
Material: High-performance electrical grade metal
Current Rating: 60A
Voltage Rating: 58V
Hardware: 5 x MIDI-fuses per package
Applications: High-performance automotive electrical systems, marine electronics, 4WD electrical modifications
Environment: Engineered for extreme automotive and marine conditions
Compatible With / Goes Well With
Victron Energy advanced electrical management systems
High-performance automotive electrical kits
Marine electrical protection solutions
4WD heavy-duty electrical upgrade components
Professional-grade auxiliary battery systems
Extreme electrical modification setups
Installation Applications:
High-Current Vehicle Electrical Systems: Advanced circuit protection
Marine Heavy-Duty Electronics: Robust electrical safeguarding
4WD Extreme Electrical Modifications: Reliable high-current management
Professional Auxiliary Power Systems: Precise current control
Extreme Electrical Upgrades: Precision protection for demanding applications
Frequently Asked Questions
What makes these 60A MIDI-fuses unique? These Victron Energy MIDI-fuses deliver exceptional performance with an advanced 70 mV voltage drop and incredibly low 0.9 mΩ cold resistance, providing maximum electrical efficiency for high-current applications.
Are these suitable for marine environments? Yes, these fuses are specifically engineered to withstand harsh marine and automotive conditions, making them ideal for professional marine and automotive electrical systems.
How many fuses are included in each package? Each package contains 5 high-performance MIDI-fuses, offering excellent value and critical backup for demanding electrical components.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Victron Energy CIP134040020 - Precision Electrical Protection for Demanding Environments
The Victron Energy CIP134040020 MIDI-fuse is a professional-grade electrical protection solution designed for automotive, marine, and 4WD applications. Sold in a convenient 5-piece package, these high-performance fuses offer exceptional reliability and precise current management for critical electrical systems.
Victron Energy CIP134040020 Features & Benefits
Ultra-Low Voltage Drop - Minimal 65 mV drop ensures maximum electrical efficiency
Exceptional Low Resistance - 1.4 mΩ cold resistance maintains optimal current flow
Precision Engineering - M6 mounting design for secure and reliable installation
Multi-Application Versatility - Ideal for automotive, marine, and specialized electrical setups
Technical Specifications:
Material: High-performance electrical grade metal
Current Rating: 40A
Voltage Rating: 58V
Hardware: 5 x MIDI-fuses per package
Applications: Automotive electrical systems, marine electronics, 4WD electrical modifications
Environment: Suitable for harsh automotive and marine conditions
Compatible With / Goes Well With
Victron Energy electrical systems
Automotive electrical management kits
Marine electrical protection solutions
4WD electrical upgrade components
Auxiliary battery systems
Installation Applications:
Vehicle Electrical Systems: Primary circuit protection
Marine Electronics: Robust electrical safeguarding
4WD Electrical Modifications: Reliable current management
Auxiliary Power Systems: Precise current control
Aftermarket Electrical Upgrades: Professional-grade protection
Frequently Asked Questions
What makes these MIDI-fuses different from standard fuses? Victron Energy MIDI-fuses offer superior performance with ultra-low voltage drop (65 mV) and exceptional cold resistance (1.4 mΩ), providing maximum electrical efficiency and protection.
Are these suitable for marine applications? Yes, these fuses are specifically designed to withstand harsh marine and automotive environments, making them ideal for marine electrical systems.
How many fuses are in a package? Each package contains 5 MIDI-fuses, providing excellent value and backup for critical electrical components.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Advanced Lithium Power Solution for Demanding Applications
The Victron Energy Lithium SuperPack 12.8V/100Ah battery represents the pinnacle of portable power technology. Designed for off-grid solar, marine, RV, and professional vehicle applications, this LiFePO4 battery delivers exceptional performance, safety, and reliability with an integrated Battery Management System (BMS) that simplifies installation and protects your investment.
Key Specifications
Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 12,8V
Capacity: 100Ah
Nominal Energy: 1280Wh
Cycle Life: 2500 cycles at 80% Depth of Discharge
Parallel Configurable: Yes (Unlimited)
Victron Energy BAT512110712 Features & Benefits
Integrated Safety Switch: Automatic disconnection during over/undercharge or temperature extremes
Abuse-Proof Design: Prevents premature battery failure from sulfation
High Efficiency: 92% round-trip energy efficiency
Flexible Deployment: Easily connectable in parallel configurations
Wide Operating Range: Discharge from -20°C to +50°C
Low Maintenance: No additional components required for installation
Technical Specs
Max Continuous Discharge Current: 100A
Peak Discharge Current: 150A
End of Discharge Voltage: 10V
Charge Voltage Range: 14,2V-14,4V
Max Charge Current: 100A
Protection Rating: IP43
Dimensions: 220 x 330 x 172 mm
Compatible With / Goes Well With
Off-Grid Solar Systems
Marine Electrical Setups
RV Power Installations
Backup Power Solutions
Renewable Energy Projects
Professional Vehicle Electrical Systems
Frequently Asked Questions
Can I connect multiple batteries? Yes, unlimited parallel connection is supported.
What makes this battery different from lead-acid? Superior efficiency, longer lifespan, and advanced safety features.
Is it suitable for solar applications? Ideal for off-grid and solar energy storage systems.
How long will the battery last? Up to 2500 cycles at 80% depth of discharge.
Can it handle extreme temperatures? Operates reliably from -20°C to +50°C.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Comprehensive Battery Management for Advanced Power Systems
The Victron Energy VE.Bus BMS NG is a sophisticated Battery Management System specifically designed for Victron Lithium NG batteries in complex power infrastructures. Engineered for seamless integration with VE.Bus inverters and inverter/chargers, this BMS provides unparalleled protection, monitoring, and control for marine, RV, off-grid, and professional vehicle electrical systems.
Key Specifications
Direct VE.Bus Inverter/Charger Integration
Bluetooth Smart Connectivity
Load and Charge Disconnect Outputs
Pre-Alarm Functionality
Remote On/Off Control
Support for Up to 50 Batteries in 12V/24V Systems
Victron Energy BMS300200300 Features & Benefits
Advanced Inverter Protection: Prevents inverting and charging during critical battery conditions
Comprehensive Monitoring: Real-time battery health tracking and instant readout
Wireless Configuration: Easy setup and monitoring via VictronConnect App
Flexible System Integration: Compatible with 12V, 24V, and 48V configurations
Intelligent Safety Mechanisms: Automatic load and charge disconnection
Versatile Applications: Ideal for complex power management scenarios
Technical Specs
Operating Voltage: 9-70 VDC
Operating Temperature: -20 to +50°C
Protection Grade: IP20
Dimensions: 23.2 x 95.0 x 105.8 mm
Communication: 2x RJ45 VE.Bus ports
Compatible With / Goes Well With
Victron VE.Bus Inverters and Inverter/Chargers
Victron Lithium NG Batteries
Cerbo GX and Digital Multi Control Panels
Marine Electrical Systems
RV Power Setups
Off-Grid Solar Installations
Frequently Asked Questions
Is this compatible with all Victron inverters? Designed for VE.Bus inverters and inverter/chargers.
How do I monitor battery status? Use the VictronConnect App with built-in Bluetooth.
Can it prevent battery damage? Yes, with advanced load and charge disconnect protections.
What systems can it support? 12V, 24V, and 48V battery configurations.
Does it provide early warnings? Pre-alarm output alerts before critical battery conditions.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Comprehensive Battery Management for Lithium Systems
The Victron Energy SmallBMS NG is a compact, intelligent Battery Management System designed specifically for Victron Lithium NG batteries. Offering advanced protection and monitoring for 12V, 24V, and 48V systems, this BMS provides essential safeguarding for your critical power infrastructure in marine, RV, off-grid, and professional vehicle applications.
Key Specifications
Compatible with Lithium NG Batteries
Bluetooth Smart Connectivity
Load and Charge Disconnect Outputs
Pre-Alarm Functionality
Remote On/Off Control
Support for Up to 50 Batteries in 12V/24V Systems
Victron Energy BMS400100300 Features & Benefits
Intelligent Battery Protection: Prevents overcharging and deep discharge
Wireless Monitoring: Instant Readout via VictronConnect App
Flexible System Integration: Works with 12V, 24V, and 48V configurations
Early Warning System: Pre-alarm output for proactive battery management
Compact Design: Minimal footprint with maximum protection
Easy Configuration: Simple setup through Bluetooth interface
Technical Specs
Operating Voltage: 8-70 VDC
Operating Temperature: -20 to +50°C
Protection Grade: IP20
Dimensions: 106 x 42 x 23 mm
Weight: 0.1 kg
Maximum Battery Bank:
12V/24V Systems: Up to 50 batteries
48V Systems: Up to 25 batteries
Compatible With / Goes Well With
Victron Lithium NG Batteries
BatteryProtect Devices
DC-DC Converters
Smart Chargers
Marine Electrical Systems
RV Power Setups
Off-Grid Solar Installations
Frequently Asked Questions
Is this compatible with all Victron batteries? Specifically designed for Lithium NG batteries.
How do I monitor battery status? Use the VictronConnect App with built-in Bluetooth.
Can it prevent battery damage? Yes, with load and charge disconnect protections.
What systems can it support? 12V, 24V, and 48V battery configurations.
Does it provide early warnings? Pre-alarm output alerts before critical battery conditions.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Advanced Battery Management for Smart Power Systems
The Victron Energy Lynx Smart BMS 500A is the ultimate Battery Management System for lithium battery setups in marine, RV, off-grid, and professional vehicle applications. Featuring a robust 500A safety contactor and comprehensive monitoring capabilities, this BMS provides unparalleled protection and control for your critical power systems.
Key Specifications
500A Safety Contactor
Bluetooth Connectivity
Full Battery Monitoring
GX Device Integration
Instant Readout Capability
Modular Lynx Distribution System Compatible
Victron Energy LYN034160210 Features & Benefits
Robust Safety Protection: Built-in 500A contactor provides fail-safe battery disconnection
Advanced Monitoring: Real-time state of charge and battery health tracking
Flexible Connectivity: Bluetooth setup via VictronConnect app
Smart Integration: Compatible with Victron GX devices for comprehensive system management
Pre-Alarm Functionality: Warns before critical system shutdowns
Versatile Applications: Ideal for marine, RV, solar, and off-grid power systems
Technical Specs
System Voltage: 12, 24, or 48V
Connection Type: M10 Busbar
Protection Rating: IP22
Dimensions: 190 x 180 x 80 mm
Alternator Mode: ATC (Automatic Temperature Compensation)
Compatible With / Goes Well With
Victron Lithium Smart Batteries
Victron GX Devices (Cerbo GX, Ekrano GX)
Marine Electrical Systems
RV Power Setups
Solar Off-Grid Installations
Victron Inverters and Chargers
Frequently Asked Questions
Can this BMS work with different battery voltages? Compatible with 12V, 24V, and 48V systems.
How do I monitor the battery status? Use the VictronConnect app with Bluetooth connectivity.
Is it suitable for marine environments? Specifically designed for marine and recreational vehicle applications.
Can it integrate with other Victron equipment? Fully compatible with Victron GX devices and distribution systems.
What safety features does it include? Built-in 500A contactor and pre-alarm signal for comprehensive protection.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Unlock Total System Connectivity
The Victron Energy GX IO-Extender 150 is a powerful, compact solution for expanding the input and output capabilities of GX devices. Designed for professionals and enthusiasts in marine, solar, and off-grid applications, this USB-powered device provides seamless integration of additional sensors, controls, and external devices.
Features & Benefits
Plug-and-Play USB Expansion: Instantly add I/O capabilities to your GX device
Flexible Configuration: 8 inputs or 8 outputs, adaptable to your specific needs
Remote Control Capabilities: Manage via Node-RED or GX device interface
Robust Switching: Handles resistive, capacitive, and inductive loads
Compact Design: Fits seamlessly into complex electrical systems
Technical Specs
Dimensions: 123 x 67 x 23 mm
Supply Voltage: Powered by USB
Digital I/O Voltage: 3.8-5.5V
Maximum Load Current: 4A
Operating Temperature: -20°C to +50°C
Maximum Battery Voltage: 70 VDC
Compatible With / Goes Well With
Victron GX Devices
Solar Power Systems
Marine Electrical Setups
RV Power Management
Off-Grid Installations
Home Automation Systems
Frequently Asked Questions
Is this compatible with my existing GX system? Designed for direct integration with Victron GX devices.
How is it powered? Conveniently powered via USB connection.
Can I use it for custom automation? Fully compatible with Node-RED for advanced control.
What types of loads can it handle? Supports resistive, capacitive, and inductive loads.
Is it suitable for harsh environments? Operates reliably from -20°C to +50°C.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Power Your Journey: Smart Charging, Anywhere

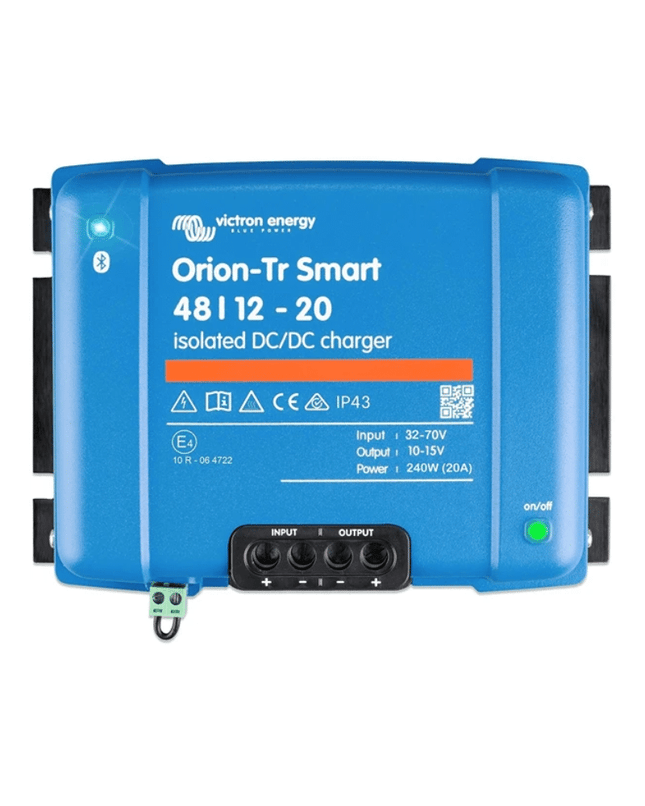

The Victron Energy Orion-Tr Smart 48/12-20A is a cutting-edge DC-DC charger designed for serious off-grid enthusiasts and marine adventurers. This advanced isolated charger seamlessly bridges 48V and 12V electrical systems, providing reliable power management for complex vehicle and boat setups.
Victron Energy ORI481224120 Features & Benefits
Intelligent 3-Stage Charging: Ensures optimal battery health and longevity
Bluetooth Connectivity: Configure and monitor your charging system remotely
Isolated Design: Prevents electrical interference between battery systems
High-Temperature Performance: Full rated output up to 40°C
Versatile Compatibility: Works with 12V, 24V, and 48V systems
Technical Specs
Input Voltage Range: 32-70V
Output Voltage: 10-15V
Maximum Continuous Output: 20A (240W)
Bluetooth Configuration Enabled
Suitable for Lead Acid and Lithium Batteries
Dimensions: 130 x 186 x 70 mm
Weight: 1.3 kg
Protection Rating: IP43 (electronic components) IP22 (connection area)
Operating Temperature: -20 to +55°C (derate 3% per °C above 40 °C)
DC Connection: Screw Terminals
Maximum Cable Cross-section: 16 mm² AWG6
Compatible With / Goes Well With
4WD Dual Battery Systems
Marine Electrical Setups
Caravans and RVs
Solar Power Installations
Auxiliary Battery Systems
Frequently Asked Questions
Will this charger work with my lithium battery setup? Absolutely, it's compatible with both lead-acid and lithium battery technologies.
Can I monitor the charger remotely? Yes, the built-in Bluetooth allows complete configuration and monitoring via smartphone.
Is this suitable for marine environments? Designed for harsh conditions, it performs excellently in marine and off-road applications.
How does the smart charging work? Uses an adaptive 3-stage charging process: bulk, absorption, and float for optimal battery care.
Can multiple units be connected? Yes, unlimited units can be paralleled to increase output power.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Smart Power Conversion: Intelligent DC-DC Charging for Advanced Vehicle Systems

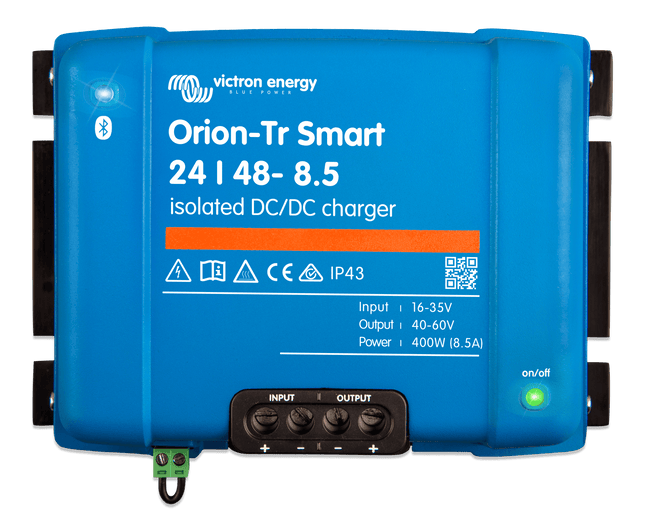

The Victron Energy Orion-Tr Smart DC-DC Charger is a sophisticated power management solution designed for modern vehicles with complex electrical systems. Engineered to work seamlessly with smart alternators, this isolated DC-DC converter provides intelligent charging and power supply across multiple voltage configurations, ensuring optimal battery performance and system protection.
Victron Energy ORI244840120 Features & Benefits:
Smart Alternator Compatibility: Intelligent engine-running detection prevents starter battery discharge in modern ECU-controlled vehicles
Advanced Charging Algorithm: Three-step charging (Bulk-Absorption-Float) maximizes battery life and performance
Comprehensive Protection: Built-in safeguards against overload, short circuit, and temperature variations
Flexible Configuration: Eight preprogrammed battery settings with customizable charging profiles
Remote Monitoring: Configure and track performance via VictronConnect app on smartphone or tablet
Technical Specifications:
Efficiency: 87%
Operating Temperature: -20°C to +55°C
No-load Input Current: < 80mA
Standby Current: <1 mA
Maximum Cable Cross-section: 16 mm² (AWG6)
Humidity: Max 95% non-condensing
Compatible With / Goes Well With
12V, 24V, and 48V battery systems
Smart alternator vehicles
Marine and recreational vehicle installations
Solar power systems
Battery management systems
Victron energy monitoring products
Frequently Asked Questions
Will this work with my vehicle's electrical system?Compatible with multiple input voltage ranges and vehicle types, including those with smart alternators.
How complex is the installation?Designed for straightforward integration with screw terminals and no additional sensors required.
Can I customize the charging profile?Yes, eight preset battery modes and full VictronConnect app configuration available.
Is it protected against electrical issues?
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
