Description
Offering A Superior Tracking Algorithm

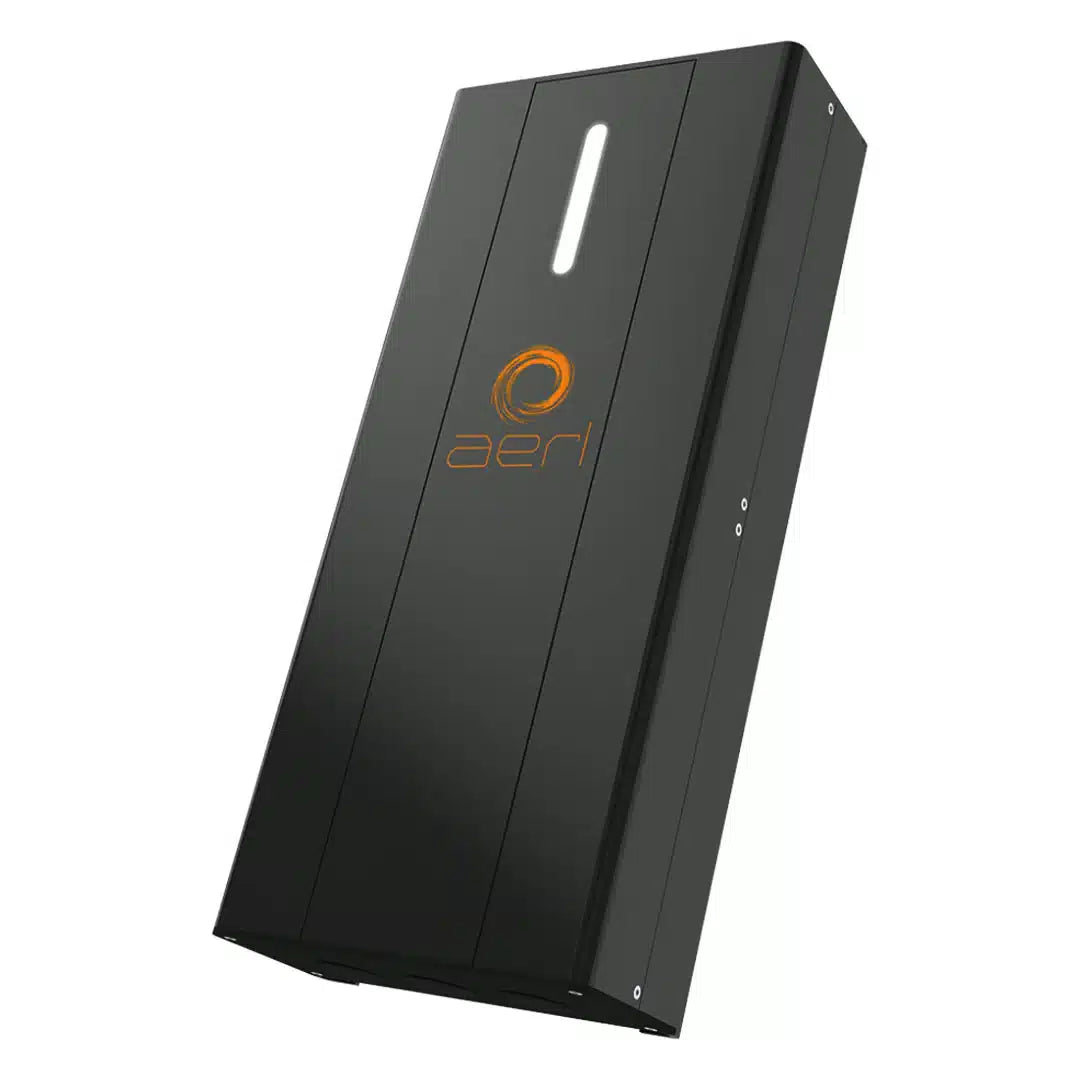

The CoolMax SRX features over thirty years of AERL’s MPPT experience, offering a superior tracking algorithm, an ultra-low loss, high-efficiency thermal design, backed by our Australian factory warranty and local support. With record-breaking conversion efficiencies, intelligent thermal management, and state-of-the-art MPPT tracking, the SRX is a key component of any high-quality DC-coupled remote power system.
Features:
- High Input Voltage for Ease of Install
- On-Board Ground Fault Detection
- PV Array Oversizing Support (+33%)
- Superior Peak Power Efficiency
- Reverse Polarity and Current Protection
- Built-In Overload and Thermal Protection
- Master/Slave Configuration Options
- Compatible with most Battery Systems
- Designed for Long Term Reliability
Specifications:
- Enclosure Type Indoor Type 1 / IP20
- Mounting Method Wall Mount Bracket
- Input / Output Power Connectors Screw Terminals (8 mm2 -> 42mm2)
- Nominal Battery Voltage / Vdc Range 120 V / 90 -170
- Max Charge Current 30 A
- Nominal Charge Power 4320 W @ 120V
- Max PV Input Voltage 600 V
- Max PV Input Current 12 A
- Max PV Short Circuit Current 18 A
- Startup Voltage 24 V
- MPP Voltage Range 215 – 540 V
- Total Backfeed Current (Ibf Total) 0 A
- Overload Behavior Operating Point Shift (Power Limitation)
- PV Reverse Polarity Protection Yes
- Earth Leakage Current Detection Yes
- Overvoltage Category DC II
- Overvoltage Protection DC Type II
- Safety Protection Class I
- Pollution Degree (Internal) I
- Pollution Degree (External) III
- Max Conversion Efficiency 98.7%
- Ambient Operating Temperate Range (Full Rating up to 80% Ambient ° C) -20 to +50 °C
- Storage Temperature -30 to +70 °C Self-Consumption @ Night 2 W
- Allowable Relative Humidity 4 – 95% (Non-Condensing)
- Cooling Method Active (User Serviceable)
- Display Indication LED Strip
- Required Cabinet Air Exchange Rate (Intake @ 40°C) 14 m3/hour
- Communications RS485 / CAN Bus
- Certifications IEC62109-1:2010 EN61000.6.3:2012 EN61000.6.4:2012
