Description
Hyundai & Kia Infolink Plus Steering Wheel Control Interface 2-Way UART, Climate Control & Vehicle Menus, Factory Amp, Camera, AUX, USB & Antenna Retained, No Factory Wiring Cut Required.
Product Overview
The Aerpro AAHY11C is an Infolink Plus steering wheel control interface for Hyundai and Kia vehicles a significant step up from the standard ASHY16C CANBUS interface listed earlier. The AAHY11C is a 2-way UART interface, allowing climate control and system menus to be controlled directly via the aftermarket head unit's touchscreen or the factory steering wheel controls a capability only available on select aftermarket radios fitted with a UART input.
Key OEM vehicle functions including climate control, parking sensors, gauges and more are supported (integration and compatibility varies between vehicle and head unit models). The AAHY11C also retains the factory amplifier (if equipped), factory reverse camera, factory AUX, USB, and antenna making it one of the most comprehensive Hyundai/Kia SWC interfaces in the Aerpro range. No cutting of the factory wiring harness is required.

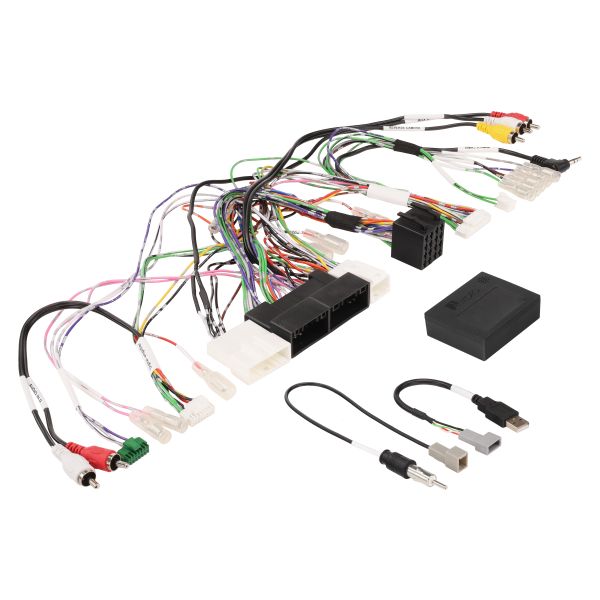

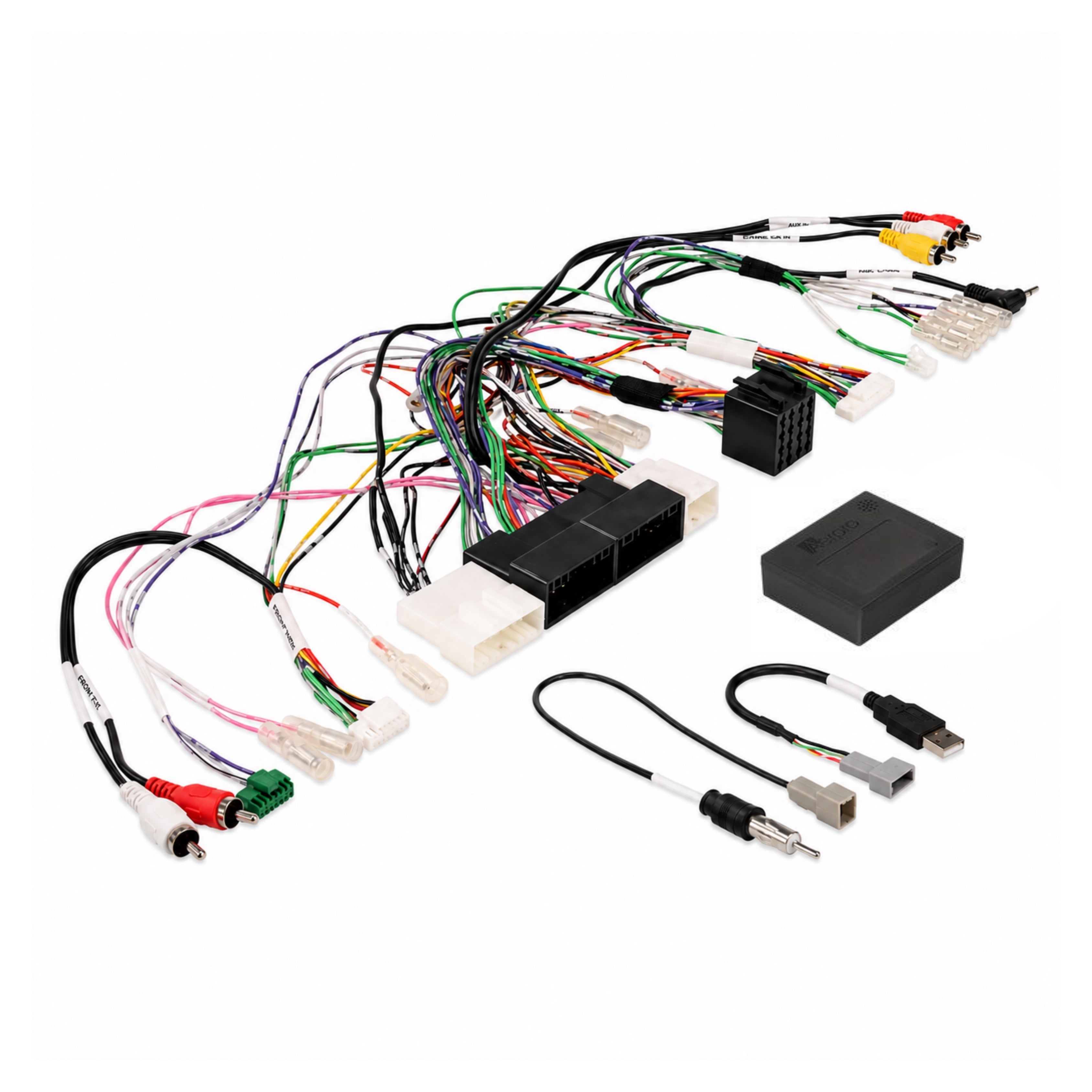

Kit Inclusions

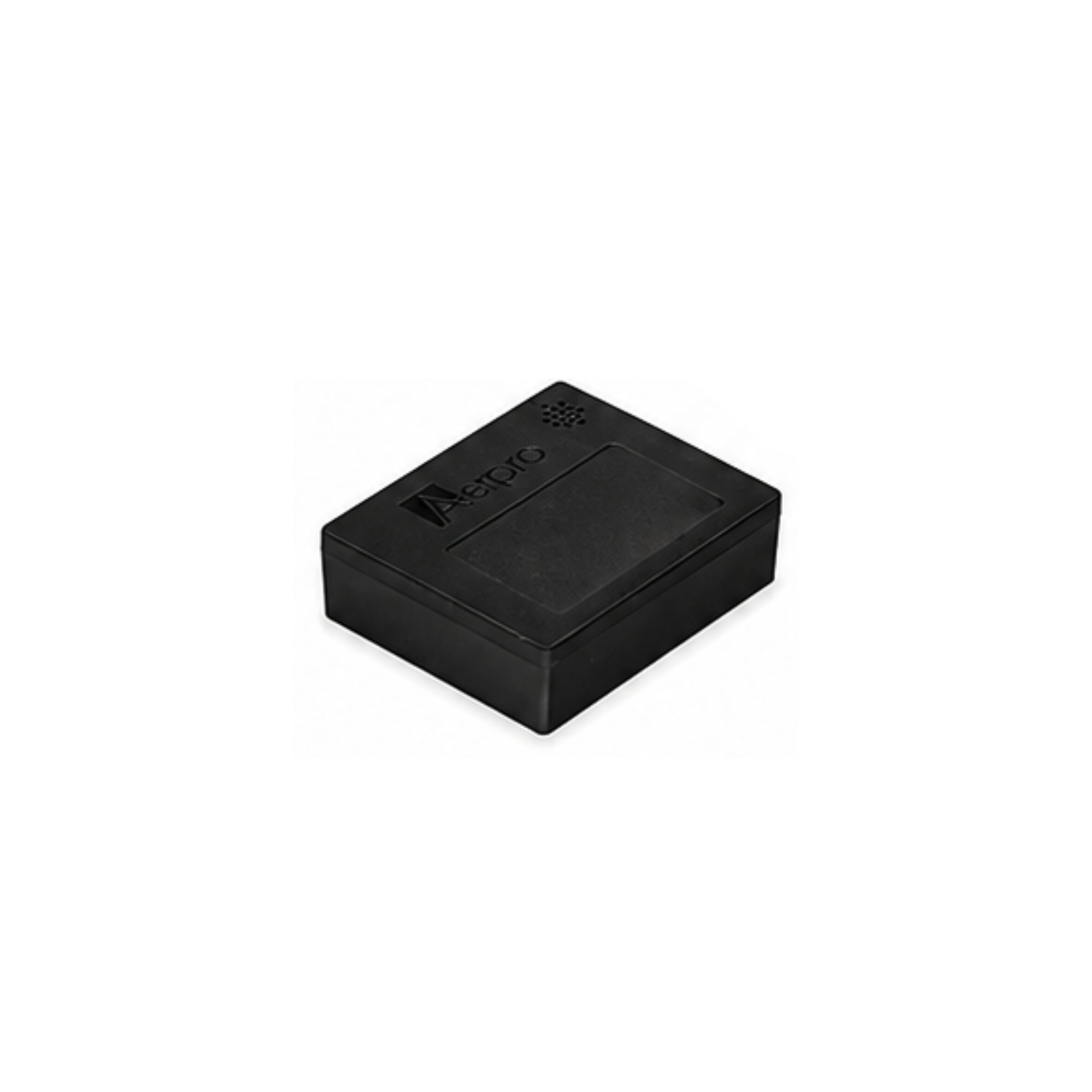

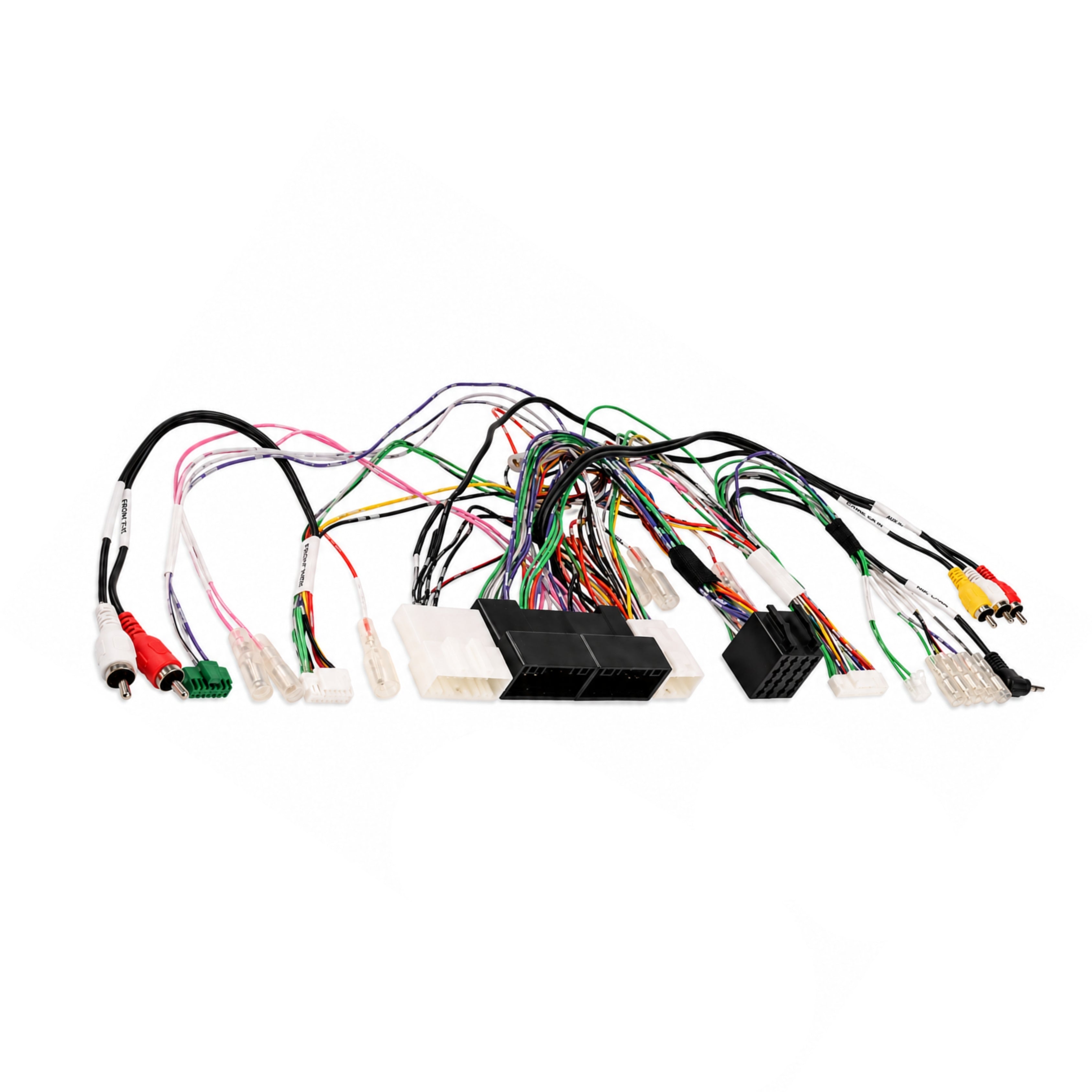

- SWC Interface Harness (vehicle-specific Hyundai/Kia plug)

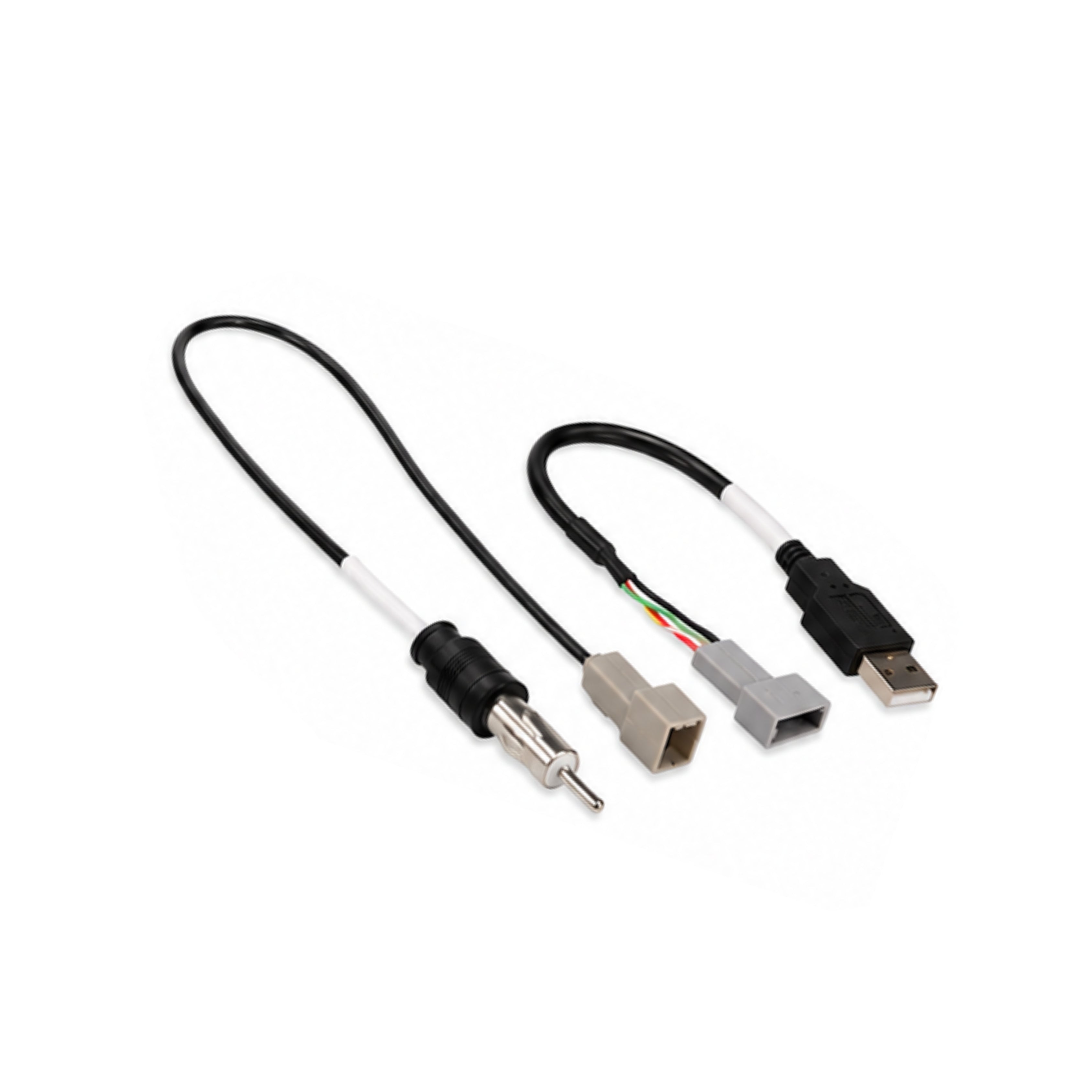

- Antenna Adaptor
- Reverse Camera Retention Adaptor
- Amplifier Retention Adaptor
- AUX Retention Lead
- USB Retention Lead
Retention & Output Summary
| Feature |
Detail |
| Steering Wheel Controls |
Yes |
| Climate Control via Touchscreen/SWC |
Yes (UART compatible HU required) |
| Vehicle Menus |
Yes |
| Factory Amplifier |
Yes (if equipped rear RCA preouts required on HU) |
| Factory Reverse Camera |
Yes (if equipped RCA input required on HU) |
| AUX Input |
Yes (if equipped RCA AUX required on HU) |
| USB Input |
Yes (if equipped rear USB required on HU) |
| Antenna |
Yes |
| Reverse Trigger Output |
Yes (purple wire) |
| Park Brake Output |
Yes (green wire) |
| Speed Pulse Output |
Yes (pink wire) |
| Illumination |
Yes |
| Amp Remote |
No |
| Telephone Mute |
No |
Key Specifications
- Interface type: Infolink Plus (2-way UART)
- Patch lead type: H
- Suits: Hyundai and Kia vehicles
- No factory wiring cutting required
- Brand: Aerpro
- SKU: AAHY11C
Features & Benefits
-
2-way UART interface: Allows climate control and system menus to be controlled directly via the aftermarket head unit touchscreen or factory SWC requires a UART-compatible aftermarket radio
-
Climate control and OEM vehicle functions:Â Supports climate control, parking sensors, gauges and more on compatible vehicles and head units
-
Factory amplifier retained: If equipped, the factory amplifier is retained aftermarket head unit requires rear RCA preouts
-
Retains factory SWC:Â Full steering wheel control retained on compatible head units
-
Retains factory reverse camera: If originally fitted aftermarket head unit requires RCA input
-
Retains factory AUX and USB: If originally fitted AUX requires RCA input, USB requires rear USB on head unit
-
Includes antenna adaptor:Â Converts factory antenna to universal DIN for aftermarket radios
-
No factory wiring cuts: Vehicle-specific plug clean, reversible installation
-
Reverse trigger, park brake and speed pulse outputs:Â Full output set including speed pulse for compatible head units
-
Pairs with APP8:Â Optional Aerpro APP8 ISO Harness simplifies head unit connection (sold separately)
Technical Specs
| Specification |
Detail |
| SKU |
AAHY11C |
| Brand |
Aerpro |
| Interface Type |
Infolink Plus (2-way UART) |
| Patch Lead Type |
H |
| Reverse Trigger |
Yes purple wire |
| Park Brake |
Yes green wire |
| Speed Pulse |
Yes pink wire |
| Illumination |
Yes |
| Amp Remote |
No |
| Telephone Mute |
No |
| Suits |
Hyundai and Kia vehicles |
Hyundai/Kia SWC Interface Comparison (this session)
| Feature |
ASHY16C |
AAHY11C |
| Interface Type |
CANBUS |
Infolink Plus (UART) |
| SWC Retained |
Yes |
Yes |
| Climate Control via HU/SWC |
No |
Yes (UART HU required) |
| Vehicle Menus |
No |
Yes |
| Factory Amplifier |
No |
Yes (if equipped) |
| Factory Camera |
Yes |
Yes |
| AUX Retained |
Yes |
Yes |
| USB Retained |
Yes |
Yes |
| Antenna |
Yes |
Yes |
| Speed Pulse |
No |
Yes |
| Reverse Trigger |
Yes |
Yes |
| Park Brake |
Yes |
Yes |
Frequently Asked Questions
What is the difference between the AAHY11C and the ASHY16C?
The AAHY11C is an Infolink Plus 2-way UART interface, adding climate control and vehicle menu integration via the head unit touchscreen or SWC, factory amplifier retention, speed pulse output, and vehicle menu support all absent from the standard ASHY16C CANBUS interface. The AAHY11C requires a UART-compatible aftermarket radio.
What is 2-way UART and which head units support it?
UART is a communication protocol that allows the head unit and vehicle to exchange data in both directions enabling climate control and vehicle menus to be shown and controlled on the aftermarket head unit touchscreen. Only select aftermarket radios with a UART input support this feature. Confirm your head unit has a UART input before purchasing.
Does this retain the factory amplifier?
Yes if equipped. The aftermarket head unit must have rear RCA preouts for factory amplifier retention.
Does this retain the factory reverse camera?
Yes if originally fitted. The aftermarket head unit must have an RCA reverse camera input.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and head unit compatibility before purchasing.
