Description

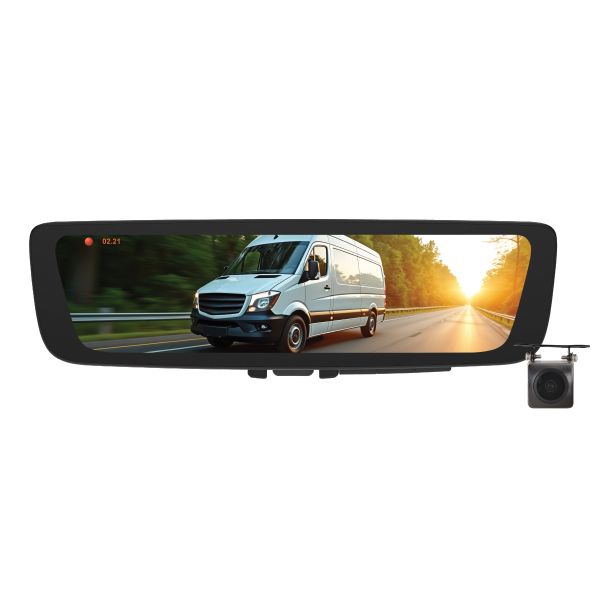

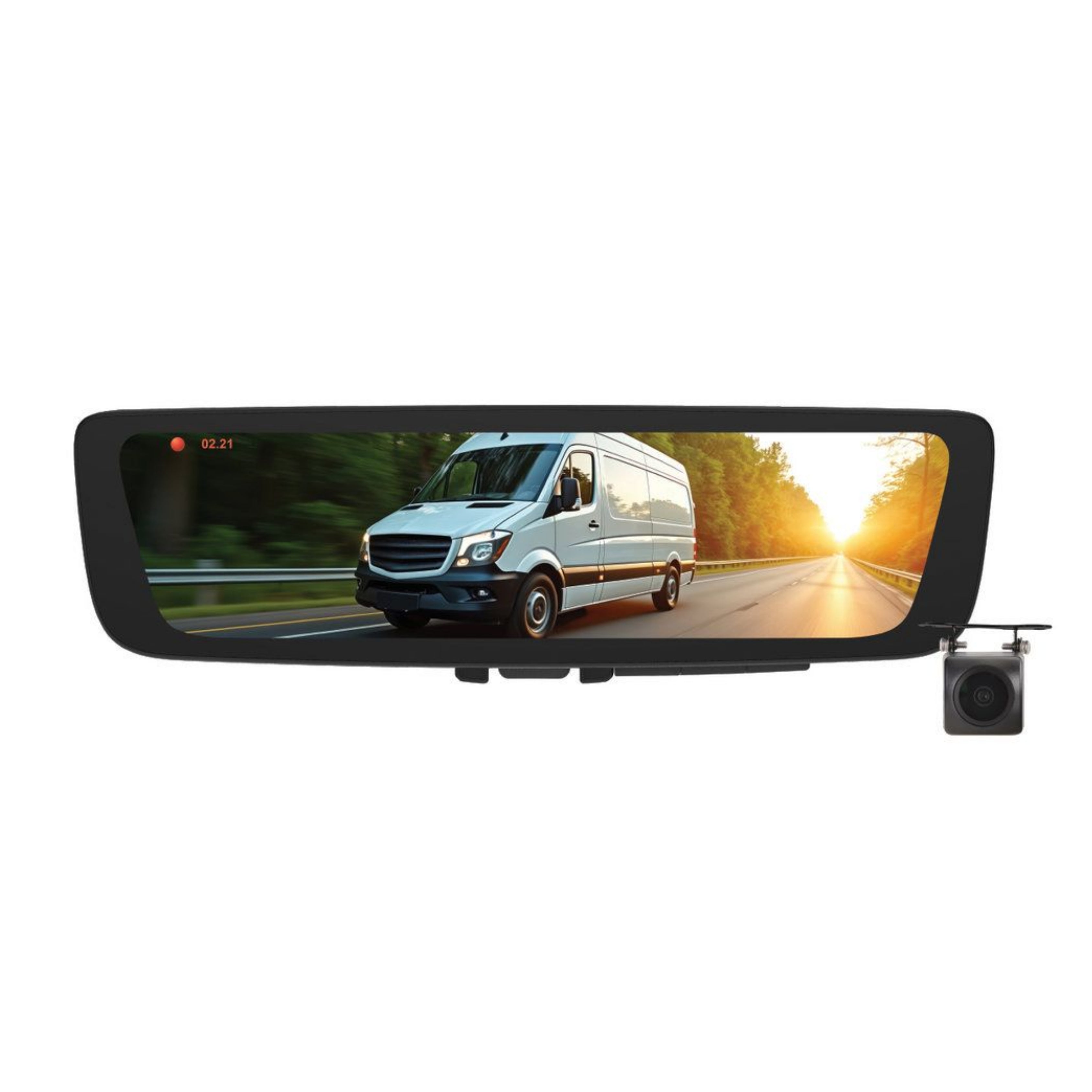

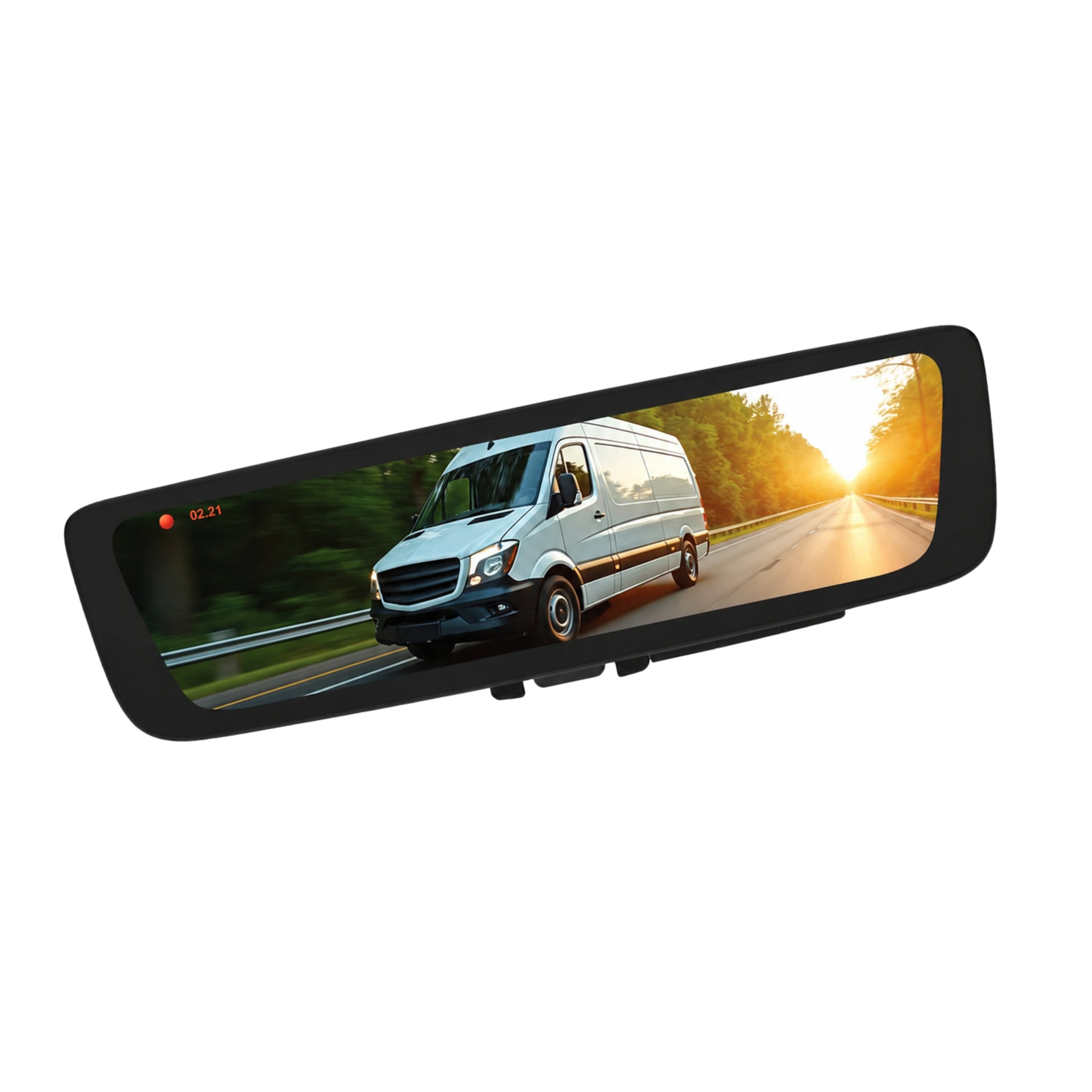

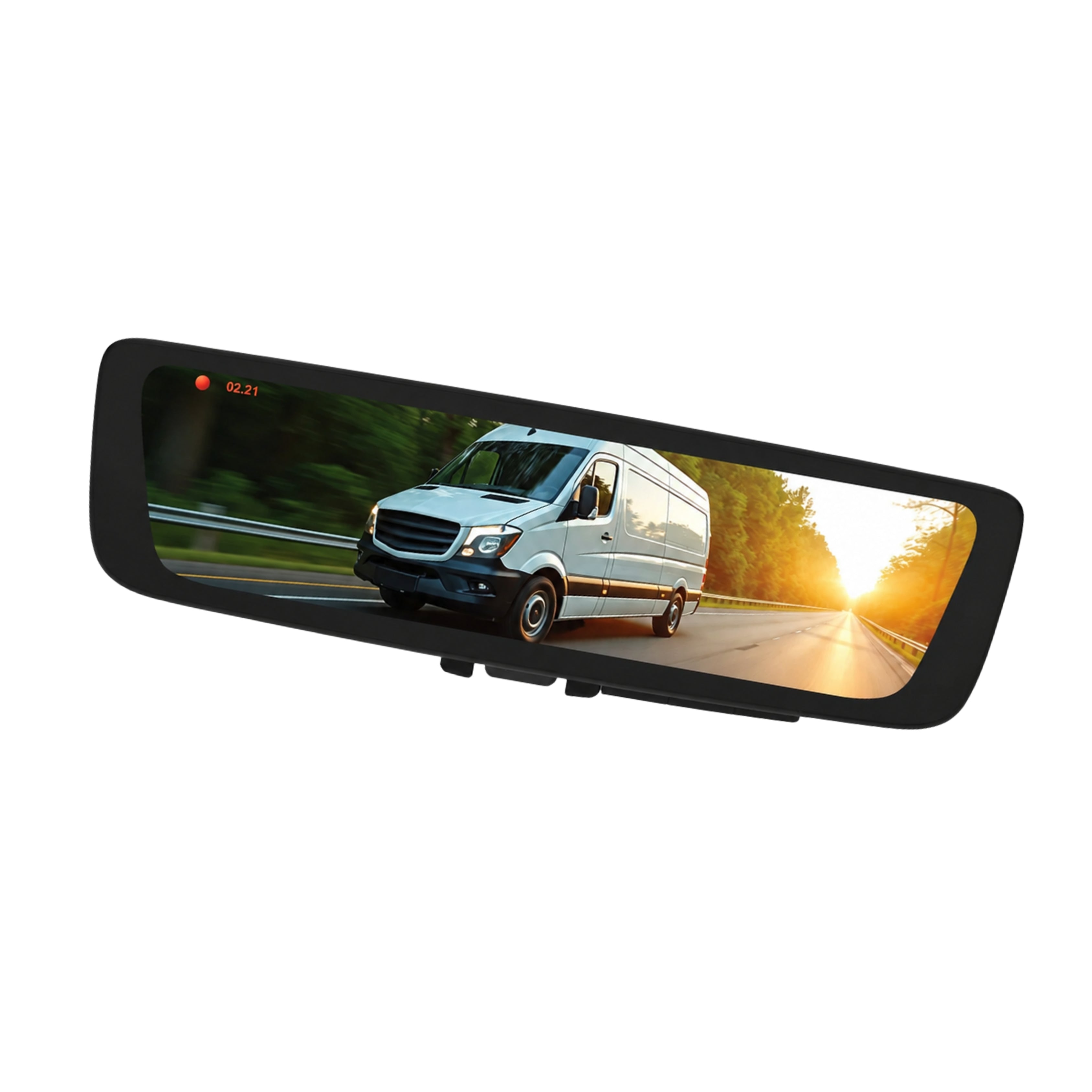

Aerpro AEM1R 9.66" Digital E-Mirror with Rear AHD 1080P DVR Camera
A 9.66" IPS touch screen digital e-mirror from Aerpro, the AEM1R replaces the factory rearview mirror with a 1920x480, 1000 nit display delivering a live AHD 1080P rear camera feed from the included Sony STARVIS 2 rear camera, built-in DVR recording at 1080P 30FPS with automatic impact-triggered event saving, automatic brightness adjustment, reverse-triggered camera switching with parking guidelines, flip-to-mirror switch, MicroSD support up to 256GB, IP69 rated rear camera, 12-24V compatibility, universal mirror mount, 8-metre camera cable, and a 5-year warranty.
Product Overview
The Aerpro AEM1R is a complete factory rearview mirror replacement system designed specifically for utes, 4WDs, and vans where a canopy, camper, or tray obstructs the factory mirror view. Unlike clip-over solutions, the AEM1R replaces the factory mirror entirely using a purpose-built mounting bracket for a clean, integrated in-cabin appearance. The 9.66" IPS touch screen at 1920x480 resolution with 1000 nit brightness and automatic brightness adjustment remains clearly visible in direct sunlight and low-light conditions, providing constant rear visibility through the live AHD 1080P camera feed.

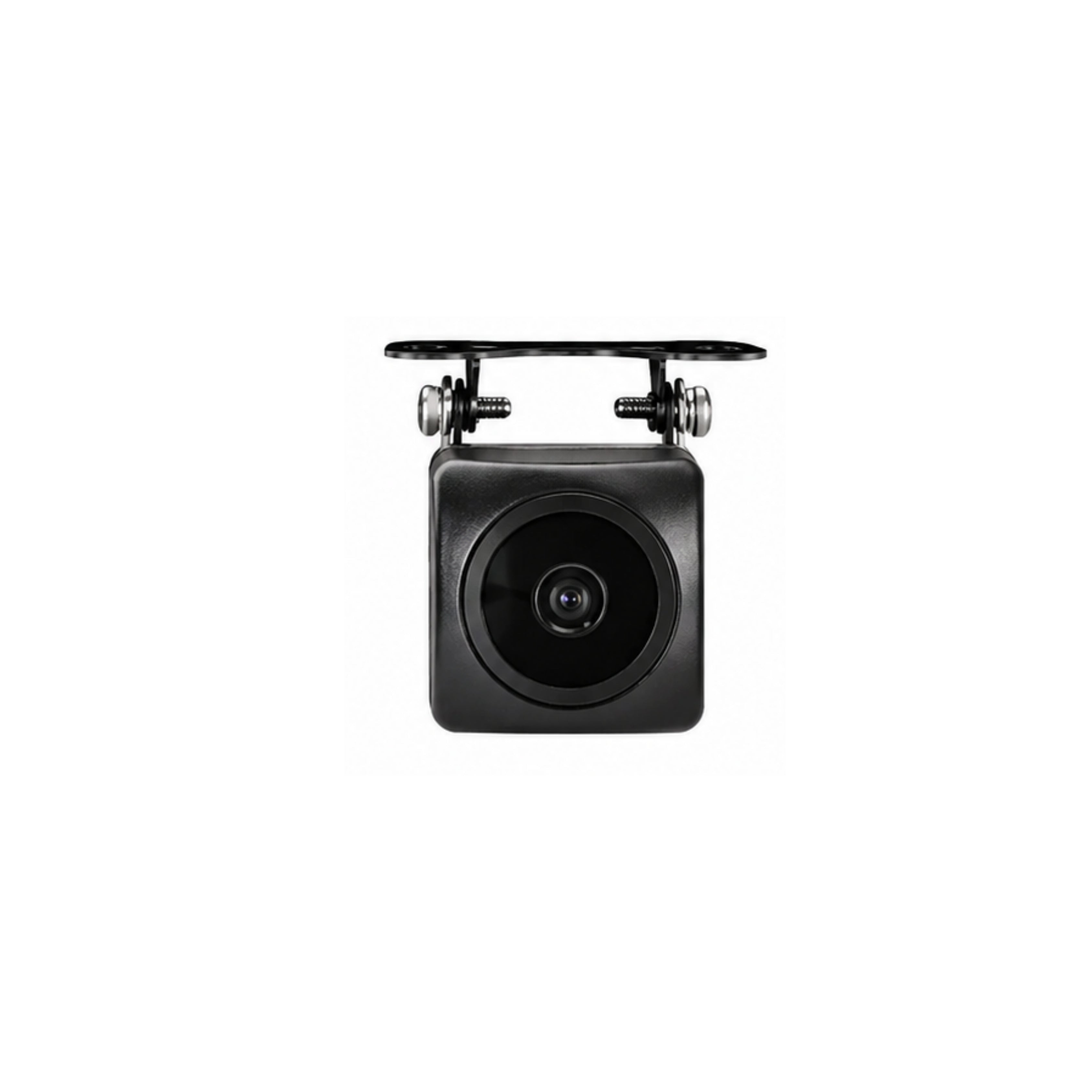

The included rear camera uses a Sony STARVIS 2 image sensor for sharp, detailed footage in both daytime and low-light conditions, rated IP69 for full protection against high-pressure wash-down. When reverse gear is selected, the display automatically switches to the rear camera view with on-screen parking guidelines. A flip switch allows instant reversion to a conventional mirror view at any time. An integrated clock and date display remains on screen at all times.
The built-in DVR records continuously in 1080P HD at 30FPS with automatic impact-triggered event saving to protect critical footage during incidents. MicroSD cards up to 256GB are supported (Class 10 required, sold separately). Installation is simplified with the included 8-metre camera cable and universal mirror mount. Compatible with 12V and 24V vehicles.
For dual front and rear camera coverage, refer to the Aerpro AEM2R.
Note: the included mount is a universal fit. A vehicle-specific mount may be required for correct fitment in some vehicles and is sold separately. Visit aerpro.com or scan the QR code on pack to confirm compatibility before purchase. Backed by a 5-year warranty.
Features & Benefits
True Mirror Replacement - Clean Integrated Appearance: The AEM1R replaces the factory rearview mirror entirely using a purpose-built mounting bracket, delivering a clean factory-integrated appearance rather than a clip-over solution.
9.66" IPS Touch Screen - 1920x480 Resolution: The wide 9.66" IPS touch screen at 1920x480 resolution delivers a clear, wide image across the full mirror footprint for maximum rear visibility coverage.
1000 Nit Super Bright Display with Automatic Brightness Adjustment: The 1000 nit display remains clearly visible in direct sunlight, and automatic brightness adjustment adapts to ambient light levels for comfortable viewing in all conditions without manual intervention.
Sony STARVIS 2 Image Sensor - Exceptional Day and Night Performance: The included rear camera uses a Sony STARVIS 2 image sensor for sharp, detailed AHD 1080P footage in both daytime and challenging low-light conditions.
Constant Live Rear Camera Feed - Eliminates Canopy and Camper Blind Spots: The live AHD 1080P rear camera feed replaces the obstructed factory mirror view, restoring clear rear sightlines for utes, 4WDs, and vans fitted with full canopies, campers, and trays.
Built-In DVR - Continuous 1080P Loop Recording at 30FPS: The built-in DVR records continuously in 1080P HD at 30FPS with automatic impact-triggered event saving to protect critical footage during incidents.
MicroSD Support Up to 256GB: Supports MicroSD cards up to 256GB (Class 10 required, sold separately) for extended recording sessions.
Reverse-Triggered Camera Switching with Parking Guidelines: The display automatically switches to the rear camera view with on-screen parking guidelines when reverse gear is selected for precision manoeuvring.
Flip to Conventional Mirror View: A flip switch instantly reverts the display from live camera feed to a conventional mirror view when preferred.
IP69 Rated Rear Camera: The rear camera is IP69 rated for full protection against dust and high-pressure, high-temperature water jet exposure, suited to exposed exterior mounting positions on working vehicles.
Integrated Clock and Date Display: The clock and date remain visible on screen at all times alongside the camera feed.
12-24V Compatible: Suitable for 12V passenger vehicles and 24V commercial vehicles.
8-Metre Camera Cable Included: The 8-metre rear camera cable provides sufficient reach for routing through full-length canopies and tray body installations.
5-Year Industry-Leading Warranty: Backed by Aerpro's 5-year warranty for long-term confidence in working vehicle applications.
What's in the Box
- 1 x Aerpro AEM1R 9.66" Digital E-Mirror
- 1 x AHD 1080P Rear Camera
- 1 x Universal Mirror Mount
- 1 x 8M Camera Cable
Note: MicroSD card sold separately (Class 10, up to 256GB). Vehicle-specific mount may be required and is sold separately.
Technical Specs
| Specification |
Detail |
| SKU |
AEM1R |
| Brand |
Aerpro |
| Display Size |
9.66" |
| Display Type |
IPS Touch Screen |
| Monitor Resolution |
1920 x 480 |
| Camera Resolution |
AHD 1080P |
| Image Sensor |
Sony STARVIS 2 |
| Screen Brightness |
1000 Nit |
| Brightness Adjustment |
Automatic |
| Camera Inputs |
1 (Rear) |
| Rear Camera IP Rating |
IP69 |
| DVR Recording |
Yes - 1080P at 30FPS |
| Impact Event Saving |
Yes (Automatic) |
| MicroSD Support |
Up to 256GB (Class 10, Sold Separately) |
| Trigger Input |
Reverse Trigger (Auto Camera Display and Parking Guidelines) |
| Mirror Mode |
Flip Switch to Conventional Mirror View |
| On-Screen Display |
Clock and Date |
| Power Supply |
12-24V DC |
| Camera Cable Length |
8 Metres |
| Dimensions |
Confirm with supplier |
| Warranty |
5 Years |
| Barcode |
9317114953018 |
Compatible With
The AEM1R is compatible with 12V and 24V vehicles. The included universal mirror mount suits many vehicles. A vehicle-specific mount may be required for correct fitment and is sold separately. Visit aerpro.com or scan the QR code on pack to confirm compatibility and available vehicle-specific mounts before purchase. A Class 10 MicroSD card up to 256GB is required for DVR recording and is sold separately. For dual front and rear camera coverage, refer to the Aerpro AEM2R.
Frequently Asked Questions
What is the difference between the AEM1R and the AEM2R?
Both share the same 9.66" IPS touch screen, Sony STARVIS 2 rear camera, DVR recording, 1000 nit display, IP69 rating, and 5-year warranty. The AEM1R includes a single rear camera only for rear-only DVR recording. The AEM2R adds an included AHD 1080P front camera for simultaneous dual-channel front and rear DVR recording. Choose the AEM2R for comprehensive front and rear coverage; choose the AEM1R for rear-only coverage.
Does the AEM1R record automatically?
Yes. The built-in DVR records continuously in 1080P HD at 30FPS in loop recording mode. Automatic impact-triggered event saving protects critical footage during incidents by locking it from being overwritten.
What MicroSD card is required for DVR recording?
A Class 10 MicroSD card up to 256GB is required. The MicroSD card is sold separately and is not included in the box.
Does the AEM1R switch automatically to the rear camera when reversing?
Yes. When reverse gear is selected, the display automatically switches to the rear camera view and on-screen parking guidelines appear to assist with precision manoeuvring.
Is a vehicle-specific mount required?
The included mount is a universal fit that suits many vehicles. A vehicle-specific mount may be required for correct fitment in some vehicles and is available separately. Visit aerpro.com to confirm compatibility and check available vehicle-specific mounts before purchase.
