Description

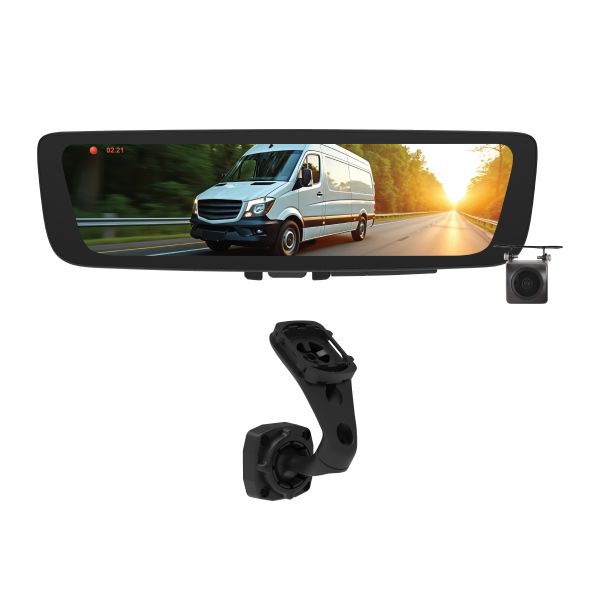

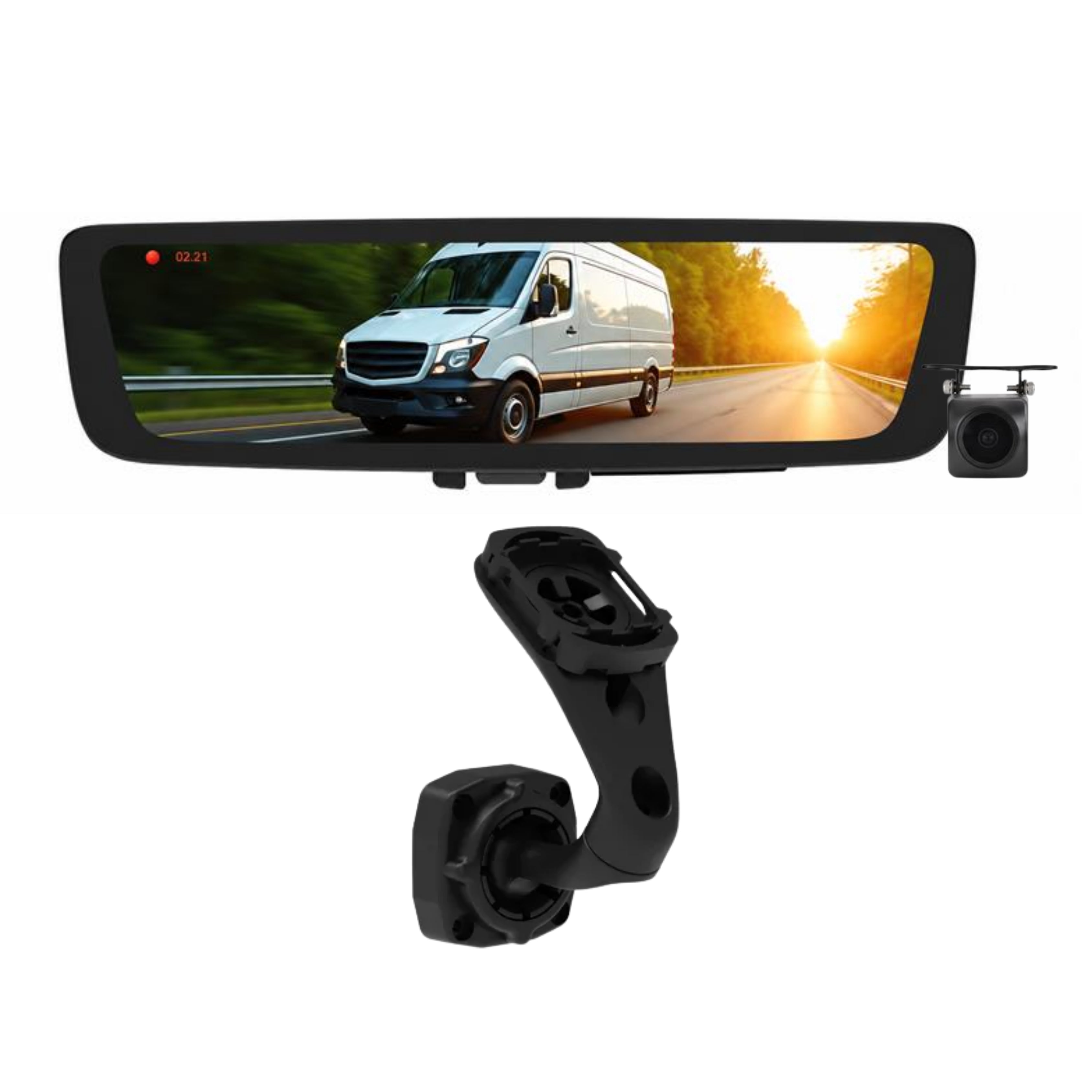

Aerpro AEM1RB7 9.66 Inch Digital E-Mirror with AHD 1080P Rear DVR Camera Kit and AEMB7 Vehicle-Specific Bracket for Hyundai iLoad 2007 to 2021
The Aerpro AEM1RB7 is a complete digital e-mirror and rear DVR camera kit purpose-matched to the Hyundai iLoad (2007 to 2021). It includes the AEM1R 9.66-inch IPS touchscreen digital mirror, an AHD 1080P rear camera with Sony STARVIS 2 image sensor, the AEMB7 vehicle-specific mounting bracket, and an 8-metre camera cable. Replaces the factory rearview mirror with a live 1920x480 HD camera feed. Built-in DVR records continuously in 1080P at 30FPS with impact-triggered event saving, supporting MicroSD cards up to 256GB Class 10 (sold separately). IP69-rated rear camera, 1000 nit display with automatic brightness adjustment, 12V/24V compatible, and 5-year warranty.
Product overview
Canopies, camper bodies, and trays fitted to the Hyundai iLoad eliminate rearward sightlines through the factory mirror. The AEM1RB7 restores rear vision by replacing the factory mirror entirely with a 9.66-inch IPS touchscreen displaying a live 1080P feed from the included rear camera. The AEMB7 bracket is matched specifically to the iLoad and installs in place of the factory mirror with no cutting, fabrication, or separate bracket sourcing required.
The Sony STARVIS 2 image sensor delivers sharp footage in daylight and low-light conditions at AHD 1080P. The 1000 nit display remains visible in direct sunlight, with automatic brightness adjustment for comfortable viewing across all conditions. Selecting reverse gear automatically switches the screen to the rear camera view with on-screen parking guidelines. A flip switch allows instant reversion to a conventional mirror view. The integrated clock and date display remains on screen at all times.
The built-in DVR records continuously in 1080P at 30 frames per second with loop recording and automatic impact-triggered event saving. The system supports MicroSD cards up to 256GB Class 10, sold separately. The 8-metre camera cable provides sufficient reach for standard van installations.
Features and benefits
Complete kit in one box: AEM1R digital e-mirror, AHD 1080P rear camera, AEMB7 vehicle-specific bracket, and 8-metre camera cable. No separate bracket sourcing required.

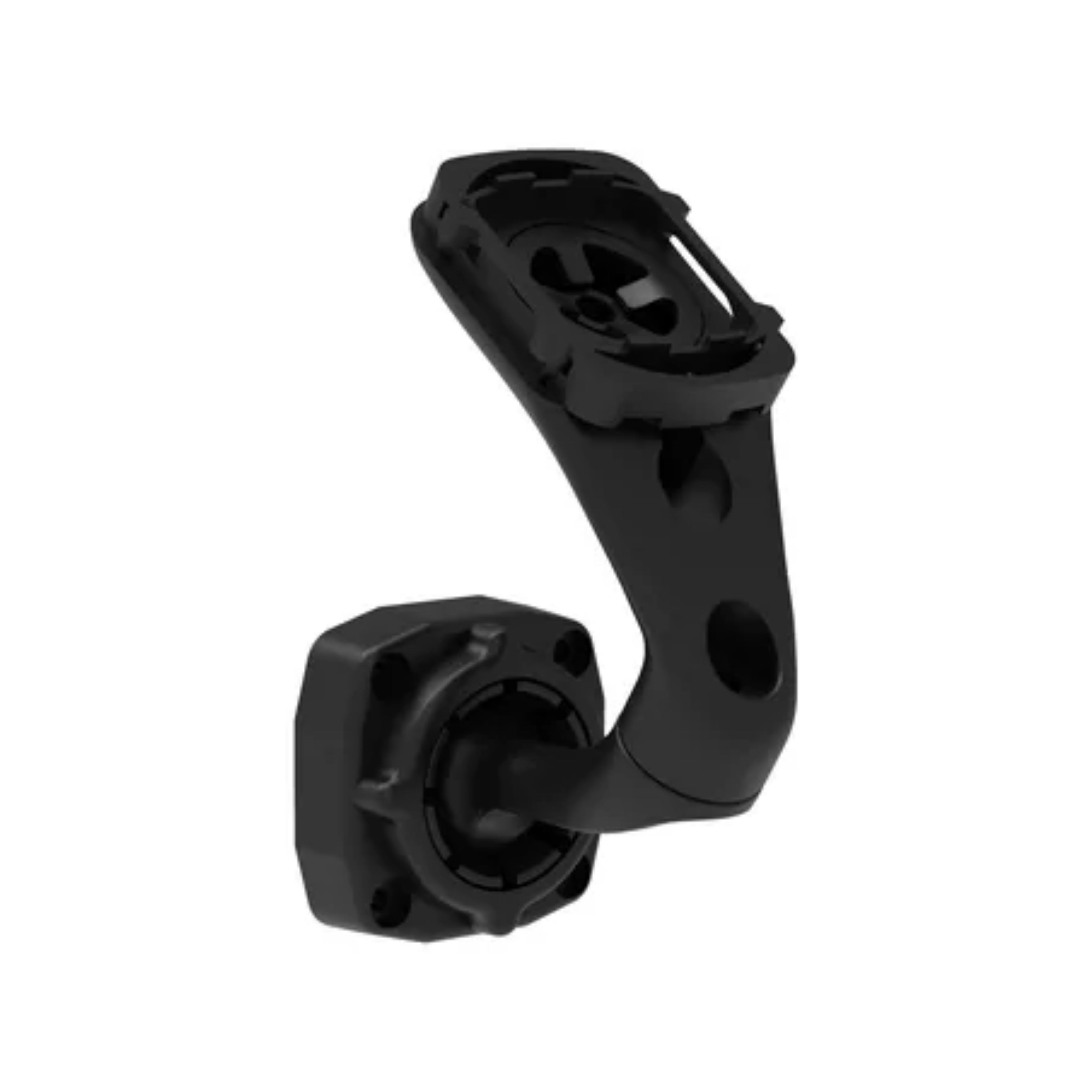

True mirror replacement with AEMB7 bracket: Installs in place of the factory rearview mirror with no cutting or fabrication.

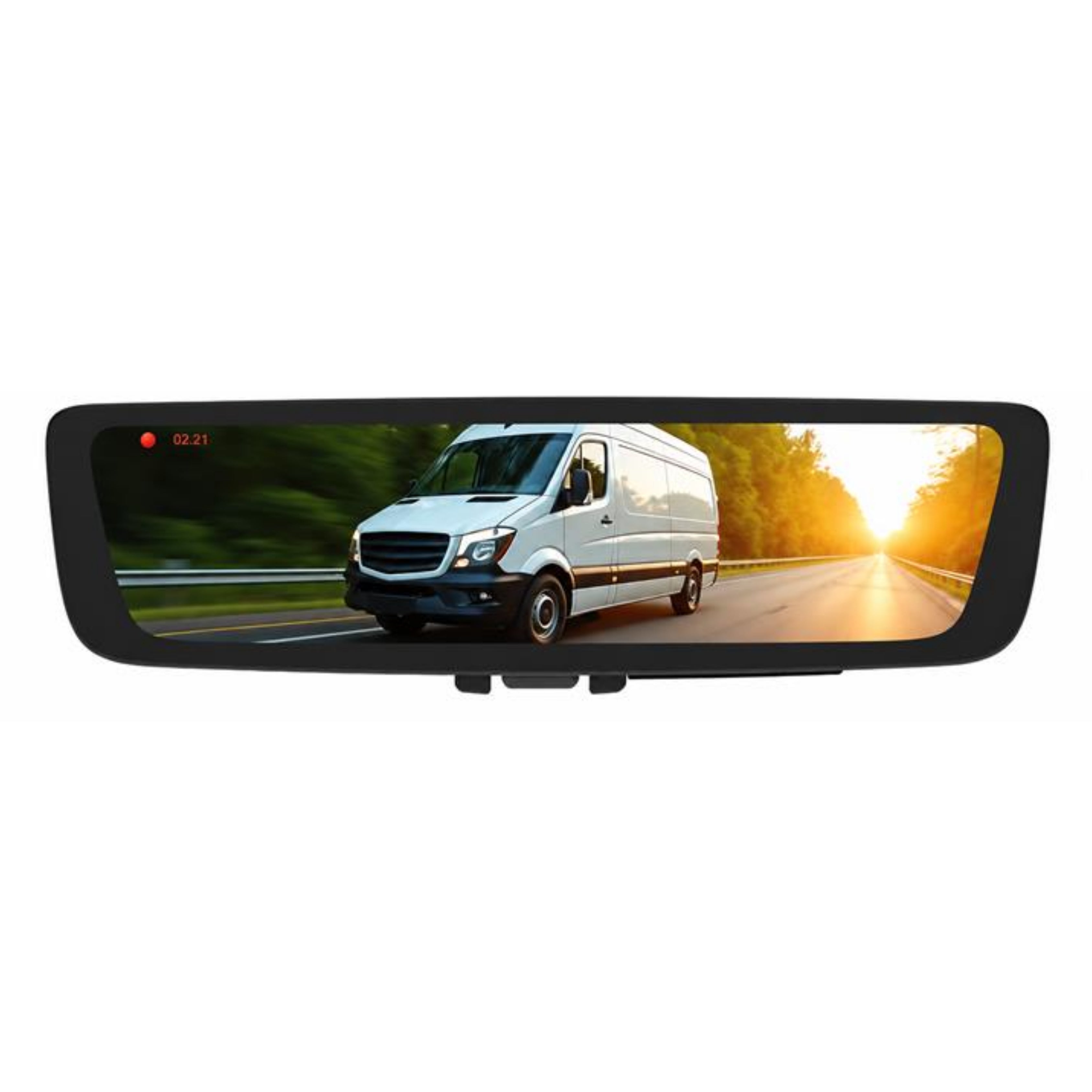

9.66-inch IPS touchscreen, 1920x480 resolution: Wide, clear image across the full mirror footprint.
1000 nit display with automatic brightness adjustment: Readable in direct sunlight and low-light conditions without manual intervention.

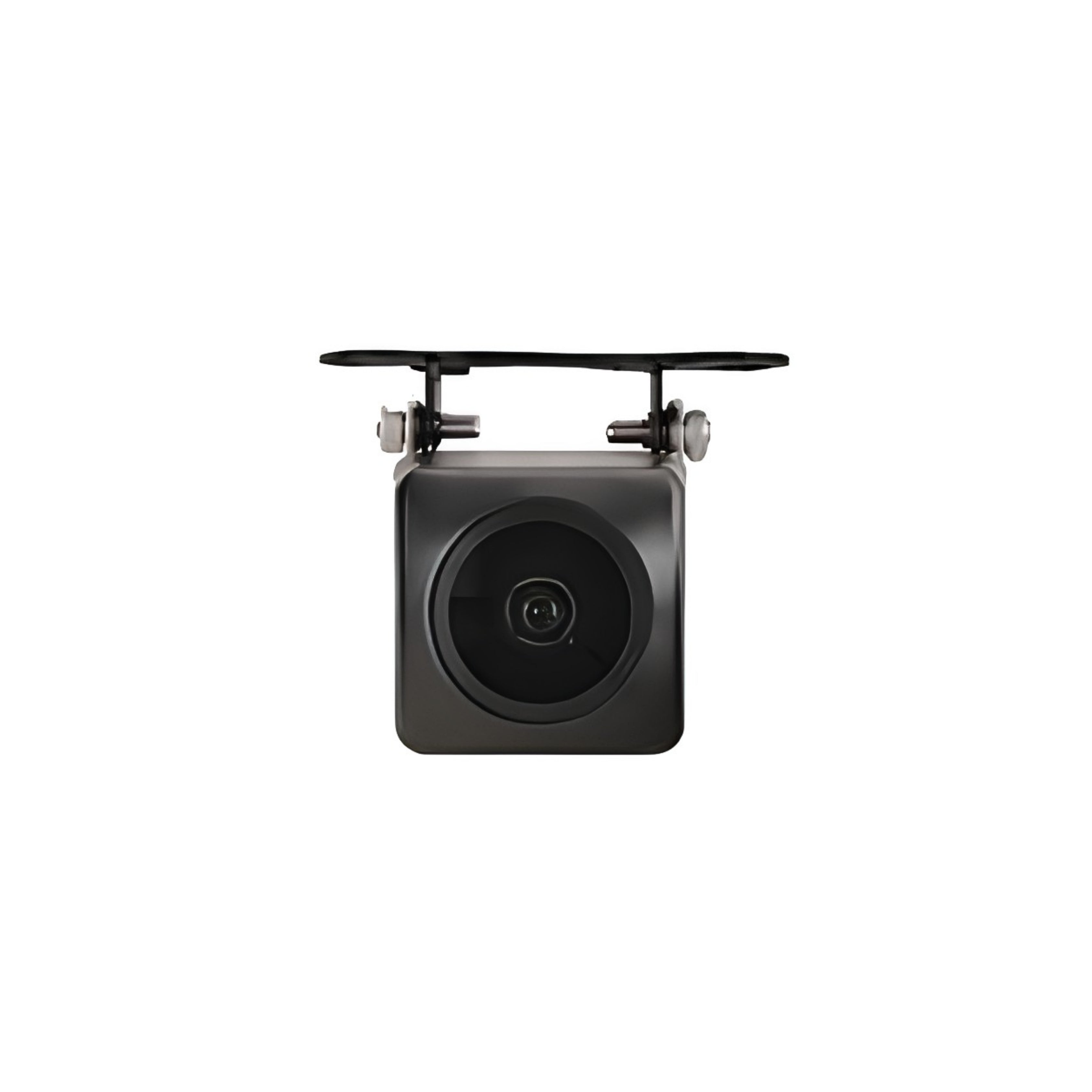

Sony STARVIS 2 image sensor: Sharp rear camera footage in daylight and low light at AHD 1080P.
Constant live rear vision: 1080P camera feed replaces the obstructed factory mirror view for canopy, camper, and tray-equipped iLoad vehicles.
Automatic reverse camera activation with parking guidelines: Switches to rear camera view with on-screen guidelines when reverse gear is selected.
Flip to conventional mirror view: Single switch reverts instantly to standard mirror mode.
Built-in DVR, 1080P at 30FPS with loop recording: Continuous recording with impact-triggered event saving. Supports up to 256GB Class 10 MicroSD (sold separately).
IP69-rated rear camera: Withstands high-pressure wash-down and harsh outdoor conditions.
Integrated clock and date display: Visible on screen at all times.
12V and 24V compatible: Suits passenger and commercial van applications.
5-year warranty: Backed by Aerpro's 5-year warranty.
What's in the box
- 9.66-inch Digital E-Mirror (AEM1R)
- AHD 1080P Rear Camera
- AEMB7 Vehicle-Specific Mounting Bracket
- 8-Metre Camera Cable
Technical specs
| Specification |
Detail |
| SKU |
AEM1RB7 |
| Brand |
Aerpro |
| Display |
9.66-inch IPS touchscreen |
| Monitor Resolution |
1920x480 |
| Camera Resolution |
AHD 1080P |
| Image Sensor |
Sony STARVIS 2 |
| Camera IP Rating |
IP69 |
| Screen Brightness |
1000 nit |
| Brightness Adjustment |
Automatic |
| DVR Recording |
1080P at 30FPS, loop recording |
| MicroSD Support |
Up to 256GB Class 10 (sold separately) |
| Impact Event Saving |
Yes, automatic |
| Reverse Trigger |
Yes, auto camera display with guidelines |
| Mirror Mode |
Flip switch to conventional mirror view |
| On-Screen Display |
Clock and date |
| Power Supply |
12V to 24V DC |
| Camera Cable Length |
8 metres |
| Warranty |
5 years |
Compatible with
| Make |
Model |
Years |
| Hyundai |
iLoad |
2007 to 2021 |
Frequently asked questions
Why does the AEM1RB7 suit canopy and camper iLoad vehicles? Canopies, camper bodies, and trays eliminate rear sightlines through the factory mirror on the iLoad. The AEM1RB7 replaces the factory mirror with a live 1080P camera feed from a rear-mounted IP69-rated camera, restoring clear rear vision regardless of what is fitted to the load area.
Does the kit include the mounting bracket and camera cable? Yes. The AEM1RB7 includes the AEM1R digital mirror, the AHD 1080P rear camera, the AEMB7 vehicle-specific bracket, and an 8-metre camera cable. Everything required for installation is in the box.
What MicroSD card do I need for DVR recording? The system supports MicroSD cards up to 256GB. A Class 10 card is required and is sold separately.
Can I still use it as a conventional mirror? Yes. A flip switch instantly reverts the screen to a conventional mirror view at any time.
What does IP69 mean for the rear camera? IP69 is the highest water ingress protection rating, indicating the camera withstands high-pressure, high-temperature wash-down from any direction. This suits the rear of commercial vans exposed to regular pressure washing and harsh outdoor conditions.
