Description

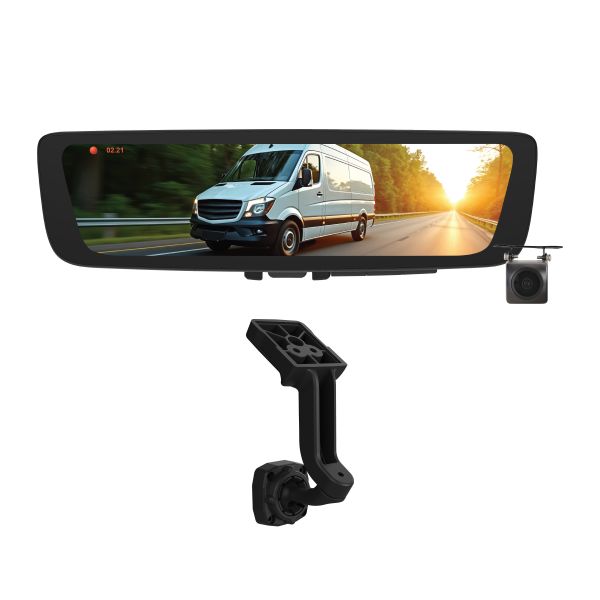

Aerpro AEM1RB80 9.66 Inch Digital E-Mirror with Rear AHD 1080P DVR Camera and AEMB80 Toyota Landcruiser 70 Series Specific Mounting Bracket
The AEM1RB80 from Aerpro is a complete digital e-mirror kit pairing the AEM1R 9.66 inch IPS touchscreen e-mirror with the AEMB80 vehicle-specific mounting bracket, matched for the Toyota Landcruiser 70 Series. The included AHD 1080P rear camera provides single-channel 1080P DVR recording at 30FPS with a Sony STARVIS 2 sensor, live rear vision feed, automatic reversing guidelines, and 5-year warranty coverage. The AEM1RB80 is the single rear camera version of the AEM2RB80, which adds a front camera for dual-channel recording. A MicroSD card up to 256GB is supported for onboard recording storage and is sold separately.
Product overview
Toyota Landcruiser 70 Series vehicles fitted with canopies, campers, or trays lose effective factory rearview mirror vision as the rear is fully obstructed. The AEM1RB80 addresses this by replacing the factory rearview mirror entirely with a 9.66 inch IPS touchscreen displaying a live AHD 1080P rear camera feed, restoring clear and unobstructed rear sightlines regardless of what is mounted in the tray or tub. The 1000 nit display with automatic brightness adjustment remains clearly legible in direct sunlight and low-light conditions, and a flip switch allows instant reversion to a conventional mirror view when needed.
The AEMB80 bracket is included in the box and installs in place of the factory mirror without cutting or fabrication, providing a clean factory-quality result specific to the Toyota Landcruiser 70 Series. The AHD 1080P rear camera records continuously in 1080P HD at 30FPS with automatic impact-triggered event saving protecting critical footage. The system is compatible with 12V and 24V vehicles, making it suited to both standard and commercial Landcruiser 70 Series applications.
Features and benefits
Complete kit with Toyota Landcruiser 70 Series specific bracket included: The AEM1R digital e-mirror and AEMB80 vehicle-specific mounting bracket are supplied together in a single box, eliminating the need to source and match a separate bracket.
9.66 inch IPS touchscreen at 1920x480 resolution: The wide IPS display delivers a sharp, clear live camera feed across the full mirror footprint with touch control for system operation.
1000 nit display with automatic brightness adjustment: The super-bright 1000 nit display remains clearly visible in direct sunlight and automatically adjusts to ambient light levels for comfortable viewing at all times.
Sony STARVIS 2 rear camera sensor: The premium Sony STARVIS 2 image sensor delivers sharp, detailed footage in both daytime and low-light conditions for reliable rear vision coverage.
1080P DVR recording at 30FPS: The built-in DVR records continuously in 1080P HD at 30 frames per second, with automatic impact-triggered event saving protecting critical footage from being overwritten by continuous loop recording.
Automatic reverse camera activation with guidelines: Selecting reverse gear automatically switches the screen to the rear camera view with on-screen parking guidelines for precision manoeuvring assistance.
IP69 rated rear camera: The weatherproof IP69-rated rear camera withstands high-pressure wash-down and harsh outdoor conditions suited to canopy, camper, and tray-equipped Landcruiser 70 Series applications.
MicroSD support up to 256GB: The system supports MicroSD cards up to 256GB (Class 10 required, sold separately) for extended DVR recording storage.
12V and 24V compatible: Suitable for both standard and commercial Toyota Landcruiser 70 Series applications.
5-year warranty: Backed by a 5-year warranty for long-lasting performance and peace of mind.
What's in the box
- 1x AEM1R 9.66 inch Digital E-Mirror
- 1x AHD 1080P Rear Camera
- 1x AEMB80 Vehicle-Specific Mounting Bracket
- 1x 8 metre Camera Cable
Technical specs
| Specification |
Detail |
| SKU |
AEM1RB80 |
| Brand |
Aerpro |
| Display Size |
9.66 inch IPS touchscreen |
| Display Resolution |
1920 x 480 |
| Screen Brightness |
1000 nit |
| Brightness Adjustment |
Automatic |
| Camera Resolution |
AHD 1080P |
| Rear Camera Image Sensor |
Sony STARVIS 2 |
| Rear Camera IP Rating |
IP69 |
| DVR Recording |
1080P at 30FPS, single channel |
| MicroSD Support |
Up to 256GB, Class 10 required (sold separately) |
| Reverse Trigger |
Yes, automatic camera display with guidelines |
| Mirror Mode |
Flip switch to conventional mirror view |
| On-Screen Display |
Clock and date |
| Power Supply |
12V to 24V DC |
| Camera Cable Length |
8 metres |
| Warranty |
5 years |
Compatible with
The AEMB80 mounting bracket included in this kit is confirmed for the following Toyota vehicle. Confirm your specific variant and build year before ordering.
| Make |
Model |
Variant |
Years |
| Toyota |
Landcruiser |
70 Series |
All years |
Frequently asked questions
What is the difference between the AEM1RB80 and the AEM2RB80?
Both are digital e-mirror kits confirmed for the Toyota Landcruiser 70 Series with the same AEMB80 bracket, 9.66 inch IPS display, Sony STARVIS 2 rear camera, and 5-year warranty. The AEM1RB80 includes a single rear camera with single-channel 1080P DVR recording at 30FPS. The AEM2RB80 adds a front camera for dual-channel 1080P recording covering both front and rear simultaneously. Select the AEM2RB80 if comprehensive front and rear DVR coverage is required.
Why would a Landcruiser 70 Series owner need a digital e-mirror?
The Toyota Landcruiser 70 Series is frequently fitted with canopies, trays, and camper setups that completely obstruct the factory rearview mirror. The AEM1RB80 restores full rear sightlines by replacing the factory mirror with a live 1080P camera feed, providing clear and unobstructed rear vision regardless of what is mounted behind the cab.
Is a MicroSD card included?
No. A MicroSD card is required for DVR recording storage and must be purchased separately. The system supports MicroSD cards up to 256GB with a Class 10 rating required for reliable recording performance.
Does the AEMB80 bracket suit other Toyota models beyond the Landcruiser 70 Series?
The AEMB80 bracket is designed and confirmed for the Toyota Landcruiser 70 Series only. Contact us to confirm bracket availability for other Toyota models or other vehicle makes.
What is the warranty on the AEM1RB80?
The AEM1RB80 is backed by a 5-year warranty covering long-term performance and reliability. Contact us for further details on warranty claims and conditions.
