Description

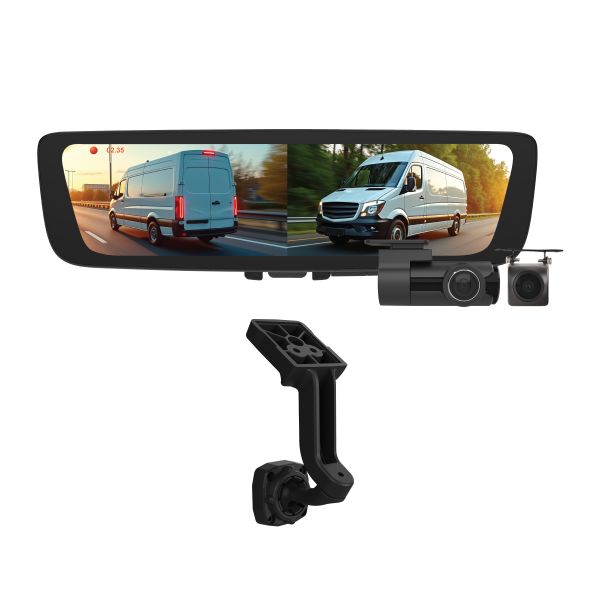

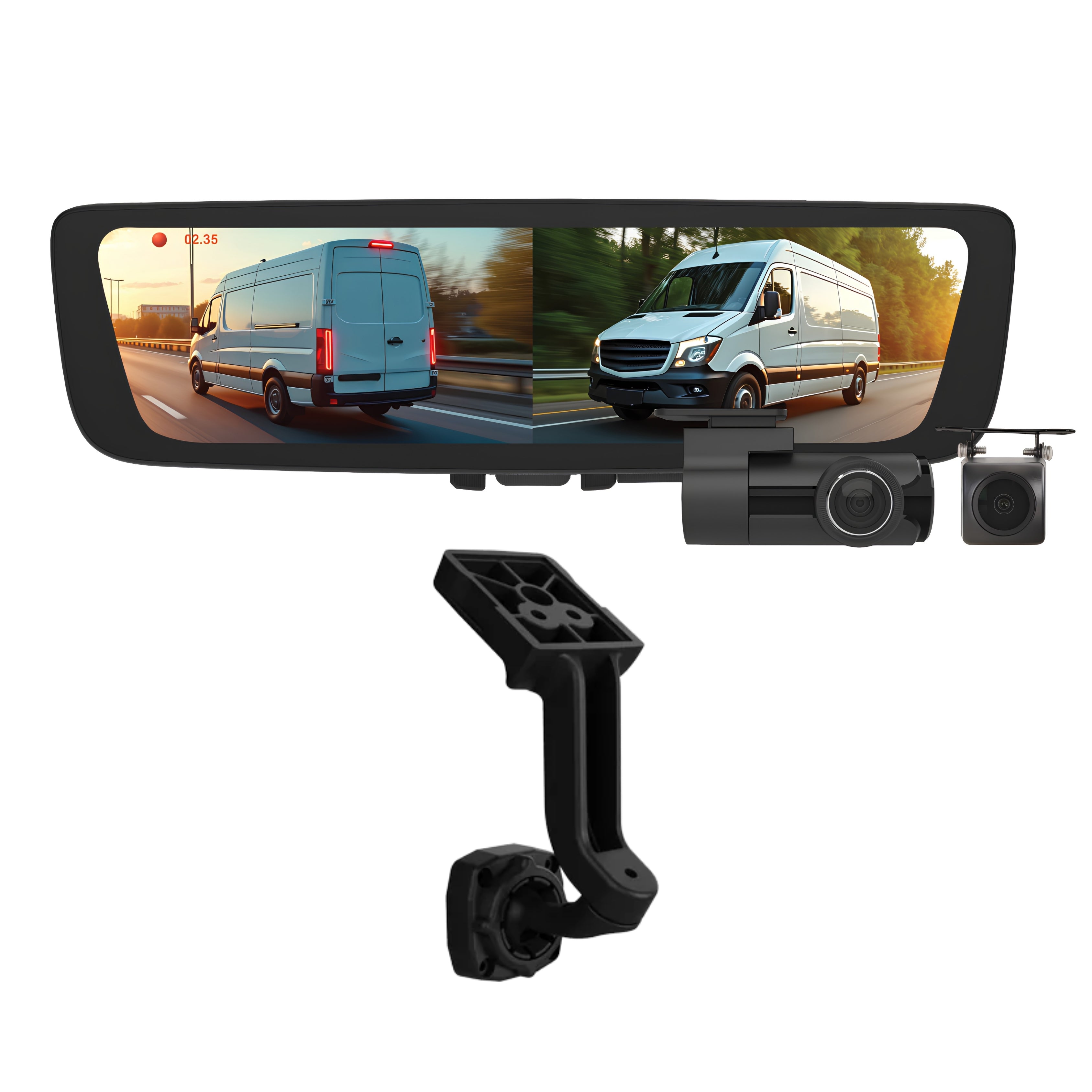

Aerpro AEM2RB80 9.66 Inch Digital E-Mirror with Front and Rear AHD 1080P DVR Cameras and AEMB80 Toyota Landcruiser 70 Series Specific Mounting Bracket
The AEM2RB80 from Aerpro is a complete digital e-mirror kit pairing the AEM2R 9.66 inch IPS touchscreen e-mirror with the AEMB80 vehicle-specific mounting bracket, matched for the Toyota Landcruiser 70 Series. Included front and rear AHD 1080P cameras provide dual-channel 1080P DVR recording with a Sony STARVIS 2 rear sensor, live rear vision feed, automatic reversing guidelines, and 5-year warranty coverage. A MicroSD card up to 256GB is supported for onboard recording storage and is sold separately.
Product overview
Toyota Landcruiser 70 Series vehicles fitted with canopies, campers, or trays lose effective factory rearview mirror vision as the rear is fully obstructed. The AEM2RB80 addresses this by replacing the factory rearview mirror entirely with a 9.66 inch IPS touchscreen displaying a live AHD 1080P rear camera feed, restoring clear and unobstructed rear sightlines regardless of what is mounted in the tray or tub. The 1000 nit display with automatic brightness adjustment remains clearly legible in direct sunlight and low-light conditions, and a flip switch allows instant reversion to a conventional mirror view when needed.

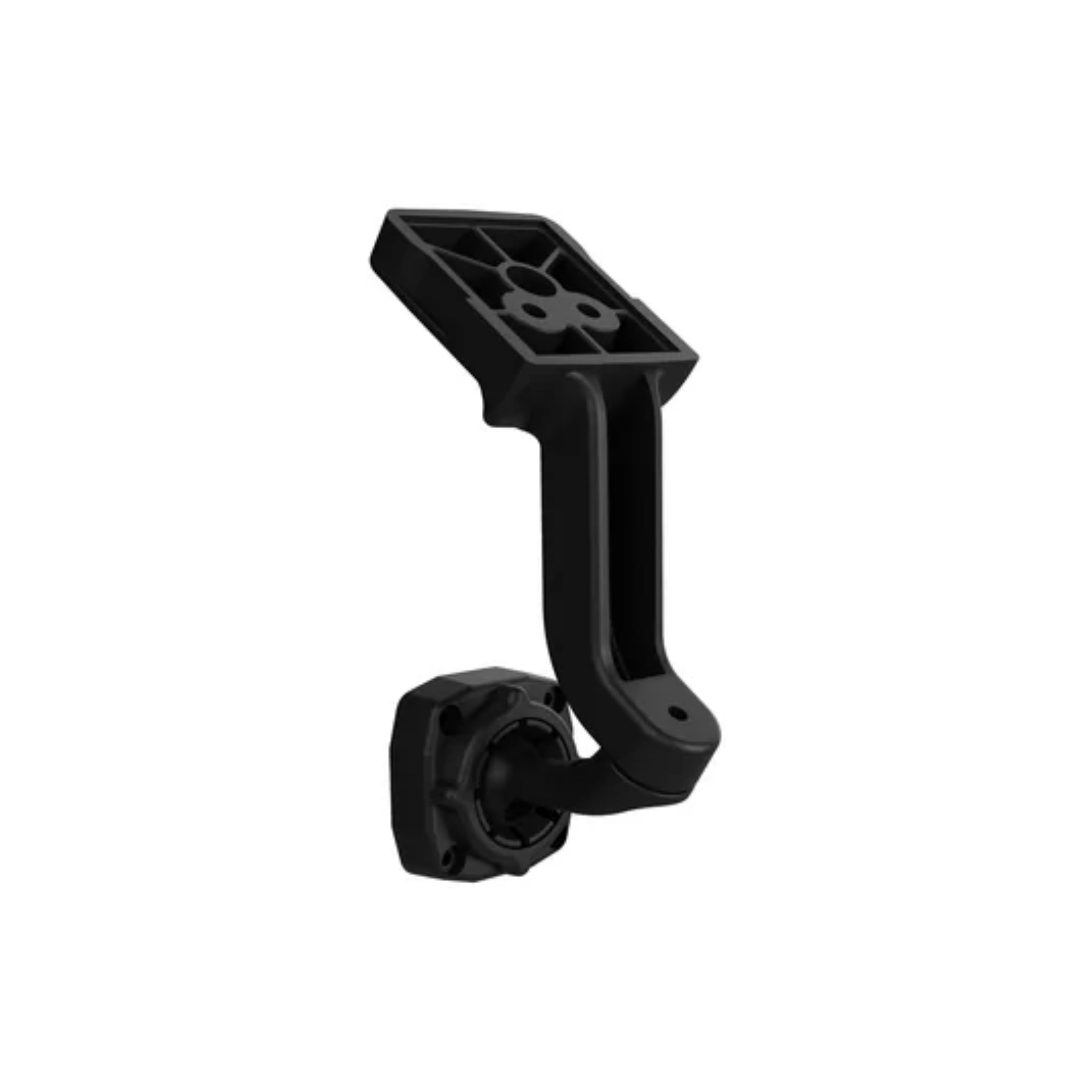

The AEMB80 bracket is included in the box and installs in place of the factory mirror without cutting or fabrication, providing a clean factory-quality result specific to the Toyota Landcruiser 70 Series. The front and rear AHD 1080P cameras record simultaneously in dual-channel 1080P HD continuously, with automatic impact-triggered event saving protecting critical footage. The system is compatible with 12V and 24V vehicles, making it suited to both standard and commercial Landcruiser 70 Series applications.
Features and benefits
Complete kit with Toyota Landcruiser 70 Series specific bracket included: The AEM2R digital e-mirror and AEMB80 vehicle-specific mounting bracket are supplied together in a single box, eliminating the need to source and match a separate bracket.

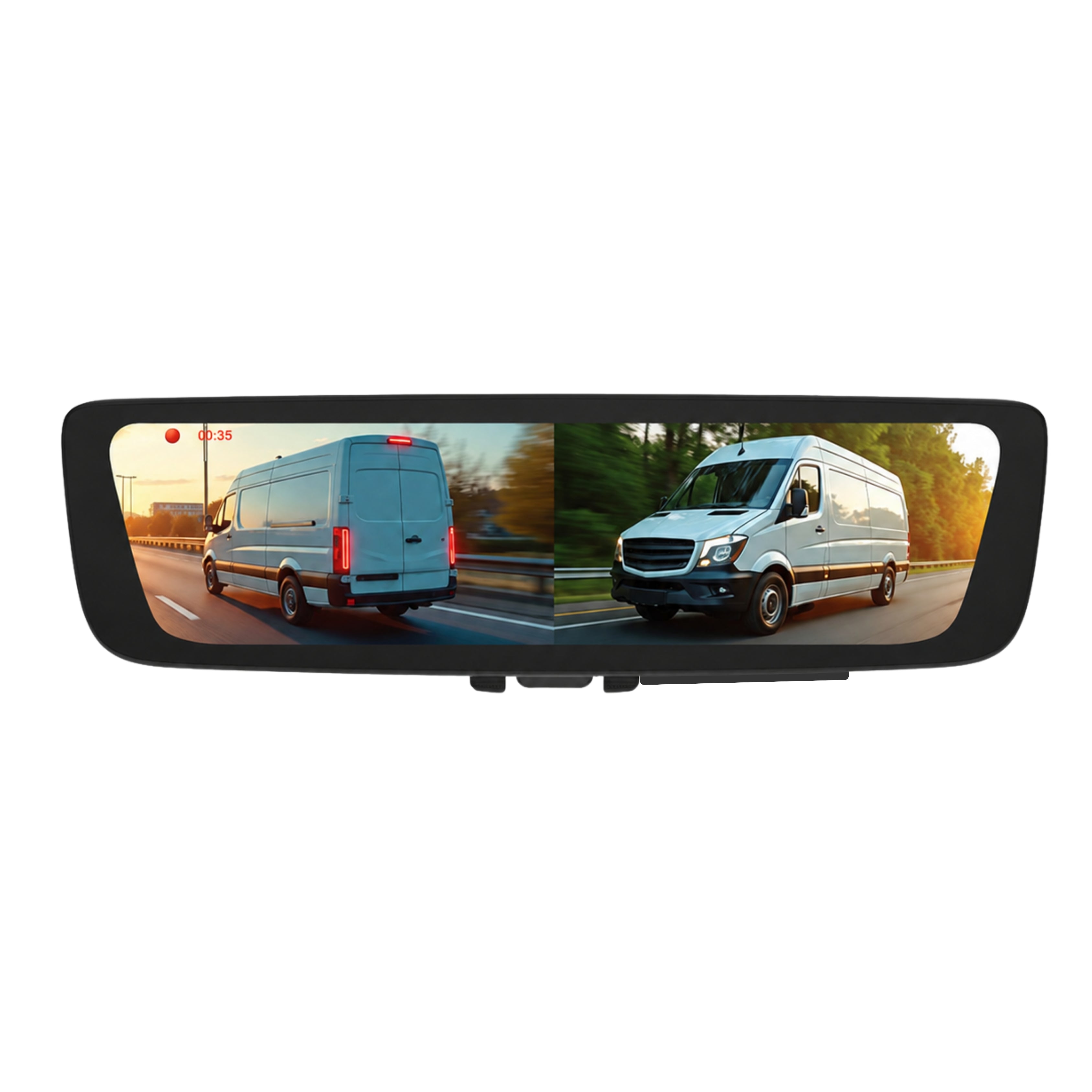

9.66 inch IPS touchscreen at 1920x480 resolution: The wide IPS display delivers a sharp, clear live camera feed across the full mirror footprint with touch control for system operation.
1000 nit display with automatic brightness adjustment: The super-bright 1000 nit display remains clearly visible in direct sunlight and automatically adjusts to ambient light levels for comfortable viewing at all times.
Sony STARVIS 2 rear camera sensor: The premium Sony STARVIS 2 image sensor in the rear camera delivers sharp, detailed footage in both daytime and low-light conditions for reliable rear vision coverage.

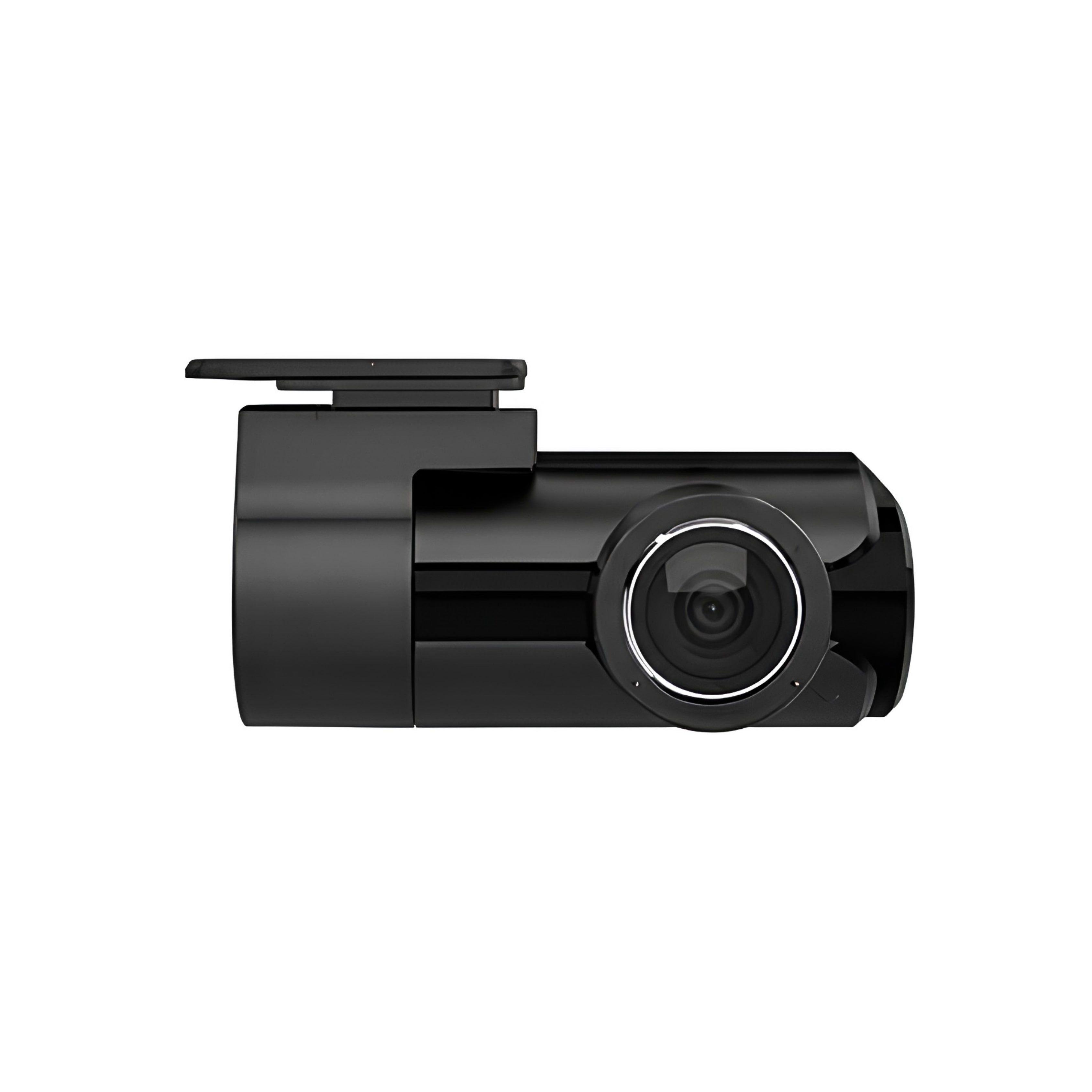

Dual AHD 1080P front and rear cameras with DVR recording: Both the front and rear cameras record simultaneously in dual-channel 1080P HD, with the rear at 30FPS and the front at 25FPS, providing comprehensive front and rear coverage in a single integrated system.
Automatic impact-triggered event saving: The built-in DVR automatically saves critical footage when an impact is detected, protecting evidence of incidents from being overwritten by continuous loop recording.
Automatic reverse camera activation with guidelines: Selecting reverse gear automatically switches the screen to the rear camera view with on-screen parking guidelines for precision manoeuvring assistance.

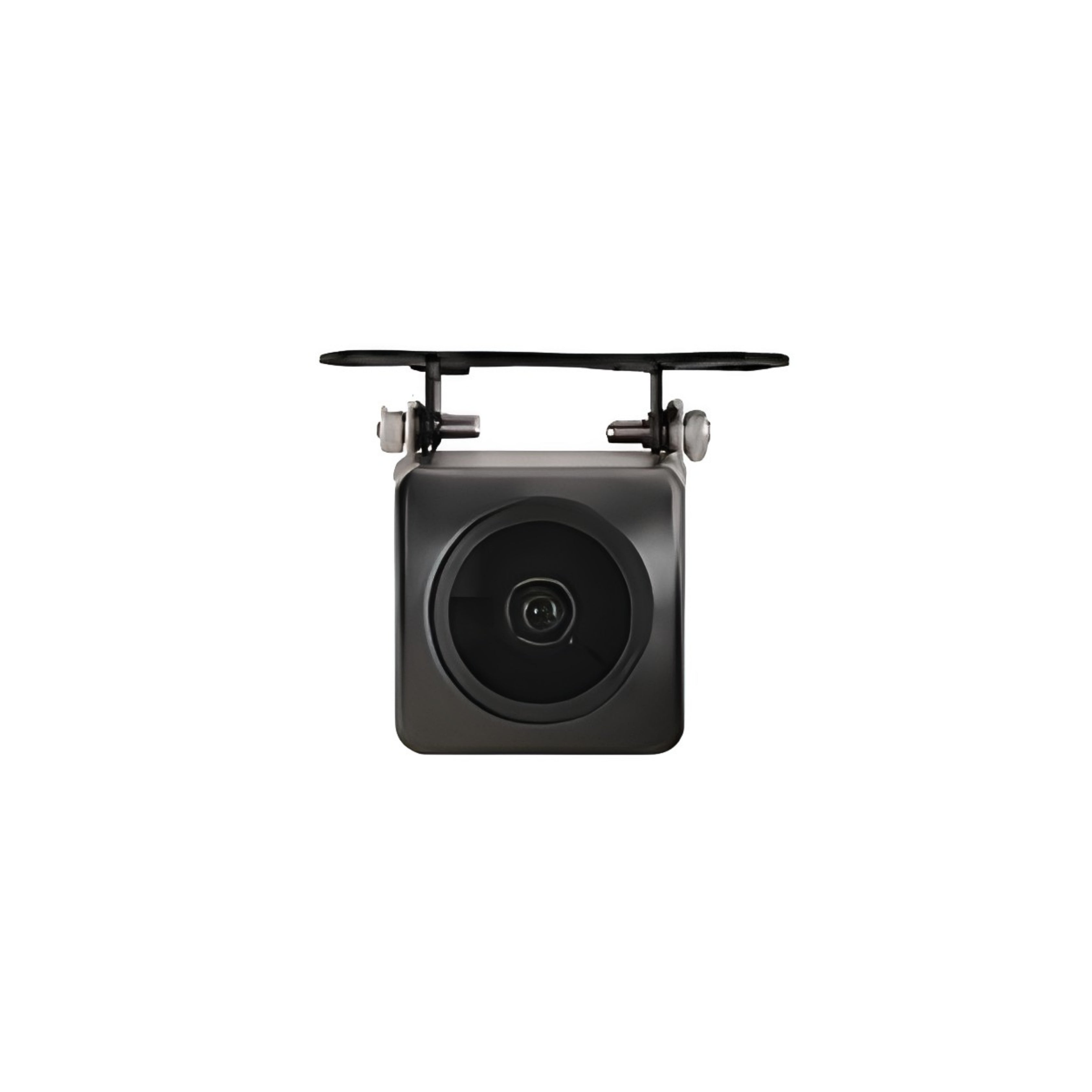

IP69 rated rear camera: The weatherproof IP69-rated rear camera withstands high-pressure wash-down and harsh outdoor conditions suited to canopy, camper, and tray-equipped Landcruiser 70 Series applications.
MicroSD support up to 256GB: The system supports MicroSD cards up to 256GB (Class 10 required, sold separately) for extended dual-channel DVR recording storage.
12V and 24V compatible: Suitable for both standard and commercial Toyota Landcruiser 70 Series applications.
5-year warranty: Backed by a 5-year warranty for long-lasting performance and peace of mind.
What's in the box
- 1x AEM2R 9.66 inch Digital E-Mirror
- 1x AHD 1080P Rear Camera
- 1x AHD 1080P Front Camera
- 1x AEMB80 Vehicle-Specific Mounting Bracket
- 1x 8 metre Camera Cable
Technical specs
| Specification |
Detail |
| SKU |
AEM2RB80 |
| Brand |
Aerpro |
| Display Size |
9.66 inch IPS touchscreen |
| Display Resolution |
1920 x 480 |
| Screen Brightness |
1000 nit |
| Brightness Adjustment |
Automatic |
| Camera Resolution |
AHD 1080P (front and rear) |
| Rear Camera Image Sensor |
Sony STARVIS 2 |
| Rear Camera IP Rating |
IP69 |
| DVR Recording |
Dual channel 1080P, rear at 30FPS, front at 25FPS |
| MicroSD Support |
Up to 256GB, Class 10 required (sold separately) |
| Camera Inputs |
2 (front and rear) |
| Reverse Trigger |
Yes, automatic camera display with guidelines |
| Mirror Mode |
Flip switch to conventional mirror view |
| On-Screen Display |
Clock and date |
| Power Supply |
12V to 24V DC |
| Camera Cable Length |
8 metres |
| Warranty |
5 years |
Compatible with
The AEMB80 mounting bracket included in this kit is confirmed for the following Toyota vehicle. Confirm your specific variant and build year before ordering.
| Make |
Model |
Variant |
Years |
| Toyota |
Landcruiser |
70 Series |
All years |
Frequently asked questions
Why would a Landcruiser 70 Series owner need a digital e-mirror?
The Toyota Landcruiser 70 Series is one of Australia's most popular work and off-road platforms, frequently fitted with canopies, trays, and camper setups that completely obstruct the factory rearview mirror. The AEM2RB80 restores full rear sightlines by replacing the factory mirror with a live 1080P camera feed, providing clear and unobstructed rear vision regardless of what is mounted behind the cab.
Does the AEM2RB80 include both front and rear cameras?
Yes. Both an AHD 1080P front camera and an AHD 1080P rear camera are included in the kit, providing comprehensive front and rear coverage with simultaneous dual-channel DVR recording in a single integrated system.
Is a MicroSD card included?
No. A MicroSD card is required for DVR recording storage and must be purchased separately. The system supports MicroSD cards up to 256GB with a Class 10 rating required for reliable recording performance.
Does the AEMB80 bracket suit other Toyota models beyond the Landcruiser 70 Series?
The AEMB80 bracket is designed and confirmed for the Toyota Landcruiser 70 Series only. For other Toyota models or other vehicle makes, a different bracket may be required. Contact us to confirm bracket availability for your specific vehicle.
What is the warranty on the AEM2RB80?
The AEM2RB80 is backed by a 5-year warranty covering long-term performance and reliability. Contact us for further details on warranty claims and conditions.
