Aerpro AKCFO6 9 Inch Trapezoid Install Kit for Ford Ranger 2015 to 2021 and Ford Everest 2015 to 2022 with Factory 8 Inch Screen SWC Climate Control and Parking Visualisation Retention Infolink Plus
The Aerpro AKCFO6 is a 9-inch trapezoid head unit installation kit for the Ford Ranger (2015 to 2021) and Ford Everest (2015 to 2022) fitted with a factory 8-inch screen. Includes black facia kit, SWC Infolink harness, and antenna adaptor. Retains steering wheel controls including phone button, factory reverse camera, vehicle climate control, and parking visualisation on the aftermarket display where equipped. ISO harness not included recommended to pair with an Aerpro APP8 head unit secondary ISO harness (sold separately).
Product overview
The AKCFO6 provides all components required to complete a 9-inch trapezoid aftermarket head unit installation in the Ford Ranger and Everest while retaining key factory features. The Infolink Plus interface retains vehicle menus, OEM amplifier, and OEM reverse camera. Climate control and parking visualisation are retained on the aftermarket display where factory equipped. Reverse trigger, park brake, speed pulse, and illumination outputs are all provided.
This kit suits 9-inch trapezoid-format head units only it is not compatible with standard single DIN or double DIN radios. Pioneer CAN Bus features are not supported; for Pioneer units, select "Steering Wheel Control" then "With Adapter" in the menu rather than "CAN Bus Adapter" on boot-up. Feature retention is radio dependent.
Compatible head units
| Brand |
Model |
| Alpine |
INE-AW409S |
| Kenwood |
DMX80AXS |
| Pioneer |
DMH-AP6650BT |
| Aerpro |
AM9X, AM905D |
| Various |
Android head units (9-inch trapezoid format) |
Features and benefits
Suits Ford Ranger 2015 to 2021 and Ford Everest 2015 to 2022 with factory 8-inch screen.
Retains steering wheel controls including phone button.
Retains factory reverse camera where equipped.
Retains vehicle climate control and parking visualisation on the aftermarket display where equipped.
Infolink Plus interface: Vehicle menus, OEM amplifier, and OEM reverse camera retained.
Reverse trigger (purple), park brake (green), speed pulse (pink), and illumination outputs included.
Black facia kit, SWC Infolink harness, and antenna adaptor included.
ISO harness not included: Pair with Aerpro APP8 head unit secondary ISO harness (sold separately).
Suits 9-inch trapezoid head units only: Not compatible with standard single DIN or double DIN radios.

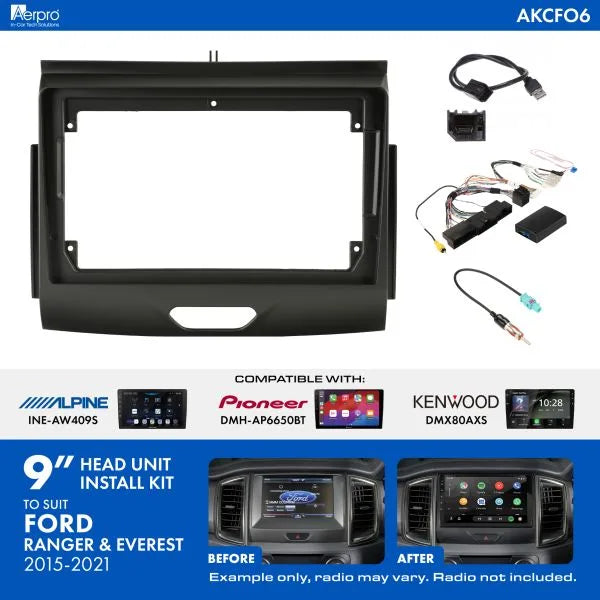

What's in the box
- 1x black facia kit
- SWC Infolink harness
- Antenna adaptor
Technical specs
| Specification |
Detail |
| SKU |
AKCFO6 |
| Brand |
Aerpro |
| Type |
9-inch head unit installation kit |
| Head Unit Format |
9-inch trapezoid |
| Interface Type |
Infolink Plus |
| Patch Lead Type |
H |
| Reverse Trigger |
Yes (purple) |
| Park Brake Output |
Yes (green) |
| Speed Pulse Output |
Yes (pink) |
| Illumination Output |
Yes |
| Amp Remote Output |
No |
| Telephone Mute Output |
No |
| Vehicle Menus Retained |
Yes |
| OEM Amplifier Retained |
Yes |
| OEM Reverse Camera Retained |
Yes |
| OEM AUX Input Retained |
No |
| OEM USB Input Retained |
No |
| OEM Antenna Retained |
No |
| ISO Harness Included |
No (APP8 recommended, sold separately) |
Compatible with
| Make |
Model |
Years |
Notes |
| Ford |
Ranger |
2015 to 2021 |
With factory 8-inch screen |
| Ford |
Everest |
2015 to 2022 |
With factory 8-inch screen |
Frequently asked questions
Does the AKCFO6 retain steering wheel controls?
Yes. The AKCFO6 retains steering wheel controls including the phone button via the included SWC Infolink harness.
Does the AKCFO6 retain the factory climate control and parking visualisation?
Yes, where the vehicle is factory equipped. Climate control and parking visualisation are retained on the aftermarket display via the Infolink Plus interface.
Is the ISO harness included?
No. The AKCFO6 does not include an ISO harness. Aerpro recommends pairing this kit with the APP8 head unit secondary ISO harness, sold separately.
Does the AKCFO6 support Pioneer CAN Bus features?
No. Pioneer CAN Bus features are not supported by this kit. For Pioneer head units, on boot-up do not select "CAN Bus Adapter" instead go to Menu, select "Steering Wheel Control", then select "With Adapter".
Will the AKCFO6 suit a standard double DIN head unit?
No. The AKCFO6 is designed for 9-inch trapezoid-format head units only and is not compatible with standard single DIN or double DIN radios.
