Description
Aerpro AKNI27 9 and 10 Inch Trapezoid Head Unit Installation Kit for Nissan Navara D23 2019 to 2025 with Factory Navigation and 360-Degree Camera SWC Reverse Camera and USB Retention
The Aerpro AKNI27 is a complete 9/10-inch trapezoid head unit installation kit for Nissan Navara D23 vehicles (2019 to 2025) fitted with factory navigation and 360-degree camera. The kit retains steering wheel controls including the phone button, factory reverse camera, factory USB input, and vehicle clock adjustment menus. The head unit ISO harness is not included and the Aerpro APP8 Head Unit Secondary ISO Harness (sold separately) is recommended. This kit suits trapezoid shaped head units only and will not suit standard DIN or double DIN radios.
Product overview
The AKNI27 is developed specifically for Nissan Navara D23 2019 to 2025 vehicles fitted with factory navigation and 360-degree camera systems. It includes all components required to install a 9 or 10-inch trapezoid head unit while retaining the key factory features of these vehicles. The 360-degree camera retention adaptor passes the factory camera system through to the aftermarket head unit. Steering wheel control retention includes the phone button. Factory USB is retained; AUX input and factory amplifier retention are not supported by this kit. Vehicle clock adjustment menus are retained.
Compatible head units include Alpine INE-AW409S, INE-AX809, INE-AW409S-10, and INE-AX809-10; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X and AM10X; and various Android head units. Feature retention varies depending on the head unit fitted.
Pioneer-specific note: this kit does not support Pioneer CAN-BUS features. On a Pioneer head unit, do not select CAN-BUS Adapter on boot-up. Instead, go to Menu, select Steering Wheel Control, then select With Adapter.
Important installation notes:
This kit suits trapezoid shaped radios only. It will not suit standard DIN or double DIN sized radios.
This kit does not support Pioneer CAN-BUS features. On Pioneer head units, select Steering Wheel Control and then With Adapter in the menu rather than CAN-BUS Adapter on boot-up.
Feature retention is head unit dependent.
The head unit ISO harness is not included. The Aerpro APP8 Head Unit Secondary ISO Harness is sold separately and is recommended.
Features and benefits
Complete installation kit for Nissan Navara D23 2019 to 2025 with factory nav and 360 camera: All components required for a 9 or 10-inch trapezoid head unit installation in these specific Navara variants.
Steering wheel control retention including phone button: Retains factory SWC buttons and phone button. SWC functions may vary from OEM depending on the head unit.
360-degree camera retention adaptor included: Passes the factory 360-degree camera system through to the aftermarket head unit.
Factory reverse camera retention: Factory reverse camera display is retained on the aftermarket head unit.
Factory USB retention harness included: Retains the factory USB input. AUX input and factory amplifier are not retained.
Compatible with 9 and 10-inch trapezoid head units: Suits a wide range of current-model aftermarket head units in the trapezoid format. Will not suit standard DIN or double DIN radios.
Gloss black fascia and adaptor included: Covers both 9-inch and 10-inch installation profiles with a gloss black finish.
Antenna adaptor included: For connection between the vehicle antenna and the aftermarket head unit.
Recommended with Aerpro APP8 Head Unit Secondary ISO Harness (sold separately): Simplifies the wiring connection between the kit and the aftermarket head unit.

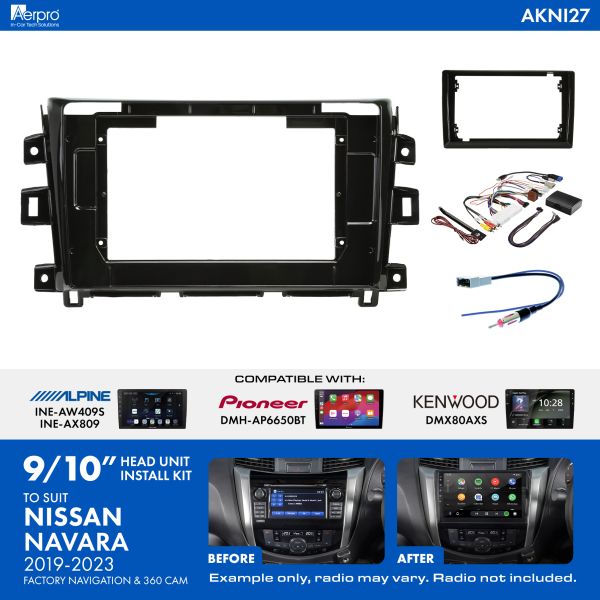

What's in the box
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Gloss Black Adaptor (suits 9-inch and 10-inch radios)
- Antenna Adaptor
- 360-Degree Camera Retention Adaptor
- Factory USB Retention Harness
Technical specs
| Specification |
Detail |
| SKU |
AKNI27 |
| Brand |
Aerpro |
| Type |
Head Unit Installation Kit |
| Compatible Head Unit Size |
9-inch and 10-inch trapezoid |
| Suits |
Nissan Navara D23 2019 to 2025 (with factory navigation and 360 camera) |
| Fascia Finish |
Gloss black |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (including phone button) |
| Factory Reverse Camera |
Yes |
| 360-Degree Camera |
Yes |
| Factory USB Input |
Yes |
| AUX Input |
No |
| Factory Amplifier |
No |
| Vehicle Menu (Clock Adjustments) |
Yes |
Compatible head units
| Brand |
Model |
| Alpine |
INE-AW409S |
| Alpine |
INE-AX809 |
| Alpine |
INE-AW409S-10 |
| Alpine |
INE-AX809-10 |
| Kenwood |
DMX80AXS |
| Pioneer |
DMH-AP6650BT |
| Aerpro |
AM9X |
| Aerpro |
AM10X |
| Various |
Android head units |
Frequently asked questions
Which Nissan Navara variants does the AKNI27 suit? The AKNI27 suits the Nissan Navara D23 from 2019 to 2025, specifically vehicles fitted with factory navigation and 360-degree camera systems. Confirm your vehicle has both of these factory systems before purchasing.
Why won't my Pioneer head unit work with CAN-BUS Adapter selected? This kit does not support Pioneer CAN-BUS features. On a Pioneer head unit, do not select CAN-BUS Adapter during the boot-up setup. Instead, go to Menu, then Steering Wheel Control, and select With Adapter.
Is the head unit ISO harness included in the kit? No. The head unit ISO harness is not included. The Aerpro APP8 Head Unit Secondary ISO Harness is recommended and is sold separately. Contact us for advice on the correct harness for your head unit.
Does this kit suit standard DIN or double DIN head units? No. The AKNI27 is developed for trapezoid shaped 9 and 10-inch head units only. It will not suit standard single DIN or double DIN sized radios.
What factory features are not retained by this kit? The AUX input and factory amplifier are not retained by the AKNI27. Feature retention also varies depending on the aftermarket head unit fitted.
