Description

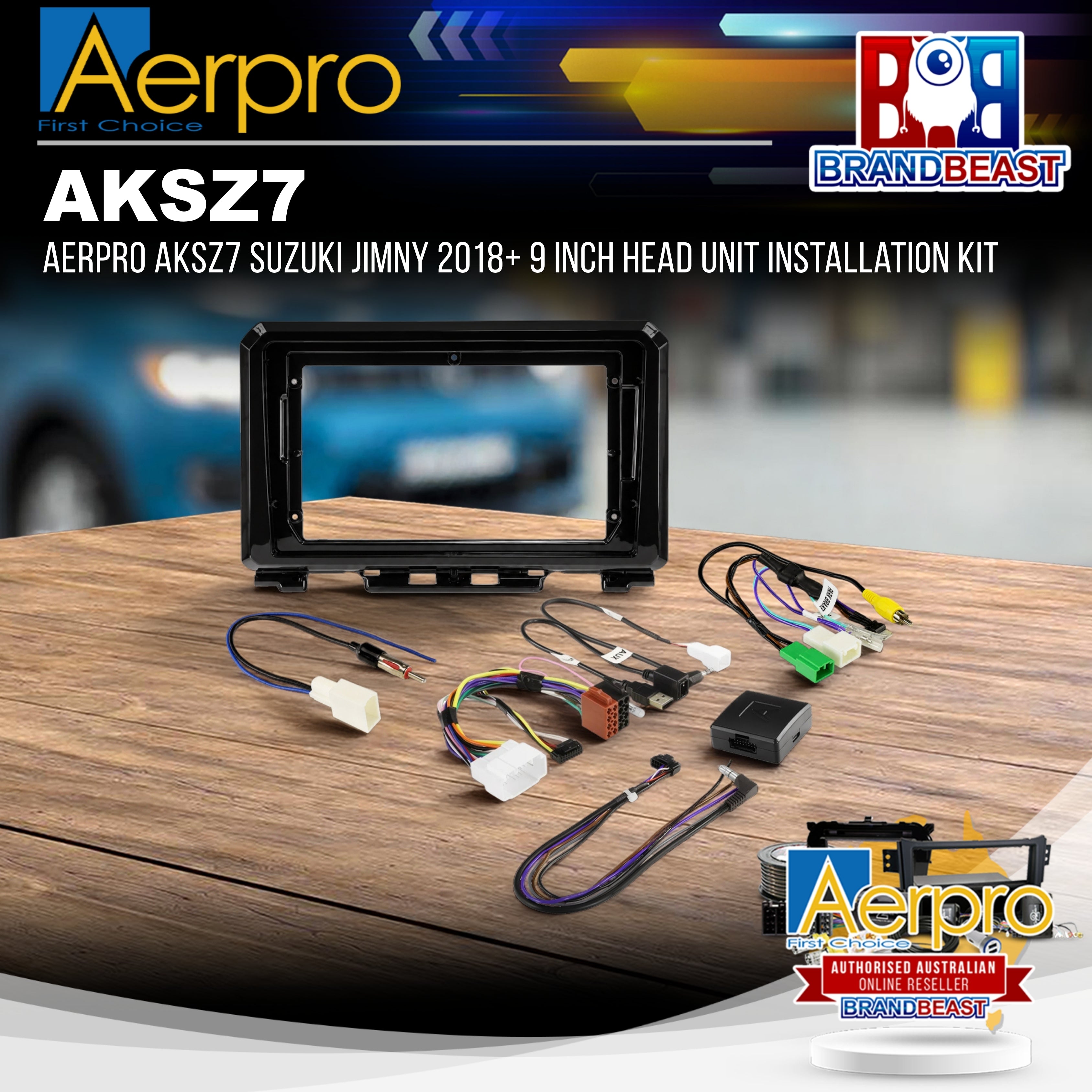

Aerpro AKSZ7 Suzuki Jimny 2018+ 9 Inch Head Unit Installation Kit

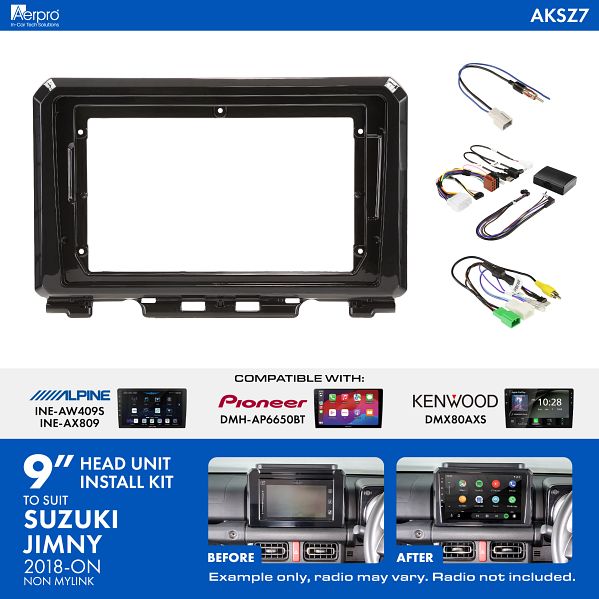

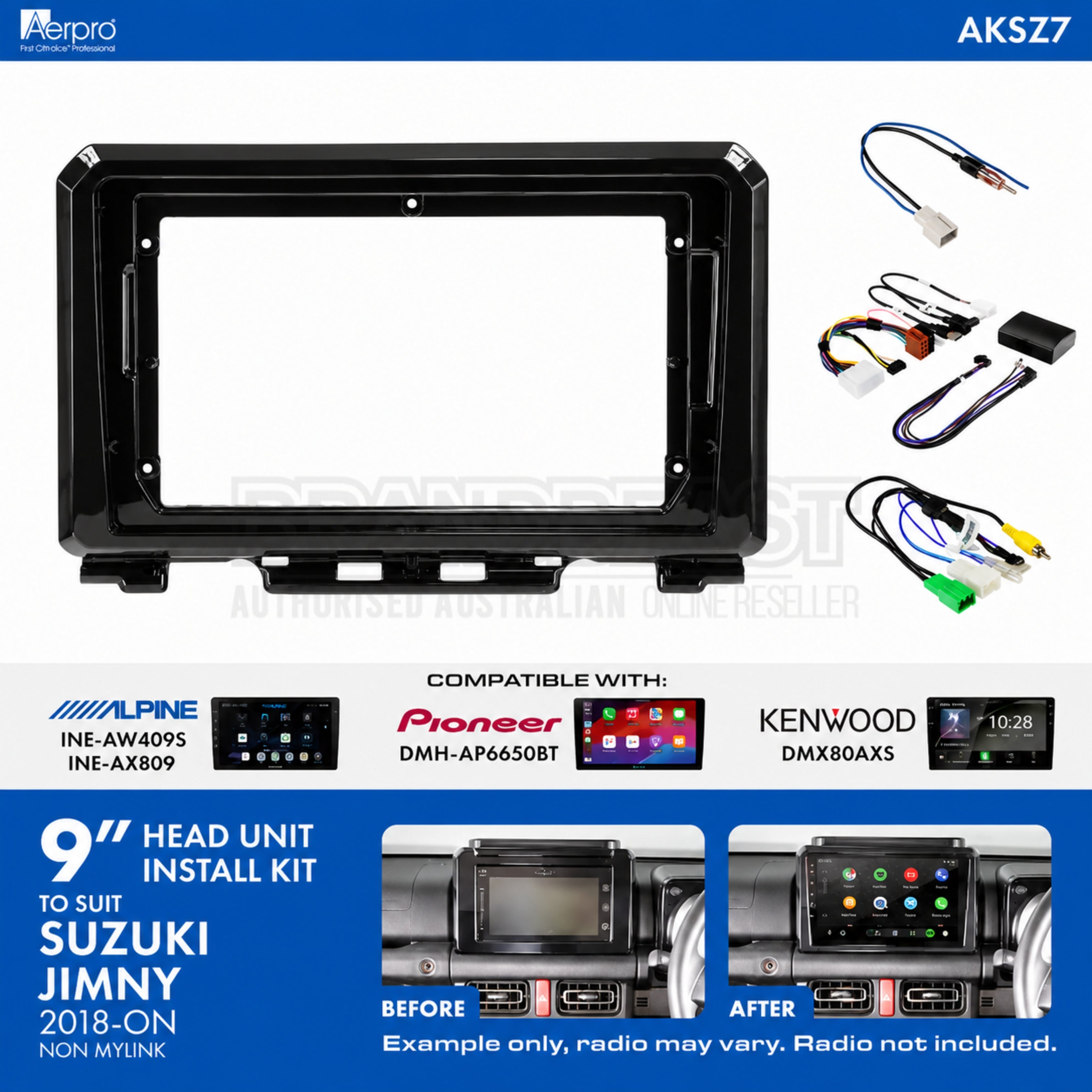

A complete 9 inch head unit installation kit for the Suzuki Jimny (2018-on), retaining steering wheel controls including the phone button, factory reverse camera if equipped, AUX input, and USB input, with a gloss black fascia kit for a clean OEM-style finish.
Product Overview
The Aerpro AKSZ7 is a 9 inch installation kit engineered specifically for the Suzuki Jimny (2018-on). The kit includes all components required to mount a universal trapezoid shaped 9 inch radio into the dashboard while retaining steering wheel controls including the phone button, factory reverse camera if the vehicle is equipped with one, AUX input, and USB input.
Compatible head units include the Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Alpine INE-AW409S and INE-AX809, Aerpro AM9X, and various Android head units. A head unit ISO harness is not included - the Aerpro APP8 Head Unit Secondary ISO Harness is recommended and sold separately. This kit does not support Pioneer CAN Bus features. On boot-up, instead of selecting CAN Bus Adapter, go to Menu and select Steering Wheel Control > With Adapter. Feature retention is radio dependent. This kit is not compatible with standard DIN or double DIN sized radios.
Features & Benefits

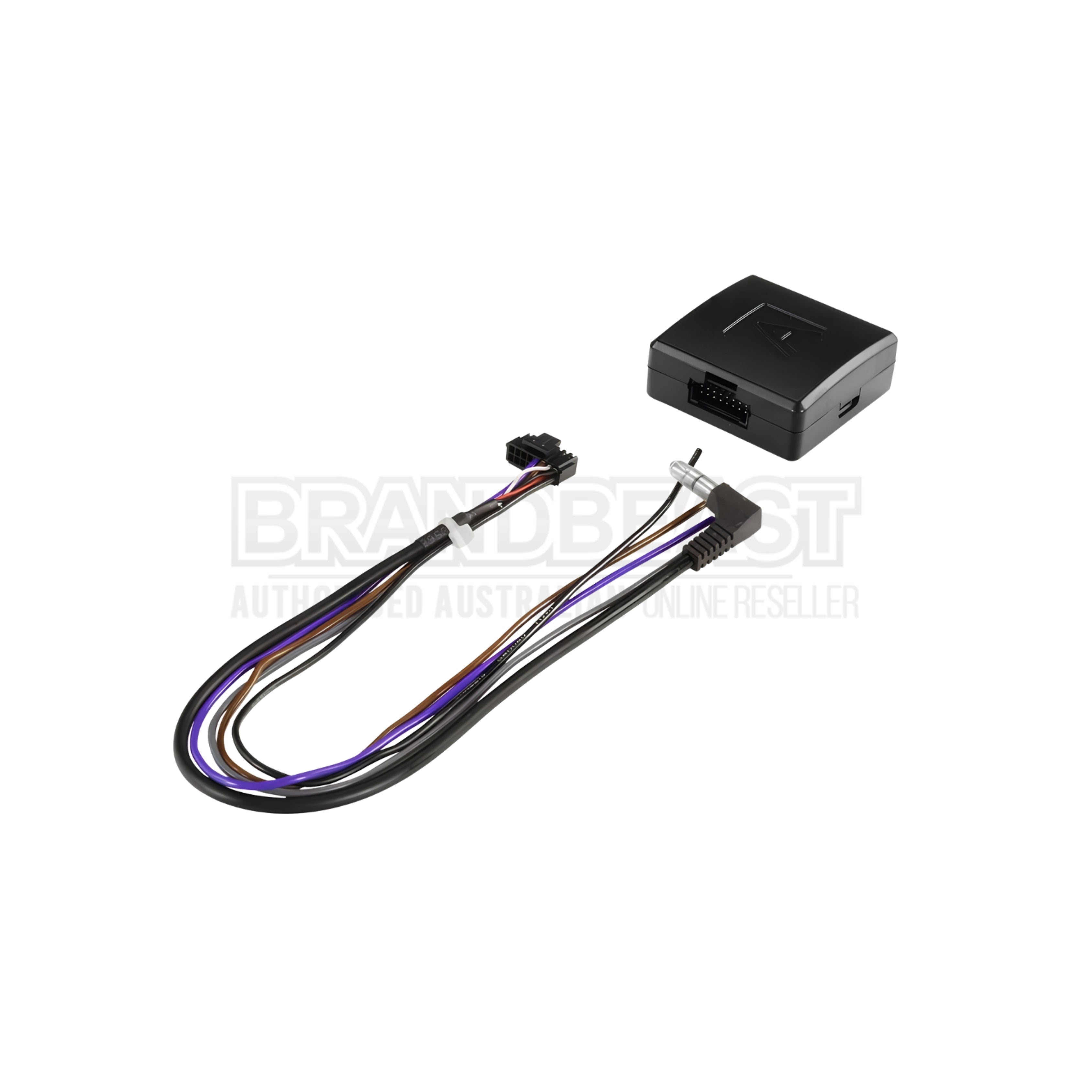

Retains Steering Wheel Controls Including Phone Button: The included steering wheel control interface harness and SWC patch lead retain full factory steering wheel control functionality including the phone button.

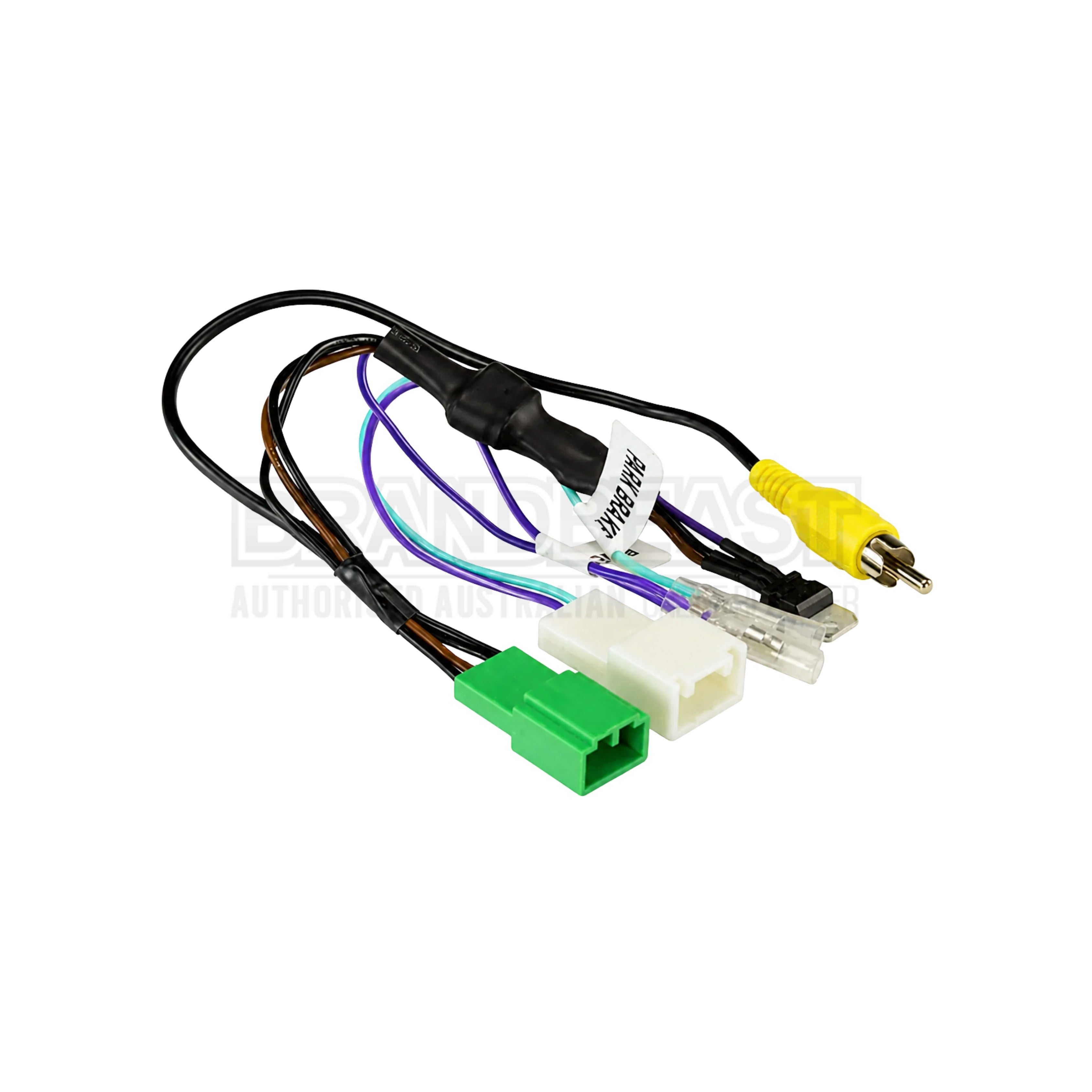

Retains Factory Reverse Camera (If Equipped): A camera retention adaptor is included, maintaining the factory reverse camera feed through the new aftermarket head unit for vehicles fitted with a factory reverse camera.

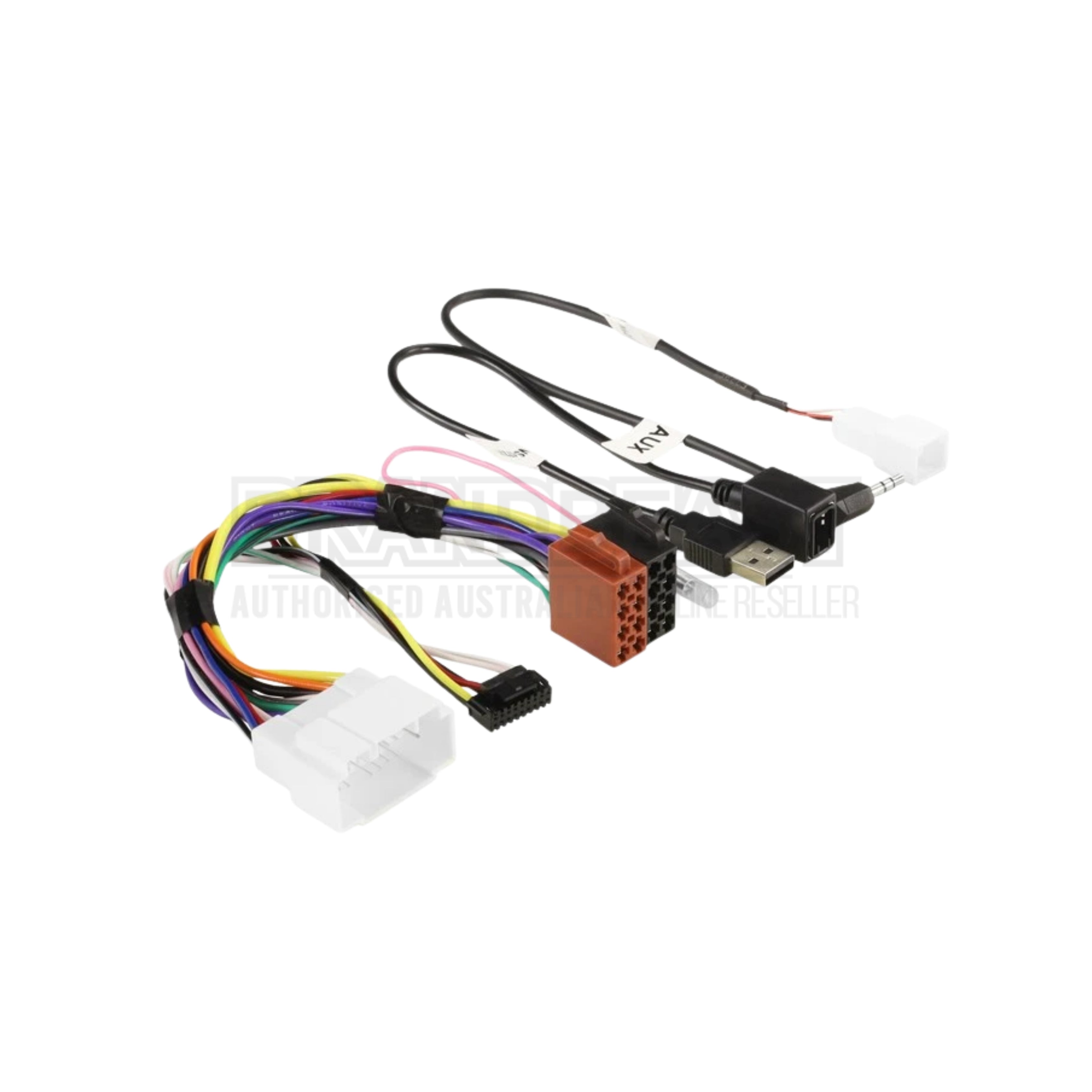

Retains AUX and USB Inputs: Both factory AUX and USB inputs are retained after installation using the factory USB retention harness included in the kit. Feature retention is radio dependent.

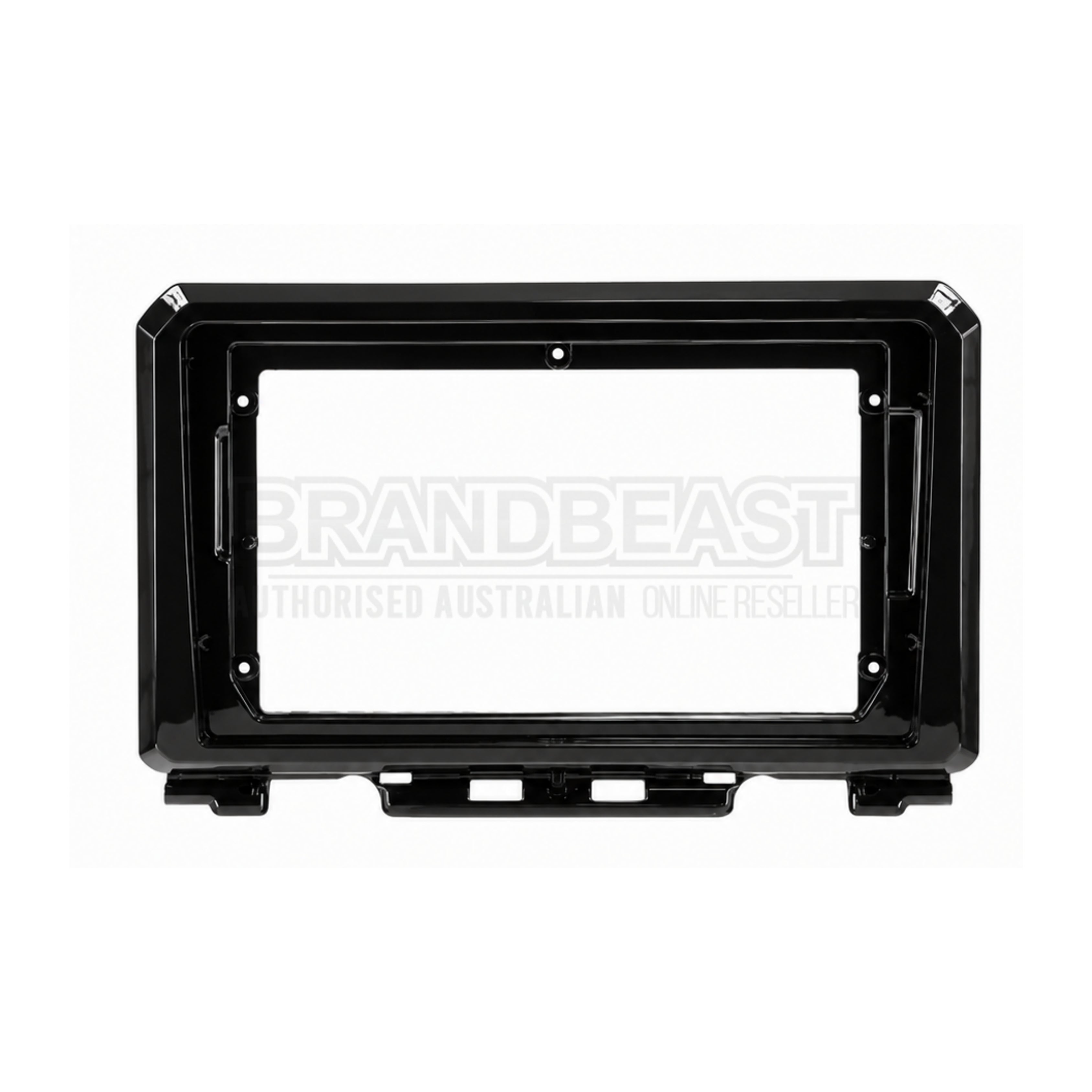

Gloss Black Fascia Kit: The gloss black fascia provides a clean, vehicle-specific dashboard fit for the Suzuki Jimny 2018-on with a premium gloss finish.

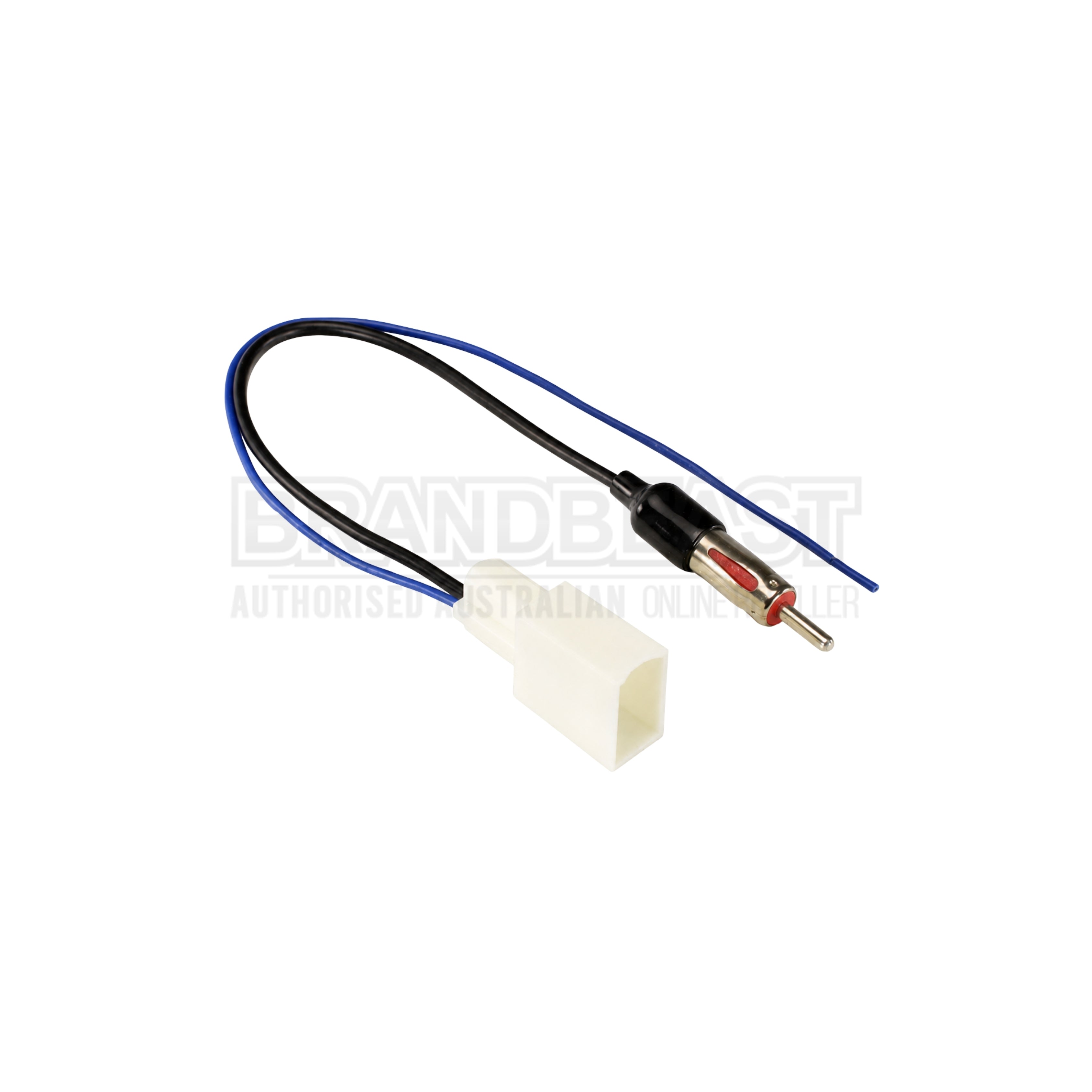

Antenna Adaptor Included: A dedicated antenna adaptor is included in the kit, ensuring continuity of AM and FM radio reception with the aftermarket head unit.
APP8 Compatible for Simplified Installation: The kit is designed for use with the Aerpro APP8 aftermarket head unit harness adapter (sold separately), simplifying the secondary ISO connection during installation.
Technical Specs
| Specification |
Detail |
| SKU |
AKSZ7 |
| Brand |
Aerpro |
| Compatible Vehicle |
Suzuki Jimny 2018+ |
| Head Unit Size |
9 inch (Trapezoid shape) |
| Kit Inclusions |
Gloss Black Fascia Kit, SWC Interface Harness, SWC Patch Lead, Antenna Adaptor, Camera Retention Adaptor, Factory USB Retention Harness |
| ISO Harness Included |
No - Aerpro APP8 recommended (sold separately) |
| Steering Wheel Control Retention |
Yes (including phone button) |
| Factory Reverse Camera Retention |
Yes (if equipped) |
| AUX Input Retention |
Yes |
| USB Input Retention |
Yes |
| Parking Tones |
No |
| Factory Amplifier Retention |
No |
| Vehicle Menu |
No |
| Pioneer CAN Bus Support |
No - select Steering Wheel Control > With Adapter on boot-up |
| Feature Retention |
Radio dependent |
| Barcode |
9317114953001 |
What's in the Box
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
- Factory USB Retention Harness
Compatible With
Compatible Head Units (9 inch Trapezoid):
- Pioneer DMH-AP6650BT
- Kenwood DMX80AXS
- Alpine INE-AW409S
- Alpine INE-AX809
- Aerpro AM9X
- Various Android Head Units
Not compatible with standard DIN or double DIN sized radios.
Frequently Asked Questions
Is an ISO harness included in this kit?
No. The AKSZ7 does not include a head unit ISO harness. Aerpro recommends pairing this kit with the Aerpro APP8 Head Unit Secondary ISO Harness, which is sold separately. Please add the APP8 to your order to complete the installation.
Does this kit support Pioneer CAN Bus features?
No. The AKSZ7 does not support Pioneer CAN Bus features. When using a Pioneer head unit, on boot-up do not select CAN Bus Adapter. Instead, go to Menu and select Steering Wheel Control > With Adapter to correctly configure the steering wheel control interface included in this kit.
Does this kit retain AUX and USB inputs?
Yes. Both AUX and USB input retention are supported by this kit. The factory USB retention harness is included. Feature retention is radio dependent, so please confirm compatibility with your chosen head unit before installation.
Does this kit retain parking tones?
No. Parking tone retention is not supported by the AKSZ7 kit.
Will this kit work with standard double DIN head units?
No. The AKSZ7 is designed exclusively for universal trapezoid shaped 9 inch radios. It will not suit standard DIN or double DIN sized radios. Please confirm your head unit shape before purchasing.
