Description
AERPRO AKVW12 9-Inch Installation Kit for Volkswagen 2005-2016 - Universal Trapezoid Head Unit Integration with Factory Feature Retention Compatible with Pioneer, Kenwood, and Alpine
Complete 9-inch installation kit engineered for Volkswagen vehicles manufactured between 2005-2016 including Amarok (2011-2016), Beetle (2012-2014), and Caddy (2005-2015) enabling installation of universal trapezoid shaped 9-inch aftermarket head units while maintaining critical factory features including steering wheel controls, vehicle climate control visualization, parking sensor display, and factory amplified system compatibility. The Aerpro AKVW12 provides comprehensive integration solution bundling black fascia kit, Infolink steering wheel control interface harness, SWC patch lead, and antenna adaptor eliminating need to source multiple separate components and ensuring complete compatibility between trapezoid head units and Volkswagen factory systems. Universal trapezoid format compatibility supports popular 9-inch head units including Alpine INE-AW409S and INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units featuring standardized trapezoid mounting configuration enabling user choice in head unit selection based on desired features, budget considerations, brand preference, or specific functionality requirements without fascia compatibility constraints. Critical factory feature retention including steering wheel controls maintaining driver's ability to operate audio and phone functions from multi-function steering wheel, vehicle climate control visualization on aftermarket display preserving HVAC information accessibility, parking sensor visualization maintaining OEM parking assistance functionality, and factory amplified system compatibility preserving premium audio quality in vehicles equipped with factory amplification. Integration approach maintains vehicle electrical system integrity through purpose-designed harnesses connecting to factory wiring without cutting or splicing preserving vehicle warranty considerations, enabling future reversal to factory configuration if required, and ensuring reliable long-term operation through automotive-grade connection quality. Simplified installation workflow through compatibility with Aerpro APP8 aftermarket head unit harness adapters enabling straightforward electrical integration across diverse trapezoid head unit brands eliminating brand-specific wiring challenges and supporting systematic installation procedures professional installers appreciate for efficiency and reliability. Important distinction: kit designed exclusively for universal trapezoid shaped radios with standardized 9-inch trapezoid mounting footprint - will not accommodate standard DIN or double DIN sized radios requiring different fascia and mounting solutions. Feature retention capabilities depend on specific aftermarket head unit's feature support and integration capabilities - users should verify head unit specifications ensuring desired features like steering wheel controls, climate visualization, and parking sensors supported by chosen head unit model. Perfect solution for Volkswagen owners seeking flexibility in 9-inch head unit selection while maintaining professional factory integration quality, comprehensive feature retention, and organized installation approach eliminating component sourcing challenges through complete kit bundling all required integration elements for trapezoid format head unit installations in affected Volkswagen models.
Product Overview
The Aerpro AKVW12 addresses installation requirements for users selecting aftermarket 9-inch trapezoid head units from diverse manufacturers rather than complete head unit upgrade kits like AMAVW12 or AMAVW13 which bundle specific receivers with integration components. Universal installation kit approach provides flexibility enabling users to choose preferred head unit brand, feature set, and price point independently from fascia selection, accommodating personal preferences for Pioneer's interface design, Alpine's audio quality reputation, Kenwood's feature implementation, or Android system's customization capabilities while ensuring proper physical fit and factory feature integration in Volkswagen applications. Trapezoid format standardization across multiple manufacturers enables single fascia kit supporting diverse head unit selections eliminating need for brand-specific fascias and simplifying inventory management for installers serving customers with varying head unit preferences.
The kit's compatibility with Aerpro APP8 aftermarket head unit harness adapters streamlines electrical integration by providing standardized interface between Volkswagen factory wiring and diverse aftermarket head unit connector formats. APP8 adapters convert brand-specific head unit connectors to standardized format that AKVW12 harnesses accommodate, eliminating need for brand-specific wiring harnesses and enabling systematic installation procedures where same basic wiring approach works across Pioneer, Alpine, Kenwood, and Android head units differing only in APP8 adapter selection matching specific head unit's connector type. Simplified electrical integration reduces installation complexity, minimizes wiring errors from custom connections, and supports professional installation workflow appreciated by installers managing diverse head unit installations across multiple vehicle platforms.
Key Features and Benefits
Universal Trapezoid Head Unit Compatibility – Designed for universal trapezoid shaped 9-inch head units including Alpine INE-AW409S and INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, and various Android head units. Trapezoid format standardization enables single fascia kit supporting multiple head unit brands providing user flexibility in head unit selection based on feature preferences, budget, interface design, or brand loyalty without fascia compatibility constraints. Universal compatibility supports future head unit upgrades or replacements without requiring new fascia kit investment if staying within trapezoid format specifications.

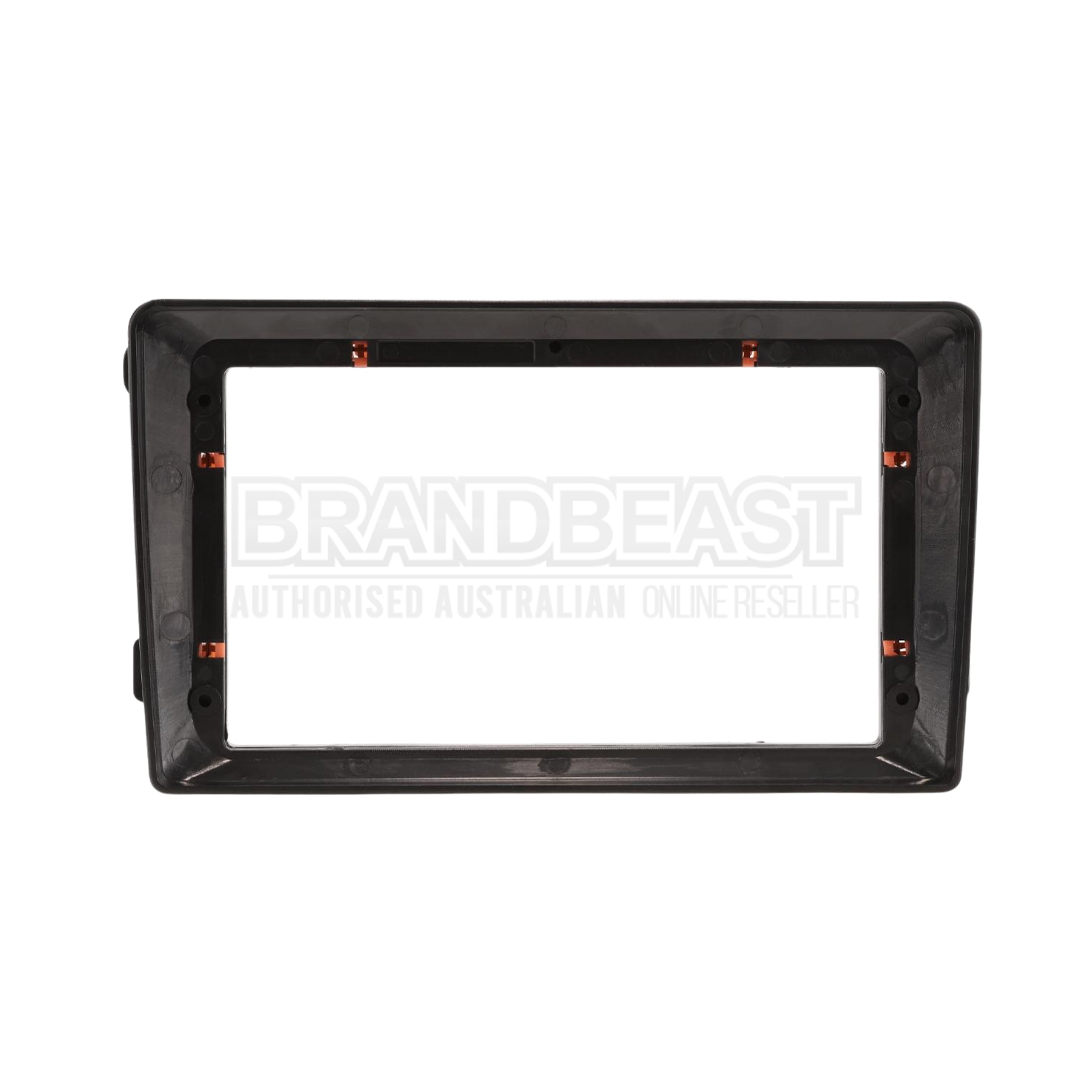

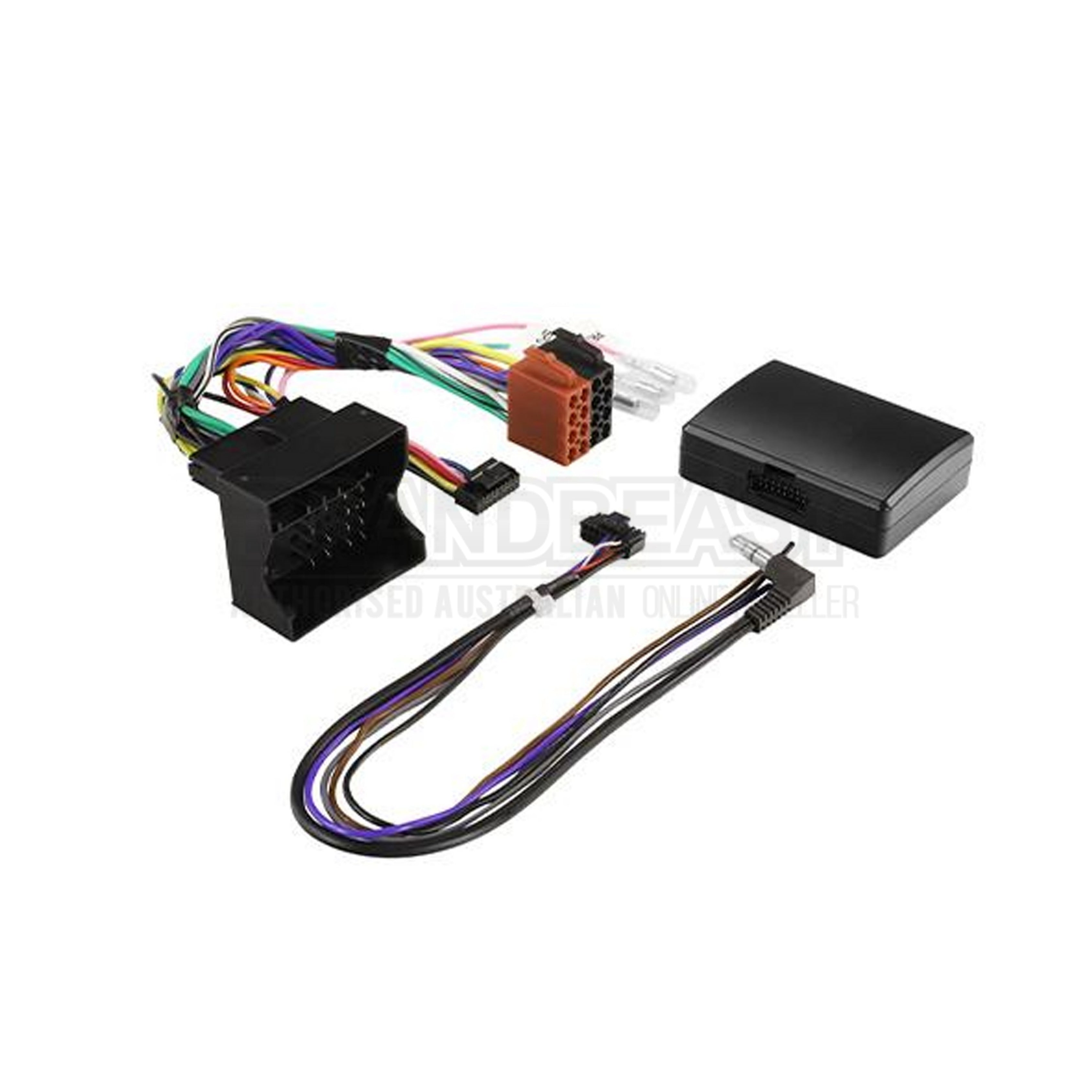

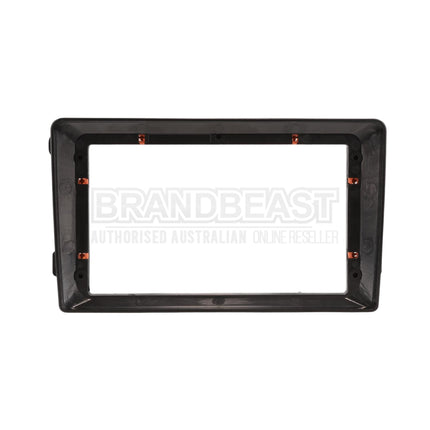

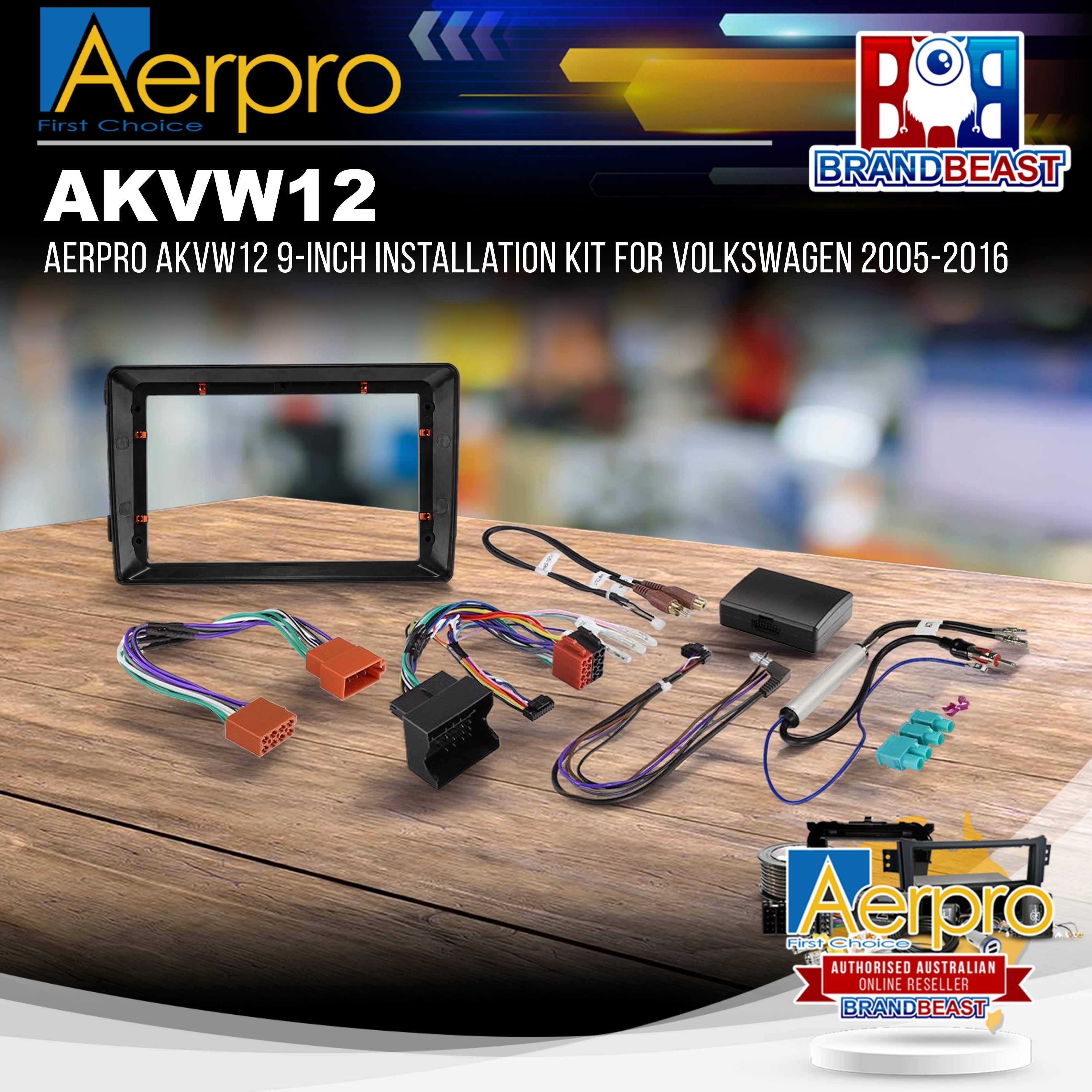

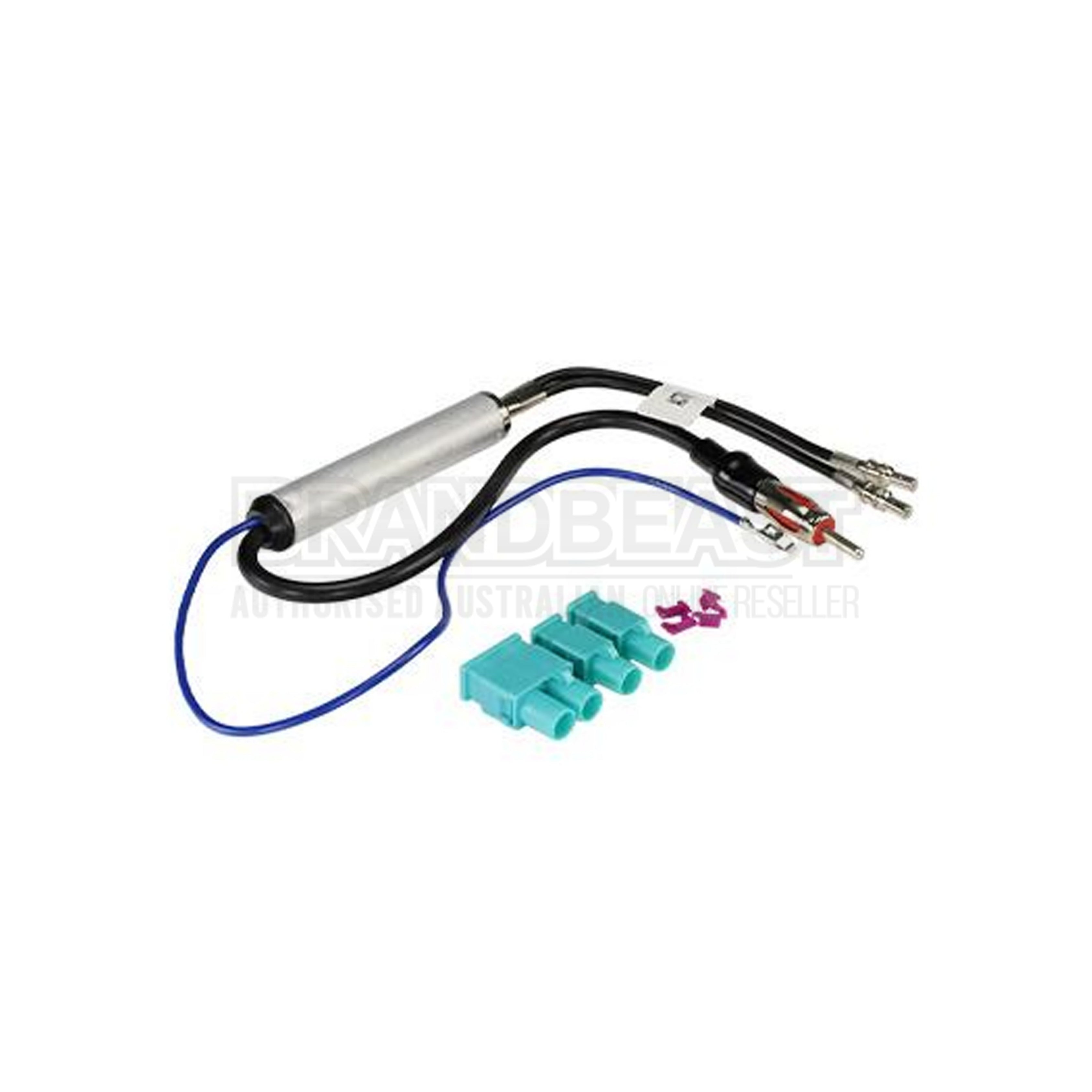

Complete Installation Kit with All Required Components – Includes black fascia kit matching Volkswagen dashboard styling, Infolink steering wheel control interface harness translating factory control signals to aftermarket head unit, SWC patch lead connecting interface to head unit, and antenna adaptor ensuring AM/FM radio reception. Complete kit approach eliminates component sourcing challenges where installers must independently verify fascia compatibility, identify correct steering wheel control interface, and ensure antenna connection compatibility. Bundled solution ensures component compatibility and reduces installation time through pre-verified integration.
Comprehensive Factory Feature Retention – Maintains critical Volkswagen factory functions including steering wheel controls with phone button support preserving driver's ability to operate audio and phone functions from multi-function steering wheel, on-screen access to vehicle menus providing trip computer and vehicle settings visibility, HVAC visualizations showing climate control information on aftermarket display, parking sensor visualization displaying OEM parking assistance with OPS radar overlay, and factory amplifier compatibility maintaining premium audio quality in amplified vehicles. Feature retention capabilities depend on specific aftermarket head unit's feature support requiring verification that chosen head unit model supports desired integration features.
Simplified Installation with APP8 Adapter Compatibility – Compatible with Aerpro APP8 aftermarket head unit harness adapters enabling straightforward electrical integration across diverse trapezoid head unit brands. APP8 adapters convert brand-specific head unit connectors (Pioneer, Alpine, Kenwood, Android variations) to standardized format that AKVW12 harnesses accommodate, eliminating need for multiple brand-specific wiring harnesses and enabling systematic installation procedures. Standardized wiring approach reduces installation complexity, minimizes potential for wiring errors, and supports professional installation workflow where same basic procedure applies across different head unit brands.
Factory Amplified System Compatibility – Supports factory amplified audio systems maintaining premium audio quality in vehicles equipped with factory amplification. Amplifier retention ensures continued operation of factory amplifier preserving audio quality investment and avoiding sound quality degradation from relying solely on aftermarket head unit's internal amplifier. Compatibility maintains professional audio performance matching original equipment specifications in vehicles with premium audio packages.
Parking Camera Support with OPS Radar Overlay – Supports parking camera display with OPS radar overlay for comprehensive parking assistance combining visual rear view with parking sensor proximity warnings on aftermarket display. Integration enables factory parking sensors to display distance information on head unit screen coordinated with camera image providing enhanced parking assistance particularly valuable in tight parking situations common with Volkswagen Caddy commercial applications or urban parking environments. Camera resolution may be reduced when installing high-definition cameras - users should be aware of potential resolution limitation.
Specific Volkswagen Model Coverage – Compatible with Volkswagen Amarok (2011-2016), Beetle (2012-2014), and Caddy (2005-2015) vehicles covering substantial portion of Volkswagen lineup from affected era. Model coverage enables consistent installation approach across multiple Volkswagen platforms simplifying inventory management for installers and providing upgrade path for Volkswagen owners across different models within family or commercial fleet applications where standardized head unit installations beneficial for training and maintenance considerations.
Important Pioneer CAN Bus Configuration Note – Kit does not support Pioneer CAN Bus features but includes steering wheel control adapter providing alternative integration method. Pioneer head unit users should select 'Steering Wheel Control' > 'With Adapter' from head unit menu rather than 'CAN Bus Adapter' option on boot-up ensuring proper steering wheel control functionality through included Infolink adapter. Configuration requirement ensures steering wheel controls operate correctly with Pioneer head units using adapter-based integration rather than CAN Bus direct integration method.
Technical Specifications
| Specification |
Details |
| Model |
AKVW12 |
| SKU |
AKVW12 |
| Product Type |
9-Inch Installation Kit (Universal Trapezoid) |
| Brand |
Aerpro |
| Head Unit Format |
Universal Trapezoid 9-Inch (Not DIN/Double DIN) |
| Vehicle Compatibility |
VW Amarok (2011-2016), Beetle (2012-2014), Caddy (2005-2015) |
| Compatible Head Units |
Alpine INE-AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X, Android Head Units |
| Kit Inclusions |
Black Fascia Kit, Infolink SWC Interface Harness, SWC Patch Lead, Antenna Adaptor |
| Steering Wheel Controls |
Yes (Including Phone Button) |
| Factory Reverse Camera |
No (Head Unit Dependent) |
| Factory AUX Input |
No |
| Factory USB Input |
No |
| Factory Amplifier |
Yes (Compatible) |
| Vehicle Menu Access |
Yes |
| HVAC Visualization |
Yes |
| Parking Sensor Display |
Yes (OPS Radar Overlay) |
| APP8 Adapter Compatible |
Yes |
| Pioneer CAN Bus Support |
No (Use SWC Adapter Mode Instead) |
| Feature Retention |
Head Unit Dependent |
| Camera Resolution |
HD Camera Resolution May Be Reduced |
Frequently Asked Questions
Q: What's the difference between AKVW12 and complete head unit upgrade kits like AMAVW12?
A: AKVW12 is installation kit only (fascia, harnesses, adapters) designed for customers purchasing 9-inch trapezoid head units separately from Alpine, Kenwood, Pioneer, or Android manufacturers. AMAVW12/AMAVW13 are complete kits bundling specific AM9X receiver with all integration components. AKVW12 provides flexibility in head unit brand selection while AMAVW12/AMAVW13 offer integrated solution with guaranteed head unit compatibility. Choose AKVW12 when you already own or prefer specific brand's trapezoid head unit, choose AMAVW12/AMAVW13 for complete bundled solution.
Q: Will AKVW12 work with standard DIN or double DIN head units?
A: No, AKVW12 designed exclusively for universal trapezoid shaped 9-inch head units with standardized trapezoid mounting footprint. Standard single DIN or double DIN head units require different fascia kits with appropriate mounting dimensions. Trapezoid format features distinctive angled sides and specific mounting pattern different from rectangular DIN formats. Verify your head unit features trapezoid shape matching compatible models listed (Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer AP6650BT, or similar trapezoid Android units) before purchasing AKVW12.
Q: How do I configure Pioneer head units with AKVW12 for steering wheel controls?
A: AKVW12 does not support Pioneer CAN Bus features. For Pioneer head units, do NOT select 'CAN Bus Adapter' option during initial setup. Instead, navigate to Menu > Steering Wheel Control > select 'With Adapter' option. This configures Pioneer head unit to receive steering wheel control signals through included Infolink adapter rather than attempting direct CAN Bus integration. Follow Pioneer head unit's steering wheel control learning procedure to program button functions ensuring proper operation of volume, track skip, phone, and voice control buttons.
Q: What is APP8 adapter and do I need it for my installation?
A: APP8 adapters are Aerpro aftermarket head unit harness adapters converting brand-specific head unit connectors to standardized format compatible with AKVW12 harnesses. APP8 adapter requirement depends on specific head unit model's connector type - some head units may require APP8 adapter for electrical connection while others connect directly. Consult head unit manufacturer specifications or contact Frankie's Auto Electrics with specific head unit model for APP8 adapter requirement verification. APP8 compatibility simplifies wiring by standardizing electrical interface across different head unit brands.
Q: Which factory features actually work depends on my chosen head unit?
A: Feature retention depends on specific aftermarket head unit's capabilities and integration support. AKVW12 provides hardware interface (harnesses, fascia, adapters) but actual feature functionality requires head unit software support. For example, steering wheel controls require head unit accepting SWC adapter input; climate visualization requires head unit displaying vehicle CAN Bus data; parking sensors require head unit processing OPS signals. Verify chosen head unit specifications confirm support for desired features including steering wheel controls, climate display, parking sensors, and factory amplifier compatibility before purchase ensuring complete feature retention matching expectations.
