Description

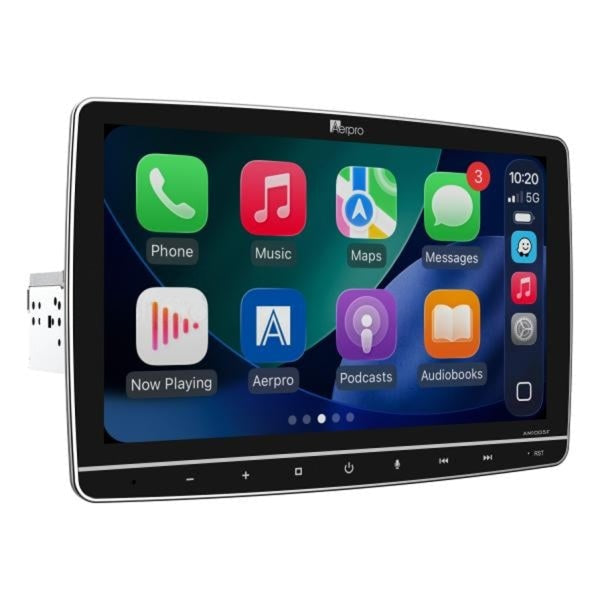

AERPRO AM1005F 10.1-Inch Floating Multimedia Receiver with Wireless Apple CarPlay and Android Auto - Universal Single-DIN Solution with Adjustable Display and Premium Audio
Premium 10.1-inch floating multimedia receiver engineered with universal single-DIN chassis design enabling installation across wide range of vehicles while delivering modern large-screen interface, wireless smartphone connectivity, and professional audio capabilities combining style, functionality, and connectivity for contemporary automotive entertainment. The Aerpro AM1005F features large 10.1-inch capacitive touchscreen floating display providing dramatic screen size comparable to tablet devices improving navigation visibility, media control accessibility, and entertainment interface usability while adjustable mounting system enables customized viewing angle optimization through tilt (±25 degrees), swivel (±15 degrees), and height adjustment (±45mm) accommodating diverse dashboard configurations and driver preferences minimizing glare and maximizing display visibility. Wireless Apple CarPlay and Android Auto implementation eliminates cable connection requirements enabling seamless smartphone integration through automatic wireless connection when entering vehicle with wired connection option available for flexibility, supporting navigation access through Apple Maps or Google Maps, hands-free calling operation, messaging functionality, music streaming from Apple Music or Spotify, and voice control through Siri or Google Assistant maintaining driver focus on road operations. Bluetooth connectivity complements wireless CarPlay/Android Auto providing hands-free calling with external microphone inclusion ensuring clear voice pickup, wireless audio streaming from non-CarPlay/Android Auto applications, phonebook access, and music control supporting multiple device pairing for family vehicle sharing. Comprehensive audio capabilities include 4x50W maximum power output providing adequate amplification for aftermarket speaker upgrades, 6-channel 4V RCA preouts enabling sophisticated audio system expansion supporting front speakers, rear speakers, dual subwoofer outputs for advanced bass management, 10-band graphic equalizer (32Hz/63Hz/125Hz/250Hz/500Hz/1kHz/2kHz/4kHz/8kHz/16kHz) with time alignment capabilities providing professional-grade sound tuning matching enthusiast audio system requirements, and dedicated subwoofer level control facilitating bass management in upgraded installations. Dual camera input support with 720P AHD compatibility enables high-resolution backup camera display plus optional second camera for front view, side view, or trailer monitoring applications common in commercial vehicles, towing scenarios, or enhanced visibility requirements with automatic camera switching supporting reverse trigger activation. Universal single-DIN chassis design with ISO harness connection simplifies installation across diverse vehicle platforms from compact cars through SUVs and commercial vehicles where single-DIN mounting space available, with steering wheel control readiness through Aerpro SWC adaptor compatibility (sold separately) maintaining factory control functionality. Dual rear USB inputs support Apple CarPlay/Android Auto plus media playback from USB storage devices with 1.5A charging capability per port enabling device charging during extended drives, while AM/FM tuner with RDS and 20 presets (10FM/10AM) maintains broadcast radio access complementing streaming audio options. Adjustable floating screen represents critical differentiator from fixed-mount head units enabling precise display positioning matching driver sight lines, accommodating non-standard dashboard configurations, and providing installation flexibility in vehicles where fixed large-screen mounting challenging due to dashboard geometry or air vent locations. Multi-color key illumination with six color options (red, yellow, green, blue, purple, white) plus animation effects enables interior aesthetic customization matching vehicle lighting schemes or personal preferences enhancing visual integration. Complete accessory inclusion features main unit with detachable display, single-DIN metal frame and hardware, wiring harness with ISO connection, 3-wire learning SWC lead, external microphone with mount, GPS antenna with adhesive pad, and QR digital manual leaflet ensuring all essential components provided for professional installation. Perfect solution for vehicle owners seeking modern large-screen multimedia experience in vehicles with single-DIN mounting restrictions where traditional double-DIN or larger fixed screens physically incompatible, providing wireless smartphone connectivity, adjustable display positioning, professional audio capabilities, and universal compatibility across diverse vehicle platforms.
Product Overview
The Aerpro AM1005F addresses large-screen multimedia requirements in vehicles restricted to single-DIN mounting spaces where traditional double-DIN or 9-inch/10-inch fixed-mount head units physically incompatible with dashboard configurations. Floating display design separates screen from mounting chassis enabling 10.1-inch display installation in single-DIN opening while adjustable mounting arm provides positioning flexibility accommodating diverse dashboard layouts, driver preferences, and sight line optimization impossible with fixed-mount designs. Universal single-DIN chassis compatibility spans enormous vehicle range from older models with single-DIN factory radios through modern vehicles where aftermarket manufacturers offer single-DIN replacement options, enabling consistent large-screen upgrade solution across vehicle generations and manufacturers.
The adjustable display mounting system with tilt, swivel, and height adjustment represents critical feature enabling optimal screen positioning for visibility and glare reduction across diverse installation scenarios - drivers can position screen matching natural sight lines reducing neck strain during navigation glance, angle display avoiding windshield reflections causing visibility issues in bright sunlight, and adjust height accommodating dashboard features like air vents or trim pieces potentially obstructing fixed-position screens. Wireless CarPlay/Android Auto implementation combined with comprehensive audio capabilities including 10-band EQ, time alignment, and 6-channel preouts positions AM1005F as sophisticated multimedia solution despite single-DIN mounting constraint, providing features typically associated with larger fixed-mount receivers while maintaining universal compatibility advantage.
Key Features and Benefits
Large 10.1-Inch Floating Capacitive Touchscreen Display – Features 10.1-inch capacitive touchscreen with 1024x600 resolution providing tablet-sized display in single-DIN mounting space through floating design separating screen from chassis. Capacitive touchscreen technology offers smartphone-like touch response with multi-touch gesture support and modern user experience. Large display significantly improves navigation visibility, media information readability, and touchscreen control accessibility compared to traditional single-DIN screens typically limited to 7-inch or smaller dimensions constrained by double-DIN height restrictions.
Fully Adjustable Display Mounting with Tilt, Swivel, and Height Control – Provides comprehensive display adjustment including tilt (±25 degrees) for vertical angle optimization, swivel (±15 degrees) for horizontal positioning, and height adjustment (±45mm) for screen elevation control. Complete adjustment flexibility enables optimal viewing angle matching driver sight lines, glare reduction avoiding windshield reflections or bright lighting interference, and accommodation of dashboard obstacles like air vents or trim features. Adjustability particularly valuable across diverse vehicle installations where dashboard configurations vary significantly affecting optimal screen positioning requirements.
Wireless Apple CarPlay and Android Auto with Wired Fallback – Features wireless implementation of Apple CarPlay and Android Auto enabling automatic smartphone connection when entering vehicle without cable attachment, with wired connection option available for flexibility. Wireless operation eliminates daily cable connection routine while both systems provide access to navigation through Apple Maps or Google Maps, hands-free calling, messaging, music streaming, and voice control through Siri or Google Assistant. Regular updates from Apple and Google add new features without firmware updates ensuring long-term relevance as smartphone capabilities evolve.
Professional Audio Capabilities with 10-Band EQ and Time Alignment – Delivers 4x50W maximum power output with 6-channel 4V RCA preouts supporting sophisticated audio system expansion including front speakers, rear speakers, and dual subwoofer outputs. 10-band graphic equalizer (32Hz/63Hz/125Hz/250Hz/500Hz/1kHz/2kHz/4kHz/8kHz/16kHz) with time alignment capabilities provides professional-grade sound tuning enabling frequency response correction, cabin acoustic compensation, staging adjustments, and personal preference tuning. Dedicated subwoofer level control facilitates bass management in systems with aftermarket subwoofer addition common in enthusiast audio builds.
Dual Camera Input Support with AHD 720P Compatibility – Supports dual camera inputs with 720P AHD compatibility enabling high-resolution backup camera display plus optional second camera for front view, side view, or trailer monitoring applications. AHD compatibility provides improved image quality over standard composite video cameras with sharper detail and better low-light performance. Dual camera capability particularly valuable in commercial vehicle applications, towing scenarios, or installations requiring comprehensive visibility coverage through multiple camera perspectives supporting safer vehicle operation.
Universal Single-DIN Chassis with ISO Connection – Universal single-DIN chassis design with ISO harness connection enables installation across enormous vehicle range where single-DIN mounting space available spanning older vehicles with factory single-DIN radios through modern applications where aftermarket single-DIN solutions appropriate. ISO connection simplifies electrical integration with standardized connector format compatible with vehicle-specific harnesses or universal adapters. Steering wheel control readiness through Aerpro SWC adaptor compatibility (sold separately) maintains factory control functionality preserving safety and convenience.
Comprehensive Connectivity and Media Playback – Dual rear USB inputs support Apple CarPlay/Android Auto functionality plus media playback from USB storage devices with 1.5A charging capability per port. USB media playback supports MP3/MP4/MKV/FLAC/Xvid formats up to 32GB FAT32 enabling extensive music, video, and photo libraries. AM/FM tuner with RDS and 20 presets (10FM/10AM) maintains broadcast radio access. Bluetooth V4.2+EDR with A2DP, AVRCP, HFP, and PBAP profiles supports wireless audio streaming, hands-free calling with HFP 1.6 HD Voice, phonebook access, and music control.
Multi-Color Key Illumination and Complete Accessory Package – Six-color key illumination options (red, yellow, green, blue, purple, white) with animation effects enable interior aesthetic customization matching vehicle lighting schemes. Complete accessory inclusion provides main unit with detachable display, single-DIN metal frame and hardware, wiring harness with ISO connection, 3-wire learning SWC lead for steering wheel control integration, external microphone with mount ensuring clear voice pickup, GPS antenna with adhesive pad enhancing navigation accuracy, and QR digital manual leaflet ensuring all essential components included for professional installation.
Technical Specifications
| Specification |
Details |
| Model |
AM1005F |
| SKU |
AM1005F |
| Product Type |
10.1-Inch Floating Multimedia Receiver |
| Brand |
Aerpro |
| Display Size |
10.1 Inch |
| Display Resolution |
1024x600 |
| Touchscreen Type |
Capacitive |
| Screen Adjustment |
Tilt ±25°, Swivel ±15°, Height ±45mm |
| Operating System |
Linux |
| DIN Size |
Single DIN (1 DIN Body) |
| Apple CarPlay |
Wireless and Wired |
| Android Auto |
Wireless and Wired |
| Bluetooth Version |
V4.2+EDR (A2DP, AVRCP, HFP, PBAP) |
| Power Output Maximum |
4CH x 50W (4 Ohm) |
| RCA Preouts |
6-Channel 4V (Front, Rear, Dual Subwoofer) |
| Equalizer |
10-Band Graphic EQ with Time Alignment |
| EQ Bands |
32Hz/63Hz/125Hz/250Hz/500Hz/1kHz/2kHz/4kHz/8kHz/16kHz |
| Tuner Presets |
10 FM / 10 AM |
| RDS |
Yes |
| USB Ports |
Dual Rear USB (5V/1.5A Each) |
| USB Capability |
FAT32 32GB Maximum |
| Camera Inputs |
Dual (720P AHD Compatible) |
| Rear A/V Input |
Yes (RCA Type) |
| Media Playback |
MP3/MP4/MKV/FLAC/Xvid |
| Steering Wheel Controls |
Yes (Requires Aerpro SWC Adaptor - Sold Separately) |
| Key Illumination |
6-Color Options with Animation (Red, Yellow, Green, Blue, Purple, White) |
| Microphone |
External Microphone Included |
| GPS Antenna |
Included with Adhesive Pad |
| Wiring Connection |
ISO Harness Included |
| Weight |
3.00 KG |
Frequently Asked Questions
Q: Will AM1005F fit my vehicle with single-DIN opening?
A: AM1005F designed for universal single-DIN installation fitting vehicles with standard single-DIN mounting space. However, floating display requires adequate space above or in front of dashboard for 10.1-inch screen positioning and adjustment range. Verify sufficient clearance for screen tilt, swivel, and height adjustment without obstruction from steering wheel, dashboard trim, or other vehicle features. Some installations may require vehicle-specific mounting adapters or trim pieces (sold separately) for proper fascia integration. Contact Frankie's Auto Electrics with specific vehicle details for fitment verification before purchase.
Q: How do I retain steering wheel controls with AM1005F?
A: AM1005F includes 3-wire learning SWC lead supporting steering wheel control integration with Aerpro SWC adaptor (sold separately). Steering wheel control retention requires vehicle-specific SWC adaptor converting factory steering wheel control signals to format compatible with AM1005F. Learning procedure programs button functions matching vehicle's specific control layout. Not all vehicles support steering wheel control retention - consult Aerpro compatibility resources or contact Frankie's Auto Electrics for specific vehicle steering wheel control adaptor requirements and compatibility verification.
Q: Can I adjust display position after installation or is it fixed?
A: Display adjustment (tilt ±25°, swivel ±15°, height ±45mm) can be manually adjusted after installation enabling position optimization based on driver preference, lighting conditions, or when different drivers use vehicle. Adjustment mechanism designed for periodic repositioning rather than frequent daily adjustment - display holds position securely during normal driving but can be manually repositioned when desired. Adjustment capability particularly valuable when glare conditions change seasonally or when accommodating different driver heights and seating positions in shared vehicles.
Q: What additional components needed for complete AM1005F installation?
A: Additional components potentially required include vehicle-specific installation kit (dash kit, trim pieces, wiring adapters) matching specific vehicle's single-DIN mounting requirements, Aerpro SWC adaptor for steering wheel control retention if desired, backup camera or secondary camera if utilizing dual camera inputs, and potentially amplifier retention harness or other vehicle-specific integration components depending on vehicle equipment. ISO harness included with AM1005F simplifies electrical connection but vehicle-specific harness adapters may be required for proper integration. Consult professional installer or Frankie's Auto Electrics for complete component list matching specific vehicle and desired features.
Q: Can I install AM1005F myself or should I use professional installation?
A: AM1005F installation complexity varies significantly by vehicle requiring dashboard disassembly, single-DIN mounting frame installation, floating display mounting with proper positioning and cable routing, electrical connections including power harness and ISO adapters, external microphone mounting with cable routing for optimal voice pickup, GPS antenna installation typically on dashboard or windshield, and potential steering wheel control adaptor integration. Floating display mounting requires careful positioning ensuring adjustment range unobstructed by vehicle features and cables properly routed preventing interference with adjustment mechanism. Professional installation typically takes 2-4 hours at $350-600 ensuring proper mounting, optimal display positioning, clean cable routing, and functional verification of all features including wireless connectivity and camera inputs.
