Description

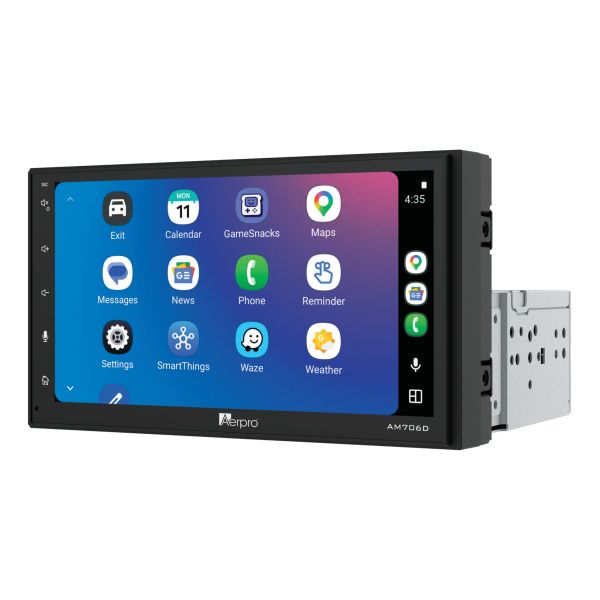

Aerpro AM706D 6.8 Inch Double DIN Multimedia Receiver with DAB+ Wireless and Wired Apple CarPlay and Android Auto Bluetooth 5 Dual AHD Camera Inputs L-Chassis
The Aerpro AM706D is a 6.8-inch double DIN multimedia receiver built on an L-Chassis design for vehicles where a standard double DIN chassis will not clear the dash cavity. It features a 1024x600 capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, DAB+ digital radio, Bluetooth 5 with HD Voice, dual 720P AHD camera inputs, 4x50W maximum power output, and 6x4V RCA preouts. Infolink Plus input supports select OEM vehicle functions with a compatible interface module (sold separately).
Product overview
The L-Chassis design is the defining fitment characteristic of the AM706D. The base section is shallow mount while the upper chassis section is clear, allowing installation in vehicles where a standard double DIN chassis would foul the dash cavity. Confirm dash cavity clearance and chassis compatibility for your specific vehicle before purchasing.
Wireless Apple CarPlay and Android Auto connect automatically when the phone is in range. Wired connection via the rear USB input also provides charging at 5V/1.5A. DAB+ digital radio delivers clearer reception and access to a wider station range than standard AM/FM. Bluetooth 5 covers hands-free calling with HFP 1.6 HD Voice support, A2DP audio streaming, AVRCP playback control, and PBAP phonebook access. Both internal and external microphone options are available.
The dual 720P AHD camera inputs support a reverse camera plus a second front or towing camera simultaneously. Audio performance covers 4x50W maximum power, 6x4V RCA preouts for front, rear, and subwoofer, a 13-band EQ with six preset plus two custom curves, time alignment, low-pass filter, loudness control, and subwoofer level adjustment. Infolink Plus input enables integration with select factory functions such as climate control display, parking sensor readouts, and factory gauges where a compatible interface module is fitted. Compatibility and available functions vary by vehicle. Steering wheel control requires an Aerpro SWC adaptor (sold separately). Most vehicles also require a vehicle-specific fascia kit (sold separately).
Features and benefits
L-Chassis double DIN design shallow base with clear upper section: Suits vehicles where a standard double DIN chassis will not clear the dash cavity. Confirm chassis compatibility before purchasing.
6.8-inch capacitive touchscreen, 1024x600 resolution: Smooth, responsive touch control with a clear display for maps, media, and menus.
Wireless and wired Apple CarPlay and Android Auto: Wireless connection for automatic phone pairing on entry; wired USB connection with 5V/1.5A charging support for both Apple CarPlay and Android Auto.
DAB+ digital radio built in: Clearer reception and access to more stations than standard AM/FM. Combined with AM and FM tuner with 12 AM and 18 FM presets and RDS support.
Bluetooth 5 with HD Voice (HFP 1.6): Hands-free calling with HD Voice audio quality, A2DP streaming, AVRCP control, and PBAP phonebook integration.
Dual 720P AHD camera inputs: Supports a reverse camera and a second front or towing camera simultaneously for improved visibility when parking, hitching a trailer, or navigating tight spaces.
Infolink Plus input - OEM function integration: Supports select factory functions such as climate control display, parking sensor readouts, and factory gauges with a compatible interface module (sold separately). Compatibility and available functions vary by vehicle.
4x50W maximum power output with 6x4V RCA preouts: Front, rear, and subwoofer RCA outputs at 4V preamp voltage for clean signal to external amplifiers.
13-band EQ with time alignment and subwoofer control: Full audio tuning including 13 bands at 32Hz to 16kHz, six preset EQ curves plus two custom, time alignment, low-pass filter, loudness, and dedicated subwoofer level adjustment.
USB media playback - MP3, MP4, MKV, FLAC, Xvid, and more: Play music, video, and photo files from a USB drive up to 32GB (FAT32).
Customisable 6-colour button illumination: Choose from red, yellow, green, blue, purple, or white to match the vehicle interior.
Personalised boot screen and 12 preset wallpapers: Set a custom JPG image as the startup screen and select from 12 preset background themes.
Steering wheel control compatible: Works with an Aerpro SWC adaptor (sold separately).
What's in the box
- Double DIN Head Unit (AM706D, L-Chassis)
- Double DIN Metal Frame and Mounting Hardware
- Head Unit Plastic Trim
- Wiring Harness with ISO Connection
- 3-Wire Learning SWC Lead
- External Microphone with Mount
- Glass Mount DAB+ Antenna
- GPS Antenna with Adhesive Pad
- QR Digital Manual Leaflet
Technical specs
| Specification |
Detail |
| SKU |
AM706D |
| Brand |
Aerpro |
| Type |
Double DIN Multimedia Receiver |
| Chassis |
L-Chassis Double DIN |
| Screen Size |
6.8 inches |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| Apple CarPlay |
Yes, wireless and wired |
| Android Auto |
Yes, wireless and wired |
| DAB+ |
Yes |
| AM Presets |
12 |
| FM Presets |
18 |
| FM Frequency Range |
87.5 to 108.0 MHz (0.05 MHz steps) |
| AM Frequency Range |
522 to 1710 kHz (9 kHz steps) |
| RDS |
Yes |
| Bluetooth Version |
V5 |
| Bluetooth Profiles |
A2DP, AVRCP, HFP, PBAP |
| HFP Profile |
HFP 1.6 (HD Voice) |
| Microphone |
Internal and external |
| Max Power Output |
4x50W |
| RCA Preouts |
6x4V (front, rear, subwoofer) |
| Preamp Voltage |
4V p-p |
| EQ |
13-band (32Hz to 16kHz) |
| Preset EQ Curves |
6 preset plus 2 custom |
| Time Alignment |
Yes |
| Loudness |
Yes |
| Low-Pass Filter |
Yes |
| Subwoofer Level Control |
Yes |
| Camera Inputs |
Dual 720P AHD |
| USB Inputs |
2x rear USB (5V/1.5A charging each) |
| USB Max Capacity |
32GB (FAT32) |
| Media Formats |
MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V Input |
Yes (RCA, 3 connectors) |
| Composite Video Output |
Yes |
| Infolink Plus Input |
Yes |
| Steering Wheel Control |
Yes, with Aerpro SWC adaptor (sold separately) |
| Button Illumination |
6 colours (red, yellow, green, blue, purple, white) |
| Boot Screen |
Customisable JPG image |
| Wallpapers |
12 preset options |
| OSD Language |
English |
Frequently asked questions
What is the L-Chassis design and do I need to check fitment before buying? Yes. The L-Chassis has a shallow mount base section with a clear upper chassis section, designed for vehicles where a standard double DIN chassis will not clear the dash cavity. Confirm your vehicle's dash cavity dimensions and chassis compatibility before purchasing, as this unit will not fit the same way as a standard double DIN body.
What is Infolink Plus and what does it do? Infolink Plus is an input that allows the AM706D to integrate with select OEM vehicle functions such as climate control display, parking sensor readouts, and factory gauges. A compatible interface module sold separately is required, and available functions vary by vehicle. Confirm application-specific compatibility for your vehicle before purchasing.
Does wireless CarPlay and Android Auto work automatically? Yes. Once your phone has been paired wirelessly for the first time, it will connect automatically each time you enter the vehicle. Wired connection is also available via the rear USB inputs for both Apple CarPlay and Android Auto, which also provides 5V/1.5A charging.
What do the dual AHD camera inputs support? The AM706D has two 720P AHD camera inputs, allowing you to connect a reverse camera and a second camera simultaneously. The second input can be used for a front-facing or towing camera, giving improved visibility for parking, trailer hitching, and tight manoeuvring.
What additional accessories do I need to install this unit in my vehicle? Most vehicles require a vehicle-specific fascia kit and steering wheel control adaptor, both sold separately. A compatible Infolink Plus interface module is also sold separately for OEM function integration. Contact us for advice on the correct accessories for your specific vehicle.
