Aerpro AM8476K 6.8" L-Shape Wireless CarPlay Multimedia Receiver Kit for Kia Cerato 2019-2025
The AM8476K is a complete head unit upgrade kit for Kia Cerato BD (2019-2025), combining a 6.8" L-chassis double DIN multimedia receiver with wireless Apple CarPlay and Android Auto, DAB+ digital radio, Infolink Plus OEM integration, and a vehicle-specific installation kit. The receiver delivers 4 x 50W max output, Bluetooth V5, a 13-band EQ, and 4V/6 RCA preouts on a 1024x600 capacitive touchscreen.
Product overview
The Aerpro AM8476K is designed as a direct, complete upgrade solution for Kia Cerato BD (2019-2025) vehicles. The L-chassis design uses a shallow mount base with a clear upper section, accommodating vehicles where a standard double DIN chassis cannot clear the dash cavity. This makes the AM8476K the correct fitment choice for the Cerato BD where a conventional double DIN body would not sit flush or clear the surrounding trim.
The 6.8" capacitive touchscreen runs on Linux OS and supports both wireless and wired Apple CarPlay and Android Auto, providing access to maps, music, calls, and messages without requiring the factory head unit. DAB+ digital radio delivers clearer reception and a wider selection of stations than AM/FM alone, with 18 FM and 12 AM presets and RDS also available. Infolink Plus integration supports select factory functions including climate control display, parking sensor readouts, and gauge information, depending on the vehicle and any additional modules fitted.
Bluetooth V5 with HFP 1.6 HD Voice handles hands-free calling, while A2DP and AVRCP support wireless audio streaming. Two rear USB inputs cover CarPlay and Android Auto on USB1 and media playback on USB2, with both supporting 5V/1.5A charging. The audio system delivers 4 x 50W max at 4 ohms with 6 RCA preouts at 4V across front, rear, and subwoofer channels, a 13-band EQ, time alignment, and subwoofer level control. Note that the SWC adaptor is sold separately for this kit.
Features and benefits
L-chassis design for Kia Cerato BD fitment: The shallow mount L-chassis base with clear upper section suits the Kia Cerato BD dash cavity where a standard double DIN chassis will not clear, ensuring correct fitment and a factory finish.
Wireless Apple CarPlay and Android Auto: Connects to a compatible iPhone or Android device wirelessly for hands-free access to maps, music, calls, and messages, or via USB for wired operation and simultaneous device charging.
Built-in DAB+ digital radio: Delivers clearer reception and access to a wider range of stations than standard AM/FM broadcasting, with AM/FM and RDS also supported for full tuner coverage.
Infolink Plus OEM integration: Supports select factory functions including climate control display, parking sensor readouts, and gauge information through the Infolink Plus input, vehicle and module dependent.
6.8" 1024x600 capacitive touchscreen: The 6.8" capacitive display delivers 1024x600 resolution with smooth, responsive touch input for navigation of maps, media, and menus across all connected sources.
Bluetooth V5 with HD Voice and full profile support: Bluetooth V5 supports HFP 1.6 HD Voice for clearer hands-free calls, alongside A2DP and AVRCP for wireless audio streaming and PBAP for phonebook access, with both internal and external microphone options.
4 x 50W max output with 4V/6 RCA preouts: Delivers 4 x 50W max power at 4 ohms, with 6 RCA preouts at 4V covering front, rear, and subwoofer channels for flexible amplifier integration and system expansion.
13-band graphic EQ with time alignment: A 13-band EQ across 32Hz to 16kHz, time alignment, subwoofer level control, and low-pass filter allow precise tuning of the audio system across all speaker positions and configurations.
Dual AHD 720P camera inputs: Two AHD-compatible camera inputs support reverse, towing, or front cameras for improved visibility, with the head unit switching inputs based on the reverse trigger signal.
Dual rear USB inputs: USB1 handles Apple CarPlay and Android Auto with 5V/1.5A charging, while USB2 supports media playback and charging from USB drives up to 32GB FAT32.
Customisable boot screen and wallpaper: Set a personal JPG image as the startup screen and choose from 12 preset wallpaper themes for a personalised display experience.
6-colour customisable button illumination: Button lighting is selectable across six colours including red, yellow, green, blue, purple, and white to match the vehicle's interior lighting.

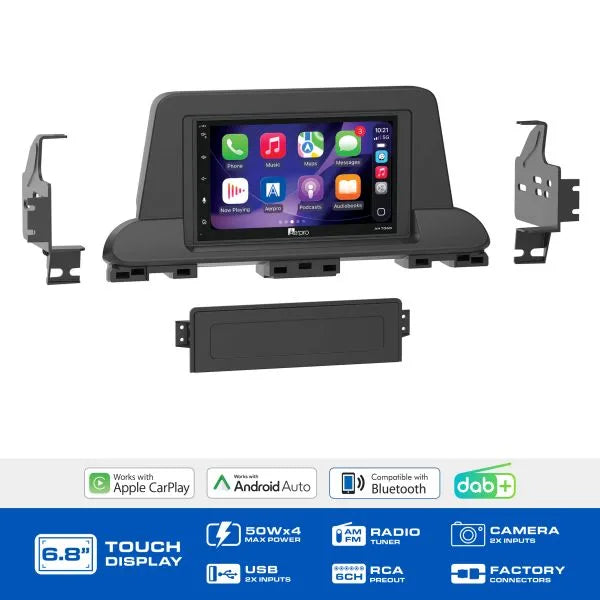

What's in the box
- Aerpro 6.8" L-shape double DIN multimedia receiver
- Vehicle-specific installation kit for Kia Cerato BD 2019-2025
Technical specs
| Specification |
Detail |
| SKU |
AM8476K |
| Barcode |
9317114958143 |
| Display Size |
6.8" |
| Resolution |
1024 x 600 |
| Touch Screen |
Capacitive |
| OS |
Linux |
| DIN Size |
Double DIN, L-Chassis |
| Max Power Output |
4 x 50W |
| RCA Preouts |
6 x 4V (Front/Rear/Subwoofer) |
| Bluetooth Version |
V5 |
| Bluetooth Profiles |
A2DP, AVRCP, HFP, PBAP |
| HFP Profile |
HFP 1.6 (HD Voice) |
| CarPlay/Android Auto |
Wireless and wired |
| DAB+ |
Yes, built-in |
| USB1 |
CarPlay/Android Auto, 5V/1.5A charging |
| USB2 |
Media playback, 5V/1.5A charging |
| USB Max Capacity |
32GB FAT32 |
| Media Formats |
MP3, MP4, MKV, FLAC, Xvid |
| AM Presets |
12 |
| FM Presets |
18 |
| RDS |
Yes |
| EQ |
13-band (32Hz to 16kHz) |
| Time Alignment |
Yes |
| Subwoofer Level Control |
Yes |
| Camera Inputs |
2 x AHD 720P compatible |
| Infolink Plus |
Yes |
| Steering Wheel Control |
Yes, SWC adaptor sold separately |
| Boot Screen |
Customisable JPG image |
| Wallpaper |
12 preset themes |
| Button Illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| Compatible Vehicle |
Kia Cerato BD 2019-2025 |
Compatible with
| Make |
Model |
Variant |
Years |
| Kia |
Cerato |
BD |
2019-2025 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, SWC adaptor required (sold separately) |
| Climate Control Display |
Yes, via Infolink Plus (vehicle and module dependent) |
| Parking Sensor Display |
Yes, via Infolink Plus (vehicle and module dependent) |
| Gauge Information |
Yes, via Infolink Plus (vehicle and module dependent) |
Frequently asked questions
Is the SWC adaptor included with the AM8476K?
No. The AM8476K supports steering wheel control retention but the SWC adaptor is sold separately. Contact us for the correct Aerpro SWC adaptor for your Kia Cerato BD before purchasing.
What is an L-chassis head unit and why does the Kia Cerato BD require one?
An L-chassis head unit uses a shallow mount base with a clear upper section, allowing it to fit in dash cavities where a standard full-depth double DIN chassis would not clear the surrounding trim or cavity depth. The Kia Cerato BD requires this L-chassis design for correct fitment.
What does Infolink Plus do on the AM8476K?
Infolink Plus is an OEM integration input that allows the head unit to display select factory vehicle information including climate control settings, parking sensor alerts, and gauge data. Availability of specific functions is vehicle and module dependent. Contact us for further guidance on Infolink Plus compatibility for your specific Cerato BD build.
Does the AM8476K support wireless CarPlay and Android Auto?
Yes. The AM8476K supports both wireless and wired Apple CarPlay and Android Auto. Wireless connection removes the need to plug in your phone, while wired connection via USB1 allows simultaneous device charging.
Is the AM8476K compatible with all Kia Cerato models from 2019 to 2025?
The AM8476K is confirmed for the Kia Cerato BD (2019-2025) non-amplified variant. Head unit upgrade kits can vary between vehicle variants and trim levels. Contact us to confirm fitment for your specific Cerato BD build before purchasing.
