Aerpro AM8540K 6.8" L-Shape Multimedia Receiver Complete Kit for Toyota Corolla 2018-2022 Non-360
The Aerpro AM8540K is a complete head unit upgrade kit for the Toyota Corolla (2018-2022) non-360 camera variants, featuring a 6.8" capacitive touchscreen multimedia receiver with wireless Apple CarPlay and Android Auto, built-in DAB+, Bluetooth V5, 4 x 50W max power, 13-band EQ, and 6 x 4V RCA preouts. The kit includes a vehicle-specific installation kit and retains steering wheel controls with a compatible SWC adaptor.
Product overview
The AM8540K uses an L-chassis design with a shallow mount base and a clear upper section, specifically suited to vehicles where a standard double DIN chassis would not clear the dash cavity. The 6.8" 1024 x 600 capacitive touchscreen provides a clear and responsive display for navigation, media, and phone functions. Wireless CarPlay and Android Auto connect to compatible smartphones without a cable, and the built-in Bluetooth V5 handles hands-free calling with HFP 1.6 HD Voice and A2DP audio streaming.
The Infolink Plus input supports integration with select factory functions including climate control, parking sensors, and gauges depending on the vehicle and module. Dual rear camera inputs are AHD 720P compatible, supporting reverse, towing, or front camera additions. The 13-band graphic EQ with time alignment, 6 x 4V RCA preouts, and subwoofer level control provide a complete audio tuning platform for aftermarket amplifier and speaker setups.
Note that steering wheel control retention requires a compatible Aerpro SWC adaptor, sold separately. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide to confirm the correct parts for your specific vehicle before purchasing.
Features and benefits

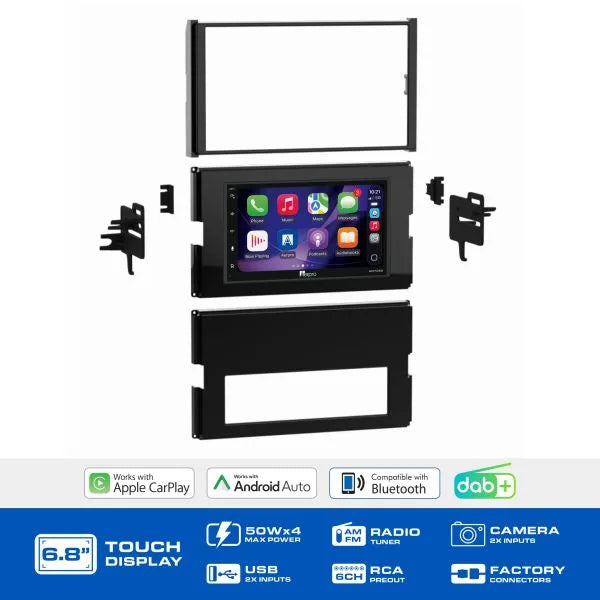

Complete head unit upgrade kit: Includes the multimedia receiver and a vehicle-specific installation kit with all parts required to complete the installation and retain important vehicle features for the Toyota Corolla (2018-2022).
L-chassis design: The shallow mount base chassis with clear upper section suits vehicles where a standard double DIN chassis cannot clear the dash cavity, providing a factory-fit appearance in the Toyota Corolla.
6.8" 1024x600 capacitive touchscreen: A 6.8-inch capacitive touchscreen with 1024 x 600 resolution provides a clear, bright, and responsive display for all media, navigation, and phone functions.
Wireless Apple CarPlay and Android Auto: Connects to compatible iPhones and Android smartphones wirelessly for instant access to maps, music, calls, and messages without a USB cable.
Built-in DAB+ digital radio: Integrated DAB+ tuner provides access to digital radio stations with clearer reception and more station options than standard AM/FM.
Bluetooth V5 with HFP 1.6 HD Voice: Bluetooth V5 handles hands-free calling with HD Voice quality and A2DP wireless audio streaming for a connected in-car experience.
4 x 50W max power output: Four channels of 50W max power provide strong output for factory speaker replacements, with 6 x 4V RCA preouts for aftermarket amplifier integration.
13-band graphic EQ with time alignment: A 13-band EQ covering 32Hz to 16kHz, time alignment, LPF for subwoofer control, and six preset EQ modes plus two custom slots provide a comprehensive audio tuning platform.
Infolink Plus input: Supports integration with select factory functions including climate control, parking sensors, and gauges, vehicle and module dependent.
Dual AHD 720P camera inputs: Two rear camera inputs supporting AHD 720P allow reverse, towing, and front cameras to be added for improved safety and convenience.
Multi-colour key illumination: Six selectable key backlight colours (red, yellow, green, blue, purple, white) allow the controls to be matched to the vehicle interior.
Customisable boot screen and wallpaper: The head unit supports a custom startup image via JPG upload and twelve selectable preset wallpapers for a personalised display.
Technical specs
| Specification |
Detail |
| SKU |
AM8540K |
| Brand |
Aerpro |
| Barcode |
9317114958150 |
| Compatible Vehicle |
Toyota Corolla 2018-2022, non-360 camera |
| Display Size |
6.8 inches |
| Display Resolution |
1024 x 600 |
| Touchscreen Type |
Capacitive |
| DIN Size |
Double DIN, L-chassis |
| OS |
Linux |
| Power Output |
4 x 50W max (4 ohm) |
| RCA Preouts |
6 x 4V (front, rear, subwoofer) |
| Smartphone Connectivity |
Apple CarPlay and Android Auto (wireless and wired) |
| Bluetooth Version |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| DAB+ |
Yes |
| AM Presets |
12 |
| FM Presets |
18 |
| RDS |
Yes |
| USB Inputs |
2 x rear (CarPlay/Android Auto + media, 5V/1.5A each) |
| USB Max Capability |
FAT32, 32GB |
| Reverse Camera Input |
Yes, AHD 720P compatible |
| Second Camera Input |
Yes, AHD 720P compatible |
| Infolink Plus Input |
Yes |
| EQ |
13-band graphic EQ |
| Time Alignment |
Yes |
| Subwoofer Level Control |
Yes |
| Steering Wheel Control |
Yes, with Aerpro SWC adaptor (sold separately) |
| Key Illumination |
6-colour options (red, yellow, green, blue, purple, white) |
| Media Playback |
MP3, MP4, MKV, FLAC, Xvid |
Compatible with
The Aerpro AM8540K is confirmed for the Toyota Corolla (2018-2022) non-360 camera variants. It is not confirmed for Toyota Corolla models fitted with the factory 360-degree camera system. Use the Aerpro What Fits Your Car Guide to confirm compatibility for your specific vehicle before purchasing. Steering wheel control retention requires a compatible Aerpro SWC adaptor, sold separately.
Frequently asked questions
Does the AM8540K suit Toyota Corolla models with a factory 360-degree camera?
No. The AM8540K is confirmed for non-360 Toyota Corolla (2018-2022) variants only. Contact us for guidance on compatible kits for 360-camera equipped Corolla models.
Is a steering wheel control adaptor included in the AM8540K kit?
Steering wheel control retention is supported but requires a compatible Aerpro SWC adaptor, which is sold separately. Contact us for guidance on the correct SWC adaptor for your Toyota Corolla.
Does the AM8540K support wireless CarPlay and Android Auto?
Yes. The AM8540K supports both Apple CarPlay and Android Auto wirelessly, as well as wired connection via the rear USB input.
What is the Infolink Plus input on the AM8540K?
The Infolink Plus input supports integration with select factory vehicle functions including climate control, parking sensors, and gauges. Availability depends on the specific vehicle and any additional Aerpro modules required. Contact us for further guidance on Infolink Plus compatibility for your Toyota Corolla.
Can aftermarket amplifiers be connected to the AM8540K?
Yes. The AM8540K features 6 x 4V RCA preouts covering front, rear, and subwoofer channels for connecting aftermarket amplifiers. Contact us for guidance on compatible amplifier options for your setup.
