Aerpro AM8548K 6.8 Inch L-Shape Multimedia Receiver Mazda CX3 2016-2020 and Mazda 2 2014-ON Non-Amplified Wireless Apple CarPlay Android Auto DAB+ Bluetooth V5 4x50W 6 RCA Preouts Infolink Plus
The Aerpro AM8548K is a complete head unit upgrade kit for Mazda CX3 2016-2020 and Mazda 2 (Demio) 2014-ON (DJ) non-amplified variants. 6.8" capacitive touchscreen (1024x600), L-shape chassis, wireless and wired Apple CarPlay and Android Auto, DAB+, Bluetooth V5, 4x50W max output, 6-channel 4V RCA preouts (3 pair: front/rear/subwoofer), 13-band EQ, time alignment. Infolink Plus input for select OEM function integration. SWC adaptor sold separately.
Important: Suits non-amplified variants of Mazda CX3 2016-2020 and Mazda 2 (Demio) 2014-ON DJ only. Use the Aerpro What Fits Your Car Guide to confirm fitment. Steering wheel control adaptor sold separately.
Product overview
The AM8548K is Aerpro's complete multimedia upgrade kit for Mazda CX3 2016-2020 and Mazda 2 Demio 2014-ON DJ non-amplified variants. The kit includes the 6.8" L-shape multimedia receiver and vehicle-specific installation kit. The L-shape chassis uses a shallow-mount base with a clear upper section, suited to vehicles where a standard double DIN chassis cannot clear the dash cavity. Infolink Plus input supports select factory functions including climate control, parking sensors, and gauges depending on the vehicle and module. Wireless and wired Apple CarPlay and Android Auto. DAB+ digital radio with AM/FM and RDS. Bluetooth V5 with HD Voice. 4x50W max output with 6-channel 4V RCA preouts for front, rear, and subwoofer. 13-band EQ, time alignment, and subwoofer level control. Dual 720P AHD-compatible camera inputs. SWC adaptor not included, sold separately.
Features and benefits
6.8" capacitive touchscreen (1024x600): Clear display in the L-shape chassis format.
L-shape chassis: Shallow-mount base with clear upper section for vehicles where a standard double DIN chassis will not clear the dash cavity.
Wireless and wired Apple CarPlay and Android Auto.
DAB+ digital radio with AM/FM and RDS.
Bluetooth V5 with HD Voice (HFP 1.6).
4x50W max output with 6-channel 4V RCA preouts (front/rear/subwoofer).
13-band graphic EQ, time alignment, loudness, LPF, and 6+2 custom preset EQs.
Infolink Plus input: Supports select factory functions such as climate control, parking sensors, and gauges (vehicle and module dependent).
Dual 720P AHD-compatible camera inputs: Reverse and second camera inputs.
Composite video output.
Dual rear USB inputs: CarPlay/Android Auto with charging (USB1) and media with charging (USB2).
6-colour button illumination (red, yellow, green, blue, purple, white).
Customisable boot screen and 12 preset wallpapers.
Steering wheel control compatible: SWC adaptor sold separately.
Suits Mazda CX3 2016-2020 and Mazda 2 (Demio) 2014-ON DJ non-amplified variants.
Technical specs
| Specification |
Detail |
| SKU |
AM8548K |
| Brand |
Aerpro |
| Display Size |
6.8 inch |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Style |
2 DIN body, L-shape chassis |
| Max Power Output |
4 x 50W |
| RCA Preouts |
4V, 6 RCA, 3 pair (front/rear/subwoofer) |
| Apple CarPlay |
Yes (wireless and wired) |
| Android Auto |
Yes (wireless and wired) |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| RDS |
Yes |
| Bluetooth Version |
V5 (A2DP, AVRCP, HFP, PBAP) |
| HFP Profile |
HFP 1.6 (HD Voice) |
| Microphone |
Internal and external |
| USB1 (Rear) |
CarPlay, Android Auto, charging (5V/1.5A) |
| USB2 (Rear) |
Media, charging (5V/1.5A) |
| USB Max Capacity |
FAT32 32GB |
| Rear A/V Input |
Yes (RCA, 3 connectors) |
| Composite Video Output |
Yes |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| Infolink Plus Input |
Yes |
| EQ |
13-band graphic |
| Preset EQs |
6+2 custom |
| Time Alignment |
Yes |
| LPF |
Yes |
| Subwoofer Level Control |
Yes |
| Button Illumination |
6-colour (red, yellow, green, blue, purple, white) |
| SWC |
Aerpro SWC adaptor (sold separately) |
| Vehicle |
Mazda CX3 2016-2020, Mazda 2 (Demio) 2014-ON DJ |
What's in the box

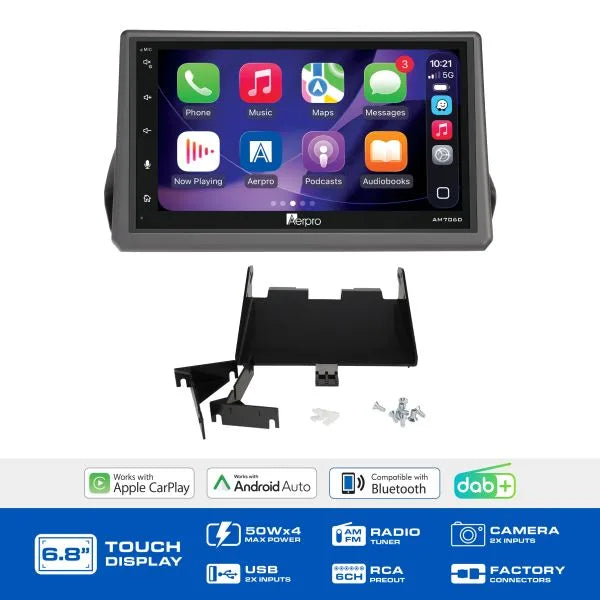

- Aerpro 6.8" L-shape multimedia receiver
- Vehicle-specific installation kit
Frequently asked questions
Does the AM8548K suit all Mazda CX3 and Mazda 2 variants?
No. The AM8548K suits non-amplified variants of Mazda CX3 2016-2020 and Mazda 2 (Demio) 2014-ON DJ only. Use the Aerpro What Fits Your Car Guide to confirm your specific variant before purchasing.
Is the steering wheel control adaptor included?
No. The AM8548K is compatible with steering wheel controls but the SWC adaptor is sold separately. Contact us for the correct adaptor for your vehicle.
What is the L-shape chassis on the AM8548K?
The L-shape chassis uses a shallow-mount base with a clear upper section rather than a full double DIN enclosure. This suits vehicles where a standard double DIN chassis cannot clear the depth of the dash cavity behind the head unit opening.
What does Infolink Plus do on the AM8548K?
Infolink Plus input supports select factory vehicle functions such as climate control display, parking sensor readout, and gauge information on the head unit screen. Functionality is vehicle and module dependent.
Does the AM8548K support a factory reverse camera?
The AM8548K has a 720P AHD-compatible reverse camera input. Retention of a factory reverse camera depends on the vehicle and installation. Contact us to confirm camera compatibility for your specific variant.
