Description
Seamless Integration, Premium Multimedia & Reverse Safety Complete Kit!

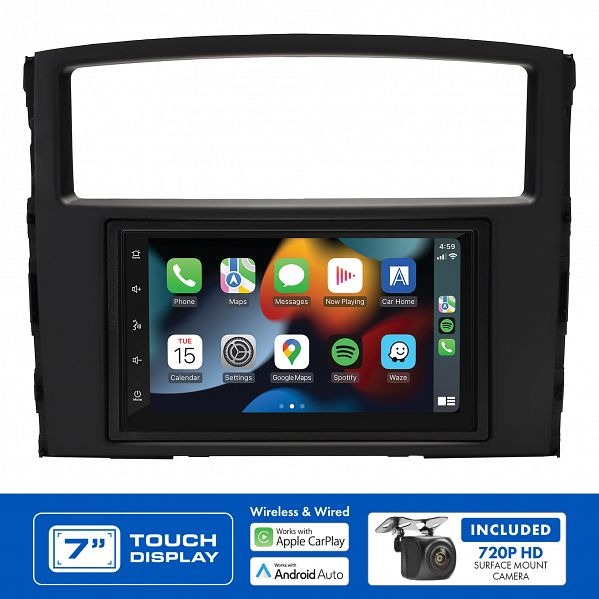

AM9100K6: 7" Multimedia Receiver
The Aerpro AM9100K6 package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit and a 720P AHD universal reverse camera. Designed specifically for Mitsubishi Pajero 2006-2014 vehicles, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.
Aerpro AM7X 7" Multimedia Receiver With Wireless CarPlay & Android Auto
The Aerpro AM7X Multimedia Receiver with Wireless Apple CarPlay and Android Auto features a large 7" capacitive touch screen display. The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal clear communications. It has a rear USB input which works with Apple CarPlay and Android Auto, as well as a built in AM/FM tuner with RDS and presets. Sound quality is superb with a built in 45W x 4 amplifier, 8 band graphic EQ and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/5CH RCA preouts (front + rear + subwoofer). The unit is OEM steering wheel remote ready and has dual reverse camera inputs (720P AHD compatible).
Vehicle Specific Installation Kit
The Aerpro Vehicle Specific Installation Kit is designed to provide a complete solution for upgrading the head unit in Mitsubishi Pajero 2006-2014 vehicles. The kit contains all necessary components for a successful double din installation, including a black facia kit, plastic mounting brackets, steering wheel control interface, factory camera retention module and universal SWC patch lead.
720P AHD Surface Mount Camera
The Aerpro 720P AHD Surface Mount Camera produces high definition picture quality. The camera can be used as a front, rear or reverse camera. It features a 150 degree field of view, optional parking guidelines and is IP67 rated. The camera is designed to mount on a flat surface and has an adjustable bracket to enable angle adjustment.
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Not suitable for vehicles with factory Rockford Fosgate Amplified sound systems.
Features:
- Includes all the parts required to complete the installation
- Retains important vehicle features including steering wheel controls and factory reverse camera when applicable
- 7" Capacitive touch display
- Works with Apple CarPlay (wireless and wired)
- Supports Android Auto (wireless and wired)
- Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Dual rear USB inputs (1.5A + 1.5A max charging)
- Dual camera input with 1 Aerpro 720P AHD Camera included
- Rear A/V input (RCA)
- 4V / 6CH RCA Preout
- MP3 / AAC / FLAC / MPEG 1,2,4 Media formats
- 8 Band graphic EQ
- 8 EQ Presets
- Subwoofer level control
- 45W x 4 Max built-in amplifier
- Shallow 2-DIN chassis mounting design
- External microphone included
Specifications:
- LCD Display:
- Size: 7"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
- System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 45W
- Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
- Device Ports
- USB (Rear) Playback Formats: CPAA & Media
- USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
- USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
- Rear A/V Input (RCA Type - 3pcs): Yes
- Reverse Camera Input: Yes (720P AHD Compatible)
- Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: External Microphone
- ID3 Tag/Information (Artist, Album, Song): Yes
- HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
- AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
- FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
- AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
- RDS: Yes
- FM Antenna Connector Impedance: 50 Ohm
- FM Tuner Connector: Motorola
- RCA Preamp Outputs:
- RCA Preamp Output: 2-Pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
- 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF - Frequencies (Sub): Yes
- 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
- Steering Wheel Control: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Colour (Buttons / Keys): White
- Accessories:
- Power Harness: Yes with ISO
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input: Yes
- 4.2CH Audio Out Cable: Yes
- External Microphone: Included
AHD Camera Specifications:
- Inclusions:
- 720P AHD Surface Mount Camera (wired)
- 6m of Video Cable (RCA) with in-line Reverse Trigger
- Mount Type: Surface Mount
- Camera Type: Front, Rear Or Reverse
- Image Sensor: Sony 225, 1/3 CMOS AHD
- Lens Angle 150 Degree
Vehicle Compatibility:
- Mitsubishi Pajero (2006 - 2014) NS/NT/NW
Inclusions:
- Facia Kit (Black)
- Steering Wheel Control Interface
- Reverse Camera Retention Module
- Universal Patch Lead
