Description
Seamless Connectivity For Your PX3 Ranger With Wireless CarPlay & Android Auto!

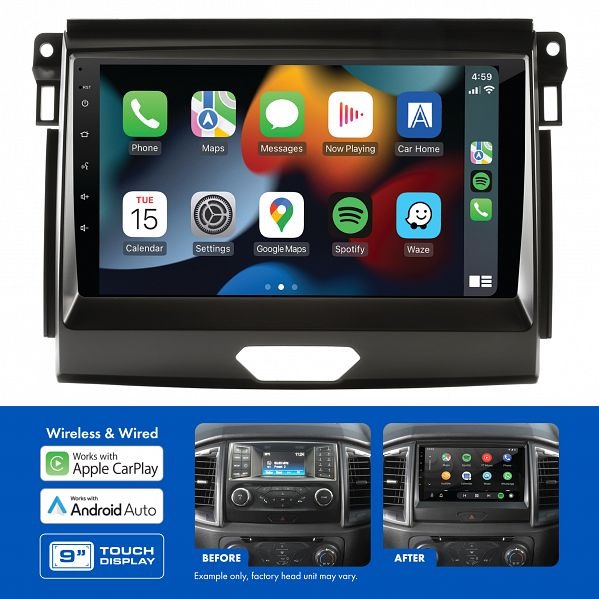

Aerpro AMAFO4 9" Multimedia Receiver Kit
The Aerpro AMAFO4 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Ford Ranger PX3 (2018–2019) vehicles with 4.2" factory display. This all-in-one infotainment upgrade boasts a sleek 9" capacitive touchscreen and offers wireless/wired smartphone mirroring, built-in Bluetooth for calls and music, dual rear USBs, AM/FM tuner, and advanced audio controls. With 50Wx4 output, 8-band EQ, and RCA preouts, your sound system gets a major boost. The complete kit includes everything you need and retains factory features like steering wheel controls, USB and AUX inputs, and reverse camera (if equipped).
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models. Please use the Aerpro What Fits Your Car Guide to confirm compatibility.
- Suits 4.2" factory display models only.
- Reverse Camera Retention uses the reverse camera input of the head unit.
- USB Input Retention uses the USB input on the rear of the head unit.
- AUX Input Retention uses the RCA AUX input on the rear of the head unit.
- Phone button support requires manual programming in the aftermarket head unit.
This head unit is sold as a kit which includes:
- AM9X Multimedia Receiver
- Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
Video:
Head Unit Feature Video
Features:
- To suit Ford Ranger PX3 (2018–2019) vehicles with 4.2" factory display
- Includes all parts required for complete installation
- Apple CarPlay & Android Auto (wireless & wired)
- Large 9" capacitive touchscreen display
- Steering wheel control retention
- Bluetooth with external microphone (A2DP, AVRCP, HFP, PBAP)
- AM/FM tuner with RDS & 18FM / 12AM presets
- Dual rear USB inputs (1.5A max charging)
- Dual camera inputs (720P AHD compatible) & rear A/V input
- 50Wx4 Max output with 8-band graphic EQ & time alignment
- 4V/5CH RCA preout & subwoofer level control
Specifications:
Kit Inclusions:
- AM9X Multimedia Receiver
- Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
Vehicle Feature Retention:
- Steering Wheel Controls: Yes (phone button requires manual programming)
- Factory Reverse Camera: Yes (if equipped)
- AUX Input: Yes (if equipped)
- USB Input: Yes (if equipped)
- Parking Tones: N/A
- Factory Amplifier: N/A
- Vehicle Menu: N/A
AM9X Multimedia Receiver Specifications:
LCD Display:
- Size: 9"
- Resolution: 1024x600
- Touch Screen: Capacitive (G+G)
System Specifications:
- OS System / CPU: Linux 3.4.5 / SPHE8368U
- RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
Power Output:
- Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10%): 4CH x 25W
- MAX Power (4 Ohm): 4CH x 50W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports:
- USB 1 (Rear): CP, AA & Media
- USB 2 (Rear): Media
- USB Power: 5V/1.5A each
- USB Max Capability: FAT32_32GB
Aux Inputs / Outputs:
- Rear A/V Input (RCA Type): Yes (3pcs)
- Composite Video Outputs: Yes
- Reverse Camera Input: Yes (720P AHD compatible)
- Second Camera Input: Yes (720P AHD compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
- Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
- Bluetooth Version: V4.2+EDR
- Microphone: Built-in & External Microphone
- ID3 Info (Artist, Album, Song): Yes
- HFP Profile: 1.6
Tuner:
- AM: 12 presets (6x2)
- FM: 18 presets (6x3)
- FM Frequency: 87.5–108.0MHz (0.05MHz step)
- AM Frequency: 529–1629KHz (9KHz step)
- RDS: Yes
- Antenna Impedance: 50 Ohm
- Tuner Connector: Motorola
RCA Preamp Outputs:
- RCA Outputs: 2-pair (Front / Rear)
- Subwoofer RCA Output: Yes
- Subwoofer Level Control: Yes
- Preamp Voltage: 4V p-p
Tone Control:
- 8-Band EQ (50/200/400/800/1K/3K/7K/15K)
- Loudness: Yes
- LPF Sub Control: Yes
- EQ Presets: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
- Steering Wheel Control Support: Yes, with Aerpro SWC Adaptor
- OSD Language: English
- LED Button Colour: White
Accessories:
- Power Harness: ISO with 3.5mm jack
- AV-In Cable (RCA with Audio L/R, Video In): Yes
- Reverse Camera Input (12V supply): Yes
- 4.1CH Audio Out Cable: Yes
- External Microphone: Included
Vehicle Compatibility:
- Ford Ranger PX3 (2018–2019)
