Description
Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!
10" Multimedia Receiver With Wireless Apple CarPlay & Android Auto

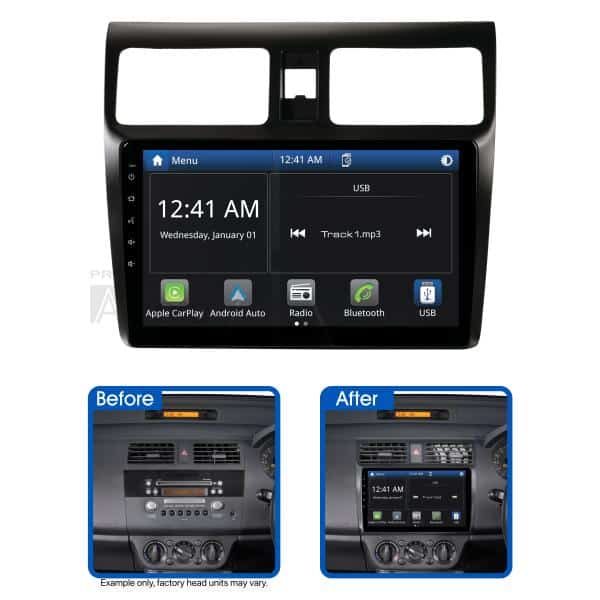

The Aerpro AMASZ1 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Suzuki Swift (2005-2010) vehicles. Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner.
Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMASZ1 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls.
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Vehicle Feature Retention:
- Steering Wheel Controls: Yes
- Factory Reverse Camera: N/A
- AUX Input: N/A
- USB Input: N/A
- Parking Tones: N/A
- Factory Amplifier: N/A
- Vehicle Menu: N/A
- Other: N/A
Features:
- To suit Suzuki Swift (2005-2010) vehicles
- Includes all the parts required to complete the installation and to retain important vehicle features
- Apple CarPlay & Android Auto (wireless / wired)
- Large 10" capacitive touchscreen display
- Steering wheel control retention
- Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Rear USB input (1.5A max charging)
- Dual camera inputs (AHD 720P compatible) & rear A/V input
- 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
- 4V/5CH RCA Preout and subwoofer level control
Specifications:
- LCD Display:
Size: 10"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
- System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output:
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 50W
- Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
- Device Ports:
USB 1 (Rear) Playback Formats: CP,AA & Media
USB 2 (Rear) Playback Formats: Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
- Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
- RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
- Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
- Vehicle Compatibility: Suzuki Swift (2005 - 2010)
- Weight: 3.00kg
Kit Inclusions:
- AM10X Multimedia Receiver
- Matte Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
