Description

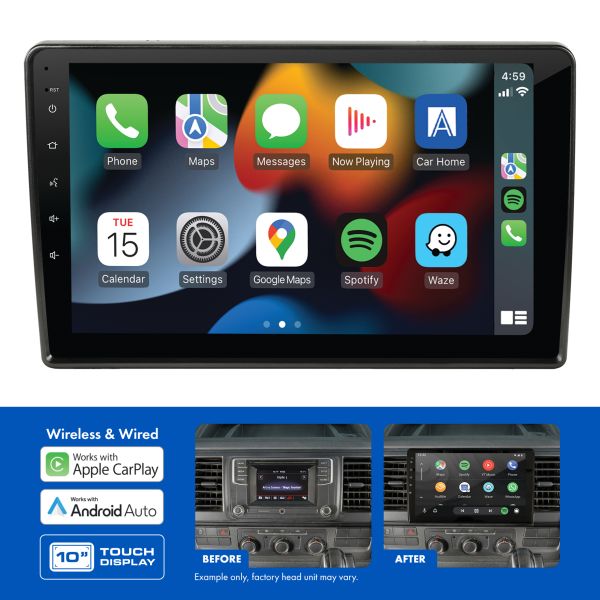

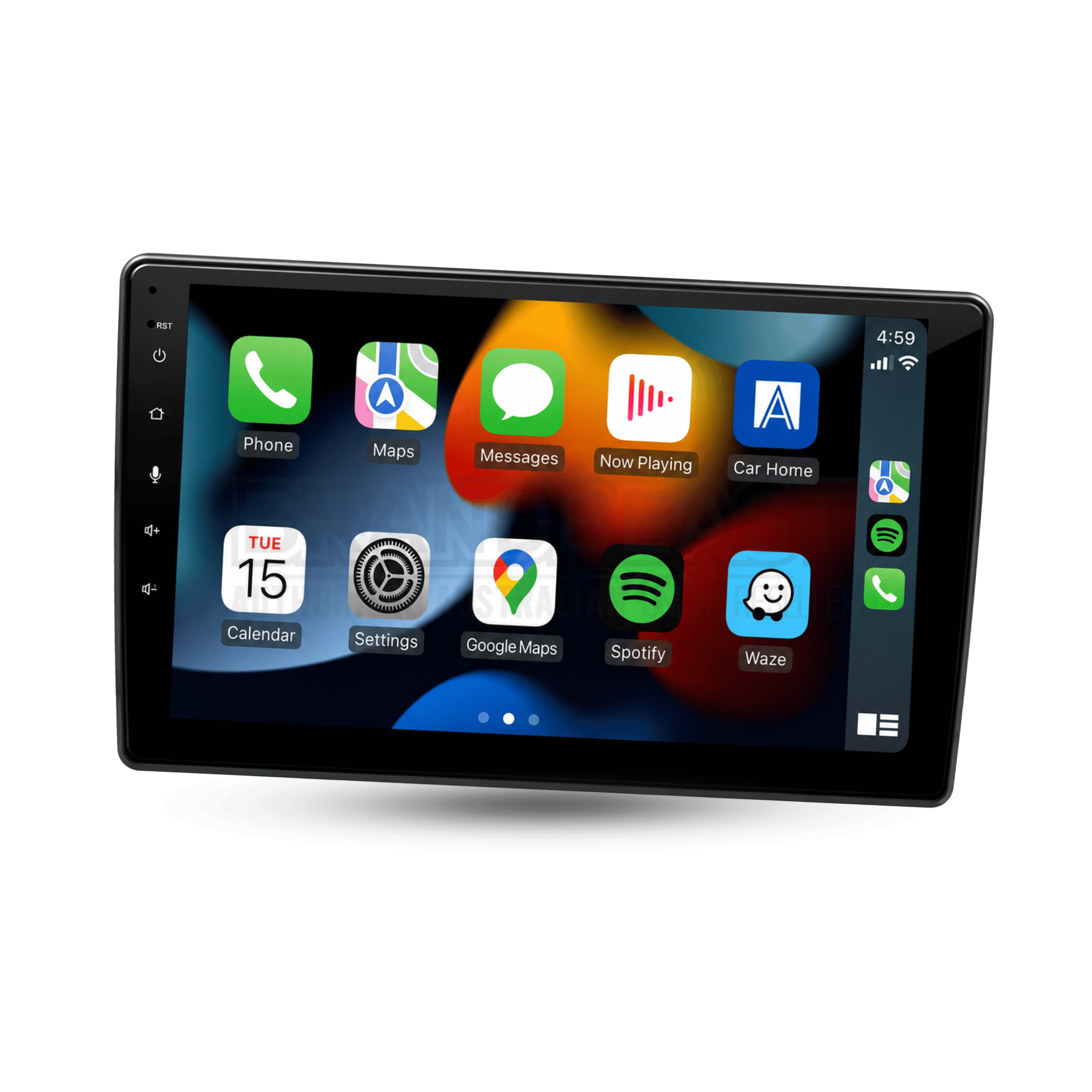

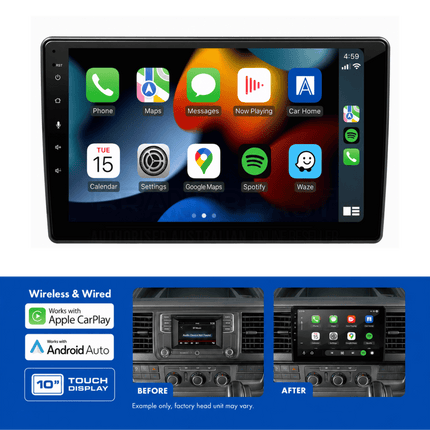

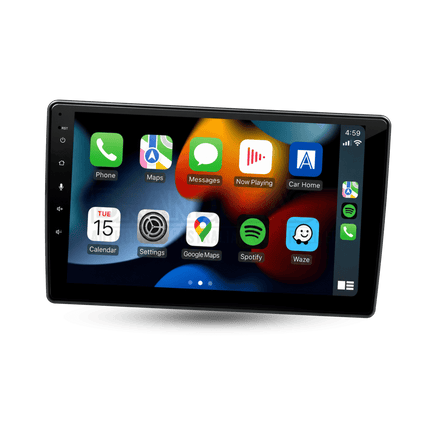

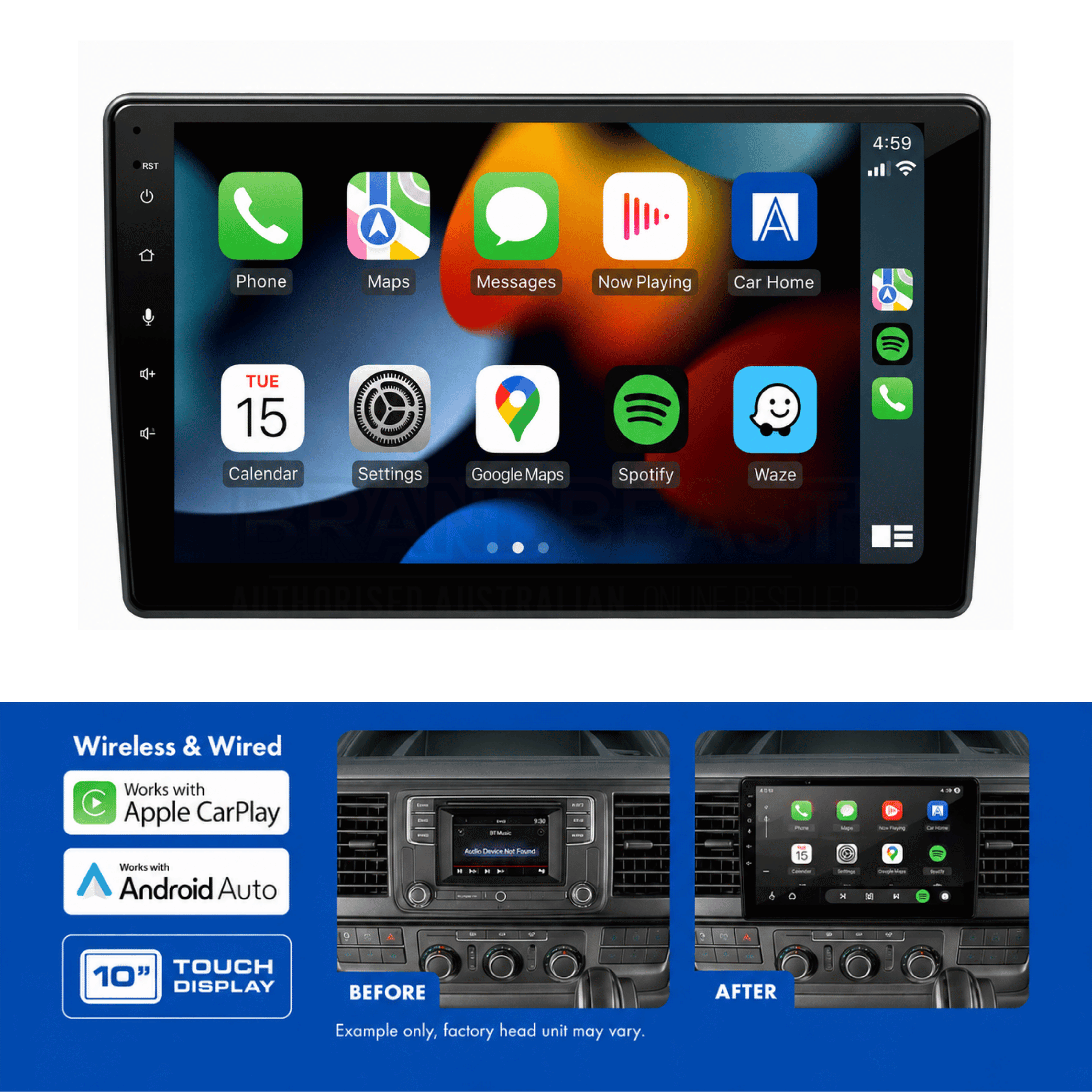

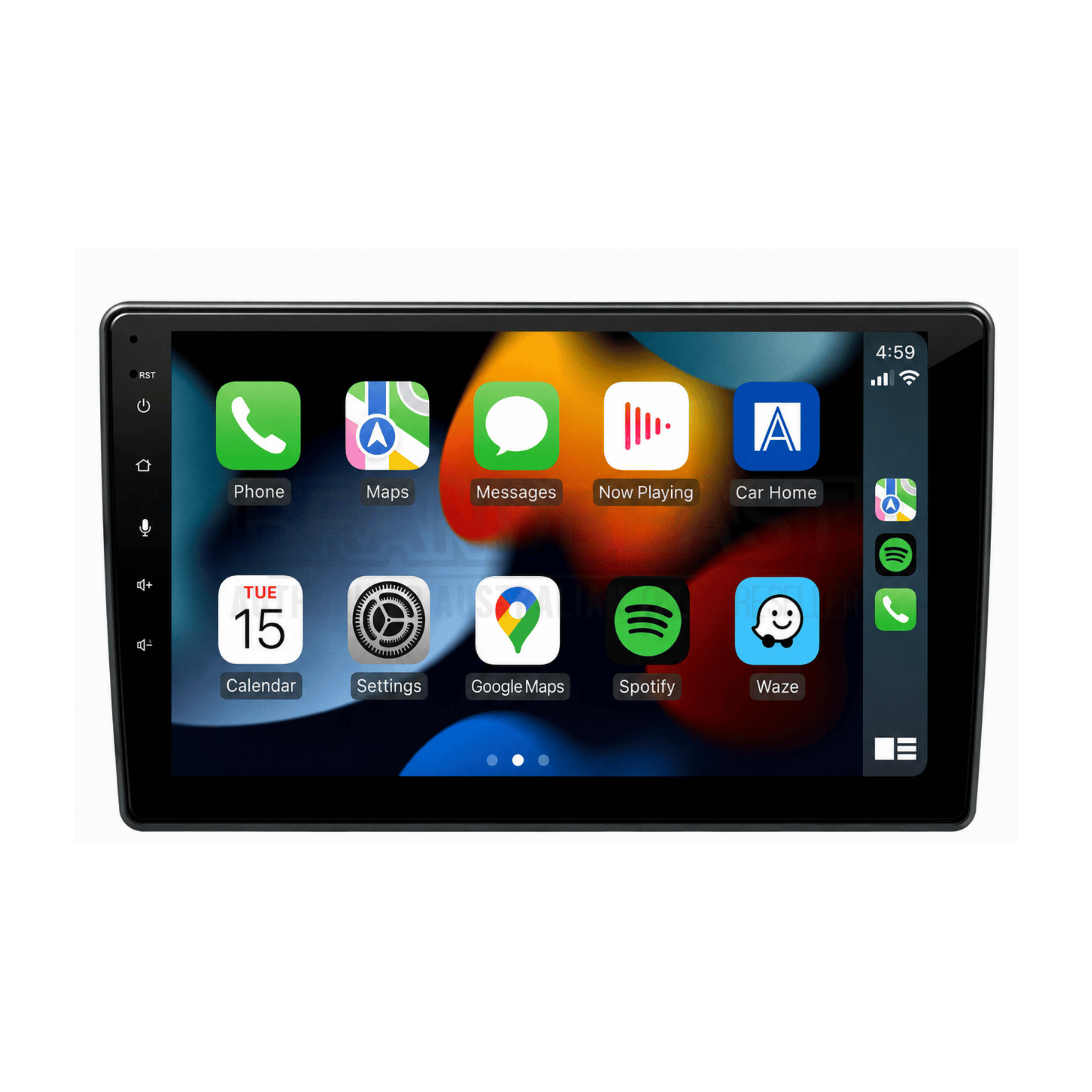

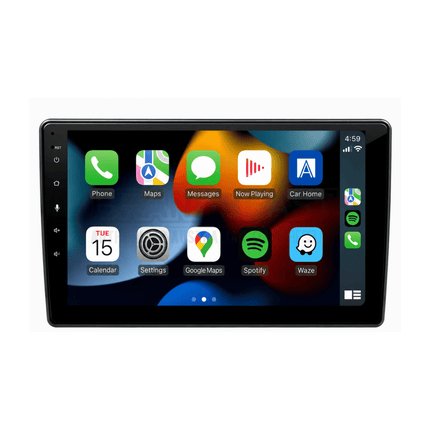

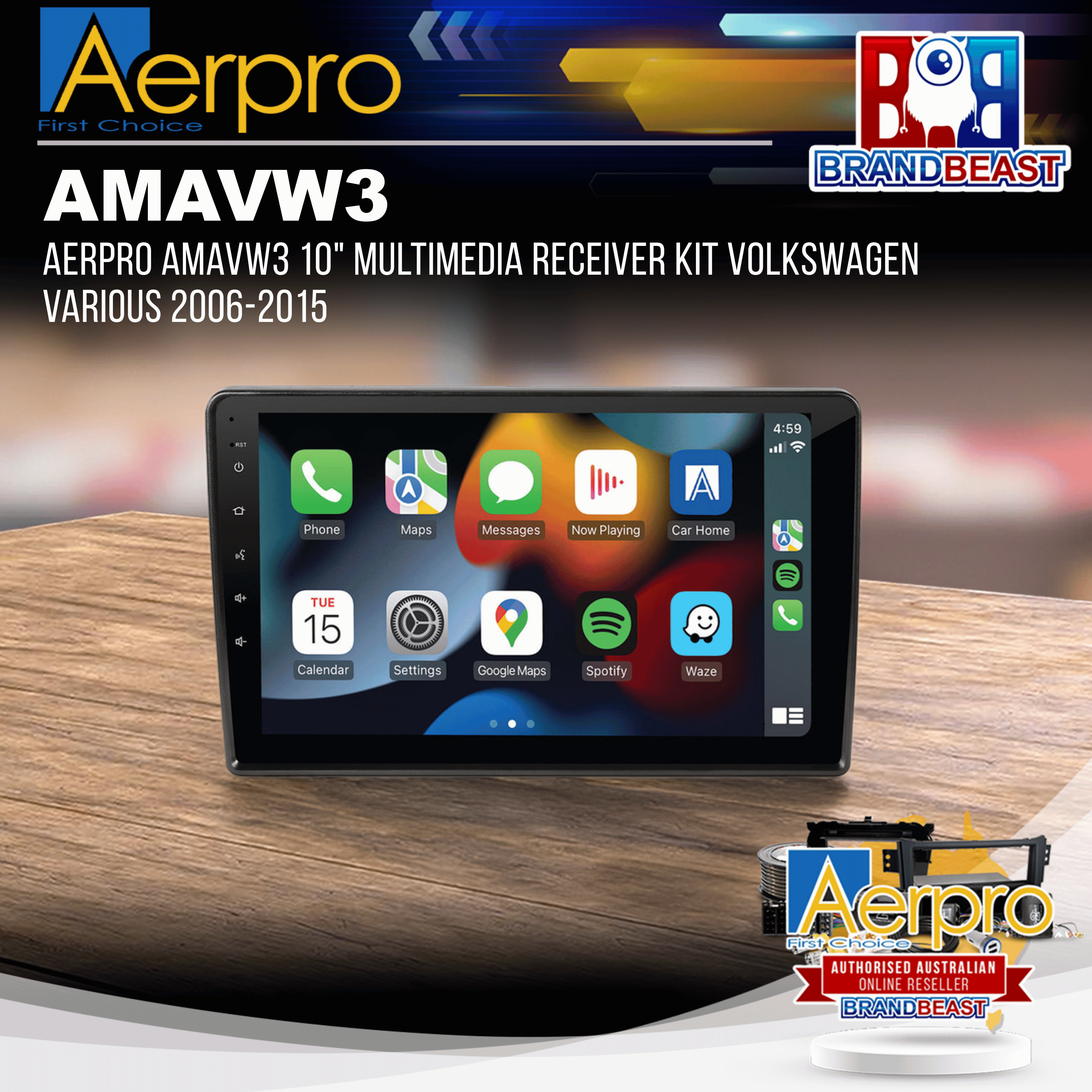

Aerpro AMAVW3 10" Multimedia Receiver Kit Volkswagen Various 2006-2015
A complete 10" head unit upgrade kit for Volkswagen Eos (2007-2014), Passat (2006-2015), Polo (2010-2015), Scirocco (2009-2014), and Tiguan (2008-2014) vehicles with White MFD, the AMAVW3 includes the AM10X Multimedia Receiver with wireless Apple CarPlay and Android Auto, matte black fascia kit, Infodaptor Interface harness, SWC patch lead, amplifier retention harness, and antenna adaptor, retaining steering wheel controls, factory amplified system, parking tones, and vehicle menu access.
Product Overview
The Aerpro AMAVW3 is a 10" multimedia receiver upgrade kit designed for Volkswagen Eos (2007-2014), Passat (2006-2015), Polo (2010-2015), Scirocco (2009-2014), and Tiguan (2008-2014) vehicles fitted with White MFD only. The kit is built around the Aerpro AM10X Multimedia Receiver, which features a 10" 1024x600 capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, built-in Bluetooth V4.2 with A2DP, AVRCP, HFP 1.6, and PBAP profiles, AM/FM tuner with RDS, dual rear USB inputs, 50W x 4 maximum power output, 8-band graphic EQ with time alignment, and 4V 5-channel RCA pre-outs including a subwoofer output.
The included Infodaptor Interface harness enables vehicle information including climate control and parking visualisation to be displayed and accessed on the aftermarket head unit, retains steering wheel controls with phone button, retains the factory amplified system, and retains parking tones and vehicle menu access. The Interface connects to the rear camera input on the AM10X; output for this kit will be low resolution. High-definition camera resolution will be reduced when using this product.
Important fitment notes by model: Passat (2006-2015) - kit covers part of the hazard or clock on some models. Polo (2010-2015) - kit covers part of buttons. Scirocco (2009-2014) - kit covers vent adjusters. Tiguan (2008-2014) - kit partially covers the hazard button. Use the Aerpro What Fits Your Car Guide to confirm correct parts for your specific vehicle before purchase.
Features & Benefits
Complete Head Unit Upgrade Kit for VW Eos, Passat, Polo, Scirocco, and Tiguan: The AMAVW3 includes all components required to complete a 10" head unit installation in the supported Volkswagen models in a single purchase. Suits White MFD equipped vehicles only.
10" Capacitive Touchscreen Display at 1024x600: The AM10X features a 10" G+G capacitive touchscreen at 1024x600 resolution for accurate touch response and clear display across all connected functions including CarPlay, Android Auto, and the native head unit interface.
Wireless and Wired Apple CarPlay and Android Auto: The AM10X supports both wireless and wired Apple CarPlay and Android Auto, providing full smartphone integration without requiring a cable connection for compatible devices.
Infodaptor Interface - Vehicle Feature Retention: The included Infodaptor Interface harness retains steering wheel controls with phone button, factory amplified system, parking tones, and vehicle menu access. Climate control and parking visualisation are displayed on the aftermarket head unit where equipped. The Interface connects via the rear camera input and output will be low resolution.
Steering Wheel Control Retention Including Phone Button: Factory steering wheel audio controls and the phone button are retained via the Infodaptor Interface harness and included SWC patch lead, maintaining hands-on-the-wheel control with the aftermarket head unit.
Factory Amplified System Retention: The included amplifier retention harness retains the factory amplified system in the vehicle, preserving the factory speaker and amplifier configuration after the head unit upgrade.
50W x 4 Maximum Power with 8-Band Graphic EQ and Time Alignment: The AM10X delivers 25W x 4 RMS at 10% THD and 50W x 4 maximum output at 4 ohms, with an 8-band graphic EQ at 50Hz, 200Hz, 400Hz, 800Hz, 1kHz, 3kHz, 7kHz, and 15kHz, eight preset EQ profiles, loudness, and time alignment for comprehensive onboard audio tuning.
4V 5-Channel RCA Pre-Outs with Subwoofer Output: The AM10X provides 4V 5-channel RCA pre-outs including front, rear, and subwoofer outputs with adjustable subwoofer level control for external amplifier integration.
Bluetooth V4.2 with External Microphone: Built-in Bluetooth V4.2 with A2DP, AVRCP, HFP 1.6, and PBAP profiles supports wireless audio streaming, hands-free calling, and phone book access. An external microphone is included alongside the built-in microphone.
Dual Rear USB Inputs with Media Playback: Two rear USB inputs support MP3, AAC, FLAC, Xvid, and MPEG 1/2/4 media playback. USB 1 supports CarPlay, Android Auto, and media playback; USB 2 supports media playback. Both provide 5V/1.5A charging output. Maximum USB capacity is FAT32 32GB.
Dual AHD 720P Camera Inputs: The AM10X provides two camera inputs compatible with 720P AHD cameras and includes a reverse camera input with 12V power supply output for the camera.
AM/FM Tuner with RDS: An AM/FM tuner with RDS provides 18 FM presets (6x3) and 12 AM presets (6x2) across standard Australian frequency ranges.

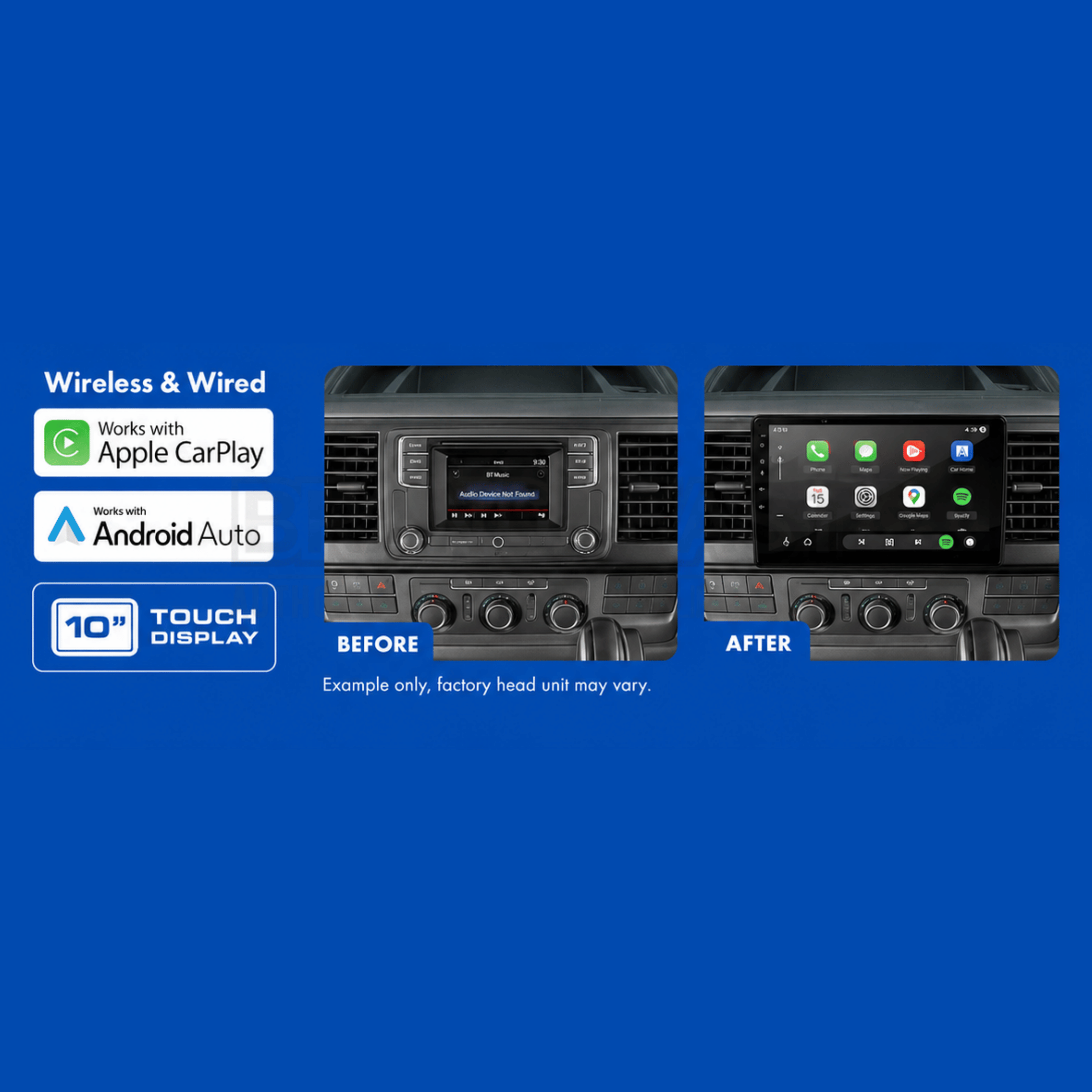

Matte Black Fascia Kit and Antenna Adaptor Included: The included matte black fascia kit provides a factory-fit appearance around the AM10X in the supported Volkswagen dashboard, and the antenna adaptor ensures correct connection between the factory antenna and the AM10X.
Technical Specs
| Specification |
Detail |
| SKU |
AMAVW3 |
| Brand |
Aerpro |
| Compatible Vehicles |
VW Eos 2007-2014, VW Passat 2006-2015, VW Polo 2010-2015, VW Scirocco 2009-2014, VW Tiguan 2008-2014 |
| MFD Requirement |
White MFD only |
| Head Unit Model |
AM10X |
| Display Size |
10" |
| Display Resolution |
1024 x 600 |
| Touchscreen |
Capacitive G+G |
| OS / CPU |
Linux 3.4.5 / SPHE8368U |
| RAM / Flash Memory |
128MB / 256MB |
| DIN Size |
2 DIN Short Body |
| Rated Power |
25W x 4 (4 Ohm, 1kHz, 10% THD) |
| Max Power |
50W x 4 (4 Ohm) |
| RCA Pre-Outs |
4V, 5-Channel (Front, Rear, Subwoofer) |
| EQ |
8-Band Graphic (50/200/400/800/1K/3K/7K/15KHz) |
| EQ Presets |
8 (Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft) |
| Time Alignment |
Yes |
| Apple CarPlay |
Yes (Wireless and Wired) |
| Android Auto |
Yes (Wireless and Wired) |
| Bluetooth Version |
V4.2 + EDR |
| Bluetooth Profiles |
A2DP, AVRCP, HFP 1.6, PBAP |
| Microphone |
Built-In and External (included) |
| USB 1 (Rear) |
CarPlay, Android Auto, Media Playback (5V/1.5A) |
| USB 2 (Rear) |
Media Playback (5V/1.5A) |
| USB Max Capacity |
FAT32 32GB |
| Media Formats |
MP3, AAC, FLAC, Xvid, MPEG 1/2/4 |
| Reverse Camera Input |
Yes (720P AHD compatible, 12V power output) |
| Second Camera Input |
Yes (720P AHD compatible) |
| Rear A/V Input |
Yes (RCA, 3-piece) |
| Composite Video Output |
Yes |
| AM/FM Tuner |
Yes, with RDS |
| FM Presets |
18 (6x3) |
| AM Presets |
12 (6x2) |
| FM Range |
87.5-108.0MHz (0.05MHz steps) |
| AM Range |
529-1629kHz (9kHz steps) |
| Infodaptor Interface |
Yes (vehicle info, SWC, amp retention, parking tones, vehicle menu) |
| SWC Retention |
Yes (including phone button) |
| Factory Amp Retention |
Yes |
| Parking Tones |
Yes |
| Vehicle Menu |
Yes |
| Reverse Camera Retention |
No |
| Camera Output Resolution |
Low resolution (Infodaptor Interface via rear camera input) |
| Fascia Colour |
Matte Black |
| Antenna Adaptor |
Included |
What's in the Box
- AM10X Multimedia Receiver
- Matte Black Fascia Kit
- Infodaptor Interface Harness
- SWC Patch Lead
- Amplifier Retention Harness
- Antenna Adaptor
- External Microphone
- Power Harness (ISO/3.5mm jack)
- AV-In Cable (RCA with Audio L/R and Video In)
- 4.1CH Audio Out Cable
Compatible With
The AMAVW3 is designed for Volkswagen Eos (2007-2014), Passat (2006-2015), Polo (2010-2015), Scirocco (2009-2014), and Tiguan (2008-2014) vehicles fitted with White MFD only. The following fitment notes apply by model: Passat (2006-2015) - kit covers part of the hazard or clock on some models; Polo (2010-2015) - kit covers part of buttons; Scirocco (2009-2014) - kit covers vent adjusters; Tiguan (2008-2014) - kit partially covers the hazard button. The Infodaptor Interface output connects via the rear camera input and will be low resolution. High-definition camera resolution will be reduced when using this product. Use the Aerpro What Fits Your Car Guide to confirm the correct parts for your specific vehicle and build date before purchase.
Frequently Asked Questions
Does the AMAVW3 suit all Volkswagen models in the specified date ranges?
The AMAVW3 suits Volkswagen Eos (2007-2014), Passat (2006-2015), Polo (2010-2015), Scirocco (2009-2014), and Tiguan (2008-2014) with White MFD only. Important fitment notes apply for each model regarding dashboard button coverage due to the size of the 10" head unit. Use the Aerpro What Fits Your Car Guide to confirm the correct parts for your specific vehicle before purchase.
What is the Infodaptor Interface and what does it retain?
The Infodaptor Interface is a vehicle-specific harness included in the AMAVW3 that enables vehicle information including climate control and parking visualisation to be displayed and accessed on the AM10X. It retains steering wheel controls with phone button, the factory amplified system, parking tones, and vehicle menu access. The Interface connects to the rear camera input on the AM10X and output will be low resolution.
Does the AMAVW3 retain the factory reverse camera?
No. The AMAVW3 does not retain the factory reverse camera. A new aftermarket camera can be connected to the AM10X's dedicated reverse camera input, which is 720P AHD compatible and provides 12V power output to the camera.
Will a high-definition aftermarket camera display at full resolution with the AMAVW3?
No. Due to the Infodaptor Interface connecting via the rear camera input, high-definition camera resolution will be reduced when using this product.
Does the AMAVW3 support wireless CarPlay and Android Auto?
Yes. The AM10X supports both wireless and wired Apple CarPlay and Android Auto, providing full smartphone integration without requiring a cable connection for compatible devices.
