Aerpro AMCFO10 9 Inch Multimedia Receiver Head Unit Upgrade Kit for Ford Focus LZ 2015 to 2018 SYNC 3 Wireless Apple CarPlay Android Auto DAB+ Bluetooth V5 Infolink Interface SWC Retention
The Aerpro AMCFO10 is a complete 9-inch multimedia receiver head unit upgrade kit for the Ford Focus LZ (2015 to 2018) with factory 8-inch SYNC 3 display. Includes the AM905D multimedia receiver, black facia kit, Infolink interface harness, SWC patch lead, antenna adaptor, and camera retention adaptor. Wireless and wired Apple CarPlay and Android Auto. Built-in DAB+ digital radio. Bluetooth V5. 4 x 50W max output, 4V 5-channel RCA preouts, 13-band EQ.
Product overview
The AMCFO10 provides everything required to complete a factory-quality multimedia upgrade in the Ford Focus LZ (2015 to 2018) fitted with a factory 8-inch SYNC 3 display. The Infolink interface allows vehicle information to be displayed and accessed on the aftermarket head unit, and retains steering wheel controls including the phone button, parking tones, vehicle menu access, OEM amplifier, and factory reverse camera where fitted. Note: the Infolink Interface connects to the rear camera input on the head unit and the reverse camera output will be low resolution.
The 9-inch capacitive touchscreen runs at 1024x600 resolution on a Linux-based system. Wireless Apple CarPlay and Android Auto allow full smartphone connectivity without plugging in. DAB+ digital radio delivers a broader range of stations with clearer sound. Bluetooth V5 supports HD Voice hands-free calling with both internal and external microphone options and A2DP audio streaming. The 4 x 50W max output, 4V 5-channel RCA preamp, 13-band graphic EQ, and time alignment provide a strong foundation for system expansion.
Features and benefits
Complete head unit upgrade kit for Ford Focus LZ 2015 to 2018 SYNC 3: All components for a full factory-quality installation in one box.
9-inch 1024x600 capacitive touchscreen: Large, high-resolution display with smooth touch response.
Wireless and wired Apple CarPlay and Android Auto: Full smartphone connectivity without plugging in.
Built-in DAB+ digital radio with AM/FM and RDS: 12 AM and 18 FM presets alongside digital station coverage.
Bluetooth V5 with HD Voice: HFP 1.6, A2DP streaming, full phonebook access, internal and external microphone.
Infolink Interface: Retains vehicle menu, OEM amplifier, factory reverse camera (low resolution), parking tones, and SWC including phone button.
Suits 8-inch factory display SYNC 3 models only.
Reverse camera output is low resolution via Infolink Interface.
4 x 50W max output, 4V 5-channel RCA preouts: Front, rear, and subwoofer for amplifier expansion.
13-band graphic EQ and time alignment: 6+2 custom preset EQ modes.
6-colour button illumination: Red, yellow, green, blue, purple, or white.
OEM AUX, USB, and antenna not retained.
What's in the box

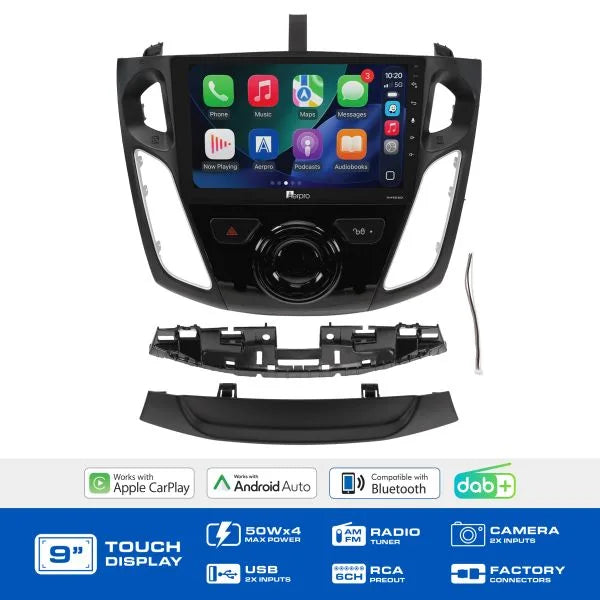

- 1x AM905D 9-inch multimedia receiver (trapezoid, fixed screen)
- Black facia kit
- Infolink interface harness
- SWC patch lead
- Antenna adaptor
- Camera retention adaptor
- Mounting hardware and screws
- Wiring harness with ISO connection
- AV, USB, and camera harnesses
- DAB antenna
- 3-wire learning SWC lead
- External microphone with mount
- GPS antenna with adhesive pad
- QR digital manual leaflet
Technical specs
| Specification |
Detail |
| SKU |
AMCFO10 |
| Brand |
Aerpro |
| Type |
Multimedia receiver head unit upgrade kit |
| Compatible With |
Ford Focus LZ 2015 to 2018 (8-inch SYNC 3 models only) |
| Screen Size |
9 inch |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Style |
Fixed screen trapezoid |
| Max Power Output |
4 x 50W |
| RCA Preouts |
4V, 5 channel (front/rear/subwoofer) |
| CarPlay / Android Auto |
Wireless and wired |
| DAB+ |
Yes |
| AM Presets |
12 |
| FM Presets |
18 |
| RDS |
Yes |
| Bluetooth Version |
V5 |
| Bluetooth Profiles |
A2DP, AVRCP, HFP 1.6, PBAP |
| HFP Profile |
HFP 1.6 (HD Voice) |
| Microphone |
Internal and external |
| USB1 (Rear) |
CarPlay, Android Auto, charging (5V/1.5A) |
| USB2 (Rear) |
Media and charging (5V/1.5A) |
| USB Max Capacity |
FAT32, 32GB |
| Rear A/V Input |
RCA, 3 inputs |
| Reverse Camera Input |
Yes (720P AHD compatible, low resolution via Infolink) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band graphic |
| Time Alignment |
Yes |
| Preset EQs |
6+2 custom |
| Button Illumination |
6-colour (red/yellow/green/blue/purple/white) |
| Media Formats |
MP3, MP4, MKV, FLAC, Xvid |
| Interface |
Infolink Plus |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls (including phone button) |
Yes |
| Vehicle Menu |
Yes |
| OEM Amplifier |
Yes |
| Factory Reverse Camera |
Yes (low resolution via Infolink) |
| Parking Tones |
Yes (if equipped) |
| Climate Control and Parking Visualisation |
Yes (if equipped, on aftermarket display) |
| OEM AUX Input |
No |
| OEM USB Input |
No |
| OEM Antenna |
No |
Compatible with
| Make |
Model |
Years |
Notes |
| Ford |
Focus |
2015 to 2018 |
LZ, 8-inch SYNC 3 display models only |
Frequently asked questions
Does the AMCFO10 retain steering wheel controls?
Yes. The AMCFO10 retains steering wheel controls including the phone button via the Infolink interface and SWC patch lead.
Will the factory reverse camera work with the AMCFO10?
Yes, where the factory reverse camera is fitted. The Infolink Interface connects to the reverse camera input on the head unit, so the camera output will be low resolution.
Does the AMCFO10 suit all Ford Focus LZ models?
The AMCFO10 suits Ford Focus LZ 2015 to 2018 models fitted with the factory 8-inch SYNC 3 display only. Use the Aerpro vehicle selector to confirm compatibility with your specific vehicle before purchasing.
Is the AMCFO10 compatible with Apple CarPlay and Android Auto?
Yes. Both Apple CarPlay and Android Auto are supported wirelessly, with wired connection also available via the rear USB ports.
Are the OEM AUX, USB, and antenna retained?
No. The OEM AUX input, USB input, and antenna are not retained by the AMCFO10.
