Complete 9" Head Unit Upgrade Kit for Holden Cruze with MyLink 2009–2016 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Infodaptor Interface, SWC Phone Button, Parking Tones, Vehicle Menu & Factory Reverse Camera Retained.
Product Overview

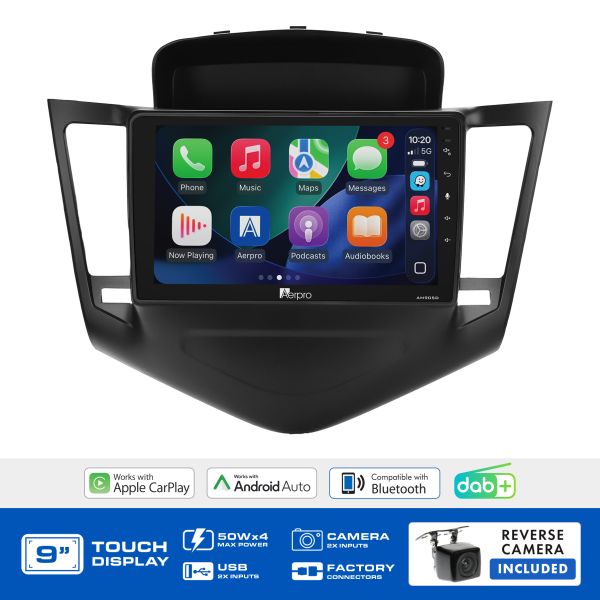

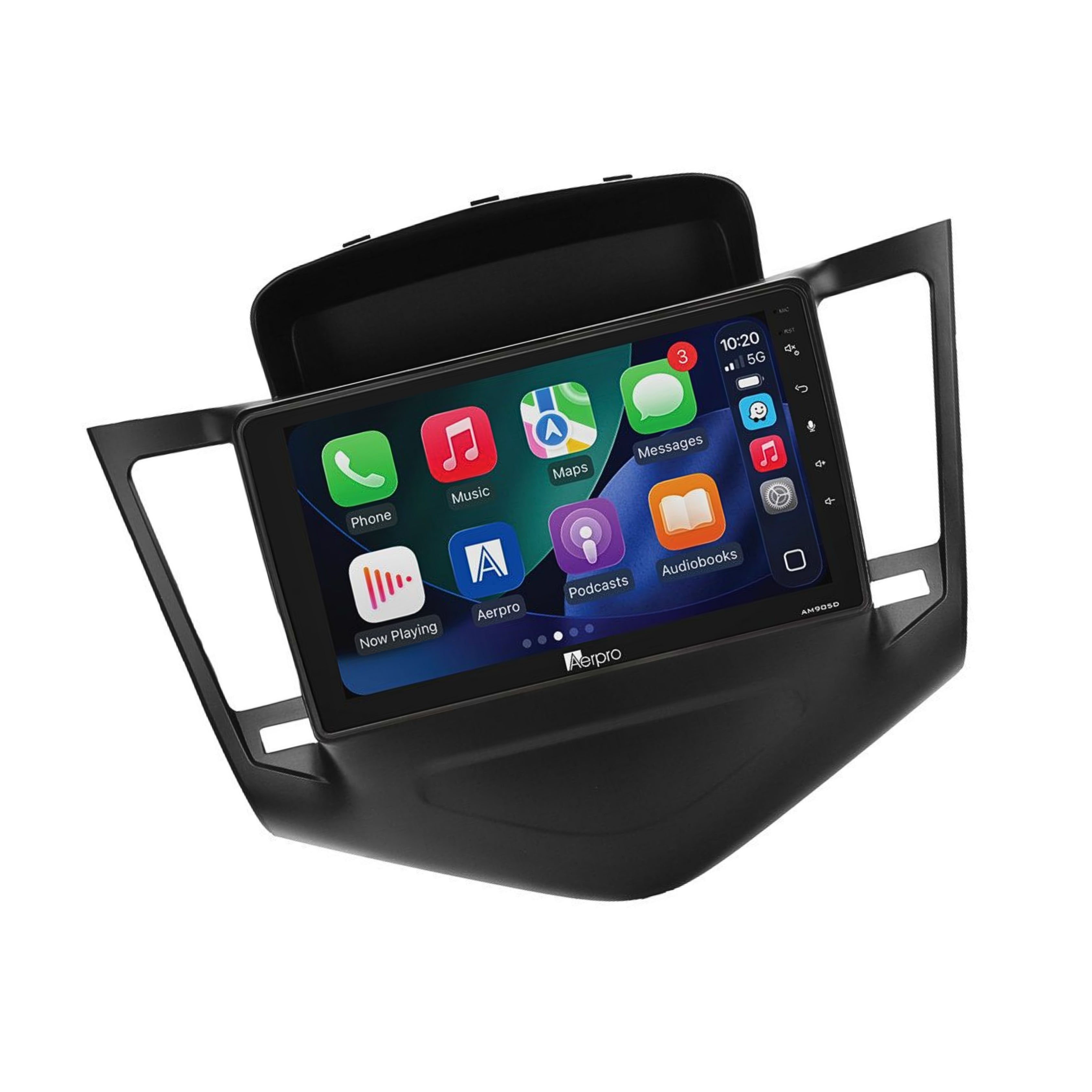

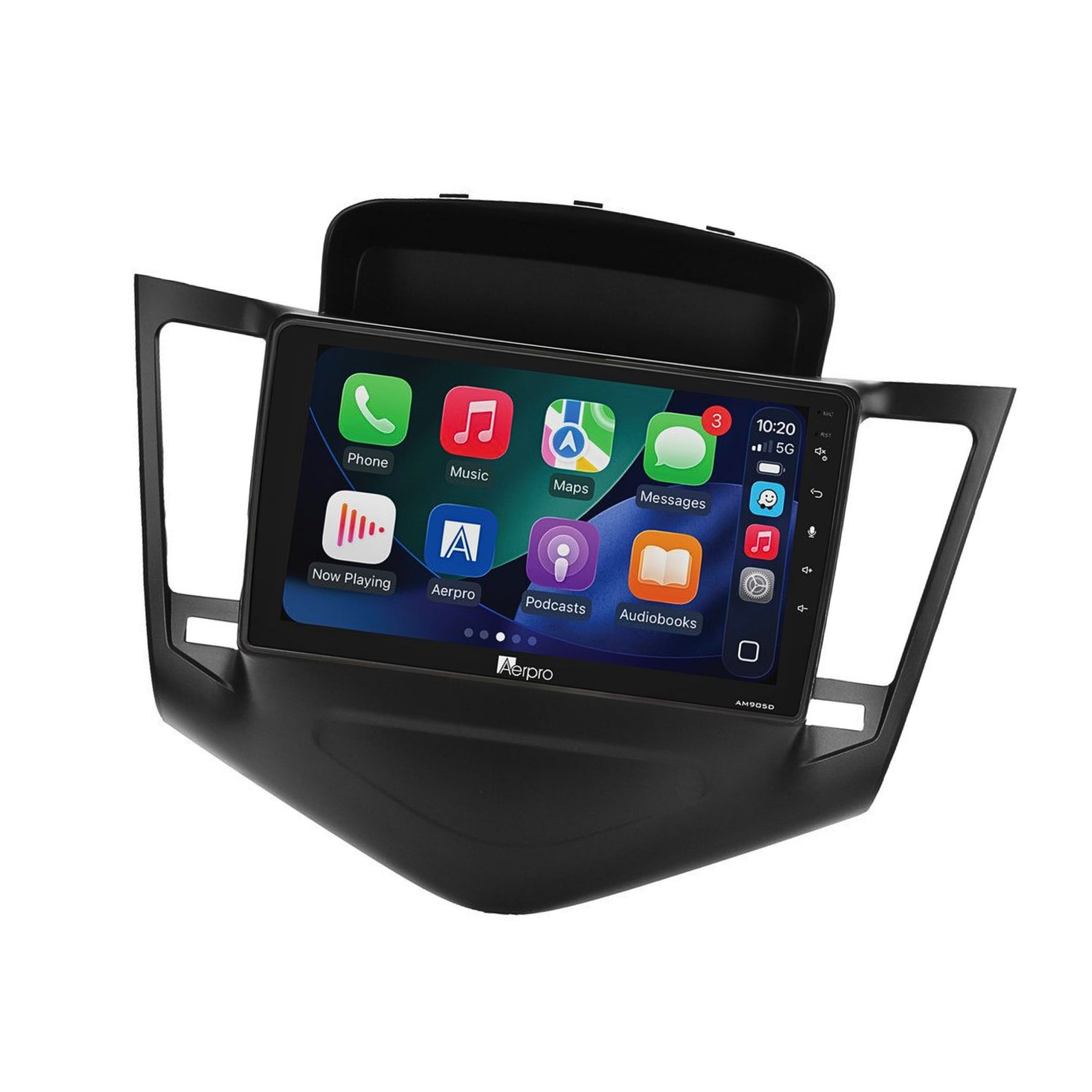

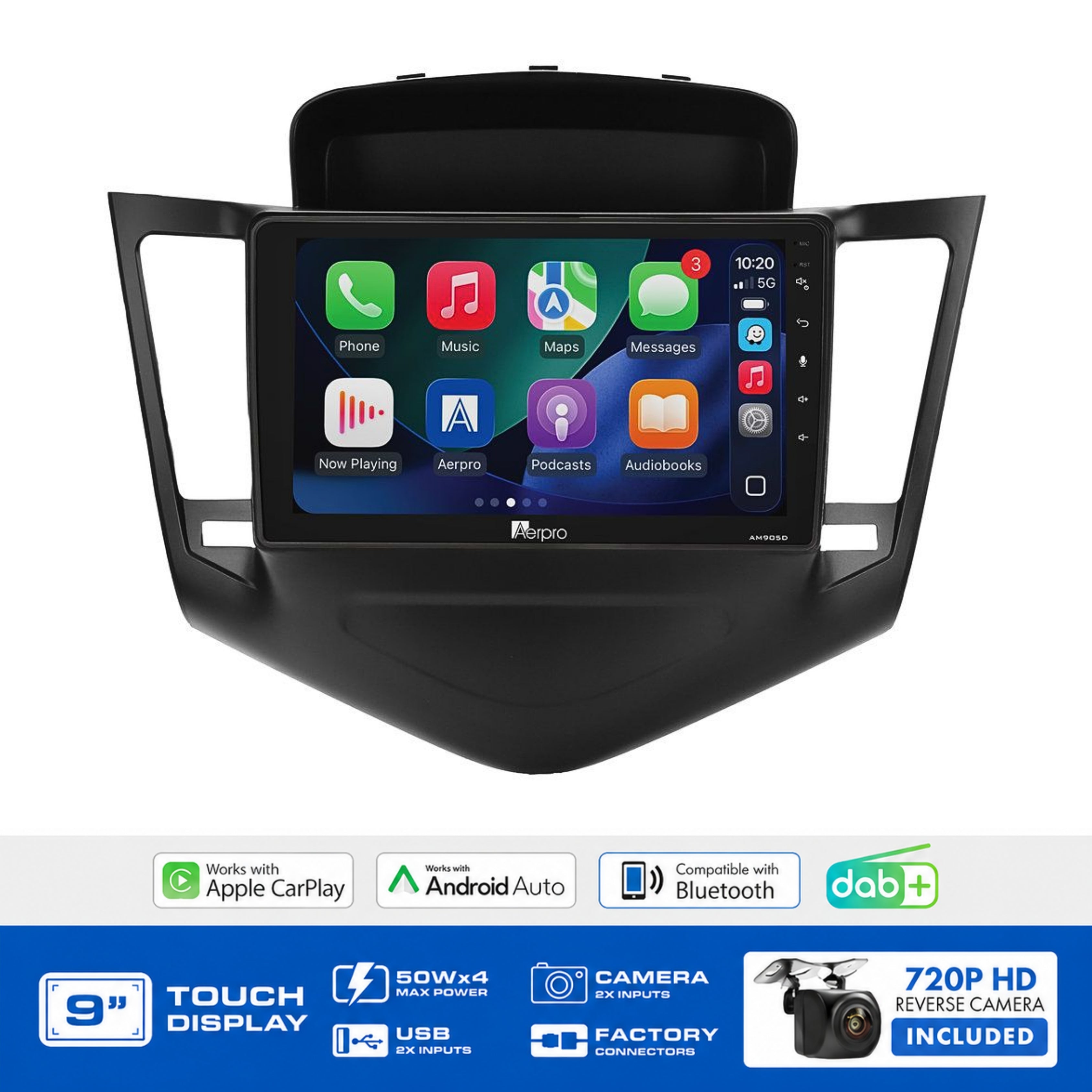

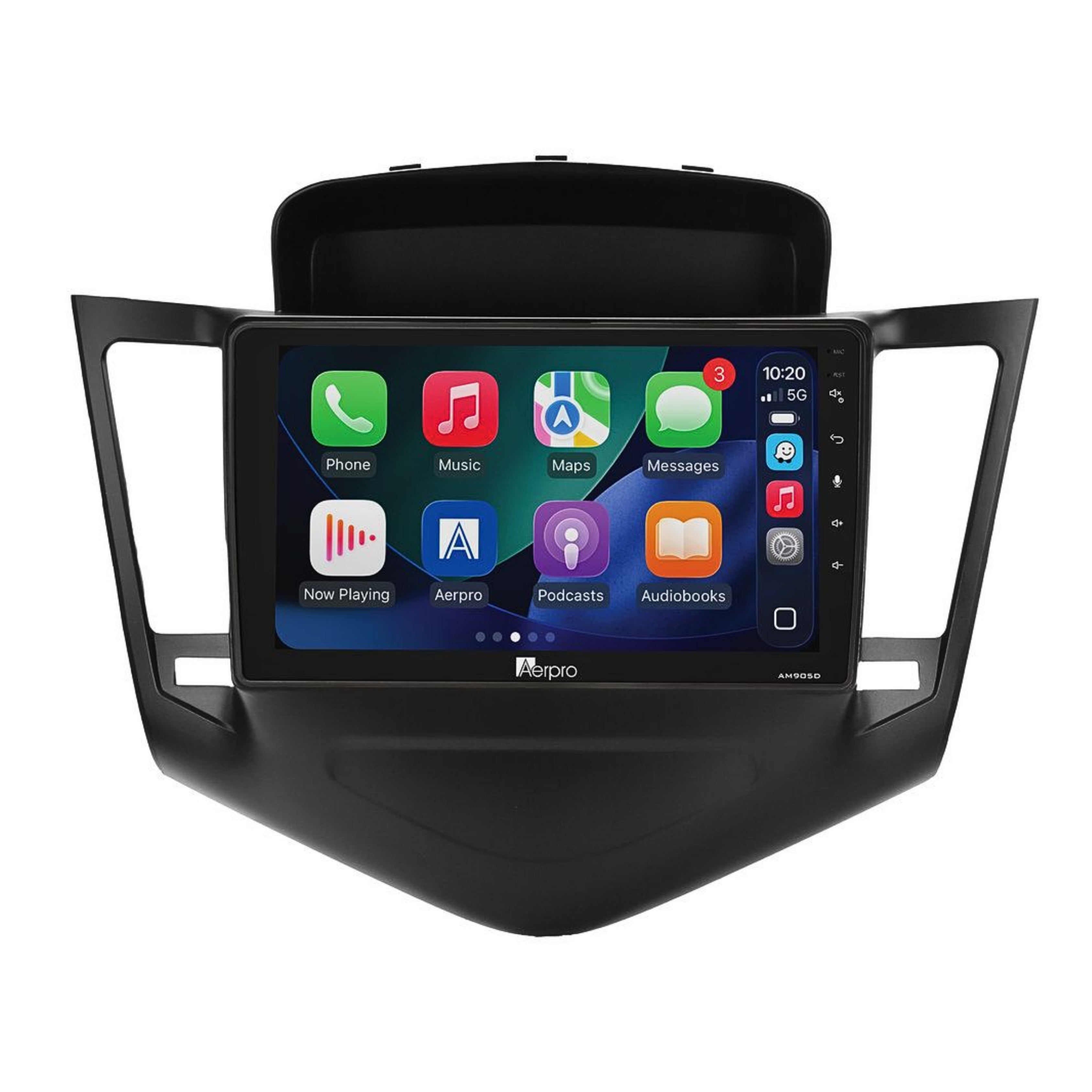

The Aerpro AMDGM2 is a complete head unit upgrade kit specifically designed for the Holden Cruze (2009–2016) with factory MyLink system. This kit features the Aerpro Infodaptor Interface a purpose-built harness that allows vehicle information to be displayed and accessed on the aftermarket head unit, retains steering wheel controls (including the phone button), retains parking tones, retains the factory reverse camera (if equipped), and provides access to the vehicle menu including climate control and parking visualisation on the aftermarket display (if equipped).
Everything required for installation is included the AM905D multimedia receiver, black fascia kit, Infodaptor interface harness, SWC patch lead, antenna adaptor, and a surface mount camera with 6m video cable. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Black Fascia Kit
- Infodaptor Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Surface Mount Camera (with 6m RCA cable and in-line reverse trigger)
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (AHD compatible)
- Second camera input: Yes
- LED button illumination: 6-colour selectable
- Camera: Surface mount, 110° FOV, IP67, 6m cable, optional parking guidelines
Features & Benefits
-
Infodaptor Interface: Allows vehicle information including climate control and parking visualisation to be displayed on the aftermarket head unit a key feature for MyLink-equipped Cruze models
-
Parking tones retained: Factory parking tones retained via the Infodaptor, if equipped
-
Vehicle menu retained: Access to the vehicle menu including climate control on the aftermarket display, if equipped
-
Factory reverse camera retained: Existing factory reverse camera retained via the Infodaptor, if equipped
-
Steering wheel controls retained including phone button: Full SWC including phone button retained via the SWC patch lead
-
Surface mount camera included: 110° field of view, IP67, optional parking guidelines, mountable as front, rear, or reverse camera with 6m RCA cable and in-line reverse trigger
-
Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen: Large, smooth 1024x600 display
-
4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDGM2 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes |
| Second Camera Input |
Yes |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes (including phone button) |
| Factory Reverse Camera Retained |
Yes (if equipped) |
| Parking Tones Retained |
Yes (if equipped) |
| Vehicle Menu Retained |
Yes |
| USB Input Retained |
No |
| Infodaptor Interface |
Yes low resolution output |
| Kit Includes Camera |
Yes Surface mount, 110°, IP67, 6m cable |
| Weight |
3.00kg |
| Suits |
Holden Cruze JG/JH 2009–2016 with MyLink (headunit dependent) |
Compatible Vehicles
- Holden Cruze 2009–2016 JG, JH (headunit dependent MyLink only)
Frequently Asked Questions
What is the Infodaptor Interface?
The Infodaptor is a purpose-built interface harness that connects the factory MyLink system to the aftermarket head unit allowing vehicle information such as climate control and parking visualisation to be displayed on the new screen, while retaining SWC, parking tones, and factory reverse camera. The Infodaptor connects to the rear camera input; the output will be low resolution.
Does this kit retain parking tones and the vehicle menu?
Yes parking tones (if equipped) and the vehicle menu including climate control and parking visualisation (if equipped) are all retained via the Infodaptor Interface.
Is the output from the Infodaptor Interface high resolution?
No the Infodaptor Interface connects to the rear camera input on the head unit and the output will be low resolution.
Does this kit retain the factory USB input?
No factory USB input retention is not supported by the AMDGM2.
