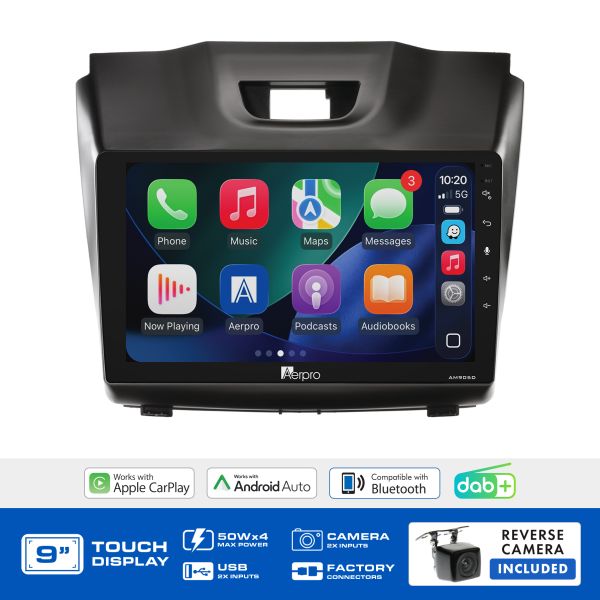

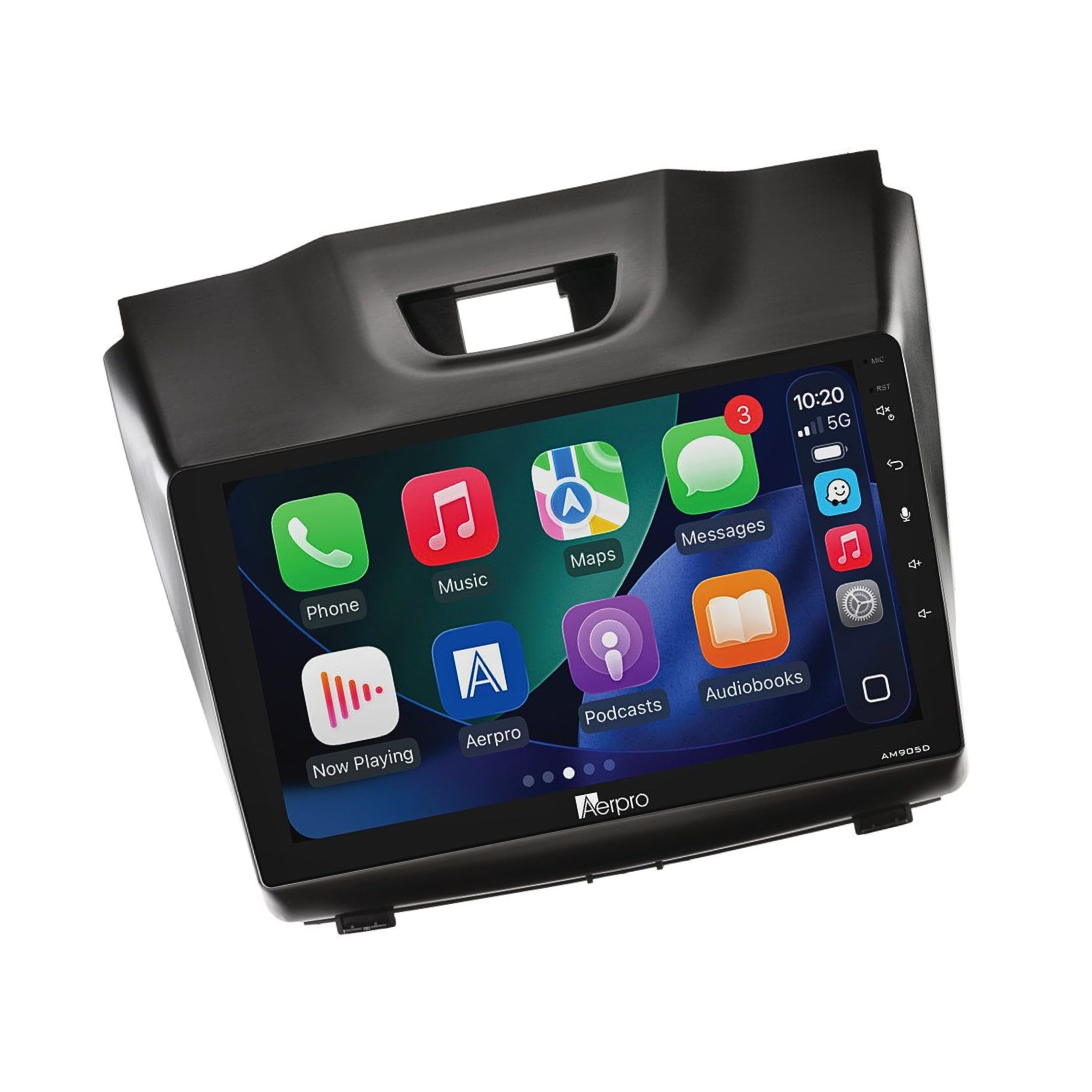

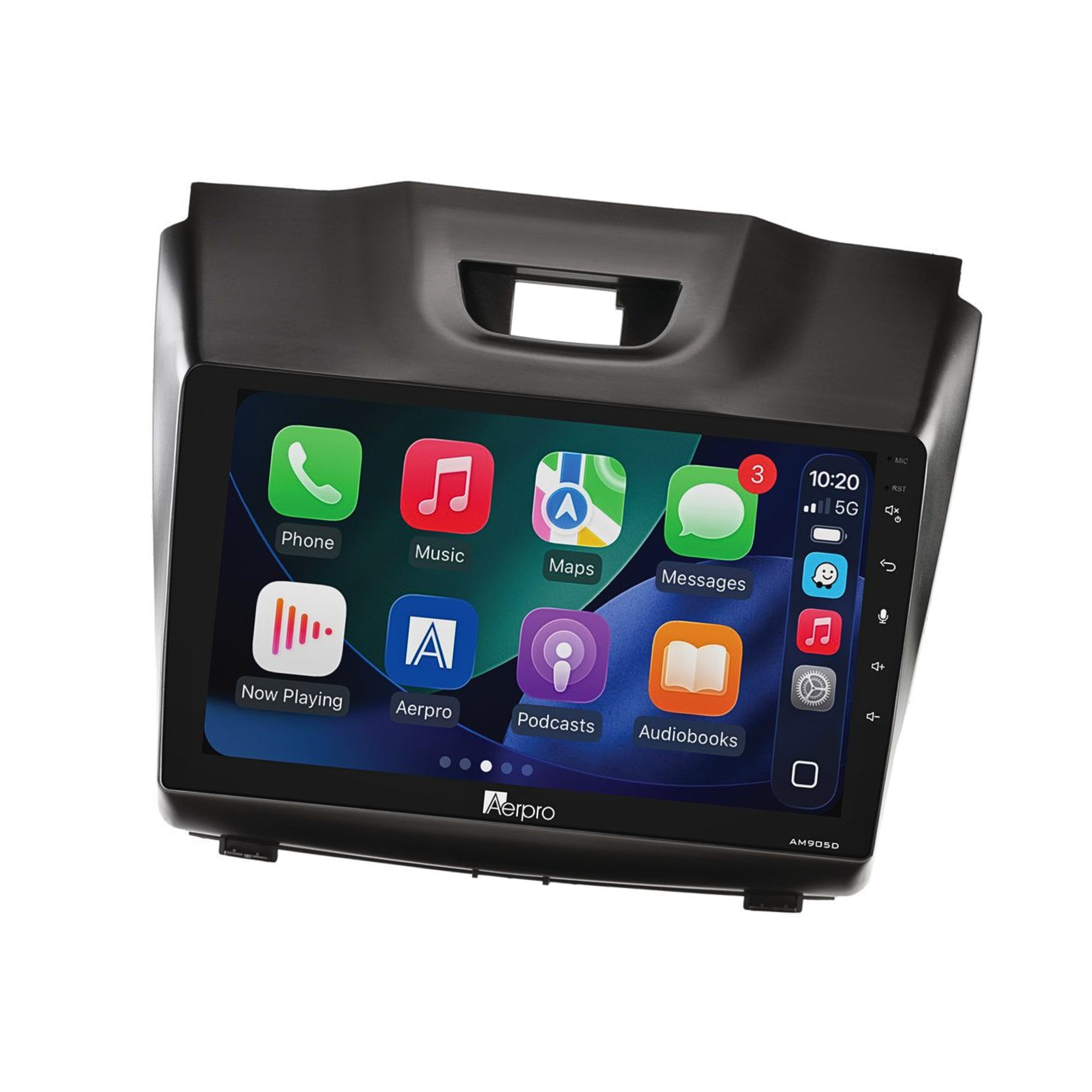

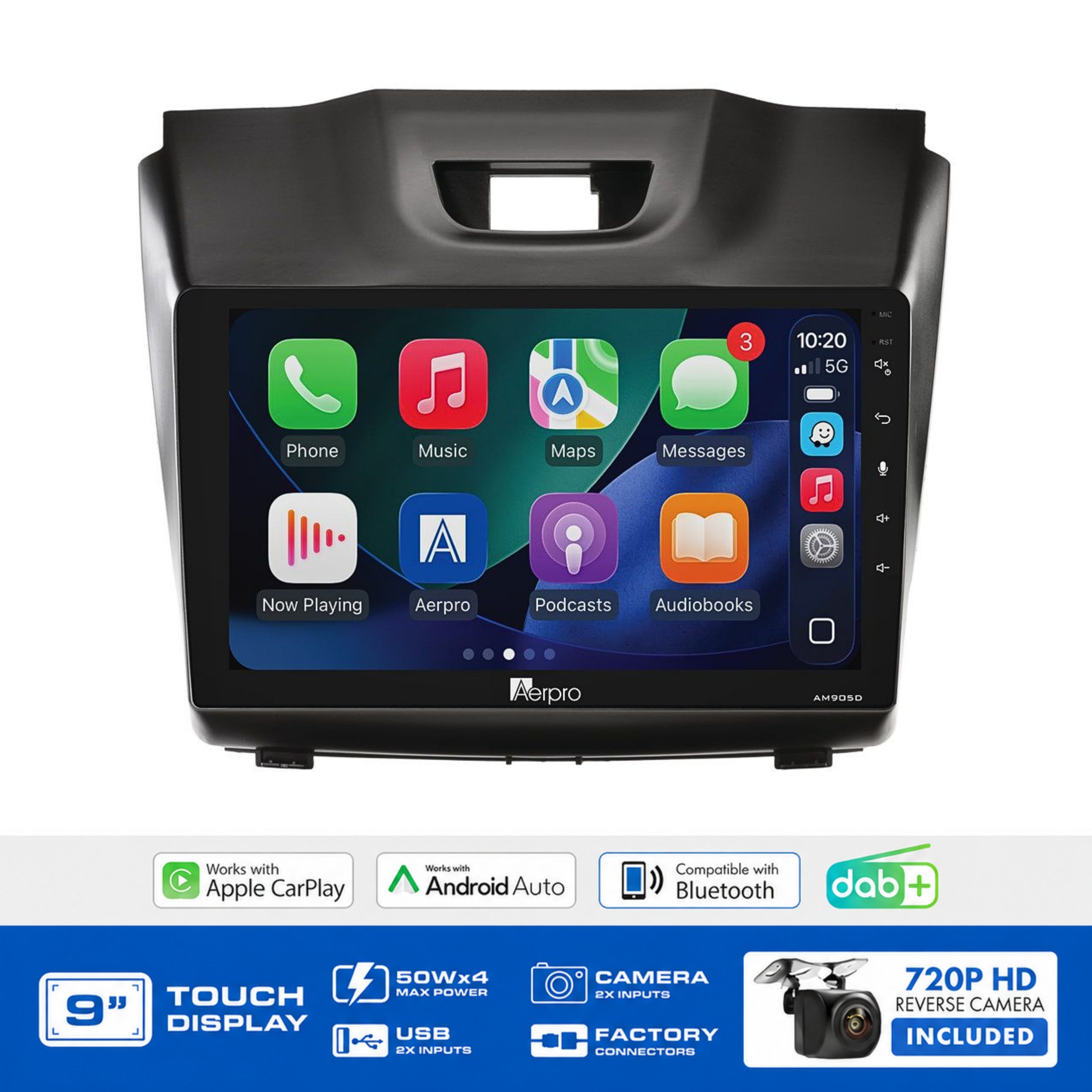

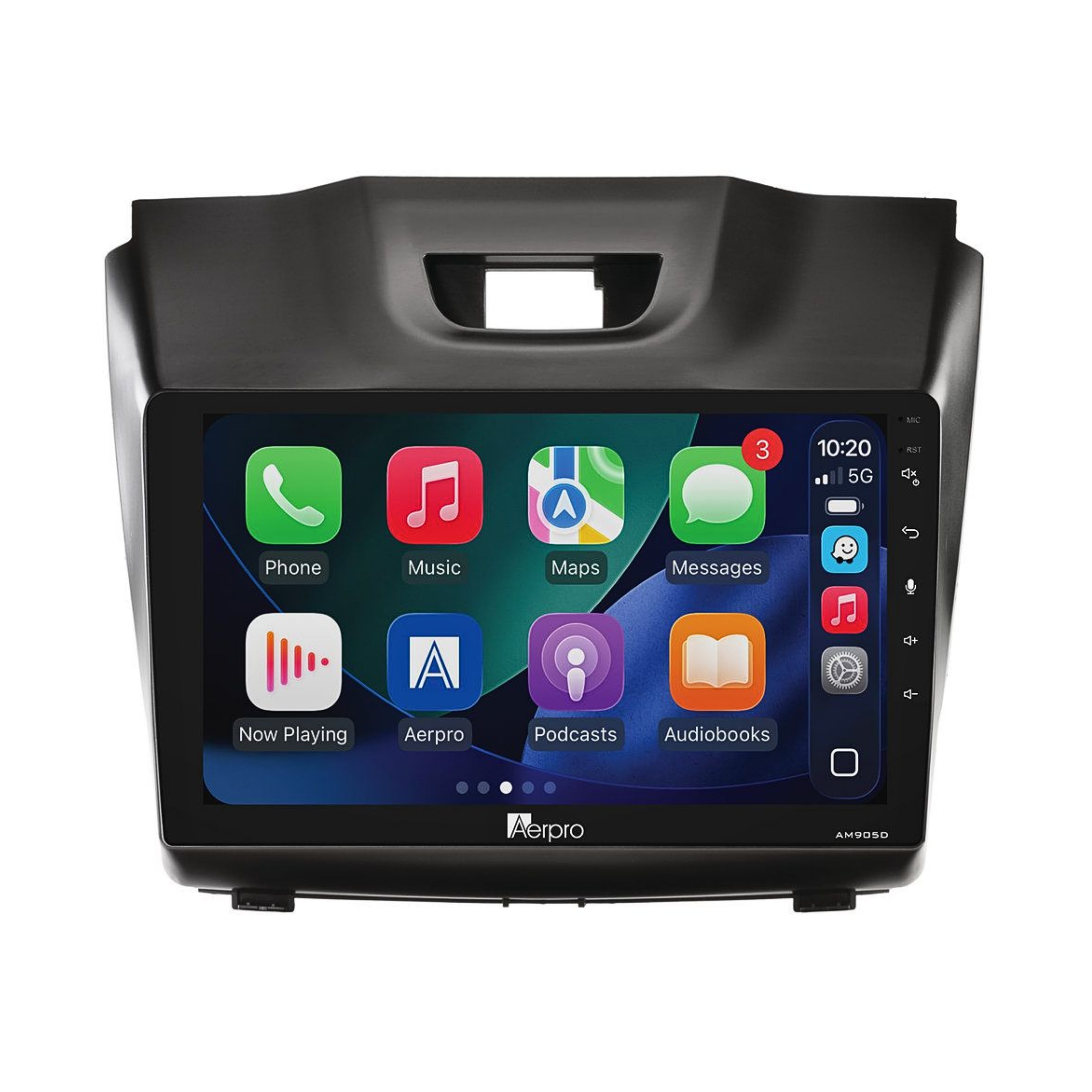

9" Wireless CarPlay for the Holden Colorado Infodaptor Integration Retains SWC, Camera, Parking Tones and Vehicle Menu at Low Camera Resolution
Product Overview
The Aerpro AMDGM9B is a complete head unit upgrade kit for the Holden Colorado and Colorado 7 (2014–2016). Its core component is the Infodaptor Interface Harness a proprietary integration module that carries vehicle data to the aftermarket head unit, enabling a comprehensive set of factory features to be retained: steering wheel controls (including the phone button), factory reverse camera (if equipped), parking tones (if equipped), vehicle menu, climate control display (if equipped), and parking visualisation (if equipped).
Critical trade-off: The Infodaptor connects via the head unit's rear camera input. Because this input is consumed by the Infodaptor, all camera and video output on this head unit operates at low resolution. This affects the included surface mount camera and any other connected camera or video source. This is an inherent feature of the Infodaptor integration method.
The kit includes the AM905D multimedia receiver, black facia kit, Infodaptor interface harness, SWC patch lead, antenna adaptor, and a surface mount camera with 110-degree lens, 6m RCA video cable, in-line reverse trigger, optional parking guidelines, and IP67 rating. Factory USB port retention is available but requires the separately sold Aerpro APUNIUSB adaptor.
Features & Benefits
-
Infodaptor Interface Harness included — the Infodaptor carries vehicle system data to the aftermarket head unit, retaining SWC (including phone button), factory reverse camera (if equipped), parking tones (if equipped), vehicle menu, and climate control/parking visualisation on-screen (if equipped)
-
All camera and video output is low resolution — the Infodaptor occupies the rear camera input, reducing all camera and video signals to low-resolution output; this is an inherent limitation of the Infodaptor integration method, not a defect
-
Factory reverse camera retained (if equipped) — the factory reverse camera signal is preserved via the Infodaptor's integration; note output resolution will be low due to the Infodaptor occupying the camera input
-
Parking tones retained (if equipped) — factory parking tone function carries over after installation via the Infodaptor
-
Climate control and parking visualisation displayed (if equipped) — vehicle climate and parking data appears on the aftermarket screen where factory systems support it
-
Vehicle menu retained — full vehicle menu access after installation
-
SWC retained including phone button — all factory steering wheel controls including the phone button carry over via the Infodaptor
-
Factory USB retention optional — APUNIUSB required (sold separately) — the factory USB port can be retained by adding the APUNIUSB USB retention adaptor; this adaptor is not included in this kit
-
Surface mount camera included — 110°, IP67, optional parking guidelines — 110-degree field of view, 6m RCA video cable with in-line reverse trigger, optional parking guidelines, IP67 rated, mountable as front, rear, or reverse; note output is low resolution due to the Infodaptor
-
Black vehicle-specific facia kit — matched to the Holden Colorado/Colorado 7 interior trim
-
Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
-
9" capacitive touchscreen at 1024x600 resolution — large, responsive display upgrade for the Colorado cabin
-
Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
-
Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
-
4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
Technical Specs
| Specification |
Detail |
| Display size |
9" |
| Resolution |
1024x600 |
| Touchscreen type |
Capacitive |
| OS |
Linux |
| DIN size |
Fixed Screen Style (Trapezoid) |
| Max power output |
4CH x 50W (4 ohm) |
| RCA preouts |
4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage |
4V p-p |
| EQ |
13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs |
6 + 2 custom |
| Time alignment |
Yes |
| Subwoofer level control |
Yes |
| Smartphone connectivity |
Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version |
V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone |
Internal + external (with mount) |
| DAB |
Yes |
| FM tuner range |
87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range |
522–1710KHz (9KHz step) / 12 presets |
| RDS |
Yes |
| USB1 (rear) |
CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) |
Media playback + charging (5V / 1.5A) |
| USB max capacity |
FAT32 / 32GB |
| Media formats |
MP3, MP4, MKV, FLAC, Xvid |
| Reverse camera input |
Yes (occupied by Infodaptor — low resolution output) |
| Second camera input |
Yes (720P AHD compatible — low resolution output) |
| Button illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language |
English |
| Infodaptor Interface |
|
| Connects via |
Head unit rear camera input |
| Camera output |
Low resolution (all camera/video input affected) |
| Vehicle info on display |
Yes |
| Included Camera |
|
| Camera type |
Surface mount (front, rear or reverse) |
| Lens angle |
110° |
| Cable |
6m RCA video with in-line reverse trigger |
| Parking guidelines |
Optional |
| IP rating |
IP67 |
| Feature Retention |
|
| Steering wheel controls |
Yes (including phone button — via Infodaptor) |
| Factory reverse camera |
Yes (if equipped — via Infodaptor; low-res output) |
| Parking tones |
Yes (if equipped — via Infodaptor) |
| Climate control display |
Yes (if equipped — via Infodaptor) |
| Parking visualisation |
Yes (if equipped — via Infodaptor) |
| Vehicle menu |
Yes |
| Factory USB input |
Optional — APUNIUSB adaptor required (sold separately) |
| Factory AUX input |
N/A |
| Factory amplifier |
N/A |
| Camera resolution |
Low resolution — all inputs affected by Infodaptor |
| Dash modification |
Not required |
| Park brake requirement |
Not required |
Compatible With / Goes Well With
- Holden Colorado (2014–2016)
- Holden Colorado 7 (2014–2016)
- Aerpro APUNIUSB USB Retention Adaptor (sold separately) — required to retain factory USB port
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Second camera input supports an additional camera (low-res output applies)
Weight
Not specified
Frequently Asked Questions
What does the Infodaptor Interface do?
The Infodaptor is a proprietary integration module that connects via the head unit's rear camera input, carrying vehicle system data to the aftermarket screen. It enables the factory reverse camera, SWC (including phone button), parking tones, vehicle menu, and — where equipped — climate control display and parking visualisation to be retained and shown on the 9" display.
Why is the camera output low resolution?
The Infodaptor occupies the head unit's rear camera input to carry its vehicle data signal. Since that input is consumed, all camera and video signals processed through this head unit — including the included surface mount camera and any second input camera — output at low resolution. This is an inherent part of the Infodaptor integration and is not a fault.
Can I retain the factory USB port?
Yes, but it requires the separately sold Aerpro APUNIUSB USB retention adaptor, which is not included in this kit. The APUNIUSB connects to the rear USB input on the head unit to carry over the factory USB port's function.
Is the factory reverse camera retained?
Yes, if your Colorado or Colorado 7 is equipped with a factory reverse camera. The Infodaptor retains the factory camera signal, though output will be at low resolution due to the Infodaptor occupying the camera input.
What is the Holden Colorado 7?
The Colorado 7 is the seven-seat SUV variant of the Holden Colorado ute — essentially the Colorado platform with a different body style. Both the standard Colorado ute and the Colorado 7 SUV (2014–2016) are covered by this kit.
