Aerpro AMDHO1 9 Inch Multimedia Receiver Head Unit Upgrade Kit for Honda CRV RE 2007 to 2011 with Wireless CarPlay Android Auto DAB+ Bluetooth SWC Retention and AHD Rear Camera

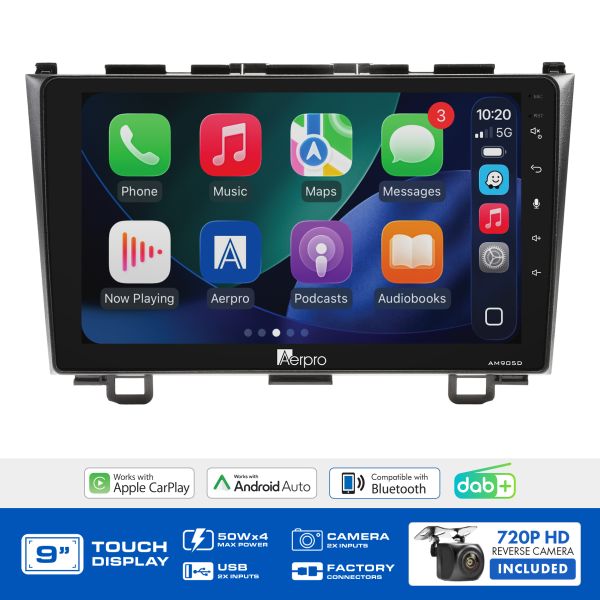

The Aerpro AMDHO1 is a complete head unit upgrade kit for the Honda CRV RE (2007 to 2011). Includes the AM905D 9-inch multimedia receiver, black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. Retains factory steering wheel audio controls (phone button not retained). Note: the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
Product overview
The AMDHO1 delivers a complete upgrade for the Honda CRV RE (2007 to 2011) with all installation hardware in the box. The AM905D receiver features a 9-inch 1024x600 capacitive touchscreen in a fixed trapezoid-style screen format. Wireless and wired Apple CarPlay and Android Auto are both supported. DAB+ digital radio is built in alongside AM/FM with RDS. Bluetooth 5.0 provides hands-free calling with HD Voice (HFP 1.6) and A2DP audio streaming. Internal and external microphone options are included.
Audio output is 4 x 50W peak into 4 ohms, with a 4V 5-channel RCA preamp output (front/rear/subwoofer), 13-band graphic EQ with 6+2 custom presets, time alignment, subwoofer level control, and LPF. Two rear USB ports support CarPlay/Android Auto with charging (USB1) and media playback (USB2), with FAT32 support up to 32GB. A rear A/V RCA input, composite video output (two), reverse camera input (720P AHD compatible), and second camera input (720P AHD compatible) are included. Button illumination is selectable across six colours.
The 720P AHD universal rear camera is a surface-mount unit with a Sony 225 1/3 CMOS sensor and a 150-degree lens angle.
Steering wheel controls are retained via the included SWC interface harness and patch lead. The phone button is not retained.
Features and benefits
Complete head unit upgrade kit for Honda CRV RE 2007 to 2011: AM905D receiver, black fascia, SWC interface harness, SWC patch lead, antenna adaptor, and 720P AHD rear camera all included.
9-inch 1024x600 capacitive touchscreen: Fixed trapezoid-style display with smooth, responsive touch.
Wireless and wired Apple CarPlay and Android Auto: Park brake wire must be connected to the park brake to enable these features.
Built-in DAB+ digital radio: DAB+ with AM/FM RDS tuning (AM 12 presets / FM 18 presets).
Bluetooth 5.0 with HD Voice: Hands-free calling (HFP 1.6), A2DP audio streaming, AVRCP, PBAP, internal and external microphone.
4 x 50W peak output with 5-channel 4V RCA preamp: Front/rear/subwoofer RCA outputs for external amplifier connection.
13-band EQ with time alignment and subwoofer control: Advanced audio tuning with 6+2 custom presets and LPF.
720P AHD universal rear camera included: Surface-mount, Sony 225 sensor, 150-degree lens angle. Second camera input also available.
SWC retention (phone button not retained): Factory steering wheel audio controls retained via included interface harness.
6-colour button illumination: Red, yellow, green, blue, purple, or white.
What's in the box
AM905D Multimedia Receiver:
- 1x 9" Fixed Headunit (Trapezoid)
- Mounting Hardware Screws
- Wiring Harness with ISO Connection
- AV, USB and Camera Harnesses
- DAB Antenna
- 3 Wire Learning SWC Lead
- External Microphone with Mount
- GPS Antenna with Adhesive Pad
- QR Digital Manual Leaflet
Kit Components:
- Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- 720P AHD Universal Rear Camera (wired)
Technical specs
AM905D Multimedia Receiver
| Specification |
Detail |
| SKU |
AMDHO1 |
| Brand |
Aerpro |
| Display Size |
9 inch |
| Resolution |
1024 x 600 |
| Touchscreen |
Capacitive |
| Screen Style |
Fixed trapezoid |
| OS |
Linux |
| Max Power Output |
4 x 50W (4 ohm) |
| RCA Preamp Output |
4V, 5-channel (front/rear/subwoofer) |
| Subwoofer Level Control |
Yes |
| EQ |
13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K) |
| EQ Presets |
6+2 custom |
| Time Alignment |
Yes |
| LPF |
Yes |
| Loudness |
Yes |
| Apple CarPlay |
Yes, wireless and wired |
| Android Auto |
Yes, wireless and wired |
| Bluetooth |
V5 (A2DP, AVRCP, HFP, PBAP) |
| HFP Profile |
HFP 1.6 (HD Voice) |
| Microphone |
Internal and external |
| DAB+ |
Yes |
| AM Tuner |
522 to 1710kHz, 9kHz step, 12 presets |
| FM Tuner |
87.5 to 108.0MHz, 0.05MHz step, 18 presets |
| RDS |
Yes |
| USB1 (Rear) |
CarPlay/Android Auto and charging, 5V/1.5A |
| USB2 (Rear) |
Media and charging, 5V/1.5A |
| USB Max |
FAT32, 32GB |
| Media Formats |
MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V Input |
Yes, RCA (3 connectors) |
| Composite Video Output |
Yes, two |
| Reverse Camera Input |
Yes, 720P AHD compatible |
| Second Camera Input |
Yes, 720P AHD compatible |
| SWC |
Yes, via Aerpro SWC adaptor (phone button not retained) |
| Button Illumination |
6-colour (red, yellow, green, blue, purple, white) |
| OSD Language |
English |
720P AHD Universal Rear Camera
| Specification |
Detail |
| Image Sensor |
Sony 225, 1/3 CMOS AHD |
| Resolution |
720P |
| Lens Angle |
150 degrees |
| Mount Type |
Surface mount |
| Camera Type |
Rear/Reverse |
| Connection |
Wired |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (phone button not retained) |
| Factory Reverse Camera |
N/A |
| AUX Input |
N/A |
| USB Input |
N/A |
| Parking Tones |
N/A |
| Factory Amplifier |
N/A |
Compatible with
| Make |
Model |
Variant |
Years |
| Honda |
CRV |
RE |
2007 to 2011 |
Frequently asked questions
What is included in the AMDHO1 kit? The kit includes the AM905D 9-inch multimedia receiver with all receiver accessories, a black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera.
Does this kit support wireless CarPlay and Android Auto? Yes. The AM905D supports both wireless and wired Apple CarPlay and Android Auto. The park brake wire must be connected to the park brake for these features to function.
Are factory steering wheel controls retained? Yes, factory steering wheel audio controls are retained via the included SWC interface harness and patch lead. The phone button is not retained.
Is the rear camera included? Yes. A 720P AHD universal rear camera is included. The receiver also has a second camera input for a front or towing camera.
Does the AM905D have DAB+ radio? Yes. DAB+ digital radio is built in alongside AM/FM with RDS. A DAB antenna is included with the receiver.
