Description
9" Wireless CarPlay for the Hyundai Tucson Retains Steering Wheel Controls, Reverse Camera, and Factory USB
Product Overview

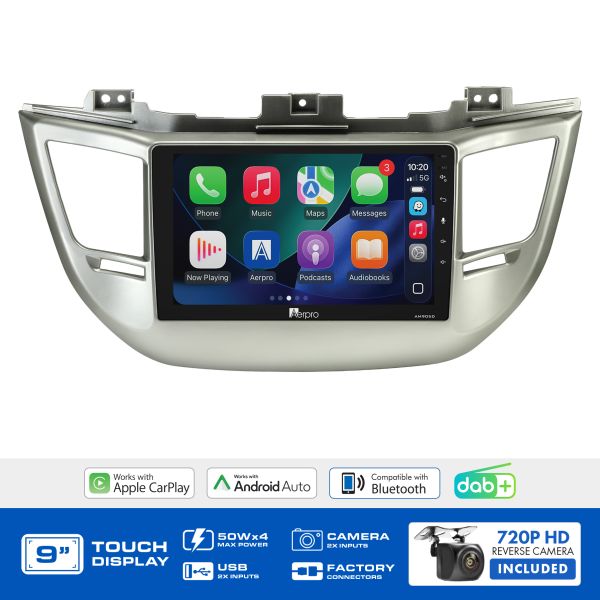

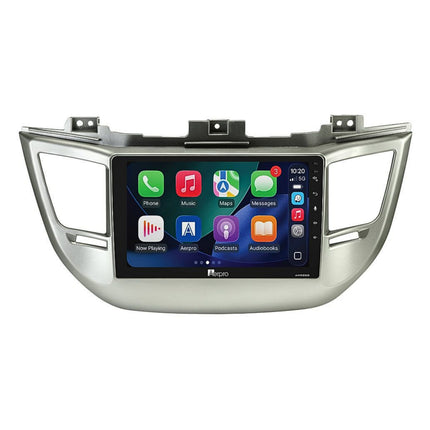

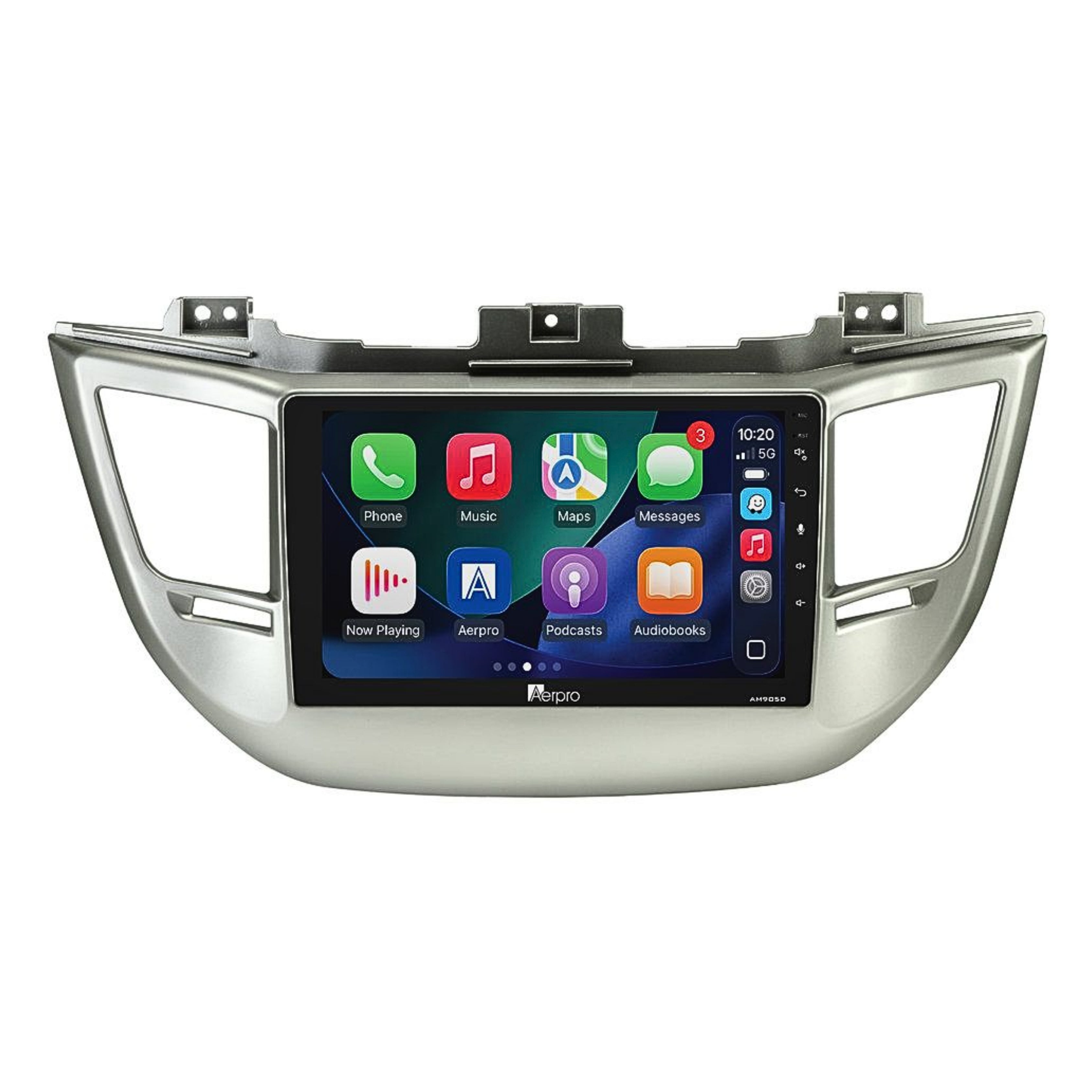

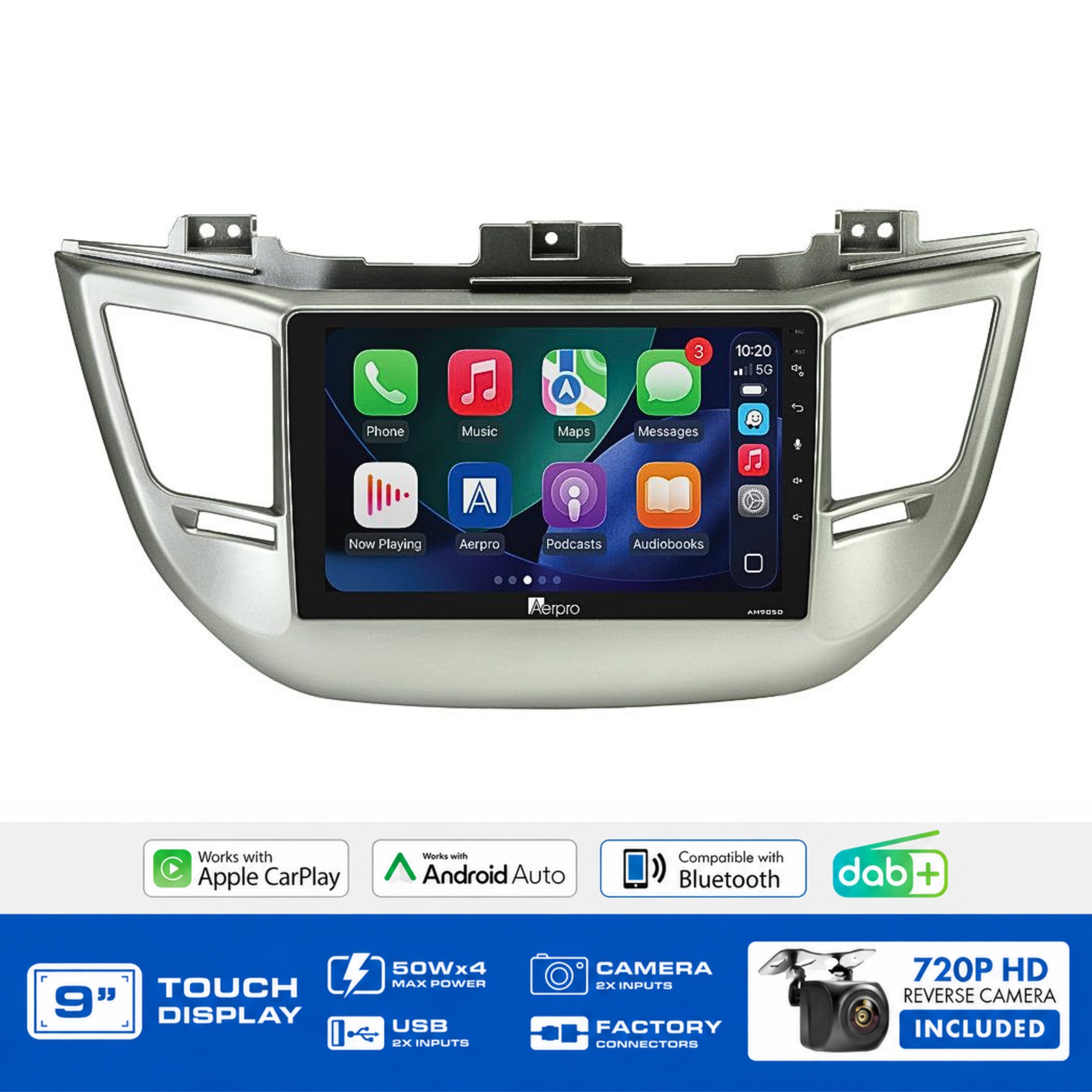

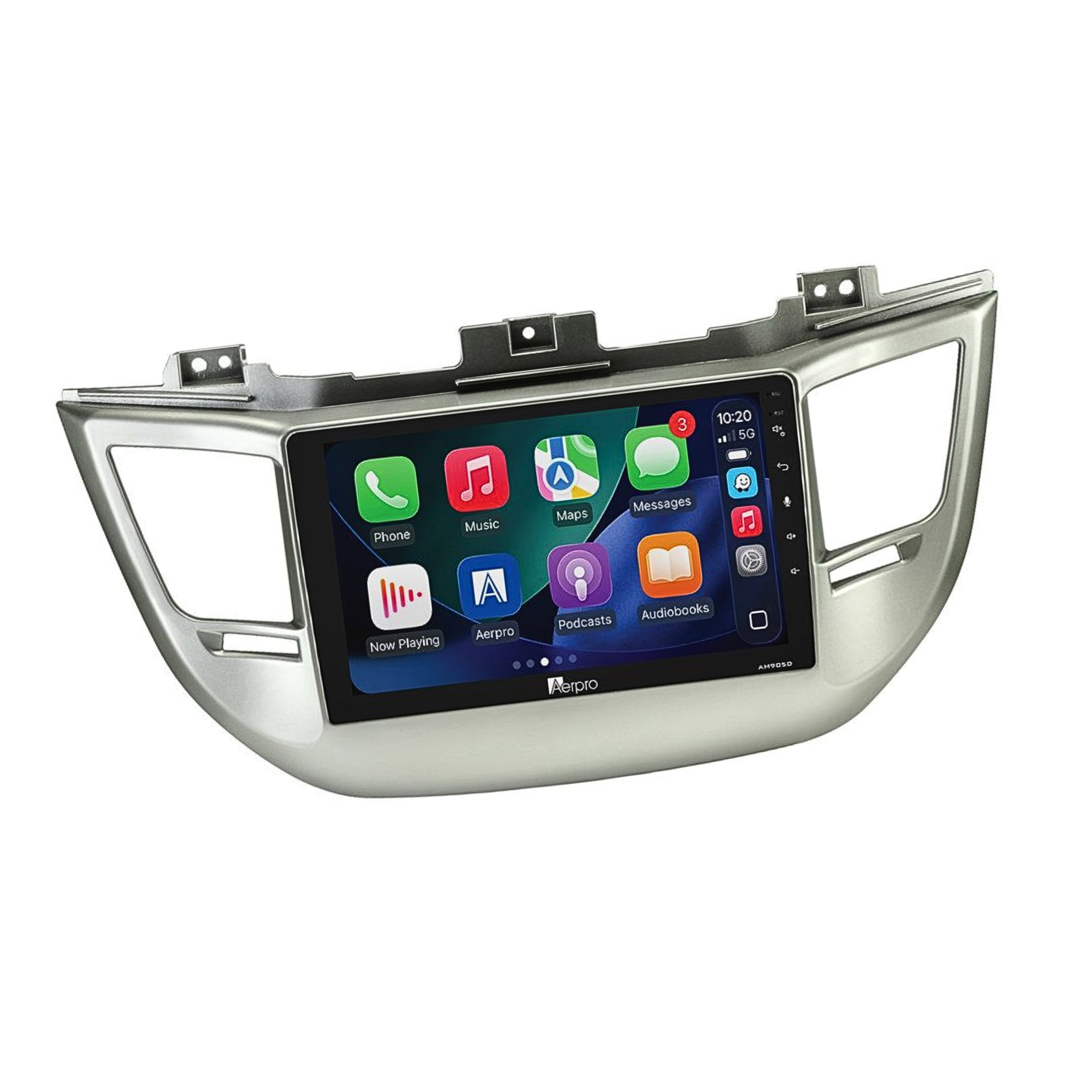

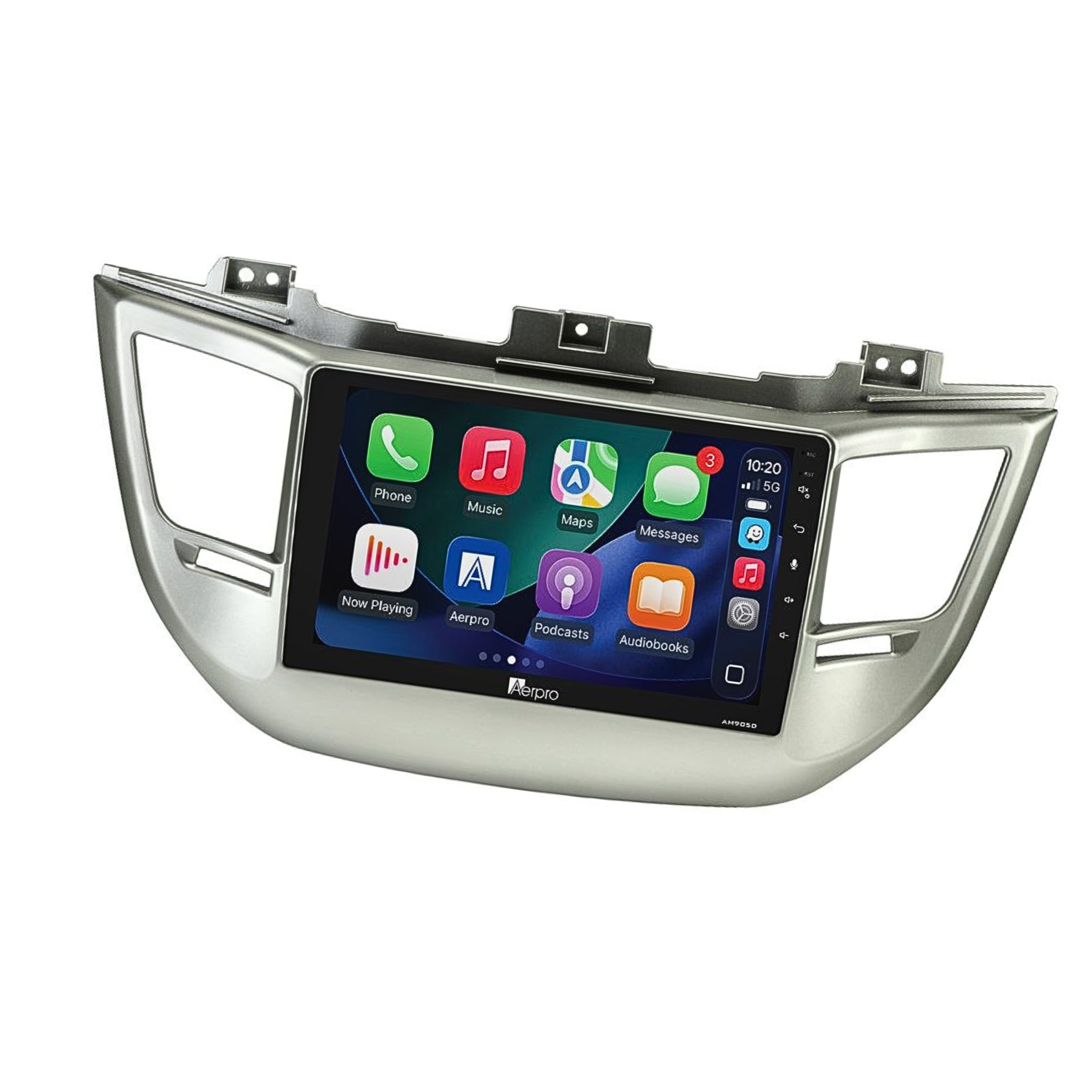

The Aerpro AMDHY11 is a complete head unit upgrade kit built for the Hyundai Tucson (2015–2018) without a factory navigation system. It swaps the factory head unit for a 9" capacitive touchscreen at 1024x600 resolution with wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining more factory features than a typical aftermarket install: steering wheel controls, the factory reverse camera, and the factory USB input all carry over.
The kit ships with everything needed for a clean, trim-matched installation the AM905D multimedia receiver, silver facia kit, SWC interface harness with integrated camera retention adaptor, SWC patch lead, antenna adaptor, USB retention adaptor, and a 720P AHD universal rear camera. Audio performance is handled by 4 x 50W max output, a 13-band graphic EQ, time alignment, and 4V/5-channel RCA preouts for adding external amplifiers down the line.
Features & Benefits
-
Retains factory reverse camera, SWC, and USB input — the most comprehensive factory feature retention of any single kit for the Tucson; camera retention adaptor is integrated into the SWC harness, and the USB retention adaptor preserves the factory USB port
-
Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for hands-free maps, music, calls, and messages; wired connection also supported for simultaneous USB charging
-
9" capacitive touchscreen at 1024x600 resolution — a major step up from the factory display with fluid, responsive touch control for navigation, media, and settings
-
Built-in DAB+ digital radio — digital clarity and a wider station range than standard FM; AM/FM with RDS and 18 FM / 12 AM presets also included
-
Bluetooth V5 with HD Voice — hands-free calling, audio streaming, phonebook access, and full profile support; internal and external microphone for clear in-cabin call quality
-
720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree wide-angle lens; works alongside the retained factory reverse camera via the head unit's second camera input
-
Silver vehicle-specific facia kit — colour-matched for the Tucson interior; antenna adaptor and all mounting hardware included for a factory-finish installation
-
4 x 50W max output with 5CH 4V RCA preouts — front, rear, and subwoofer channels at 4V peak; ready for external amplifier integration
-
13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots; tune the sound specifically to the Tucson cabin layout
-
6-colour button illumination — choose from red, yellow, green, blue, purple, or white
Technical Specs
| Specification |
Detail |
| Display size |
9" |
| Resolution |
1024x600 |
| Touchscreen type |
Capacitive |
| OS |
Linux |
| DIN size |
Fixed Screen Style (Trapezoid) |
| Max power output |
4CH x 50W (4 ohm) |
| RCA preouts |
4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage |
4V p-p |
| EQ |
13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs |
6 + 2 custom |
| Time alignment |
Yes |
| Subwoofer level control |
Yes |
| Smartphone connectivity |
Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version |
V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone |
Internal + external (with mount) |
| DAB |
Yes |
| FM tuner range |
87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range |
522–1710KHz (9KHz step) / 12 presets |
| RDS |
Yes |
| USB1 (rear) |
CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) |
Media playback + charging (5V / 1.5A) |
| USB max capacity |
FAT32 / 32GB |
| Media formats |
MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input |
RCA type (3 pcs) |
| Composite video output |
Yes (x2) |
| Reverse camera input |
Yes (720P AHD compatible) |
| Second camera input |
Yes (720P AHD compatible) |
| Button illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language |
English |
| Rear Camera (AHD) |
|
| Image sensor |
Sony 225, 1/3" CMOS AHD |
| Lens angle |
150° |
| Mount type |
Surface mount |
| Feature Retention |
|
| Steering wheel controls |
Yes |
| Factory reverse camera |
Yes (via camera retention adaptor in SWC harness) |
| Factory USB input |
Yes (via USB retention adaptor) |
| Factory AUX input |
Not retained |
Compatible With / Goes Well With
- Hyundai Tucson (2015–2018) without factory navigation
-
Not compatible with Hyundai Tucson models fitted with factory navigation
- Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
- Second camera input supports an optional front or towing camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
Will this fit a Hyundai Tucson with factory navigation?
No — the AMDHY11 is designed for non-navigation Tucson models only. A different kit is required for navigation-equipped variants. Use the Aerpro What Fits Your Car Guide to find the correct match.
Does the factory USB port still work after installation?
Yes — the kit includes a USB retention adaptor that preserves the factory USB input using the rear USB port on the head unit.
Is the factory reverse camera retained?
Yes — the camera retention adaptor (integrated into the SWC harness) retains the factory reverse camera via the head unit's reverse camera input.
Is the factory AUX input retained?
No — the factory AUX input is not retained on this kit. USB and wireless connectivity via CarPlay and Android Auto serve as the primary input options.
Does it support wireless CarPlay or does my phone need to plug in?
Both — wireless Apple CarPlay and Android Auto connect over Wi-Fi, or use the USB port for wired operation with simultaneous phone charging.
