Description
Aerpro AMDHY16 9 Inch Multimedia Receiver Complete Upgrade Kit for Hyundai Getz 2005 to 2011 with Wireless CarPlay Android Auto and DAB+

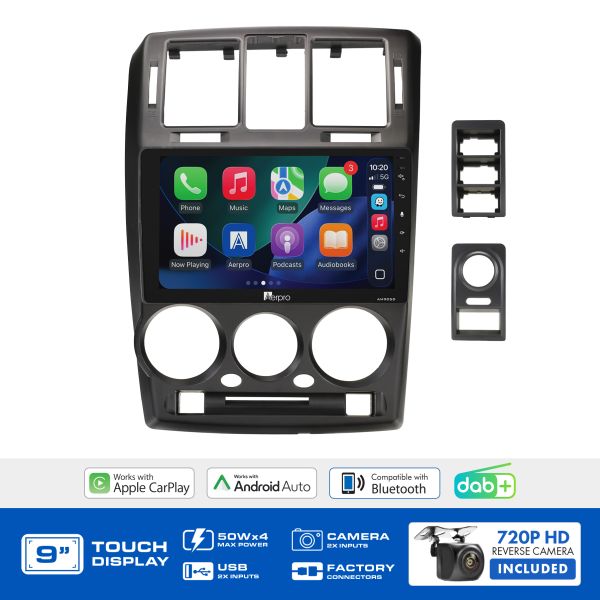

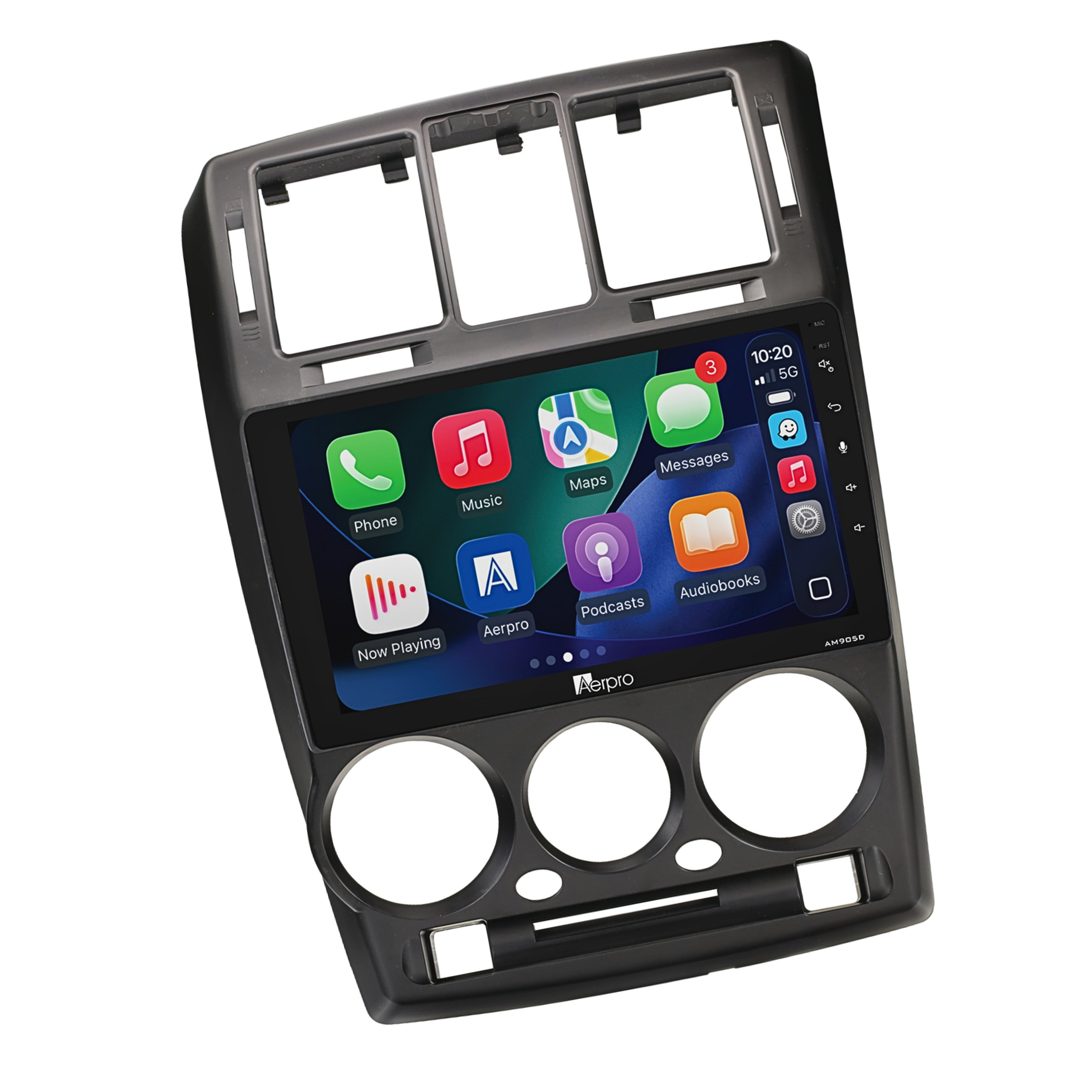

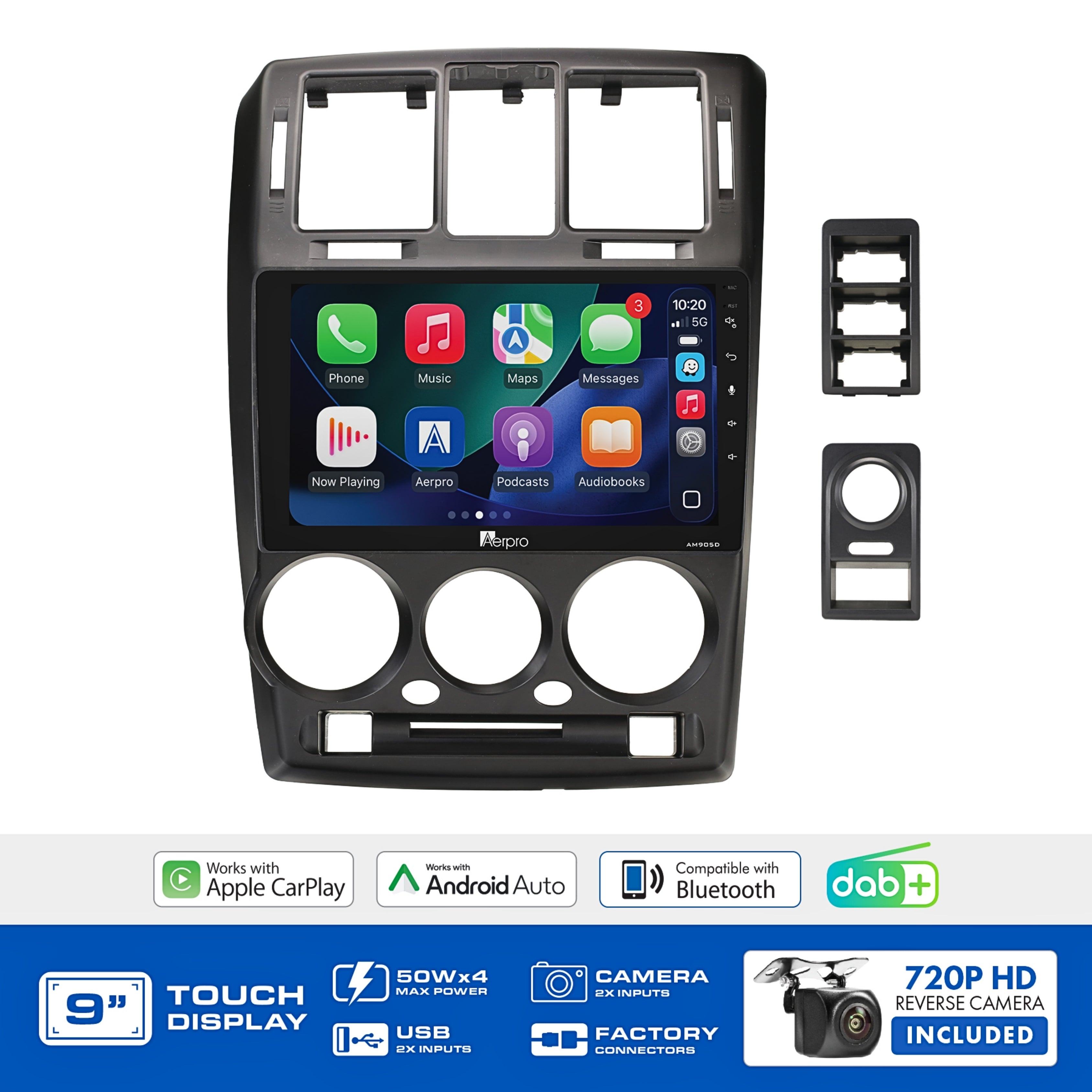

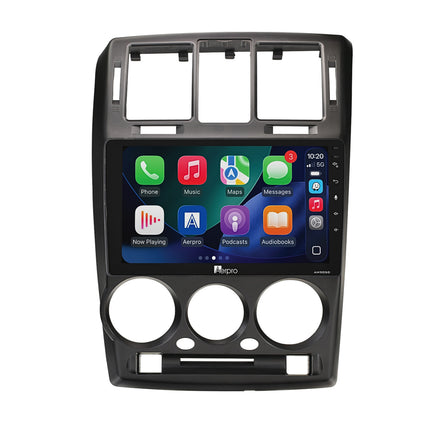

The AMDHY16 from Aerpro is a complete head unit upgrade kit for the Hyundai Getz from 2005 to 2011. The kit is built around the AM905D 9 inch multimedia receiver with wireless Apple CarPlay and Android Auto, DAB+ digital radio, Bluetooth V5, and 4 x 50W max output with 5-channel 4V RCA preouts. Steering wheel control retention (if equipped), a matte black fascia kit, and a 720P AHD universal rear camera are all included. Note that Apple CarPlay and Android Auto require the park brake wire to be connected to the park brake to function.
Product overview
The AMDHY16 is a complete head unit upgrade kit designed specifically for the Hyundai Getz from 2005 to 2011, supplying every component needed for a complete installation in a single purchase. The kit includes the AM905D 9 inch multimedia receiver, a matte black fascia kit, a steering wheel control interface harness for vehicles equipped with steering wheel controls, and a 720P AHD universal rear camera.
The AM905D features a 9 inch capacitive touchscreen at 1024x600 resolution on a fixed trapezoid-style screen, dual rear USB inputs, a rear A/V input, second camera input, composite video output, 13-band EQ with time alignment, and six-colour button illumination. Wireless and wired CarPlay and Android Auto are both supported. Note that Apple CarPlay and Android Auto require the park brake wire to be connected to the park brake to function. Built-in DAB+ delivers digital radio without the need for an external module.
Features and benefits
Complete head unit upgrade kit for Hyundai Getz 2005 to 2011: Includes the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, and 720P AHD universal rear camera. All parts required for a complete installation are supplied in a single kit.
9 inch capacitive touchscreen at 1024x600 resolution: The fixed trapezoid-style screen delivers a large, sharp display for navigation, media, and menu control with smooth, responsive capacitive touch performance.
Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages from the head unit without plugging in the phone, or connect via USB for wired operation and device charging. The park brake wire must be connected to the park brake for CarPlay and Android Auto to function.
Built-in DAB+ digital radio: Integrated DAB+ tuner delivers digital radio without an external module, alongside AM/FM tuning with 12 AM and 18 FM presets and RDS support.
Bluetooth V5 with HD Voice: Bluetooth V5 supports hands-free calling with HFP 1.6 HD Voice, audio streaming via A2DP and AVRCP, and phonebook access via PBAP. Both internal and external microphone inputs are provided.
5-channel 4V RCA preouts: Three pairs of RCA preouts at 4V covering front, rear, and subwoofer channels allow amplifiers to be added to the system, with independent subwoofer level control.
13-band EQ with time alignment: Precise audio tuning via 13-band graphic EQ, time alignment, loudness, LPF for subwoofer, and six preset EQ modes plus two custom presets.
720P AHD universal rear camera included: The Sony 225 CMOS sensor rear camera with 150-degree lens angle improves reversing visibility. A second camera input is also available on the head unit for a front or towing camera.
What's in the box
- AM905D 9 inch Fixed Multimedia Receiver (Trapezoid)

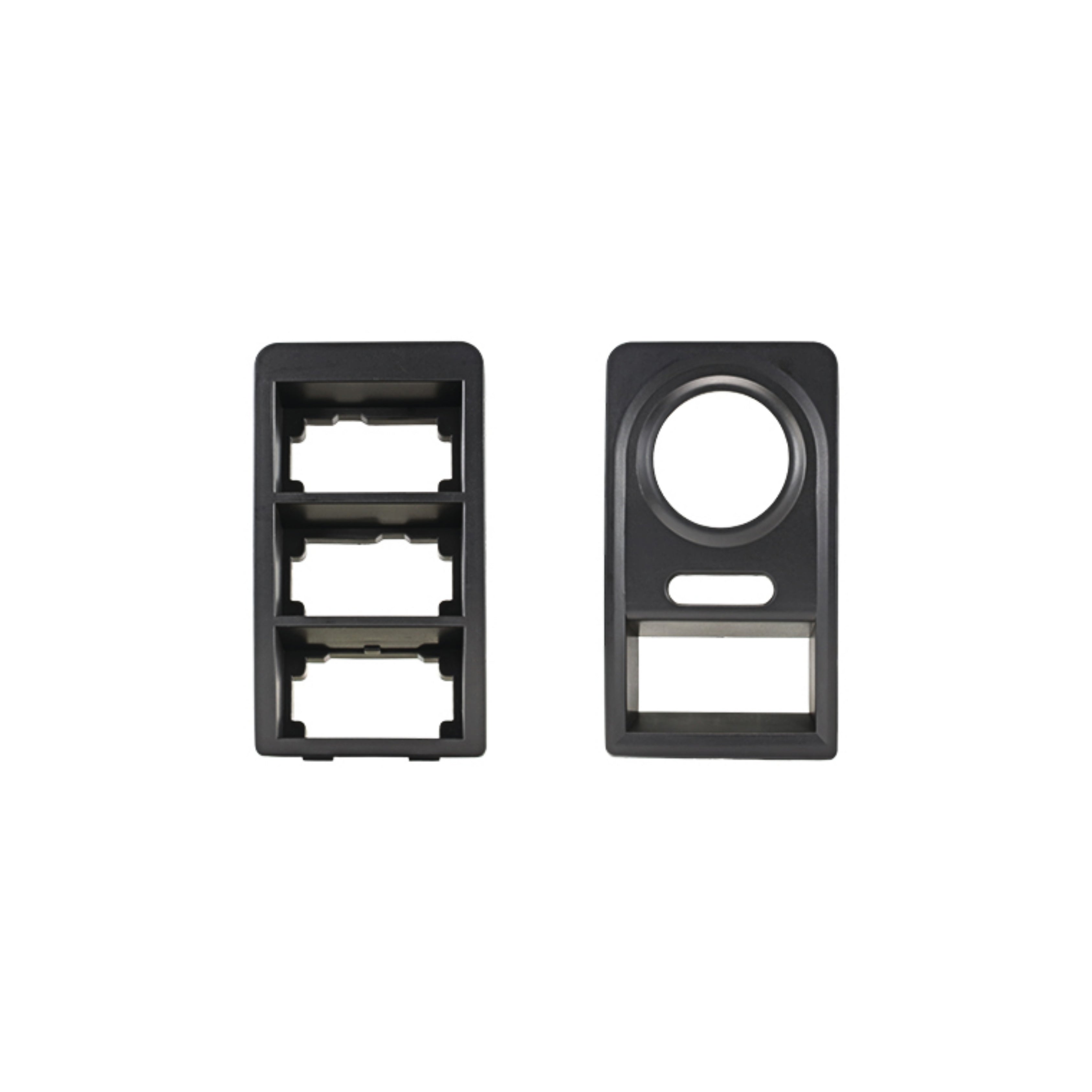

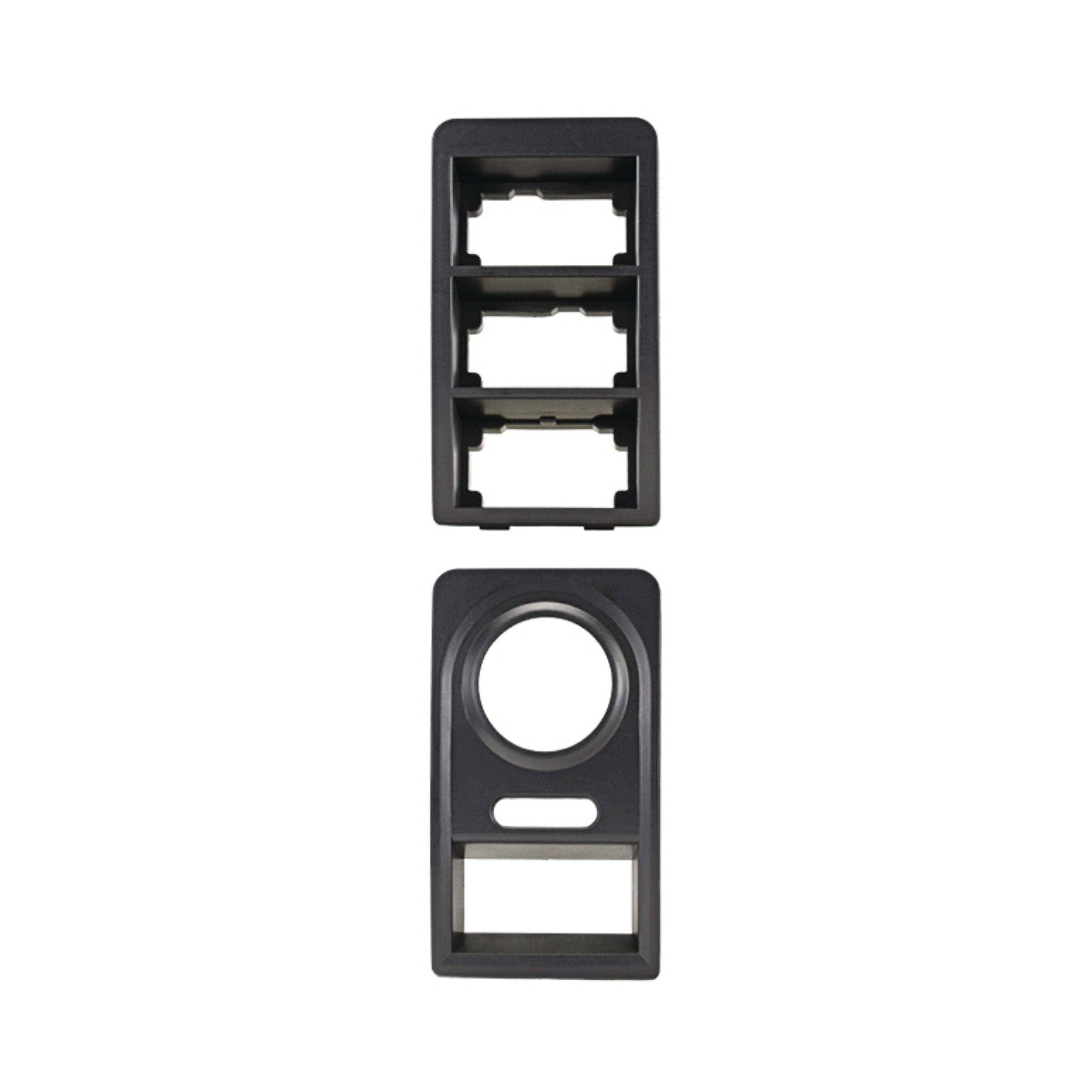

- Matte Black Fascia Kit
- Steering Wheel Control Interface Harness
- 720P AHD Universal Rear Camera (wired, surface mount)
- Mounting Hardware Screws
- Wiring Harness with ISO Connection
- AV, USB and Camera Harnesses
- DAB Antenna
- 3 Wire Learning SWC Lead
- External Microphone with Mount
- GPS Antenna with Adhesive Pad
- QR Digital Manual Leaflet
Technical specs
| Specification |
Detail |
| SKU |
AMDHY16 |
| Brand |
Aerpro |
| Included Receiver |
AM905D |
| Screen Size |
9 inch |
| Resolution |
1024 x 600 |
| Touchscreen Type |
Capacitive |
| Screen Style |
Fixed (Trapezoid) |
| Operating System |
Linux |
| Max Power Output |
4 x 50W |
| RCA Preouts |
4V, 5 Channel (Front, Rear, Subwoofer) |
| Apple CarPlay |
Yes, wireless and wired |
| Android Auto |
Yes, wireless and wired |
| CarPlay/Android Auto Requirement |
Park brake wire must be connected to park brake |
| DAB+ |
Yes, built-in |
| AM/FM Presets |
AM 12, FM 18 |
| Bluetooth Version |
V5 |
| HFP Profile |
HFP 1.6 (HD Voice) |
| USB Inputs |
2x rear (CarPlay/Android Auto + Media) |
| USB Max Capacity |
FAT32, 32GB |
| Reverse Camera Input |
Yes, 720P AHD compatible |
| Second Camera Input |
Yes, 720P AHD compatible |
| EQ |
13-band |
| Time Alignment |
Yes |
| Button Illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| Rear Camera Included |
Yes, 720P AHD universal (Sony 225, 150-degree lens) |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (if equipped) |
| Factory Reverse Camera |
N/A |
| AUX Input |
N/A |
| USB Input |
N/A |
| Parking Tones |
N/A |
| Factory Amplifier |
N/A |
| Vehicle Menu |
N/A |
Compatible with
This kit is confirmed for the following Hyundai vehicle. Confirm your specific variant before ordering.
| Make |
Model |
Variant |
Years |
| Hyundai |
Getz |
All variants |
2005 - 2011 |
Frequently asked questions
Does the AMDHY16 suit all Hyundai Getz variants from 2005 to 2011?
The AMDHY16 is confirmed for the Hyundai Getz from 2005 to 2011. Use the Aerpro What Fits Your Car Guide or contact us to confirm correct fitment for your specific Getz variant before ordering.
Why does Apple CarPlay and Android Auto require the park brake wire to be connected?
This is a safety requirement of the AM905D head unit. The park brake wire must be connected to the park brake circuit to allow Apple CarPlay and Android Auto to function. This is a standard installation step and must be completed correctly during installation for these features to operate.
Does the AMDHY16 retain the factory steering wheel controls?
Yes. The kit includes a steering wheel control interface harness that retains steering wheel controls for Hyundai Getz vehicles that are equipped with them. Getz models without factory steering wheel controls will not require this harness.
Can I add an external amplifier using this head unit?
Yes. The AM905D provides 5-channel 4V RCA preouts covering front, rear, and subwoofer channels, allowing one or more external amplifiers to be connected to the system. Contact us for guidance on amplifier selection and wiring for your specific installation.
Is the rear camera included in the AMDHY16 kit?
Yes. A 720P AHD universal rear camera with a Sony 225 CMOS sensor and 150-degree lens angle is included in the kit. The head unit also has a second camera input available for a front or towing camera if required.
