Description

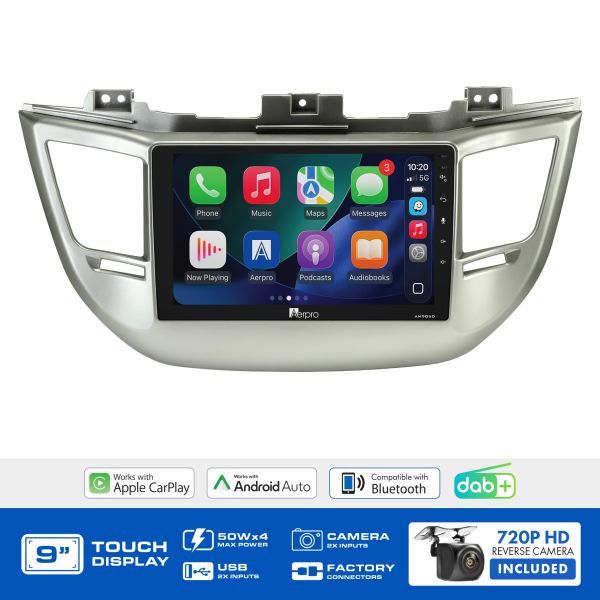

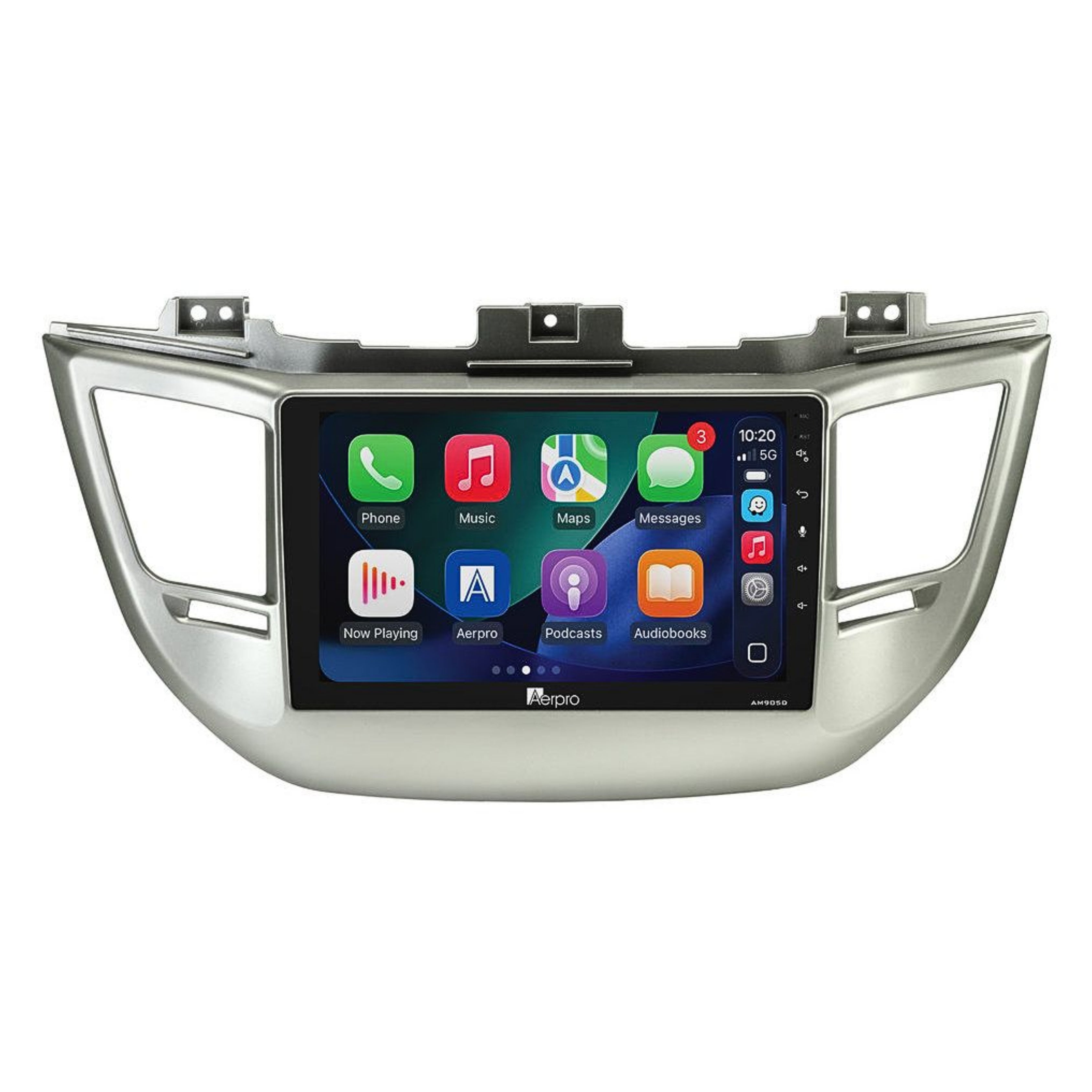

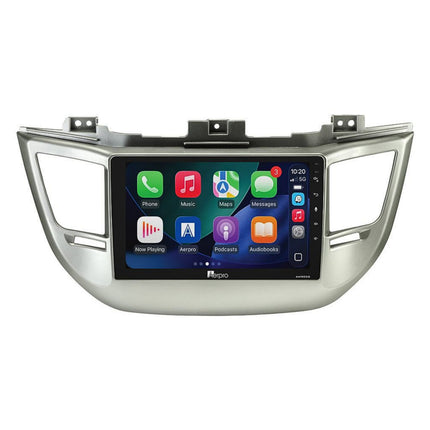

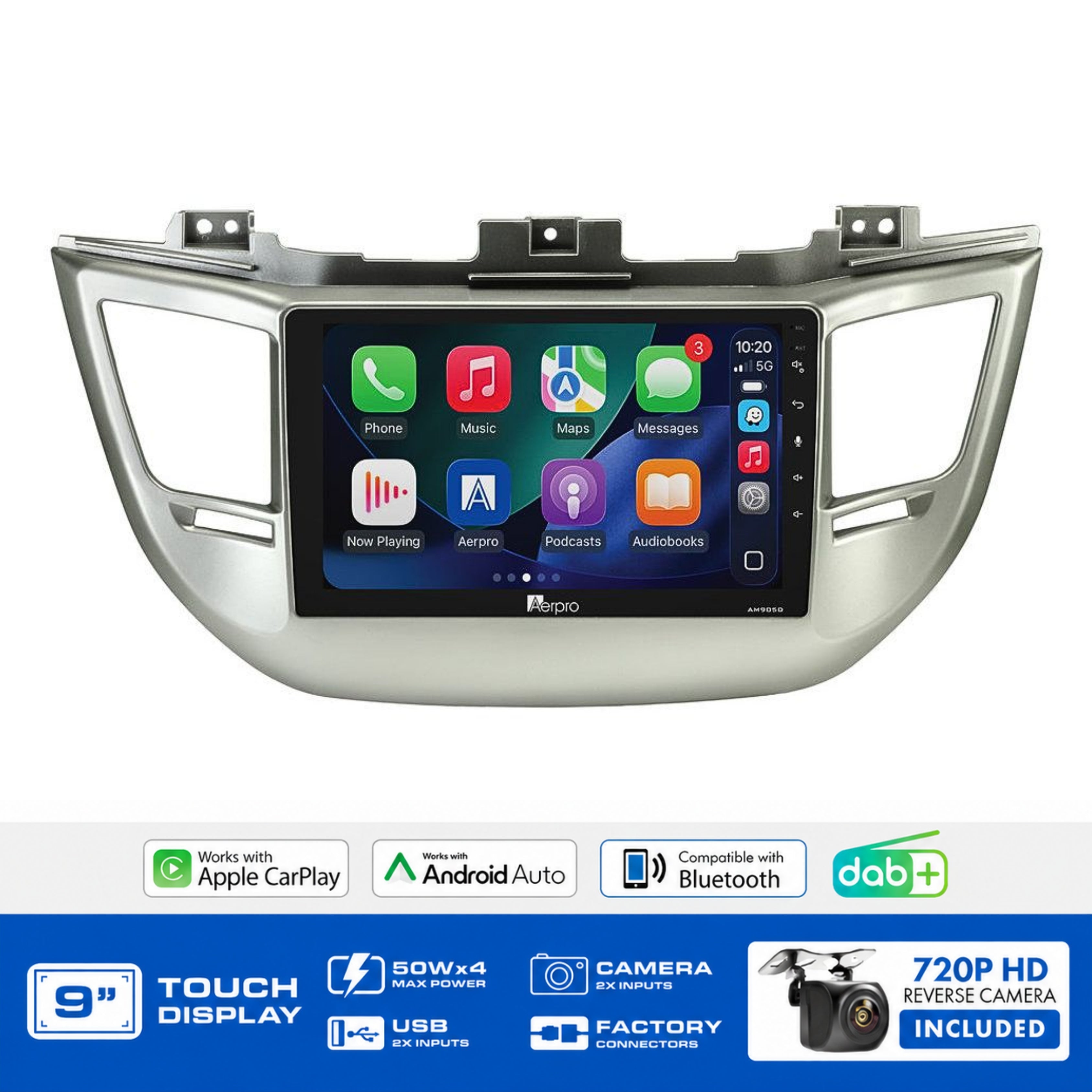

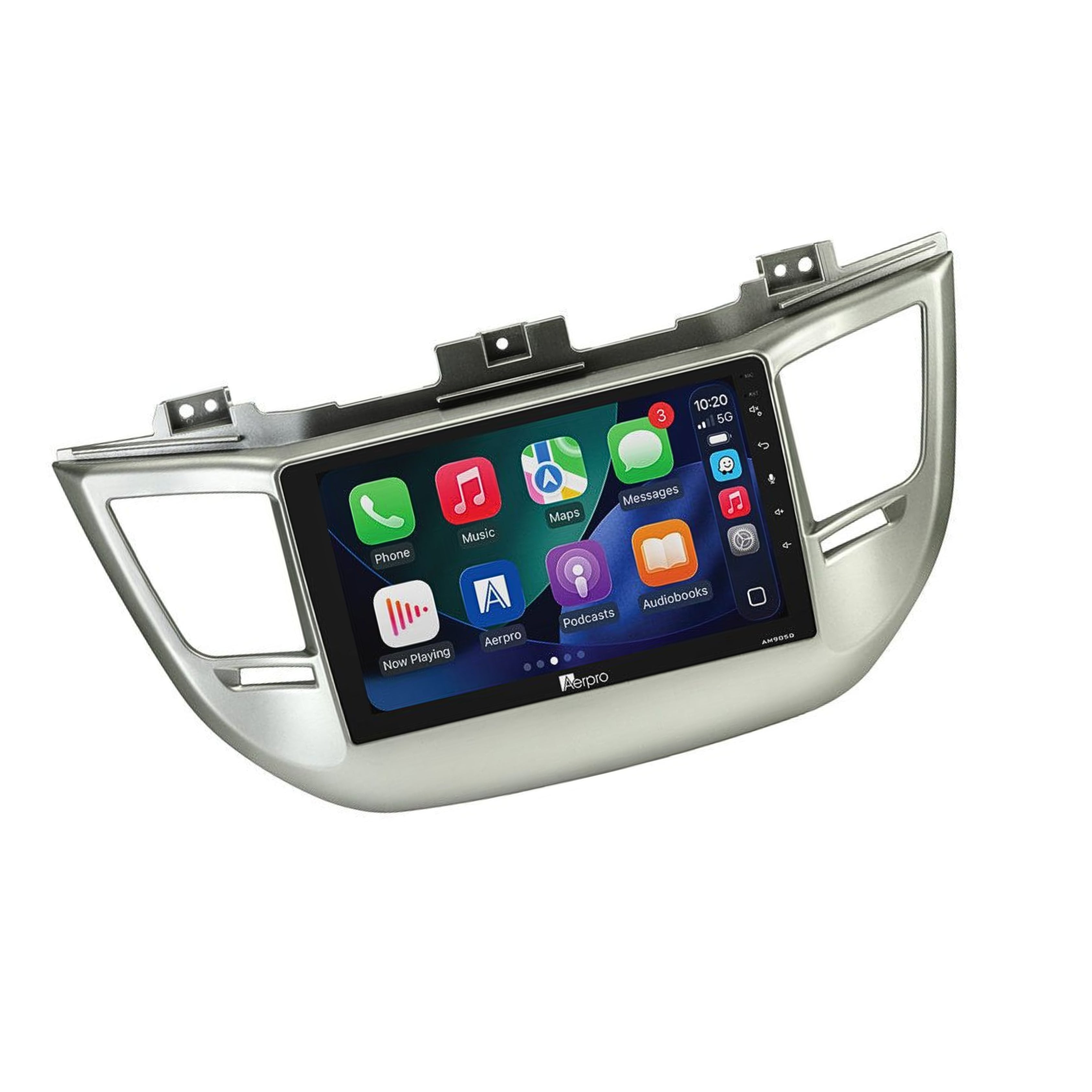

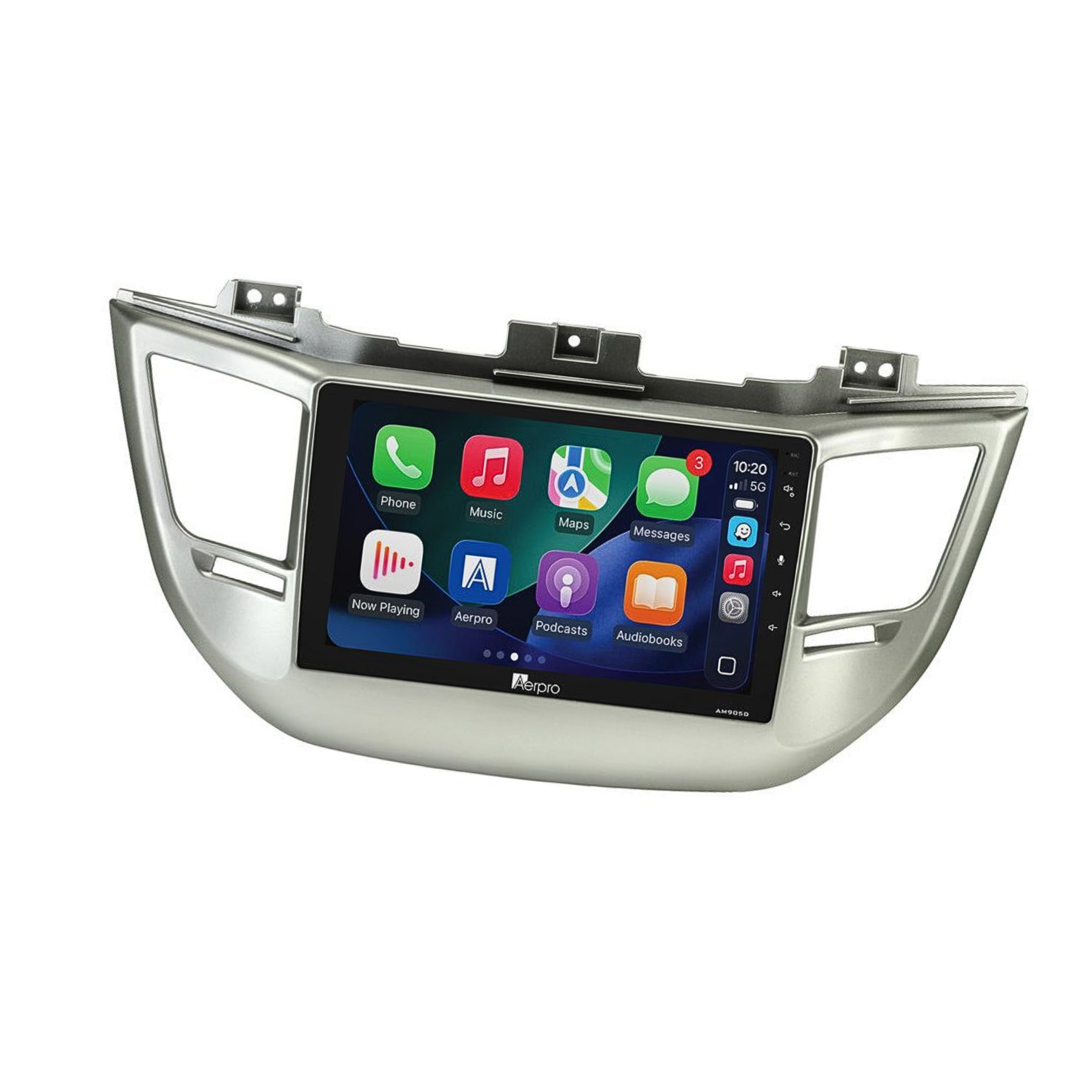

Complete 9" Head Unit Upgrade Kit for Hyundai Tucson 2015–2016 (Factory Navigation Models) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC, USB & Factory Reverse Camera Retained, Rear Camera Included.
Product Overview
The Aerpro AMDHY18 is a complete head unit upgrade kit specifically designed for the Hyundai Tucson (2015–2016) with a factory navigation system the earlier navigation variant, with the AMDHY12 covering the 2017–2018 factory navigation Tucson. Everything required for installation is included the AM905D multimedia receiver, silver fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.
Steering wheel controls, factory USB input, and factory reverse camera are all retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Silver Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
- USB Retention Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes |
| Factory Reverse Camera |
Yes |
| USB Input |
Yes |
| AUX Input |
No |
| Factory Amplifier |
N/A |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits 2015–2016 factory navigation Tucson models: For 2017–2018 factory navigation Tucson, use the AMDHY12
-
Factory reverse camera retained: Retained via the included camera retention adaptor uses the reverse camera input of the head unit
-
Factory USB input retained: Retained via the included USB retention adaptor uses the rear USB input of the head unit
-
Steering wheel controls retained:Â Full SWC retained via the included harness and patch lead
-
Silver fascia kit:Â Silver finish matching the Tucson interior
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDHY18 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Reverse Camera Retained |
Yes |
| USB Input Retained |
Yes |
| AUX Input Retained |
No |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Hyundai Tucson 2015–2016 (factory navigation) |
Tucson Navigation Kit Comparison (this session)
| Model |
Suits |
Park Brake Required |
| AMDHY18 |
Tucson 2015–2016 (factory nav) |
Yes |
| AMDHY12 |
Tucson 2017–2018 (factory nav) |
Not flagged |
Frequently Asked Questions
How does the AMDHY18 differ from the AMDHY12?
Both suit the Hyundai Tucson with factory navigation. The AMDHY18 suits 2015–2016 models while the AMDHY12 suits 2017–2018 models. The AMDHY18 also explicitly requires the park brake wire to be connected to the park brake for CarPlay/Android Auto to function. Use the Aerpro What Fits Your Car Guide to confirm which kit suits your vehicle.
Does the park brake wire need to be connected?
Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
Does this kit retain the factory reverse camera?
Yes retained via the camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.
Is the AUX input retained?
No AUX input retention is not supported by the AMDHY18.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
