Description
Complete 9" Head Unit Upgrade Kit for Hyundai Santa Fe 2006–2009 (Non-Amplified) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Rear Camera Included.
Product Overview

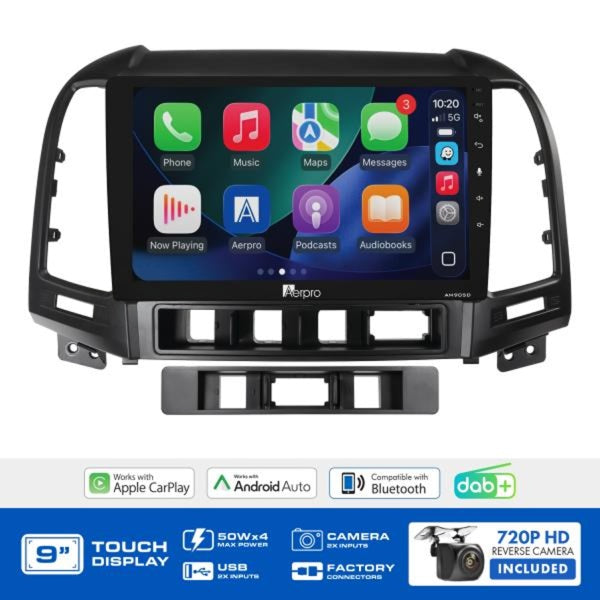

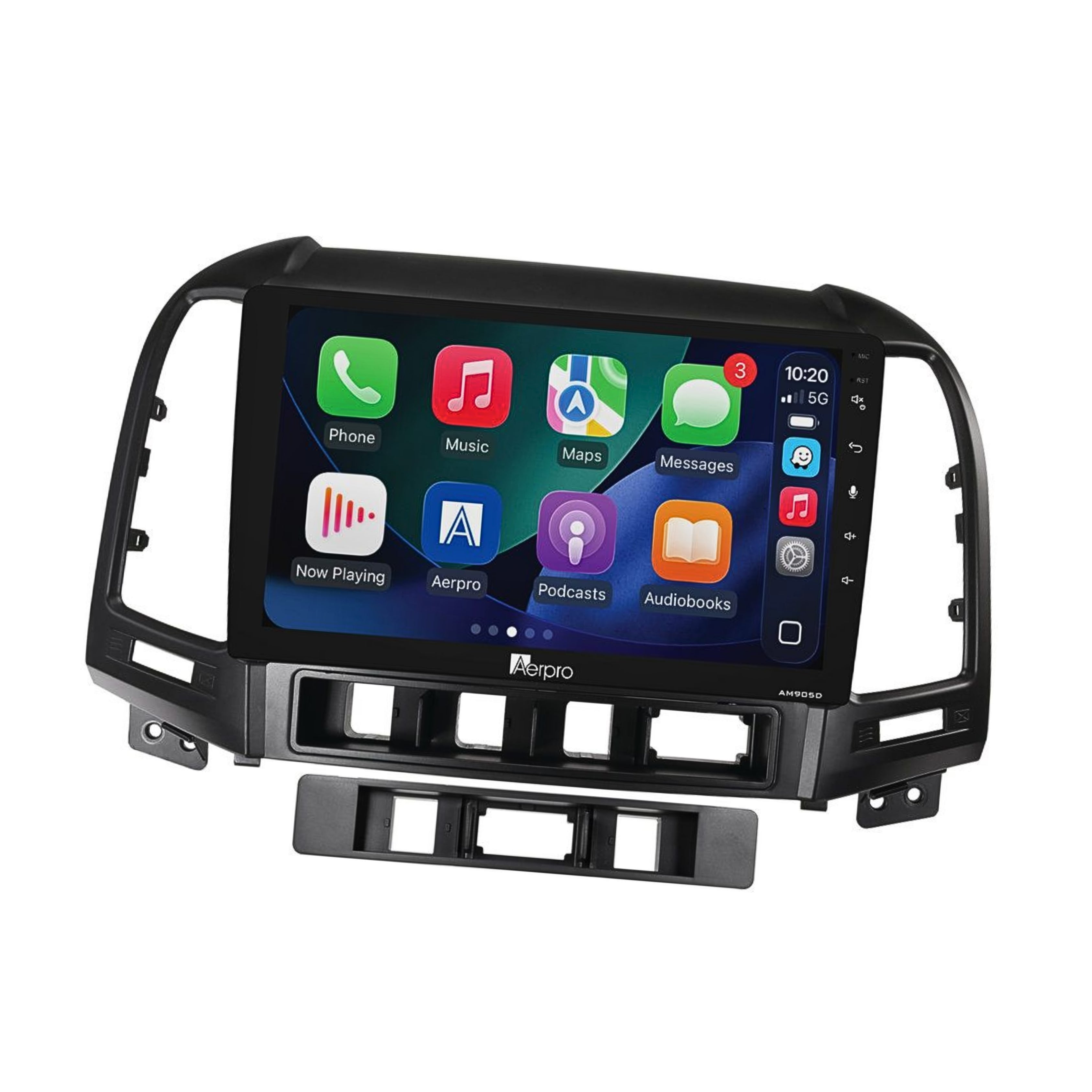

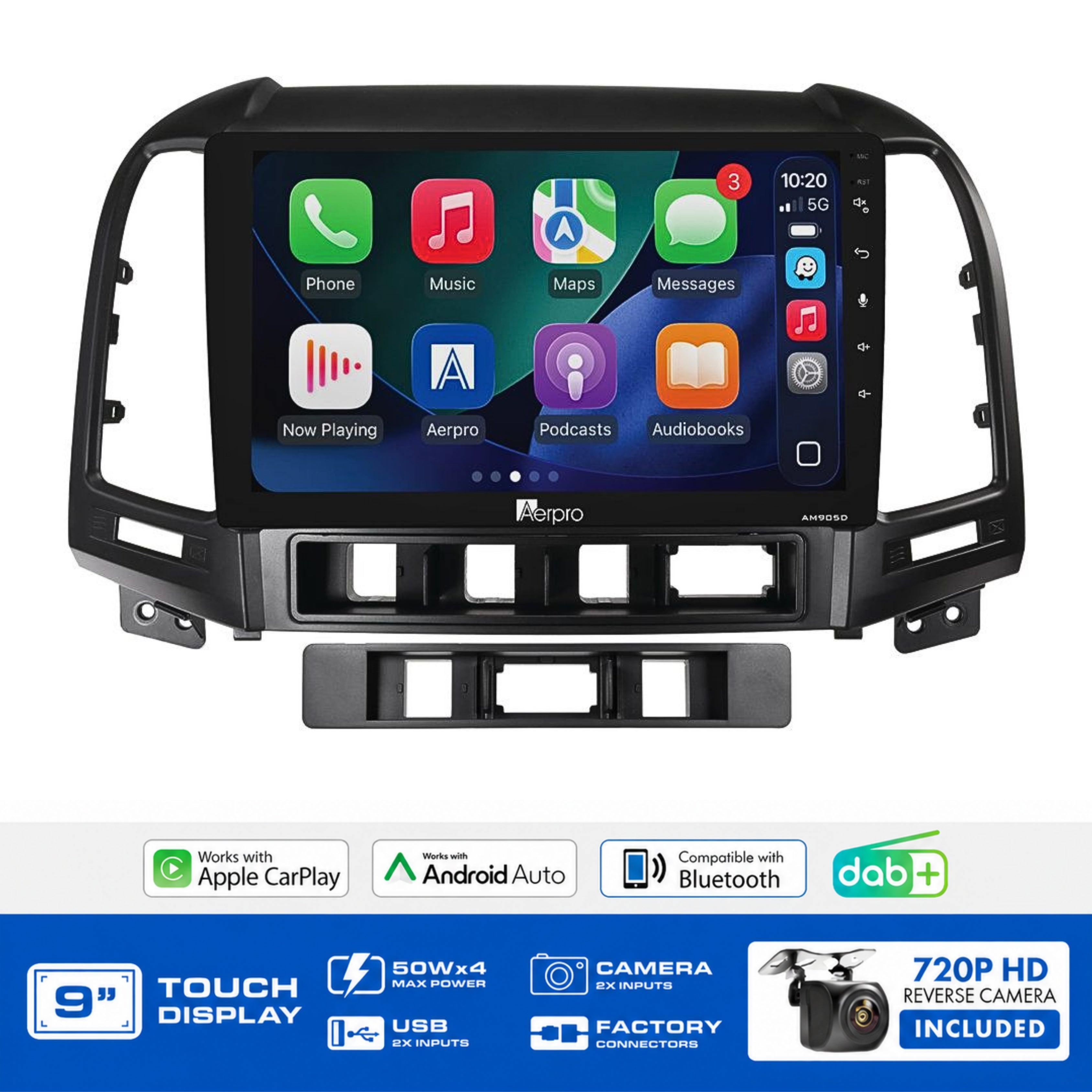

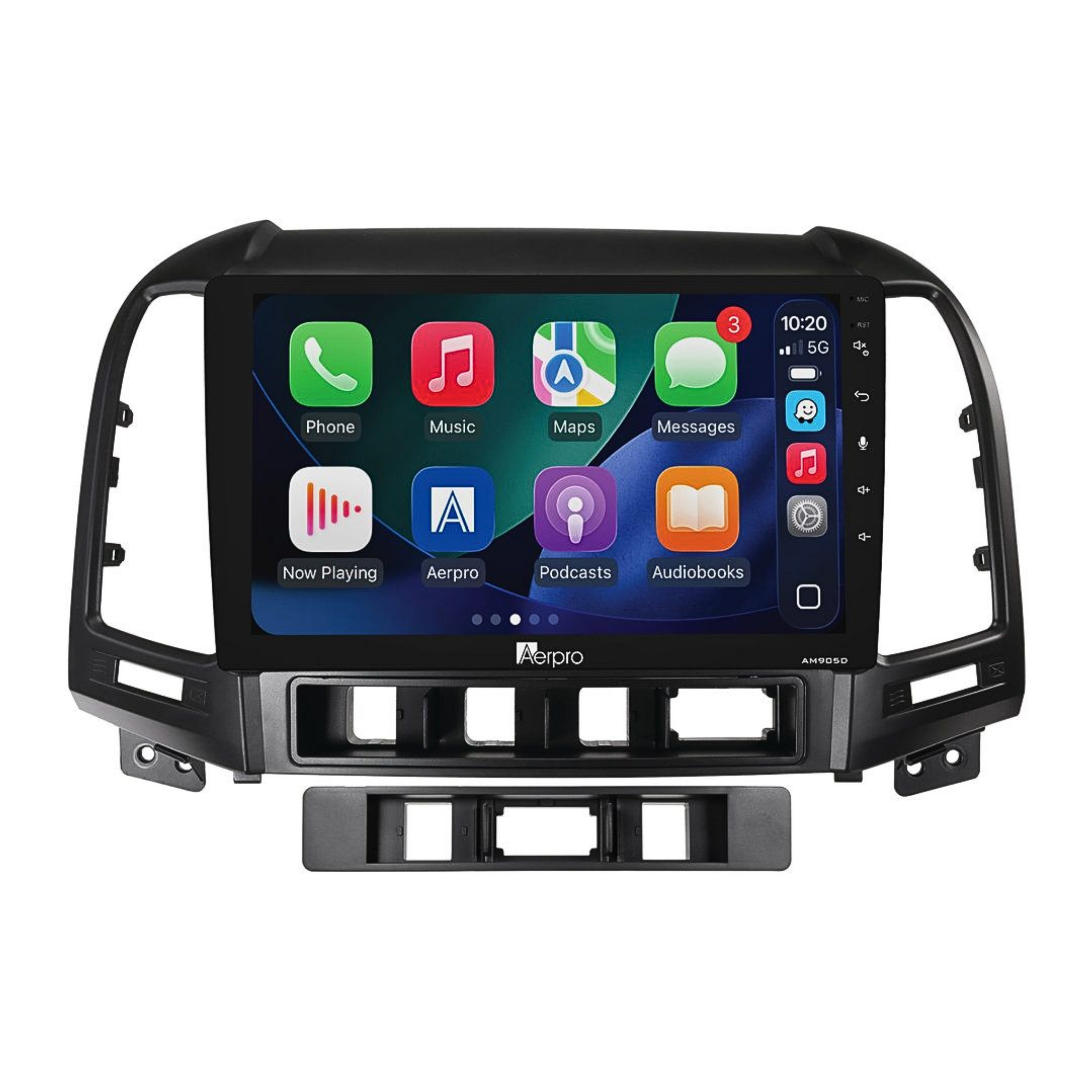

The Aerpro AMDHY19 is a complete head unit upgrade kit specifically designed for the Hyundai Santa Fe (2006–2009) without a factory amplified system. Everything required for a clean, professional installation is included in the box the AM905D multimedia receiver, a matte black fascia kit, steering wheel control interface harness, and a 720P AHD universal rear camera.
The centrepiece is the AM905D's large 9" capacitive touchscreen (1024x600 resolution) with wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and audio streaming, and a high-power 4x50W output with 13-band EQ and 4V/5CH RCA preouts for amplifier expansion. Steering wheel controls are fully retained.
Kit Inclusions
- AM905D 9" Multimedia Receiver

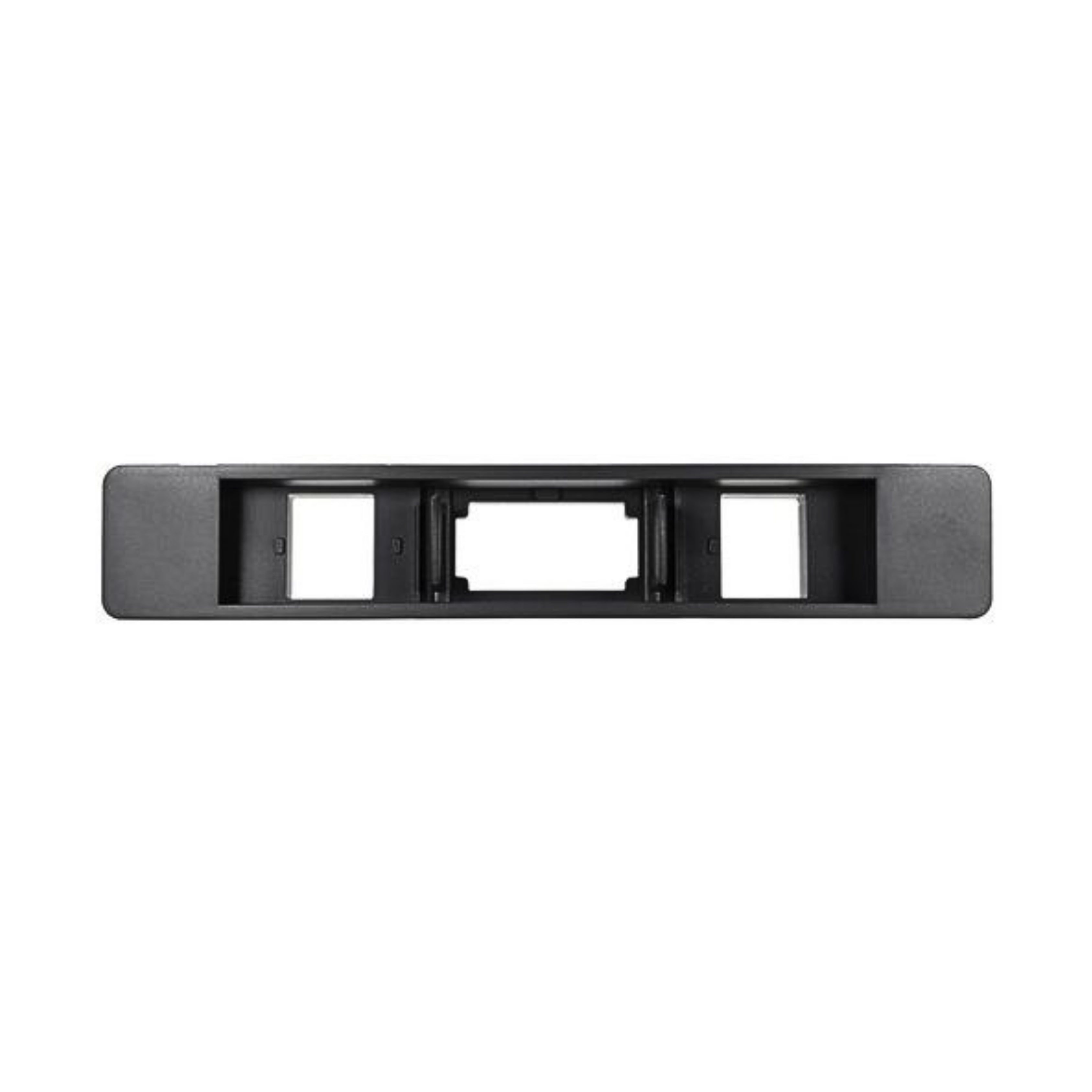

- Matte Black Fascia Kit
- Steering Wheel Control Interface Harness
- 720P AHD Universal Rear Camera
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ: Yes
- Time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Steering wheel controls retained: Yes
- Rear camera: 720P AHD universal included
- LED button illumination: 6-colour selectable
Features & Benefits
-
Complete plug-and-play kit: Includes fascia, SWC harness, and rear camera no hunting for additional parts
-
Wireless Apple CarPlay & Android Auto: Use maps, music, and calls wire-free; wired connection also supported for charging while connected
-
DAB+ digital radio built-in: Clearer reception and a wider station range than FM plus AM/FM and RDS tuning
-
Bluetooth 5 with HD Voice: Crisp hands-free calling with HFP 1.6, plus wireless audio streaming via A2DP
-
9" capacitive touchscreen: Large, smooth 1024x600 display for easy navigation of menus, maps, and media
-
Steering wheel controls retained: Factory SWC functionality preserved via the included harness
-
720P AHD rear camera included: Improve reversing visibility immediately additional front or tow camera input also available
-
4x50W output with 5-channel preouts: High-power output with 4V RCA preouts for adding amplifiers to the system
-
13-band graphic EQ with time alignment: Precision audio tuning for your specific vehicle environment
Technical Specs
| Specification |
Detail |
| SKU |
AMDHY19 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Rear Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Weight |
3.00kg |
| Suits |
Hyundai Santa Fe 2006–2009 (CM) Non-amplified only |
Compatible Vehicles
- Hyundai Santa Fe 2006–2008 CM (headunit dependent)
Frequently Asked Questions
Does this kit work with factory steering wheel controls?
Yes the included steering wheel control interface harness retains the factory SWC function.
Is a rear camera included?
Yes a 720P AHD universal rear camera is included in the kit. An additional camera input is also available for a front or tow camera.
Does wireless Apple CarPlay require anything special?
The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
Does this suit Santa Fe models with a factory amplifier?
No the AMDHY19 suits Hyundai Santa Fe 2006–2009 without factory amplified systems only.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
