Description
Complete 9" Head Unit Upgrade Kit for Hyundai Accent RB 2016–2020 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC & Factory Reverse Camera Retained, Rear Camera Included.
Product Overview

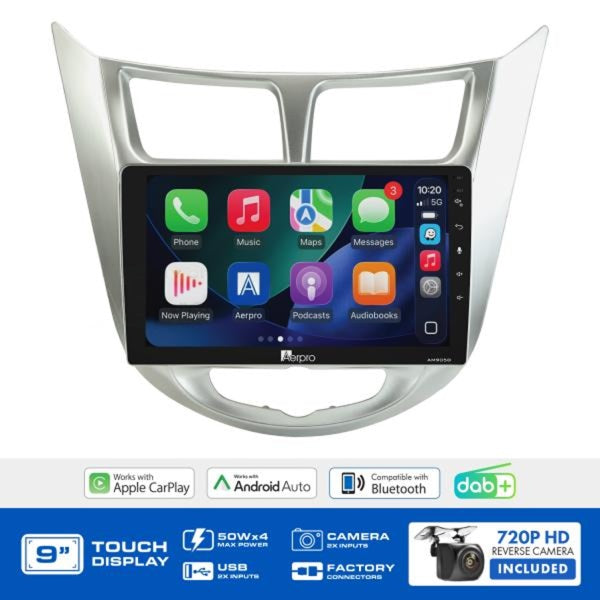

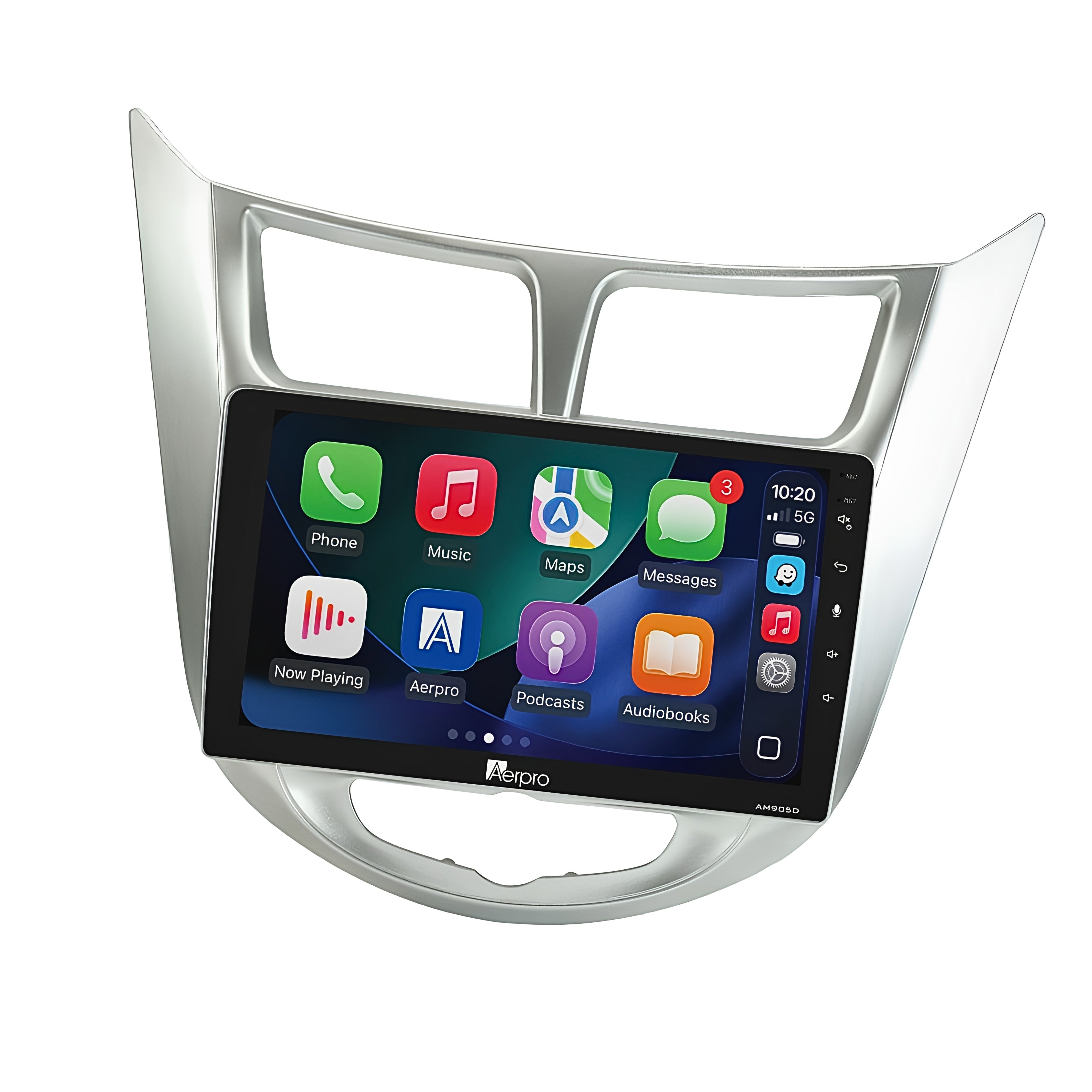

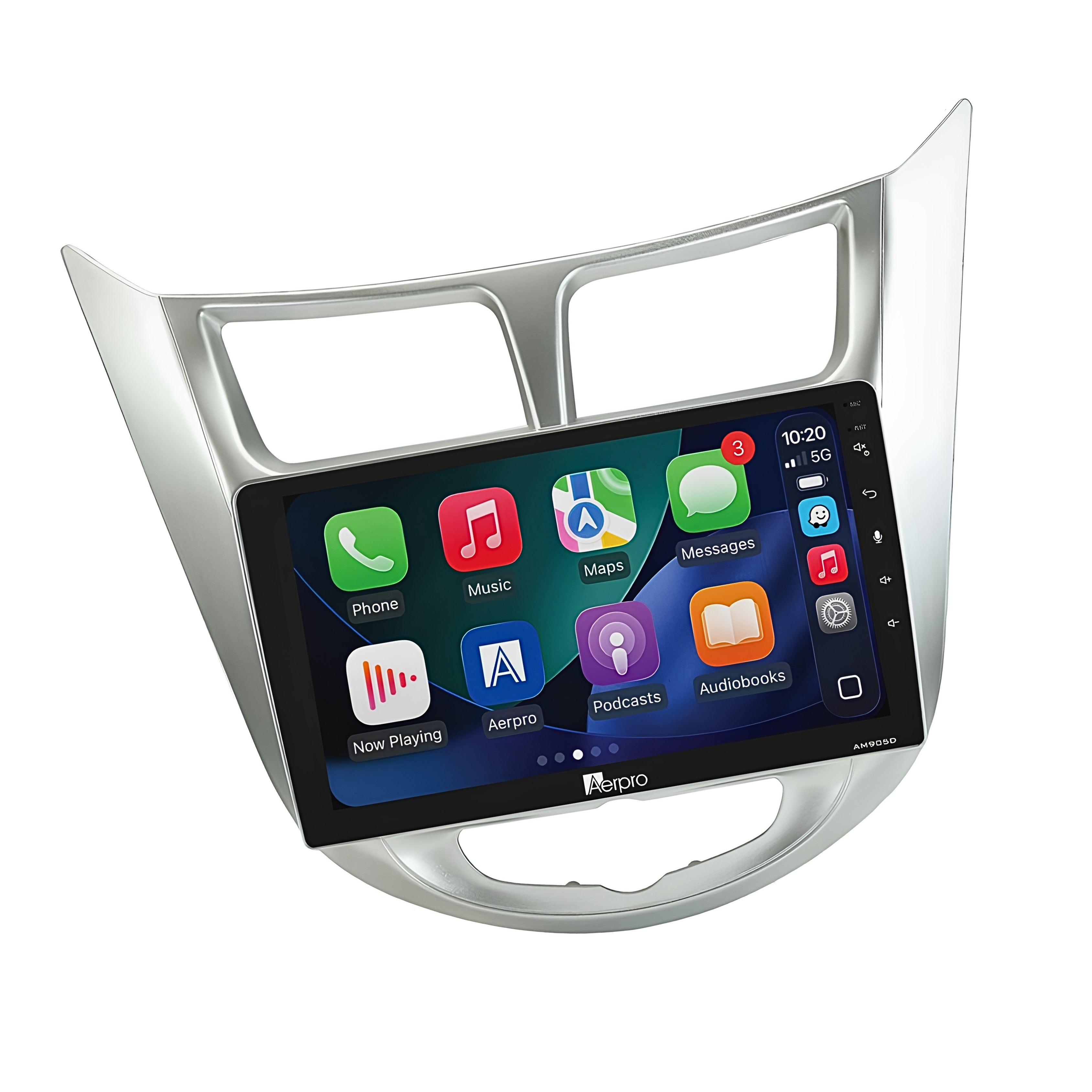

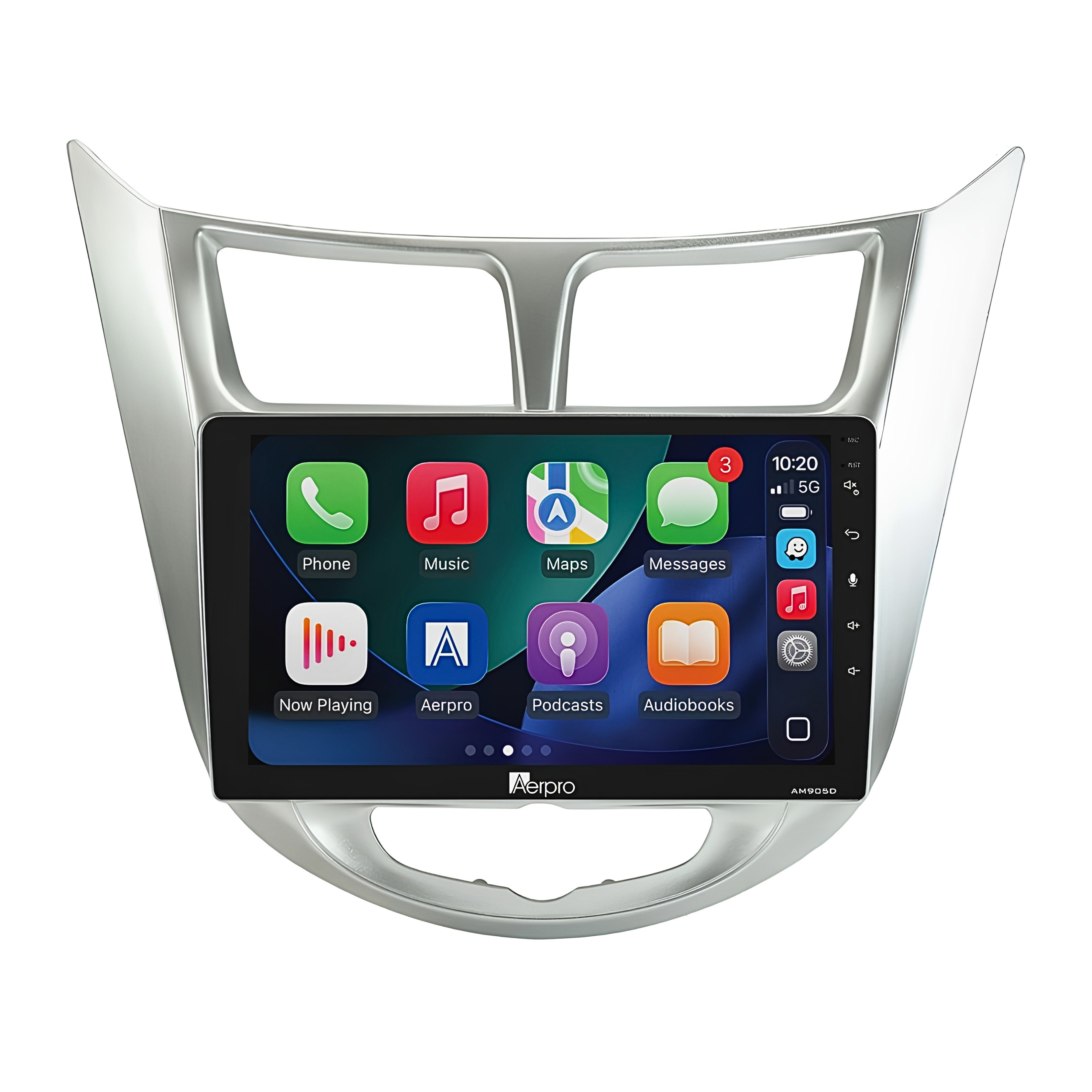

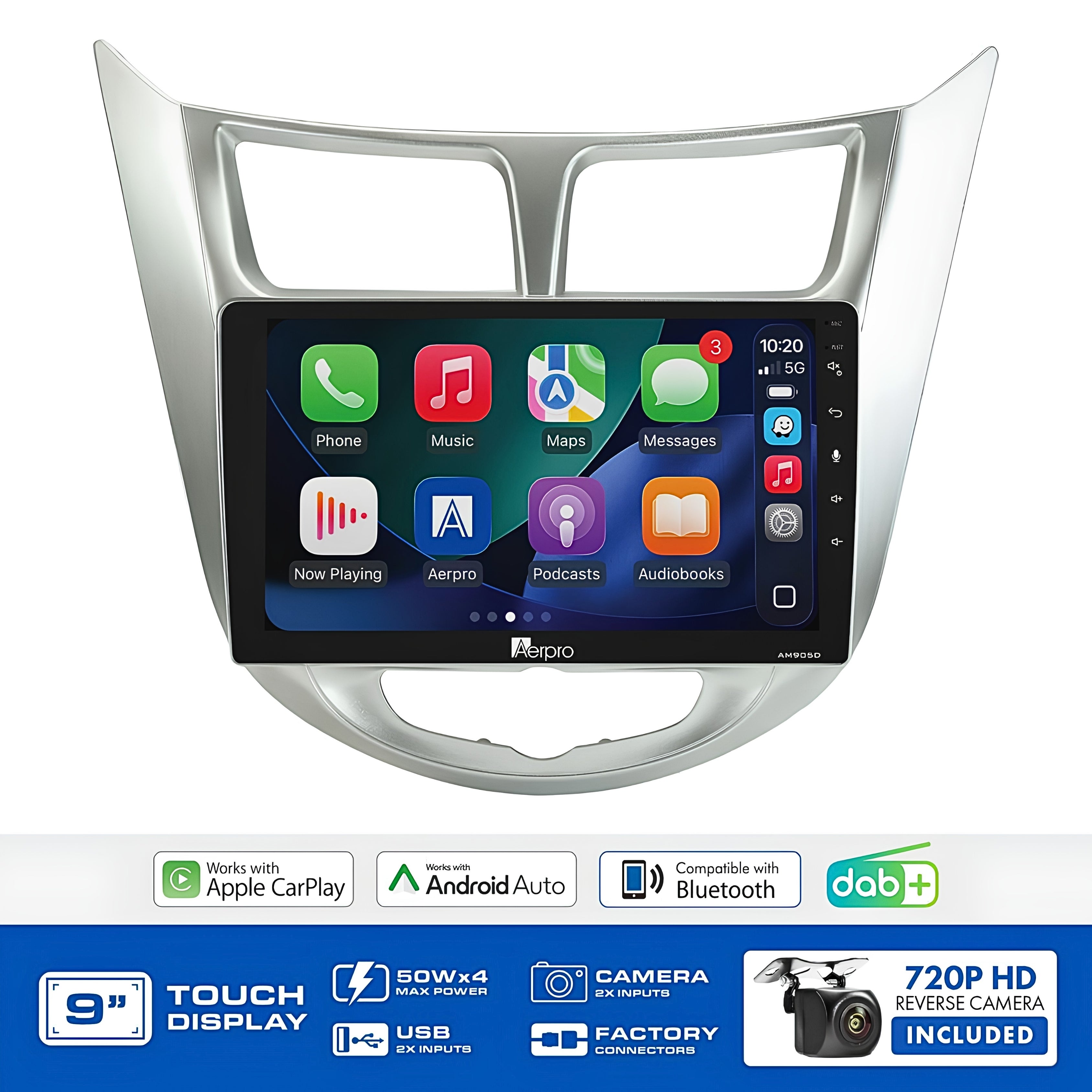

The Aerpro AMDHY23 is a complete head unit upgrade kit specifically designed for the Hyundai Accent RB (2016–2020) with factory reverse camera in the OEM head unit. Everything required for a clean, professional installation is included the AM905D multimedia receiver, silver fascia kit, steering wheel control interface harness (with camera retention), USB retention adaptor, and a 720P AHD universal rear camera.
The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and streaming, and a high-power 4x50W output with 13-band EQ and 4V/5CH RCA preouts. Steering wheel controls, factory USB input, and factory reverse camera (if equipped, model dependent) are all retained.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Silver Fascia Kit
- Steering Wheel Control Interface Harness (includes camera retention)
- USB Retention Adaptor
- 720P AHD Universal Rear Camera
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Complete plug-and-play kit: Fascia, SWC harness with camera retention, USB adaptor, and rear camera all included
-
Factory reverse camera retained: The existing factory reverse camera is retained via the SWC harness if equipped and model dependent
-
Factory USB input retained: Factory USB input is retained via the included USB retention adaptor
-
Wireless Apple CarPlay & Android Auto: Use maps, music, and calls wire-free; wired connection also supported for charging
-
DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS tuning
-
Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen: Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility improvement additional front or tow camera input also available
-
4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
-
13-band EQ with time alignment: Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDHY23 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Reverse Camera Retained |
Yes (if equipped, model dependent) |
| USB Input Retained |
Yes |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Weight |
3.00kg |
| Suits |
Hyundai Accent RB 2016–2020 |
Compatible Vehicles
- Hyundai Accent 2016–2020 RB
Frequently Asked Questions
Does this kit retain the factory reverse camera?
Yes factory reverse camera retention is included via the SWC harness, for vehicles with a factory reverse camera in the OEM head unit. Retention is model dependent confirm your vehicle is equipped before purchasing.
Does this kit retain the factory USB input?
Yes the included USB retention adaptor retains the factory USB input. Note that USB input retention uses the rear USB input of the head unit.
Does this kit retain steering wheel controls?
Yes the included steering wheel control interface harness retains factory SWC function.
Does this suit Hyundai Accent models with a factory amplifier?
The kit specifications do not restrict amplified vs non-amplified variants for this model confirm fitment via the Aerpro What Fits Your Car Guide.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
