Complete 9" Head Unit Upgrade Kit for Hyundai Santa Fe CM 2009–2012 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Suits Amplified & Non-Amplified, Rear Camera Included.
Product Overview

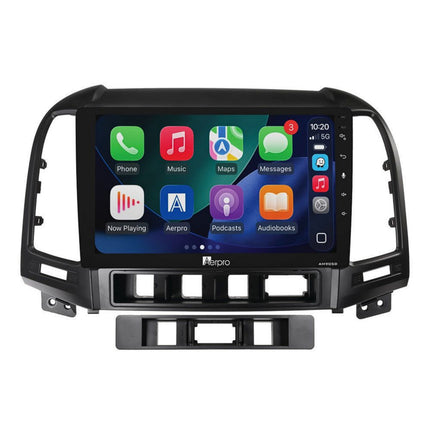

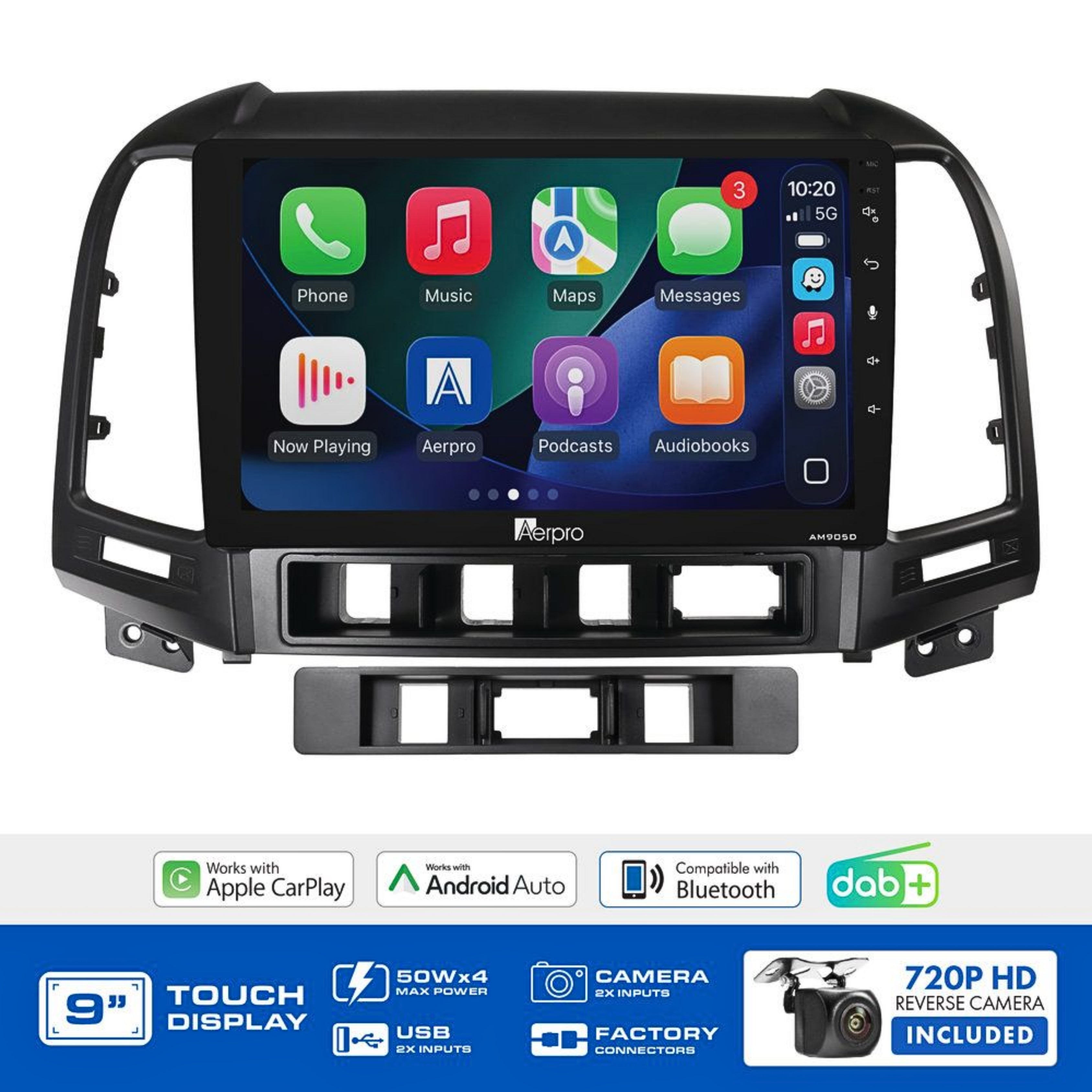

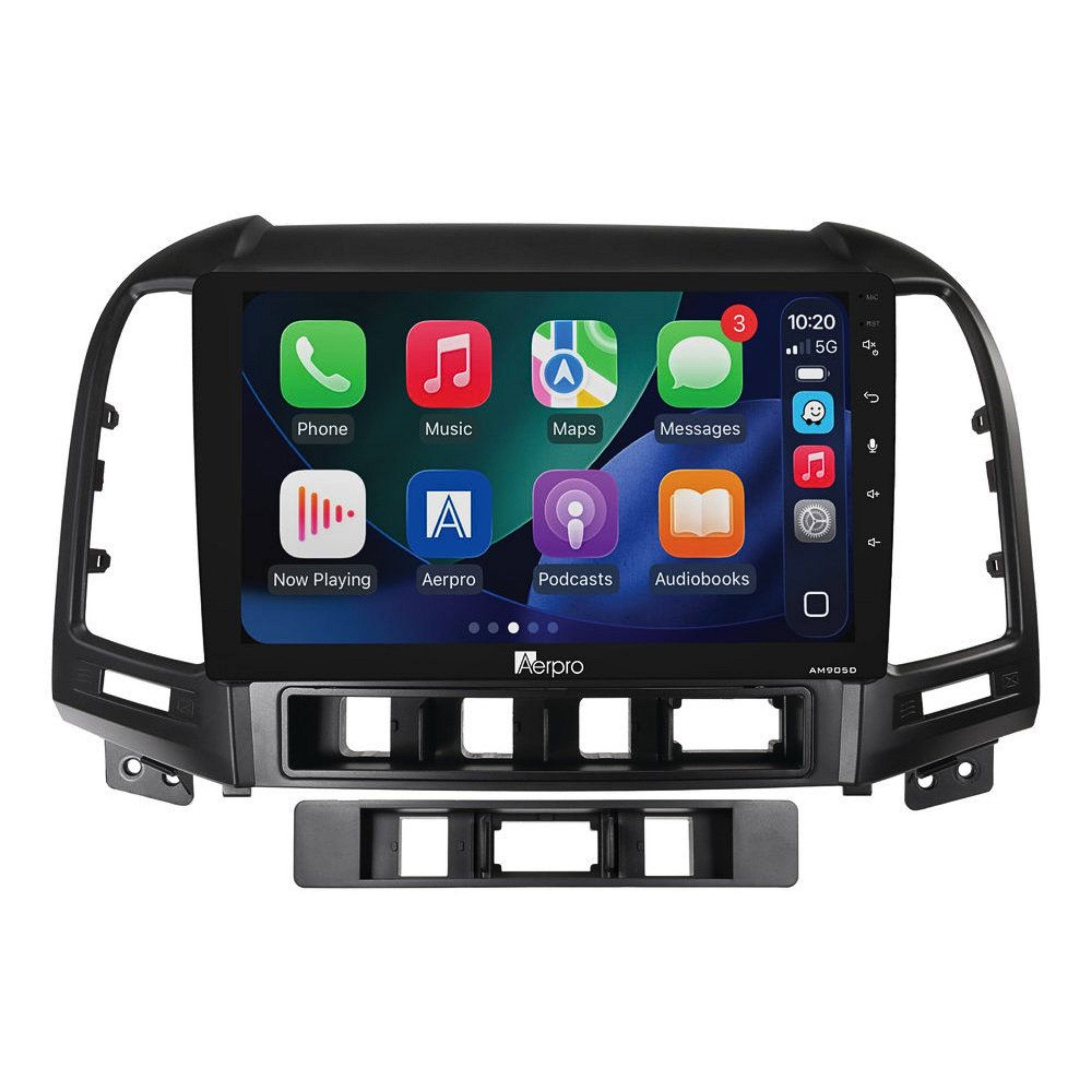

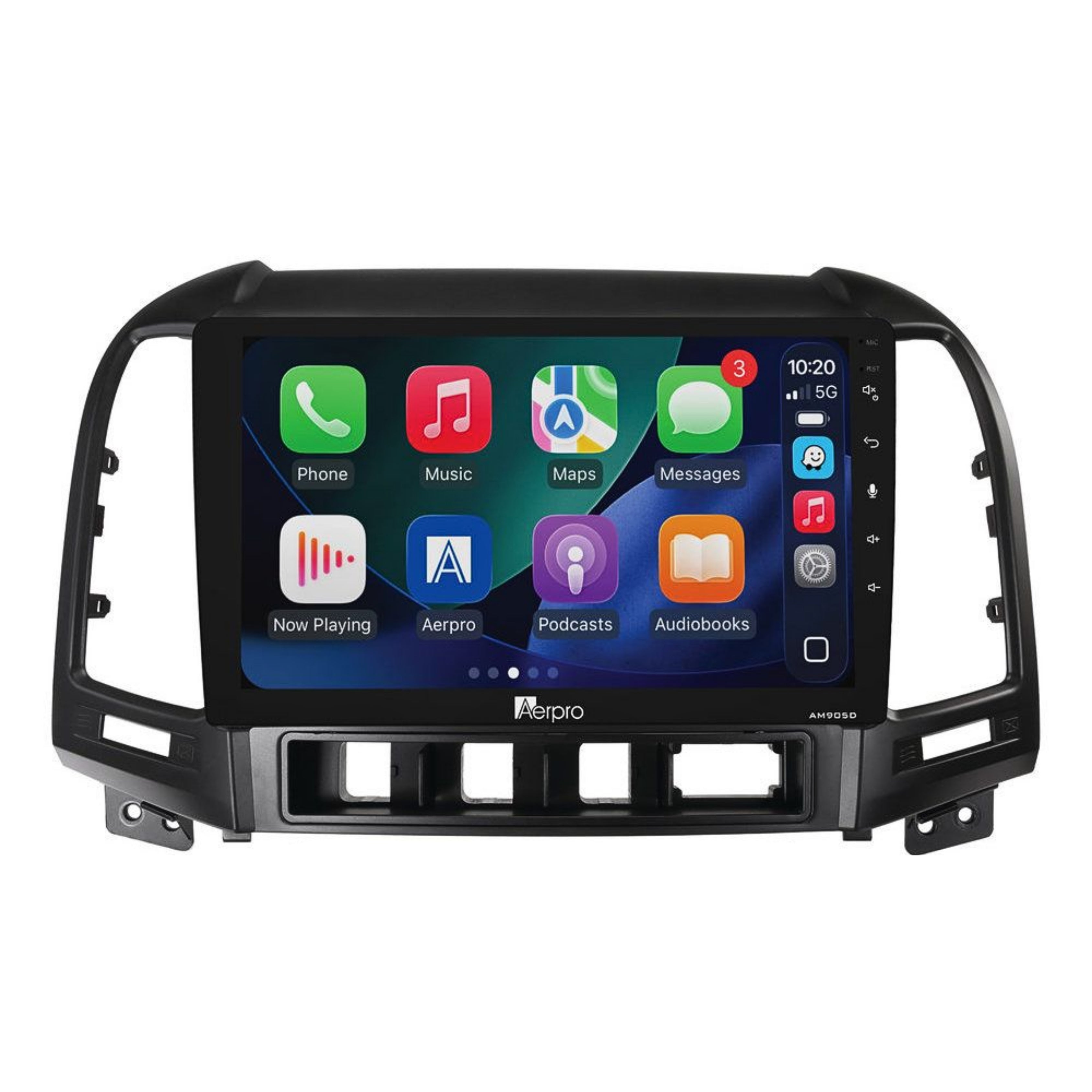

The Aerpro AMDHY5 is a complete head unit upgrade kit specifically designed for the Hyundai Santa Fe CM (2009–2012). Everything required for a clean, professional installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, antenna adaptor, and a 720P AHD universal rear camera.
A key advantage of the AMDHY5 over other Santa Fe kits is its compatibility with both factory amplified and non-amplified vehicles amplified models are supported via standard trigger wire connection. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and a high-power 4x50W output with 13-band EQ and 4V/5CH RCA preouts. Steering wheel controls are retained.
Kit Inclusions
- AM905D 9" Multimedia Receiver

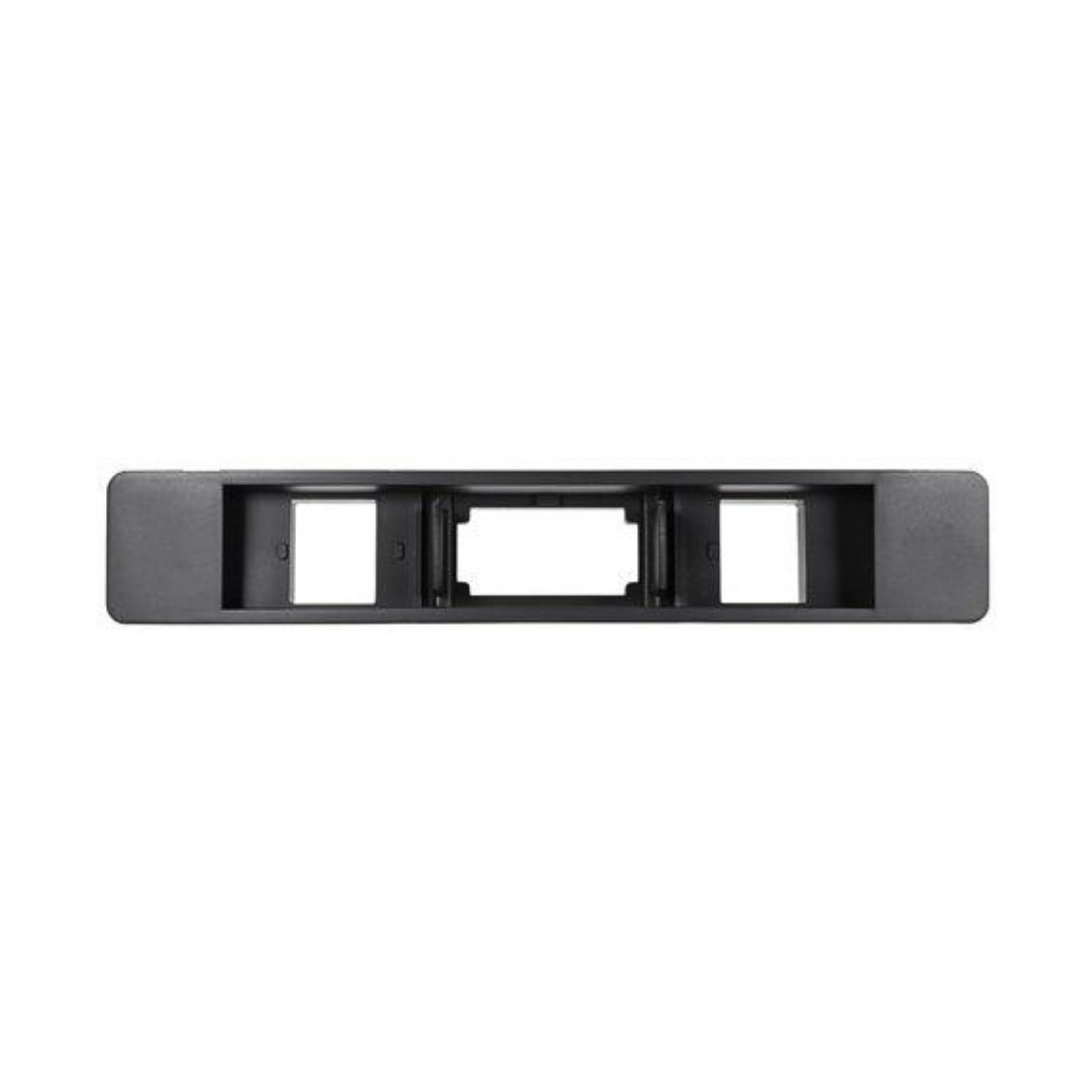

- Matte Black Fascia Kit
- Steering Wheel Control Interface Harness
- Antenna Adaptor
- 720P AHD Universal Rear Camera
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits both amplified and non-amplified vehicles: Compatible with factory amplified Santa Fe models via standard trigger wire connection unlike many kits restricted to non-amplified vehicles
-
Complete plug-and-play kit: Fascia, SWC harness, antenna adaptor, and rear camera all included
-
Steering wheel controls retained: Factory SWC function retained via the included harness
-
Wireless Apple CarPlay & Android Auto: Use maps, music, and calls wire-free; wired connection also supported
-
DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen: Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
-
13-band EQ with time alignment: Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDHY5 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Amplifier Supported |
Yes standard trigger wire |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Hyundai Santa Fe CM 2008–2012 |
Compatible Vehicles
- Hyundai Santa Fe 2008–2012 CM
Frequently Asked Questions
Does this kit work with factory amplified Santa Fe models?
Yes the AMDHY5 suits both factory amplified and non-amplified Hyundai Santa Fe models. Amplified models are connected via a standard trigger wire connection.
Is phone button retention supported on the steering wheel?
Phone button retention on the steering wheel is not supported in all vehicles confirm your specific model before purchasing.
Does this kit retain steering wheel controls?
Yes the included steering wheel control interface harness retains factory SWC function.
Is a rear camera included?
Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
