Description
Complete 9" Head Unit Upgrade Kit for Mitsubishi Outlander ZH 2010–2012 & Peugeot 4007 2010–2012 (Non-Amplified) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Retained, Rear Camera Included.
Product Overview

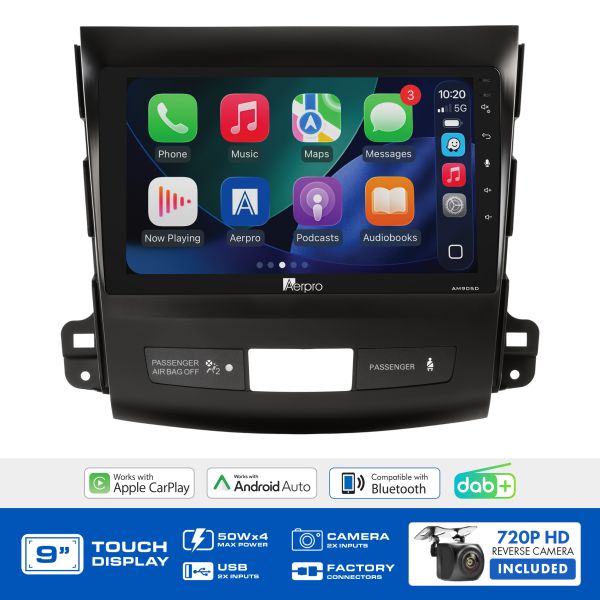

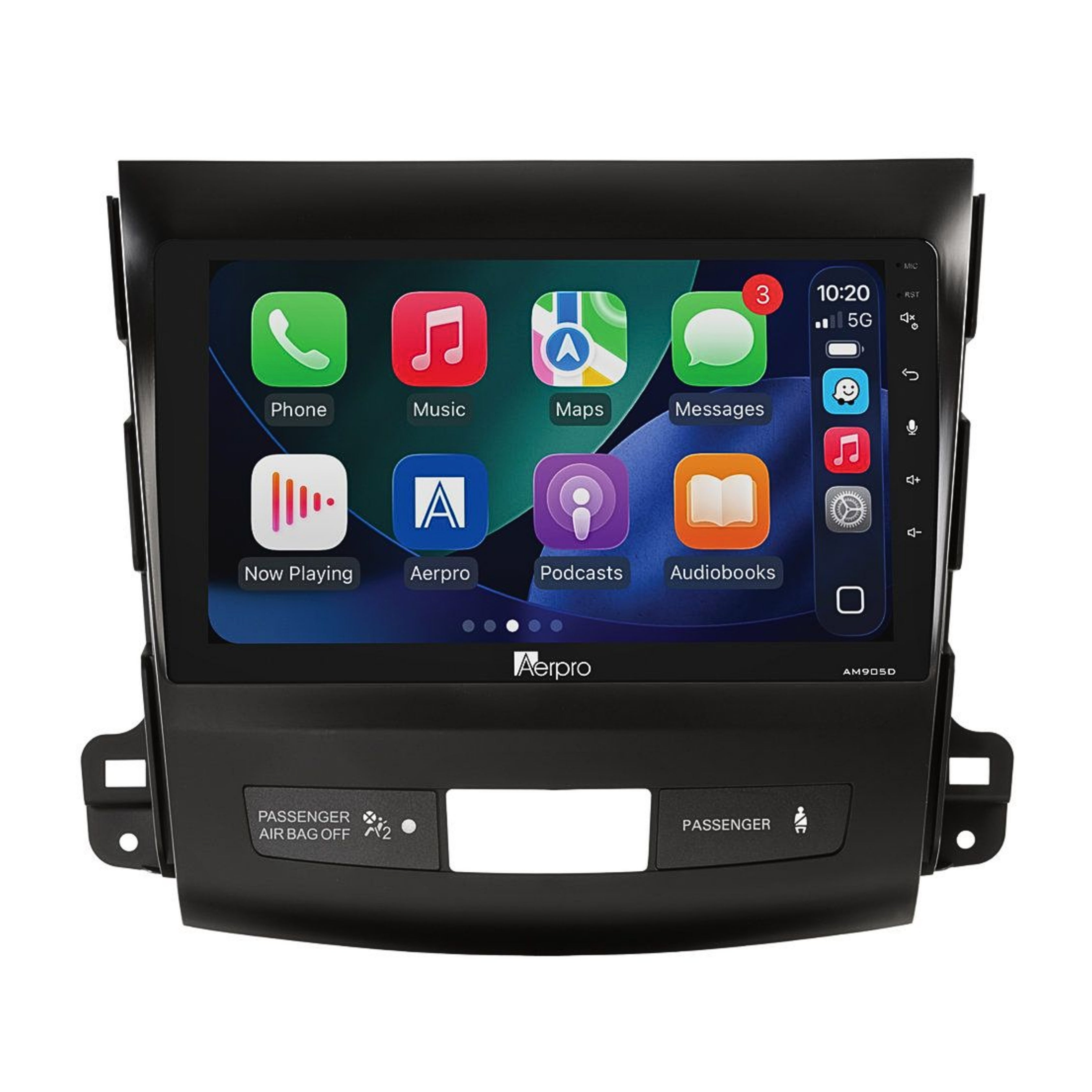

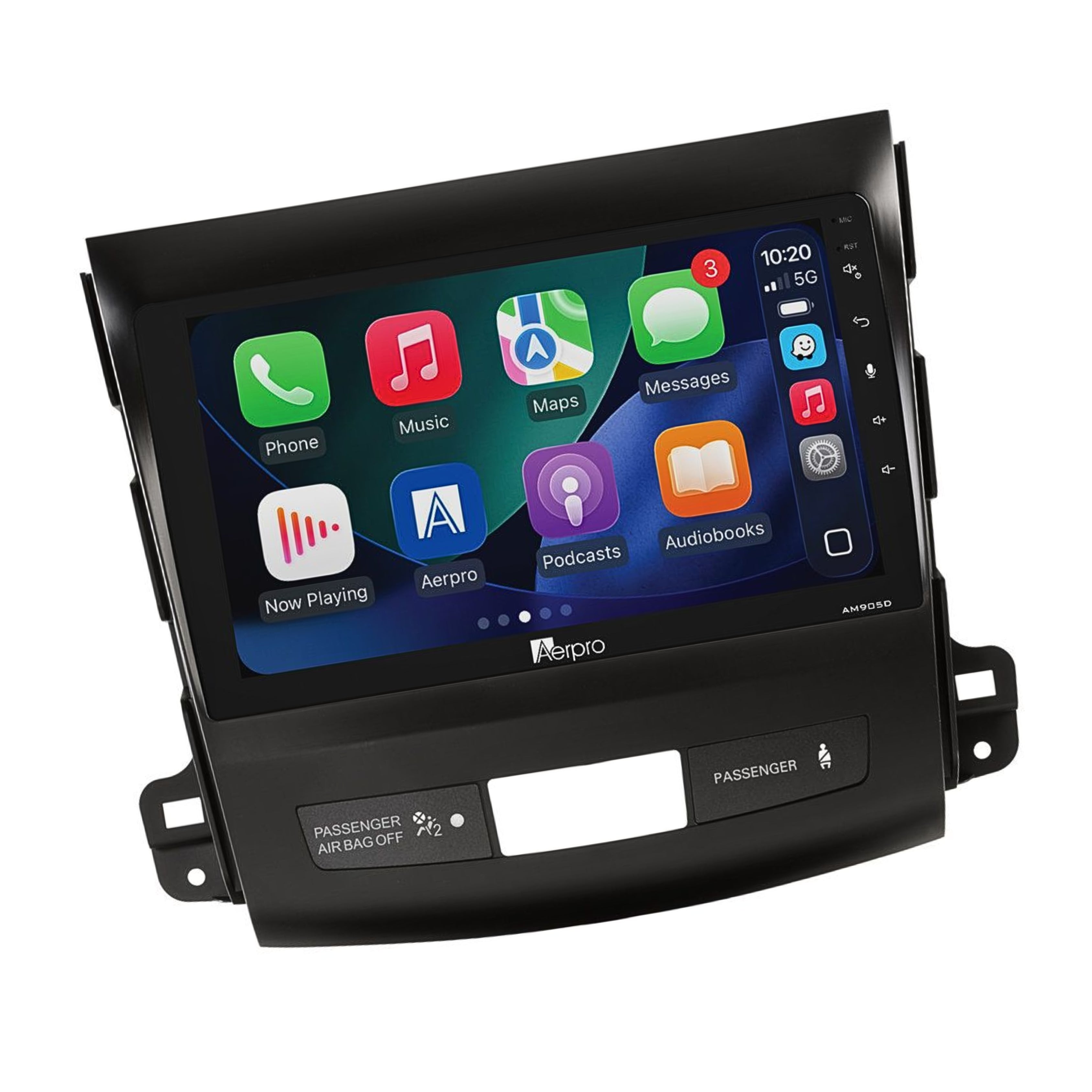

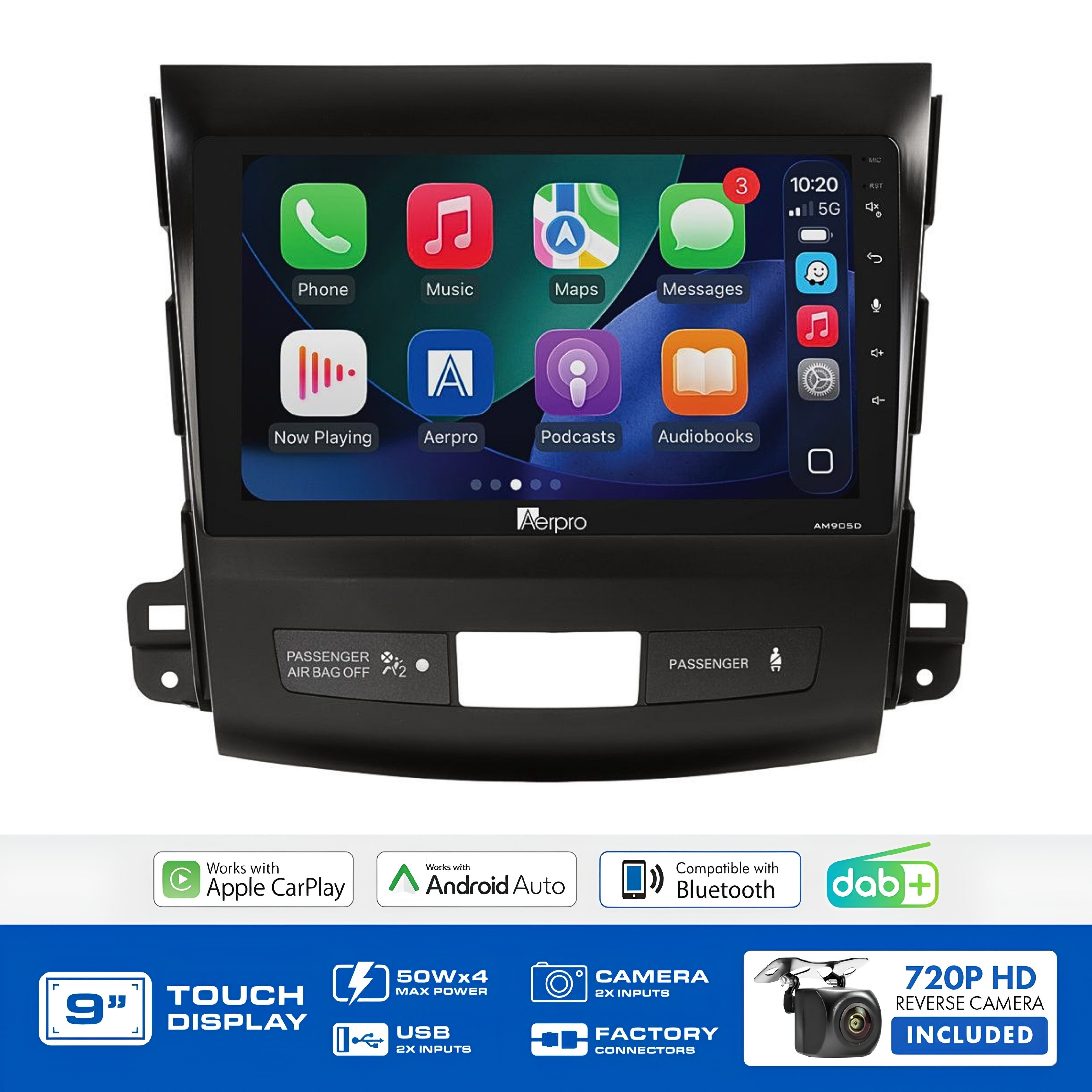

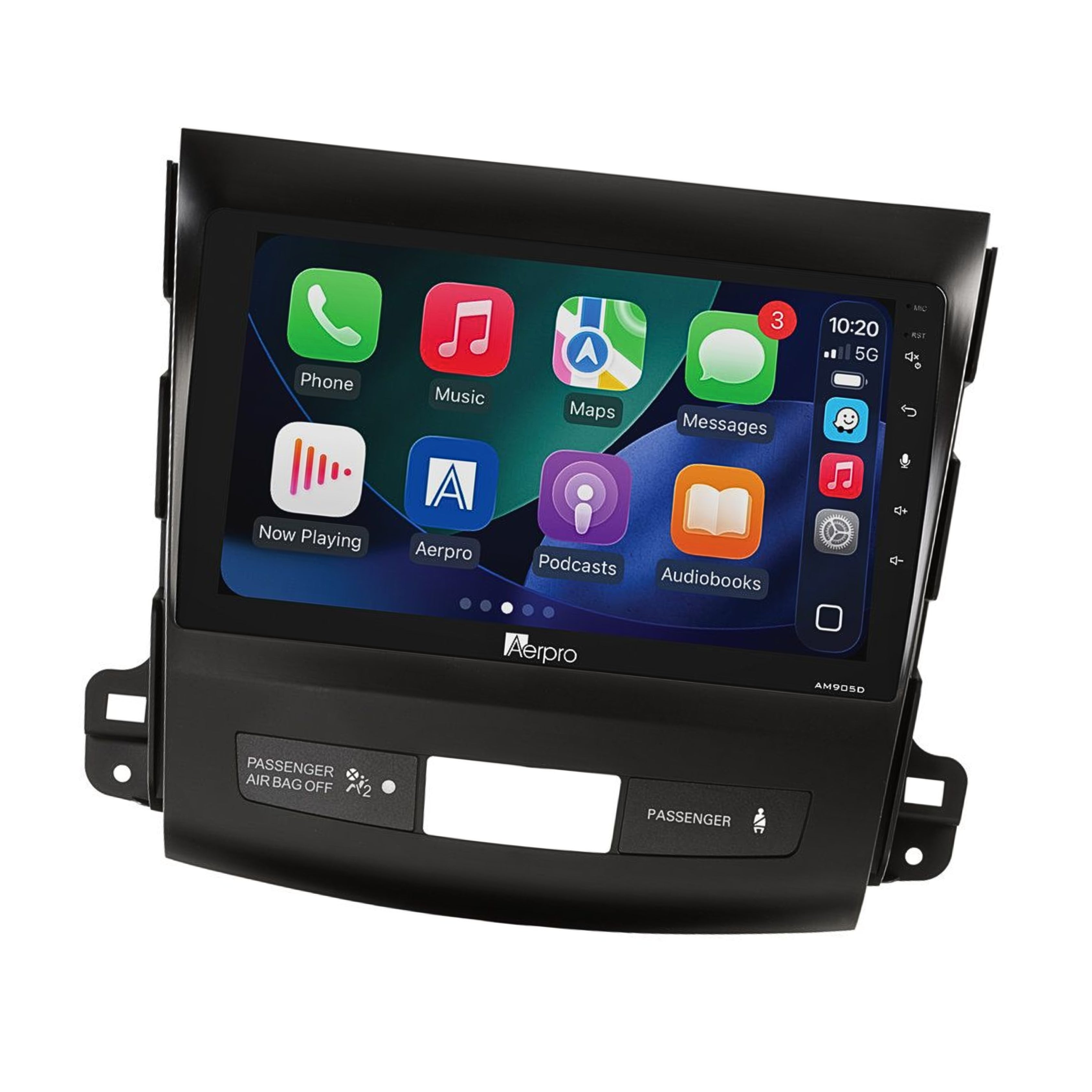

The Aerpro AMDMB11 is a complete head unit upgrade kit designed for the Mitsubishi Outlander ZH (2010–2012) and Peugeot 4007 (2010–2012) non-amplified vehicles. Everything required for a clean, professional installation is included the AM905D multimedia receiver, black fascia kit, steering wheel control interface harness, SWC patch lead, and a 720P AHD universal rear camera.
Steering wheel controls are retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and streaming, and a high-power 4x50W output with 13-band EQ and 4V/5CH RCA preouts for amplifier expansion.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- 720P AHD Universal Rear Camera
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Dual platform compatibility: One kit suits both Mitsubishi Outlander ZH 2010–2012 and Peugeot 4007 2010–2012 (non-amplified)
-
Steering wheel controls retained: Factory SWC function retained via the included harness and patch lead
-
Wireless Apple CarPlay & Android Auto: Use maps, music, and calls wire-free; wired connection also supported
-
DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen: Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
-
13-band EQ with time alignment: Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDMB11 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Weight |
3.00kg |
| Suits |
Mitsubishi Outlander ZG/ZH 2007–2012, Peugeot 4007 2009–2012 (non-amplified) |
Compatible Vehicles
- Mitsubishi Outlander 2007–2012 ZG, ZH (headunit dependent)
- Peugeot 4007 2009–2012
Frequently Asked Questions
Does this kit suit amplified Outlander or Peugeot 4007 models?
No the AMDMB11 suits non-amplified vehicles only.
Does this kit retain steering wheel controls?
Yes the included SWC harness and patch lead retain factory steering wheel control function.
Is a rear camera included?
Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.
Does CarPlay require the park brake to be connected?
Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
