Description
Complete 9" Head Unit Upgrade Kit for Mitsubishi Triton ML 2007–2009 & MN 2009–2014 (Without Steering Wheel Controls) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Rear Camera Included.
Product Overview

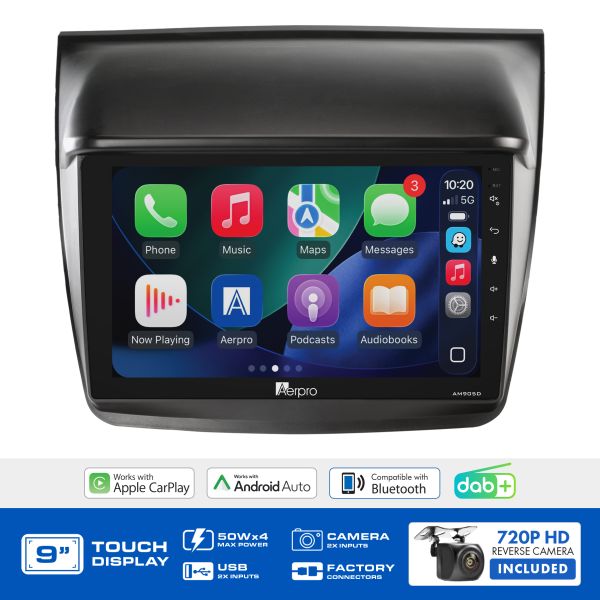

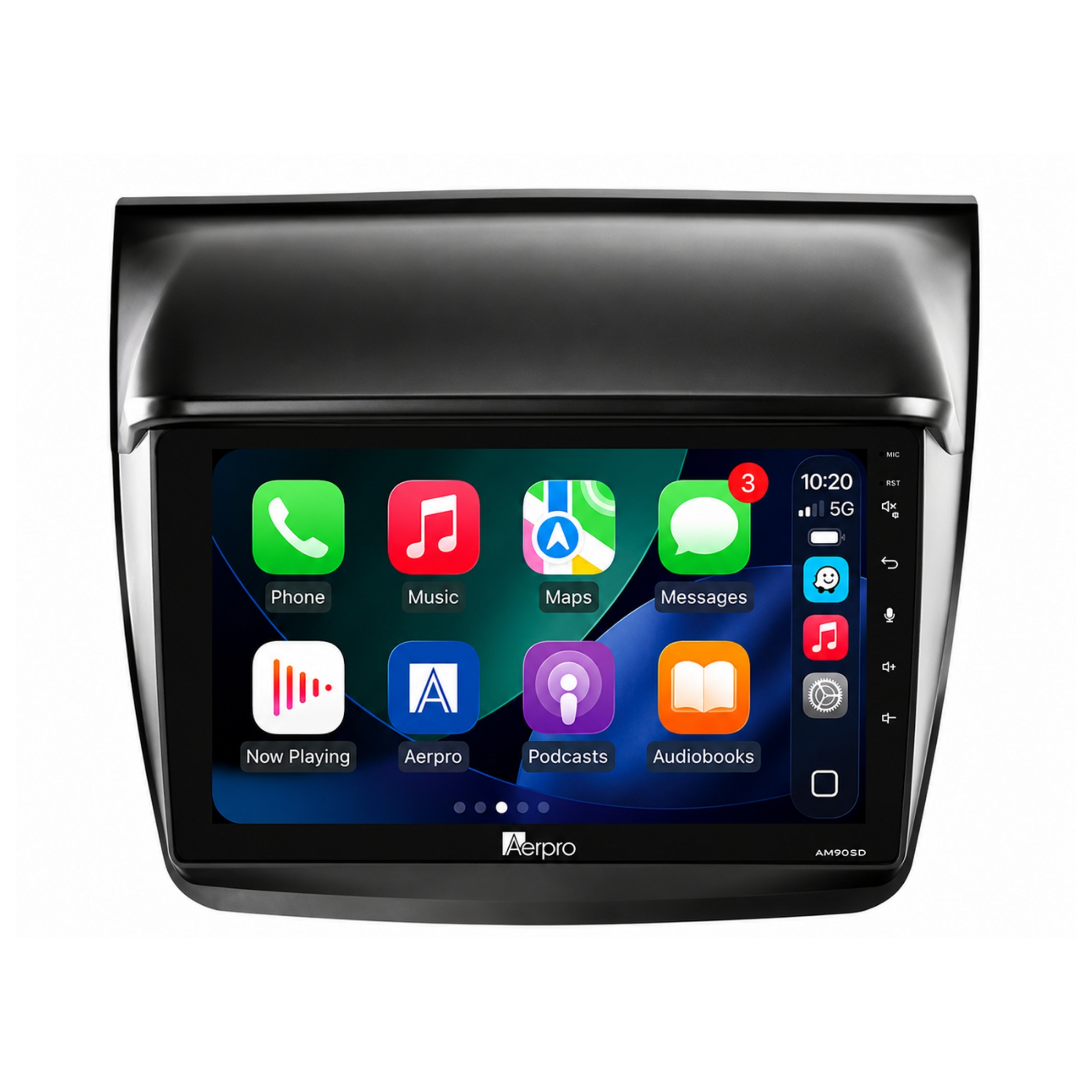

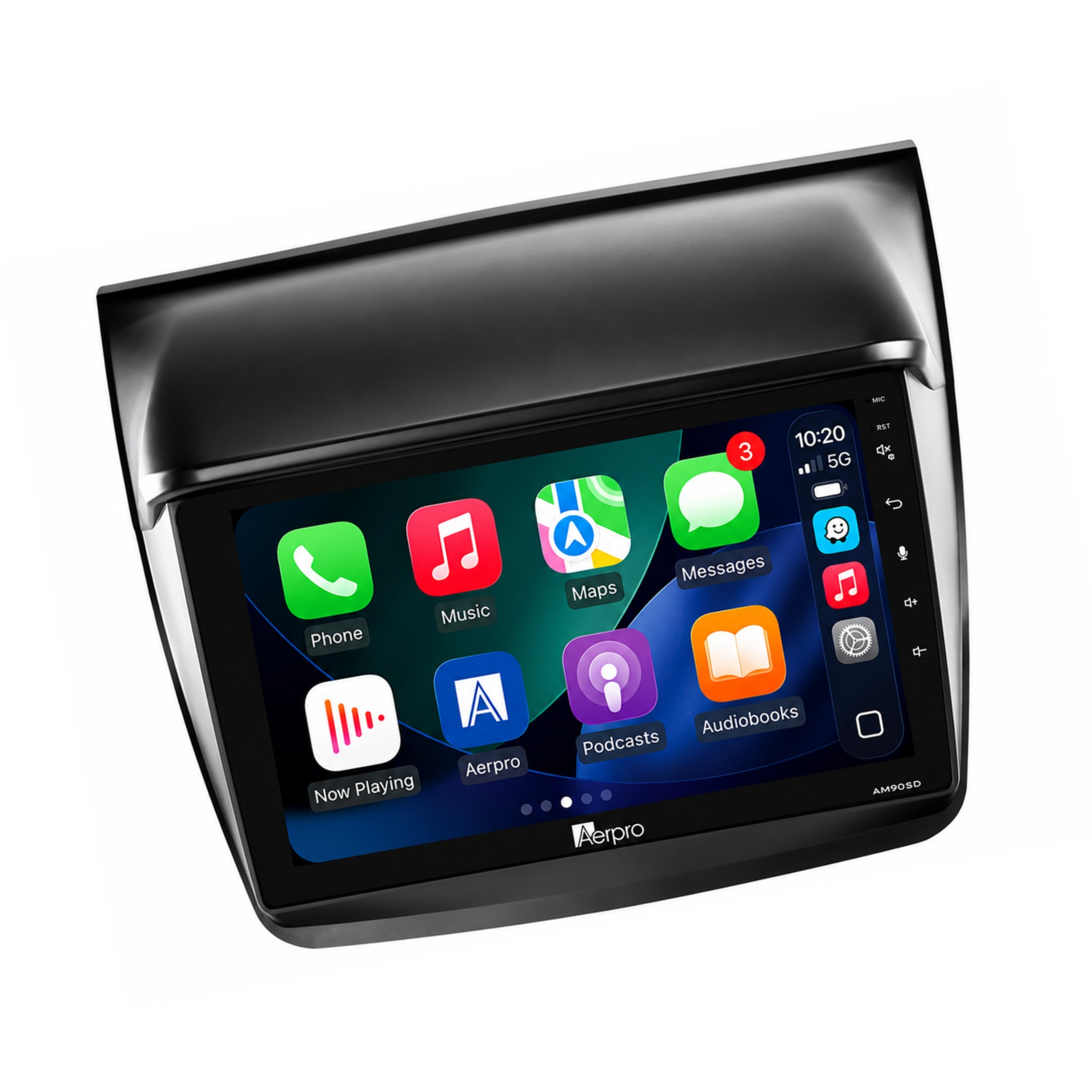

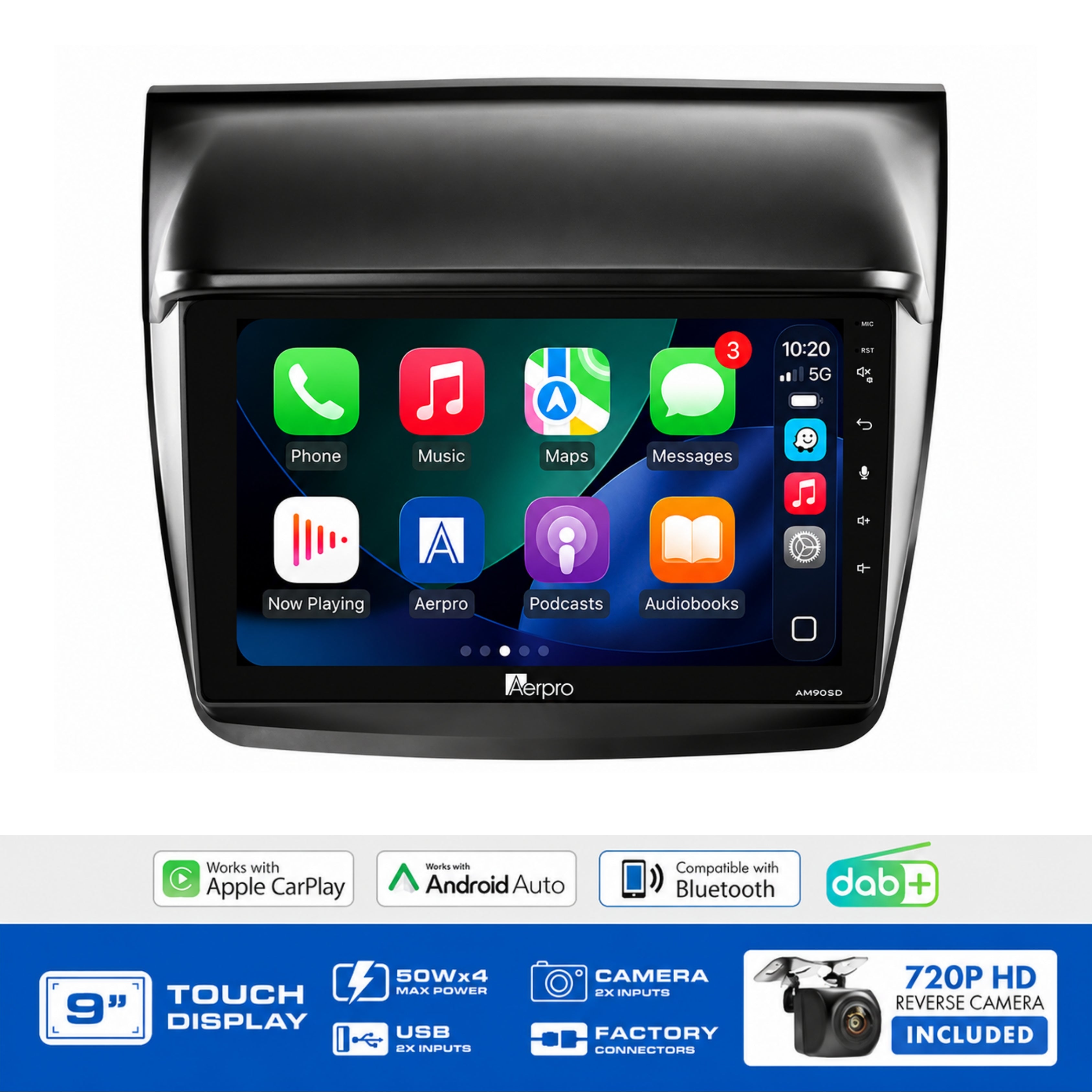

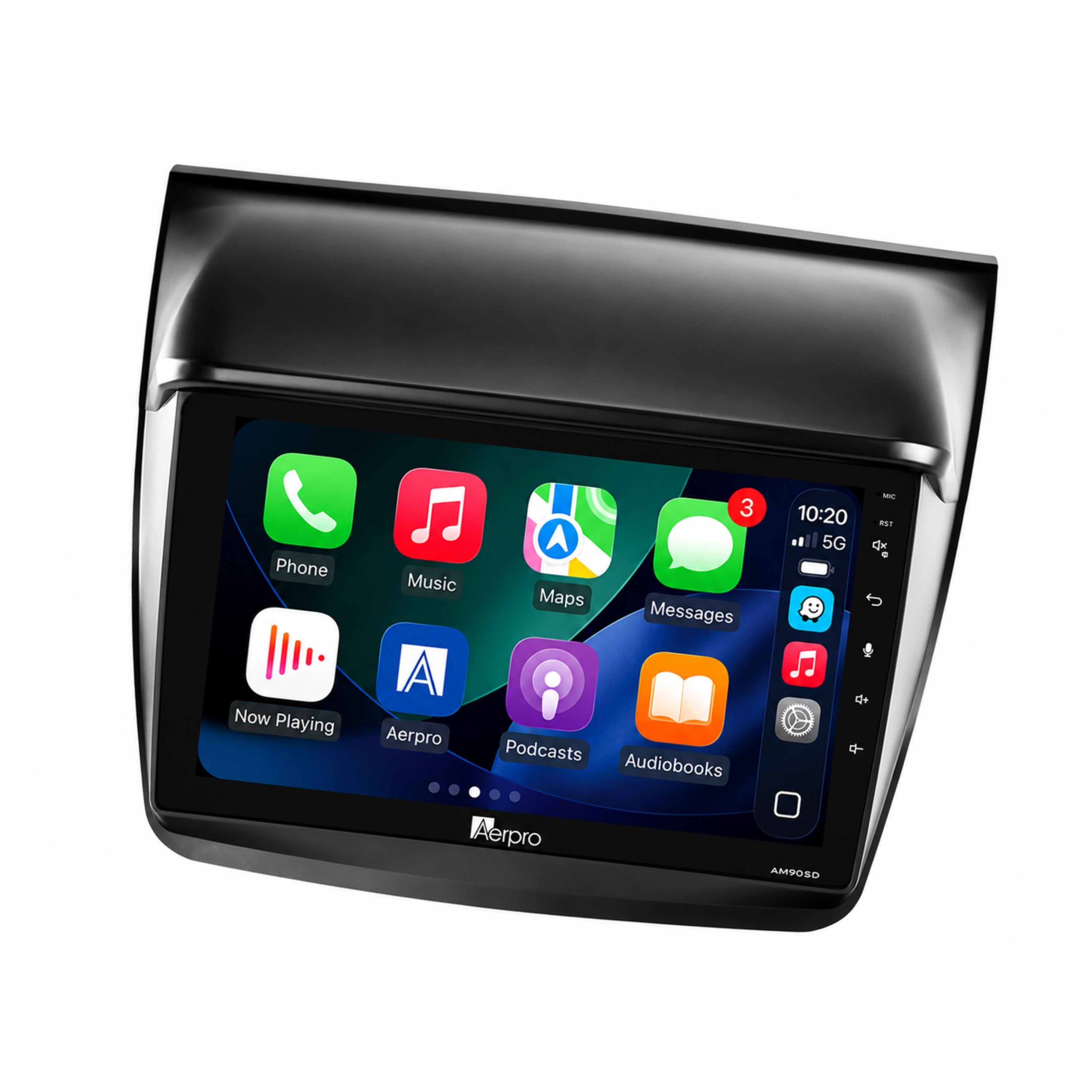

The Aerpro AMDMB23 is a complete head unit upgrade kit designed for the Mitsubishi Triton ML (GL, GLS, GLX, GLX-R, VR) 2007–2009 and Triton MN (GL, GL-R, GLX) 2009–2014 specifically for vehicles without factory steering wheel controls. Everything required for installation is included the AM905D multimedia receiver, black fascia kit, 2x harnesses, head unit removal keys, and a 720P AHD universal rear camera.
The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and streaming, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Black Fascia Kit
- 2x Harnesses
- Head Unit Removal Keys
- 720P AHD Universal Rear Camera
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits no-SWC Triton models: Specifically designed for ML and MN Triton variants without factory steering wheel controls for SWC-equipped models, use the appropriate SWC kit
-
Head unit removal keys included: Simplifies extraction of the factory head unit during installation
-
Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen: Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
-
13-band EQ with time alignment: Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDMB23 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC |
N/A (no SWC models) |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Weight |
4.00kg |
| Suits |
Mitsubishi Triton ML 2007–2009, MN 2009–2014 (no SWC) |
Compatible Vehicles
- Mitsubishi Triton 2007–2009 ML GL, GLX
- Mitsubishi Triton 2007–2009 ML GLS, GLX-R, VR
- Mitsubishi Triton 2009–2014 MN GL
- Mitsubishi Triton 2009–2014 MN GL-R, GLX
Frequently Asked Questions
Does this kit suit Triton models with factory steering wheel controls?
No the AMDMB23 suits Triton models without factory SWC only. For SWC-equipped Triton models, use the appropriate Aerpro SWC kit.
Will the small blue screen on the ML Triton be retained?
No the small blue information screen on the ML Triton will not be retained after installation of the AMDMB23.
What are the head unit removal keys included for?
The removal keys are used to extract the factory head unit from the Triton's DIN slot during installation a required tool for a clean, damage-free removal.
Does CarPlay require the park brake to be connected?
Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
