Description

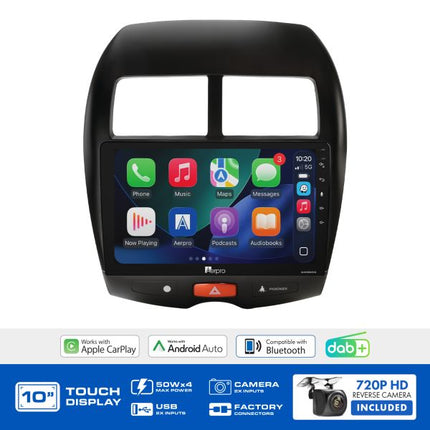

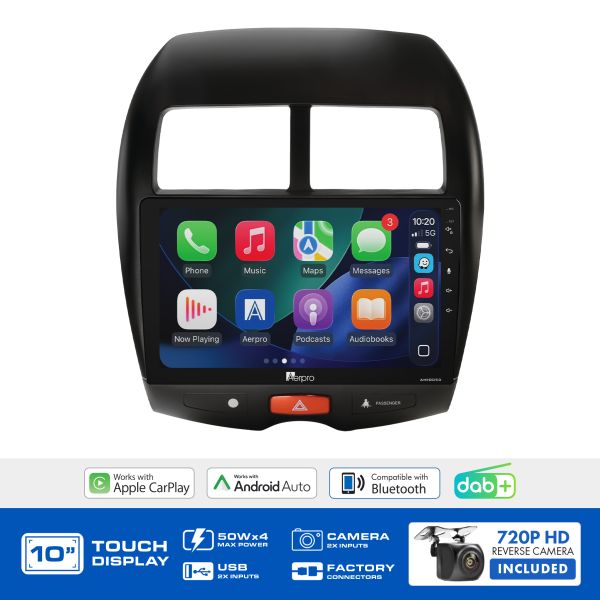

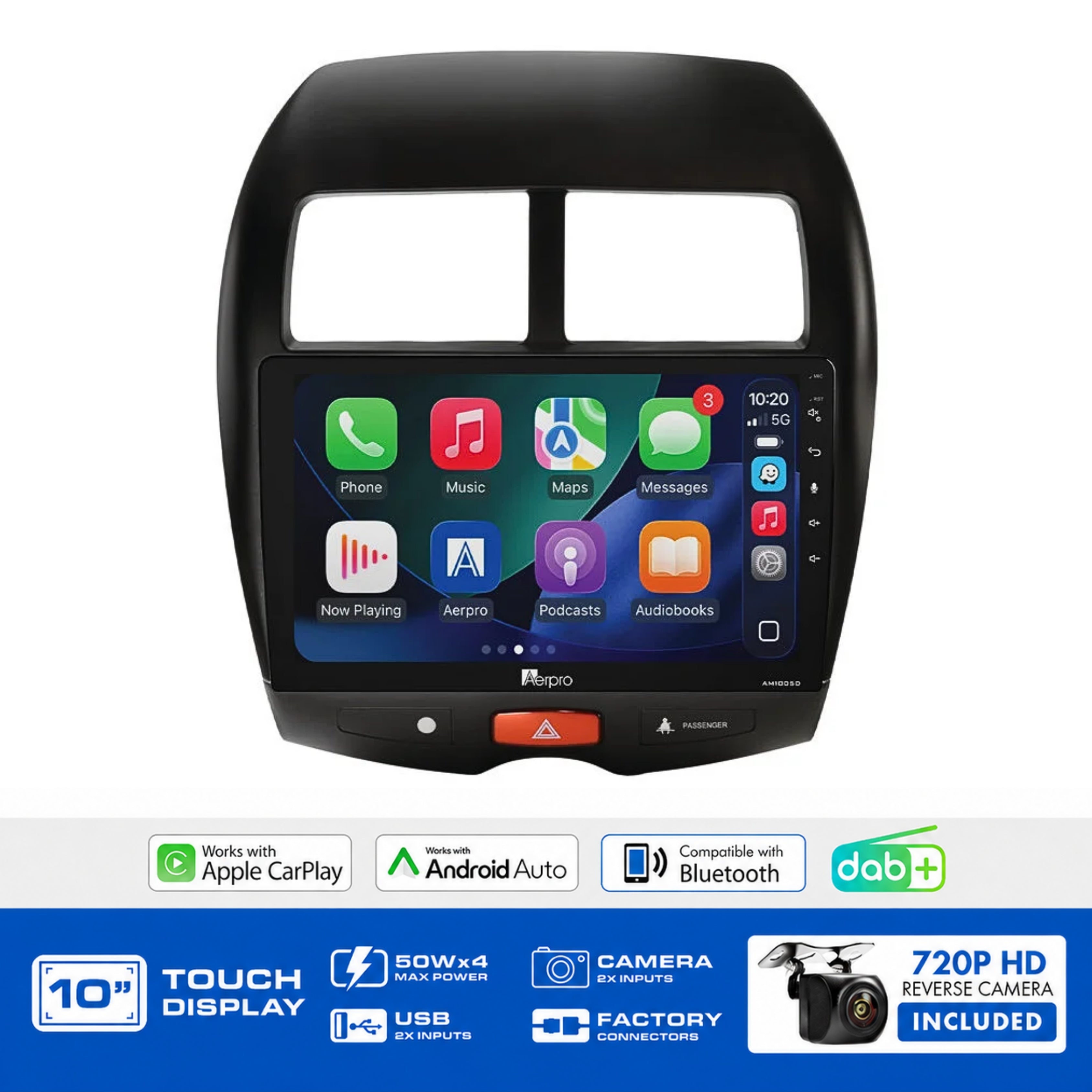

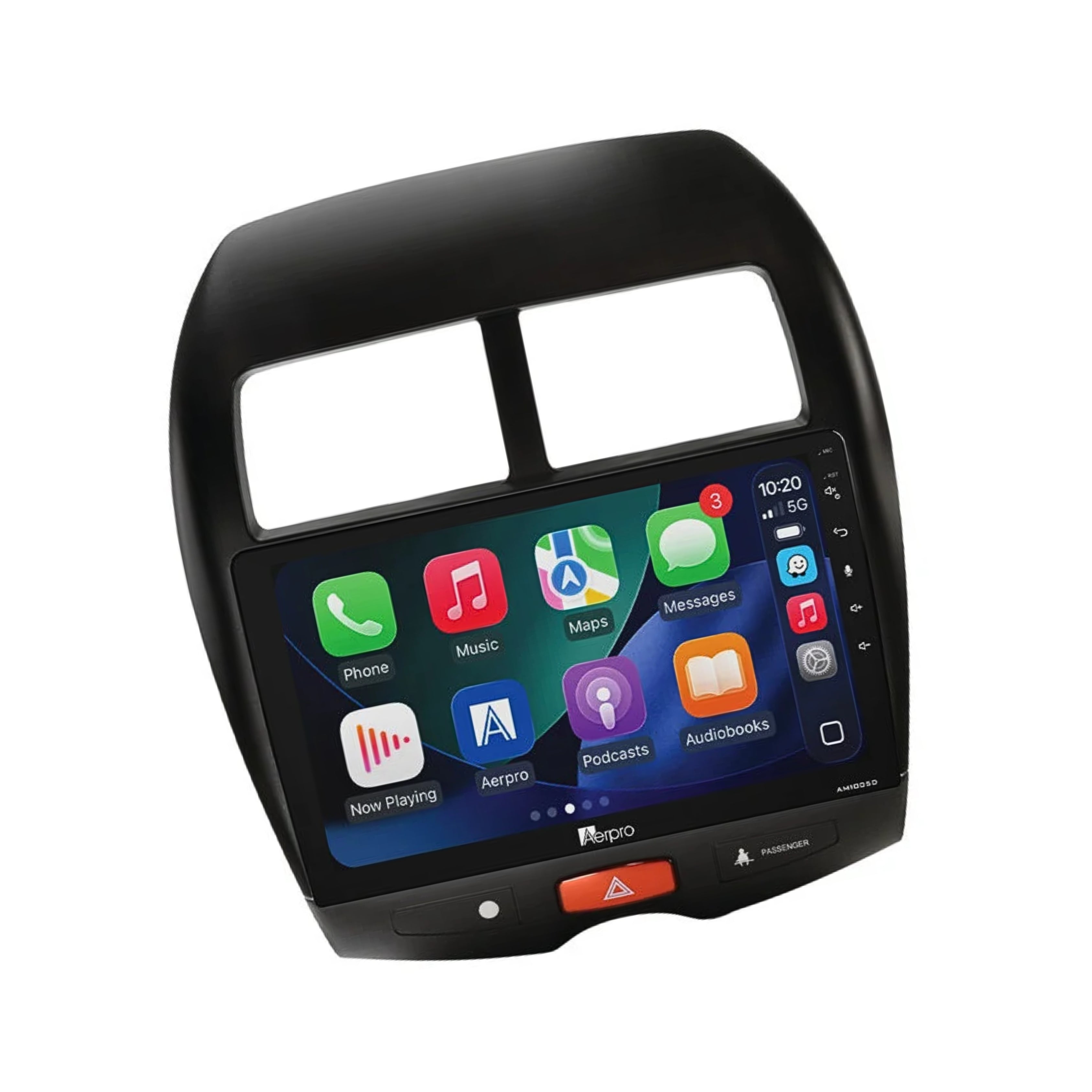

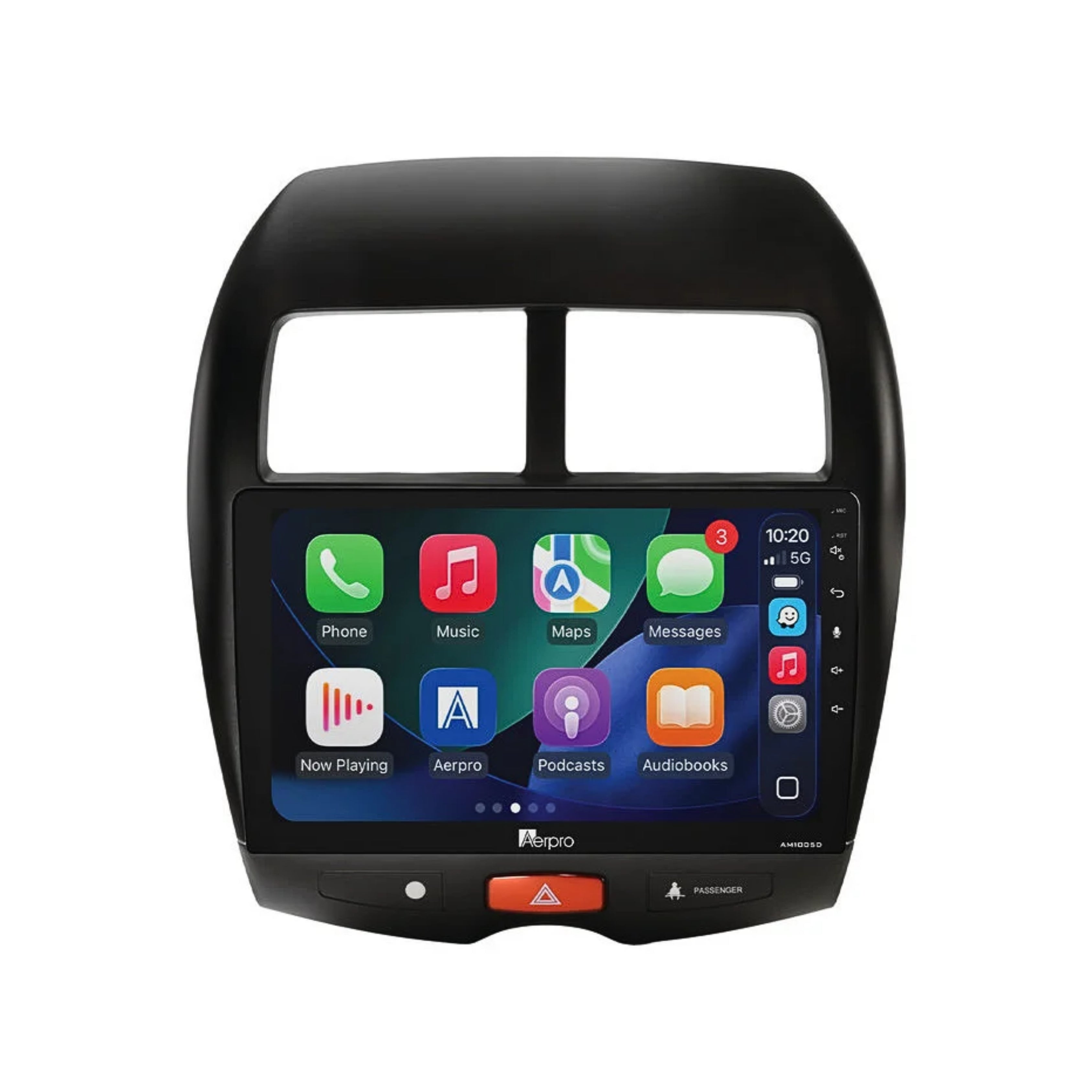

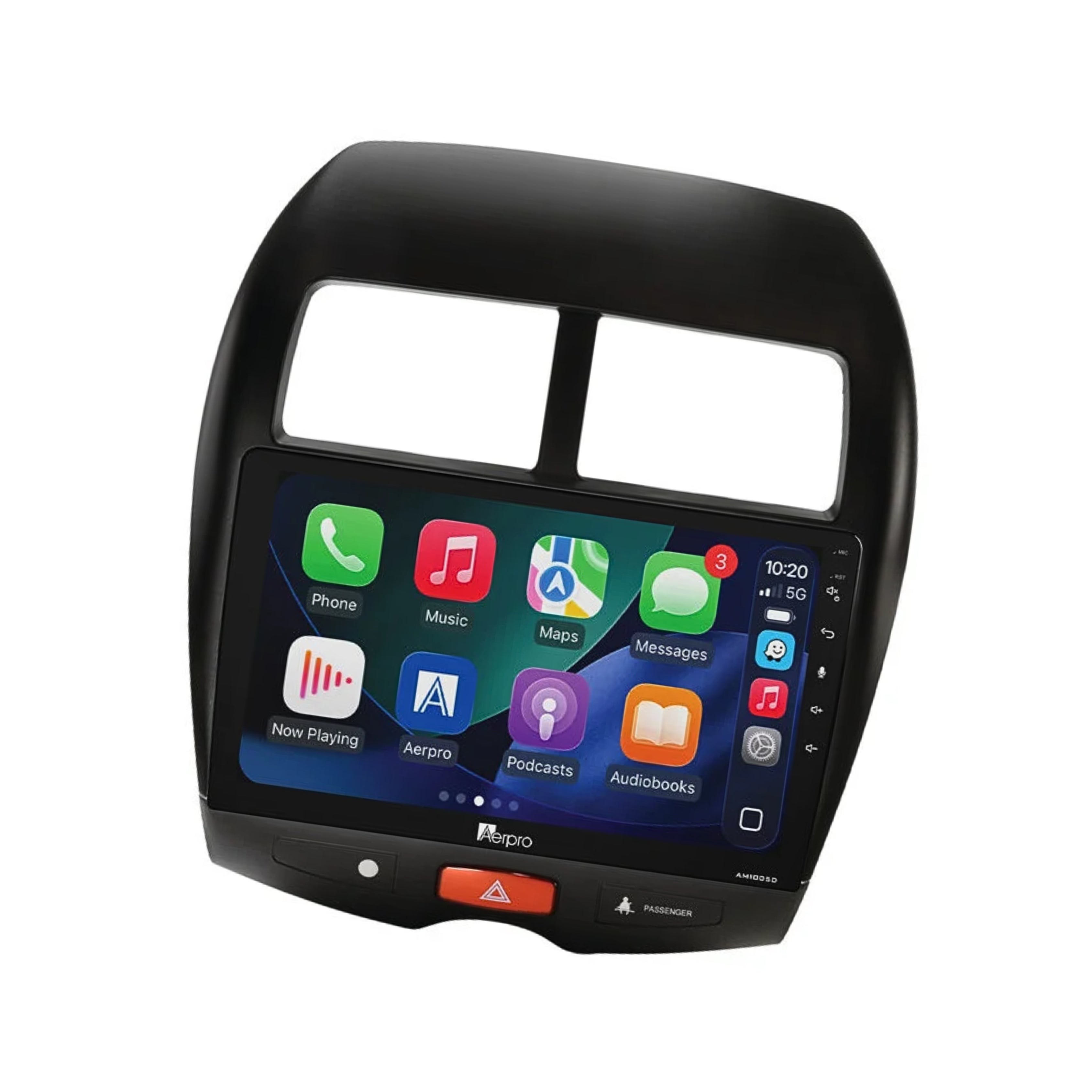

10" Wireless CarPlay for the Later Rockford Fosgate ASX SWC, Amp, USB, Camera and Parking Tones All Retained
Product Overview
The Aerpro AMDMB28 is a complete head unit upgrade kit for the Mitsubishi ASX (2013-on) fitted with a factory Rockford Fosgate amplified audio system. It is the later-generation counterpart to the AMDMB15 (which covers the ASX 2010–2013 Rockford Fosgate), retaining factory steering wheel controls (including the phone button), the Rockford Fosgate amplifier, factory reverse camera (if equipped), factory USB input (if equipped), and parking tones (if equipped). Both camera retention and USB retention adaptors are included in the kit as standard.
The AMDMB28 covers the same Rockford Fosgate retention scope as the AMDMB15 with two differences: vehicle menu is not retained (N/A), and factory settings access is not included. Buyers who need vehicle menu retention on a Rockford Fosgate ASX should confirm their specific year falls within the AMDMB15 range instead.
The kit includes the AM1005D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.
Features & Benefits
-
Rockford Fosgate amplified models only — engineered for the later-generation ASX fitted with the factory Rockford Fosgate system; non-amplified ASX variants use the AMDMB14
-
Factory Rockford Fosgate amplifier retained — the factory amplified audio system is preserved after installation
-
SWC retained including phone button — all factory ASX steering wheel controls carry over via the SWC interface harness and patch lead
-
Factory reverse camera retained (if equipped) — the included camera retention adaptor preserves the factory camera signal via the head unit's reverse camera input
-
Factory USB input retained (if equipped) — the included USB retention adaptor carries over the factory USB port via the head unit's rear USB input
-
Parking tones retained (if equipped) — factory parking tone function is preserved after installation
-
Both camera and USB retention adaptors included — no separately sold adaptors required for these features; all retention hardware is in the kit
-
Vehicle menu not retained — unlike the AMDMB15 (which also retains vehicle menu and factory settings access), the AMDMB28 does not retain vehicle menu on this later ASX generation
-
10" capacitive touchscreen at 1024x600 resolution — same 10" AM1005D format used across the Lancer and ASX range
-
Black vehicle-specific facia kit — matched to the later-generation ASX interior
-
Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
-
Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
-
Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
-
720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens
-
4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration alongside the retained Rockford Fosgate system
Technical Specs
| Specification |
Detail |
| Display size |
10" |
| Head unit model |
AM1005D |
| Resolution |
1024x600 |
| Touchscreen type |
Capacitive |
| OS |
Linux |
| DIN size |
Fixed Screen Style (Trapezoid) |
| Max power output |
4CH x 50W (4 ohm) |
| RCA preouts |
4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage |
4V p-p |
| EQ |
13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs |
6 + 2 custom |
| Time alignment |
Yes |
| Subwoofer level control |
Yes |
| Smartphone connectivity |
Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version |
V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone |
Internal + external (with mount) |
| DAB |
Yes |
| FM tuner range |
87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range |
522–1710KHz (9KHz step) / 12 presets |
| RDS |
Yes |
| USB1 (rear) |
CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) |
Media playback + charging (5V / 1.5A) |
| USB max capacity |
FAT32 / 32GB |
| Media formats |
MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input |
RCA type (3 pcs) |
| Composite video output |
Yes (x2) |
| Reverse camera input |
Yes (720P AHD compatible) |
| Second camera input |
Yes (720P AHD compatible) |
| Button illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language |
English |
| Rear Camera (AHD) |
|
| Image sensor |
Sony 225, 1/3" CMOS AHD |
| Lens angle |
150° |
| Mount type |
Surface mount |
| Feature Retention |
|
| Steering wheel controls |
Yes (including phone button) |
| Factory Rockford Fosgate amp |
Yes — included in kit |
| Factory reverse camera |
Yes (if equipped) — camera retention adaptor included |
| Factory USB input |
Yes (if equipped) — USB retention adaptor included |
| Parking tones |
Yes (if equipped) |
| Vehicle menu |
N/A |
| Factory AUX input |
N/A |
| Park brake requirement |
Not specified |
Compatible With / Goes Well With
- Mitsubishi ASX (2013-on) with factory Rockford Fosgate amplified system
- Supplier metadata references ASX XB (2012–2014) specifically — confirm fitment for your year and generation using the Aerpro What Fits Your Car Guide
-
Not compatible with non-amplified ASX variants — use AMDMB14 for non-amplified ASX (XA/XB/XC 2010–2017) and shared Citroen/Peugeot models
-
Not compatible with ASX (2010–2013) Rockford Fosgate — use AMDMB15 for that generation
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
- Second camera input supports an optional front or towing camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
How does the AMDMB28 differ from the AMDMB15?
Both cover Rockford Fosgate amplified ASX variants but at different year ranges: the AMDMB15 covers 2010–2013 and additionally retains vehicle menu and factory settings access; the AMDMB28 covers 2013-on and does not retain vehicle menu or factory settings. Both kits retain SWC (including phone button), Rockford Fosgate amp, camera (if equipped), USB (if equipped), and parking tones (if equipped), with all retention adaptors included in the box.
Why is there a year range discrepancy in the supplier data?
The product description and title state "2013-on" without an end date. The supplier metadata references "Mitsubishi ASX 2012–2014 XB" — a specific chassis code and narrower year window. Use the Aerpro What Fits Your Car Guide to confirm whether your specific year and ASX generation is covered before purchasing.
Are the camera and USB retention adaptors included?
Yes — both the camera retention adaptor and the USB retention adaptor are included in the kit. No additional purchases are required for camera or USB retention, provided your ASX is factory-equipped with these features.
Is vehicle menu retained?
No — vehicle menu is N/A on the AMDMB28. This distinguishes it from the AMDMB15, which does retain vehicle menu and factory settings access on the earlier Rockford Fosgate ASX.
Does this suit any ASX without Rockford Fosgate amplification?
No — this kit is specifically for Rockford Fosgate amplified ASX models. Non-amplified ASX variants (XA/XB/XC 2010–2017) and the shared-platform Citroen C4 Aircross and Peugeot 4008 use the AMDMB14 instead.
