10" Wireless CarPlay for the Mitsubishi Lancer CJ Non-Amplified, SWC and AUX Retained, Park Brake Required
Product Overview

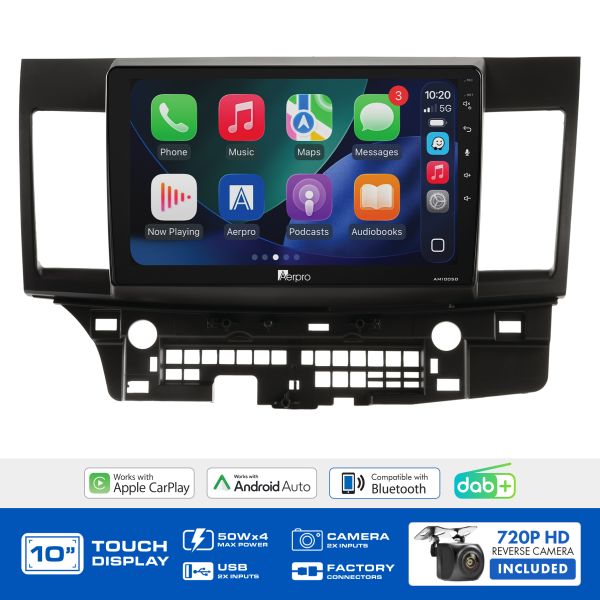

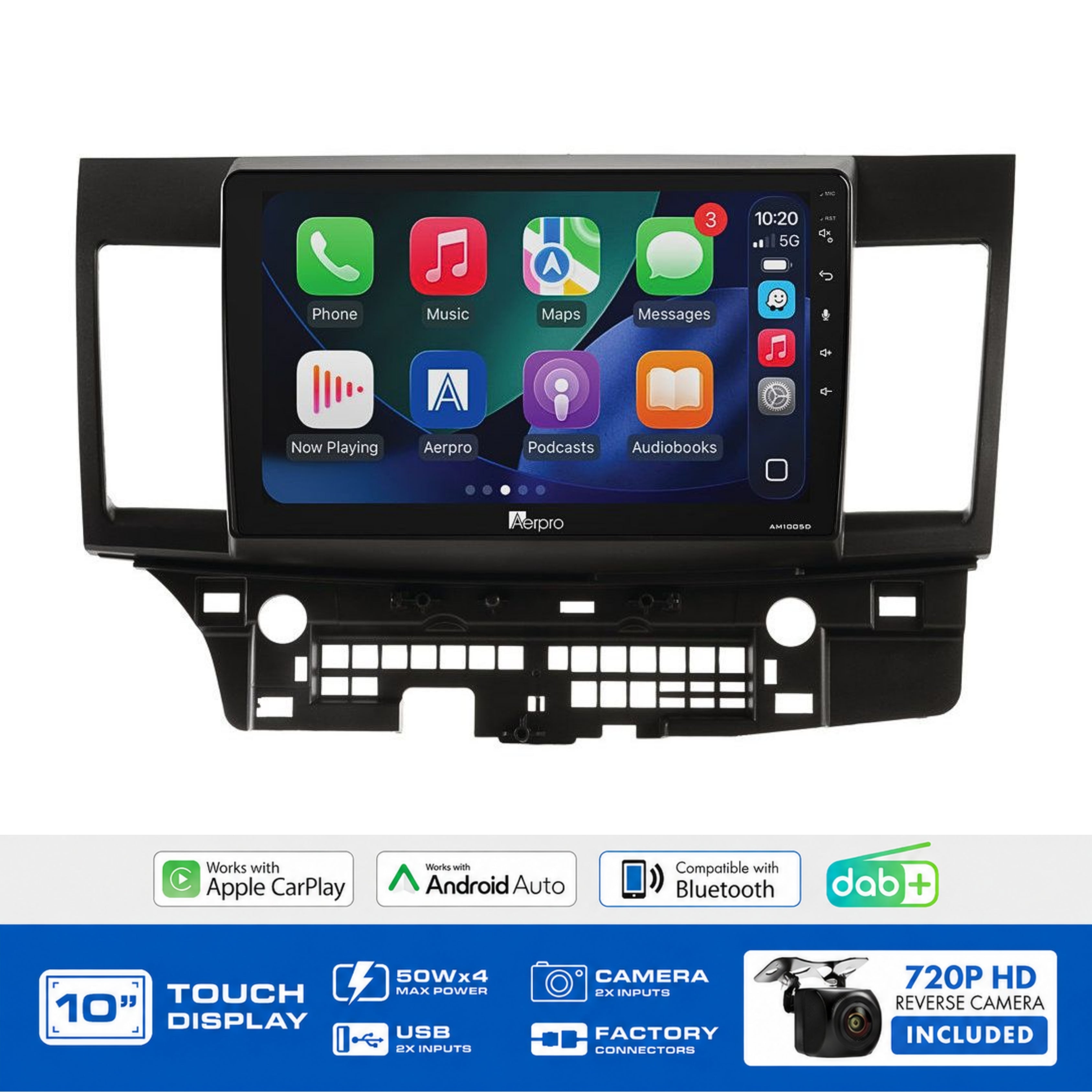

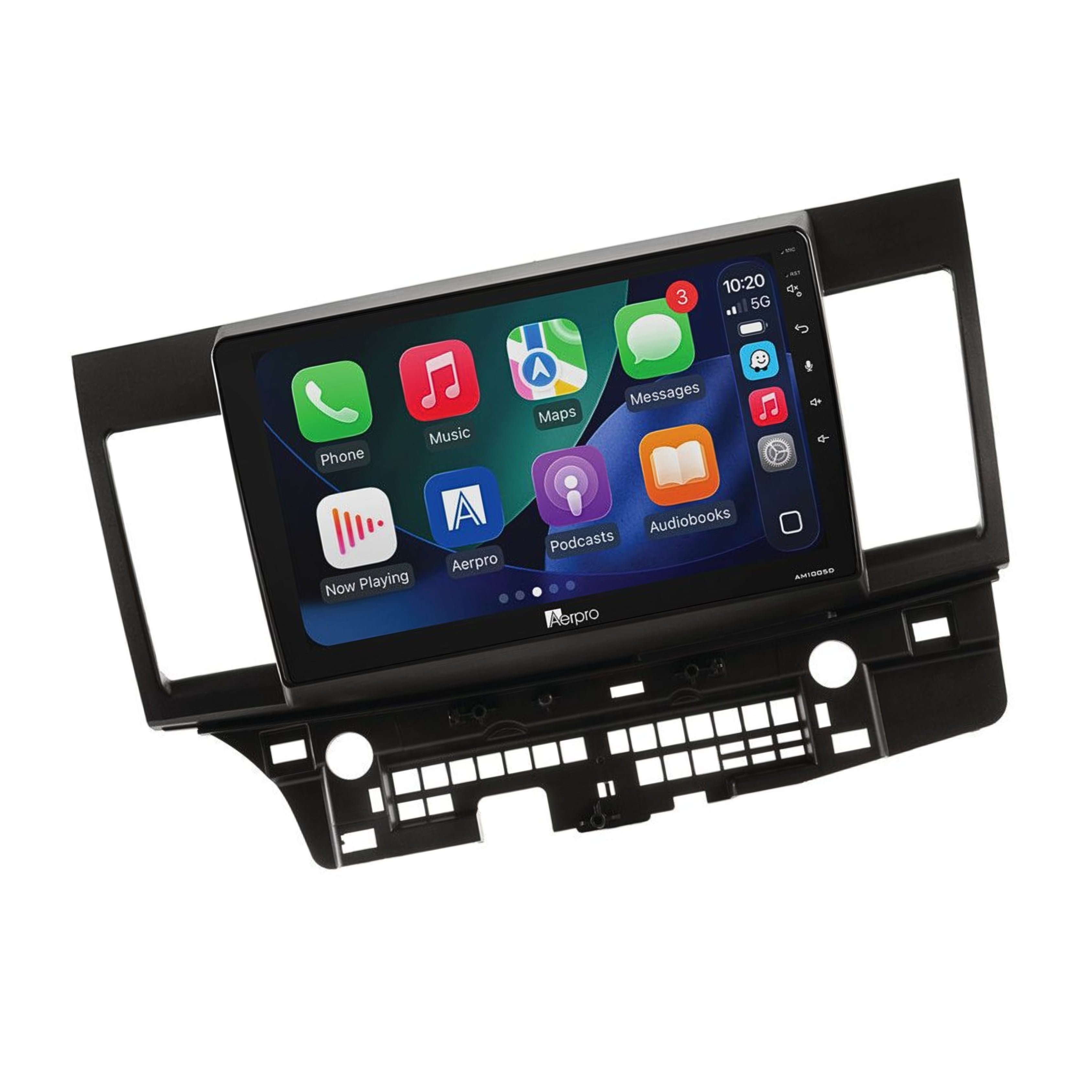

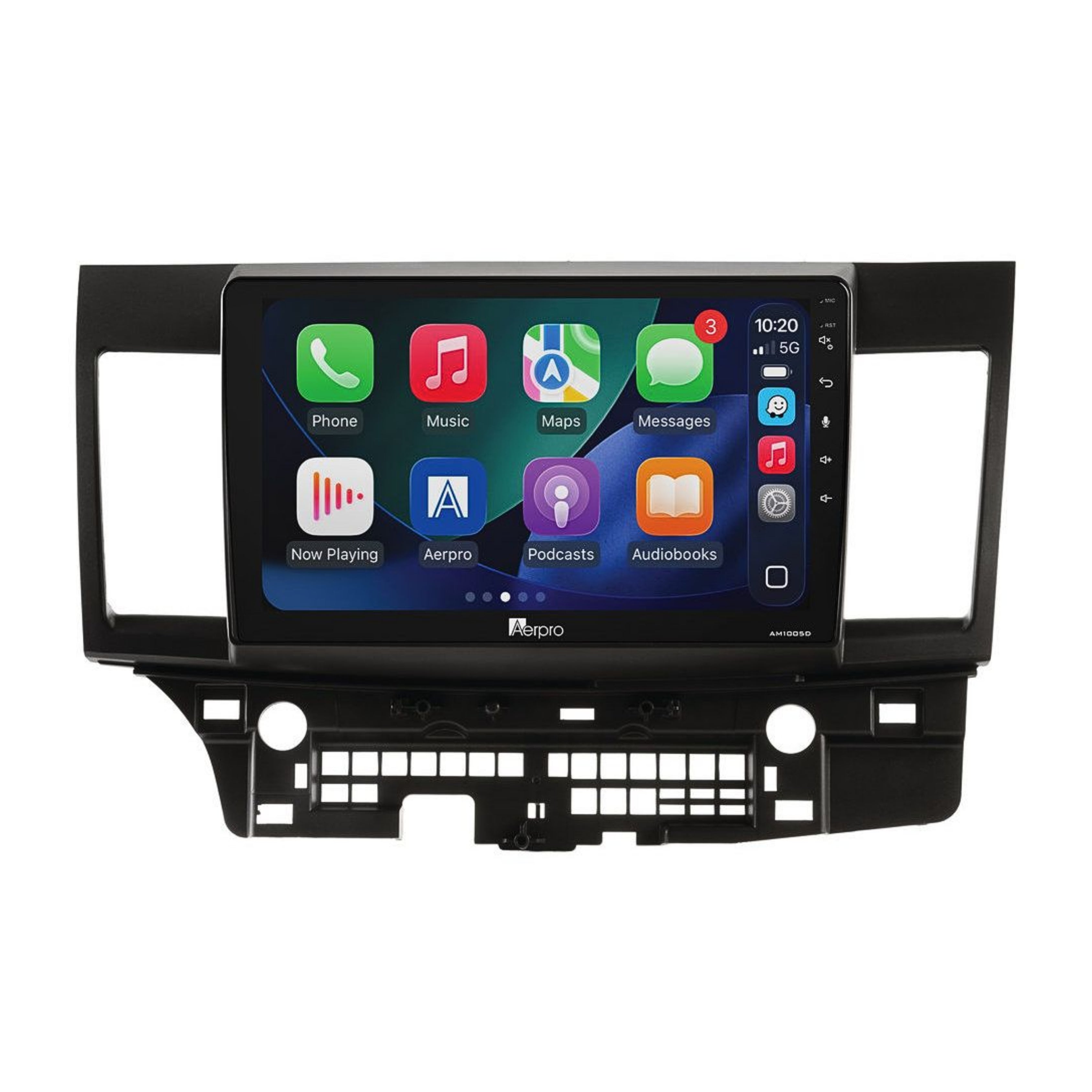

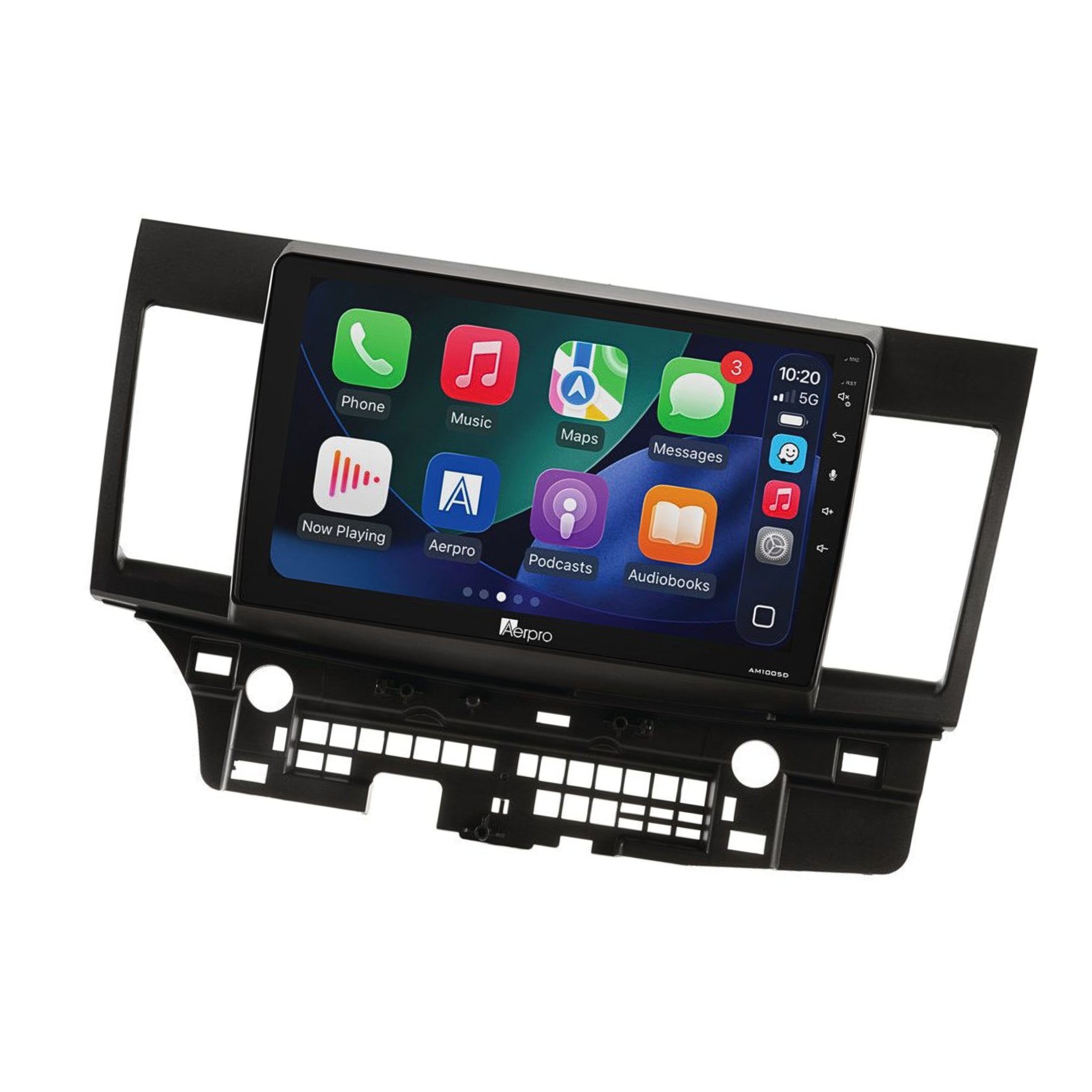

The Aerpro AMDMB4 is a complete head unit upgrade kit for the Mitsubishi Lancer CJ (2007–2010) in non-amplified specification. Featuring the 10" AM1005D multimedia receiver the same larger-format display used in the AMDMB14 for the ASX it replaces the factory head unit with wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5, while retaining factory steering wheel controls (including the phone button) and the factory AUX input where equipped.
The kit includes the AM1005D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, and a 720P AHD universal rear camera. Factory reverse camera, USB, parking tones, and vehicle menu are all N/A for this Lancer platform.
Features & Benefits
-
10" capacitive touchscreen at 1024x600 resolution — a larger display than the standard 9" AM905D units across the Aerpro range; gives the Lancer cabin a notably wider screen for maps, media, and settings
-
SWC retained including phone button — all factory Lancer steering wheel controls including the phone button carry over via the SWC interface harness and patch lead
-
Factory AUX input retained (if equipped) — where the Lancer CJ is fitted with a factory AUX port, it is retained via the RCA AUX input on the rear of the head unit
-
Non-amplified models only — factory-amplified Lancer CJ variants require a different kit
-
Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
-
Black vehicle-specific facia kit — matched to the Lancer CJ interior trim
-
Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
-
Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
-
Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
-
720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to the Lancer
-
4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
-
13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots
Technical Specs
| Specification |
Detail |
| Display size |
10" |
| Head unit model |
AM1005D |
| Resolution |
1024x600 |
| Touchscreen type |
Capacitive |
| OS |
Linux |
| DIN size |
Fixed Screen Style (Trapezoid) |
| Max power output |
4CH x 50W (4 ohm) |
| RCA preouts |
4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage |
4V p-p |
| EQ |
13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs |
6 + 2 custom |
| Time alignment |
Yes |
| Subwoofer level control |
Yes |
| Smartphone connectivity |
Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version |
V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone |
Internal + external (with mount) |
| DAB |
Yes |
| FM tuner range |
87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range |
522–1710KHz (9KHz step) / 12 presets |
| RDS |
Yes |
| USB1 (rear) |
CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) |
Media playback + charging (5V / 1.5A) |
| USB max capacity |
FAT32 / 32GB |
| Media formats |
MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input |
RCA type (3 pcs) |
| Composite video output |
Yes (x2) |
| Reverse camera input |
Yes (720P AHD compatible) |
| Second camera input |
Yes (720P AHD compatible) |
| Button illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language |
English |
| Rear Camera (AHD) |
|
| Image sensor |
Sony 225, 1/3" CMOS AHD |
| Lens angle |
150° |
| Mount type |
Surface mount |
| Feature Retention |
|
| Steering wheel controls |
Yes (including phone button) |
| Factory AUX input |
Yes (if equipped) — via RCA AUX input on head unit |
| Factory reverse camera |
N/A |
| Factory USB input |
N/A |
| Parking tones |
N/A |
| Vehicle menu |
N/A |
| Factory amplifier |
Not retained — non-amplified models only |
| Park brake requirement |
Park brake wire must be connected for CarPlay/Android Auto |
Compatible With / Goes Well With
- Mitsubishi Lancer CJ (2007–2010) — non-amplified variants only
-
Not compatible with factory-amplified Lancer CJ variants
- Buyers with a Lancer outside the 2007–2010 range should confirm fitment using the Aerpro What Fits Your Car Guide, as supplier metadata references the CJ generation more broadly up to 2013
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
- Second camera input supports an optional front or towing camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
Is the 10" screen noticeably bigger than other Aerpro head unit kits?
Yes — the AMDMB4 uses the AM1005D with a 10" capacitive touchscreen, compared to the 9" AM905D in the majority of Aerpro vehicle-specific kits. The larger display makes a meaningful visual difference in the Lancer cabin.
Does the Lancer CJ have a factory reverse camera to retain?
No — the 2007–2010 Lancer CJ is not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.
What AUX input does this retain and how?
Some Lancer CJ models came with a factory AUX port in the console or connected to the factory head unit. Where fitted, this is retained via the RCA AUX input on the rear of the AM1005D head unit. The RCA AUX input accepts a standard stereo line level signal.
Does this suit Lancer CJ models from 2010 onwards?
The product is specified for 2007–2010, but the supplier metadata references the CJ generation up to 2013. Confirm compatibility for your specific model year using the Aerpro What Fits Your Car Guide before purchasing.
Why is the park brake wire required?
The AM1005D head unit includes a safety interlock that requires the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate — this is a design requirement of the head unit.
