Description
10" Wireless CarPlay for the Later Rockford Fosgate Lancer Amp, USB, Camera and Factory Amp Settings Retained
Product Overview

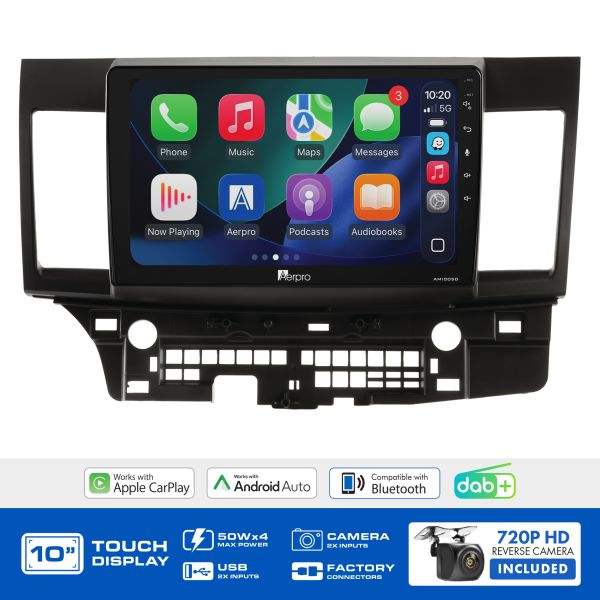

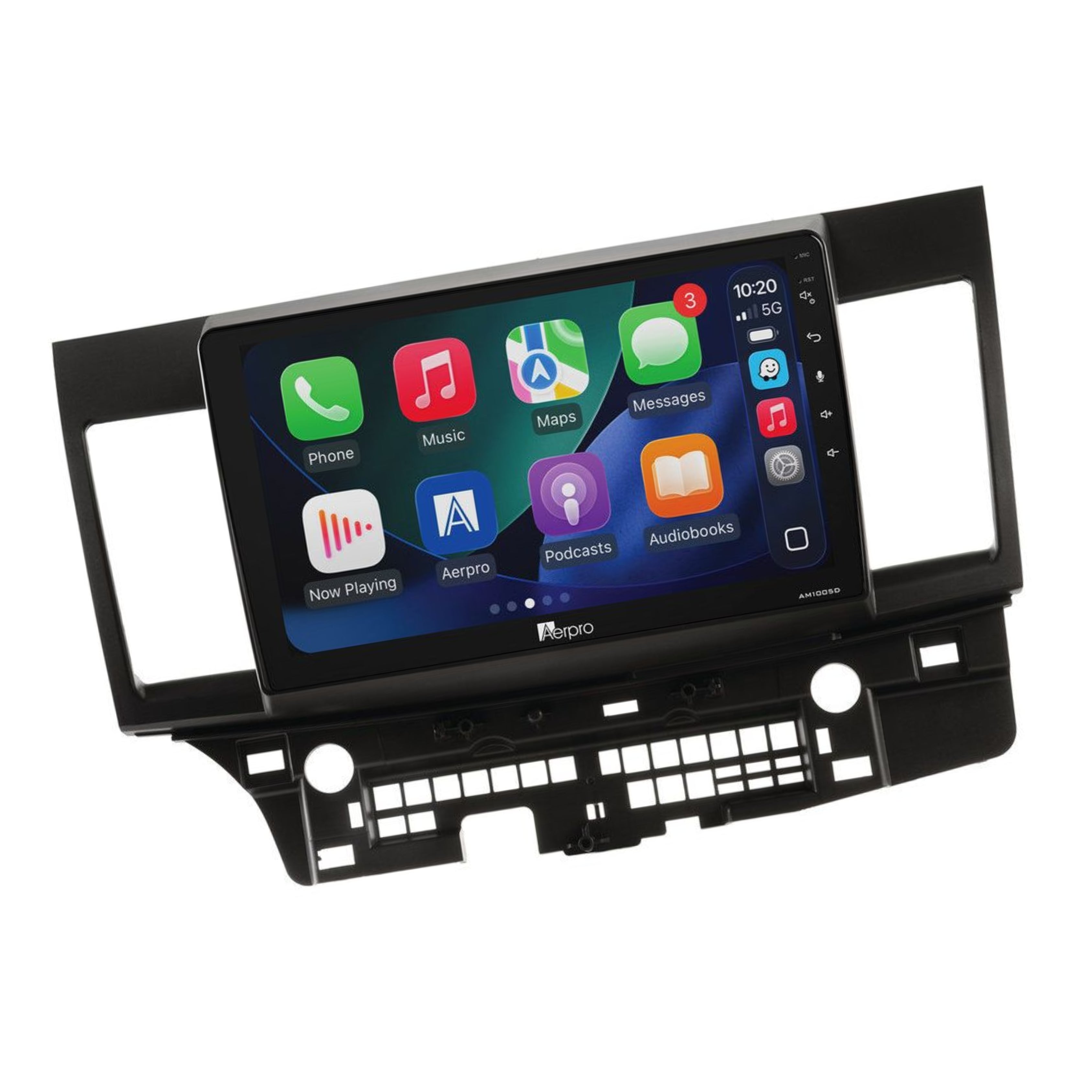

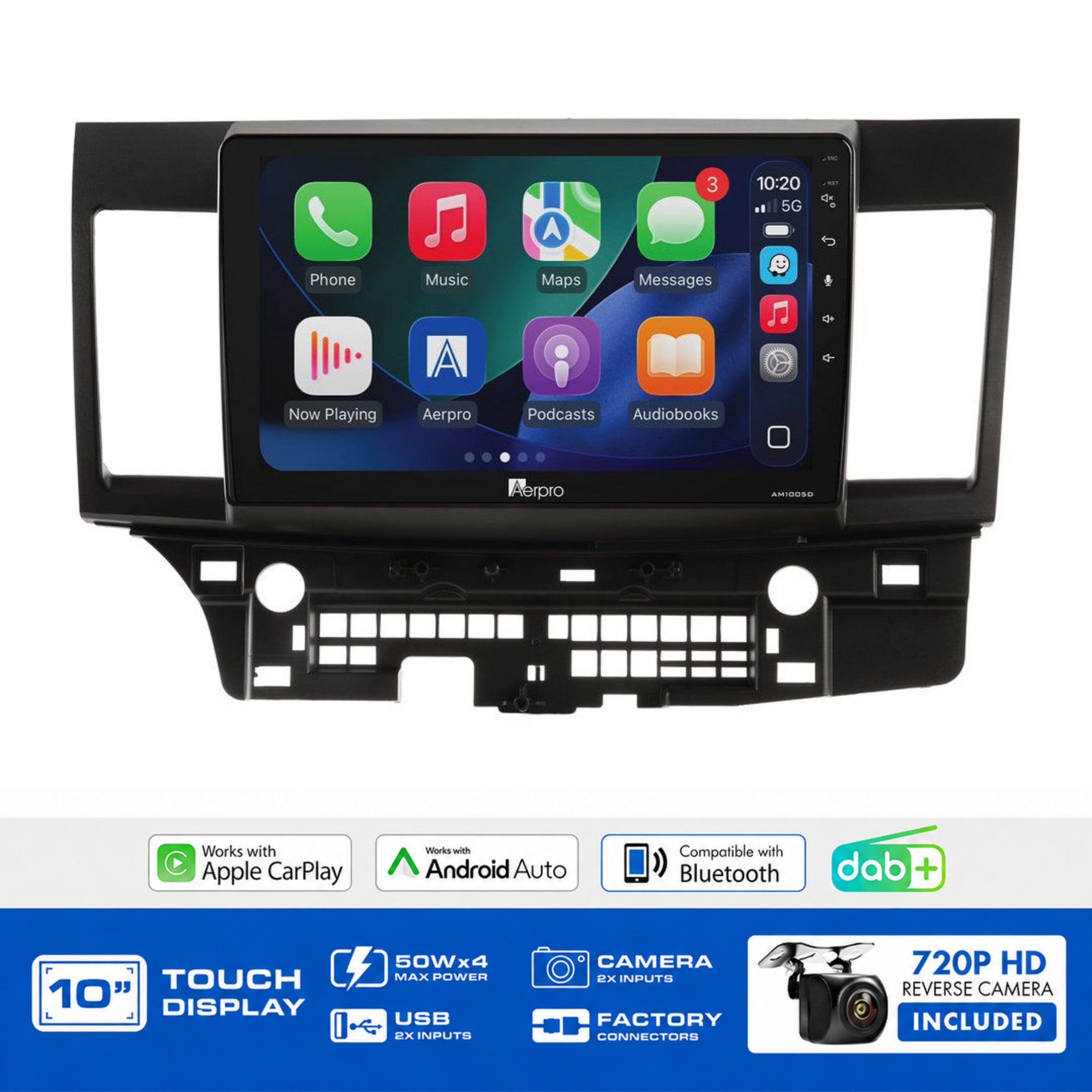

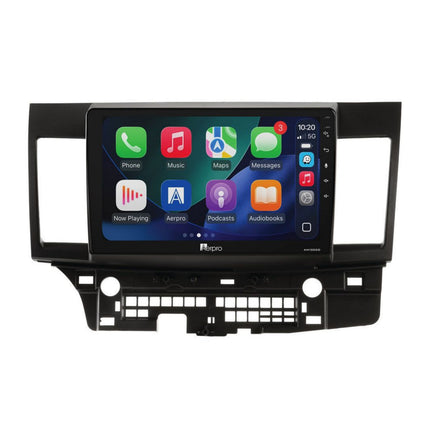

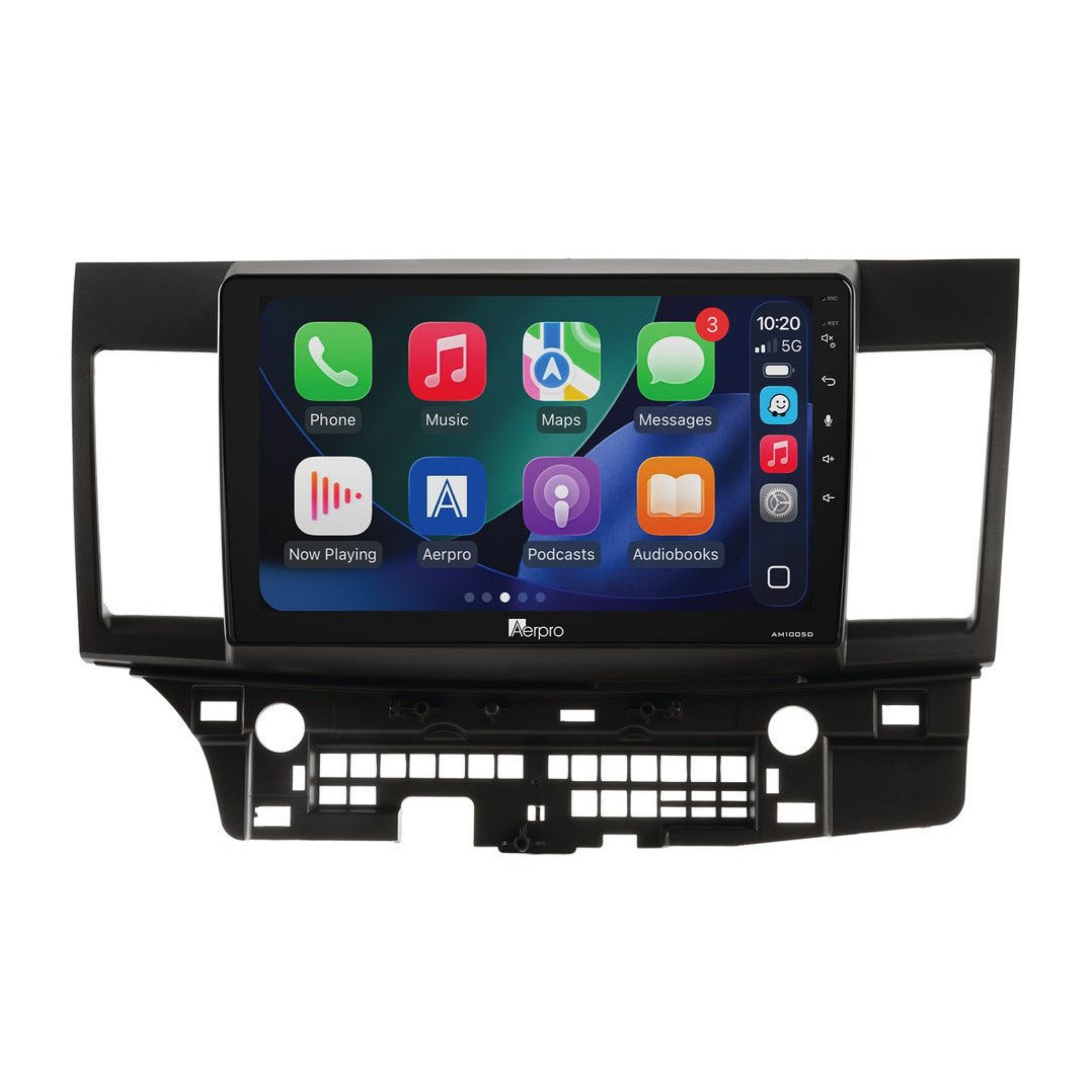

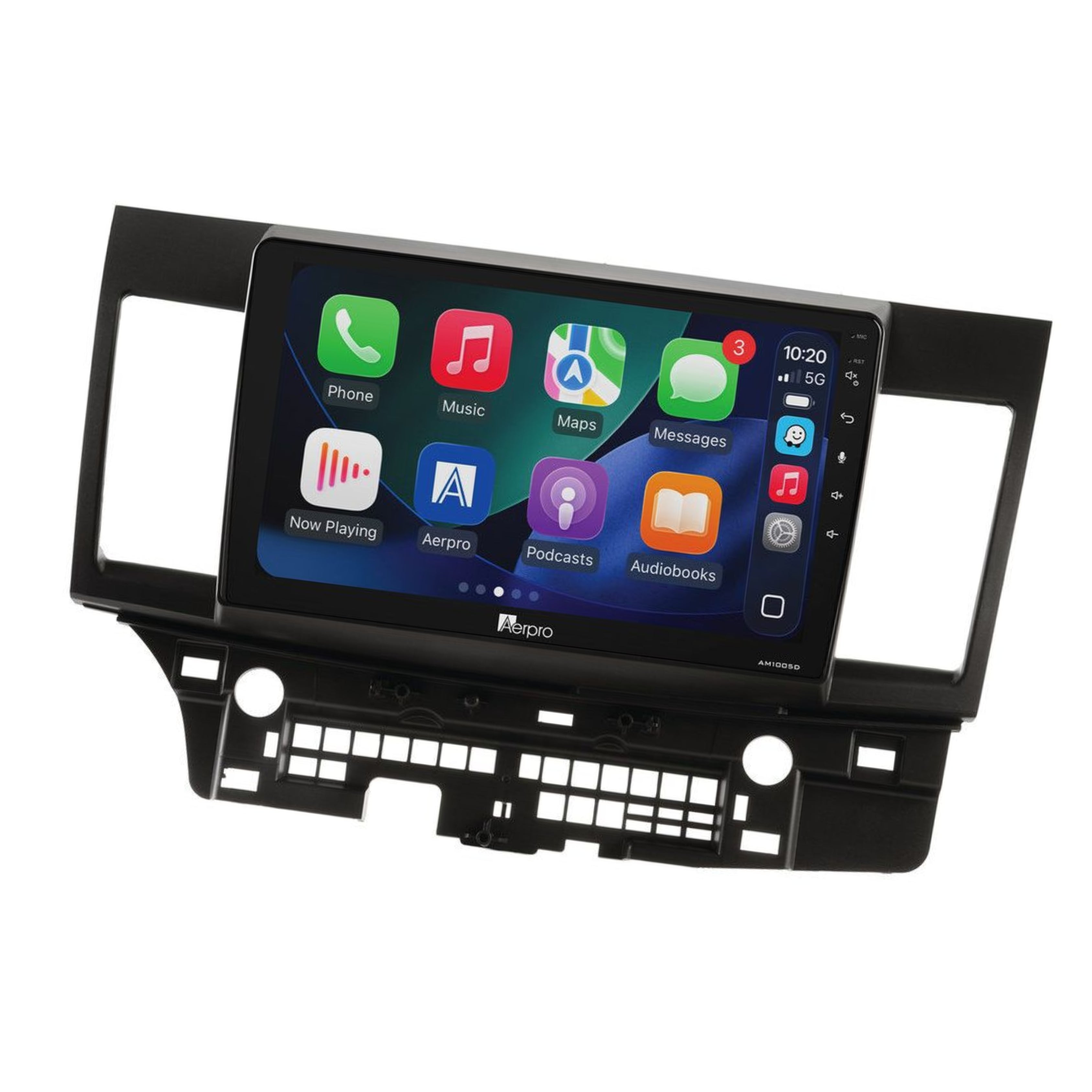

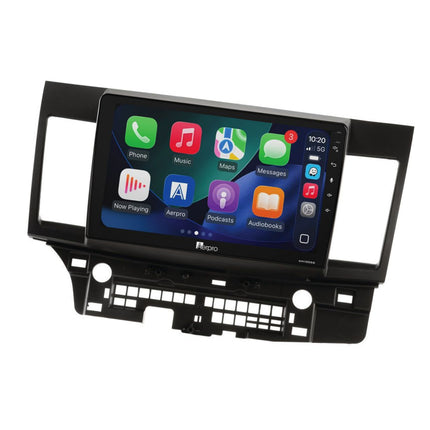

The Aerpro AMDMB7 is a complete head unit upgrade kit for the Mitsubishi Lancer (2013–2017) fitted with a factory Rockford Fosgate amplified audio system. It is the later-generation counterpart to the AMDMB6 (Lancer 2007–2013 Rockford Fosgate), retaining factory steering wheel controls (including the phone button), the Rockford Fosgate amplifier, factory reverse camera (if equipped), factory USB input (if equipped), and access to factory amplifier settings.
The AMDMB7 differs from the AMDMB6 in two ways: it adds USB retention (the USB retention adaptor is included in the kit), and vehicle menu is not retained (N/A on this generation). Both camera and USB retention adaptors are included as standard.
The kit includes the AM1005D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera. AUX and parking tones are N/A for this Rockford Fosgate Lancer integration.
Features & Benefits
-
Rockford Fosgate amplified Lancer (2013–2017) only — the later-generation Rockford Fosgate Lancer kit; earlier Rockford Fosgate Lancer variants (2007–2013) use the AMDMB6
-
Factory Rockford Fosgate amplifier retained — the factory amplified audio system is preserved after installation
-
Factory amplifier settings access retained — the SWC harness retains access to the Rockford Fosgate amplifier's configurable parameters through the new head unit interface
-
SWC retained including phone button — all factory Lancer steering wheel controls carry over via the SWC interface harness and patch lead
-
Factory USB input retained (if equipped) — the included USB retention adaptor carries over the factory USB port via the head unit's rear USB input
-
Factory reverse camera retained (if equipped) — the included camera retention adaptor preserves the factory reverse camera signal via the head unit's reverse camera input
-
Both camera and USB retention adaptors included — all retention hardware in the box; no separately sold adaptors required
-
Vehicle menu not retained — unlike the AMDMB6 which retains vehicle menu, vehicle menu is N/A on this later Lancer generation
-
AUX and parking tones not applicable — N/A for this Rockford Fosgate Lancer integration
-
10" capacitive touchscreen at 1024x600 resolution — the same 10" AM1005D format used across the Lancer CJ range
-
Black vehicle-specific facia kit — matched to the 2013–2017 Lancer interior
-
Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
-
Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
-
Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
-
720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens
-
4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration alongside the retained Rockford Fosgate system
Technical Specs
| Specification |
Detail |
| Display size |
10" |
| Head unit model |
AM1005D |
| Resolution |
1024x600 |
| Touchscreen type |
Capacitive |
| OS |
Linux |
| DIN size |
Fixed Screen Style (Trapezoid) |
| Max power output |
4CH x 50W (4 ohm) |
| RCA preouts |
4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage |
4V p-p |
| EQ |
13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs |
6 + 2 custom |
| Time alignment |
Yes |
| Subwoofer level control |
Yes |
| Smartphone connectivity |
Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version |
V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone |
Internal + external (with mount) |
| DAB |
Yes |
| FM tuner range |
87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range |
522–1710KHz (9KHz step) / 12 presets |
| RDS |
Yes |
| USB1 (rear) |
CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) |
Media playback + charging (5V / 1.5A) |
| USB max capacity |
FAT32 / 32GB |
| Media formats |
MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input |
RCA type (3 pcs) |
| Composite video output |
Yes (x2) |
| Reverse camera input |
Yes (720P AHD compatible) |
| Second camera input |
Yes (720P AHD compatible) |
| Button illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language |
English |
| Rear Camera (AHD) |
|
| Image sensor |
Sony 225, 1/3" CMOS AHD |
| Lens angle |
150° |
| Mount type |
Surface mount |
| Feature Retention |
|
| Steering wheel controls |
Yes (including phone button) |
| Factory Rockford Fosgate amp |
Yes — included in kit |
| Factory amplifier settings |
Yes — access retained via SWC harness |
| Factory reverse camera |
Yes (if equipped) — camera retention adaptor included |
| Factory USB input |
Yes (if equipped) — USB retention adaptor included |
| Vehicle menu |
N/A |
| Factory AUX input |
N/A |
| Parking tones |
N/A |
| Park brake requirement |
Not specified |
Compatible With / Goes Well With
- Mitsubishi Lancer (2013–2017) with factory Rockford Fosgate amplified system
-
Not compatible with non-Rockford Fosgate Lancer variants — use AMDMB5 (2010–2017 SWC) for those
-
Not compatible with Rockford Fosgate Lancer (2007–2013) — use AMDMB6 for that generation
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
- Second camera input supports an optional front or towing camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
How does the AMDMB7 differ from the AMDMB6?
Both cover Rockford Fosgate amplified Lancer variants at different year ranges: AMDMB6 for 2007–2013, AMDMB7 for 2013–2017. The AMDMB7 adds USB retention (USB retention adaptor included in the kit) which the AMDMB6 does not have. In contrast, the AMDMB7 does not retain the vehicle menu, which the AMDMB6 does. Both retain SWC (including phone button), Rockford Fosgate amplifier, factory reverse camera (if equipped), and factory amplifier settings access.
What does "Access Factory Amp Settings" mean?
The Rockford Fosgate amplified system in the Lancer has configurable amplifier parameters — crossover frequencies, gain settings, and other audio parameters — that are normally accessed through the factory head unit. The AMDMB7's SWC harness retains this interface, allowing these settings to remain accessible through the new AM1005D head unit rather than becoming locked out after the swap.
Are both camera and USB retention adaptors included?
Yes — both are in the kit. The camera retention adaptor carries over the factory reverse camera signal via the head unit's reverse camera input; the USB retention adaptor carries over the factory USB port via the head unit's rear USB input. No separate purchases are required for either.
Is vehicle menu retained?
No — vehicle menu is N/A on the AMDMB7. This is a key difference from the AMDMB6, which does retain vehicle menu on the earlier Rockford Fosgate Lancer generation.
Does the 2013-2017 Lancer always have Rockford Fosgate audio?
No — the Rockford Fosgate system was a higher-specification option, not fitted across the full Lancer range. Non-Rockford Lancer variants from 2013–2017 use the AMDMB5. Confirm your Lancer's audio system specification before purchasing.
