Description
Complete 9" Head Unit Upgrade Kit for Mazda 2 DE Series 1 2007–2011 (Without Steering Wheel Controls) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Rear Camera Included.
Product Overview

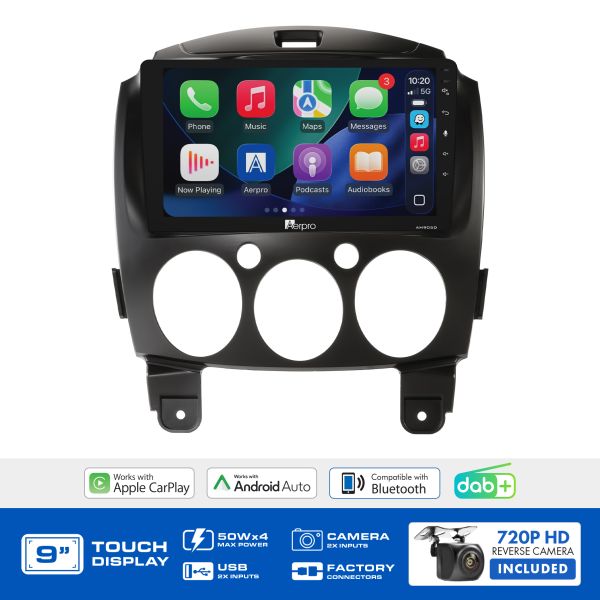

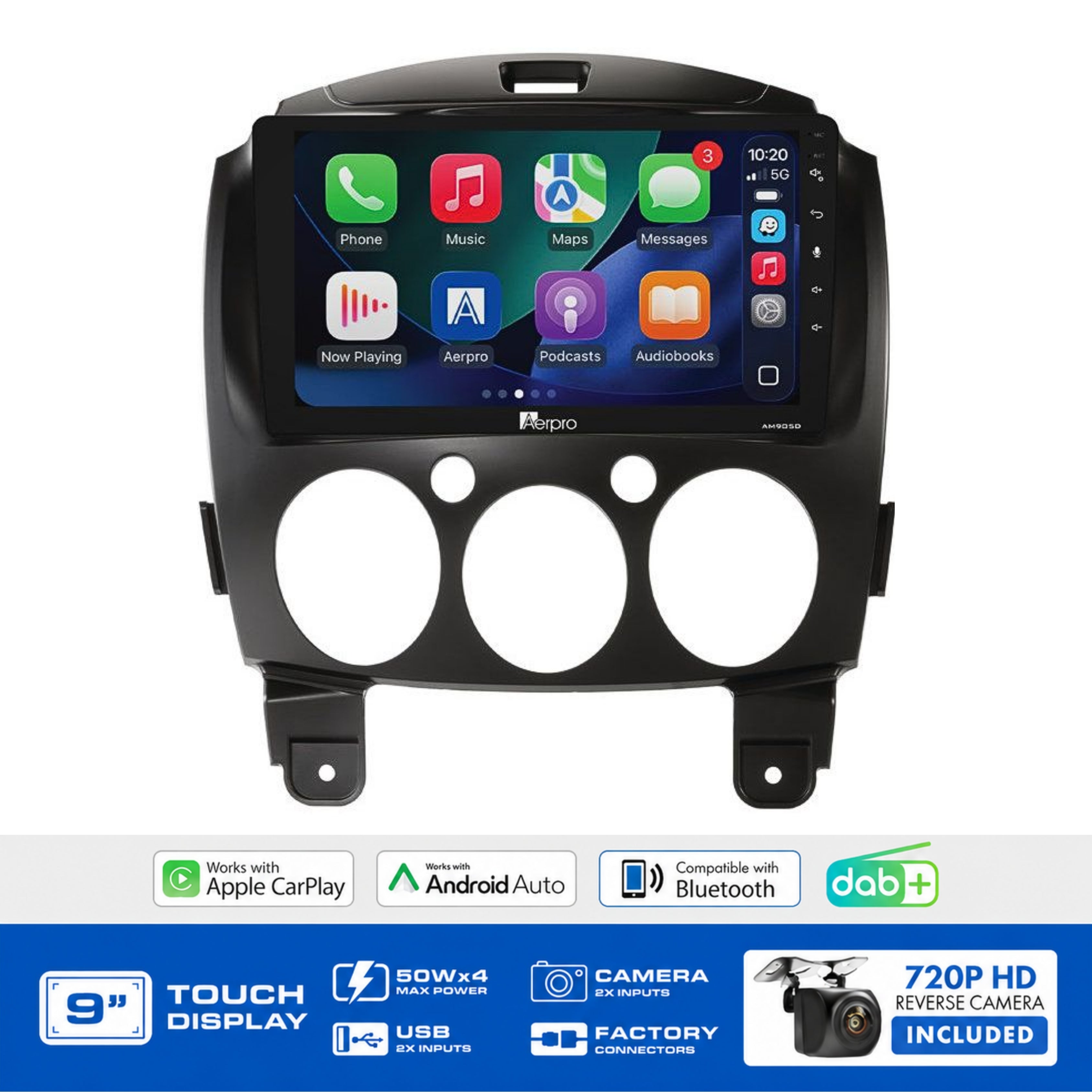

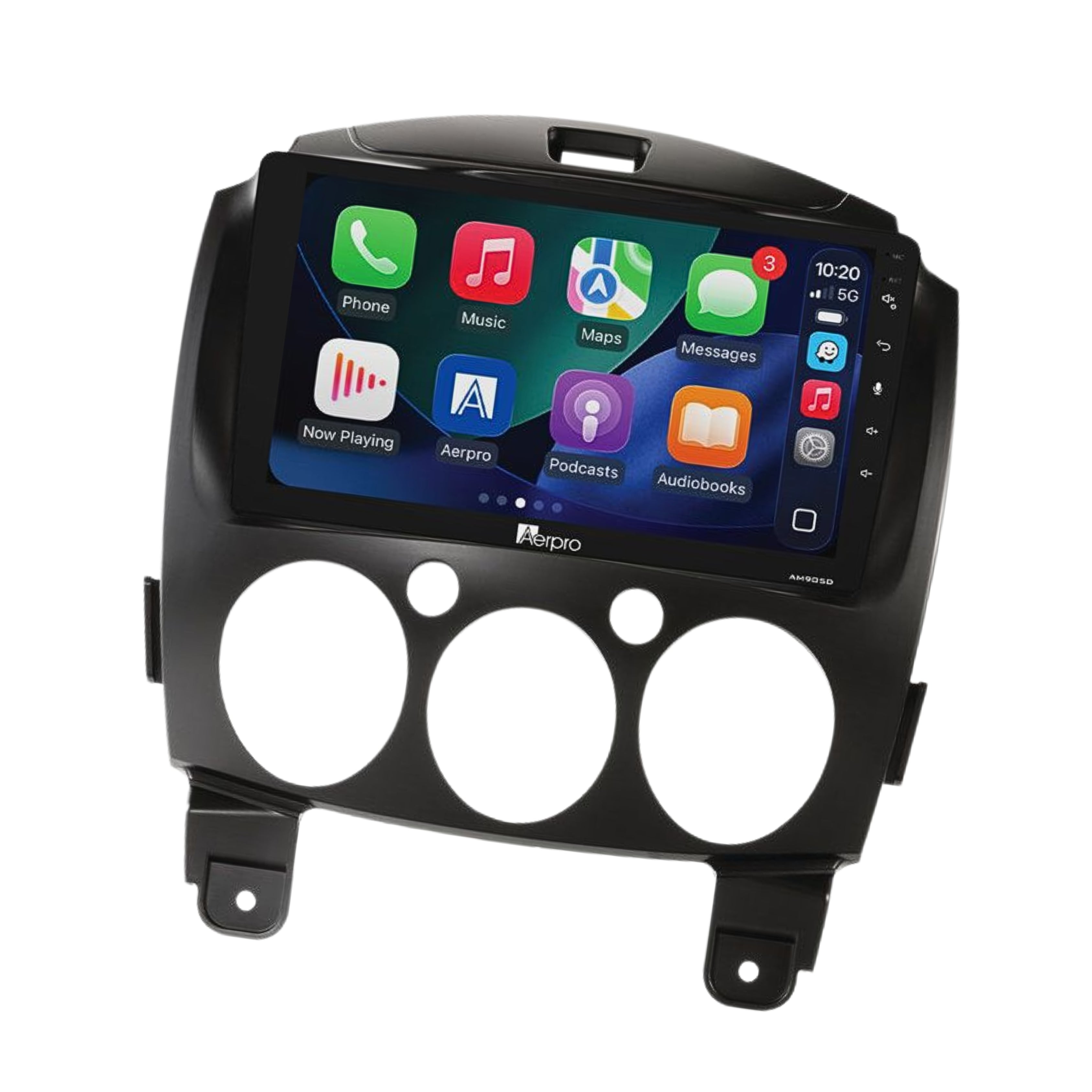

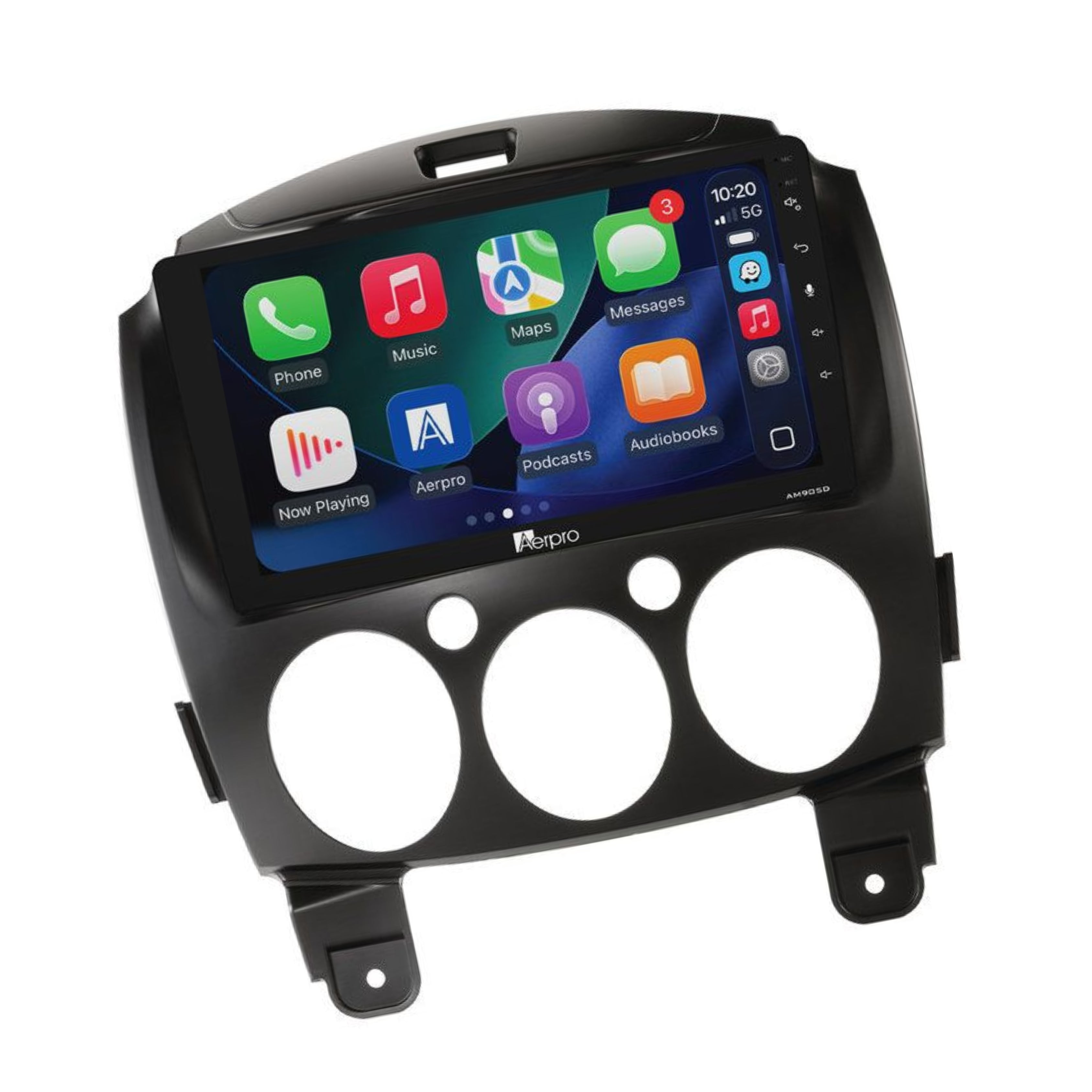

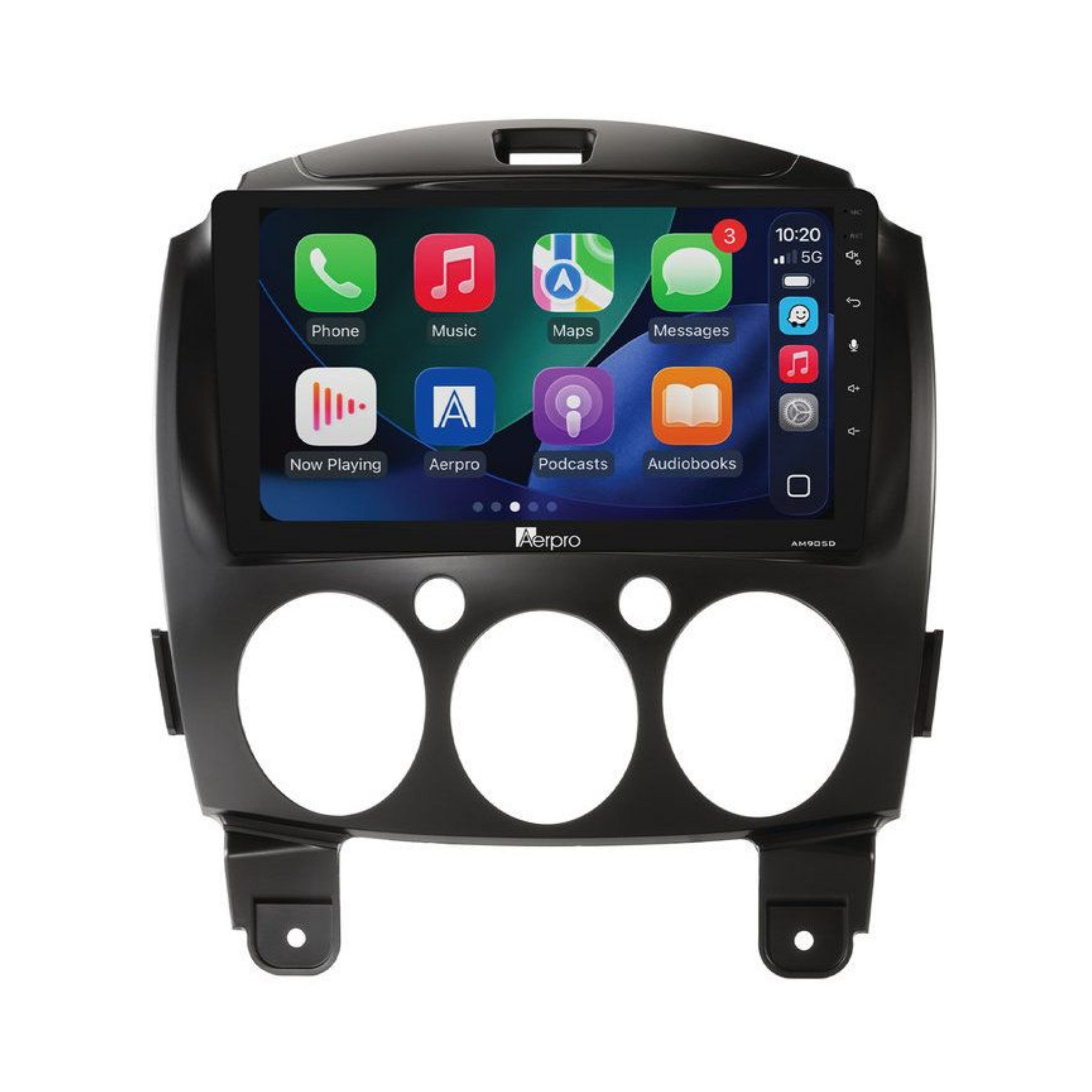

The Aerpro AMDMZ19 is a complete head unit upgrade kit specifically designed for the Mazda 2 DE Series 1 (2007–2011) without factory steering wheel controls. Everything required for installation is included the AM905D multimedia receiver, black fascia kit, harness, and a 720P AHD universal rear camera.
The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and streaming, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts for amplifier expansion.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Black Fascia Kit
- Harness
- 720P AHD Universal Rear Camera
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits no-SWC Mazda 2 DE models: Specifically designed for Mazda 2 DE Series 1 without factory steering wheel controls
-
Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen: Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
-
13-band EQ with time alignment: Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDMZ19 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC |
N/A (no SWC models) |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Weight |
3.00kg |
| Suits |
Mazda 2 DE Series 1 2007–2011 (no SWC) |
Compatible Vehicles
- Mazda 2 (Demio) 2007–2014 DE
Frequently Asked Questions
Does this kit suit Mazda 2 models with factory steering wheel controls?
No the AMDMZ19 suits Mazda 2 DE Series 1 (2007–2011) without factory SWC only. For SWC-equipped models, use the appropriate Aerpro SWC kit.
Is a rear camera included?
Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.
Does CarPlay require the park brake to be connected?
Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
Does this kit suit Mazda 2 models beyond 2011?
The Aerpro compatible vehicles list includes the Mazda 2 DE up to 2014. The title specifies Series 1 2007–2011. Always verify your exact model using the Aerpro What Fits Your Car Guide before purchasing.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
